Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

9 part groups · 4 illustrations

Illustrations

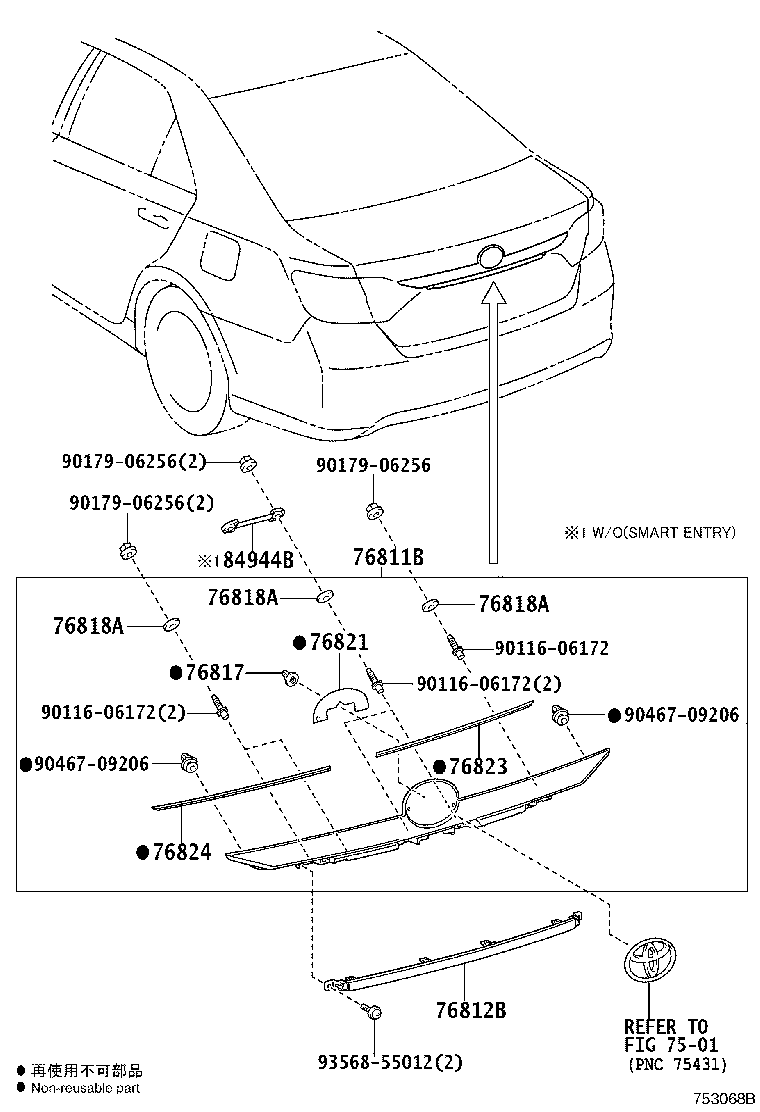

Figure 752472C 752472C 2011-08 → 2014-09 Figure 752472C 752472C 2011-11 → 2014-11 Figure 753068B 753068B 2014-09 → — Figure 753068B 753068B 2014-11 → —

Part groups

PNCDescription
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76811B Garnish, Luggage Compartment Door, Outside
76812B Garnish, Luggage Compartment Door, Outside NO.2
76817 Clip, Back Door Outside Garnish
76818A Pad, Luggage Garnish, NO.1
76821 Protector, Back Door Garnish Moulding, Upper
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
84944B Cover, Luggage Electrical Key Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
