Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

19 part groups · 14 illustrations

Illustrations

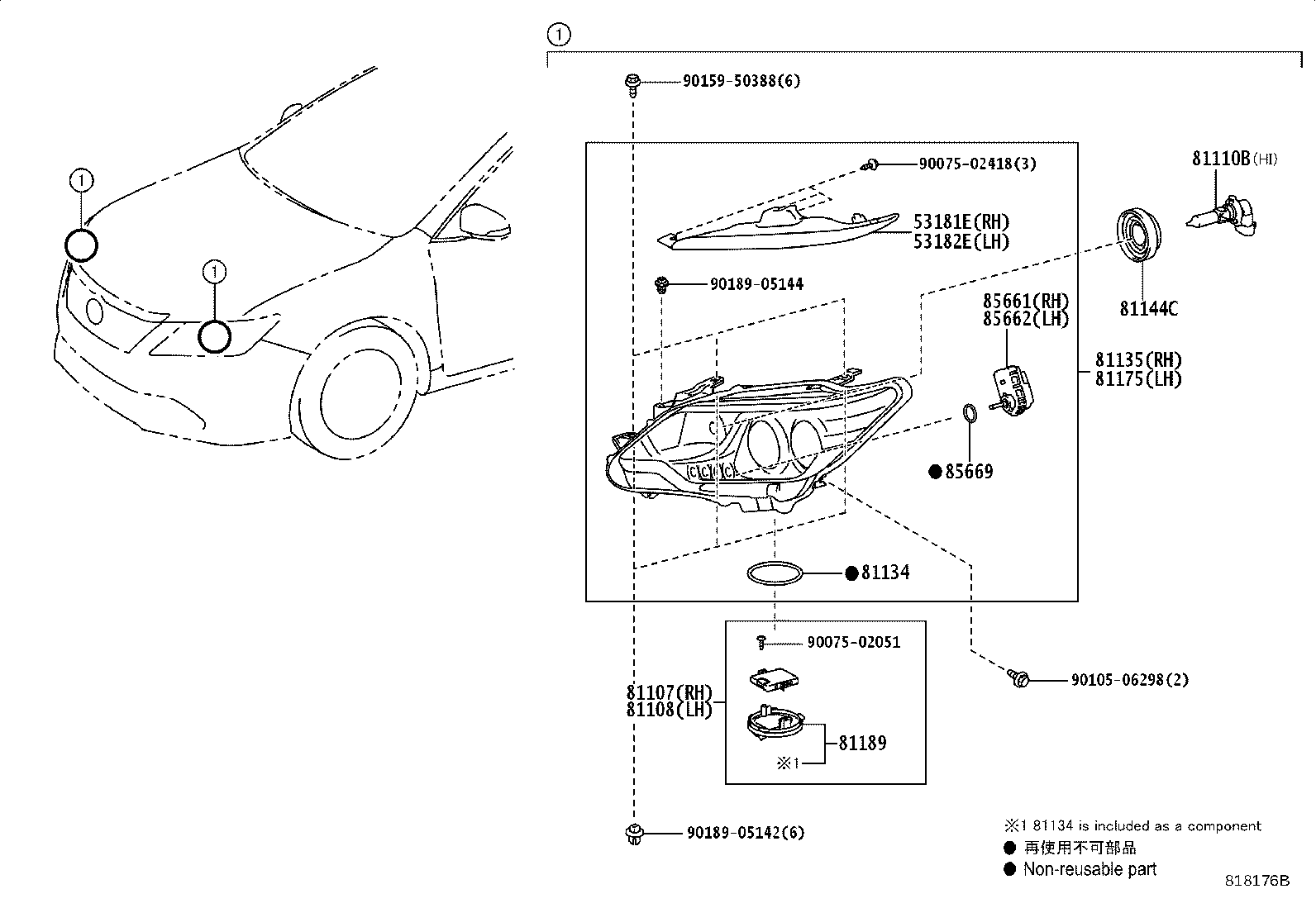

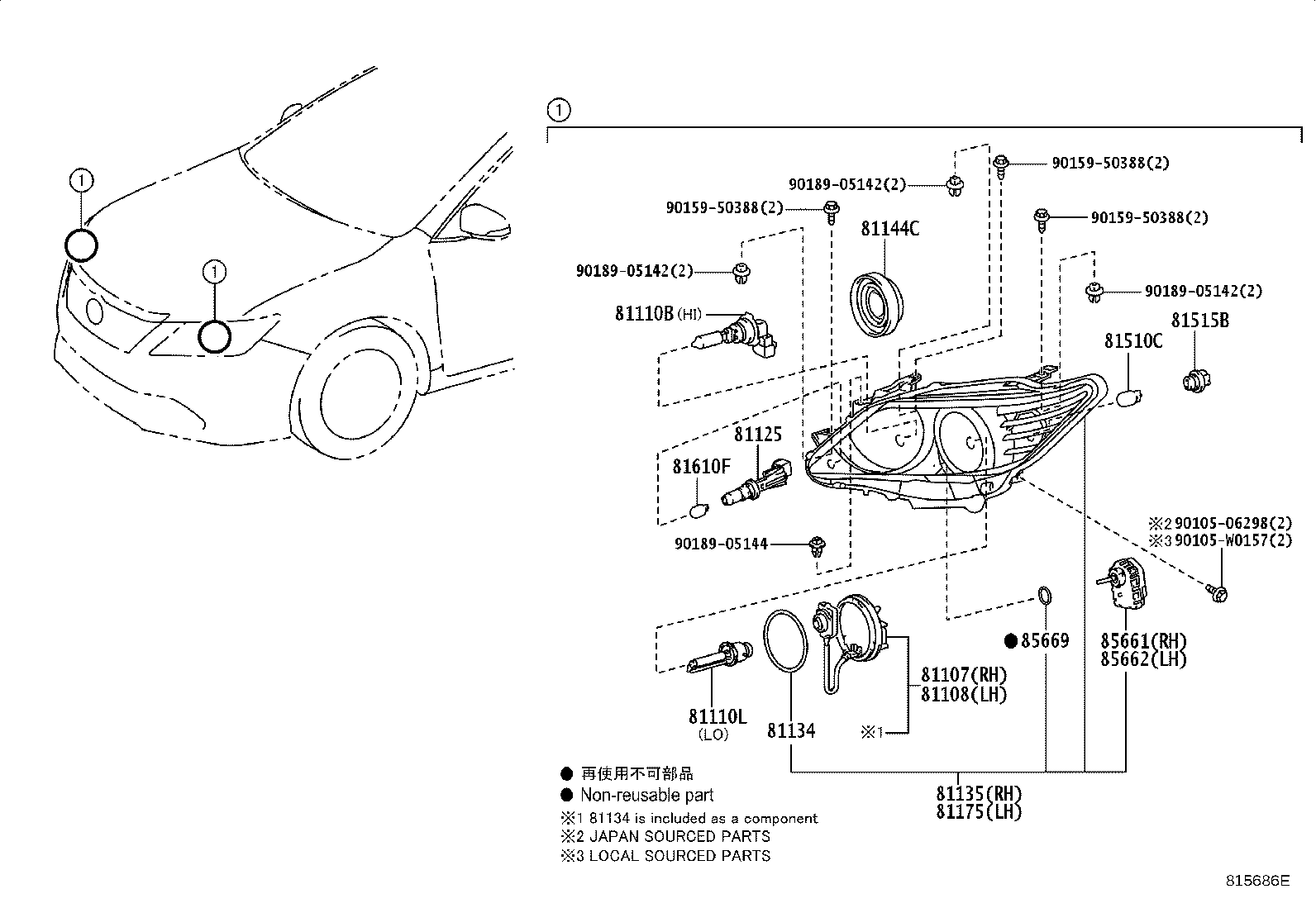

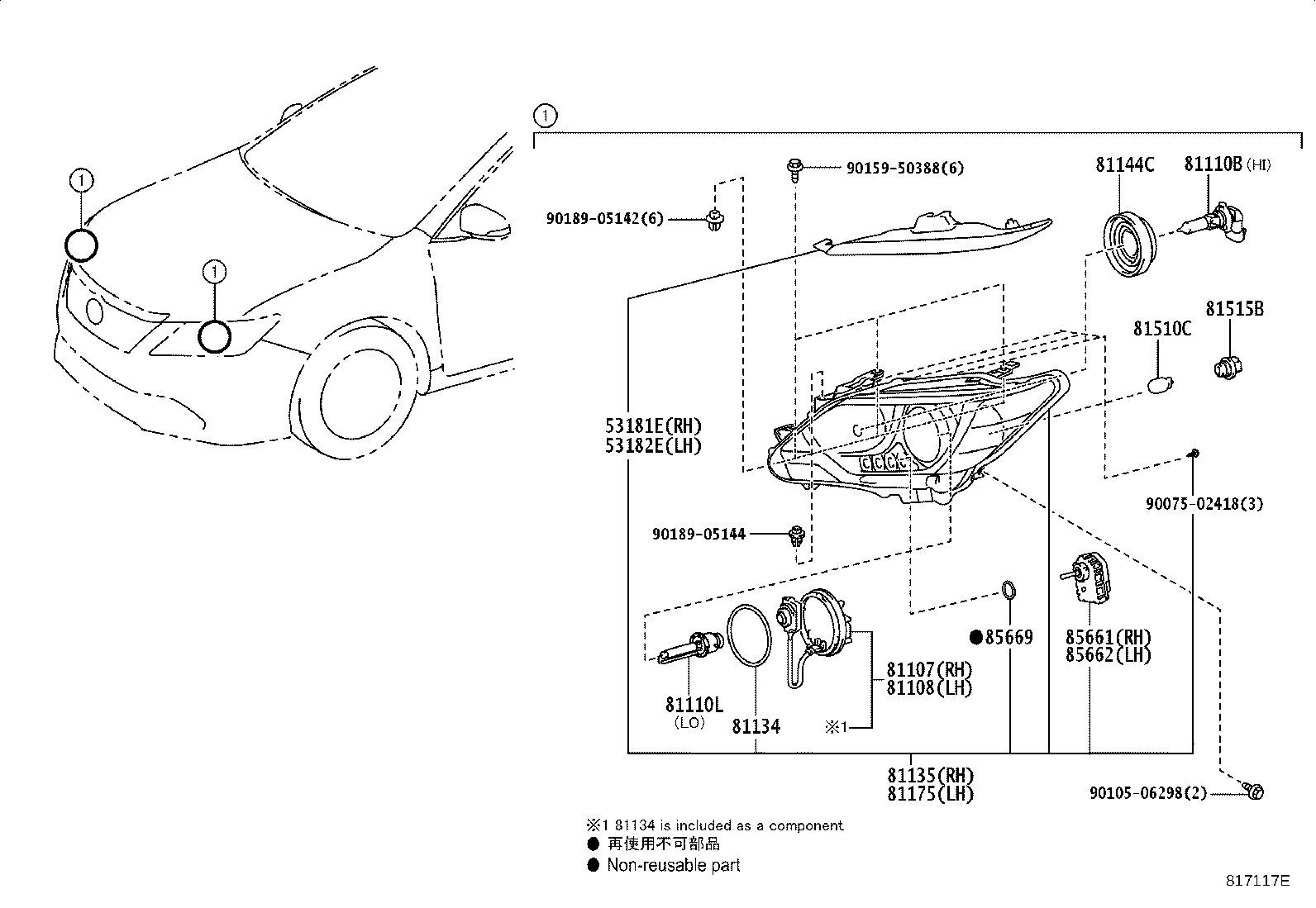

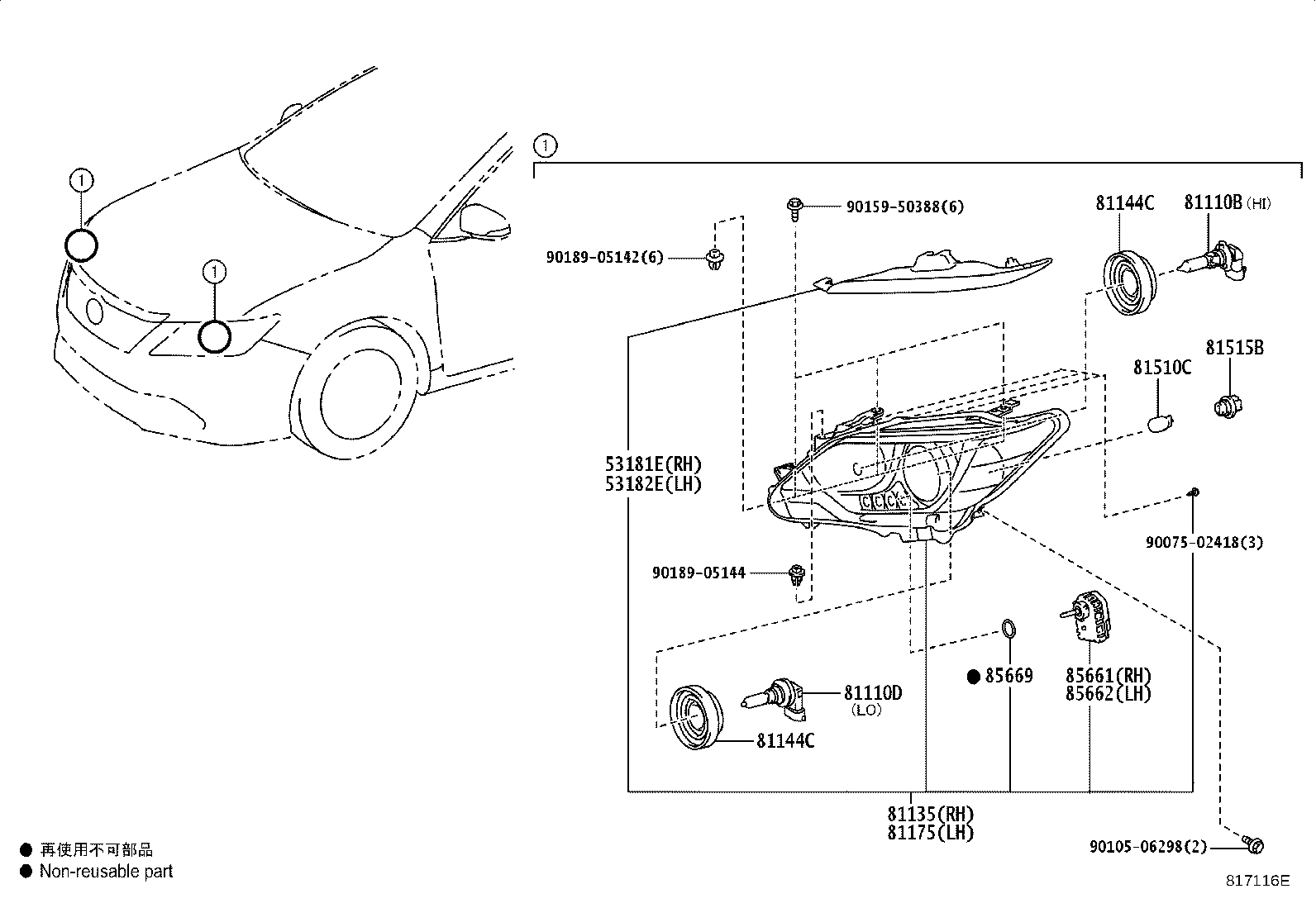

Figure 815685E 815685E 2011-08 → 2012-09 Figure 815685E 815685E 2011-08 → 2014-09 Figure 815685E 815685E 2011-11 → 2014-11 Figure 815686E 815686E 2011-08 → 2014-09 Figure 815686E 815686E 2011-11 → 2014-11 Figure 815686E 815686E 2012-09 → 2014-09 Figure 815687E 815687E 2011-08 → 2014-09 Figure 817116E 817116E 2014-09 → — Figure 817116E 817116E 2014-11 → — Figure 817117E 817117E 2014-09 → — Figure 817117E 817117E 2014-11 → 2017-04 Figure 817118E 817118E 2014-09 → — Figure 817118E 817118E 2014-11 → 2017-04 Figure 818176B 818176B 2017-04 → —

Part groups

PNCDescription
53181E Cover, Headlamp, RH
53182E Cover, Headlamp, LH
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81144C Cover, Headlamp Socket
81175 Unit Assy, Headlamp, LH
81189 Cover, Headlamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
