Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

17 part groups · 7 illustrations

Illustrations

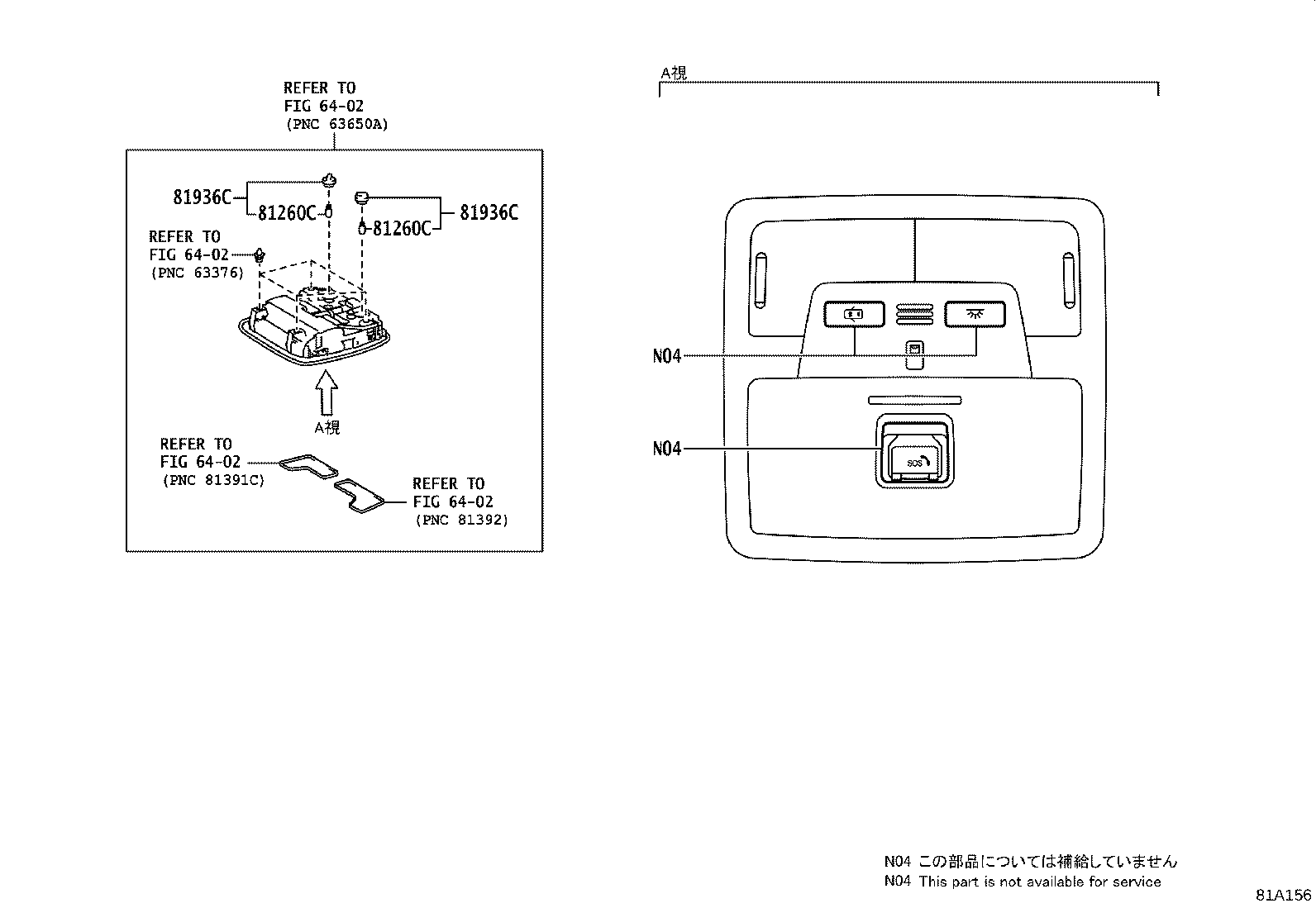

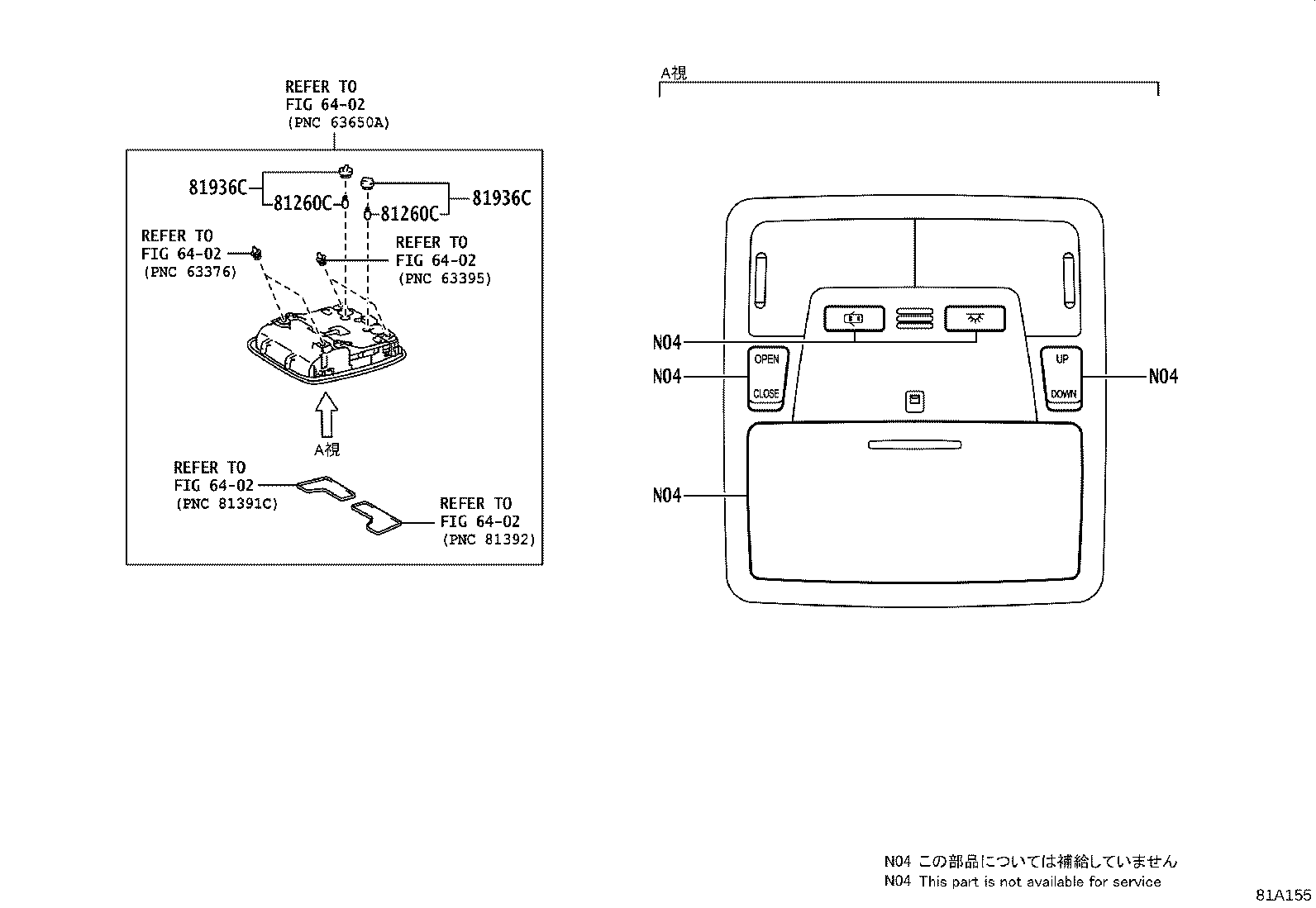

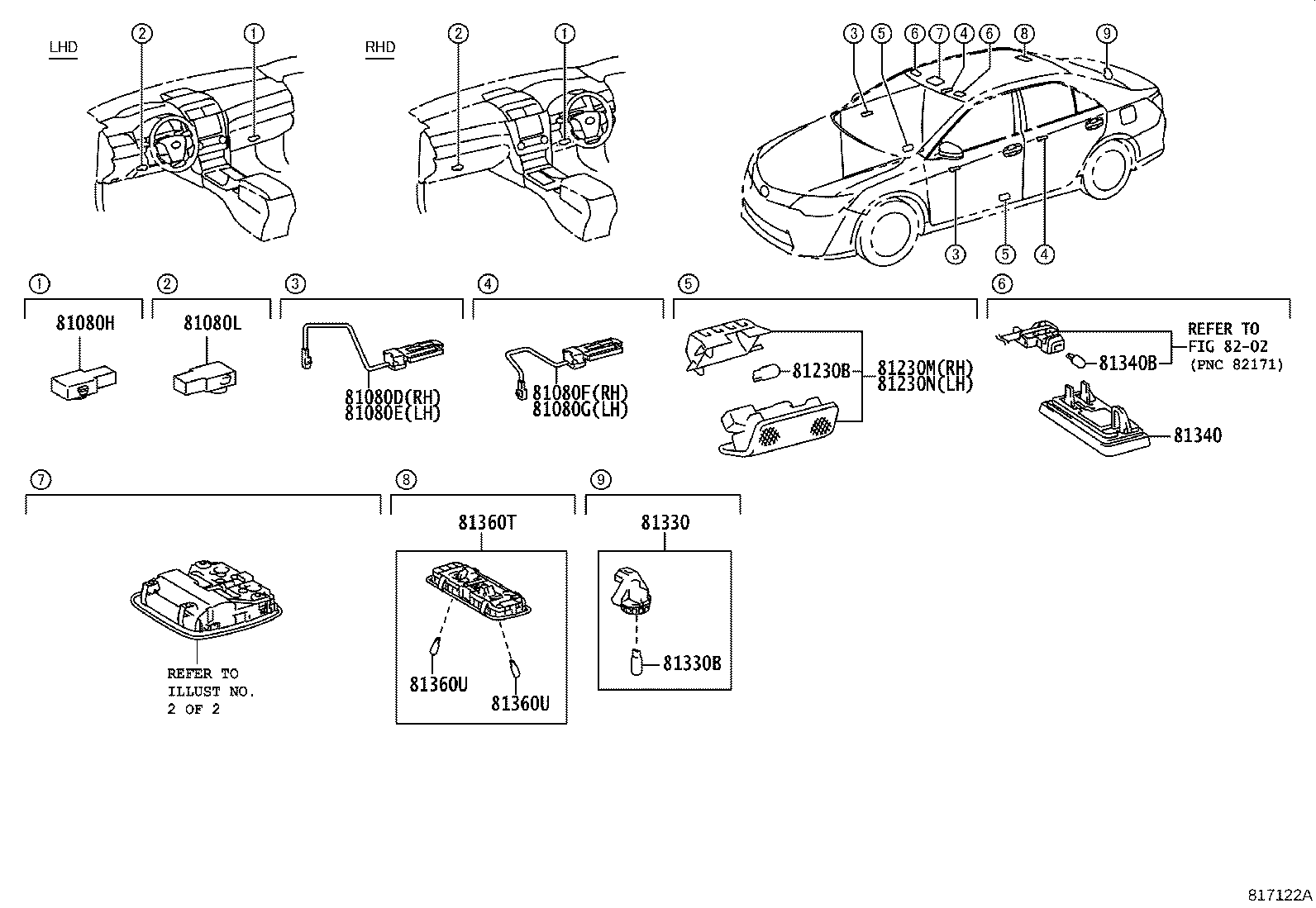

Figure 815696B 815696B 2011-08 → 2014-09 Figure 815696B 815696B 2011-11 → 2014-11 Figure 817122A 817122A 2014-09 → — Figure 817122A 817122A 2014-11 → — Figure 81A154 81A154 2011-08 → — Figure 81A155 81A155 2011-08 → — Figure 81A156 81A156 2016-12 → —

Part groups

PNCDescription
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080L Lamp Assy, Interior Illumination, NO.1 LH
81230B Bulb(FOR COURTESY LAMP)
81230M Lamp Assy, Courtesy, RH
81230N Lamp Assy, Courtesy, LH
81260C Bulb(FOR MAP LAMP)
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
81360U Bulb, Spot Lamp
81936C Bulb Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
