Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

142 part groups · 42 illustrations

Illustrations

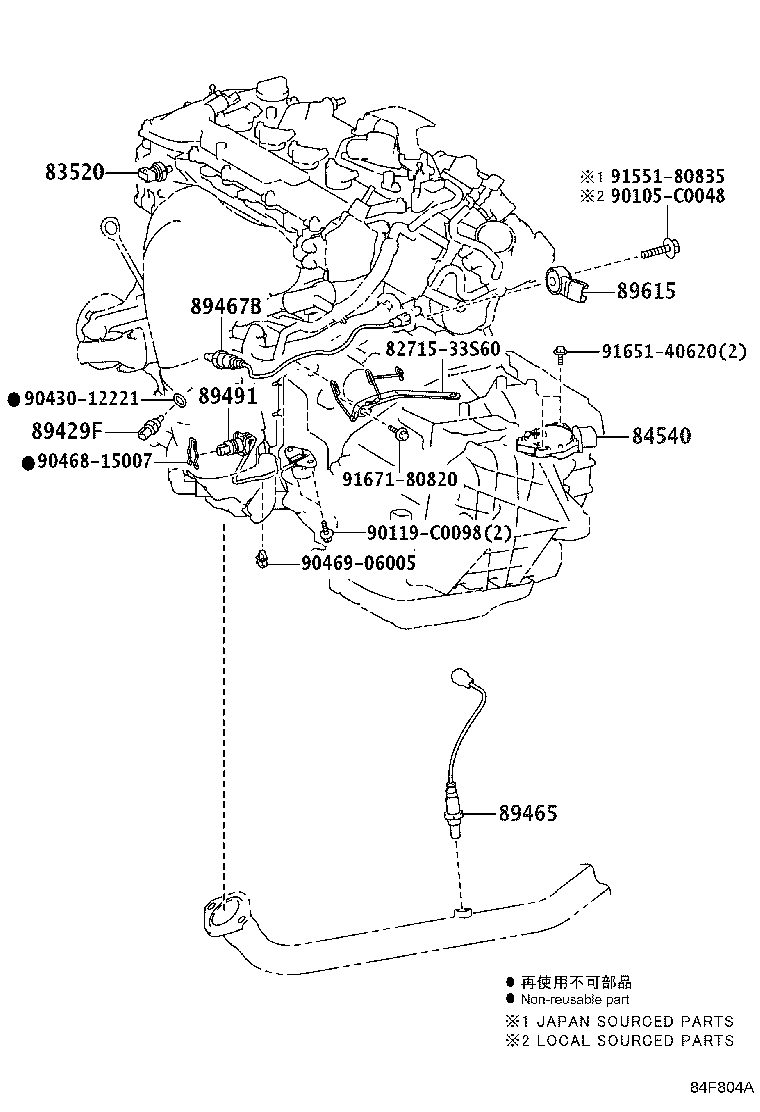

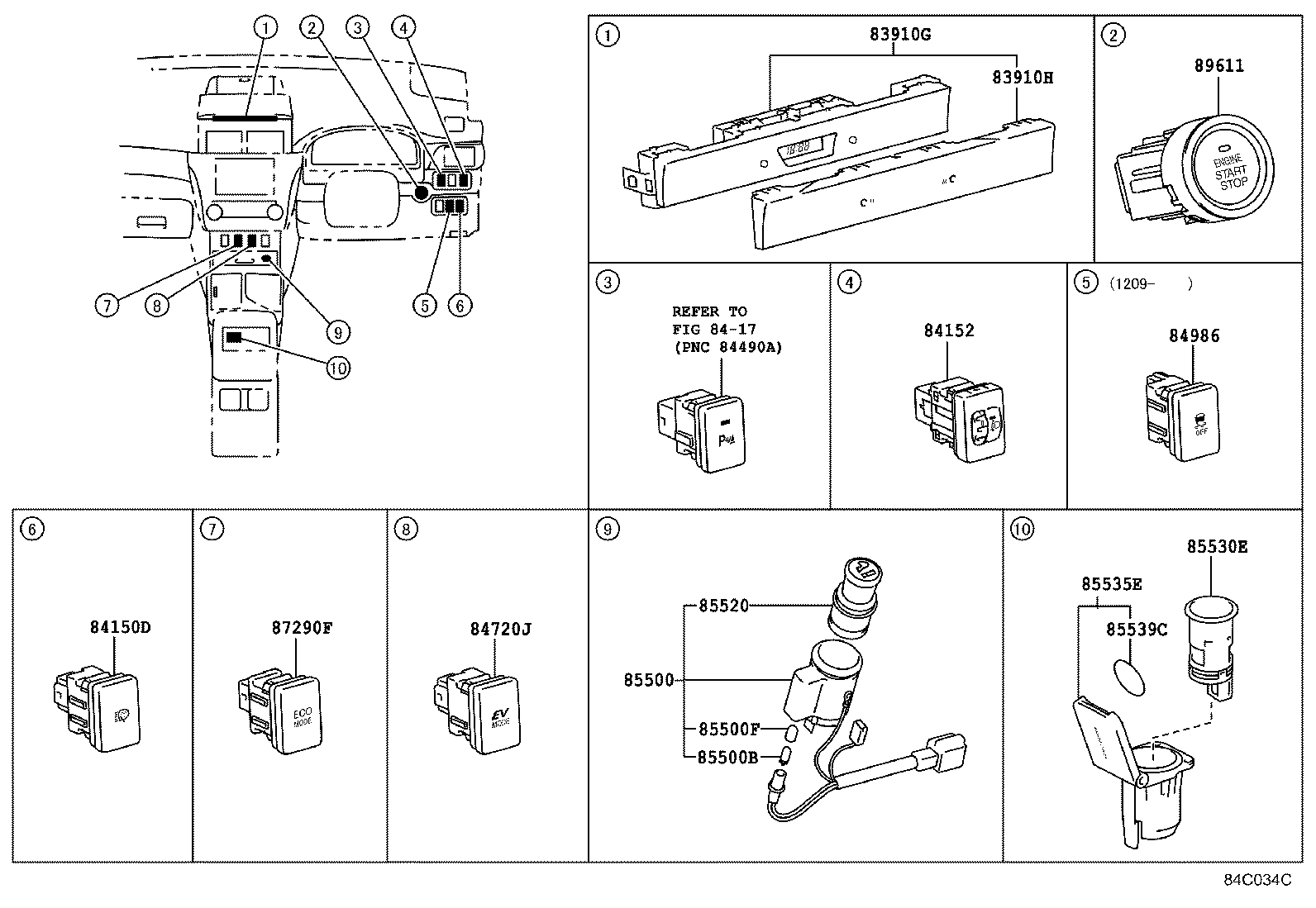

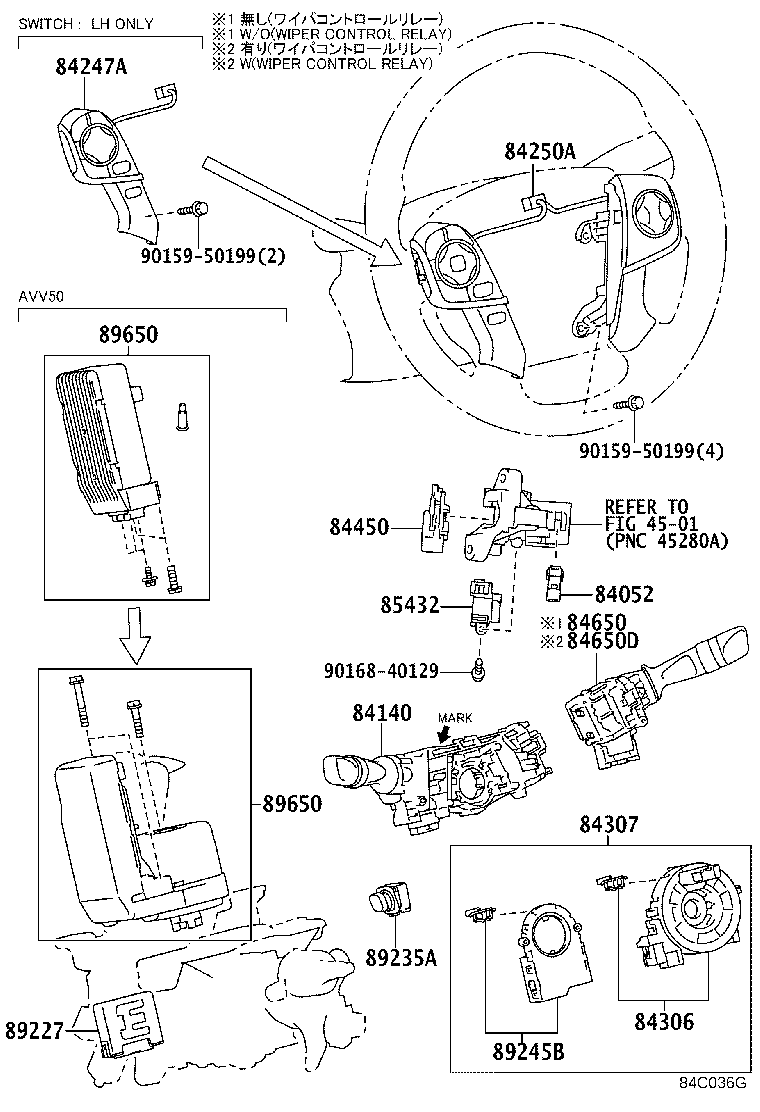

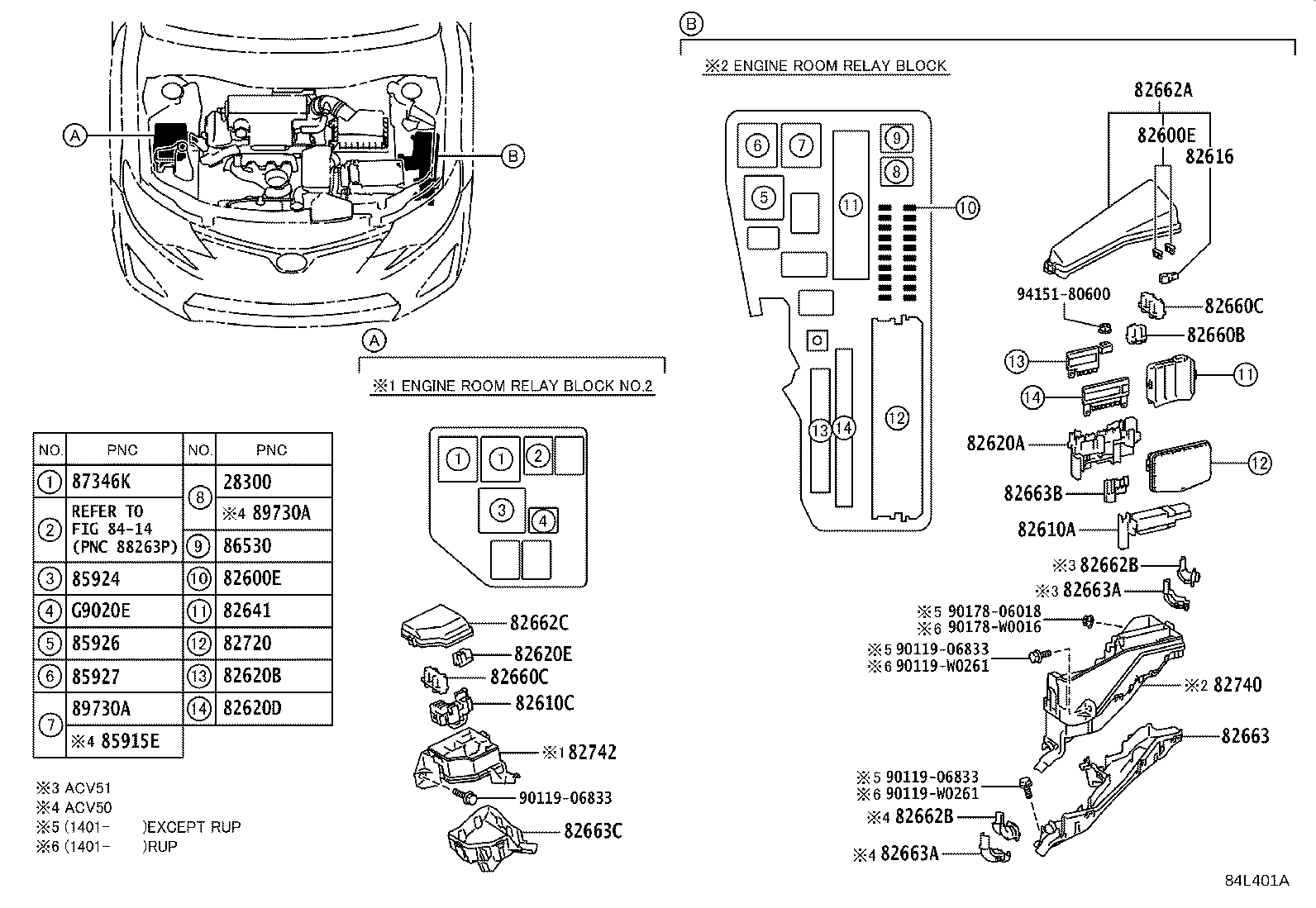

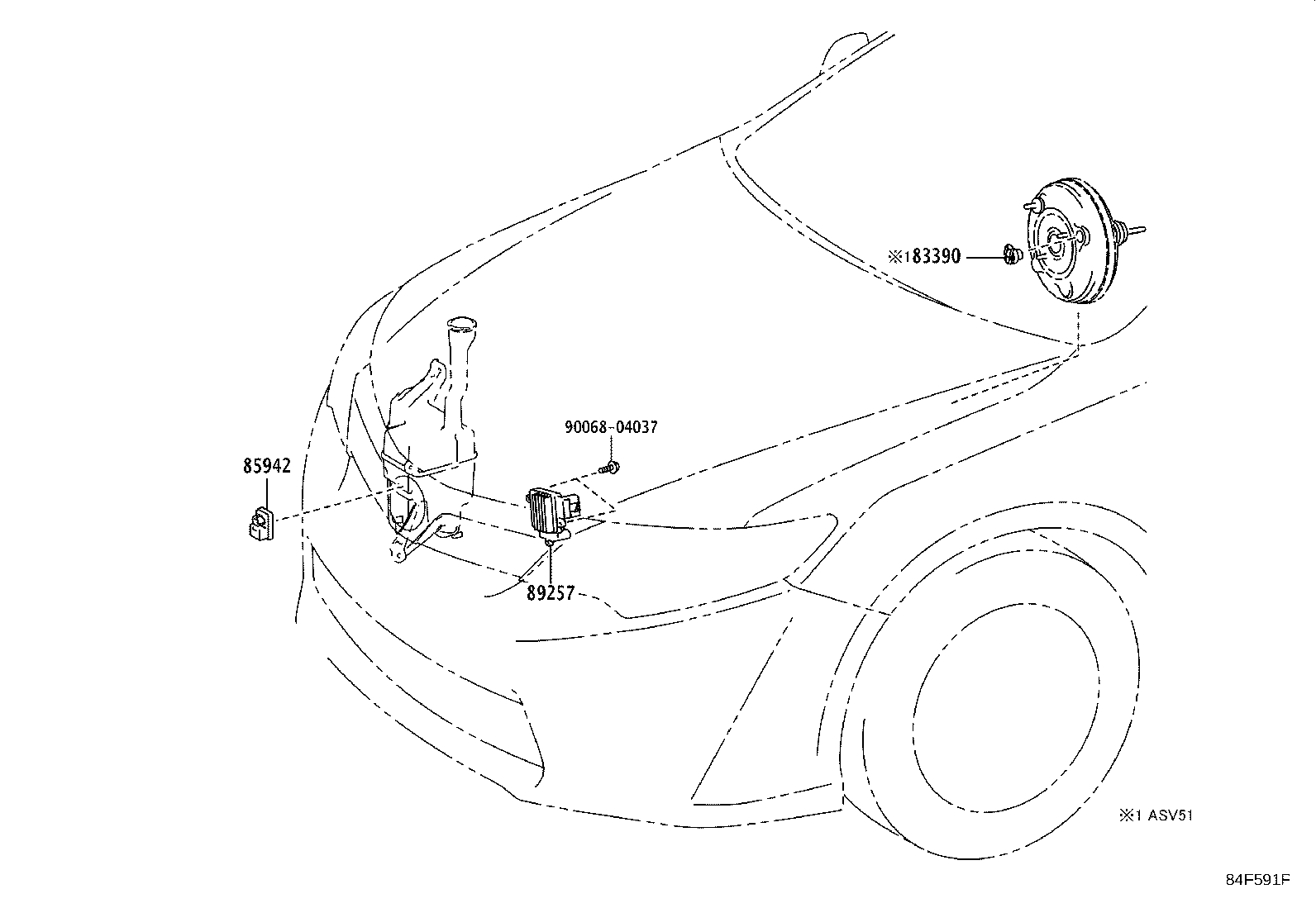

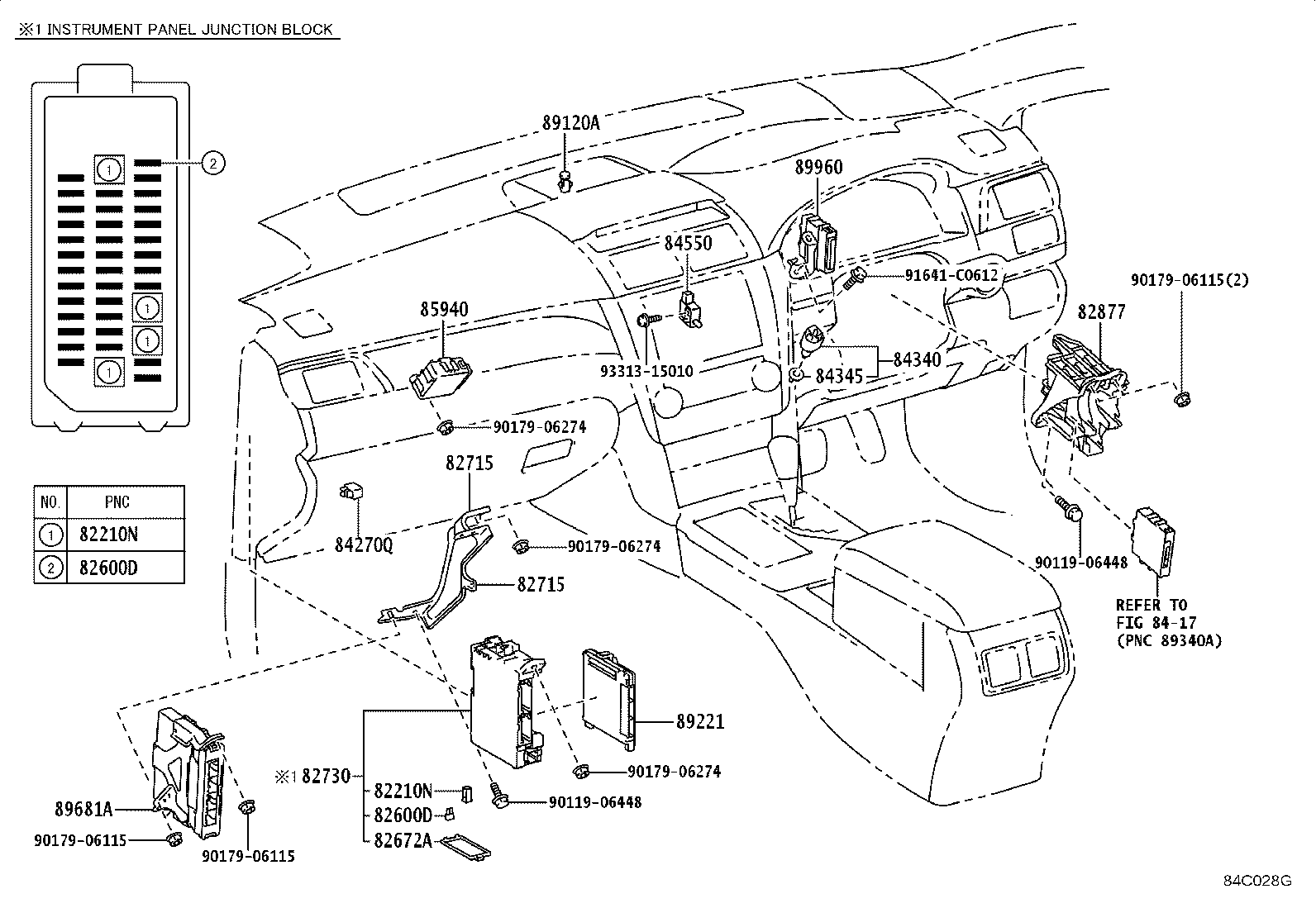

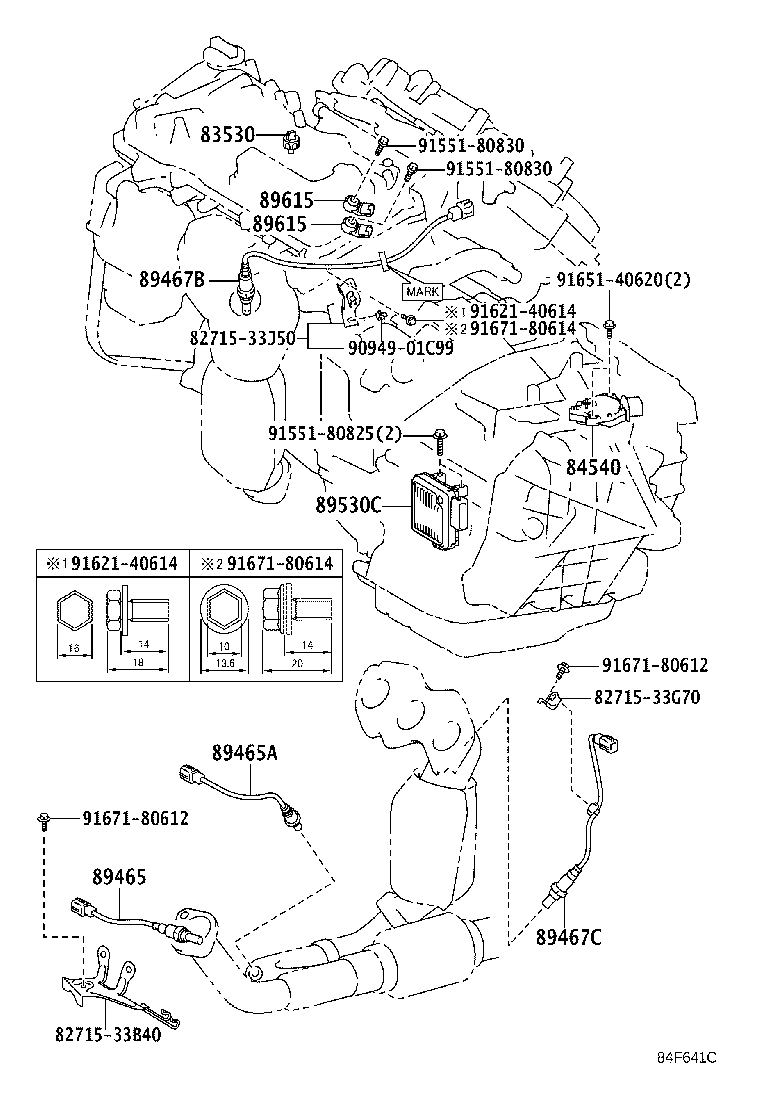

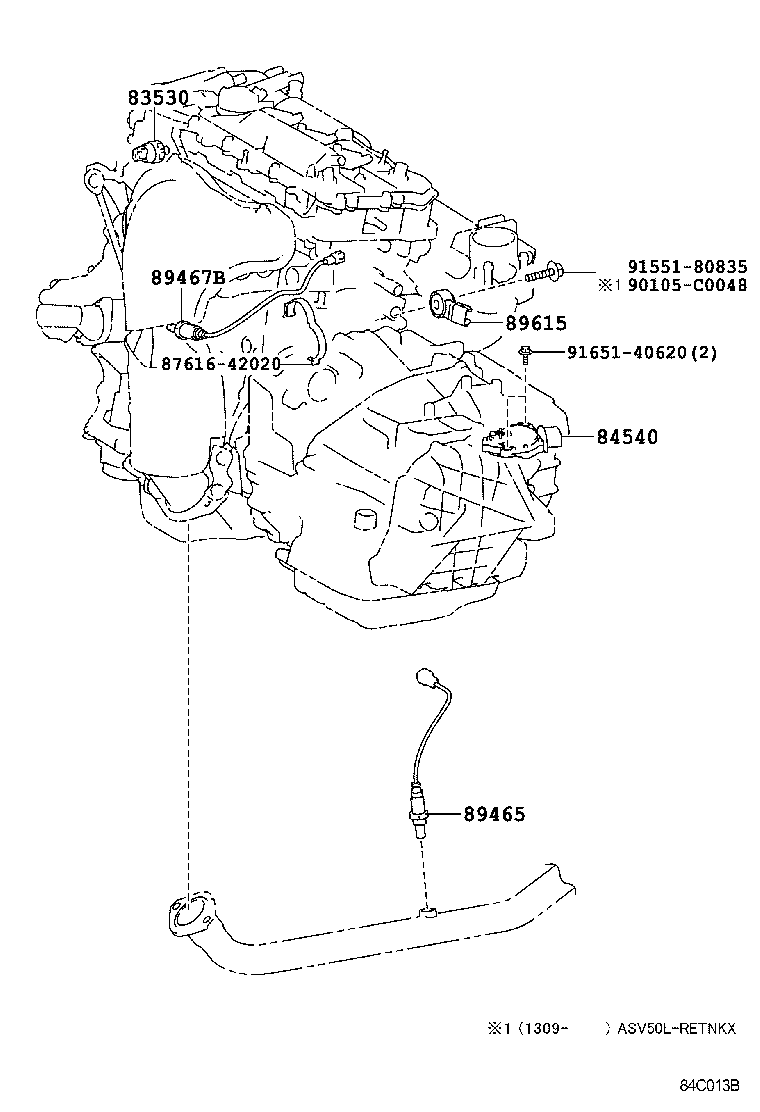

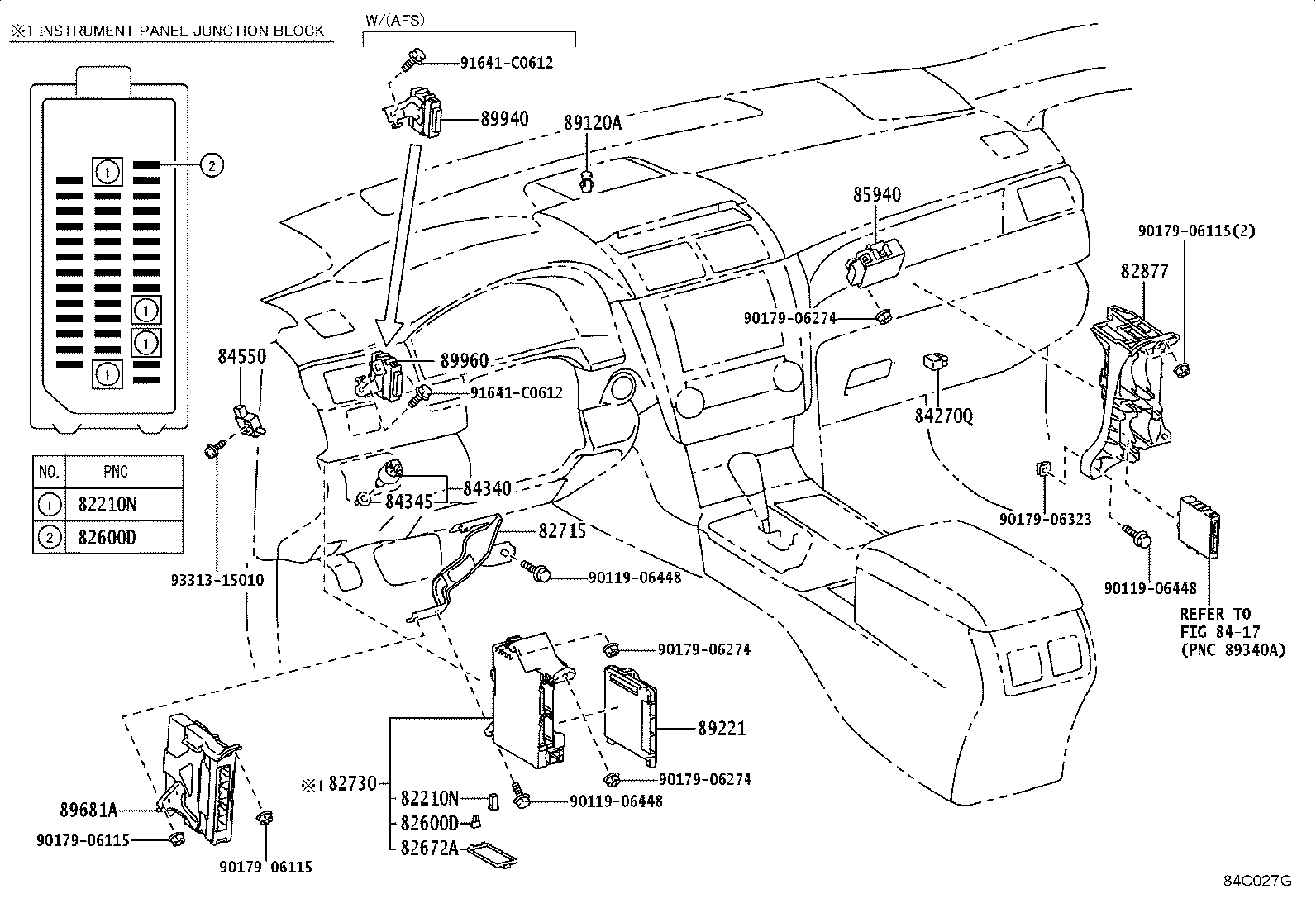

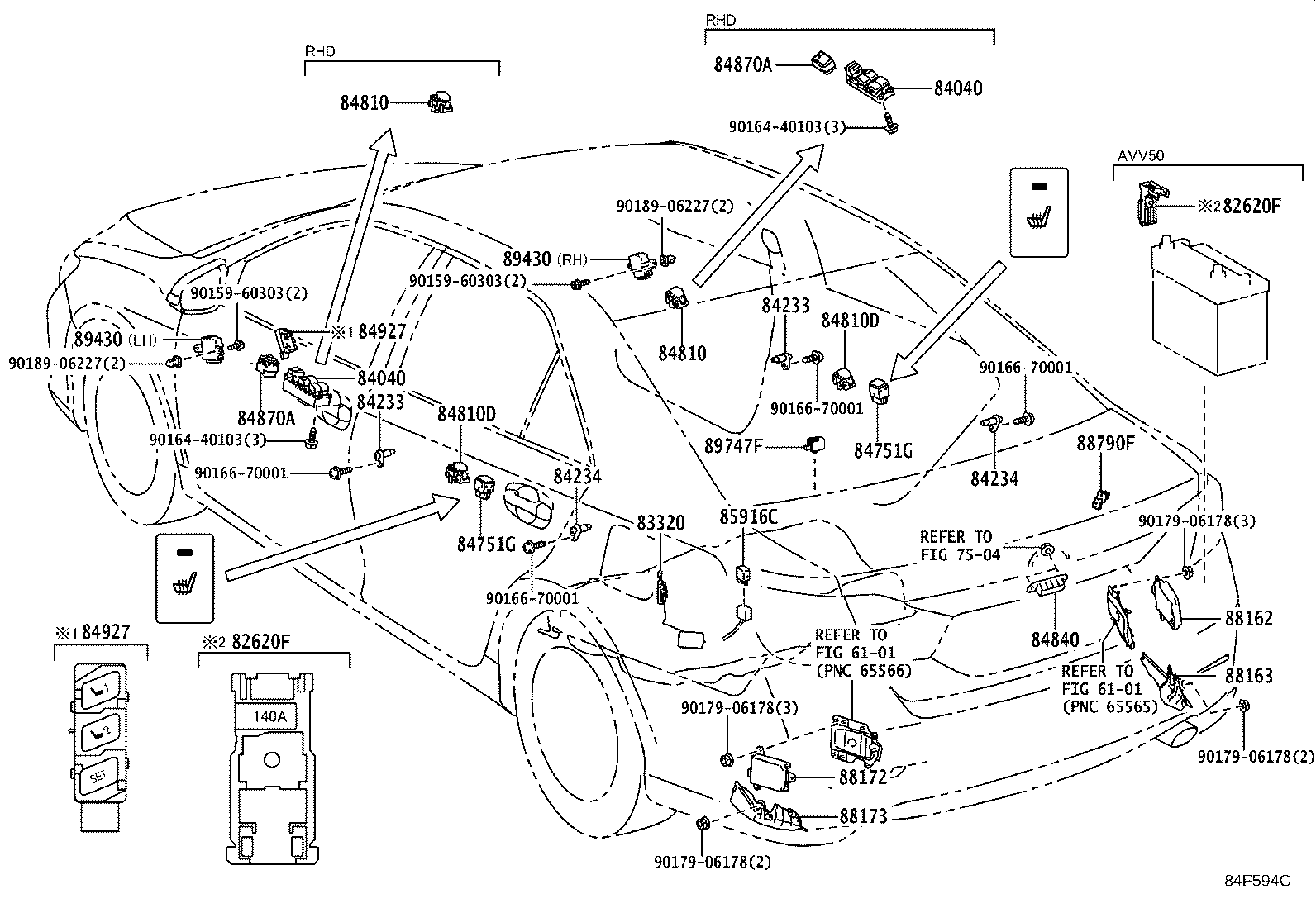

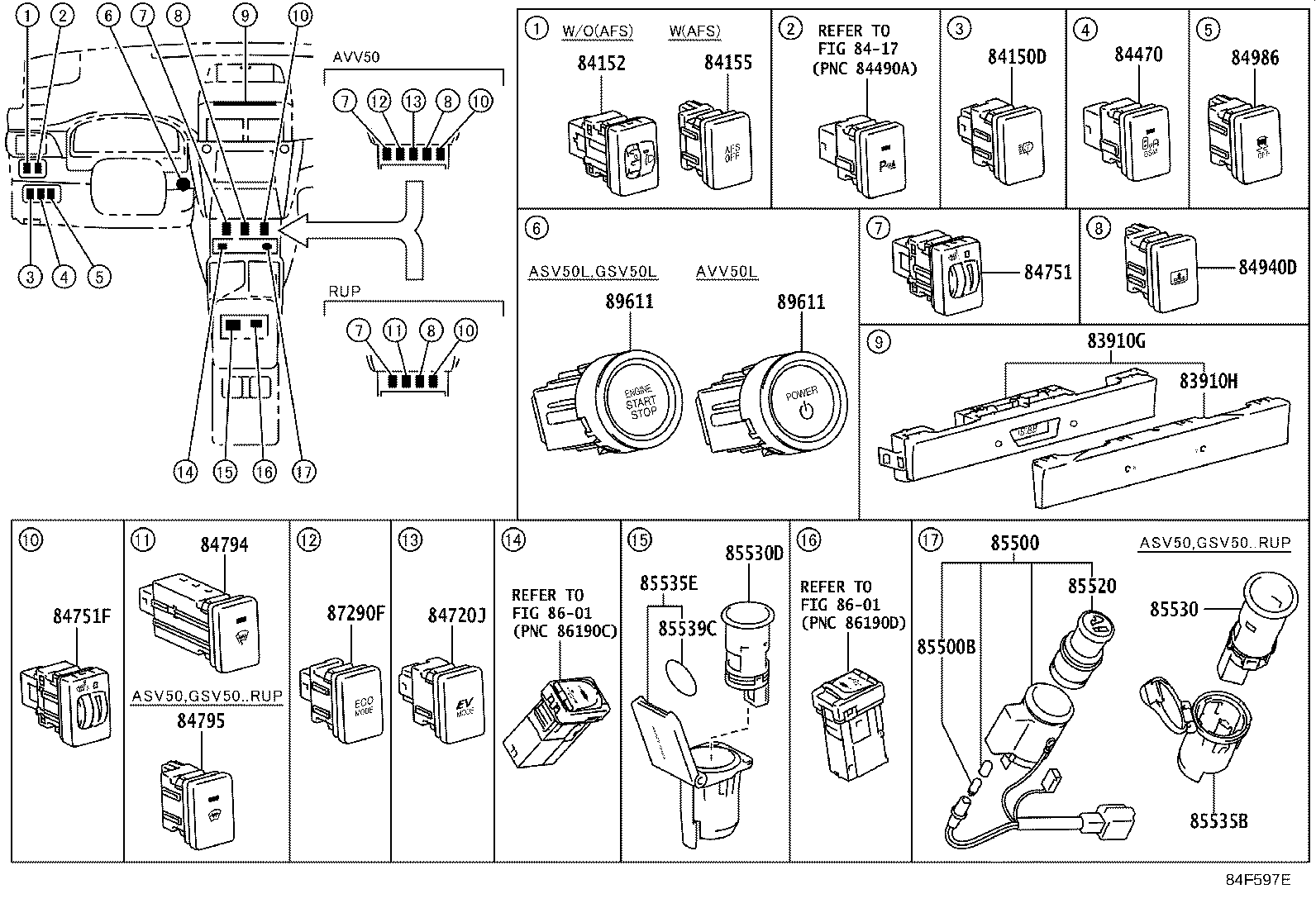

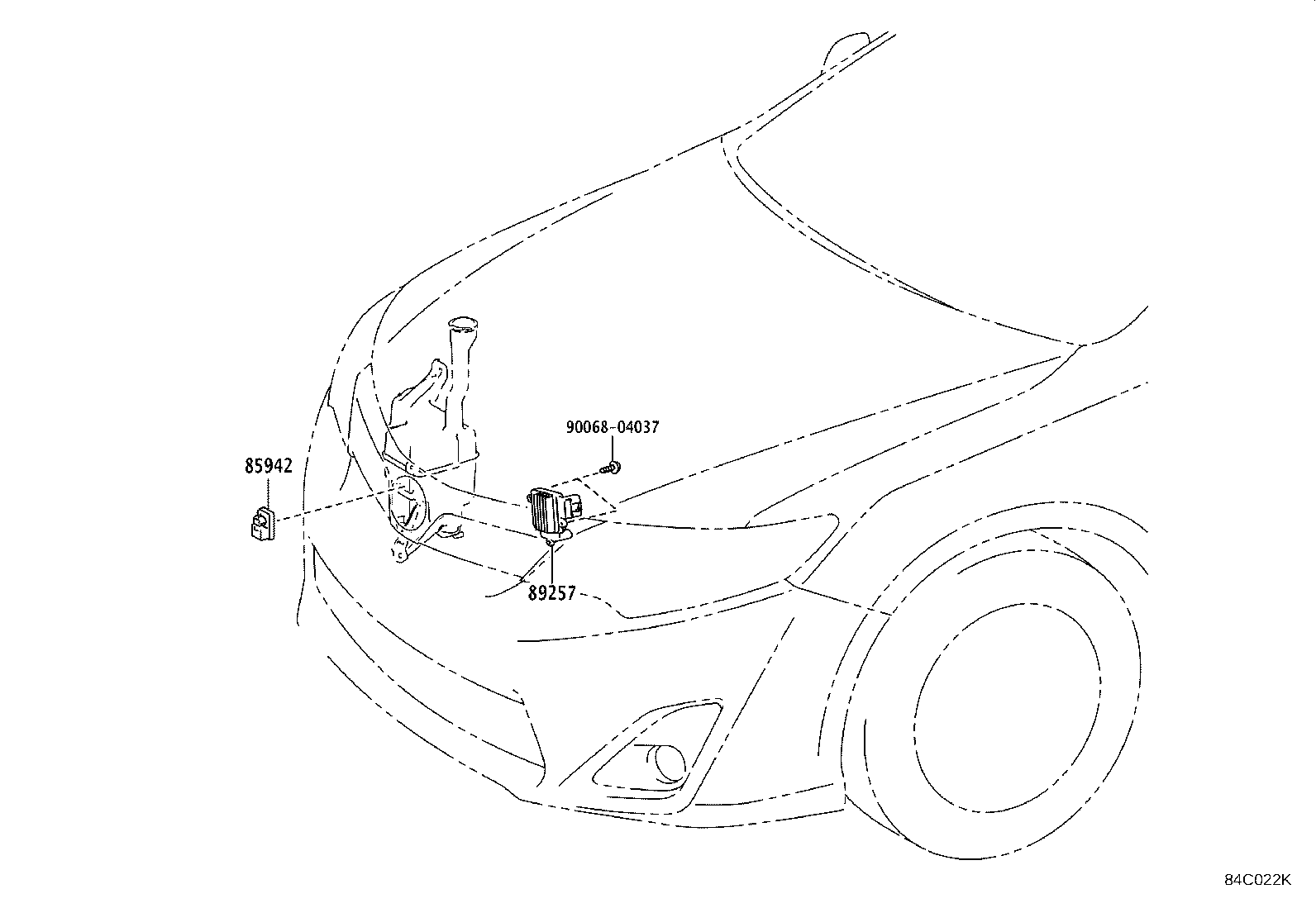

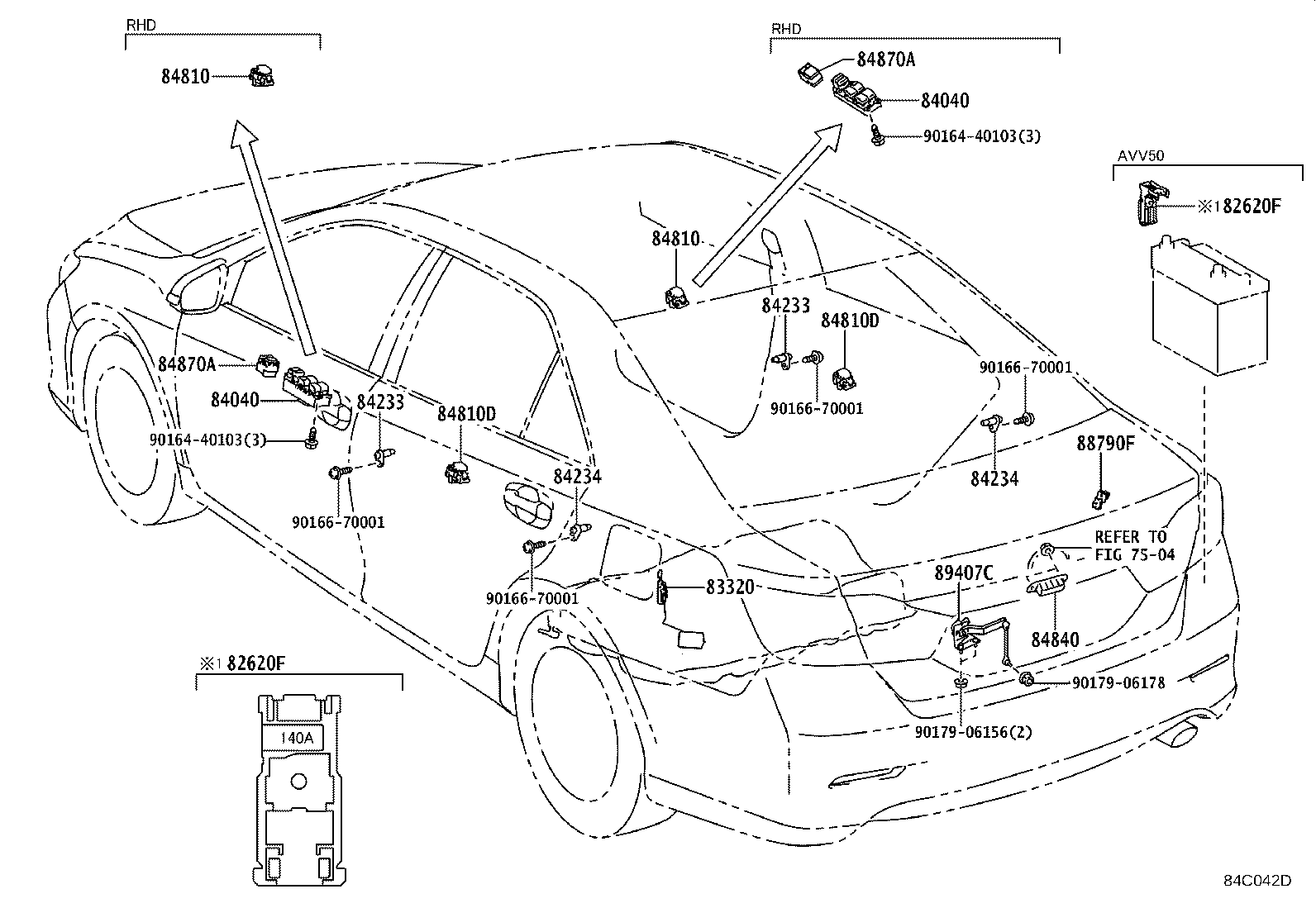

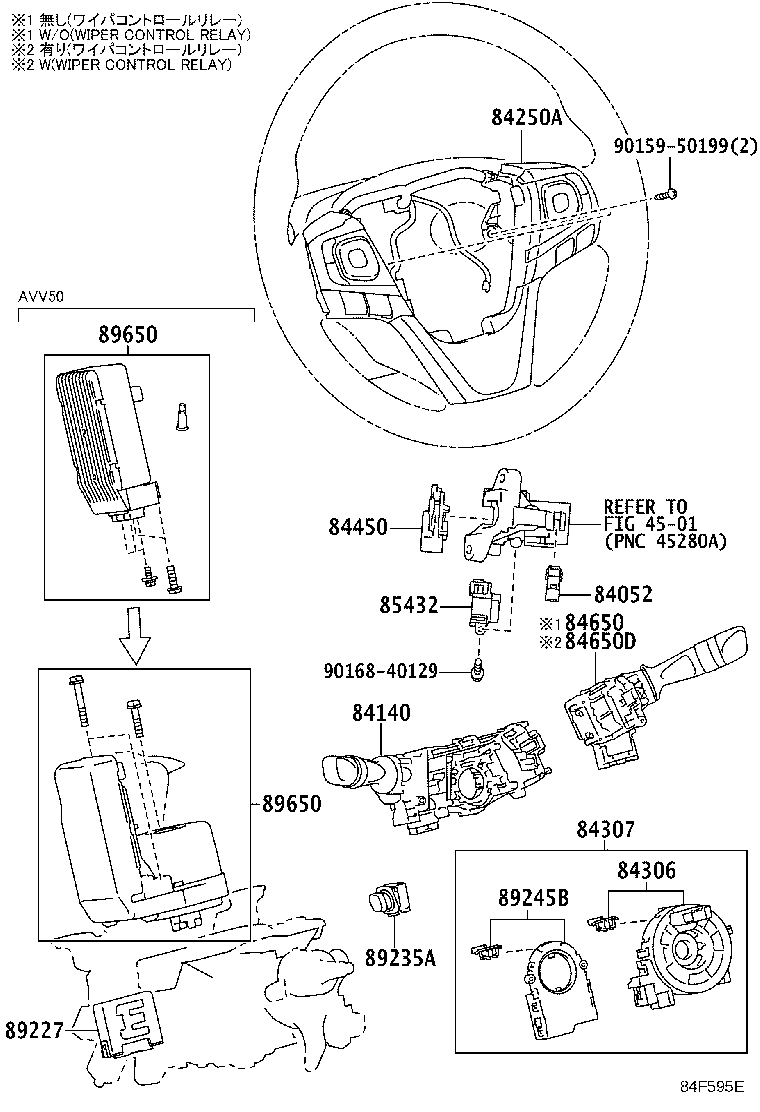

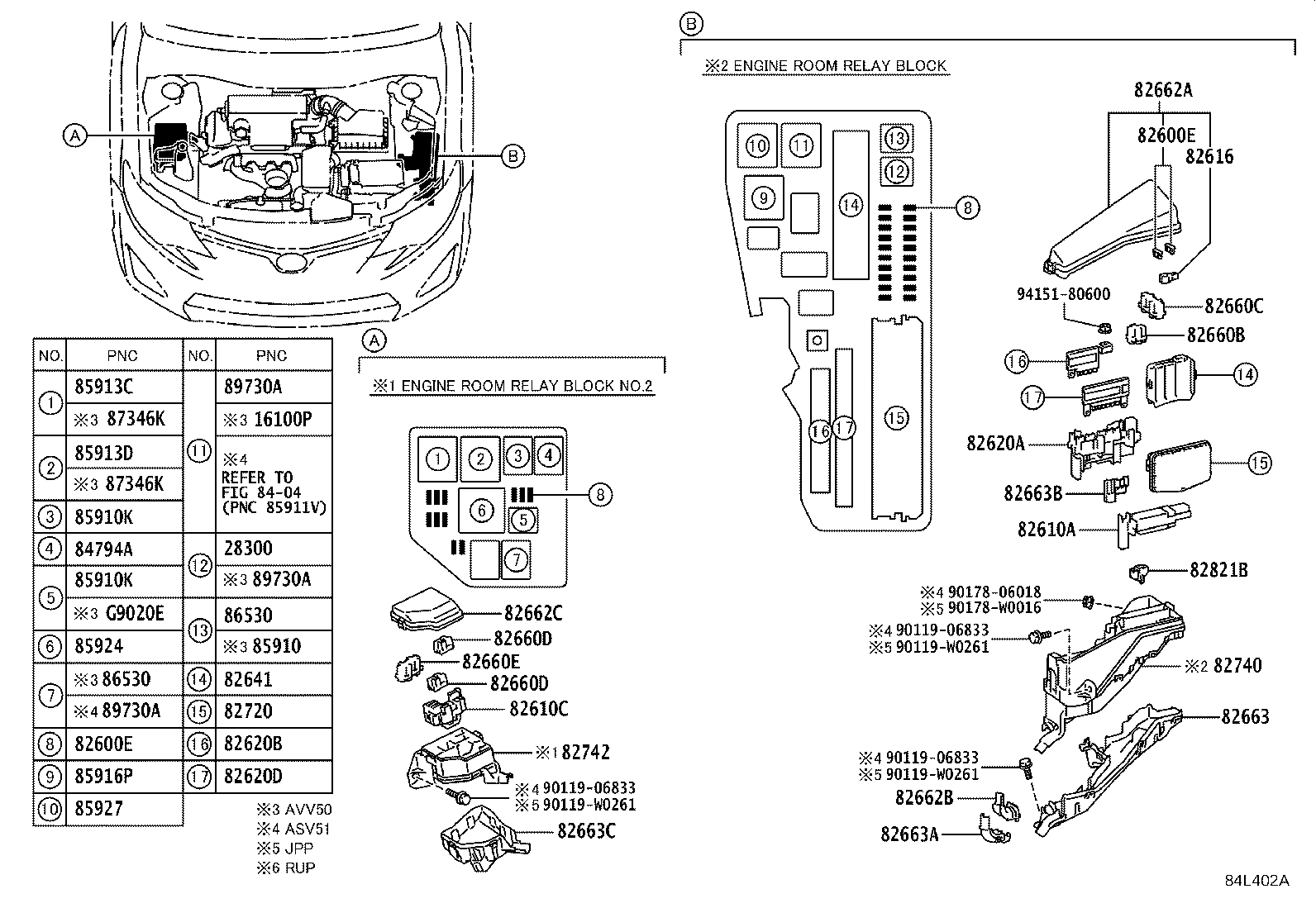

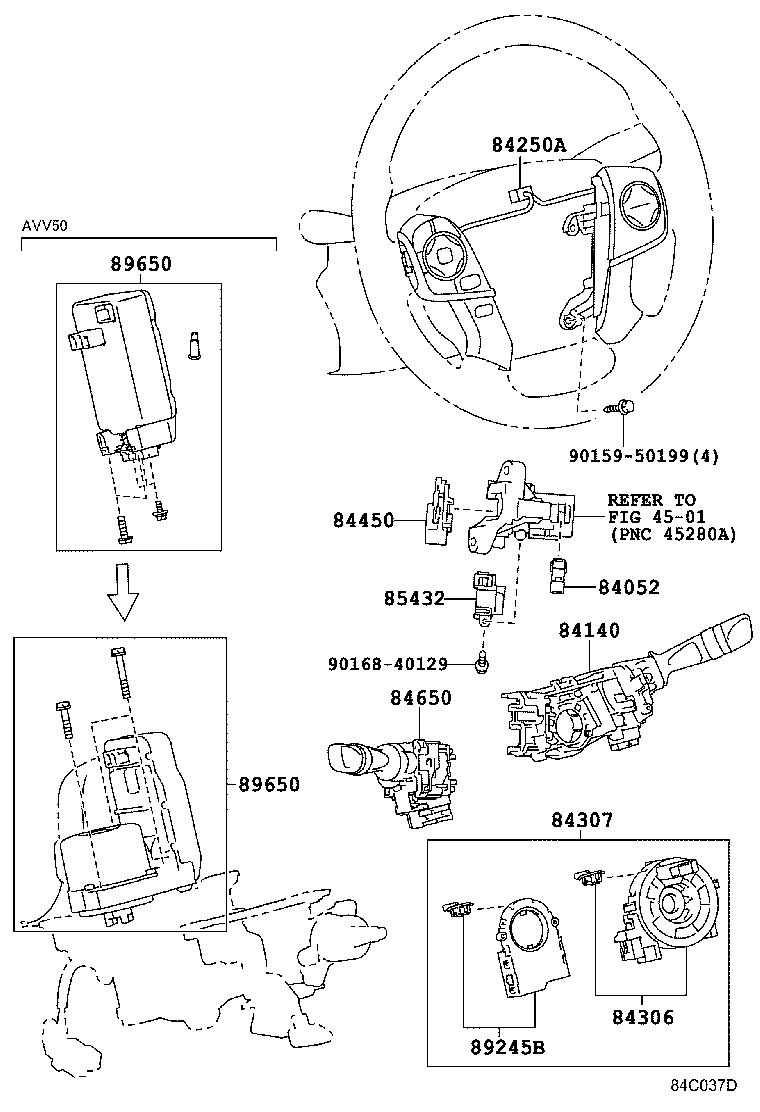

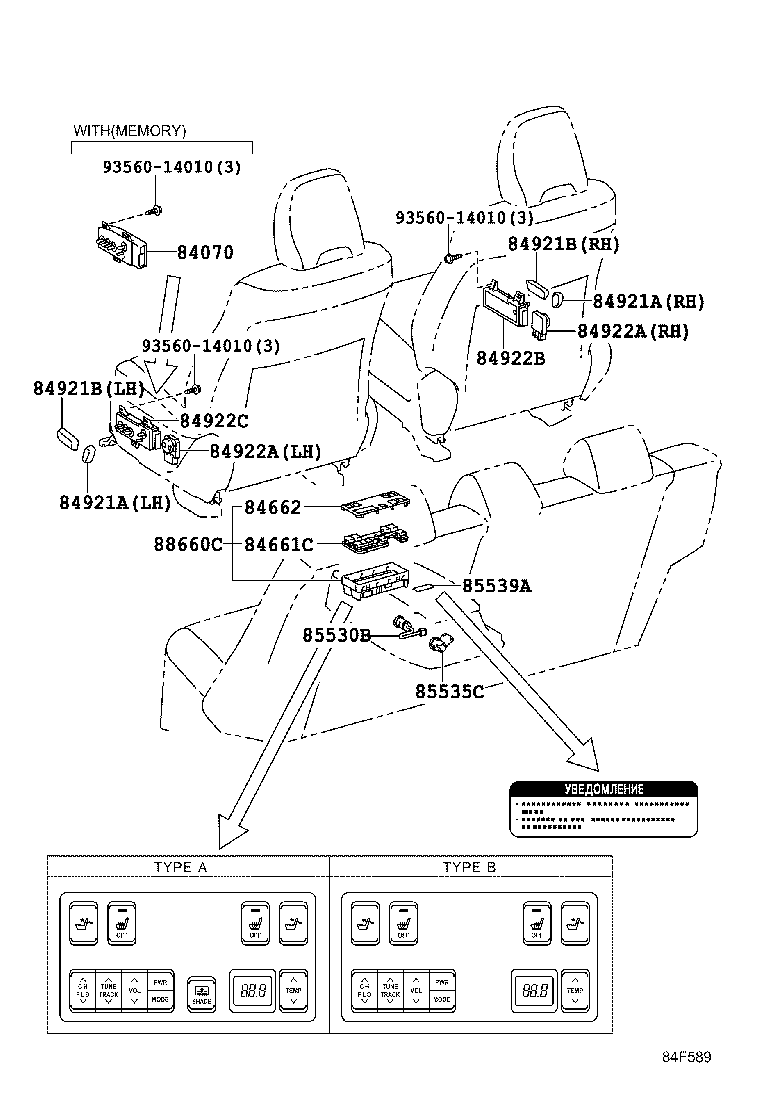

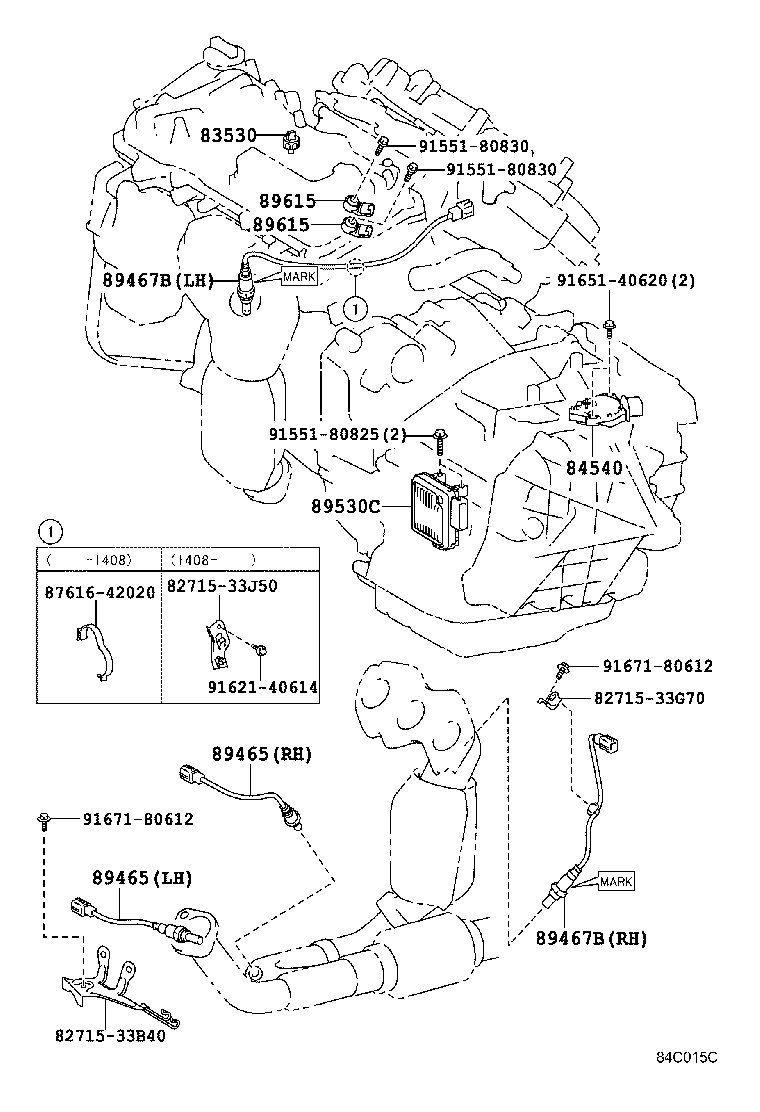

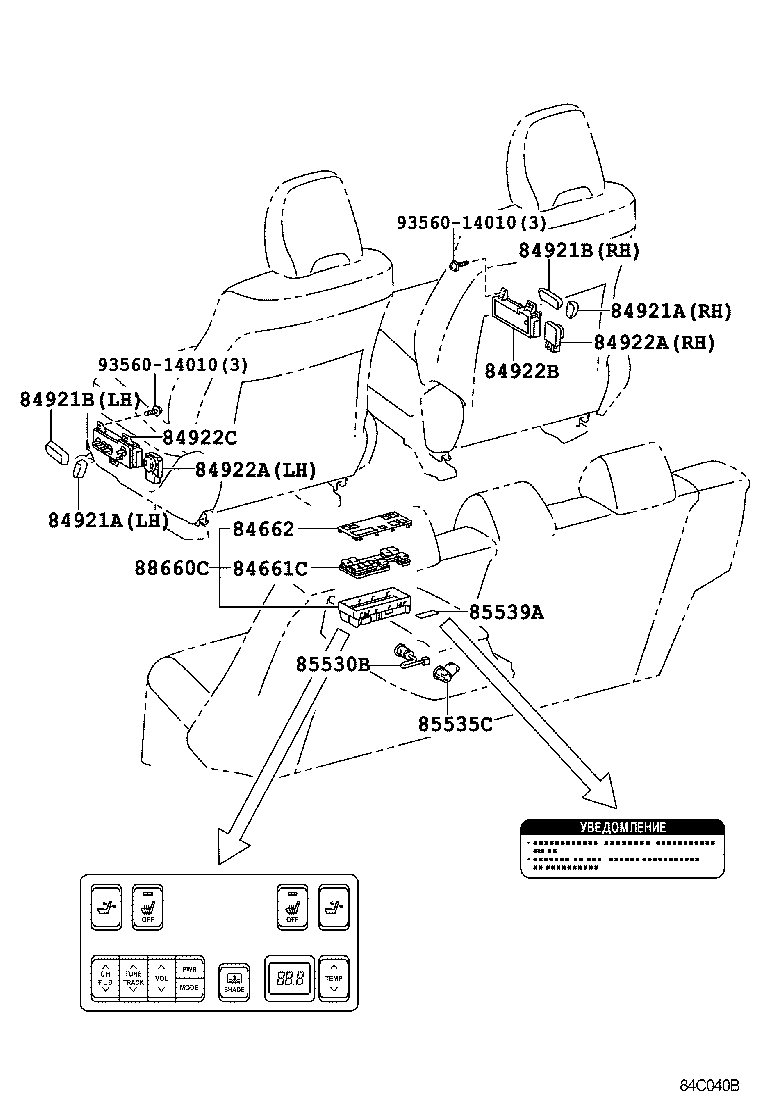

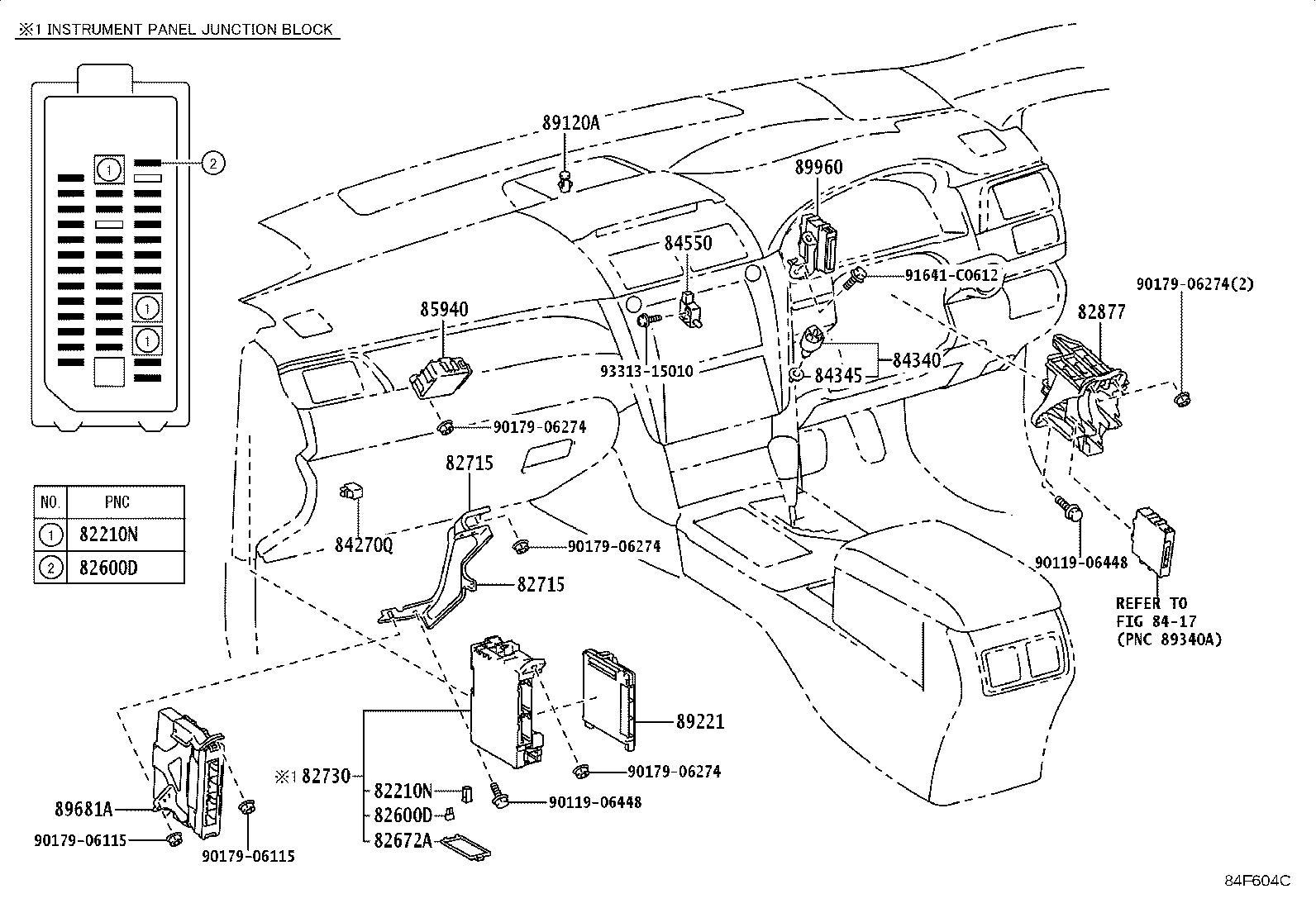

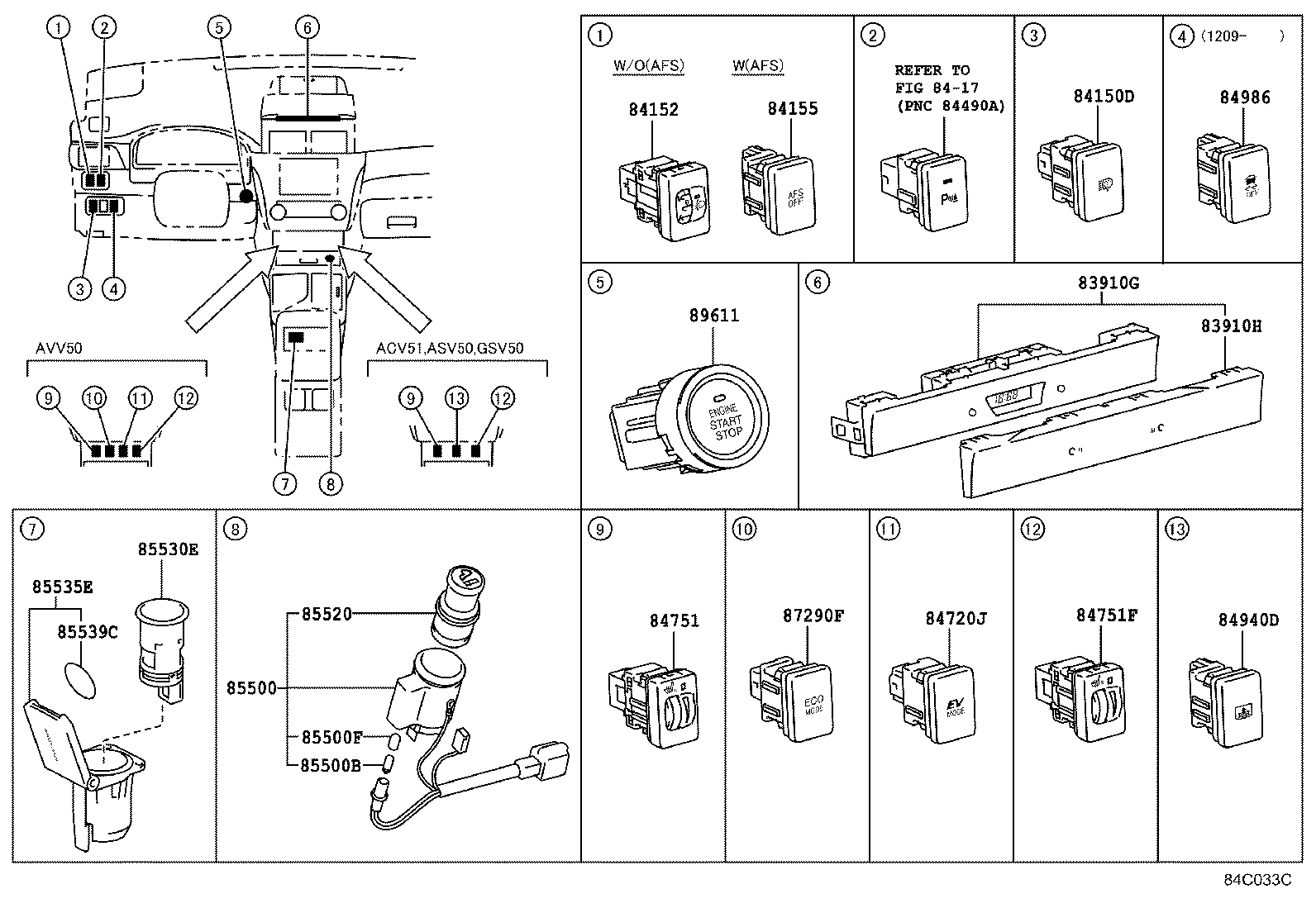

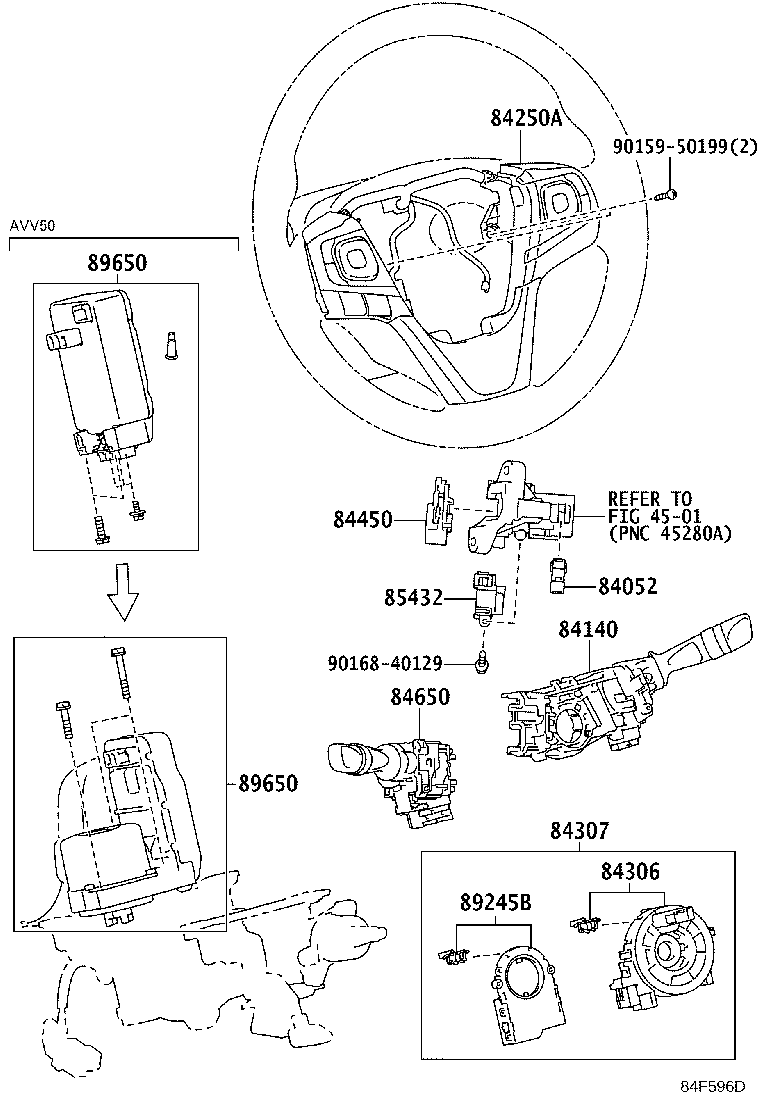

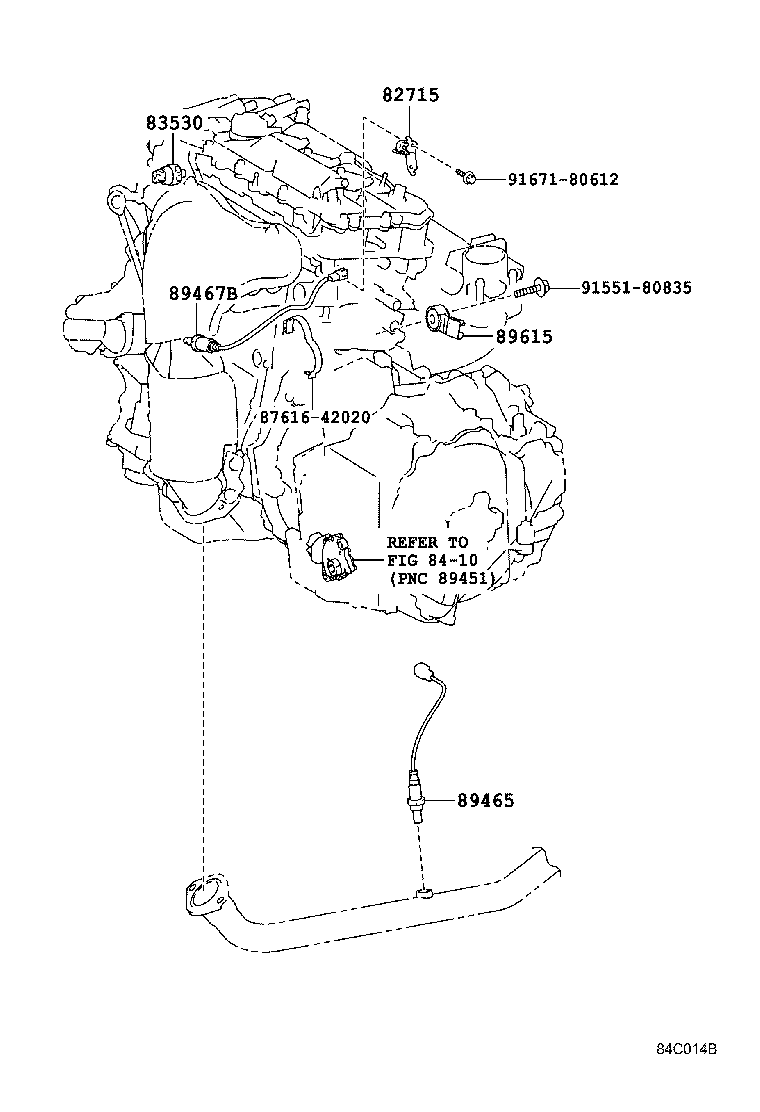

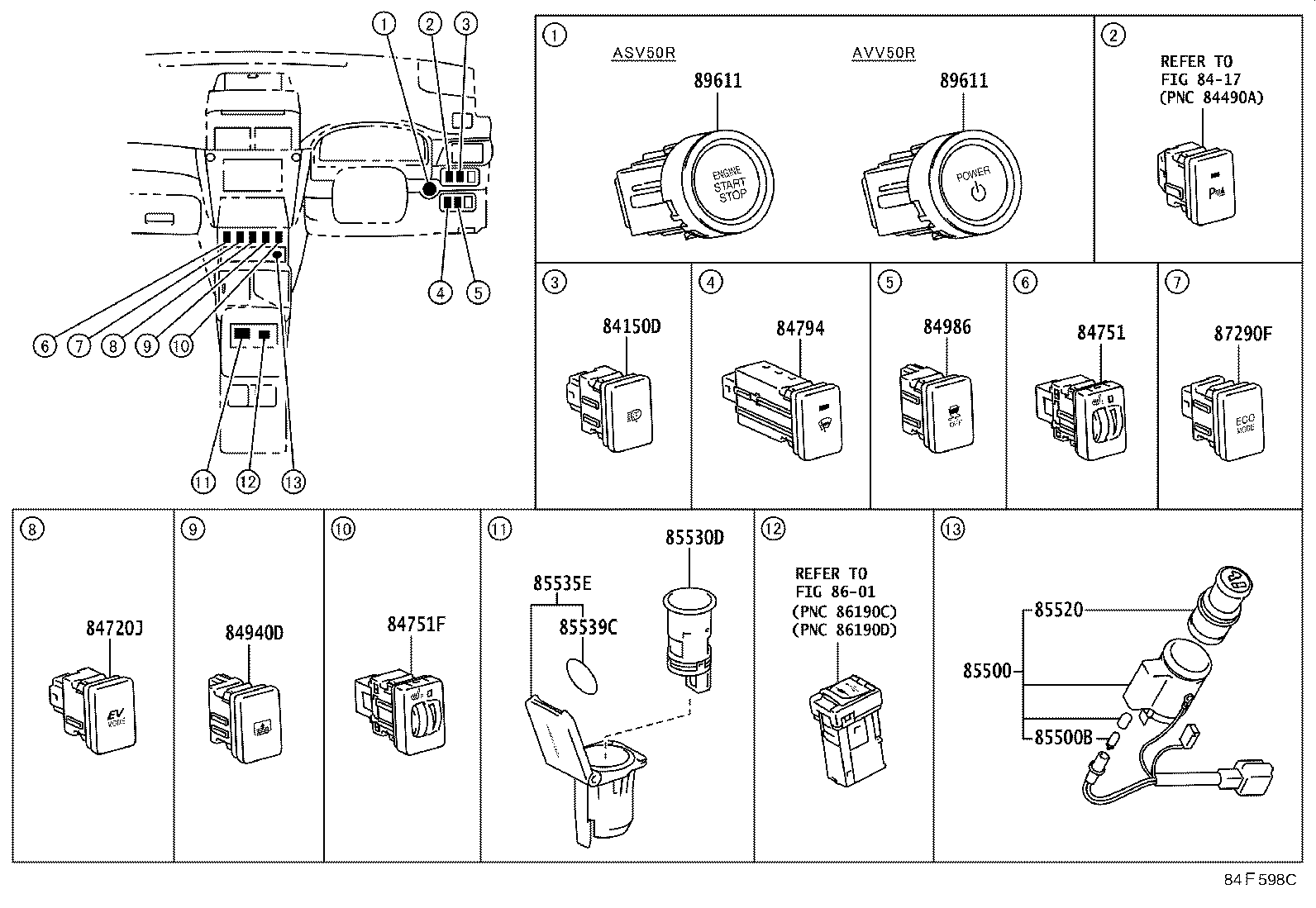

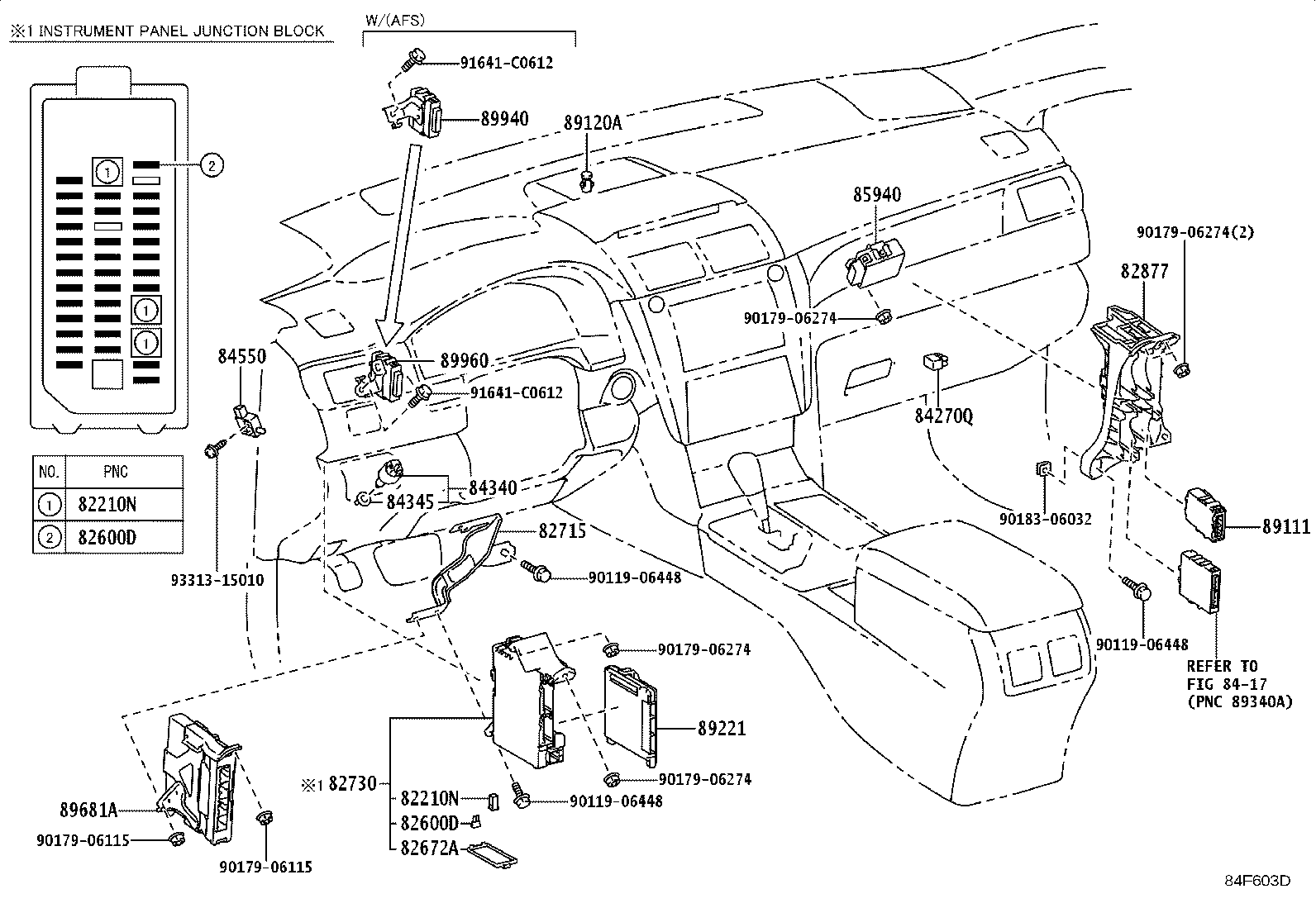

Figure 84C012C 84C012C 2012-07 → 2014-11 Figure 84C013B 84C013B 2011-08 → — Figure 84F804A 84F804A 2015-02 → — Figure 84C014B 84C014B 2011-08 → — Figure 84C015C 84C015C 2011-08 → 2014-08 Figure 84C015C 84C015C 2011-11 → 2014-11 Figure 84F641C 84F641C 2014-09 → — Figure 84F641C 84F641C 2014-11 → — Figure 84C022K 84C022K 2011-08 → 2014-09 Figure 84C022K 84C022K 2011-08 → 2014-11 Figure 84F591F 84F591F 2014-09 → — Figure 84F591F 84F591F 2014-11 → — Figure 84L401A 84L401A 2011-08 → 2014-09 Figure 84L401A 84L401A 2011-08 → 2014-11 Figure 84L402A 84L402A 2014-09 → — Figure 84L402A 84L402A 2014-11 → — Figure 84C027G 84C027G 2011-08 → 2014-09 Figure 84C027G 84C027G 2011-08 → 2014-11 Figure 84F603D 84F603D 2014-09 → — Figure 84F603D 84F603D 2014-11 → — Figure 84C028G 84C028G 2011-08 → 2014-09 Figure 84F604C 84F604C 2014-09 → — Figure 84C033C 84C033C 2011-08 → 2014-09 Figure 84C033C 84C033C 2011-08 → 2014-11 Figure 84F597E 84F597E 2014-09 → — Figure 84F597E 84F597E 2014-11 → — Figure 84C034C 84C034C 2011-08 → 2014-09 Figure 84F598C 84F598C 2014-09 → — Figure 84C036G 84C036G 2011-08 → 2014-09 Figure 84C036G 84C036G 2011-08 → 2014-11 Figure 84F595E 84F595E 2014-09 → — Figure 84F595E 84F595E 2014-11 → — Figure 84C037D 84C037D 2011-08 → 2014-09 Figure 84F596D 84F596D 2014-09 → — Figure 84C040B 84C040B 2011-08 → 2014-09 Figure 84C040B 84C040B 2011-08 → 2014-11 Figure 84F589 84F589 2014-09 → — Figure 84F589 84F589 2014-11 → — Figure 84C042D 84C042D 2011-08 → 2014-09 Figure 84C042D 84C042D 2011-08 → 2014-11 Figure 84F594C 84F594C 2014-09 → — Figure 84F594C 84F594C 2014-11 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
82210N Instrument Panel Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620F Block Assy, Fusible Link
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82672A Cover, Junction Block
82715 Bracket,Wiring Harness Clamp
82720 Block Assy, Engine Room Junction
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82821B Cover, Connector
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
83910H Lens, Clock
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84070 Computer & Switch Assy, Position Control
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84155 Switch, Headlamp Swivel Main
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470 Switch Assy, Warning Canceling
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84661C Knob, Cooler Control Switch
84662 Panel, Cooler Control Switch
84720J Switch Assy, Pattern Select
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84751G Switch, Seat Heater
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84795 Switch, Front Window Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840 Switch Assy, Luggage Compartment Door Opening
84870A Switch Assy, Outer Mirror
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84940D Switch Assy, Rear Sun Shade
84986 Switch, Vehicle Stability Control
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85535E Cover, Power Outlet Socket, NO.2
85539A Label, Power Outlet Notice, Rear
85539C Label, Power Outlet Notice
85910 Relay Assy, Circuit Opening
85910K Relay, Rear Seat Heater
85913C Relay, Heater, NO.1
85913D Relay, Heater, NO.2
85915E Relay
85916C Relay, Back UP Lamp
85916P Relay, Headlamp
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
86530 Relay Assy, Horn
87290F Switch Assy, Eco
87346K Relay, Ptc Heater
88162 Sensor, Blind Spot Monitor, RH
88163 Cover, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88173 Cover, Blind Spot Monitor, LH
88660C Switch Assy, Cooler Control
88790F Thermistor Assy
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89407C Sensor Sub-assy, Height Control, Rear
89429F Sensor, Temperature
89430 Computer Assy, Outer Mirror Control
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
89940 Computer Assy, Headlamp Swivel
89960 Computer Assy, Headlamp Leveling
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
