Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

8 part groups · 4 illustrations

Illustrations

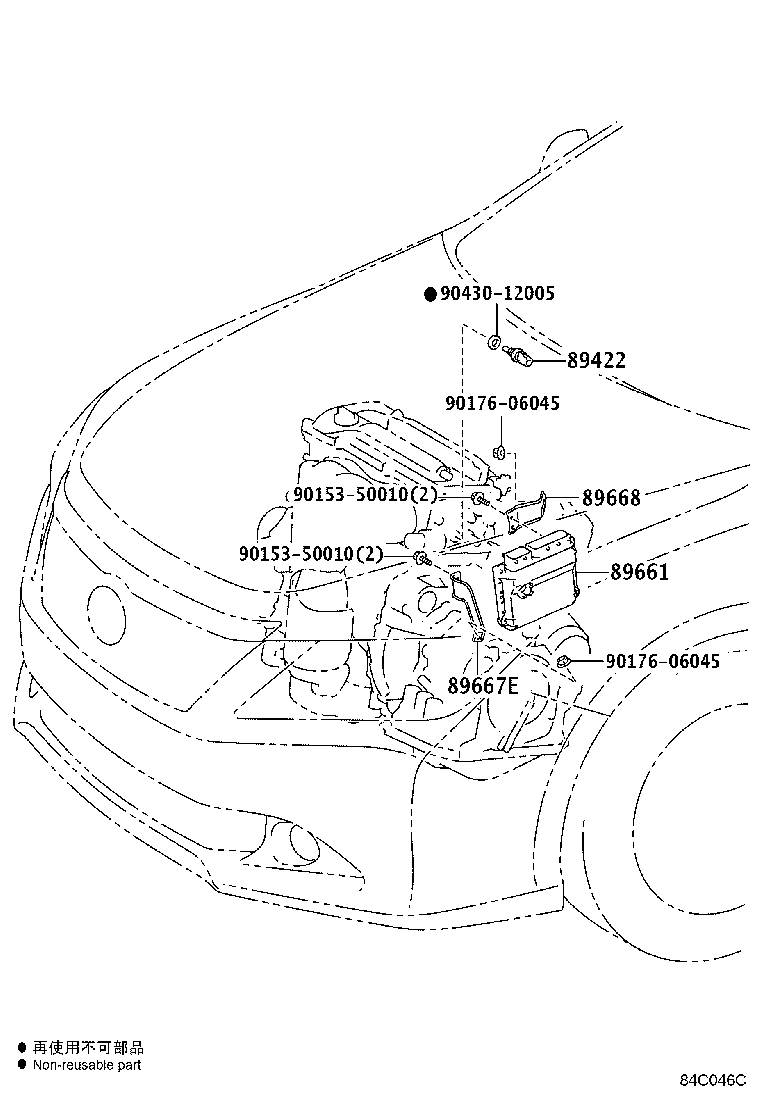

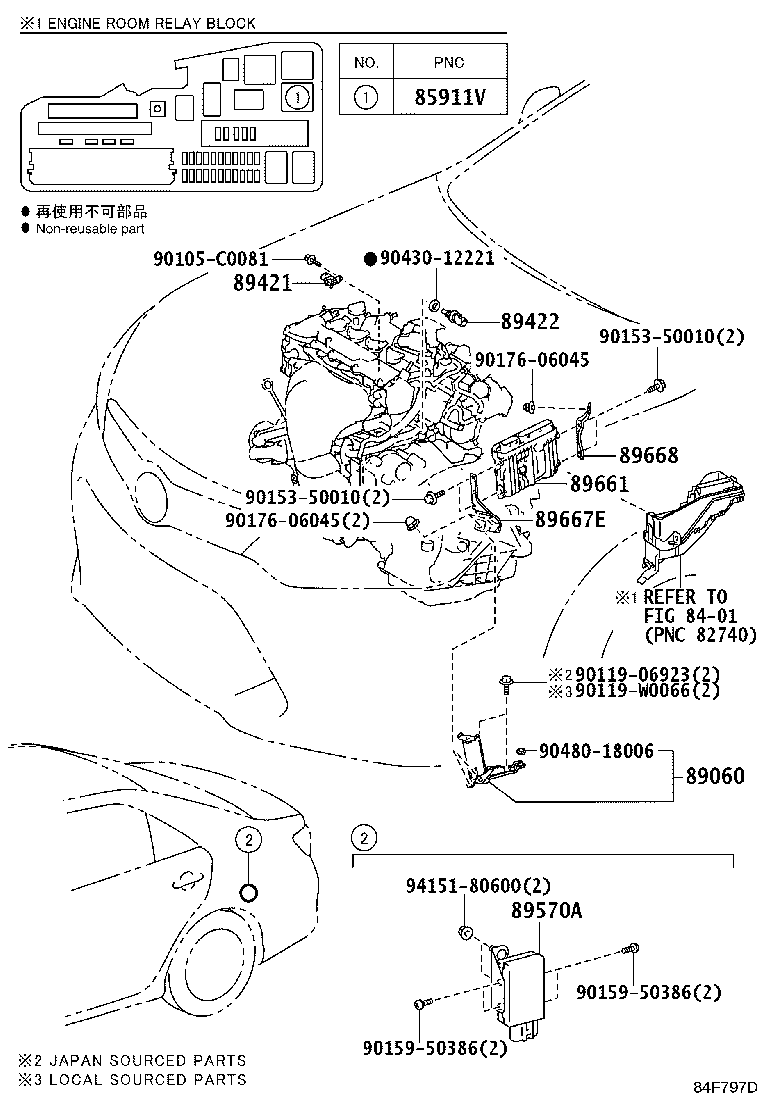

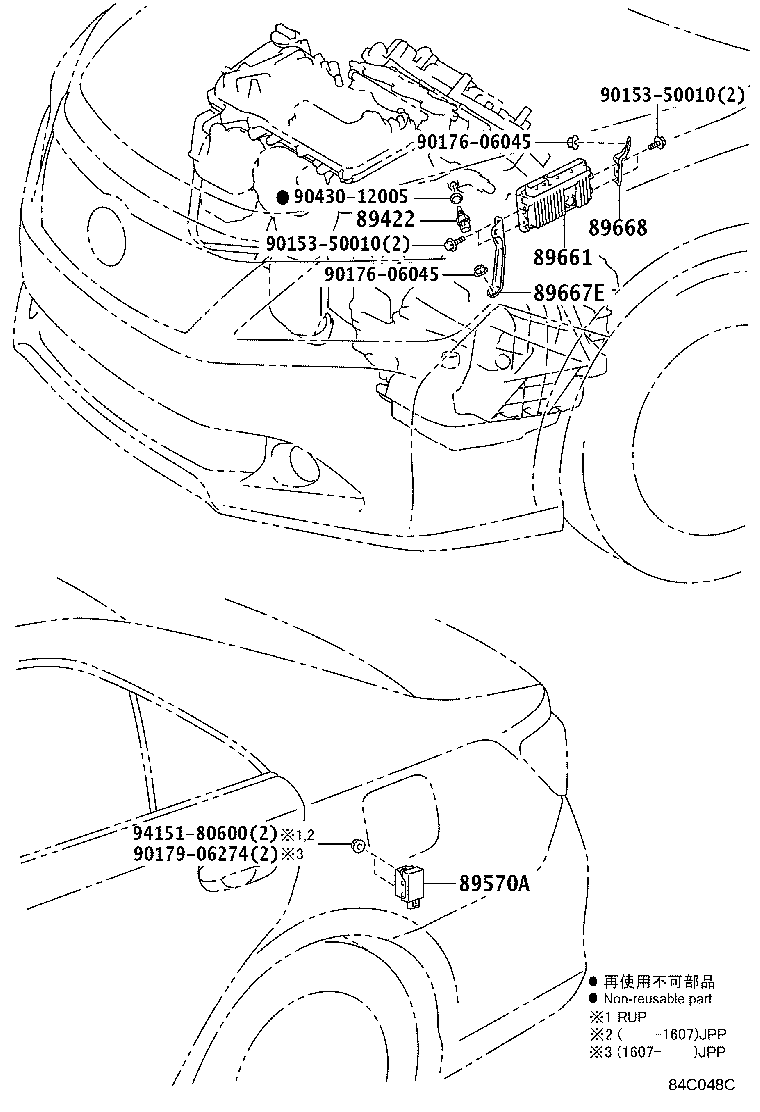

Figure 84C047B 84C047B 2011-08 → — Figure 84F797D 84F797D 2015-03 → — Figure 84C046C 84C046C 2012-08 → 2014-11 Figure 84C048C 84C048C 2011-08 → —

Part groups

PNCDescription
85911V Relay, Electronic Driver Unit
89060 Bracket Assy
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
