Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 2 illustrations

Illustrations

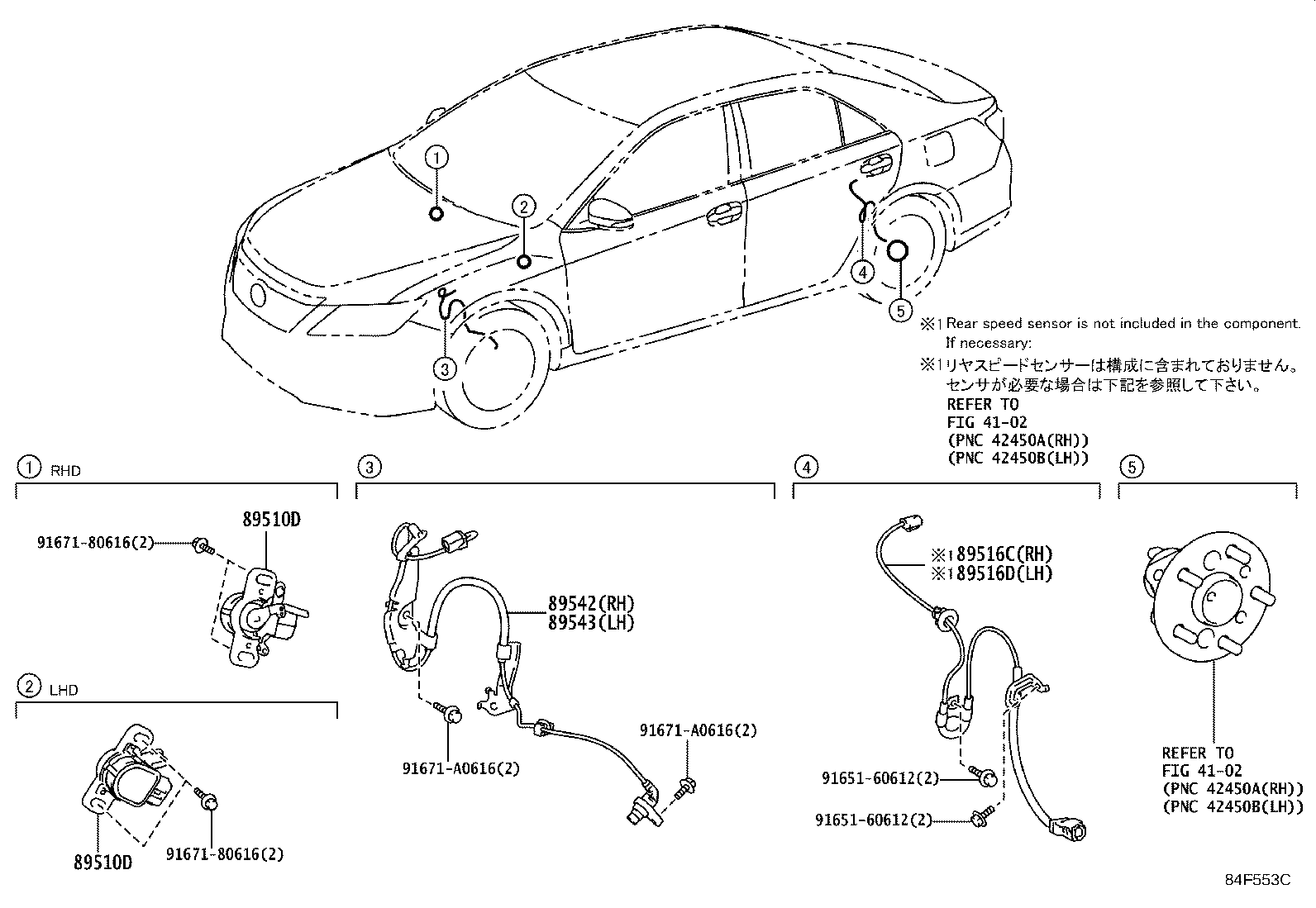

Figure 84C052F 84C052F 2011-08 → 2014-09 Figure 84F553C 84F553C 2014-09 → —

Part groups

PNCDescription
88263P Relay, Stop Lamp Control
89183A Sensor, Yawrate
89189B Bracket, Yawrate Sensor
89510D Sensor Assy, Brake Pedal Stroke
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
