Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

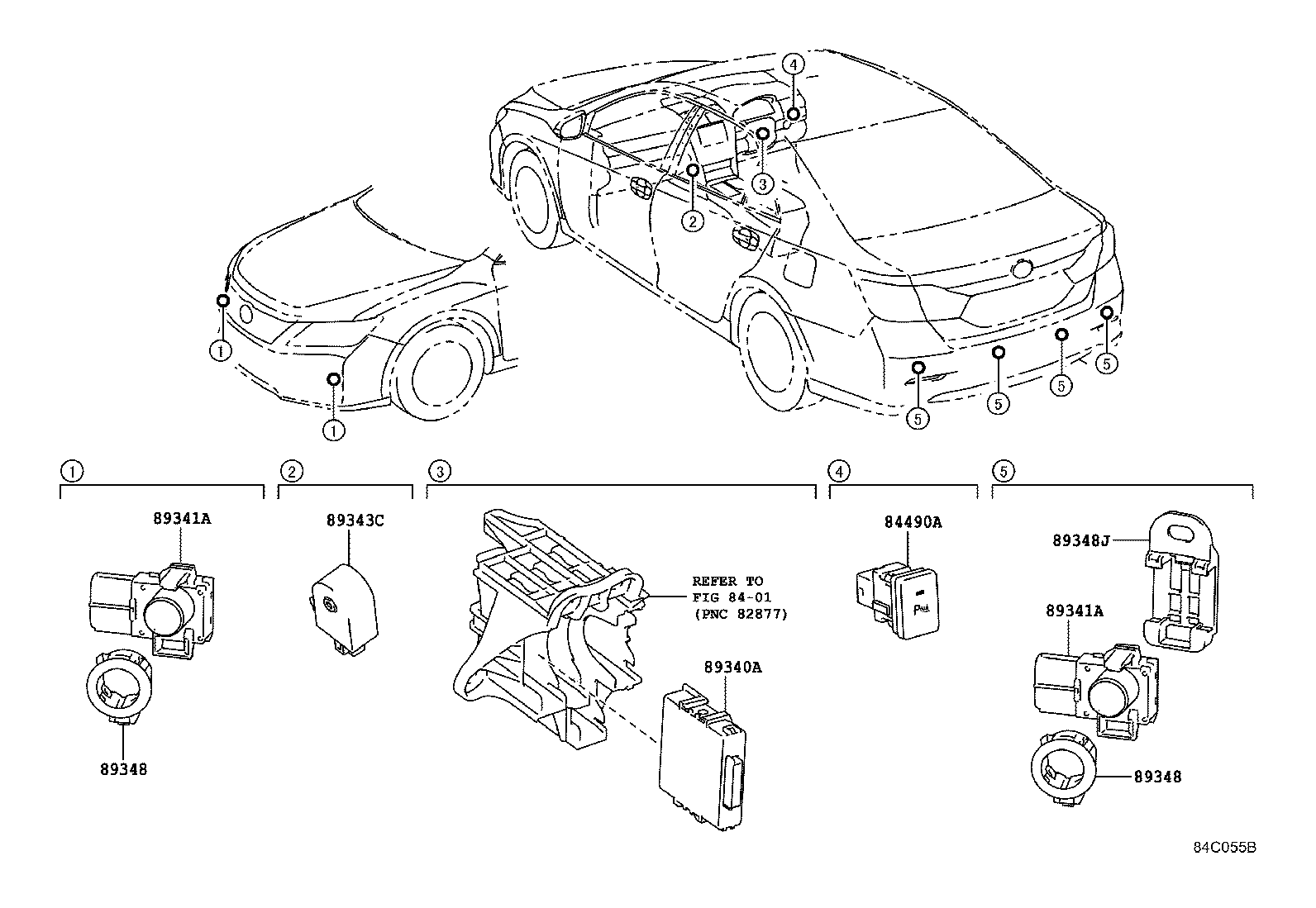

Clearance & Back Sonar
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84490A | Switch Assy, Back Sonar OR Clearance Sonar |
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89348 | Retainer, Ultrasonic Sensor, NO.1 |
| 89348J | Clip, Ultrasonic Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
