Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

7 part groups · 6 illustrations

Illustrations

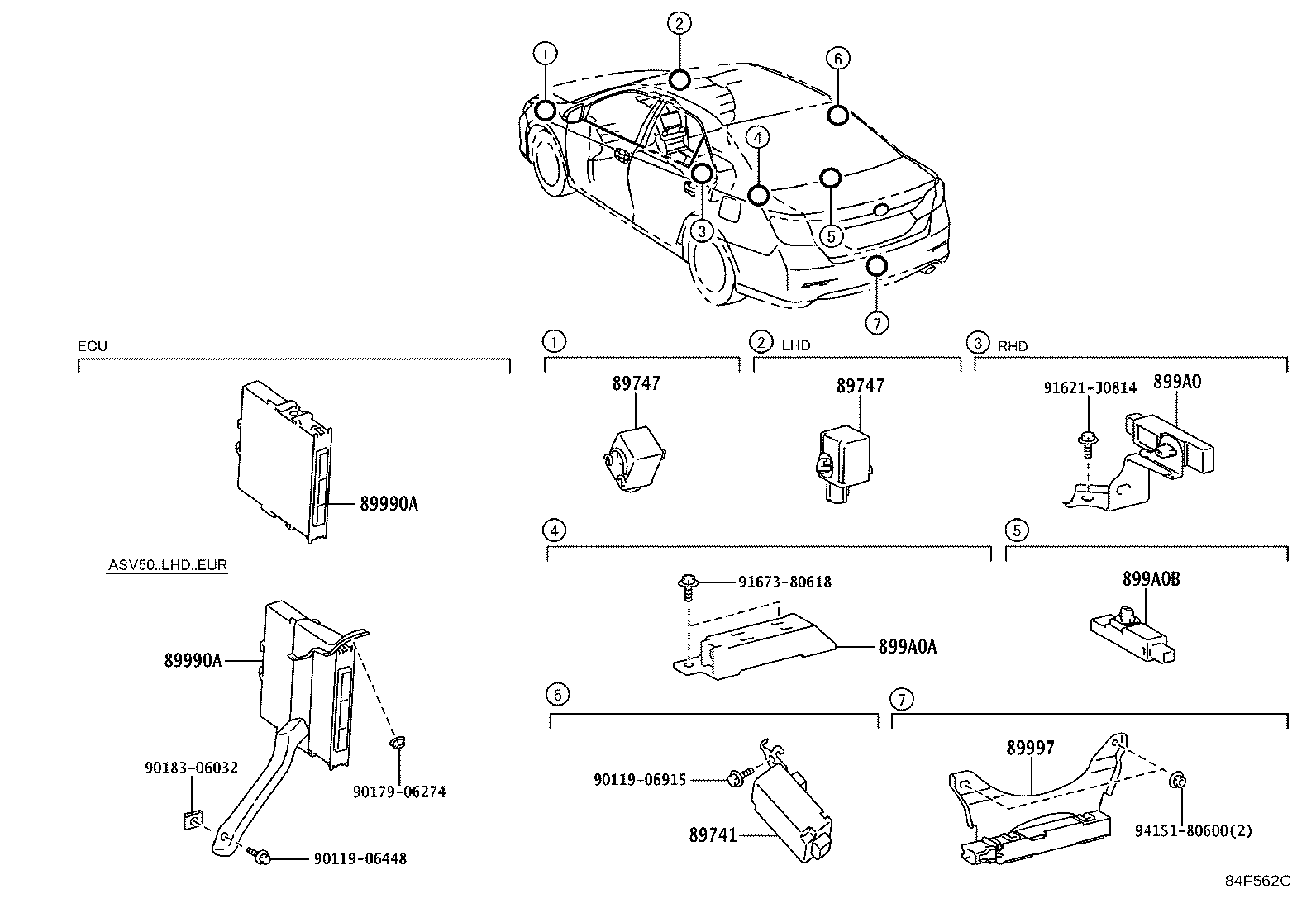

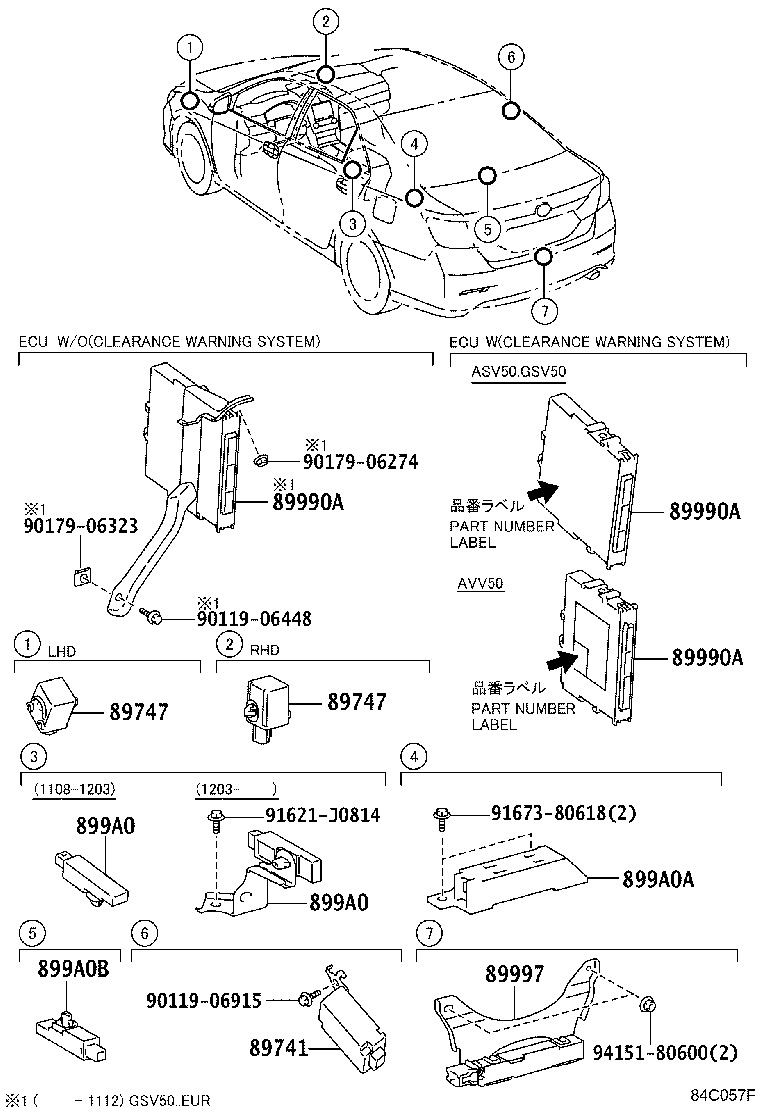

Figure 84C056 84C056 2011-08 → 2014-09 Figure 84C056 84C056 2011-08 → 2014-11 Figure 84C057F 84C057F 2011-08 → 2014-09 Figure 84C057F 84C057F 2011-08 → 2014-11 Figure 84F562C 84F562C 2014-09 → — Figure 84F562C 84F562C 2014-11 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
