Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 2 illustrations

Illustrations

Figure 84C059F

84C059F 2011-08 → 2014-09

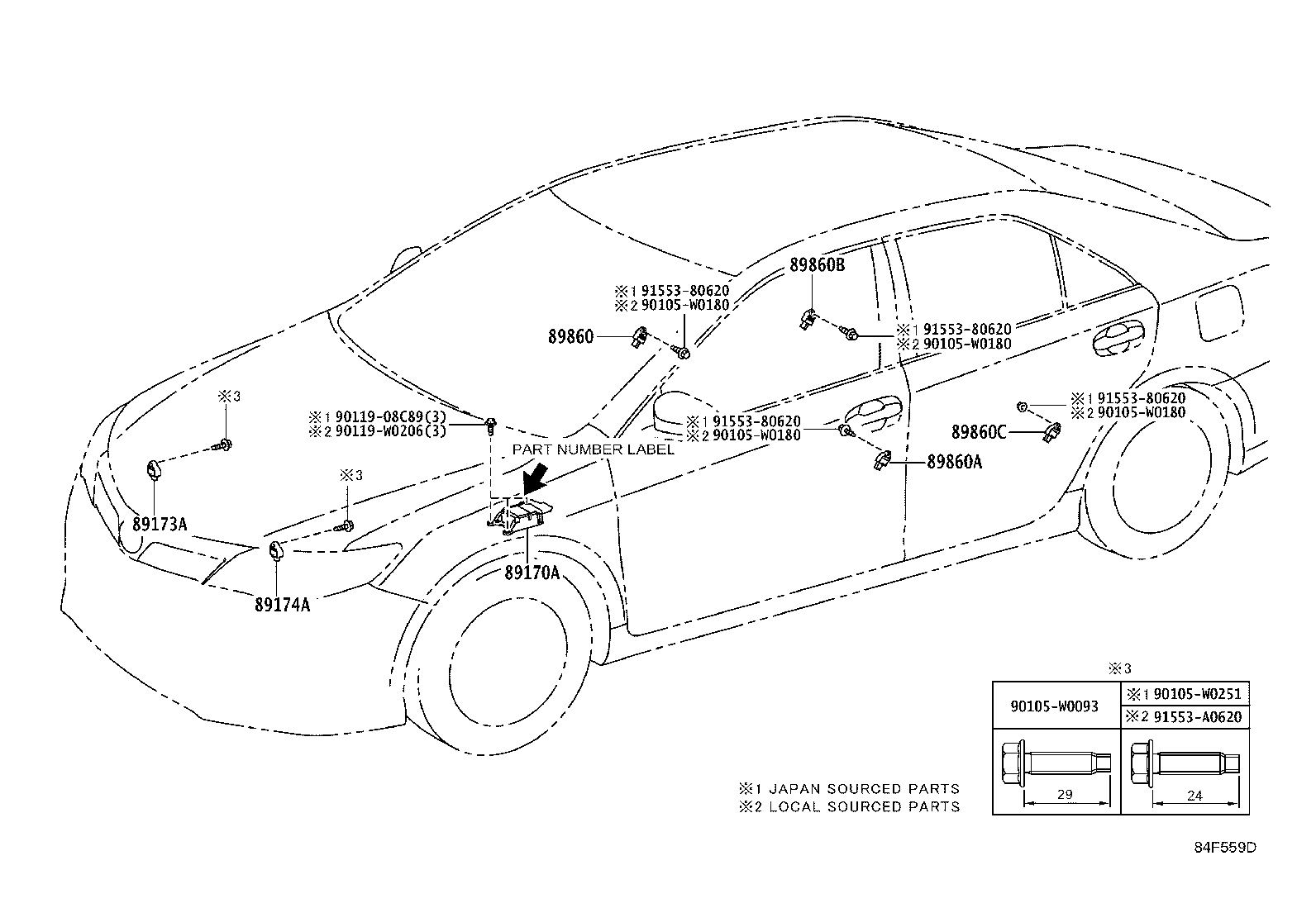

Figure 84F559D

84F559D 2014-09 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH
89860B	Sensor Assy, Side Airbag, RH, NO.2
89860C	Sensor Assy, Side Airbag, LH, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
