Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

14 part groups · 6 illustrations

Illustrations

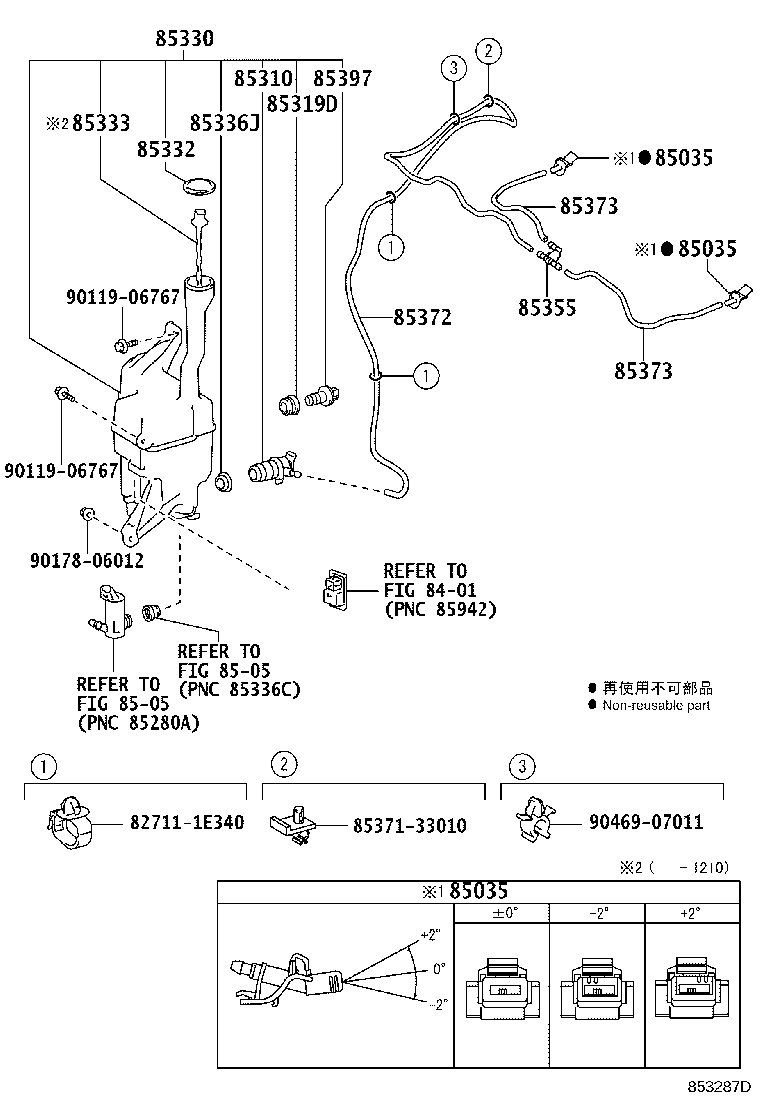

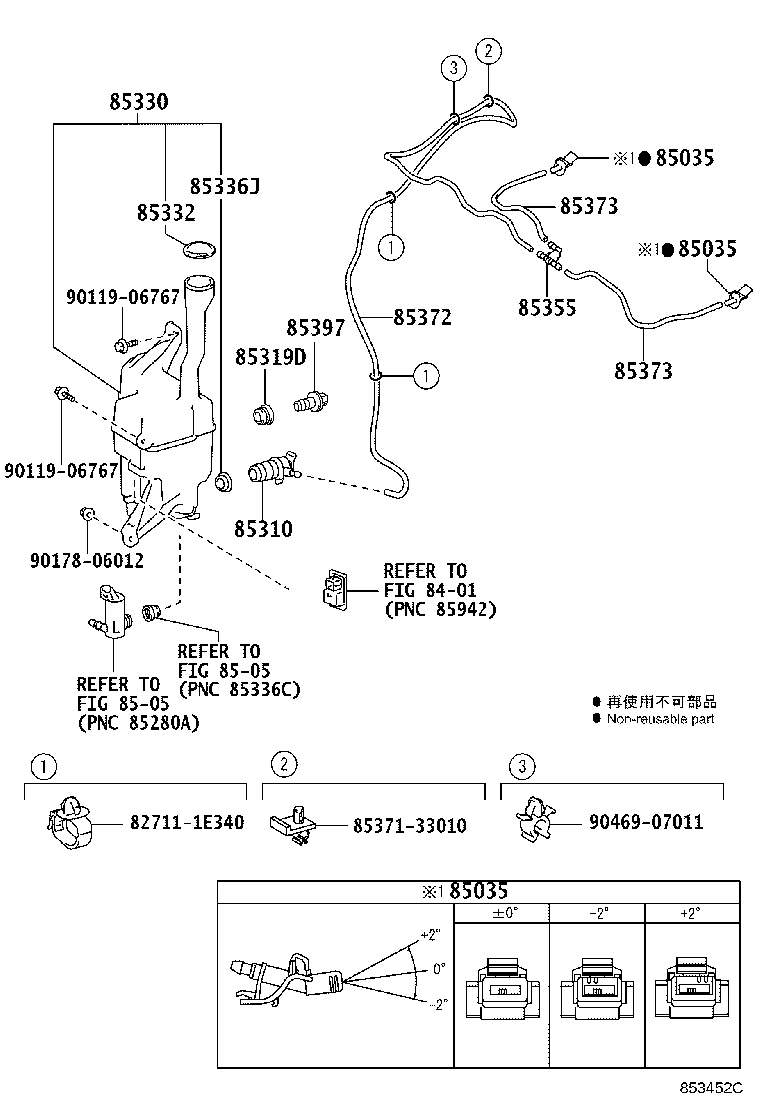

Figure 853285A 853285A 2011-08 → — Figure 853285A 853285A 2015-02 → — Figure 853287D 853287D 2011-08 → 2014-09 Figure 853287D 853287D 2011-11 → 2014-11 Figure 853452C 853452C 2014-09 → — Figure 853452C 853452C 2014-11 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85319D Packing, Front Washer
85330 Jar Assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85336J Protector, Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85355 Valve, Windshield Washer Hose
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85389B Protector, Windshield Washer
85397 Switch Assy,Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
