Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

13 part groups · 10 illustrations

Illustrations

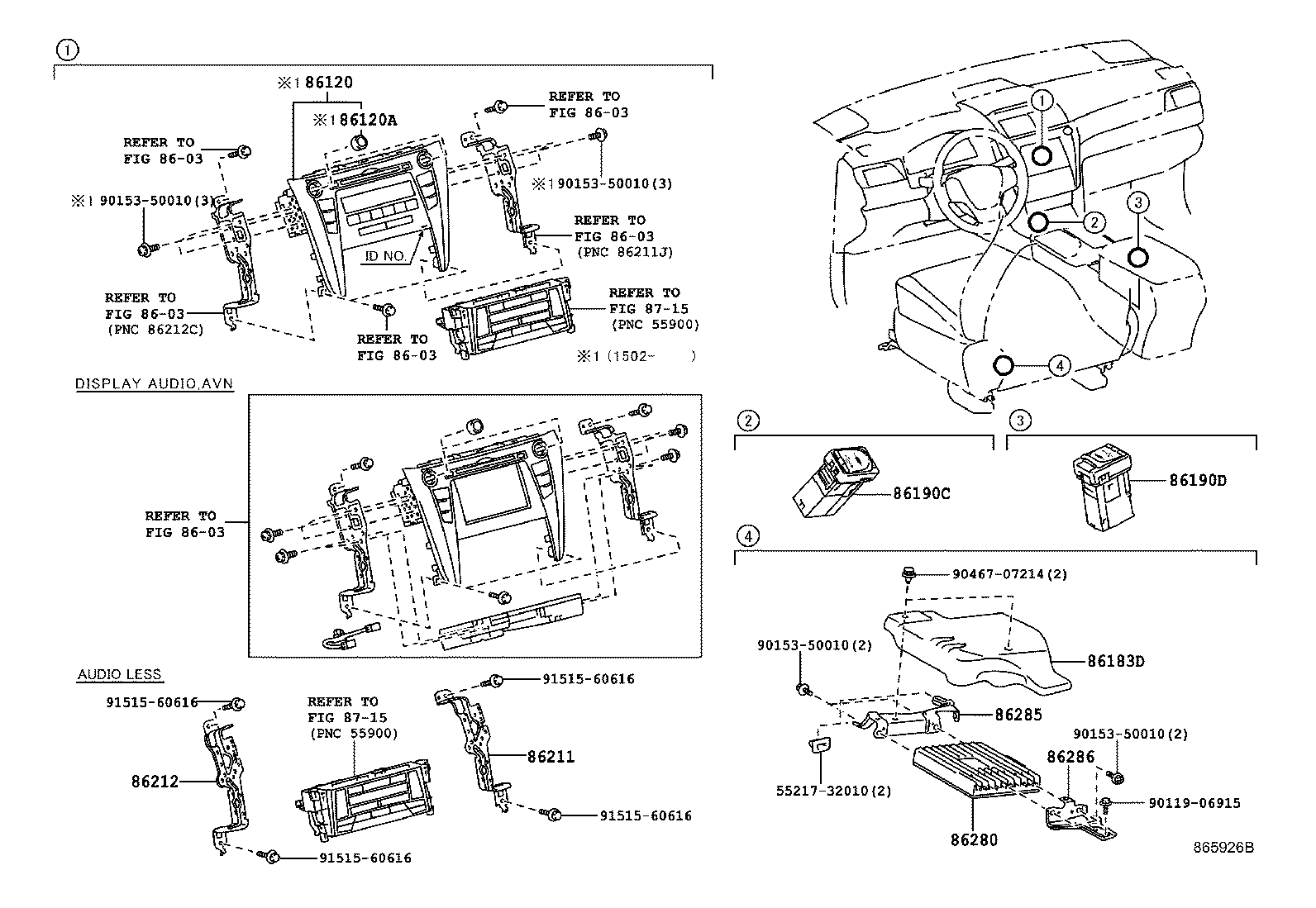

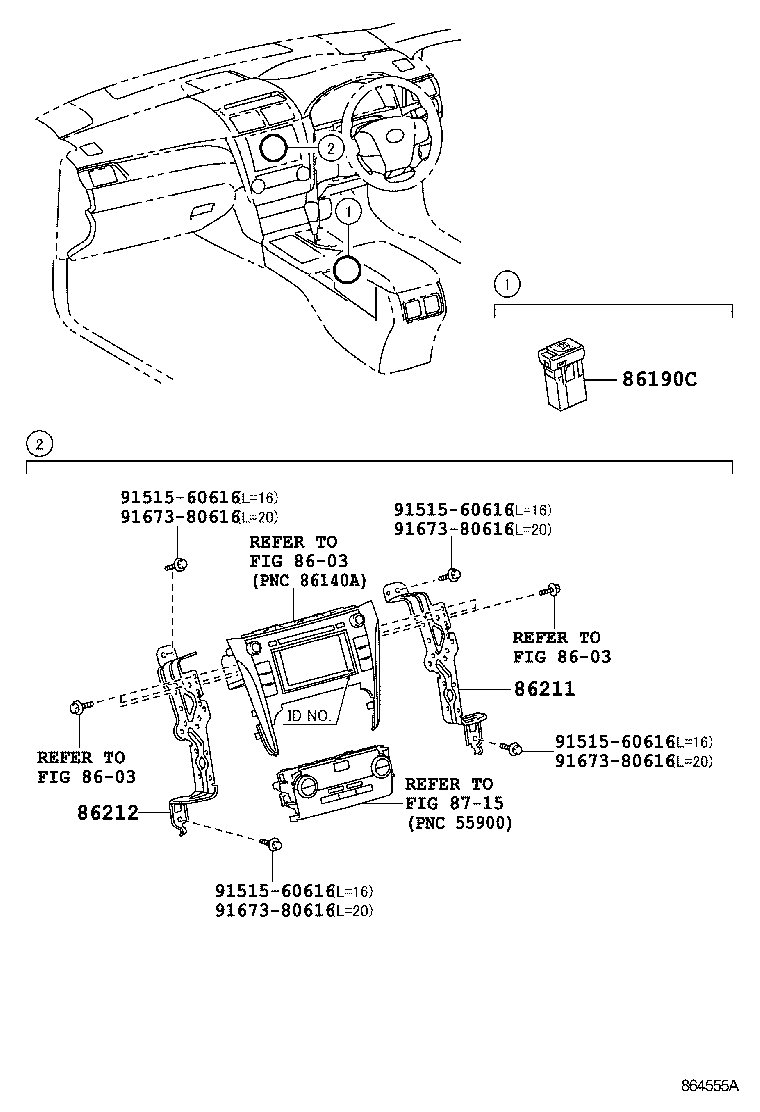

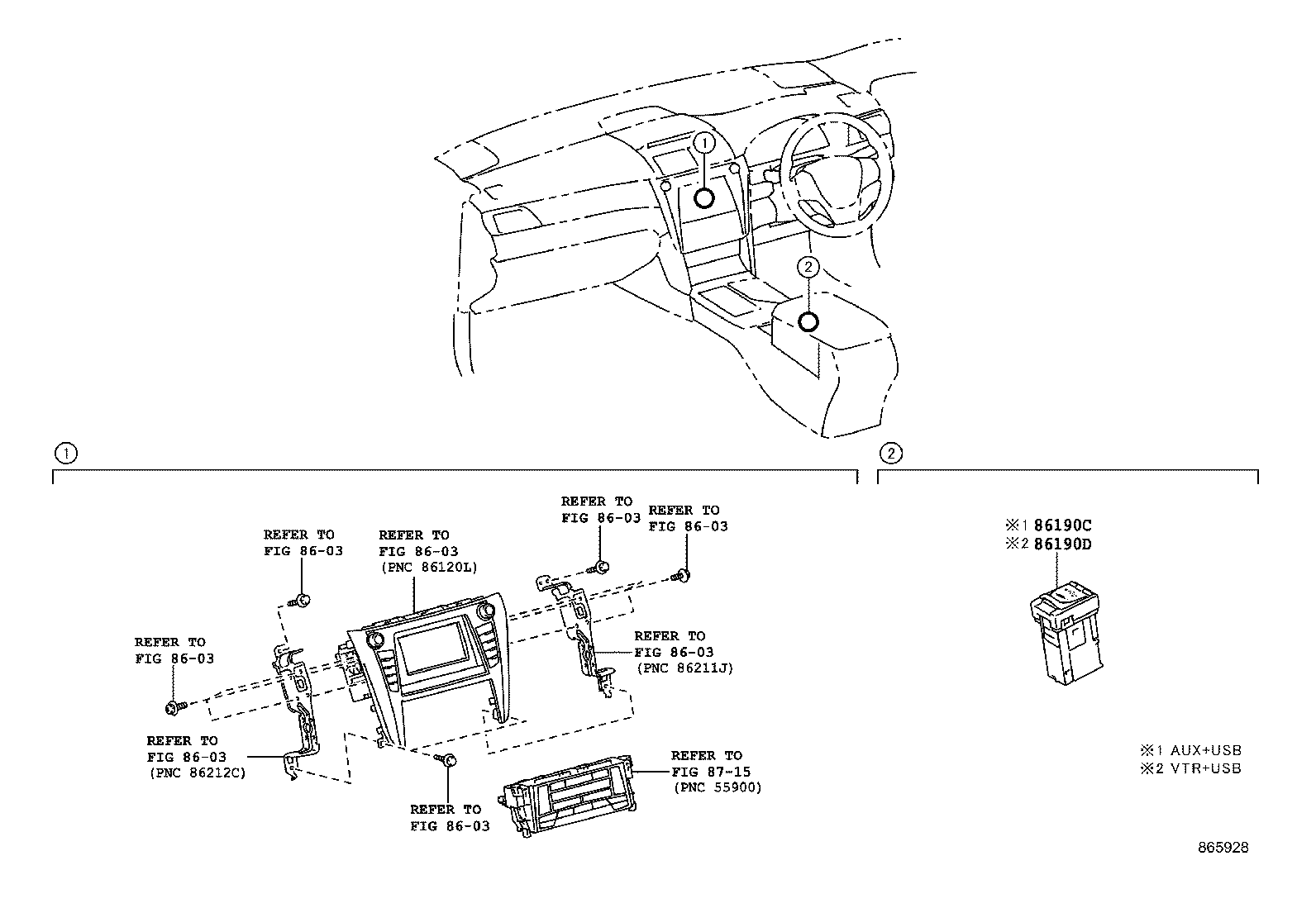

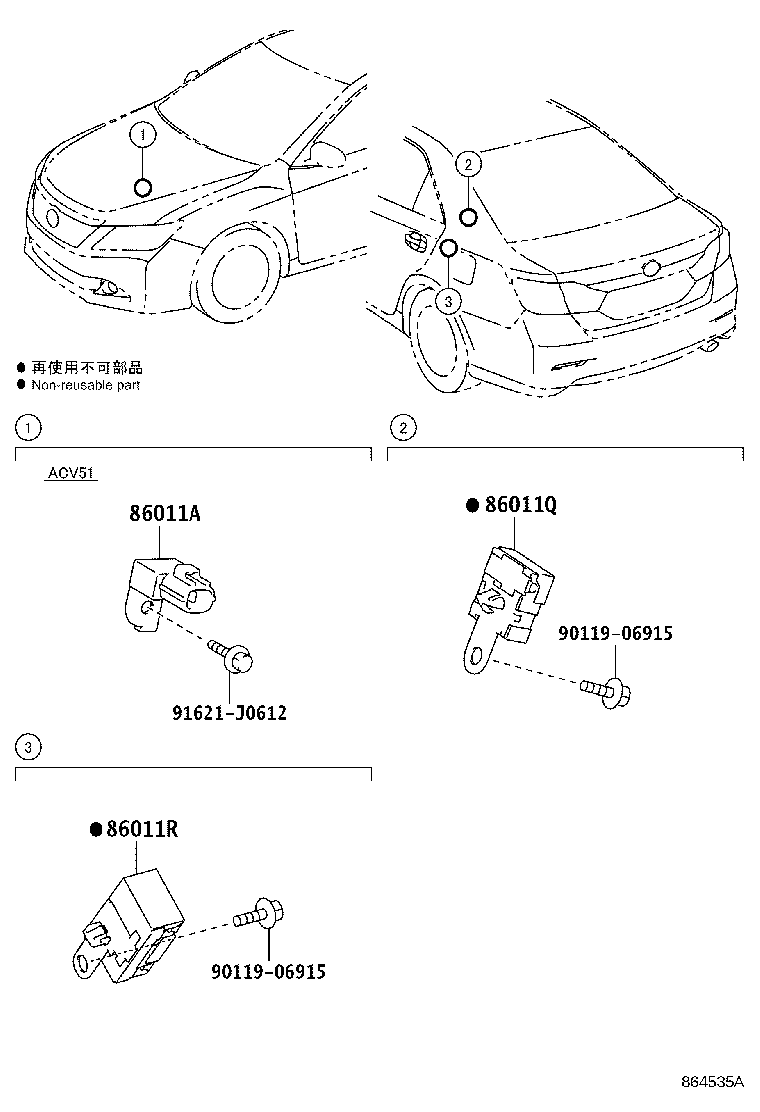

Figure 864534B 864534B 2011-08 → 2014-09 Figure 864534B 864534B 2011-08 → 2014-11 Figure 865926B 865926B 2014-09 → — Figure 865926B 865926B 2014-11 → — Figure 864555A 864555A 2011-08 → 2014-09 Figure 865928 865928 2014-09 → — Figure 864535A 864535A 2011-08 → 2014-09 Figure 864535A 864535A 2011-08 → 2014-11 Figure 865929A 865929A 2014-09 → — Figure 865929A 865929A 2014-11 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86190D Adapter Assy, Stereo Jack, NO.2
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
