Factory parts data · Europe

Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

5 part groups · 2 illustrations

Illustrations

Figure 864536E

864536E 2011-08 → —

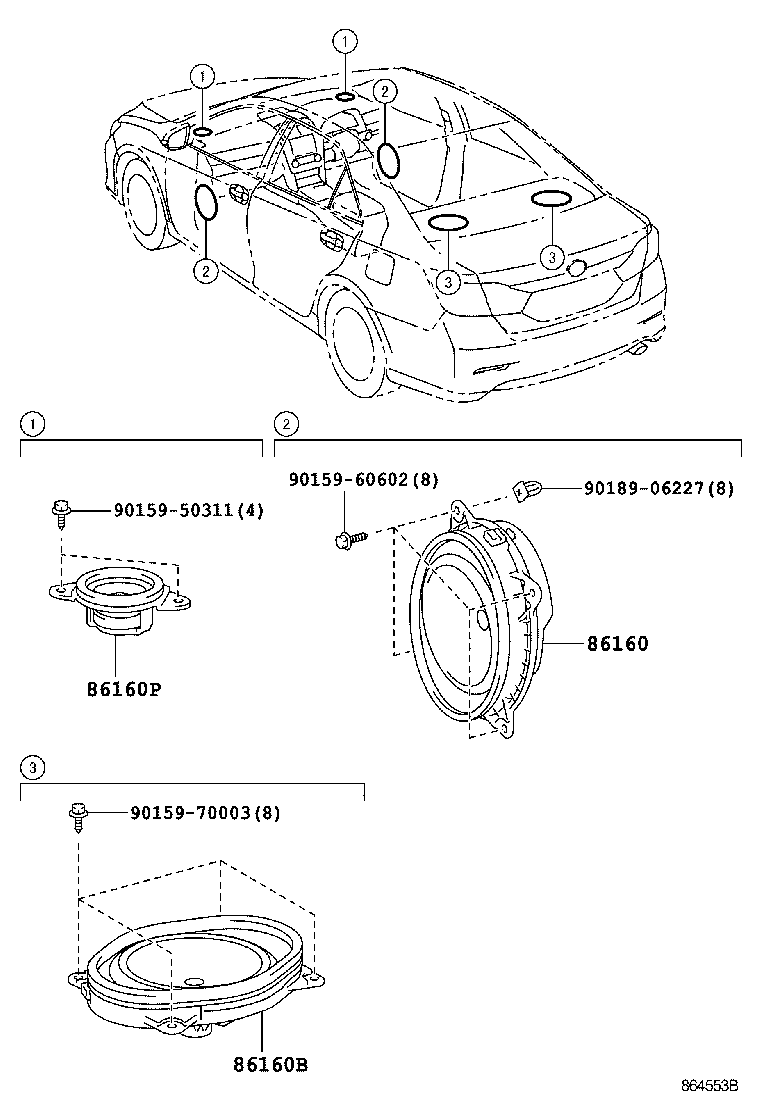

Figure 864553B

864553B 2011-08 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160J	Speaker Assy, Front NO.3
86160P	Speaker Assy, Front NO.2
86160Y	Speaker Assy, Rear NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
