Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 6 illustrations

Illustrations

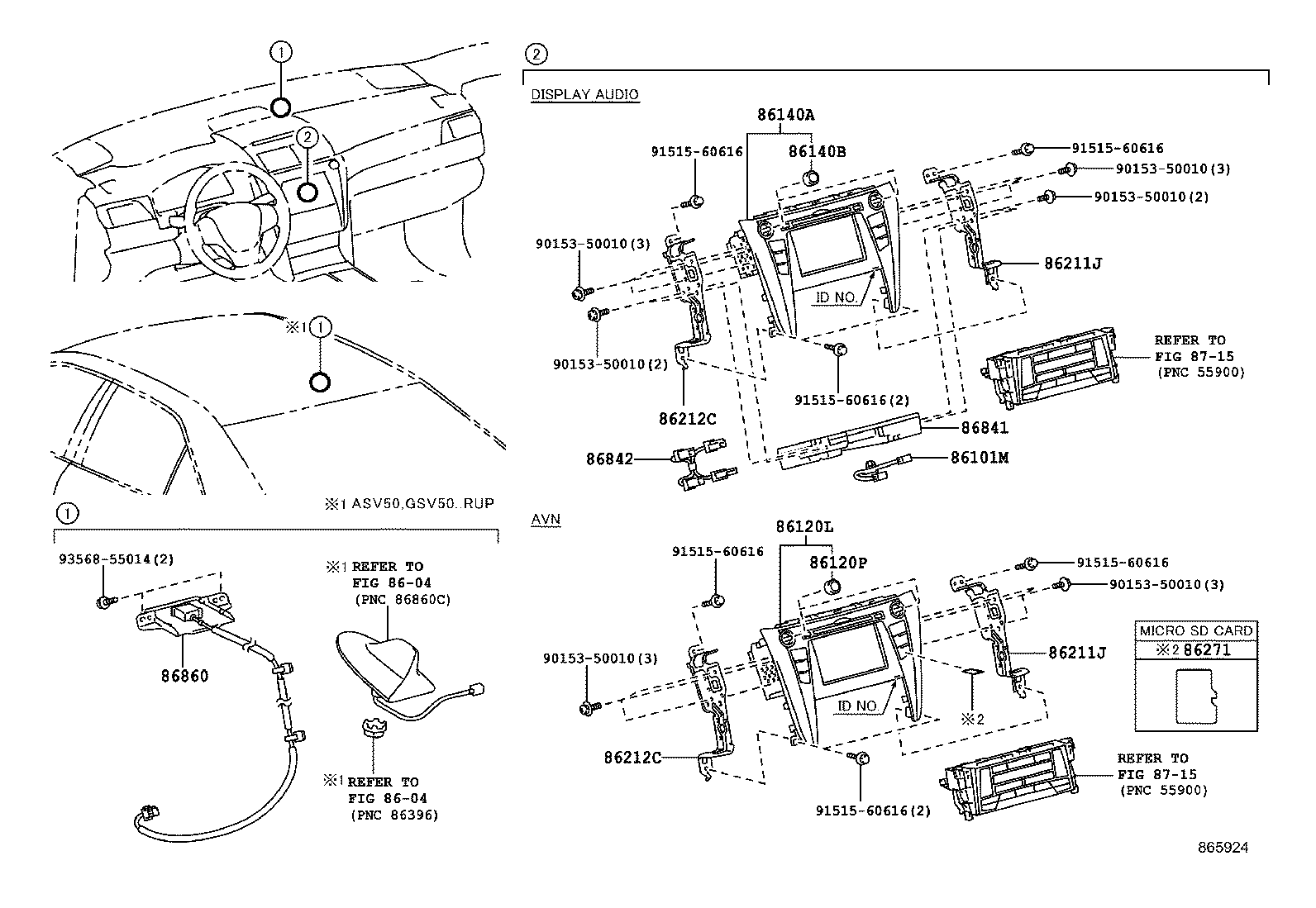

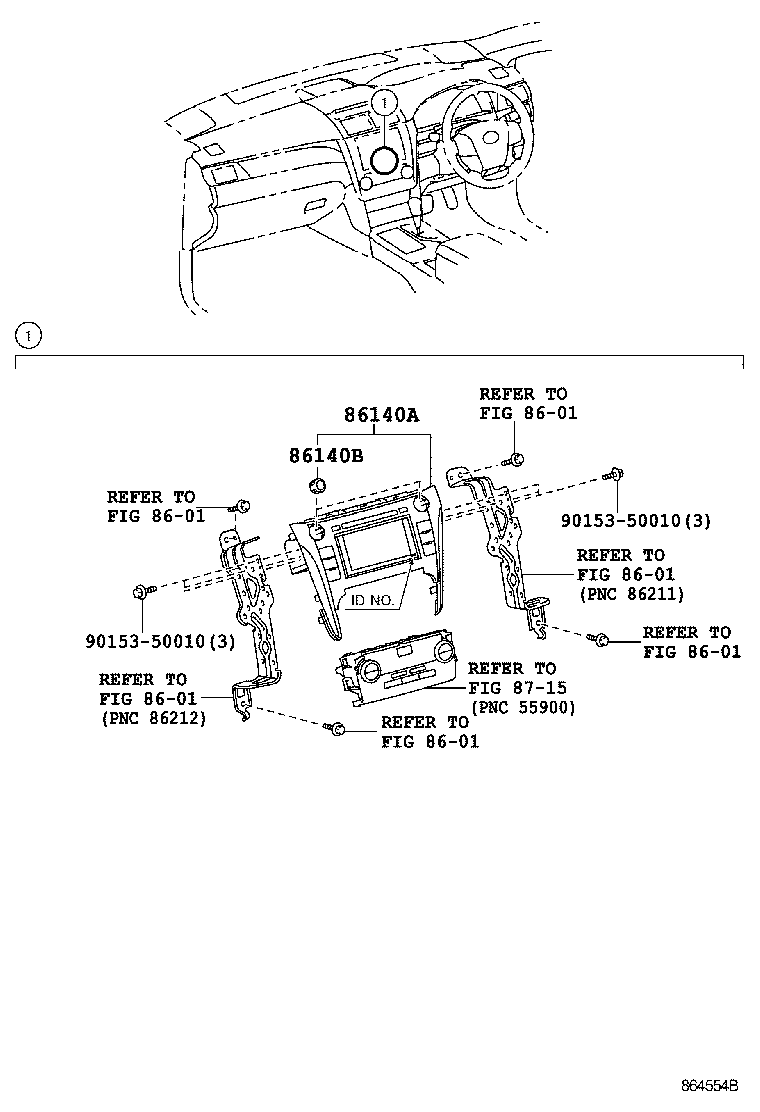

Figure 864537D 864537D 2011-08 → 2014-09 Figure 864537D 864537D 2011-08 → 2014-11 Figure 865924 865924 2014-09 → — Figure 865924 865924 2014-11 → — Figure 864554B 864554B 2011-08 → 2014-09 Figure 865947 865947 2014-09 → —

Part groups

PNCDescription
86101M Cord Sub-assy, Antenna
86120L Receiver Assy, Navigation
86120P Knob, Navigation Receiver Switch
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86271 Disc, Disc Player
86271L Hard Disc
86804A Sub-assy, Navigation Computer
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
