Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

26 part groups · 12 illustrations

Illustrations

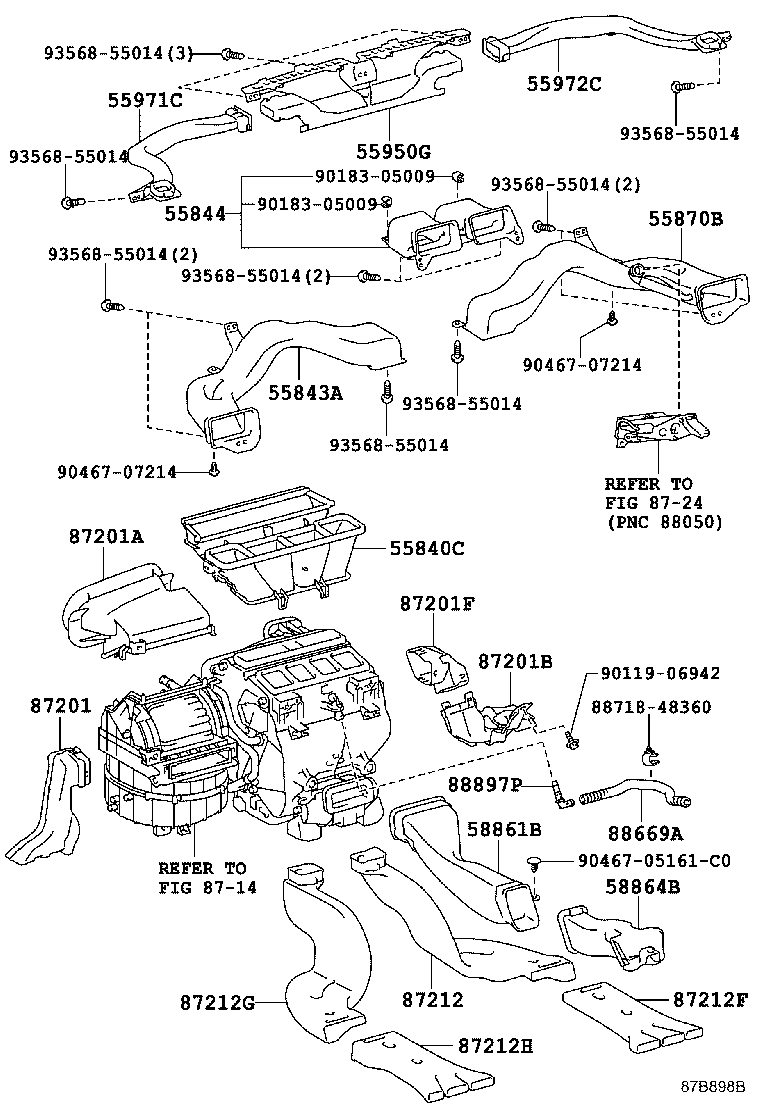

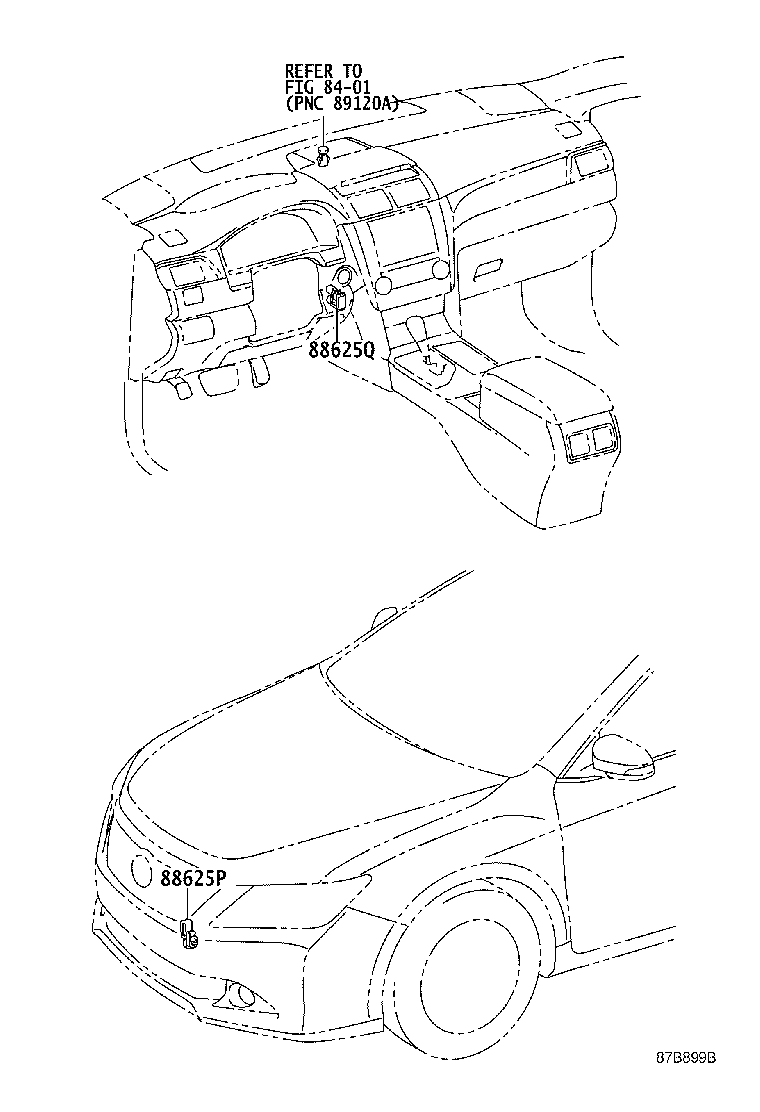

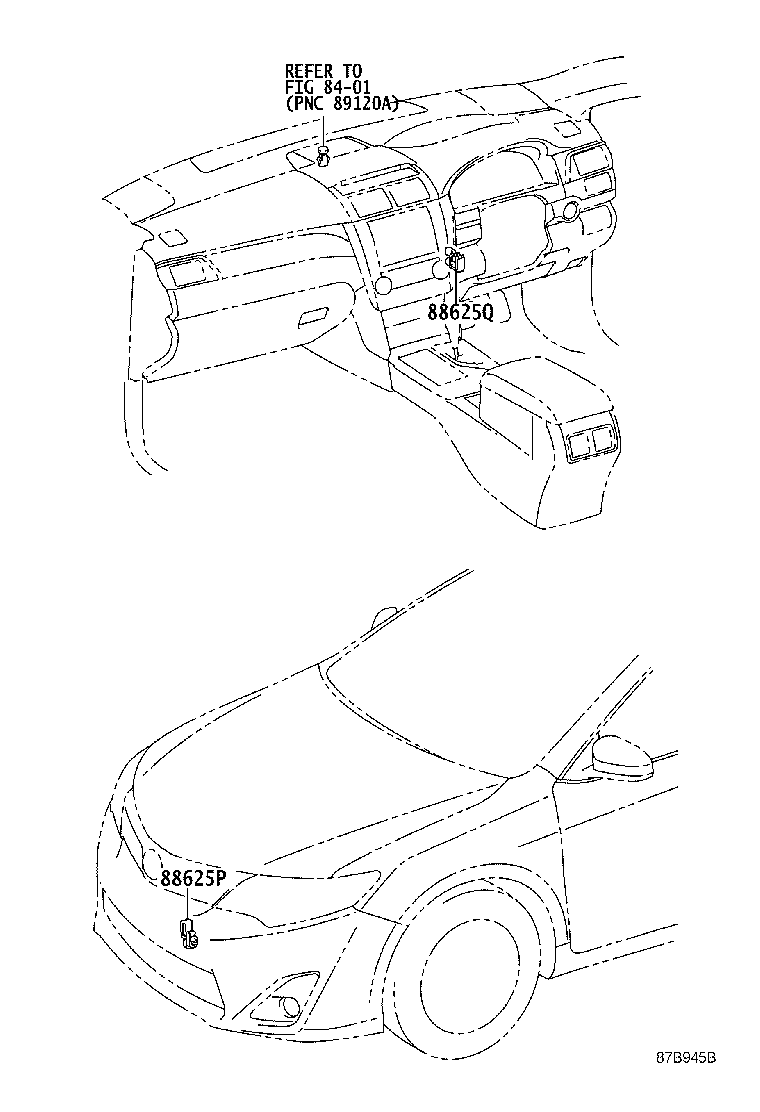

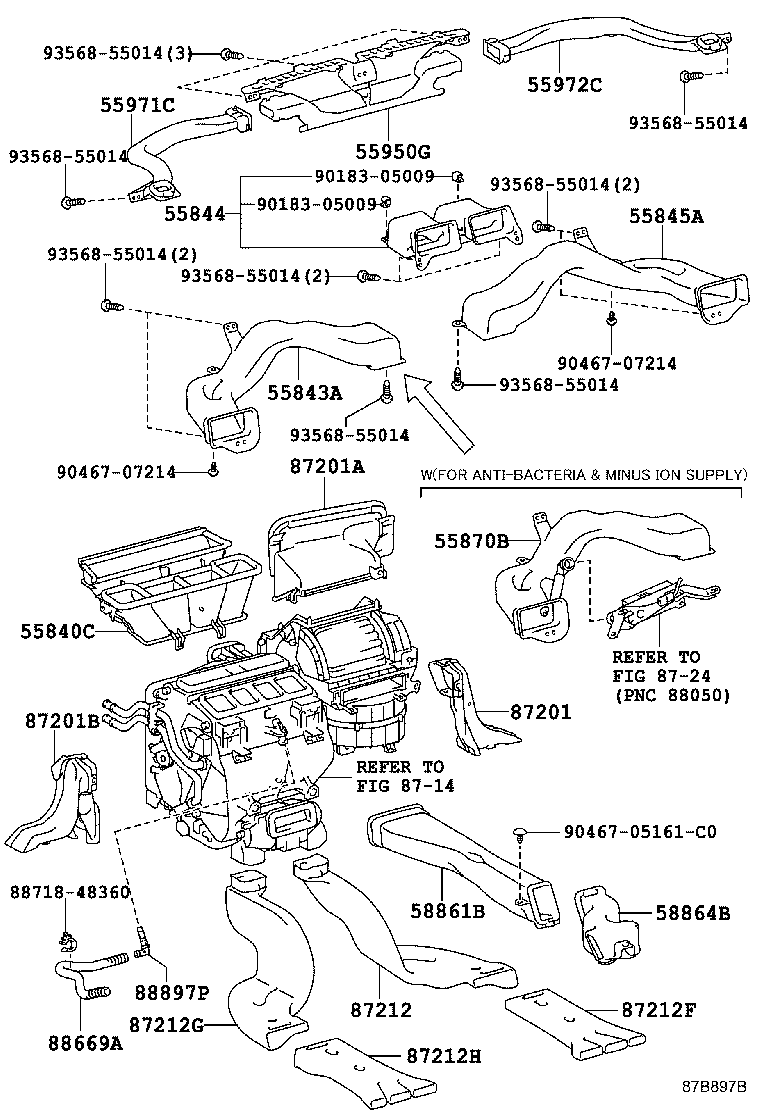

Figure 87B895A 87B895A 2011-08 → 2014-09 Figure 87B895A 87B895A 2011-08 → 2014-11 Figure 87E556D 87E556D 2014-09 → — Figure 87E556D 87E556D 2014-11 → — Figure 87E556D 87E556D 2015-02 → — Figure 87B896A 87B896A 2011-08 → — Figure 87B897B 87B897B 2011-08 → — Figure 87B897B 87B897B 2015-02 → — Figure 87B898B 87B898B 2011-08 → — Figure 87B899B 87B899B 2011-08 → — Figure 87B899B 87B899B 2015-02 → — Figure 87B945B 87B945B 2011-08 → —

Part groups

PNCDescription
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55904A Housing Sub-assy, Heater Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
58864B Duct, Console Box, NO.4
86442A Board, Heater Control Switch
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88669A Hose (FOR COOLER THERMISTOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
