Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

12 part groups · 8 illustrations

Illustrations

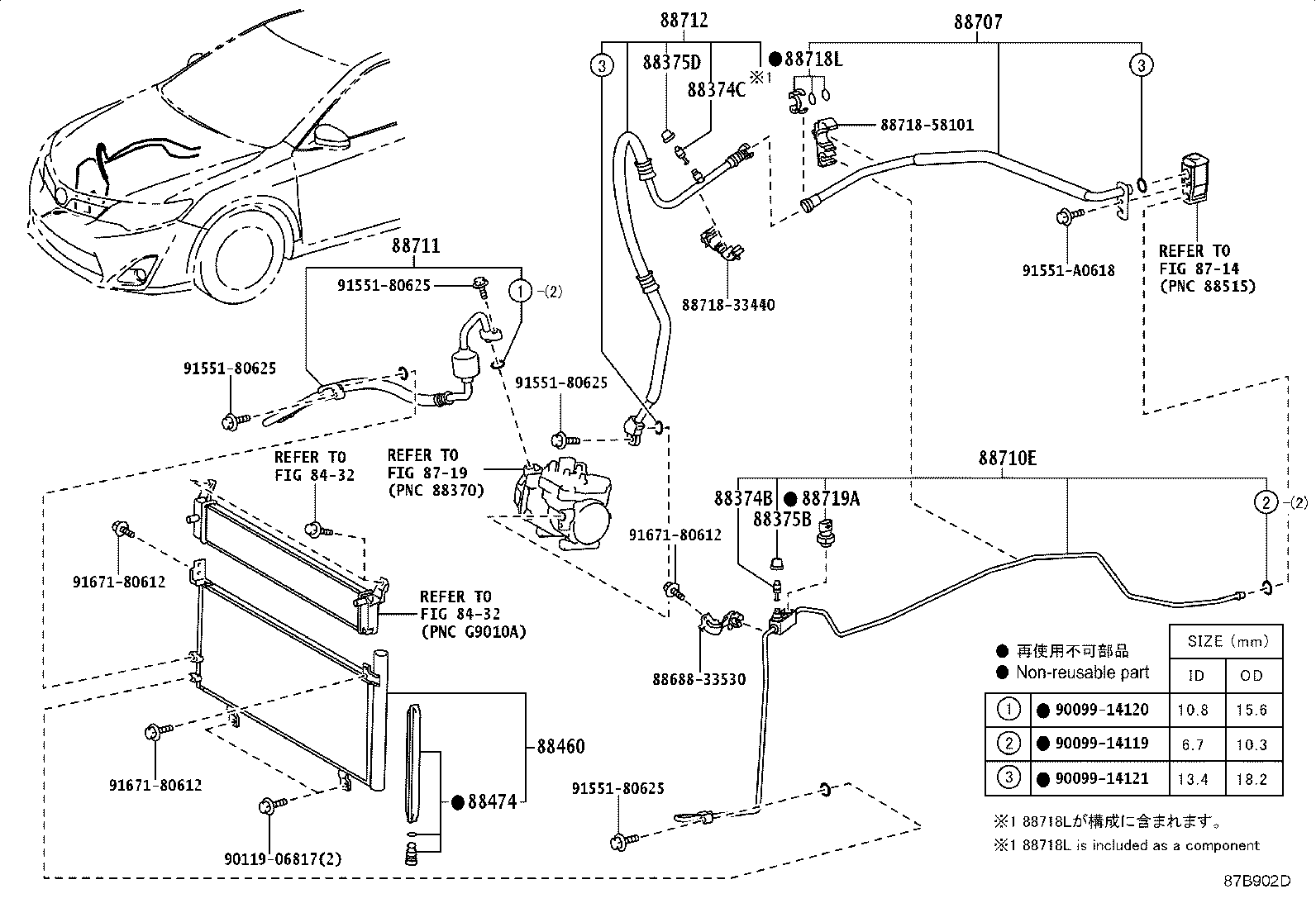

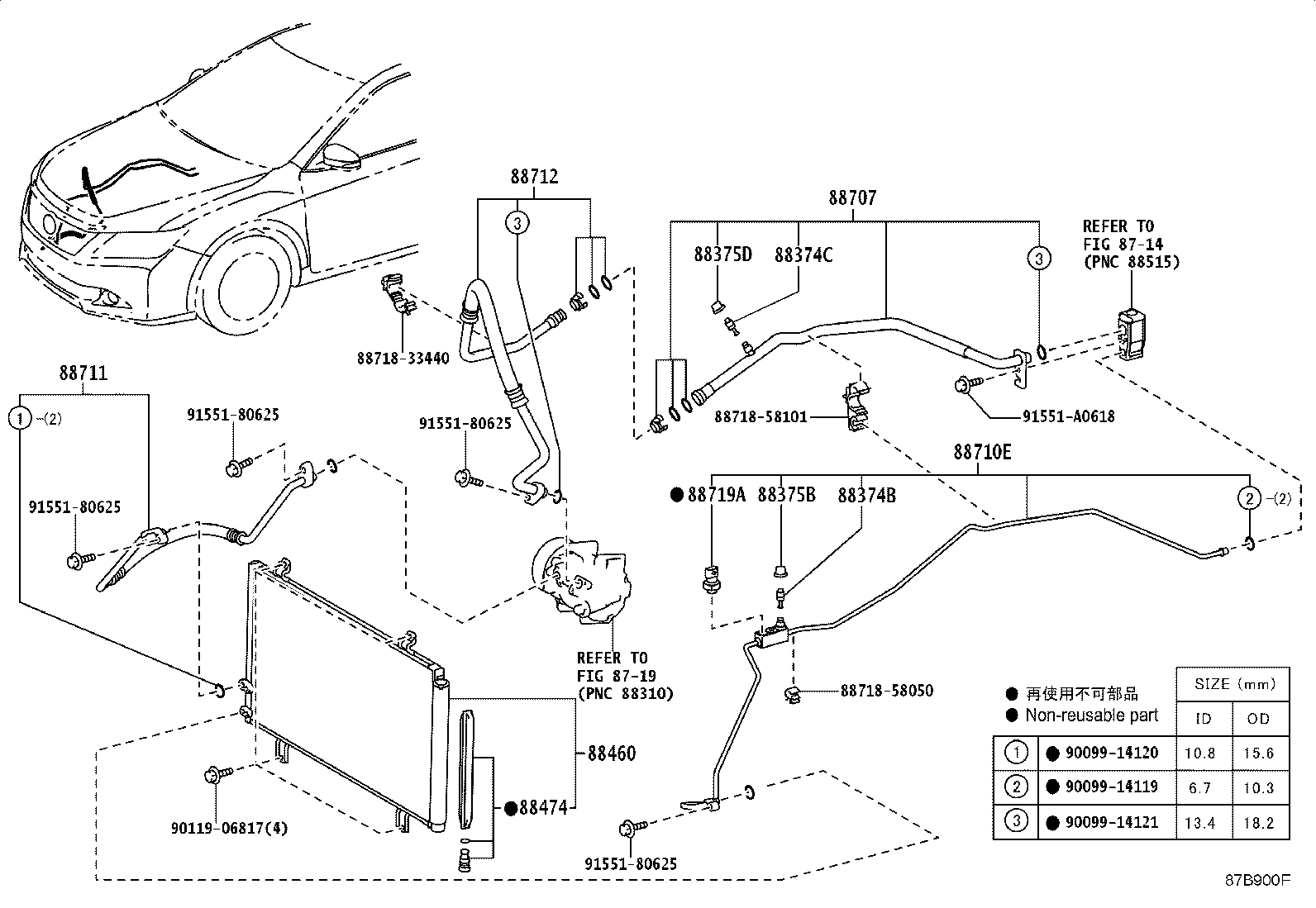

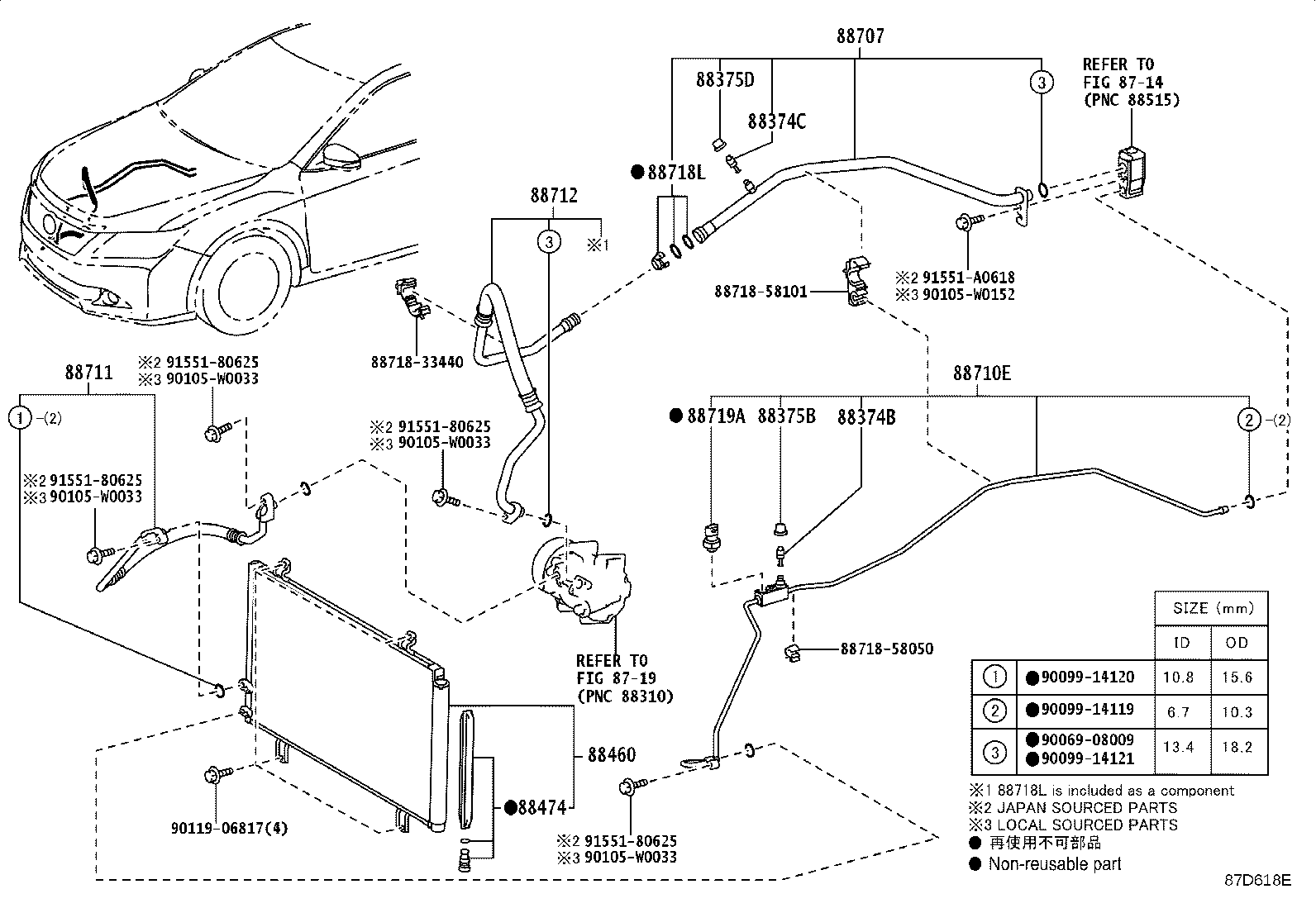

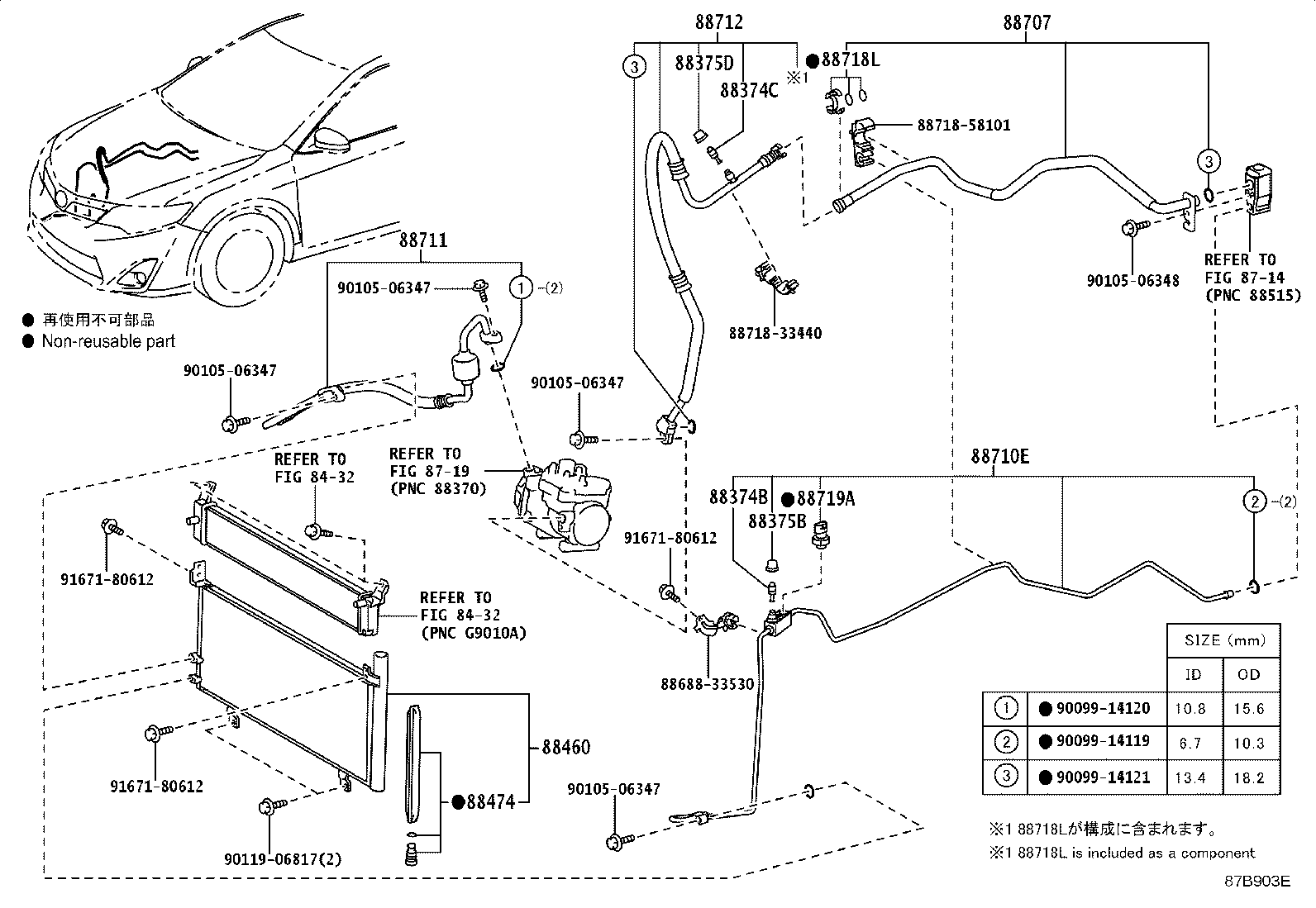

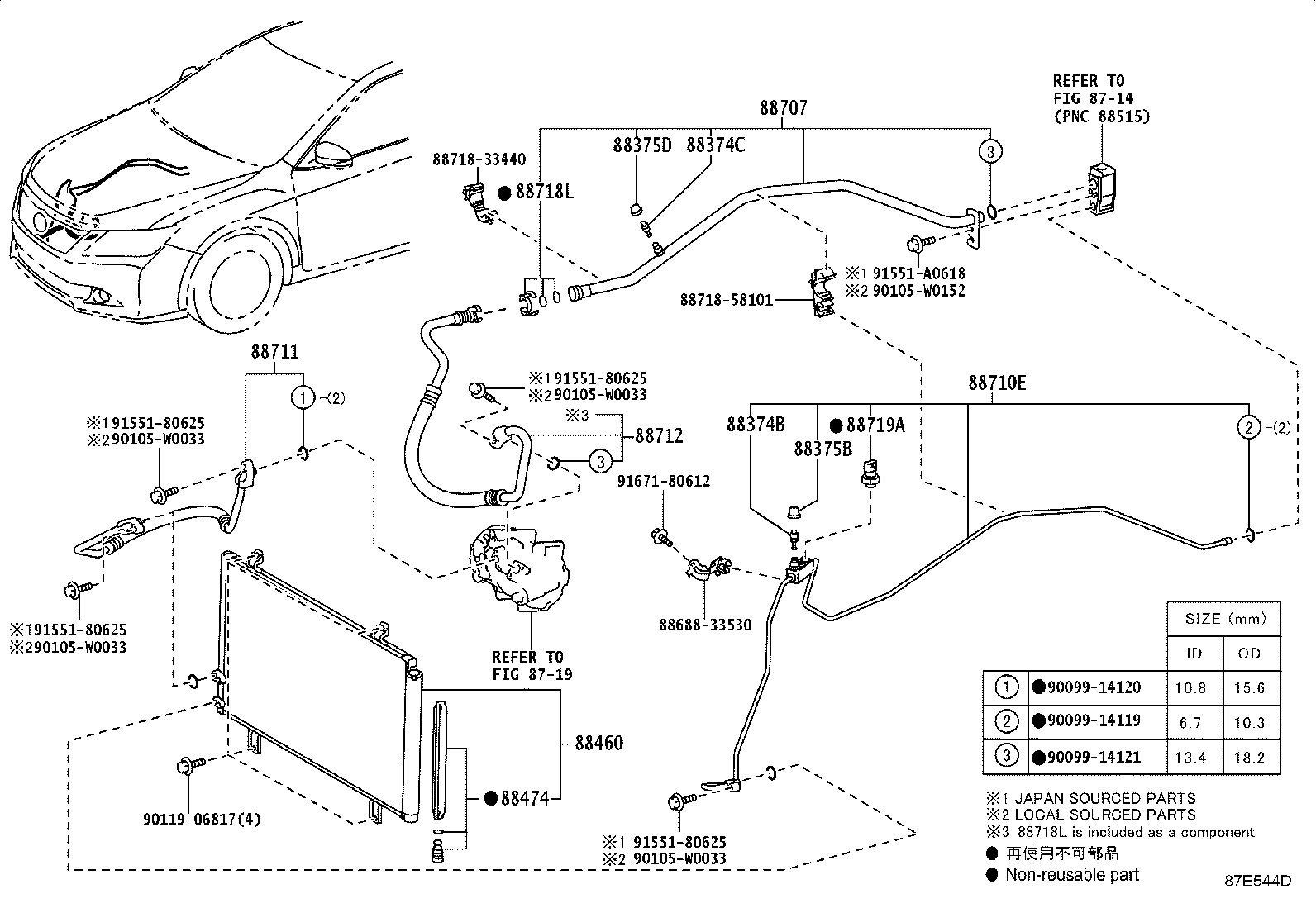

Figure 87B901E 87B901E 2011-08 → 2013-02 Figure 87B901E 87B901E 2011-08 → — Figure 87D618E 87D618E 2013-02 → — Figure 87D618E 87D618E 2015-03 → — Figure 87E544D 87E544D 2011-08 → — Figure 87B902D 87B902D 2011-08 → — Figure 87B903E 87B903E 2011-08 → — Figure 87B900F 87B900F 2012-08 → 2014-11

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
