Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

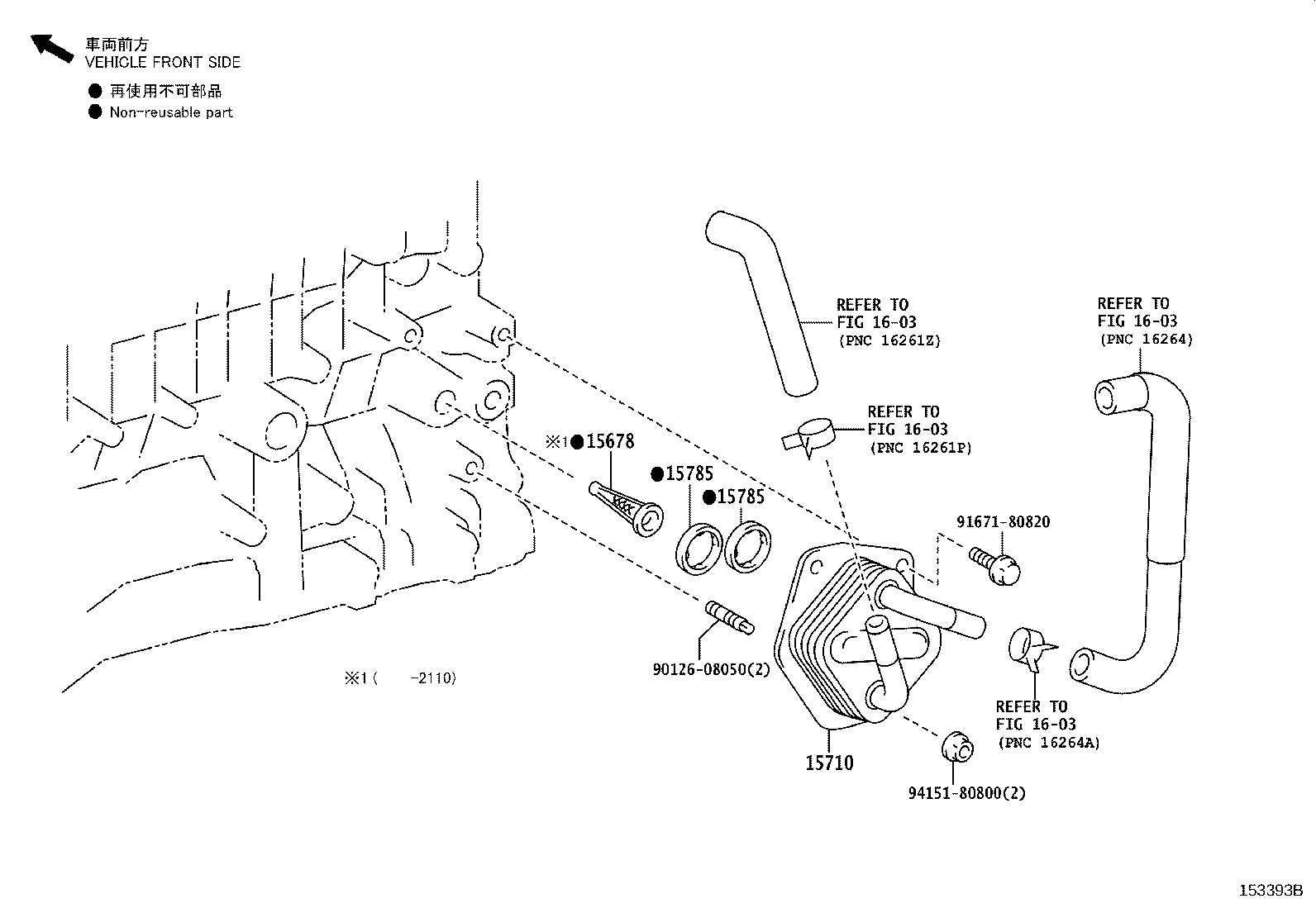

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15678 — Filter, Oil Control Valve | ||||
| 15678-25010 note |
Filter, Oil Control Valve
2019-10 → 2021-01
ended
|
A25AFXS AXVH71 LHD D | — | |
| 15678-25010 note |
Filter, Oil Control Valve
2019-10 → 2021-01
ended
|
A25AFXS AXVH71 RHD N | — | |
| 15678-25010 |
Filter, Oil Control Valve
2019-10 → 2021-01
ended
|
A25AFXS AXVH71 D | — | |
| 15678-25010 |
Filter, Oil Control Valve
2021-02 → 2021-09
ended
|
A25AFXS AXVH71 D | — | |
| 15678-25010 note |
Filter, Oil Control Valve
2021-02 → 2021-09
ended
|
A25AFXS AXVH71 LHD D | — | |
| 15678-25010 note |
Filter, Oil Control Valve
2021-02 → 2021-09
ended
|
A25AFXS AXVH71 LHD D | — | |
| 15678-25010 |
Filter, Oil Control Valve
2021-04 → 2021-10
ended
|
M20AFKS MXVA71 | — | |
| 15710 — Cooler Assy, Oil | ||||
| 15710-25010 |
Cooler Assy, Oil
2019-10 → 2021-01
ended
|
A25AFXS AXVH71 D | — | |
| 15710-25010 note |
Cooler Assy, Oil
2019-10 → 2021-01
ended
|
A25AFXS AXVH71 LHD D | — | |
| 15710-25010 note |
Cooler Assy, Oil
2019-10 → 2021-01
ended
|
A25AFXS AXVH71 RHD N | — | |
| 15710-36010 |
Cooler Assy, Oil
2018-04 → 2021-04
ended
|
6ARFSE ASV71 | — | |
| 15710-25010 note |
Cooler Assy, Oil
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 LHD EUR | — | |
| 15710-25010 |
Cooler Assy, Oil
2022-08 → —
|
A25AFKS AXVA70 EUR | — | |
| 15710-25010 |
Cooler Assy, Oil
2021-02 → —
|
A25AFXS AXVH71 D | — | |
| 15710-25010 note |
Cooler Assy, Oil
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 RHD | — | |
| 15710-25010 note |
Cooler Assy, Oil
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 RHD | — | |
| 15710-25010 note |
Cooler Assy, Oil
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 LHD EUR | — | |
| 15710-25010 note |
Cooler Assy, Oil
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 LHD EUR | — | |
| 15710-25010 note |
Cooler Assy, Oil
2021-02 → 2024-06
ended
|
A25AFXS AXVH71 LHD D | — | |
| 15710-25010 note |
Cooler Assy, Oil
2021-02 → 2024-06
ended
|
A25AFXS AXVH71 LHD D | — | |
| 15710-25010 note |
Cooler Assy, Oil
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 LHD EUR | — | |
| 15710-F2020 |
Cooler Assy, Oil
2021-04 → 2022-03
ended
|
M20AFKS MXVA71 | — | |
| 15785 — Gasket, Oil Cooler | ||||
| 15785-25010 |
Gasket, Oil Cooler
2019-10 → 2021-01
ended
|
A25AFXS AXVH71 D | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2019-10 → 2021-01
ended
|
A25AFXS AXVH71 LHD D | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2019-10 → 2021-01
ended
|
A25AFXS AXVH71 RHD N | — | |
| 15785-36010 |
Gasket, Oil Cooler
2018-04 → 2021-04
ended
|
6ARFSE ASV71 | — | |
| 15785-25010 |
Gasket, Oil Cooler
2022-08 → —
|
A25AFKS AXVA70 EUR | — | |
| 15785-25010 |
Gasket, Oil Cooler
2021-02 → —
|
A25AFXS AXVH71 D | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 RHD | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 LHD EUR | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 RHD | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 LHD EUR | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 LHD EUR | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2022-08 → 2024-06
ended
|
A25AFKS AXVA70 LHD EUR | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2021-02 → 2024-06
ended
|
A25AFXS AXVH71 LHD D | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2021-02 → 2024-06
ended
|
A25AFXS AXVH71 LHD D | — | |
| 15785-25010 |
Gasket, Oil Cooler
2021-04 → 2022-03
ended
|
M20AFKS MXVA71 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
