Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

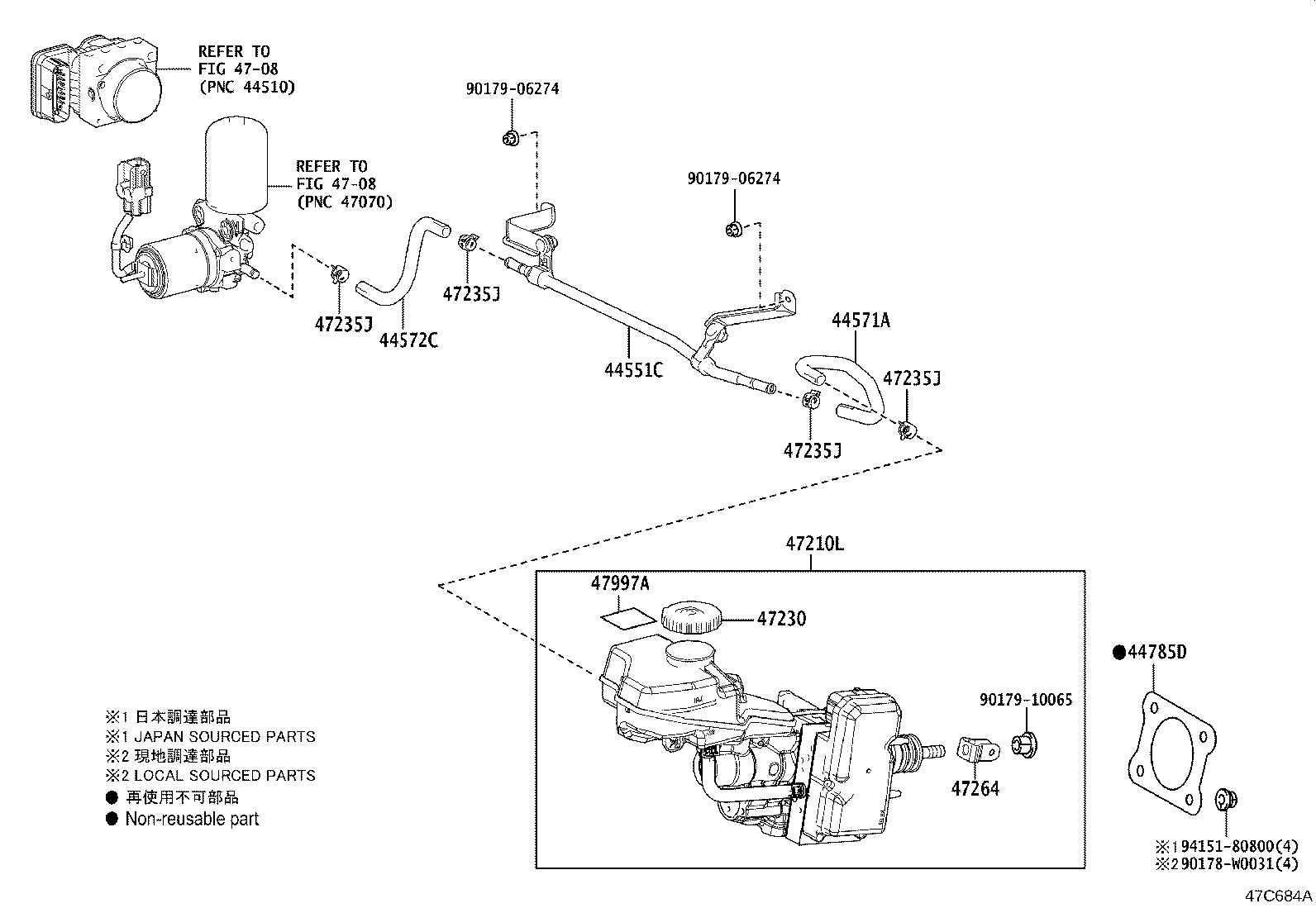

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44551C — Tube, Brake Actuator, NO.1 | ||||
| 44551-33080 |
Tube, Brake Actuator, NO.1
2017-09 → 2021-01
ended
|
AXVH7# LHD | — | |
| 44551-33090 |
Tube, Brake Actuator, NO.1
2017-09 → 2021-01
ended
|
AXVH71 RHD | — | |
| 44551-33080 |
Tube, Brake Actuator, NO.1
2021-02 → —
|
AXVH70;AXVH71 LHD D | — | |
| 44551-33080 |
Tube, Brake Actuator, NO.1
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 44551-33090 |
Tube, Brake Actuator, NO.1
2021-02 → —
|
AXVH71 RHD | — | |
| 44571A — Hose, Brake Actuator, NO.1 | ||||
| 44571-33150 |
Hose, Brake Actuator, NO.1
2017-09 → 2021-01
ended
|
AXVH7# LHD | — | |
| 44571-33160 |
Hose, Brake Actuator, NO.1
2017-09 → 2021-01
ended
|
AXVH71 RHD | — | |
| 44571-33150 |
Hose, Brake Actuator, NO.1
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 44571-33150 |
Hose, Brake Actuator, NO.1
2021-02 → —
|
AXVH70;AXVH71 LHD D | — | |
| 44571-33160 |
Hose, Brake Actuator, NO.1
2021-02 → —
|
AXVH71 RHD | — | |
| 44572C — Hose, Brake Actuator, NO.2 | ||||
| 44572-33010 |
Hose, Brake Actuator, NO.2
2017-09 → 2021-01
ended
|
AXVH7# LHD | — | |
| 44572-33040 |
Hose, Brake Actuator, NO.2
2017-09 → 2021-01
ended
|
AXVH71 RHD | — | |
| 44572-33010 |
Hose, Brake Actuator, NO.2
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 44572-33010 |
Hose, Brake Actuator, NO.2
2021-02 → —
|
AXVH70;AXVH71 LHD D | — | |
| 44572-33040 |
Hose, Brake Actuator, NO.2
2021-02 → —
|
AXVH71 RHD | — | |
| 44785D — Gasket, Brake Master Cylinder | ||||
| 44785-05020 note |
Gasket, Brake Master Cylinder
2017-09 → 2021-01
ended
|
AXVH7# | — | |
| 44785-12040 note |
Gasket, Brake Master Cylinder
2017-09 → 2021-01
ended
|
AXVH7# | — | |
| 44785-05020 note |
Gasket, Brake Master Cylinder
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 44785-05020 note |
Gasket, Brake Master Cylinder
2021-02 → —
|
AXVH70;AXVH71 RHD;AXVH71 LHD D | — | |
| 44785-12040 note |
Gasket, Brake Master Cylinder
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 44785-12040 note |
Gasket, Brake Master Cylinder
2021-02 → —
|
AXVH70;AXVH71 RHD;AXVH71 LHD D | — | |
| 47210L — Brake Booster Assy, W/Master Cylinder | ||||
| 47050-33320 |
Brake Booster Assy, W/Master Cylinder
2018-08 → 2019-10
ended
|
AXVH71 LHD N | — | |
| 47050-33330 |
Brake Booster Assy, W/Master Cylinder
2019-02 → 2019-10
ended
|
AXVH71 LHD D | — | |
| 47050-33340 note |
Brake Booster Assy, W/Master Cylinder
2017-09 → 2018-08
ended
|
AXVH71 LHD | — | |
| 47050-33340 note |
Brake Booster Assy, W/Master Cylinder
2017-09 → 2018-08
ended
|
AXVH71 LHD | — | |
| 47050-33350 |
Brake Booster Assy, W/Master Cylinder
2017-09 → 2018-08
ended
|
AXVH71 LHD | — | |
| 47050-33410 |
Brake Booster Assy, W/Master Cylinder
2017-09 → 2018-08
ended
|
AXVH71 RHD | — | |
| 47050-33520 |
Brake Booster Assy, W/Master Cylinder
2018-08 → 2019-10
ended
|
AXVH71 RHD N | — | |
| 47050-33530 |
Brake Booster Assy, W/Master Cylinder
2019-02 → 2019-10
ended
|
AXVH71 RHD D | — | |
| 47050-33570 |
Brake Booster Assy, W/Master Cylinder
2019-10 → 2021-01
ended
|
AXVH7# LHD N | — | |
| 47050-33580 |
Brake Booster Assy, W/Master Cylinder
2019-10 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 47050-33590 |
Brake Booster Assy, W/Master Cylinder
2019-10 → 2021-01
ended
|
AXVH71 RHD N | — | |
| 47050-33600 |
Brake Booster Assy, W/Master Cylinder
2019-10 → 2021-01
ended
|
AXVH71 RHD D | — | |
| 47050-33720 note |
Brake Booster Assy, W/Master Cylinder
2021-02 → 2022-07
ended
|
AXVH71 LHD D | — | |
| 47050-33720 note |
Brake Booster Assy, W/Master Cylinder
2021-02 → 2022-07
ended
|
AXVH71 LHD D | — | |
| 47050-33720 |
Brake Booster Assy, W/Master Cylinder
2021-02 → 2022-07
ended
|
AXVH7# LHD (N,S) | — | |
| 47050-33721 note |
Brake Booster Assy, W/Master Cylinder
2022-08 → —
|
AXVH71 LHD D | — | |
| 47050-33721 note |
Brake Booster Assy, W/Master Cylinder
2022-08 → —
|
AXVH71 LHD D | — | |
| 47050-33721 |
Brake Booster Assy, W/Master Cylinder
2022-08 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 47050-33721 |
Brake Booster Assy, W/Master Cylinder
2022-08 → —
|
AXVH70 | — | |
| 47050-33730 |
Brake Booster Assy, W/Master Cylinder
2021-02 → 2022-07
ended
|
AXVH71 LHD D | — | |
| 47050-33731 |
Brake Booster Assy, W/Master Cylinder
2022-08 → —
|
AXVH71 LHD D | — | |
| 47050-33740 |
Brake Booster Assy, W/Master Cylinder
2021-02 → 2022-07
ended
|
AXVH71 RHD (N,S) | — | |
| 47050-33741 |
Brake Booster Assy, W/Master Cylinder
2022-08 → —
|
AXVH71 RHD (N,S) | — | |
| 47050-33750 |
Brake Booster Assy, W/Master Cylinder
2021-02 → 2022-07
ended
|
AXVH71 RHD D | — | |
| 47050-33751 |
Brake Booster Assy, W/Master Cylinder
2022-08 → —
|
AXVH71 RHD D | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-33330 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2020-02 → 2020-08
ended
|
AXVH71 LHD | — | |
| 47230-33330 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2020-02 → 2020-09
ended
|
AXVH71 RHD | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2020-09 → 2021-01
ended
|
AXVH71 RHD | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2020-08 → 2021-01
ended
|
AXVH71 LHD | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH70,GSV70 EUR | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2019-10 → 2020-02
ended
|
AXVH71 LHD | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2017-09 → 2020-02
ended
|
AXVH71 RHD | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2017-09 → 2019-10
ended
|
AXVH71 LHD | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 47235J — Clip(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
Clip(FOR RESERVOIR HOSE NO.2)
2017-09 → 2021-01
ended
|
AXVH71 RHD | — | |
| 96137-41501 |
Clip(FOR RESERVOIR HOSE NO.2)
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 96137-41501 |
Clip(FOR RESERVOIR HOSE NO.2)
2021-02 → —
|
AXVH70;AXVH71 RHD;AXVH71 LHD D | — | |
| 47264 — Clevis, Master Cylinder Push Rod | ||||
| 47264-12060 |
Clevis, Master Cylinder Push Rod
2017-09 → 2019-10
ended
|
AXVH71 | — | |
| 47264-12060 |
Clevis, Master Cylinder Push Rod
2019-10 → 2021-01
ended
|
AXVH7# | — | |
| 47264-12060 |
Clevis, Master Cylinder Push Rod
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 47264-12060 |
Clevis, Master Cylinder Push Rod
2021-02 → —
|
AXVH70;AXVH71 RHD;AXVH71 LHD D | — | |
| 47997A — Label, Accumulator Caution, NO.1 | ||||
| 47997-76010 |
Label, Accumulator Caution, NO.1
2017-09 → 2021-01
ended
|
AXVH7# | — | |
| 47997-76010 |
Label, Accumulator Caution, NO.1
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 47997-76010 |
Label, Accumulator Caution, NO.1
2021-02 → —
|
AXVH70;AXVH71 RHD;AXVH71 LHD D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
