Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

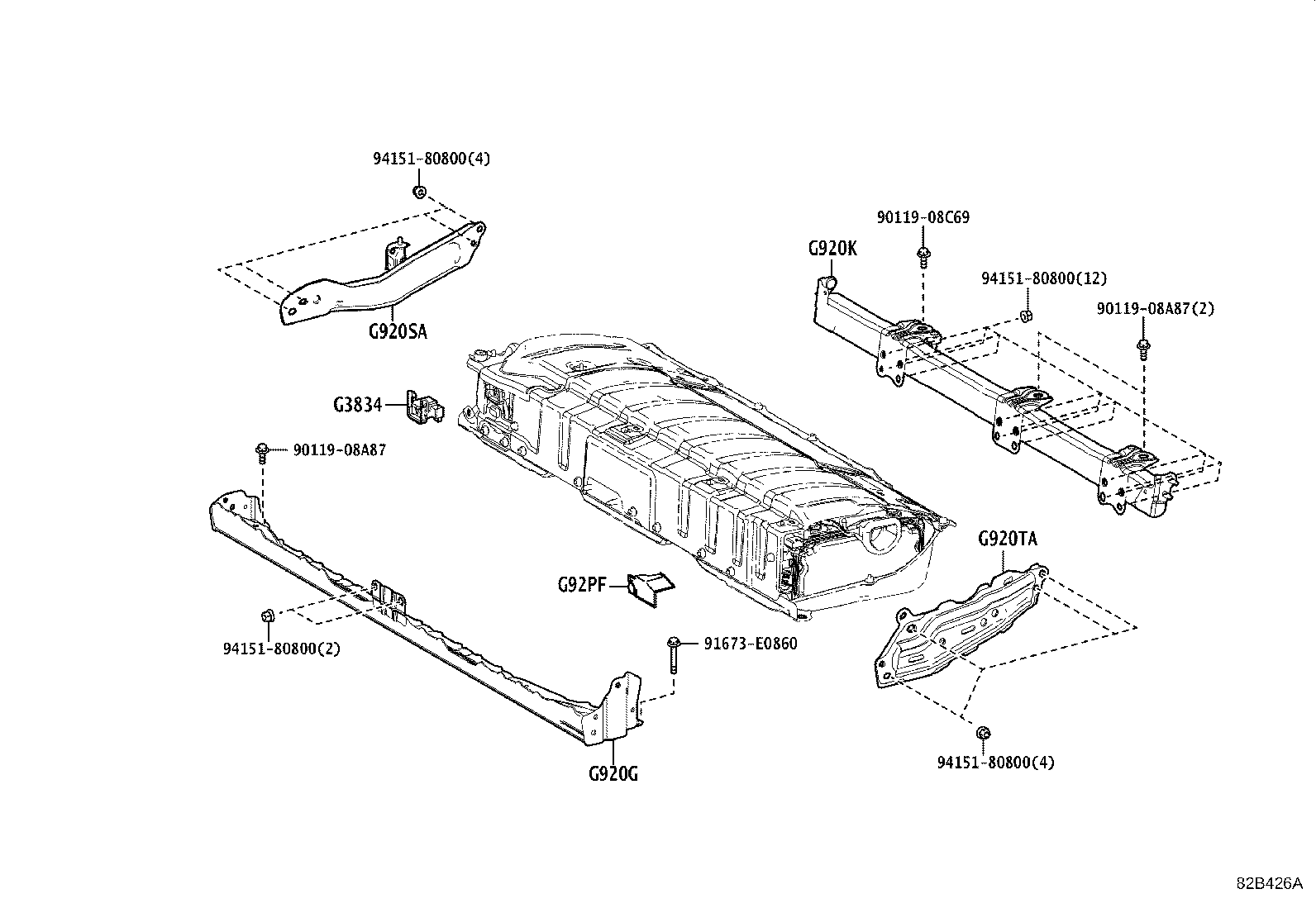

Exploded illustration 82B426A G920G — PLATE SUB-ASSY, HV BATTERY END, NO.4 (3 parts) G920K — PLATE SUB-ASSY, HV BATTERY END, NO.5 (3 parts) G920SA — SHIELD SUB-ASSY, HV BATTERY, NO.3 (3 parts) G3834 — GRIP, SERVICE PLUG (3 parts) G920TA — SHIELD SUB-ASSY, HV BATTERY, NO.4 (3 parts) G92PF — PROTECTOR, HV BATTERY, NO.4 (2 parts) 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9011908A87 — not listed in this catalogue 9011908A87 — not listed in this catalogue 91673E0860 — not listed in this catalogue 9011908C69 — not listed in this catalogue 9415180800 — not listed in this catalogue
82B426A · 6 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
G3834 — Grip, Service Plug
G3834-47050 Grip, Service Plug
2017-09 → 2021-01 ended
AXVH7# —
G3834-47050 Grip, Service Plug
2021-02 → 2023-12 ended
AXVH71 LHD N —
G3834-47050 Grip, Service Plug
2021-02 → —
AXVH70;AXVH71 RHD;AXVH71 LHD D —
G920G — Plate Sub-assy, HV Battery End, NO.4
G920G-33010 Plate Sub-assy, HV Battery End, NO.4
2017-09 → 2021-01 ended
AXVH7# —
G920G-33010 Plate Sub-assy, HV Battery End, NO.4
2021-02 → 2023-12 ended
AXVH71 LHD N —
G920G-33010 Plate Sub-assy, HV Battery End, NO.4
2021-02 → —
AXVH70;AXVH71 RHD;AXVH71 LHD D —
G920K — Plate Sub-assy, HV Battery End, NO.5
G920K-33010 Plate Sub-assy, HV Battery End, NO.5
2017-09 → 2021-01 ended
AXVH7# —
G920K-33010 Plate Sub-assy, HV Battery End, NO.5
2021-02 → —
AXVH70;AXVH71 RHD;AXVH71 LHD D —
G920K-33010 Plate Sub-assy, HV Battery End, NO.5
2021-02 → 2023-12 ended
AXVH71 LHD N —
G920SA — Shield Sub-assy, HV Battery, NO.3
G920S-33020 Shield Sub-assy, HV Battery, NO.3
2017-09 → 2021-01 ended
AXVH7# —
G920S-33020 Shield Sub-assy, HV Battery, NO.3
2021-02 → 2023-12 ended
AXVH71 LHD N —
G920S-33020 Shield Sub-assy, HV Battery, NO.3
2021-02 → —
AXVH70;AXVH71 RHD;AXVH71 LHD D —
G920TA — Shield Sub-assy, HV Battery, NO.4
G920T-33020 Shield Sub-assy, HV Battery, NO.4
2017-09 → 2021-01 ended
AXVH7# —
G920T-33020 Shield Sub-assy, HV Battery, NO.4
2021-02 → 2023-12 ended
AXVH71 LHD N —
G920T-33020 Shield Sub-assy, HV Battery, NO.4
2021-02 → —
AXVH70;AXVH71 RHD;AXVH71 LHD D —
G92PF — Protector, HV Battery, NO.4
G92PF-33010 Protector, HV Battery, NO.4
2020-08 → 2021-01 ended
AXVH70 —
G92PF-33010 Protector, HV Battery, NO.4
2021-02 → —
AXVH70 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
