Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

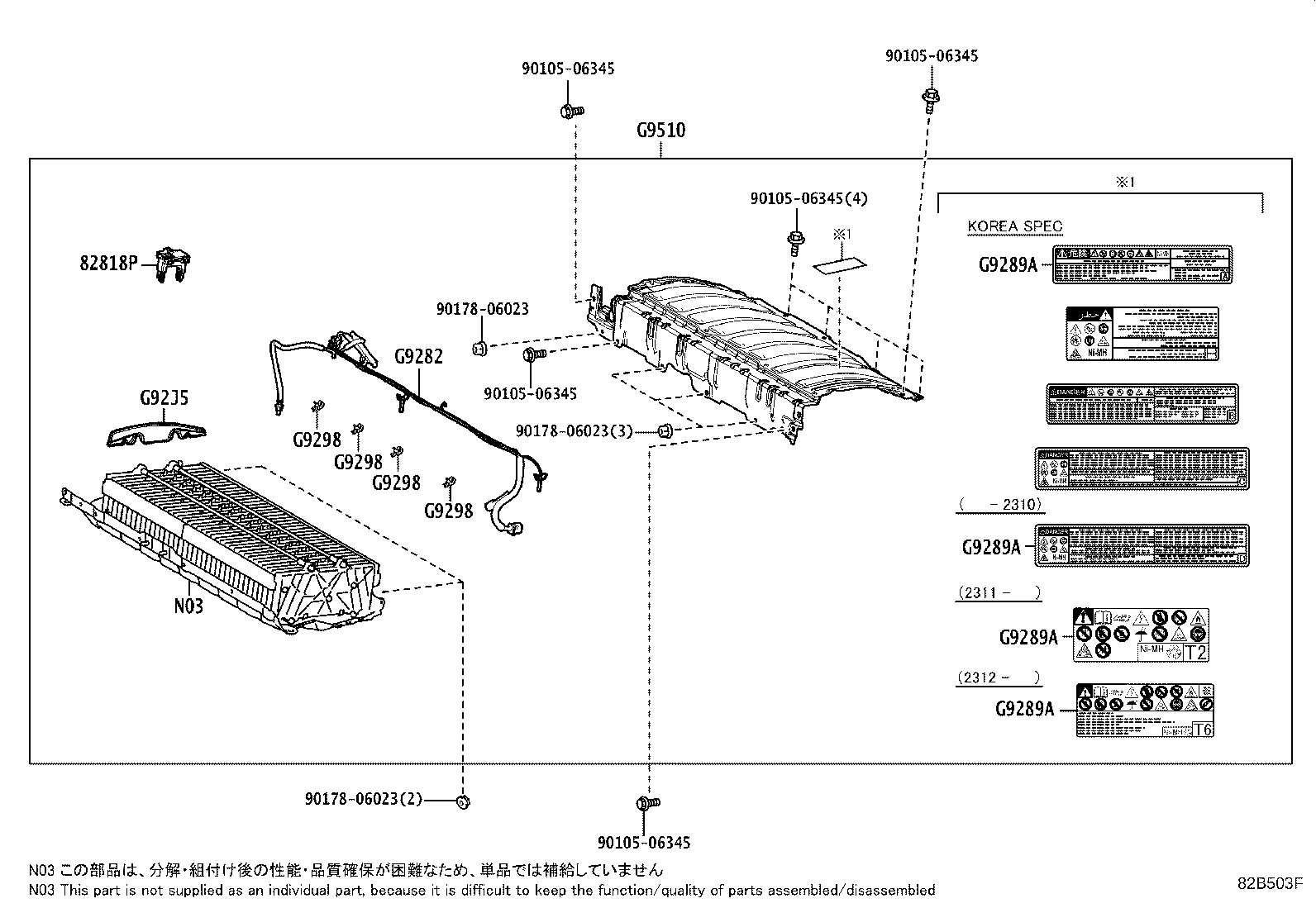

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82818P — Protector, Wiring Harness | ||||
| 82817-47Q60 |
Protector, Wiring Harness
2017-09 → 2021-01
ended
|
AXVH7# | — | |
| 82817-47Q60 |
Protector, Wiring Harness
2021-02 → 2021-10
ended
|
AXVH70 | — | |
| 82817-47Q60 |
Protector, Wiring Harness
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 82817-47Q60 |
Protector, Wiring Harness
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D | — | |
| G92SK-K0020 |
Protector, Wiring Harness
2021-11 → —
|
AXVH70 | — | |
| G9282 — Thermistor, Hybrid Battery | ||||
| G9282-33030 |
Thermistor, Hybrid Battery
2017-09 → 2021-01
ended
|
AXVH71 | — | |
| G9282-33030 |
Thermistor, Hybrid Battery
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| G9282-33030 |
Thermistor, Hybrid Battery
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D | — | |
| G9289A — Label, Battery Caution | ||||
| G9288-48040 |
Label, Battery Caution
2017-09 → 2021-01
ended
|
AXVH71 | — | |
| G9288-50010 note |
Label, Battery Caution
2019-12 → 2021-01
ended
|
AXVH71 LHD N | — | |
| G9288-48040 |
Label, Battery Caution
2021-02 → 2023-10
ended
|
AXVH71 | — | |
| G9288-48080 note |
Label, Battery Caution
2023-12 → —
|
AXVH71 LHD D | — | |
| G9288-48080 note |
Label, Battery Caution
2023-12 → —
|
AXVH71 LHD D | — | |
| G9288-48080 note |
Label, Battery Caution
2023-12 → —
|
AXVH71 LHD D | — | |
| G9288-48080 note |
Label, Battery Caution
2023-12 → —
|
AXVH71 LHD D | — | |
| G9288-48080 |
Label, Battery Caution
2023-11 → —
|
AXVH71 RHD (N,S) | — | |
| G9288-48080 |
Label, Battery Caution
2023-11 → 2023-12
ended
|
AXVH71 D;AXVH71 LHD N | — | |
| G9288-48090 |
Label, Battery Caution
2023-12 → —
|
AXVH71 D | — | |
| G9298 — Clamp, HV Battery | ||||
| G928E-47010 |
Clamp, HV Battery
2017-09 → 2021-01
ended
|
AXVH71 | — | |
| G928E-47010 |
Clamp, HV Battery
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| G928E-47010 |
Clamp, HV Battery
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D | — | |
| G92J5 — Packing, Hybrid Battery, NO.1 | ||||
| G92J5-47030 |
Packing, Hybrid Battery, NO.1
2017-09 → 2021-01
ended
|
AXVH71 | — | |
| G92J5-47030 |
Packing, Hybrid Battery, NO.1
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| G92J5-47030 |
Packing, Hybrid Battery, NO.1
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D | — | |
| G9510 — Battery Assy, HV Supply | ||||
| G9510-33101 |
Battery Assy, HV Supply
2020-08 → 2021-01
ended
|
AXVH70 | — | |
| G9510-33110 |
Battery Assy, HV Supply
2017-09 → 2021-01
ended
|
AXVH71 | — | |
| G9510-33101 |
Battery Assy, HV Supply
2021-02 → —
|
AXVH70 | — | |
| G9510-33110 |
Battery Assy, HV Supply
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| G9510-33110 |
Battery Assy, HV Supply
2021-02 → 2024-02
ended
|
AXVH71 RHD;AXVH71 LHD D | — | |
| G9510-33111 |
Battery Assy, HV Supply
2024-03 → —
|
AXVH71 RHD;AXVH71 LHD D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
