Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

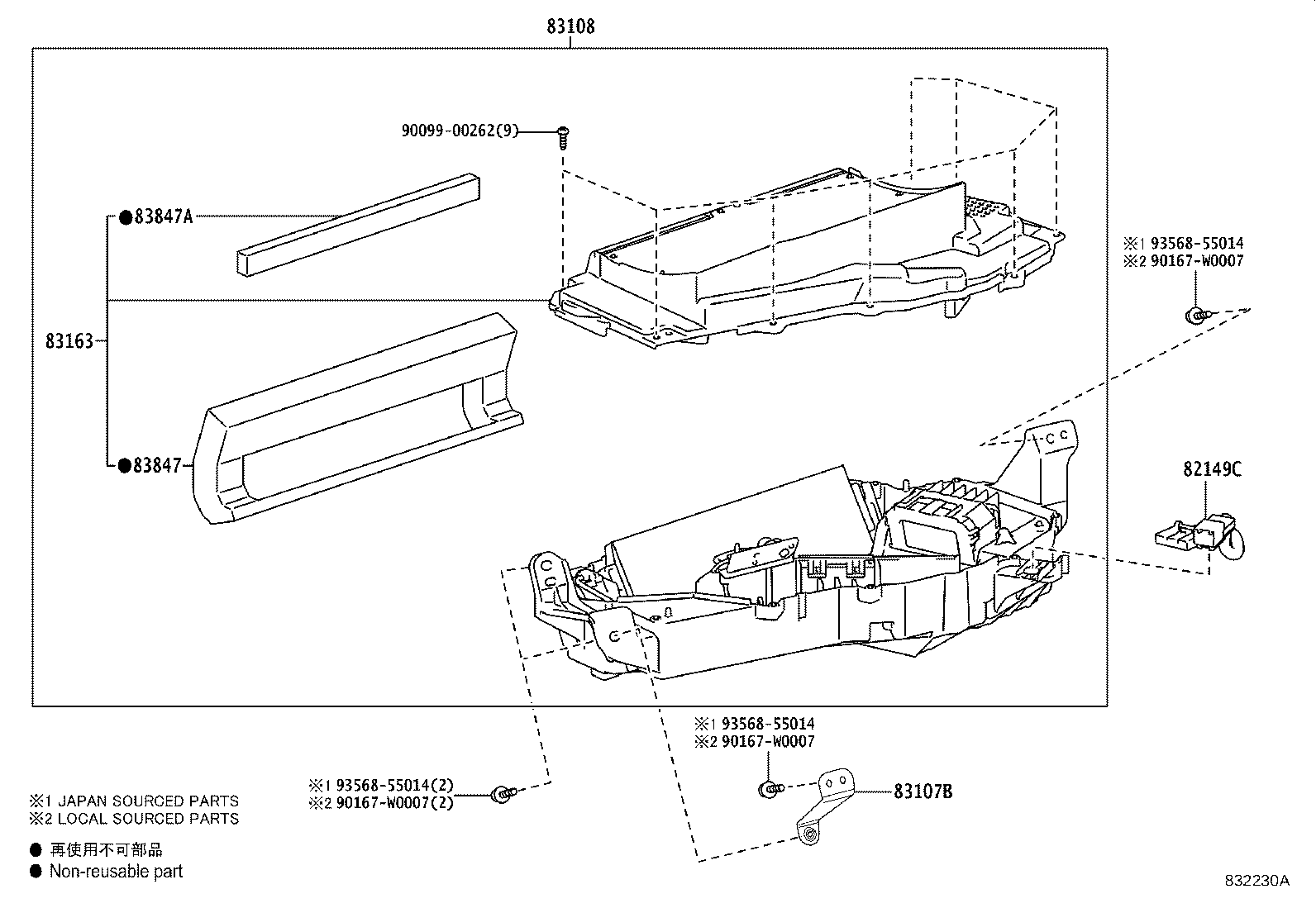

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82149C — Wire, Meter Mirror | ||||
| 82149-06020 note |
Wire, Meter Mirror
2018-04 → 2021-04
ended
|
GSV70 RUS | — | |
| 82149-33010 note |
Wire, Meter Mirror
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 82149-33010 note |
Wire, Meter Mirror
2017-09 → 2019-10
ended
|
AXVH71 LHD N | — | |
| 82149-06020 note |
Wire, Meter Mirror
2021-04 → 2022-03
ended
|
GSV70 RUS | — | |
| 82149-33010 |
Wire, Meter Mirror
2021-02 → —
|
AXVH71 S | — | |
| 82149-33010 note |
Wire, Meter Mirror
2021-02 → —
|
GSV70 EUR | — | |
| 82149-33010 note |
Wire, Meter Mirror
2021-02 → —
|
AXVH71 LHD D | — | |
| 83107B — Bracket Sub-assy, Meter, NO.2 | ||||
| 83107-33020 note |
Bracket Sub-assy, Meter, NO.2
2017-09 → 2019-10
ended
|
AXVH71 LHD N | — | |
| 83107-33020 note |
Bracket Sub-assy, Meter, NO.2
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 83107-33020 note |
Bracket Sub-assy, Meter, NO.2
2018-04 → 2021-04
ended
|
GSV70 RUS | — | |
| 83107-33020 note |
Bracket Sub-assy, Meter, NO.2
2021-02 → —
|
AXVH71 LHD D | — | |
| 83107-33020 note |
Bracket Sub-assy, Meter, NO.2
2021-02 → —
|
GSV70 EUR | — | |
| 83107-33020 note |
Bracket Sub-assy, Meter, NO.2
2021-04 → 2022-03
ended
|
GSV70 RUS | — | |
| 83107-33030 |
Bracket Sub-assy, Meter, NO.2
2021-02 → —
|
AXVH71 S | — | |
| 83108 — Mirror Sub-assy, Meter | ||||
| 83108-06020 note |
Mirror Sub-assy, Meter
2018-04 → 2021-04
ended
|
GSV70 RUS | — | |
| 83108-33030 note |
Mirror Sub-assy, Meter
2017-09 → 2018-08
ended
|
AXVH71 LHD | — | |
| 83108-33031 note |
Mirror Sub-assy, Meter
2018-08 → 2019-10
ended
|
AXVH71 LHD N | — | |
| 83108-33031 note |
Mirror Sub-assy, Meter
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 83108-06021 note |
Mirror Sub-assy, Meter
2021-04 → 2022-03
ended
|
GSV70 RUS | — | |
| 83108-33032 note |
Mirror Sub-assy, Meter
2021-02 → —
|
GSV70 EUR | — | |
| 83108-33032 note |
Mirror Sub-assy, Meter
2021-02 → —
|
AXVH71 LHD D | — | |
| 83108-33042 |
Mirror Sub-assy, Meter
2021-02 → —
|
AXVH71 S | — | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83163-06020 note |
Plate, Combination Meter Mirror, NO.1
2018-04 → 2021-04
ended
|
GSV70 RUS | — | |
| 83163-33030 note |
Plate, Combination Meter Mirror, NO.1
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 83163-33030 note |
Plate, Combination Meter Mirror, NO.1
2017-09 → 2019-10
ended
|
AXVH71 LHD N | — | |
| 83163-06021 note |
Plate, Combination Meter Mirror, NO.1
2021-04 → 2022-03
ended
|
GSV70 RUS | — | |
| 83163-33032 note |
Plate, Combination Meter Mirror, NO.1
2021-02 → —
|
GSV70 EUR | — | |
| 83163-33032 note |
Plate, Combination Meter Mirror, NO.1
2021-02 → —
|
AXVH71 LHD D | — | |
| 83163-33042 |
Plate, Combination Meter Mirror, NO.1
2021-02 → —
|
AXVH71 S | — | |
| 83847 — Cushion, Combination Speedometer, NO.1 | ||||
| 83847-33030 note |
Cushion, Combination Speedometer, NO.1
2017-09 → 2019-10
ended
|
AXVH71 LHD N | — | |
| 83847-33030 note |
Cushion, Combination Speedometer, NO.1
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 83847-33030 note |
Cushion, Combination Speedometer, NO.1
2018-04 → 2021-04
ended
|
GSV70 RUS | — | |
| 83847-33030 note |
Cushion, Combination Speedometer, NO.1
2021-04 → 2022-03
ended
|
GSV70 RUS | — | |
| 83847-33030 note |
Cushion, Combination Speedometer, NO.1
2021-02 → —
|
AXVH71 LHD D | — | |
| 83847-33030 note |
Cushion, Combination Speedometer, NO.1
2021-02 → —
|
GSV70 EUR | — | |
| 83847-33030 |
Cushion, Combination Speedometer, NO.1
2021-02 → —
|
AXVH71 S | — | |
| 83847A — Cushion, Combination Speedmeter | ||||
| 83847-33040 note |
Cushion, Combination Speedmeter
2017-09 → 2019-10
ended
|
AXVH71 LHD N | — | |
| 83847-33040 note |
Cushion, Combination Speedmeter
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 83847-33040 note |
Cushion, Combination Speedmeter
2018-04 → 2021-04
ended
|
GSV70 RUS | — | |
| 83847-33040 note |
Cushion, Combination Speedmeter
2021-04 → 2022-03
ended
|
GSV70 RUS | — | |
| 83847-33040 |
Cushion, Combination Speedmeter
2021-02 → —
|
AXVH71 S | — | |
| 83847-33040 note |
Cushion, Combination Speedmeter
2021-02 → —
|
GSV70 EUR | — | |
| 83847-33040 note |
Cushion, Combination Speedmeter
2021-02 → —
|
AXVH71 LHD D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
