Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

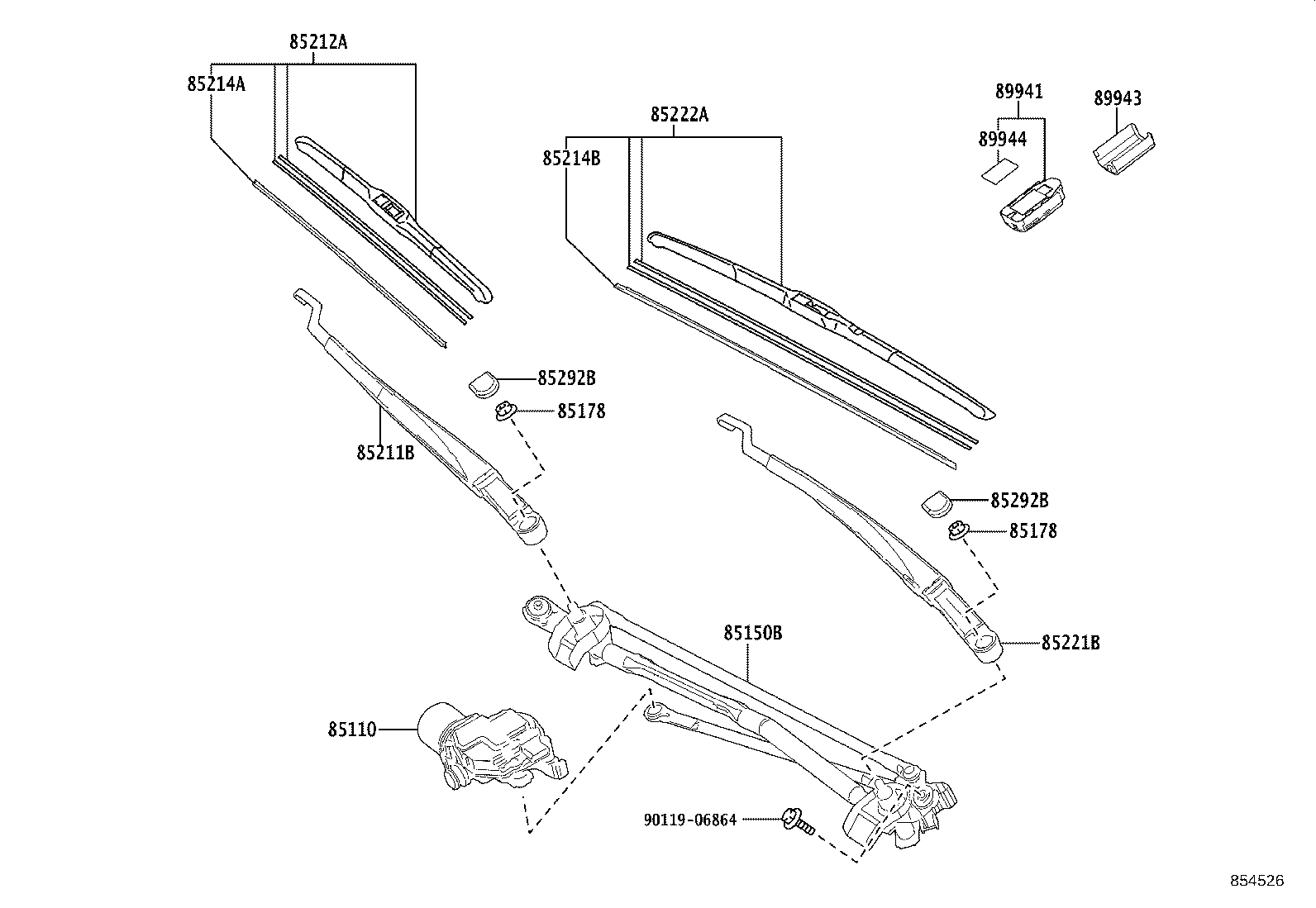

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-33430 |
Motor Assy, Windshield Wiper
2017-09 → 2020-10
ended
|
ASV7#,AXVA70,AXVH7#,GSV70 LHD | — | |
| 85110-33432 |
Motor Assy, Windshield Wiper
2020-11 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 LHD EUR | — | |
| 85110-33432 |
Motor Assy, Windshield Wiper
2020-11 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 85110-33440 |
Motor Assy, Windshield Wiper
2017-09 → 2020-10
ended
|
ASV70,AXVH71 RHD | — | |
| 85110-33441 |
Motor Assy, Windshield Wiper
2020-11 → 2021-01
ended
|
ASV70,AXVH71 RHD | — | |
| 85110-33432 |
Motor Assy, Windshield Wiper
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 85110-33432 |
Motor Assy, Windshield Wiper
2021-02 → —
|
AXVH71 LHD D;AXVA70,AXVH70,GSV70 JPP +1 | — | |
| 85110-33432 |
Motor Assy, Windshield Wiper
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 85110-33441 |
Motor Assy, Windshield Wiper
2021-02 → —
|
AXVA70,AXVH71 RHD | — | |
| 85150B — Link Assy, Wiper | ||||
| 85150-06210 |
Link Assy, Wiper
2018-04 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 85150-33290 |
Link Assy, Wiper
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 LHD (G,N,S) EUR | — | |
| 85150-33290 note |
Link Assy, Wiper
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 85150-33320 |
Link Assy, Wiper
2017-09 → 2021-01
ended
|
ASV70,AXVH71 RHD N | — | |
| 85150-33330 |
Link Assy, Wiper
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 85150-33370 |
Link Assy, Wiper
2019-02 → 2021-01
ended
|
AXVH71 RHD D | — | |
| 85150-06211 |
Link Assy, Wiper
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 85150-33291 note |
Link Assy, Wiper
2021-02 → —
|
AXVH71 LHD D | — | |
| 85150-33291 note |
Link Assy, Wiper
2021-02 → —
|
AXVH71 LHD D | — | |
| 85150-33291 |
Link Assy, Wiper
2021-02 → —
|
AXVA70,AXVH70,GSV70 LHD EUR | — | |
| 85150-33291 |
Link Assy, Wiper
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 85150-33320 |
Link Assy, Wiper
2021-02 → —
|
AXVA70,AXVH71 RHD (N,S) | — | |
| 85150-33331 |
Link Assy, Wiper
2021-02 → —
|
AXVH71 LHD D;AXVA70 JPP +1 | — | |
| 85150-33370 |
Link Assy, Wiper
2021-02 → —
|
AXVH71 RHD D | — | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
Nut (FOR FRONT WIPER ARM SETTING)
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 90182-10006 |
Nut (FOR FRONT WIPER ARM SETTING)
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 90182-10006 |
Nut (FOR FRONT WIPER ARM SETTING)
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 90182-10006 |
Nut (FOR FRONT WIPER ARM SETTING)
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 90182-10006 |
Nut (FOR FRONT WIPER ARM SETTING)
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 85211B — Arm, Front Wiper, RH | ||||
| 85211-06210 |
Arm, Front Wiper, RH
2018-04 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 85211-33440 |
Arm, Front Wiper, RH
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 85211-33450 note |
Arm, Front Wiper, RH
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 85211-33450 |
Arm, Front Wiper, RH
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 LHD (G,N,S) EUR | — | |
| 85211-33460 |
Arm, Front Wiper, RH
2017-09 → 2021-01
ended
|
ASV70,AXVH71 RHD N | — | |
| 85211-33470 |
Arm, Front Wiper, RH
2019-02 → 2021-01
ended
|
AXVH71 RHD D | — | |
| 85211-06210 |
Arm, Front Wiper, RH
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 85211-33440 |
Arm, Front Wiper, RH
2021-02 → —
|
AXVH71 LHD D;AXVA70 JPP +1 | — | |
| 85211-33450 |
Arm, Front Wiper, RH
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 85211-33450 |
Arm, Front Wiper, RH
2021-02 → —
|
AXVA70,AXVH70,GSV70 LHD EUR | — | |
| 85211-33450 note |
Arm, Front Wiper, RH
2021-02 → —
|
AXVH71 LHD D | — | |
| 85211-33450 note |
Arm, Front Wiper, RH
2021-02 → —
|
AXVH71 LHD D | — | |
| 85211-33460 |
Arm, Front Wiper, RH
2021-02 → —
|
AXVA70,AXVH71 RHD (N,S) | — | |
| 85211-33470 |
Arm, Front Wiper, RH
2021-02 → —
|
AXVH71 RHD D | — | |
| 85212A — Blade, FR Wiper, RH | ||||
| 85212-06210 |
Blade, FR Wiper, RH
2018-04 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 85212-33340 |
Blade, FR Wiper, RH
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 LHD EUR | — | |
| 85212-33350 |
Blade, FR Wiper, RH
2017-09 → 2018-05
ended
|
ASV70,AXVH71 RHD | — | |
| 85212-52210 |
Blade, FR Wiper, RH
2018-06 → 2021-01
ended
|
ASV70,AXVH71 RHD | — | |
| 85212-06210 |
Blade, FR Wiper, RH
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 85212-33340 |
Blade, FR Wiper, RH
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 85212-33340 |
Blade, FR Wiper, RH
2021-02 → —
|
AXVH71 LHD D;AXVA70,AXVH70,GSV70 JPP +1 | — | |
| 85212-52210 |
Blade, FR Wiper, RH
2021-02 → —
|
AXVA70,AXVH71 RHD | — | |
| 85214A — Rubber, Wiper, RH | ||||
| 85214-52110 |
Rubber, Wiper, RH
2017-09 → 2021-01
ended
|
ASV70,AXVH71 RHD | — | |
| 85214-60120 |
Rubber, Wiper, RH
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 85214-60120 |
Rubber, Wiper, RH
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 LHD EUR | — | |
| 85214-52110 |
Rubber, Wiper, RH
2021-02 → —
|
AXVA70,AXVH71 RHD | — | |
| 85214-60120 |
Rubber, Wiper, RH
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 85214-60120 |
Rubber, Wiper, RH
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 85214-60120 |
Rubber, Wiper, RH
2021-02 → —
|
AXVH71 LHD D;AXVA70,AXVH70,GSV70 JPP +1 | — | |
| 85214B — Rubber, Wiper, LH | ||||
| 85214-52110 |
Rubber, Wiper, LH
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 LHD EUR | — | |
| 85214-52110 |
Rubber, Wiper, LH
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 85214-60120 |
Rubber, Wiper, LH
2017-09 → 2021-01
ended
|
ASV70,AXVH71 RHD | — | |
| 85214-52110 |
Rubber, Wiper, LH
2021-02 → —
|
AXVH71 LHD D;AXVA70,AXVH70,GSV70 JPP +1 | — | |
| 85214-52110 |
Rubber, Wiper, LH
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 85214-52110 |
Rubber, Wiper, LH
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 85214-60120 |
Rubber, Wiper, LH
2021-02 → —
|
AXVA70,AXVH71 RHD | — | |
| 85221B — Arm, Front Wiper, LH | ||||
| 85221-06210 |
Arm, Front Wiper, LH
2018-04 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 85221-33390 |
Arm, Front Wiper, LH
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 85221-33440 note |
Arm, Front Wiper, LH
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 85221-33440 |
Arm, Front Wiper, LH
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 LHD (G,N,S) EUR | — | |
| 85221-33450 |
Arm, Front Wiper, LH
2017-09 → 2021-01
ended
|
ASV70,AXVH71 RHD N | — | |
| 85221-33460 |
Arm, Front Wiper, LH
2019-02 → 2021-01
ended
|
AXVH71 RHD D | — | |
| 85221-06210 |
Arm, Front Wiper, LH
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 85221-33390 |
Arm, Front Wiper, LH
2021-02 → —
|
AXVH71 LHD D;AXVA70 JPP +1 | — | |
| 85221-33440 |
Arm, Front Wiper, LH
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 85221-33440 |
Arm, Front Wiper, LH
2021-02 → —
|
AXVA70,AXVH70,GSV70 LHD EUR | — | |
| 85221-33440 note |
Arm, Front Wiper, LH
2021-02 → —
|
AXVH71 LHD D | — | |
| 85221-33440 note |
Arm, Front Wiper, LH
2021-02 → —
|
AXVH71 LHD D | — | |
| 85221-33450 |
Arm, Front Wiper, LH
2021-02 → —
|
AXVA70,AXVH71 RHD (N,S) | — | |
| 85221-33460 |
Arm, Front Wiper, LH
2021-02 → —
|
AXVH71 RHD D | — | |
| 85222A — Blade, FR Wiper, LH | ||||
| 85222-06210 |
Blade, FR Wiper, LH
2018-04 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 85222-33340 |
Blade, FR Wiper, LH
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 LHD EUR | — | |
| 85222-33350 |
Blade, FR Wiper, LH
2017-09 → 2021-01
ended
|
ASV70,AXVH71 RHD | — | |
| 85222-06210 |
Blade, FR Wiper, LH
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 85222-33340 |
Blade, FR Wiper, LH
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 85222-33340 |
Blade, FR Wiper, LH
2021-02 → —
|
AXVH71 LHD D;AXVA70,AXVH70,GSV70 JPP +1 | — | |
| 85222-33350 |
Blade, FR Wiper, LH
2021-02 → —
|
AXVA70,AXVH71 RHD | — | |
| 85292B — Cap, Front Wiper Arm Head | ||||
| 85292-0F010 |
Cap, Front Wiper Arm Head
2018-04 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 85292-13010 |
Cap, Front Wiper Arm Head
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 85292-0F010 |
Cap, Front Wiper Arm Head
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 85292-13010 |
Cap, Front Wiper Arm Head
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 85292-13010 |
Cap, Front Wiper Arm Head
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 89941 — Sensor, Rain | ||||
| 89941-06010 note |
Sensor, Rain
2018-04 → 2021-04
ended
|
ASV71 | — | |
| 89941-06010 note |
Sensor, Rain
2018-04 → 2021-04
ended
|
ASV71 | — | |
| 89941-06010 |
Sensor, Rain
2018-04 → 2021-04
ended
|
ASV70,GSV70 RUS | — | |
| 89941-33060 |
Sensor, Rain
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 89941-06010 |
Sensor, Rain
2021-04 → 2022-03
ended
|
AXVA70,GSV70 RUS | — | |
| 89941-06010 note |
Sensor, Rain
2021-04 → 2022-03
ended
|
MXVA71 | — | |
| 89941-06010 note |
Sensor, Rain
2021-04 → 2022-03
ended
|
MXVA71 | — | |
| 89941-33060 |
Sensor, Rain
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 89941-33060 note |
Sensor, Rain
2021-02 → 2024-06
ended
|
AXVH71 RHD N | — | |
| 89941-33060 |
Sensor, Rain
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 89943 — Cover, Rain Sensor | ||||
| 89943-33060 |
Cover, Rain Sensor
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 89943-33060 |
Cover, Rain Sensor
2017-09 → 2021-04
ended
|
ASV70,GSV70 RUS | — | |
| 89943-33060 note |
Cover, Rain Sensor
2018-04 → 2021-04
ended
|
ASV71 | — | |
| 89943-33060 note |
Cover, Rain Sensor
2018-04 → 2021-04
ended
|
ASV71 | — | |
| 89943-33060 |
Cover, Rain Sensor
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 89943-33060 |
Cover, Rain Sensor
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 89943-33060 note |
Cover, Rain Sensor
2021-02 → 2024-06
ended
|
AXVH71 RHD N | — | |
| 89943-33060 note |
Cover, Rain Sensor
2021-04 → 2022-03
ended
|
MXVA71 | — | |
| 89943-33060 note |
Cover, Rain Sensor
2021-04 → 2022-03
ended
|
MXVA71 | — | |
| 89943-33060 |
Cover, Rain Sensor
2021-02 → 2022-03
ended
|
AXVA70,GSV70 RUS | — | |
| 89944 — Tape, Rain Sensor | ||||
| 89944-42020 |
Tape, Rain Sensor
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 89944-F4010 |
Tape, Rain Sensor
2018-04 → 2018-08
ended
|
ASV70,GSV70 RUS | — | |
| 89944-F4010 note |
Tape, Rain Sensor
2018-04 → 2018-08
ended
|
ASV71 | — | |
| 89944-F4010 note |
Tape, Rain Sensor
2018-04 → 2018-08
ended
|
ASV71 | — | |
| 89944-F4020 |
Tape, Rain Sensor
2018-09 → 2021-04
ended
|
ASV70,GSV70 RUS | — | |
| 89944-F4020 note |
Tape, Rain Sensor
2018-09 → 2021-04
ended
|
ASV71 | — | |
| 89944-F4020 note |
Tape, Rain Sensor
2018-09 → 2021-04
ended
|
ASV71 | — | |
| 89944-42020 |
Tape, Rain Sensor
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 89944-42020 note |
Tape, Rain Sensor
2021-02 → 2024-06
ended
|
AXVH71 RHD N | — | |
| 89944-42020 |
Tape, Rain Sensor
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 89944-F4020 |
Tape, Rain Sensor
2021-04 → 2022-03
ended
|
AXVA70,GSV70 RUS | — | |
| 89944-F4020 note |
Tape, Rain Sensor
2021-04 → 2022-03
ended
|
MXVA71 | — | |
| 89944-F4020 note |
Tape, Rain Sensor
2021-04 → 2022-03
ended
|
MXVA71 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
