Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

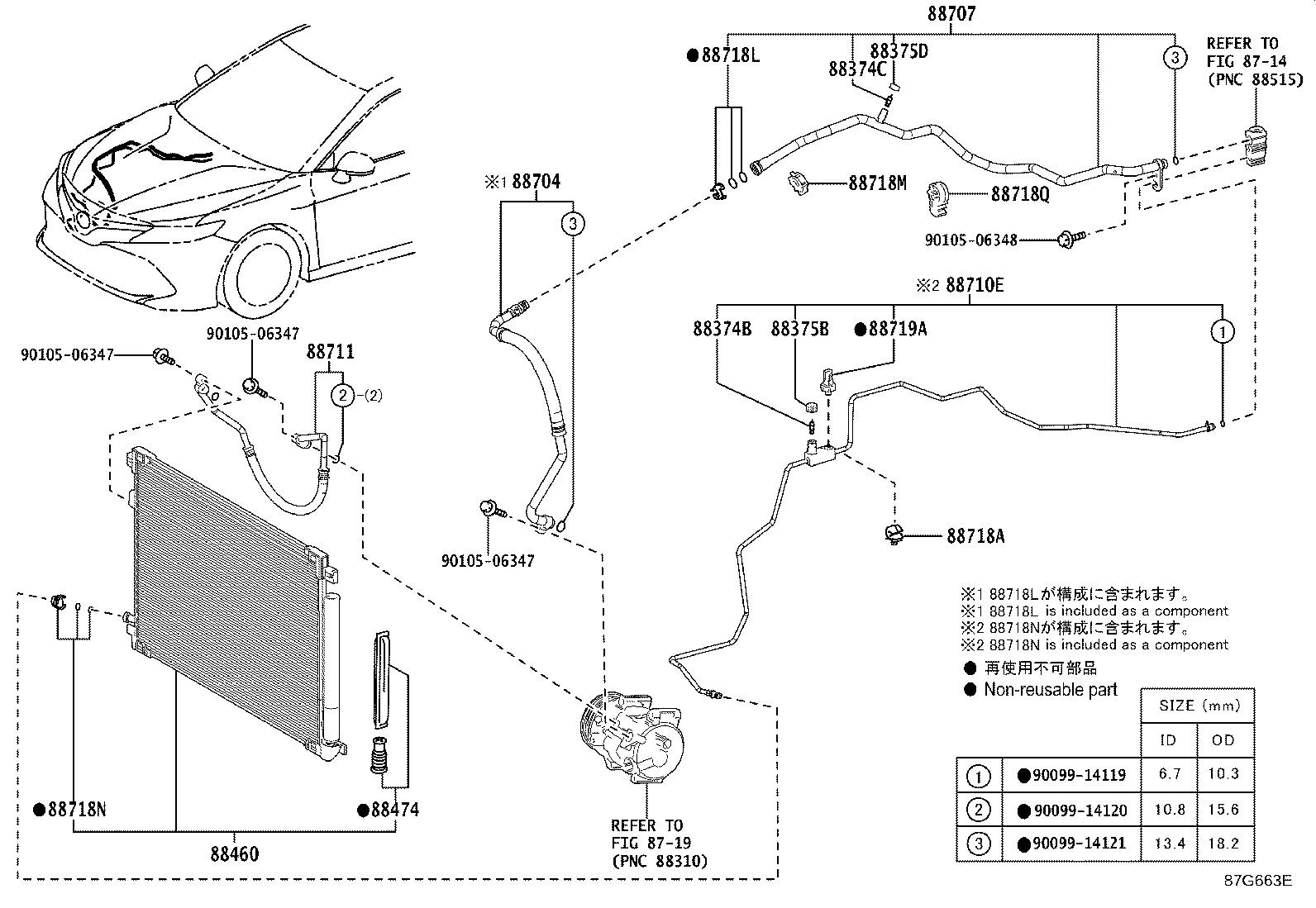

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88374B — Valve, Service, NO.1 | ||||
| 88374-30010 |
Valve, Service, NO.1
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 88374-30010 |
Valve, Service, NO.1
2017-09 → 2020-12
ended
|
ASV7#,GSV70 RUS | — | |
| 88374-33070 |
Valve, Service, NO.1
2020-12 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88374-30010 |
Valve, Service, NO.1
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88374-30010 |
Valve, Service, NO.1
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 88374-33070 |
Valve, Service, NO.1
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88374C — Valve, Service, NO.2 | ||||
| 88374-30010 |
Valve, Service, NO.2
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88374-30010 |
Valve, Service, NO.2
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 88374-30010 |
Valve, Service, NO.2
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88374-30010 |
Valve, Service, NO.2
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88374-30010 |
Valve, Service, NO.2
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 88375B — Cap, Service Valve, NO.1 | ||||
| 88375-0E020 |
Cap, Service Valve, NO.1
2018-04 → 2020-12
ended
|
ASV7#,GSV70 RUS | — | |
| 88375-30280 |
Cap, Service Valve, NO.1
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 (G,N,S) EUR | — | |
| 88375-30280 note |
Cap, Service Valve, NO.1
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 88375-30280 |
Cap, Service Valve, NO.1
2020-12 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88375-30320 |
Cap, Service Valve, NO.1
2019-02 → 2021-01
ended
|
AXVH71 D | — | |
| 88375-30280 |
Cap, Service Valve, NO.1
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88375-30280 |
Cap, Service Valve, NO.1
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88375-30280 |
Cap, Service Valve, NO.1
2021-02 → —
|
AXVH71 RHD (N,S);AXVA70,AXVH70,GSV70 JPP | — | |
| 88375-30280 note |
Cap, Service Valve, NO.1
2021-02 → —
|
AXVH71 LHD D | — | |
| 88375-30280 note |
Cap, Service Valve, NO.1
2021-02 → —
|
AXVH71 LHD D | — | |
| 88375-30320 |
Cap, Service Valve, NO.1
2021-02 → —
|
AXVH71 D | — | |
| 88375D — Cap, Service Valve, NO.2 | ||||
| 88375-0E030 |
Cap, Service Valve, NO.2
2018-04 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88375-30290 |
Cap, Service Valve, NO.2
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 (G,N,S) EUR | — | |
| 88375-30290 note |
Cap, Service Valve, NO.2
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 88375-30310 |
Cap, Service Valve, NO.2
2019-02 → 2021-01
ended
|
AXVH71 D | — | |
| 88375-0E030 |
Cap, Service Valve, NO.2
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88375-30290 |
Cap, Service Valve, NO.2
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88375-30290 |
Cap, Service Valve, NO.2
2021-02 → —
|
AXVH71 RHD (N,S);AXVA70,AXVH70,GSV70 JPP | — | |
| 88375-30290 note |
Cap, Service Valve, NO.2
2021-02 → —
|
AXVH71 LHD D | — | |
| 88375-30290 note |
Cap, Service Valve, NO.2
2021-02 → —
|
AXVH71 LHD D | — | |
| 88375-30310 |
Cap, Service Valve, NO.2
2021-02 → —
|
AXVH71 D | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 884A0-33010 |
Condenser Assy, Cooler
2017-09 → 2021-01
ended
|
ASV70,AXVA70,GSV70 EUR | — | |
| 884A0-33010 |
Condenser Assy, Cooler
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 884A0-33030 |
Condenser Assy, Cooler
2017-09 → 2021-01
ended
|
AXVH7# | — | |
| 884A0-33010 |
Condenser Assy, Cooler
2021-02 → —
|
AXVA70,GSV70 JPP | — | |
| 884A0-33010 |
Condenser Assy, Cooler
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 884A0-33030 |
Condenser Assy, Cooler
2021-02 → —
|
AXVH70;AXVH71 RHD;AXVH71 LHD D | — | |
| 884A0-33030 |
Condenser Assy, Cooler
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-12020 |
Dryer, Cooler
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 88474-12020 |
Dryer, Cooler
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88474-12020 |
Dryer, Cooler
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88474-12020 |
Dryer, Cooler
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88474-12020 |
Dryer, Cooler
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 88704 — Hose Sub-assy, Suction | ||||
| 88704-06230 |
Hose Sub-assy, Suction
2018-04 → 2021-04
ended
|
GSV70 RUS | — | |
| 88704-33600 |
Hose Sub-assy, Suction
2017-09 → 2021-01
ended
|
GSV70 EUR | — | |
| 88704-33610 |
Hose Sub-assy, Suction
2017-09 → 2021-01
ended
|
ASV70 EUR | — | |
| 88704-33610 |
Hose Sub-assy, Suction
2017-09 → 2021-04
ended
|
ASV7# RUS | — | |
| 88704-33620 |
Hose Sub-assy, Suction
2017-09 → 2021-01
ended
|
AXVA70 | — | |
| 88704-33630 |
Hose Sub-assy, Suction
2017-09 → 2021-01
ended
|
AXVH7# | — | |
| 88704-06230 |
Hose Sub-assy, Suction
2021-04 → 2022-03
ended
|
GSV70 RUS | — | |
| 88704-33600 |
Hose Sub-assy, Suction
2021-02 → —
|
GSV70 EUR | — | |
| 88704-33620 |
Hose Sub-assy, Suction
2021-02 → 2022-03
ended
|
AXVA70 RUS | — | |
| 88704-33620 |
Hose Sub-assy, Suction
2021-02 → —
|
AXVA70 JPP | — | |
| 88704-33630 |
Hose Sub-assy, Suction
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88704-33630 |
Hose Sub-assy, Suction
2021-02 → —
|
AXVH70;AXVH71 RHD;AXVH71 LHD D | — | |
| 88704-33680 |
Hose Sub-assy, Suction
2021-04 → 2022-03
ended
|
MXVA71 | — | |
| 88707 — Pipe Sub-assy, Suction | ||||
| 88707-06210 |
Pipe Sub-assy, Suction
2018-04 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88707-33110 |
Pipe Sub-assy, Suction
2019-02 → 2021-01
ended
|
AXVH71 RHD D | — | |
| 88707-33130 |
Pipe Sub-assy, Suction
2017-09 → 2021-01
ended
|
ASV70,AXVA70,GSV70 LHD EUR | — | |
| 88707-33140 |
Pipe Sub-assy, Suction
2017-09 → 2021-01
ended
|
ASV70 RHD | — | |
| 88707-33180 |
Pipe Sub-assy, Suction
2017-09 → 2021-01
ended
|
AXVH71 RHD N | — | |
| 88707-33190 note |
Pipe Sub-assy, Suction
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 88707-33190 |
Pipe Sub-assy, Suction
2017-09 → 2021-01
ended
|
AXVH7# LHD N | — | |
| 88707-33210 |
Pipe Sub-assy, Suction
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 88707-06210 |
Pipe Sub-assy, Suction
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88707-33110 |
Pipe Sub-assy, Suction
2021-02 → —
|
AXVH71 RHD D | — | |
| 88707-33130 |
Pipe Sub-assy, Suction
2021-02 → —
|
AXVA70,GSV70 JPP LHD | — | |
| 88707-33140 |
Pipe Sub-assy, Suction
2021-02 → —
|
AXVA70 RHD | — | |
| 88707-33180 |
Pipe Sub-assy, Suction
2021-02 → —
|
AXVH71 RHD (N,S) | — | |
| 88707-33190 note |
Pipe Sub-assy, Suction
2021-02 → —
|
AXVH71 LHD D | — | |
| 88707-33190 |
Pipe Sub-assy, Suction
2021-02 → —
|
AXVH70 | — | |
| 88707-33190 |
Pipe Sub-assy, Suction
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88707-33190 note |
Pipe Sub-assy, Suction
2021-02 → —
|
AXVH71 LHD D | — | |
| 88707-33210 |
Pipe Sub-assy, Suction
2021-02 → —
|
AXVH71 LHD D | — | |
| 88710E — Tube & Accessory Assy, Air Conditioner | ||||
| 88710-06480 |
Tube & Accessory Assy, Air Conditioner
2018-04 → 2020-11
ended
|
ASV7#,GSV70 RUS | — | |
| 88710-06680 |
Tube & Accessory Assy, Air Conditioner
2020-12 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88710-33450 |
Tube & Accessory Assy, Air Conditioner
2017-09 → 2021-01
ended
|
ASV70,AXVA70,GSV70 LHD EUR | — | |
| 88710-33460 |
Tube & Accessory Assy, Air Conditioner
2017-09 → 2021-01
ended
|
ASV70 RHD | — | |
| 88710-33500 |
Tube & Accessory Assy, Air Conditioner
2017-09 → 2021-01
ended
|
AXVH71 RHD N | — | |
| 88710-33571 |
Tube & Accessory Assy, Air Conditioner
2019-02 → 2021-01
ended
|
AXVH71 RHD D | — | |
| 88710-33580 |
Tube & Accessory Assy, Air Conditioner
2017-09 → 2021-01
ended
|
AXVH7# LHD N | — | |
| 88710-33580 note |
Tube & Accessory Assy, Air Conditioner
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 88710-33600 |
Tube & Accessory Assy, Air Conditioner
2019-02 → 2021-01
ended
|
AXVH71 LHD D | — | |
| 88710-06680 |
Tube & Accessory Assy, Air Conditioner
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88710-33450 |
Tube & Accessory Assy, Air Conditioner
2021-02 → —
|
AXVA70,GSV70 JPP LHD | — | |
| 88710-33460 |
Tube & Accessory Assy, Air Conditioner
2021-02 → —
|
AXVA70 RHD | — | |
| 88710-33500 |
Tube & Accessory Assy, Air Conditioner
2021-02 → —
|
AXVH71 RHD (N,S) | — | |
| 88710-33571 |
Tube & Accessory Assy, Air Conditioner
2021-02 → —
|
AXVH71 RHD D | — | |
| 88710-33580 note |
Tube & Accessory Assy, Air Conditioner
2021-02 → —
|
AXVH71 LHD D | — | |
| 88710-33580 note |
Tube & Accessory Assy, Air Conditioner
2021-02 → —
|
AXVH71 LHD D | — | |
| 88710-33580 |
Tube & Accessory Assy, Air Conditioner
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88710-33580 |
Tube & Accessory Assy, Air Conditioner
2021-02 → —
|
AXVH70 | — | |
| 88710-33600 |
Tube & Accessory Assy, Air Conditioner
2021-02 → —
|
AXVH71 LHD D | — | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88711-06390 |
Hose, Cooler Refrigerant Discharge, NO.1
2018-04 → 2021-04
ended
|
GSV70 RUS | — | |
| 88711-33310 |
Hose, Cooler Refrigerant Discharge, NO.1
2017-09 → 2021-01
ended
|
GSV70 EUR | — | |
| 88711-33320 |
Hose, Cooler Refrigerant Discharge, NO.1
2017-09 → 2021-01
ended
|
ASV70 EUR | — | |
| 88711-33320 |
Hose, Cooler Refrigerant Discharge, NO.1
2017-09 → 2021-04
ended
|
ASV7# RUS | — | |
| 88711-33330 |
Hose, Cooler Refrigerant Discharge, NO.1
2017-09 → 2021-01
ended
|
AXVA70 | — | |
| 88711-33340 |
Hose, Cooler Refrigerant Discharge, NO.1
2017-09 → 2021-01
ended
|
AXVH7# | — | |
| 88711-06390 |
Hose, Cooler Refrigerant Discharge, NO.1
2021-04 → 2022-03
ended
|
GSV70 RUS | — | |
| 88711-33310 |
Hose, Cooler Refrigerant Discharge, NO.1
2021-02 → —
|
GSV70 EUR | — | |
| 88711-33330 |
Hose, Cooler Refrigerant Discharge, NO.1
2021-02 → 2022-03
ended
|
AXVA70 RUS | — | |
| 88711-33330 |
Hose, Cooler Refrigerant Discharge, NO.1
2021-02 → —
|
AXVA70 JPP | — | |
| 88711-33340 |
Hose, Cooler Refrigerant Discharge, NO.1
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88711-33340 |
Hose, Cooler Refrigerant Discharge, NO.1
2021-02 → —
|
AXVH70;AXVH71 RHD;AXVH71 LHD D | — | |
| 88711-33380 |
Hose, Cooler Refrigerant Discharge, NO.1
2021-04 → 2022-03
ended
|
MXVA71 | — | |
| 88718A — Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-58050 |
Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 88718-58050 |
Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88718-33560 |
Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2023-11 → —
|
AXVH70;AXVH71 RHD;AXVH71 LHD D | — | |
| 88718-33560 |
Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2023-11 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88718-58050 |
Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88718-58050 |
Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2021-02 → —
|
AXVA70,GSV70 JPP | — | |
| 88718-58050 |
Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2021-02 → 2023-10
ended
|
AXVH7# | — | |
| 88718L — Clamp, Piping | ||||
| 88718-52280 |
Clamp, Piping
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 88718-52280 |
Clamp, Piping
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88718-52280 |
Clamp, Piping
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88718-52280 |
Clamp, Piping
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88718-52280 |
Clamp, Piping
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 88718M — Clamp, Piping | ||||
| 88718-33520 |
Clamp, Piping
2017-09 → 2018-01
ended
|
ASV70,AXVA70,GSV70 | — | |
| 88718-33520 |
Clamp, Piping
2017-09 → 2018-01
ended
|
AXVH71 | — | |
| 88718-42110 |
Clamp, Piping
2018-02 → 2021-01
ended
|
ASV70,AXVA70,GSV70 EUR | — | |
| 88718-42110 |
Clamp, Piping
2018-02 → 2021-01
ended
|
AXVH7# | — | |
| 88718-42110 |
Clamp, Piping
2018-02 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88718-42110 |
Clamp, Piping
2021-02 → —
|
AXVH70;AXVH71 RHD;AXVH71 LHD D | — | |
| 88718-42110 |
Clamp, Piping
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88718-42110 |
Clamp, Piping
2021-02 → —
|
AXVA70,GSV70 JPP | — | |
| 88718-42110 |
Clamp, Piping
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88718N — Clamp, Piping | ||||
| 88718-1E150 |
Clamp, Piping
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 88718-1E150 |
Clamp, Piping
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88718-1E150 |
Clamp, Piping
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88718-1E150 |
Clamp, Piping
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88718-1E150 |
Clamp, Piping
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
| 88718Q — Clamp, Piping | ||||
| 88718-06600 |
Clamp, Piping
2018-04 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88718-33490 |
Clamp, Piping
2017-09 → 2021-01
ended
|
ASV70,AXVA70,GSV70 EUR | — | |
| 88718-06600 |
Clamp, Piping
2021-04 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88718-33490 |
Clamp, Piping
2021-02 → —
|
AXVA70,GSV70 JPP | — | |
| 88719A — Sensor, Air Conditioner Pressure | ||||
| 88719-11010 |
Sensor, Air Conditioner Pressure
2017-09 → 2021-01
ended
|
ASV70,AXVA70,AXVH7#,GSV70 EUR | — | |
| 88719-11010 |
Sensor, Air Conditioner Pressure
2017-09 → 2021-04
ended
|
ASV7#,GSV70 RUS | — | |
| 88719-11010 |
Sensor, Air Conditioner Pressure
2021-02 → 2022-03
ended
|
AXVA70,GSV70,MXVA71 RUS | — | |
| 88719-11010 |
Sensor, Air Conditioner Pressure
2021-02 → 2023-12
ended
|
AXVH71 LHD N | — | |
| 88719-11010 |
Sensor, Air Conditioner Pressure
2021-02 → —
|
AXVH71 RHD;AXVH71 LHD D;AXVA70,AXVH70,GSV70 +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
