Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

12 part groups · 6 illustrations

Illustrations

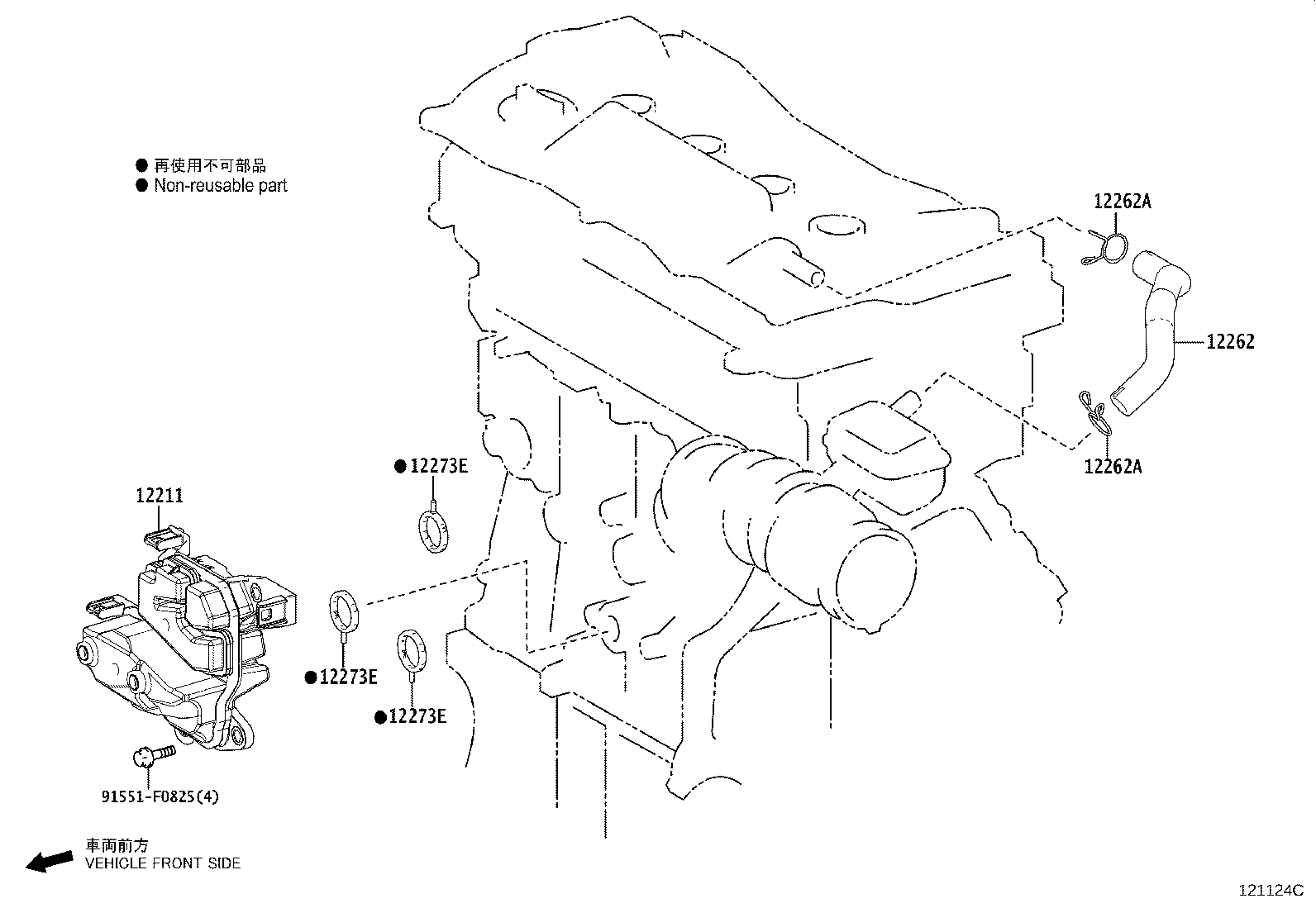

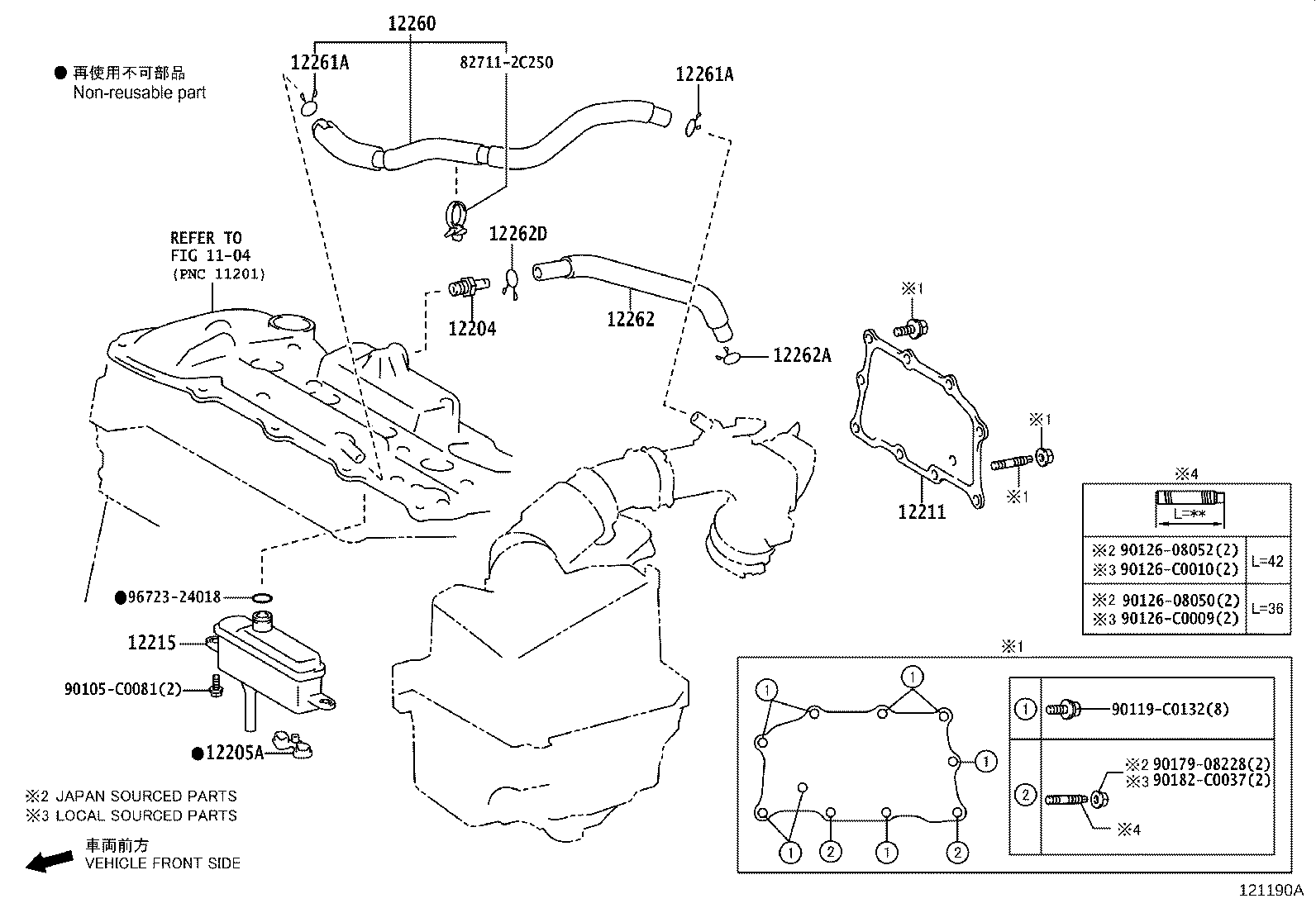

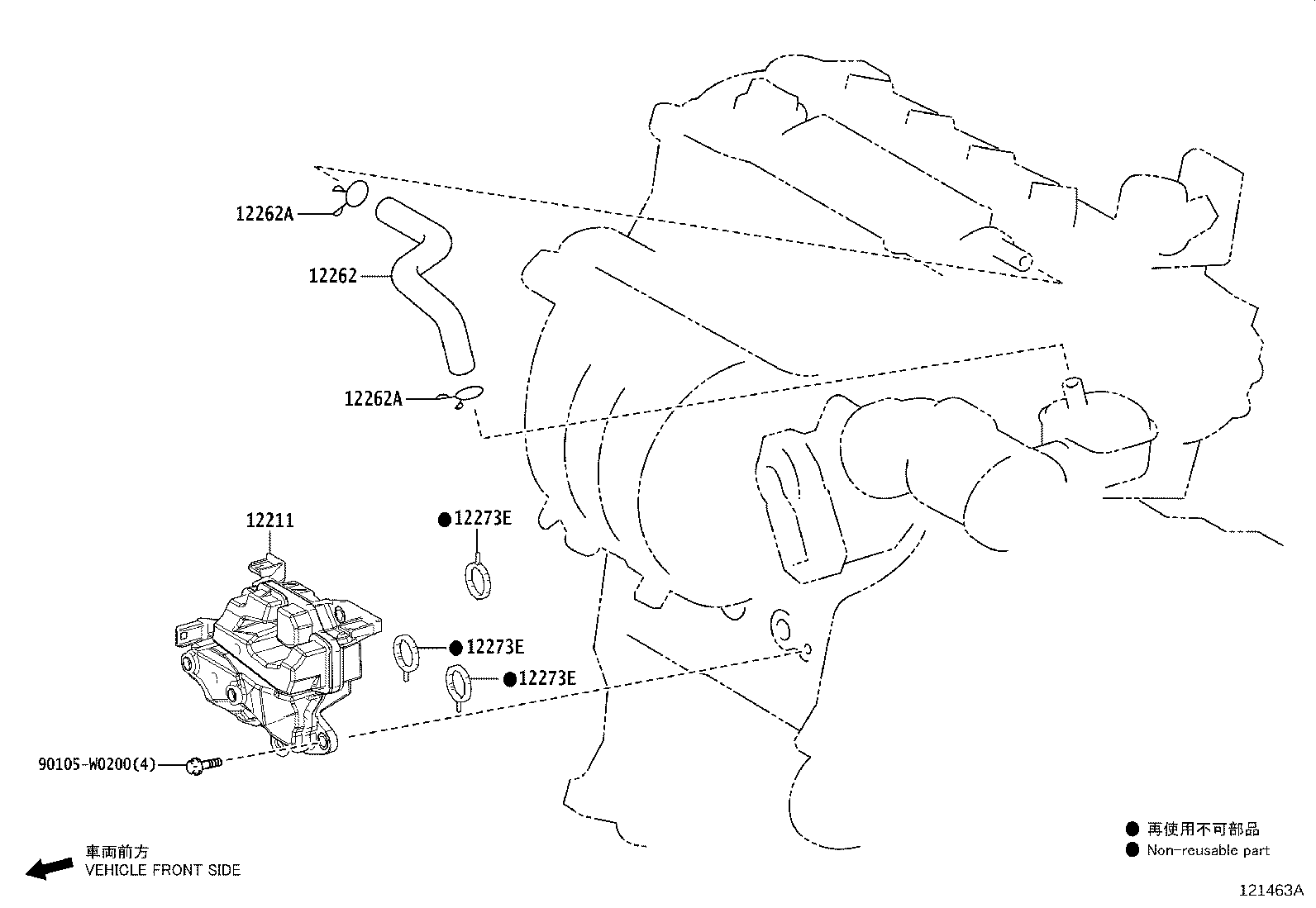

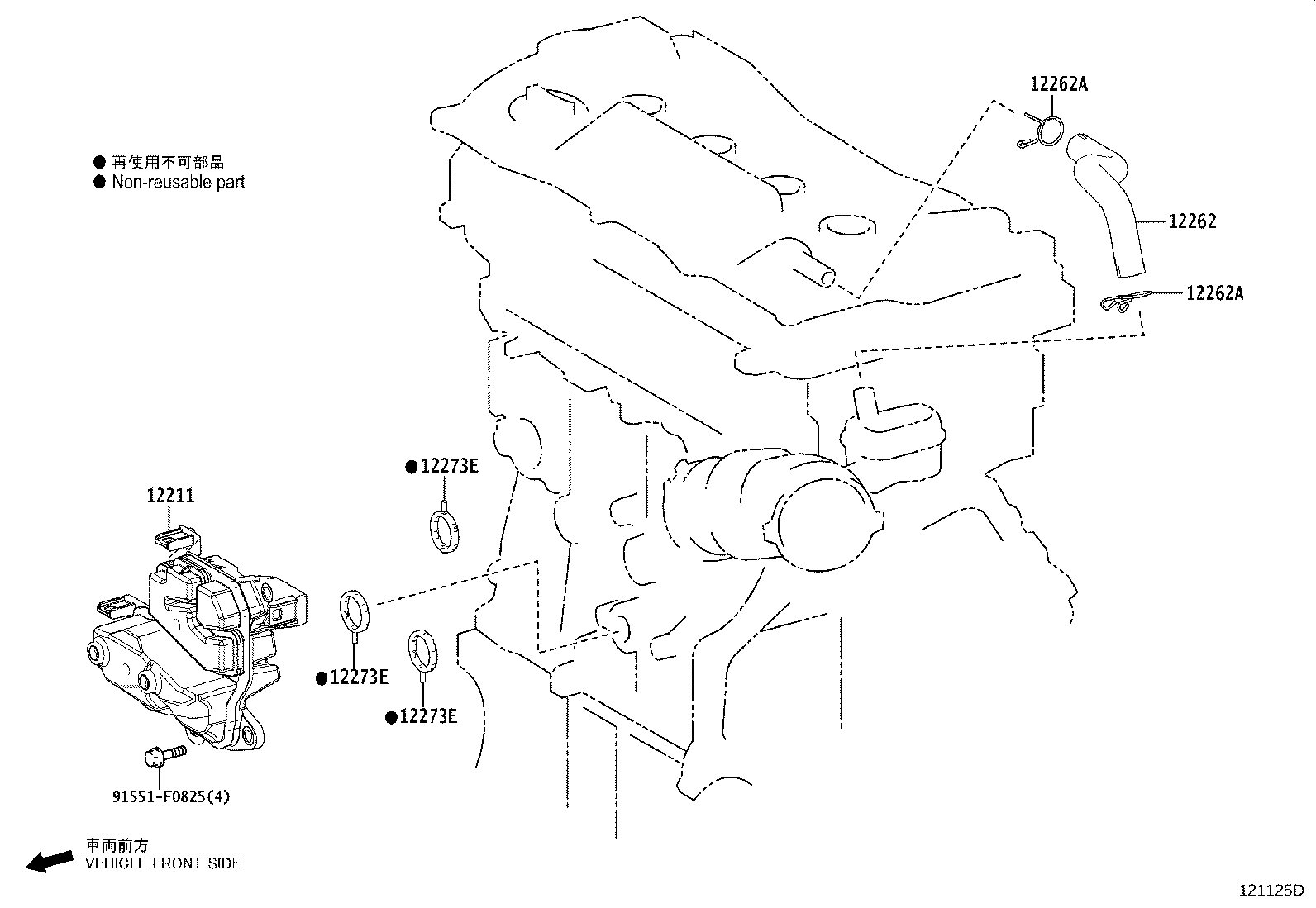

Figure 121187B 121187B 2017-09 → — Figure 121125D 121125D 2017-09 → — Figure 121124C 121124C 2017-09 → — Figure 121190A 121190A 2018-04 → — Figure 121142 121142 2017-09 → — Figure 121463A 121463A 2021-04 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12205 Case Sub-assy, Ventilation
12205A Ring, O(FOR VENTILATION CASE)
12211 Case, Ventilation, NO.1
12215 Separator, Case
12260 Hose Assy, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12273E Gasket(FOR VENTILATION CASE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
