Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

7 part groups · 4 illustrations

Illustrations

Figure 166932A

166932A 2017-09 → —

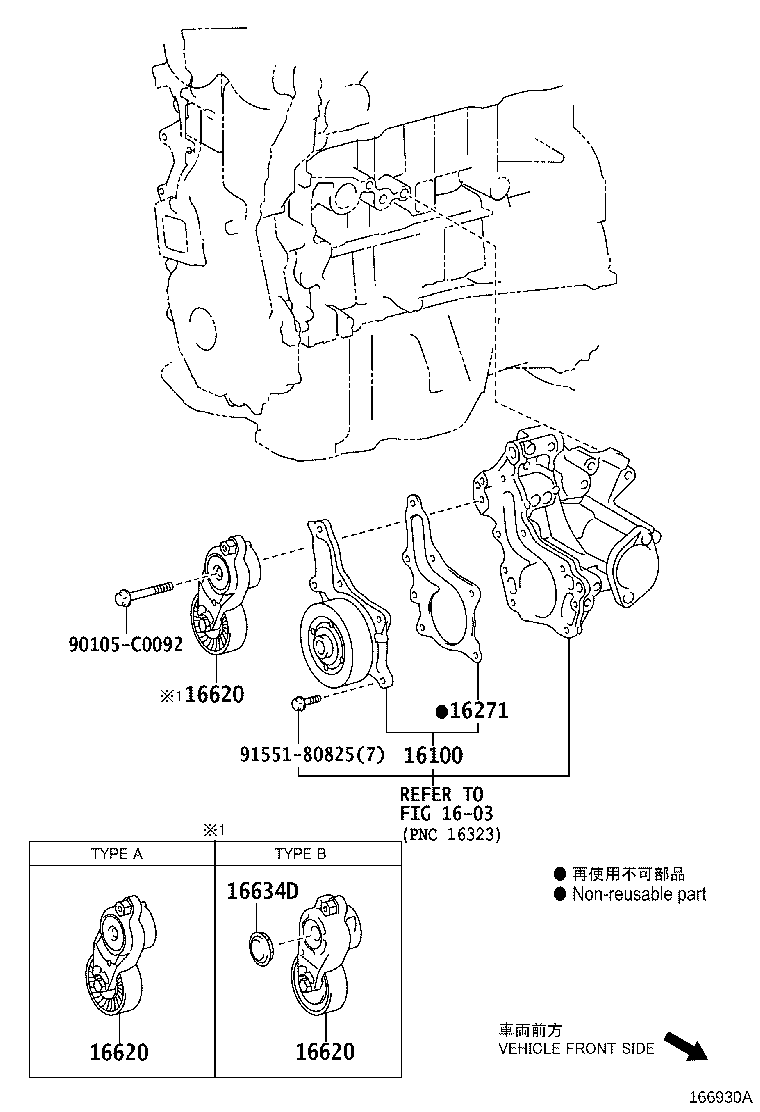

Figure 166930A

166930A 2018-04 → —

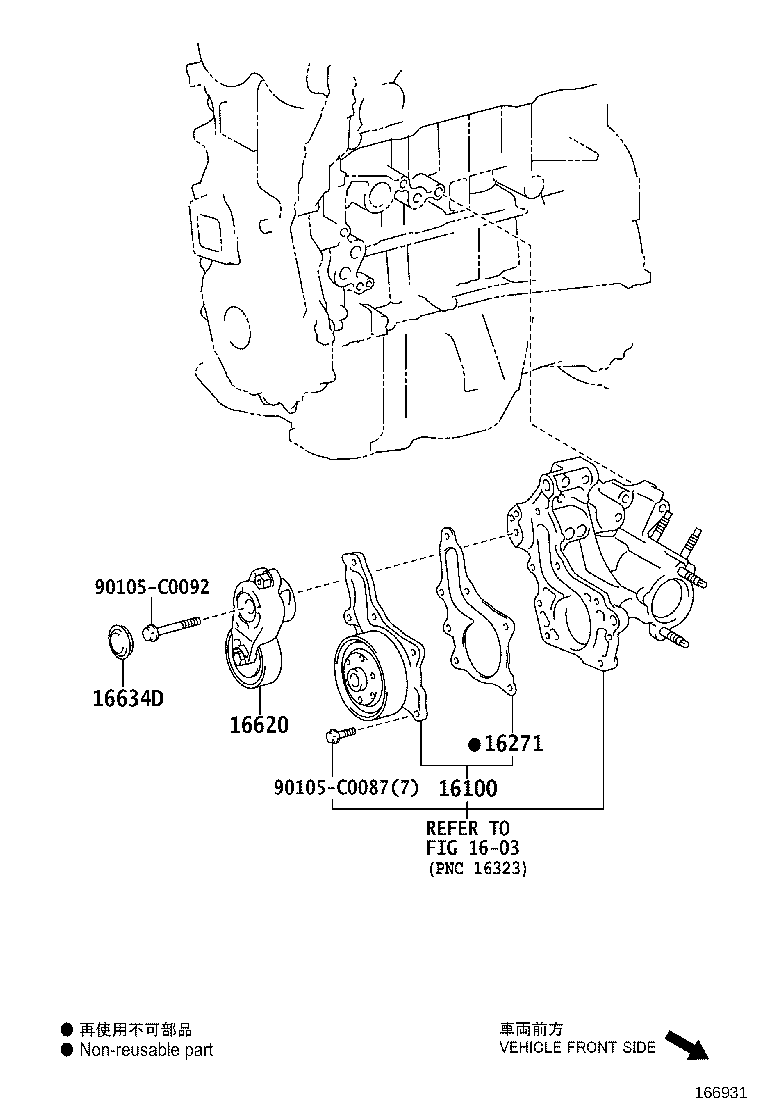

Figure 166931A

166931A 2018-04 → —

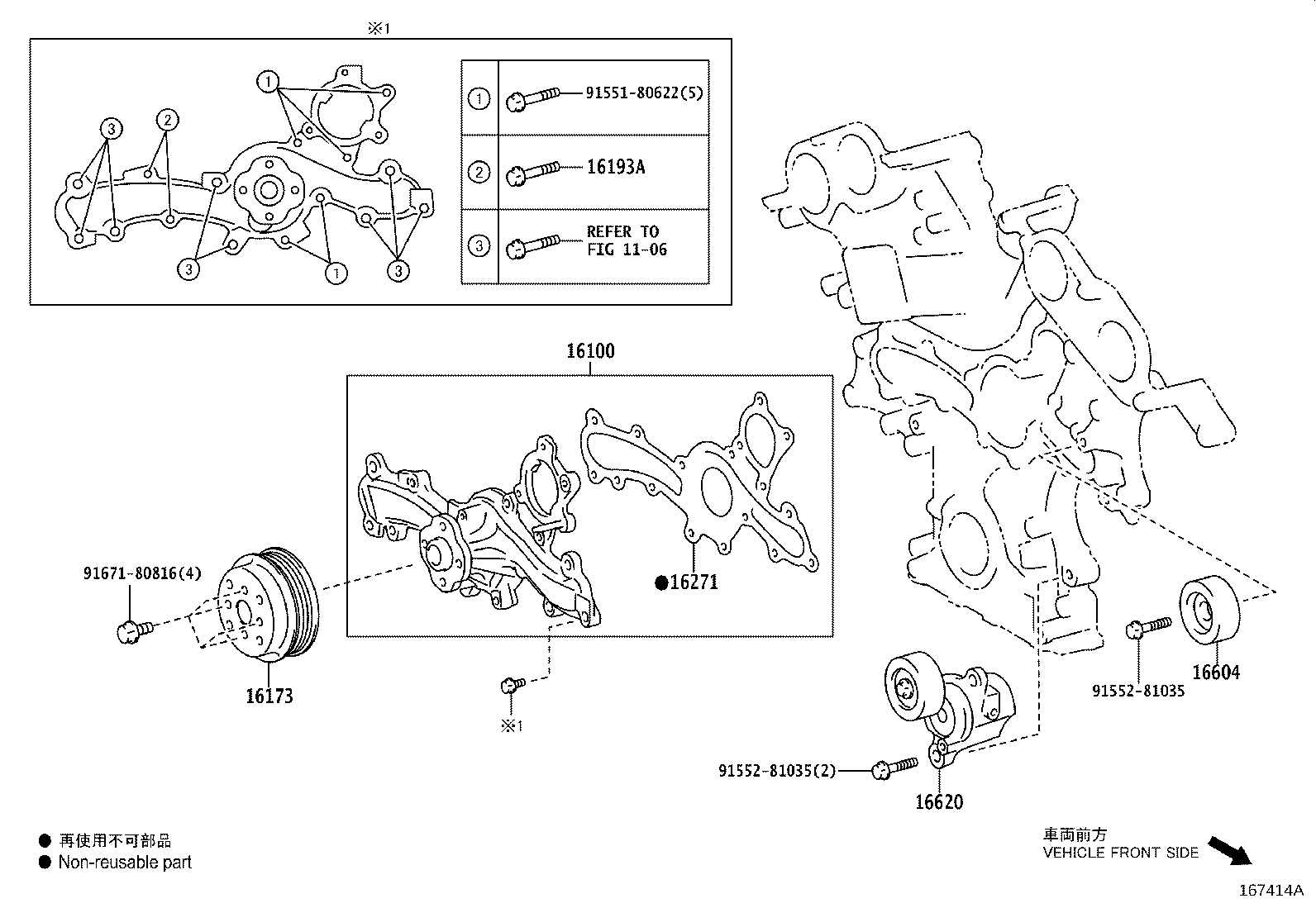

Figure 167414A

167414A 2017-09 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16634D	Cover, Dust

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
