Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

16 part groups · 5 illustrations

Illustrations

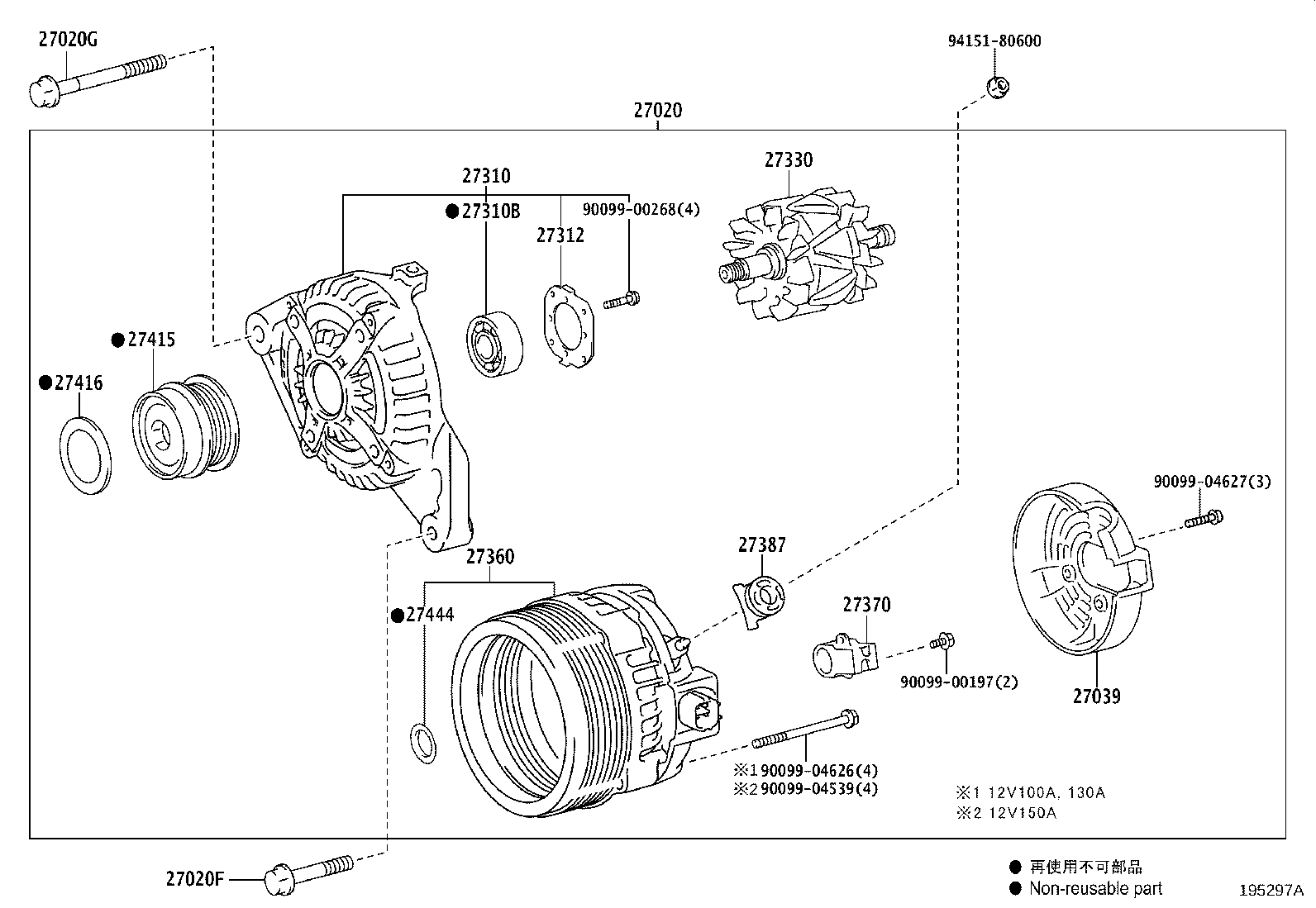

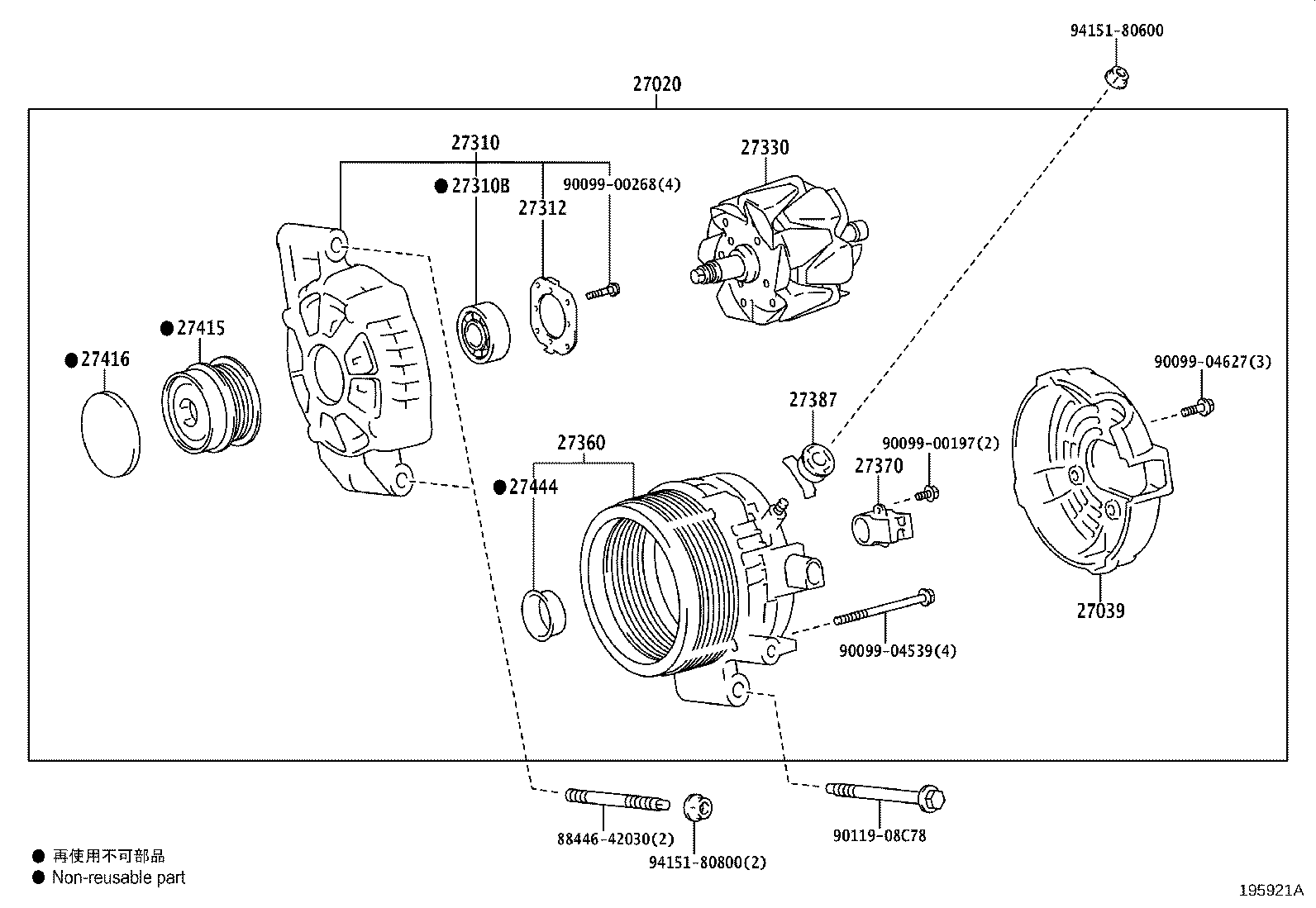

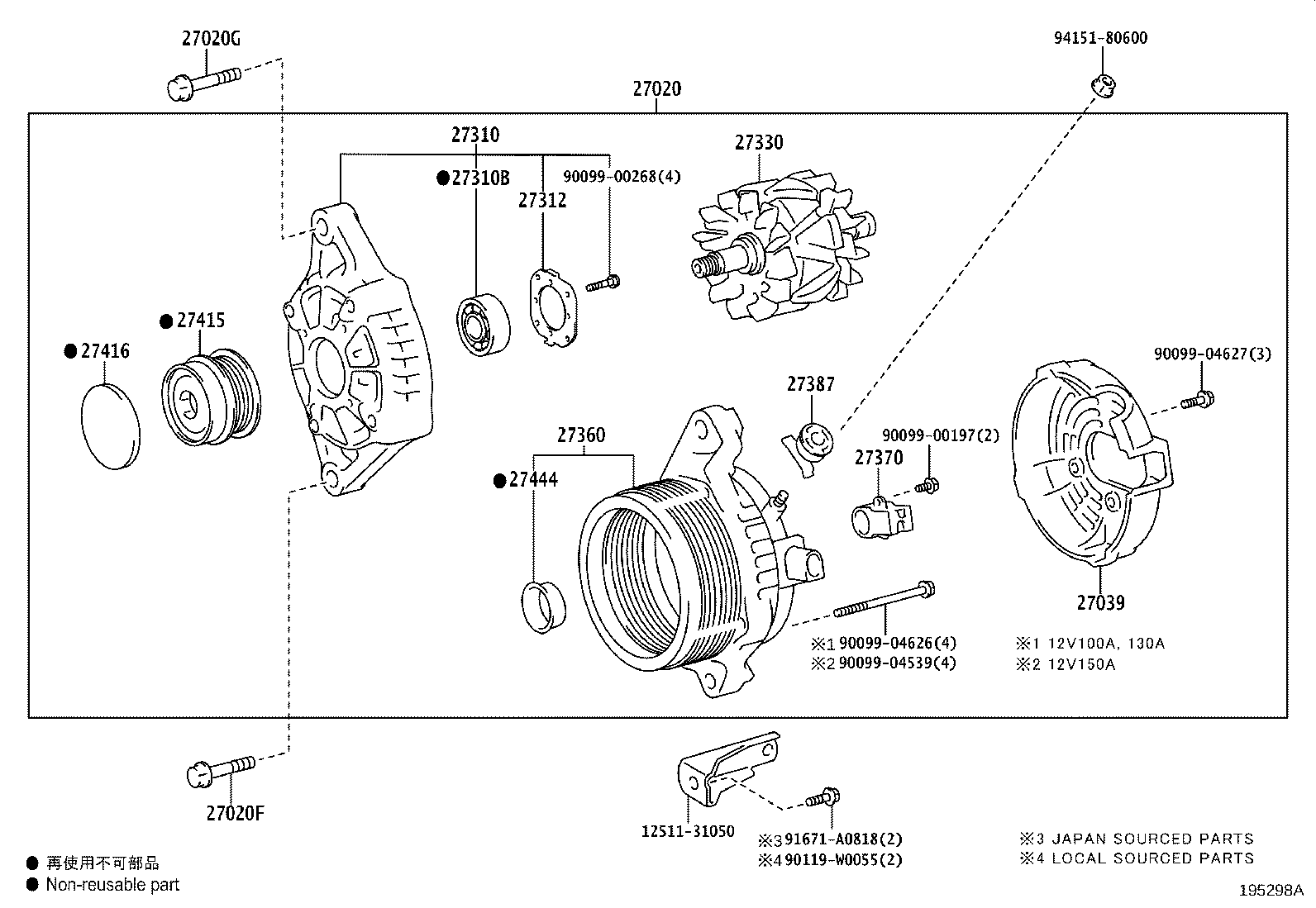

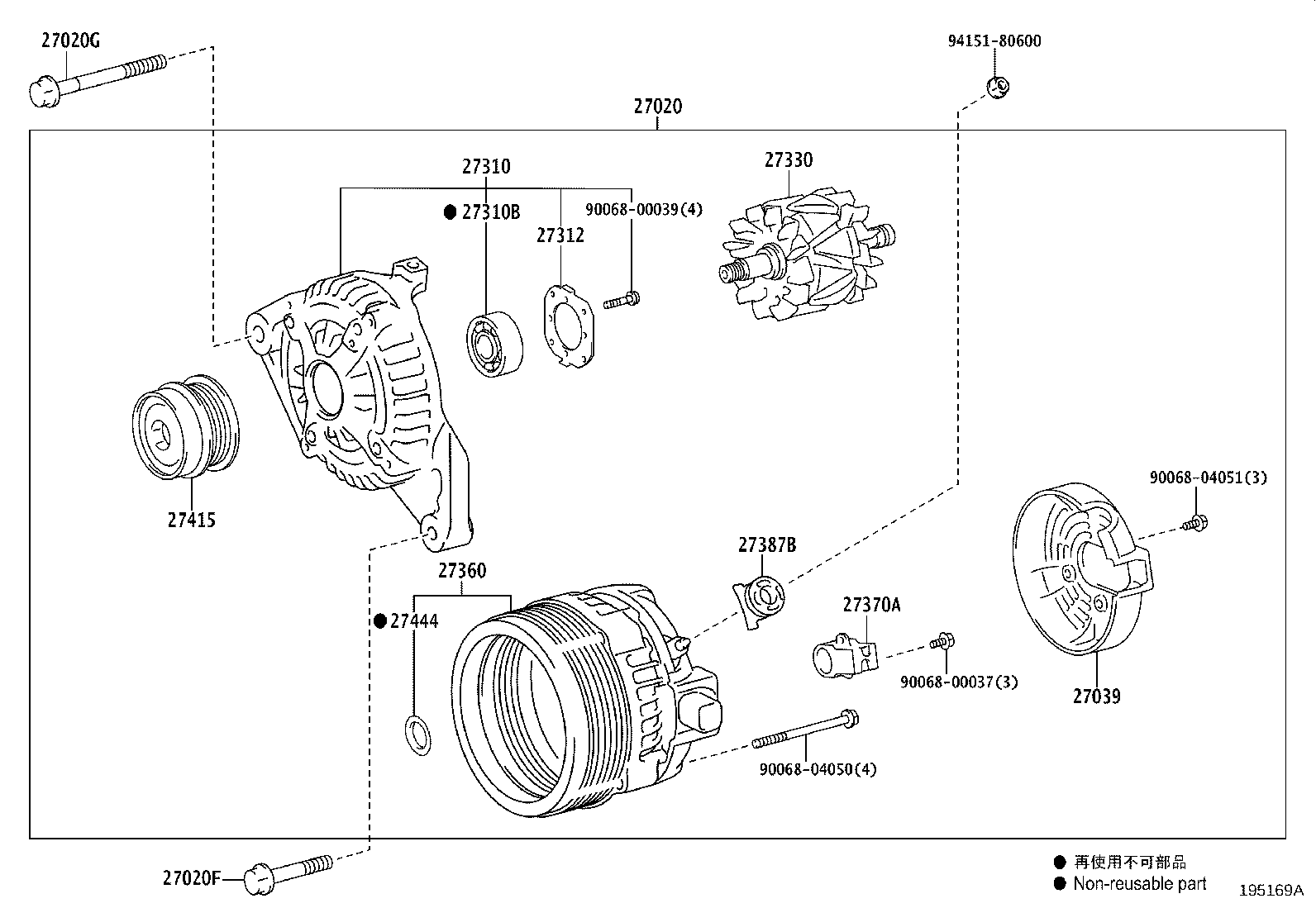

Figure 195086A 195086A 2017-09 → — Figure 195297A 195297A 2017-09 → — Figure 195298A 195298A 2017-09 → — Figure 195169A 195169A 2018-04 → — Figure 195921A 195921A 2021-04 → —

Part groups

PNCDescription
27020 Alternator Assy
27020F Bolt, NO.1(FOR ALTERNATOR)
27020G Bolt, NO.2(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27360 Coil Assy, Alternator
27370 Holder Assy, Alternator Brush
27370A Holder Assy, Alternator Brush
27387 Insulator, Terminal
27387B Insulator, Alternator Terminal
27415 Pulley, Alternator W/Clutch
27416 Cap, Alternator Pulley
27444 Packing, Alternator Bearing Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
