Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

11 part groups · 3 illustrations

Illustrations

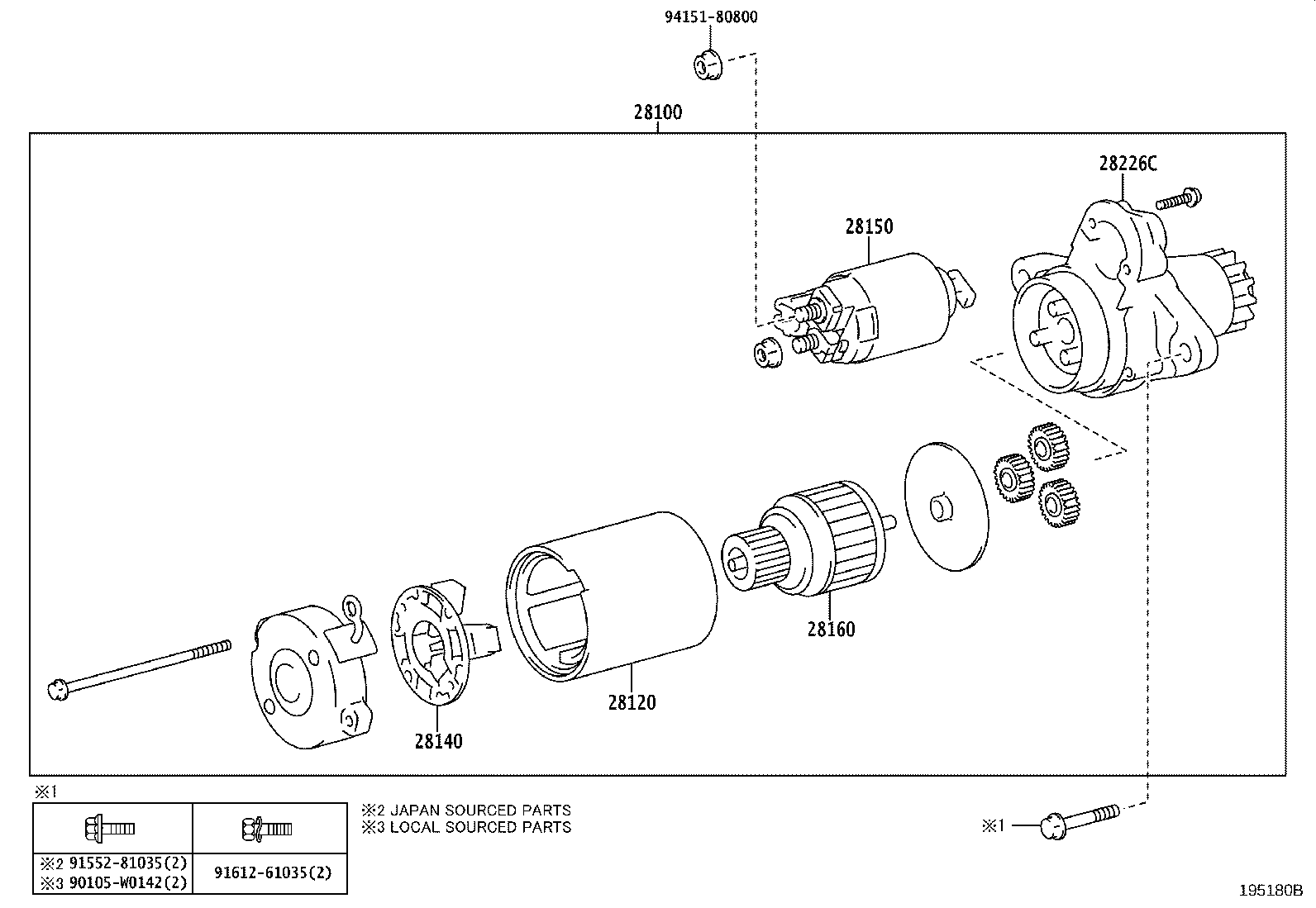

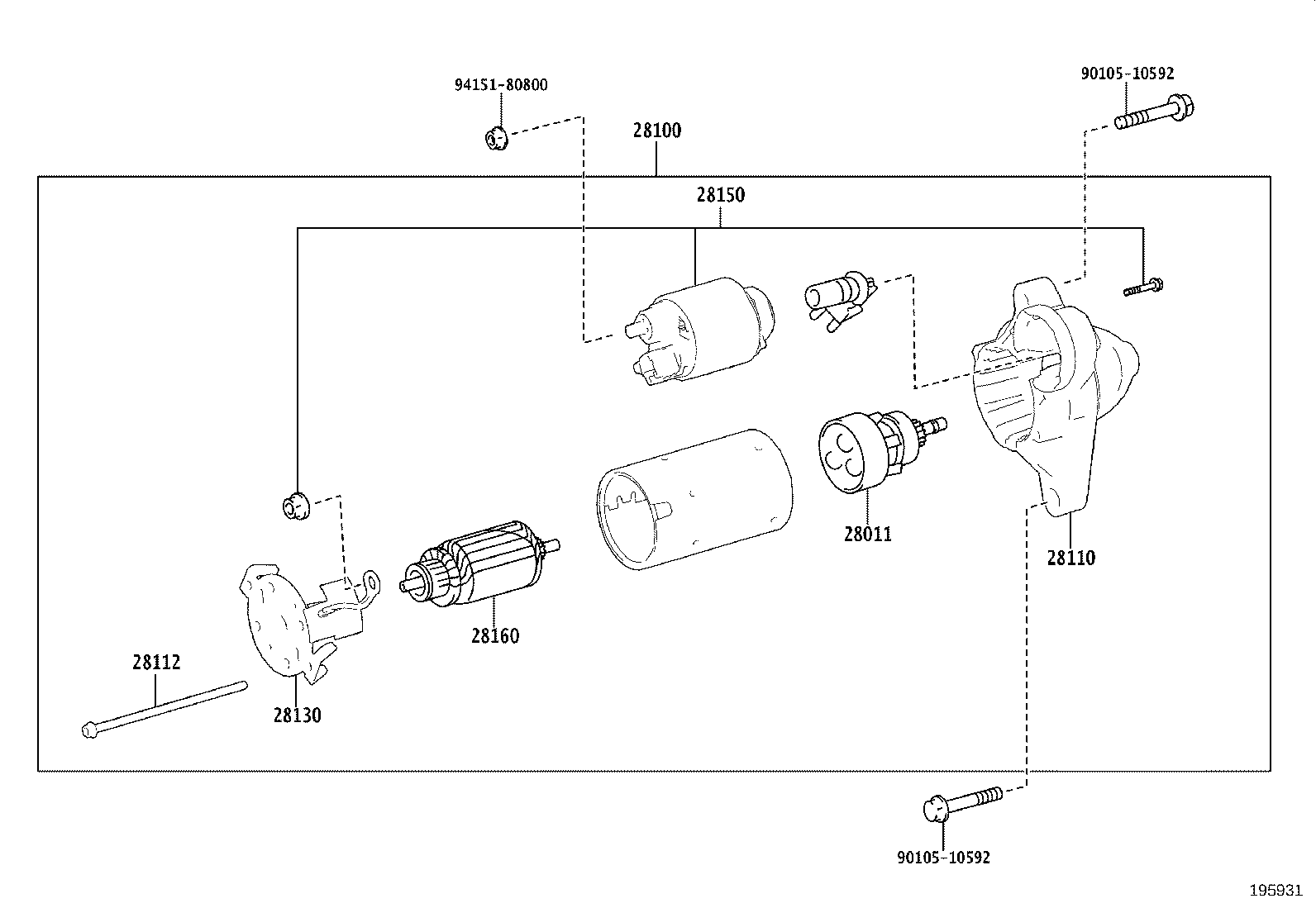

Figure 194981A 194981A 2017-09 → — Figure 195180B 195180B 2017-09 → — Figure 195931 195931 2021-04 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28112 Bolt, Housing Set
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28226C Starter Kit, Repair Service, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
