Vacuum Pump

8 part groups · 4 illustrations

Illustrations

Figure 194980E

194980E 2017-09 → —

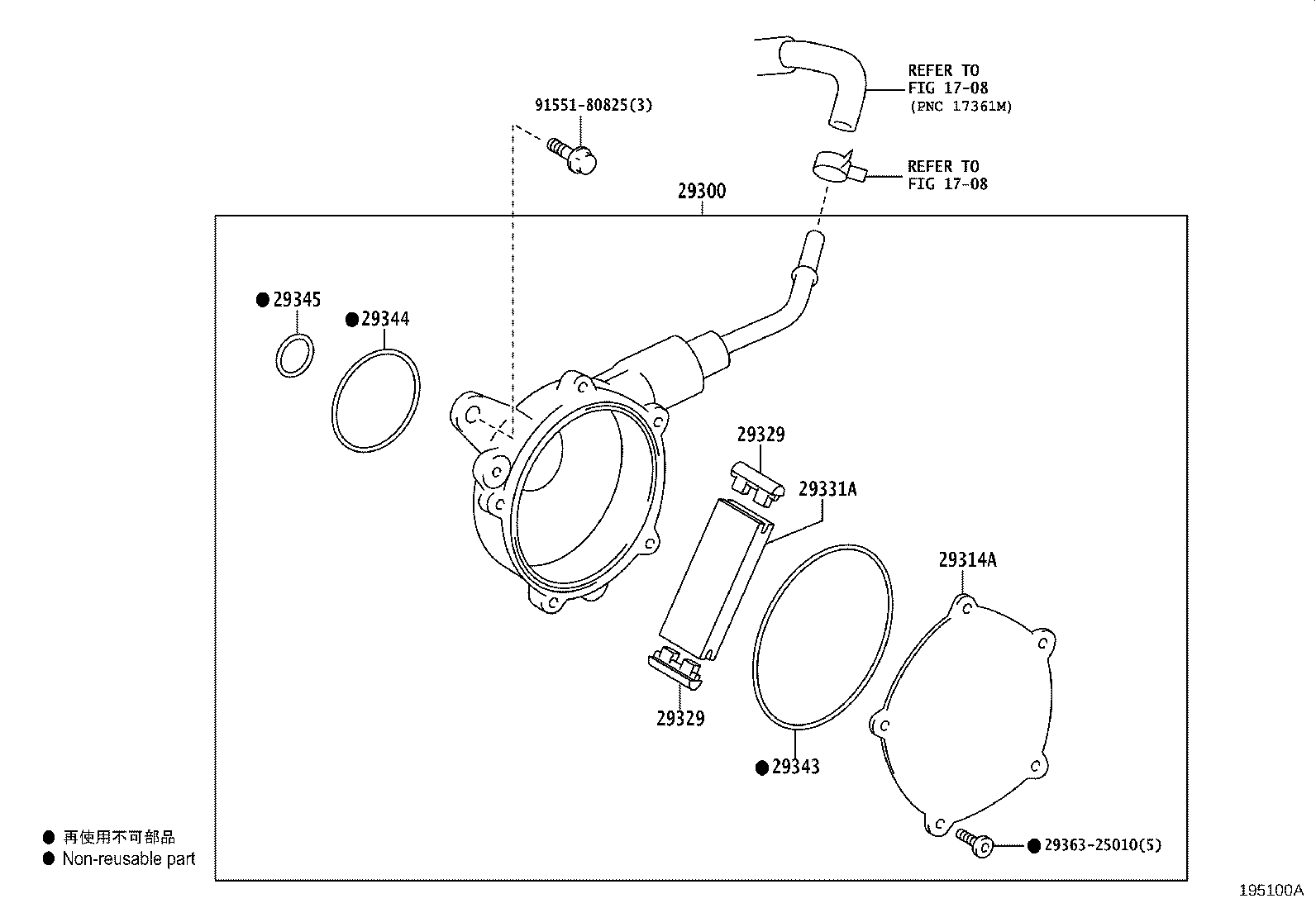

Figure 195100A

195100A 2017-09 → —

Figure 195413A

195413A 2018-04 → —

Figure 195929A

195929A 2021-04 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29314A	Cover, End
29329	Cap, Vacuum Pump Vane
29331A	Vane, Vacuum Pump
29343	Ring, O Vacuum Pump, NO.1
29344	Ring, O Vacuum Pump, NO.2
29345	Ring, O Vacuum Pump, NO.3
29346	Ring, O Vacuum Pump Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
