Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

17 part groups · 5 illustrations

Illustrations

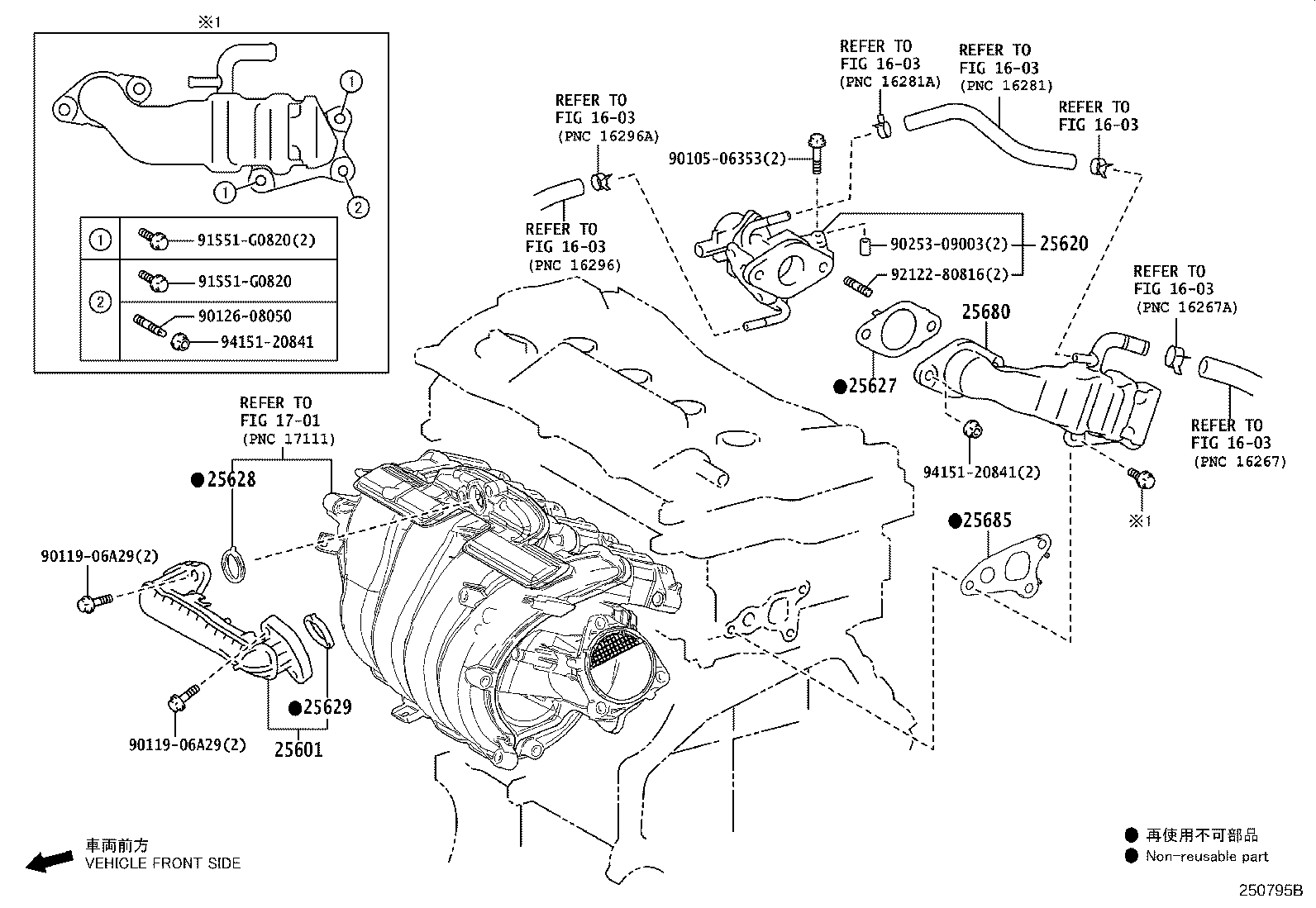

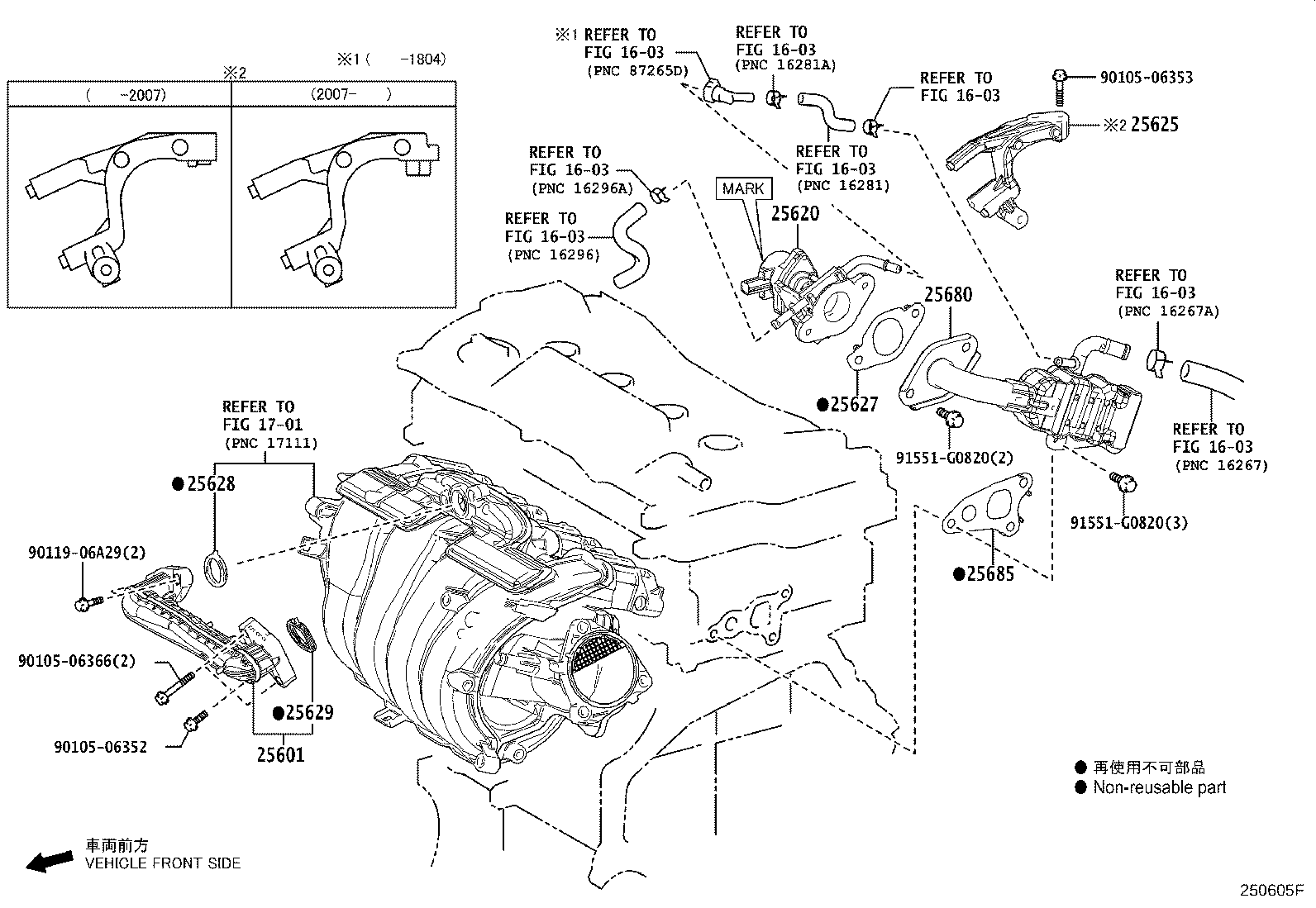

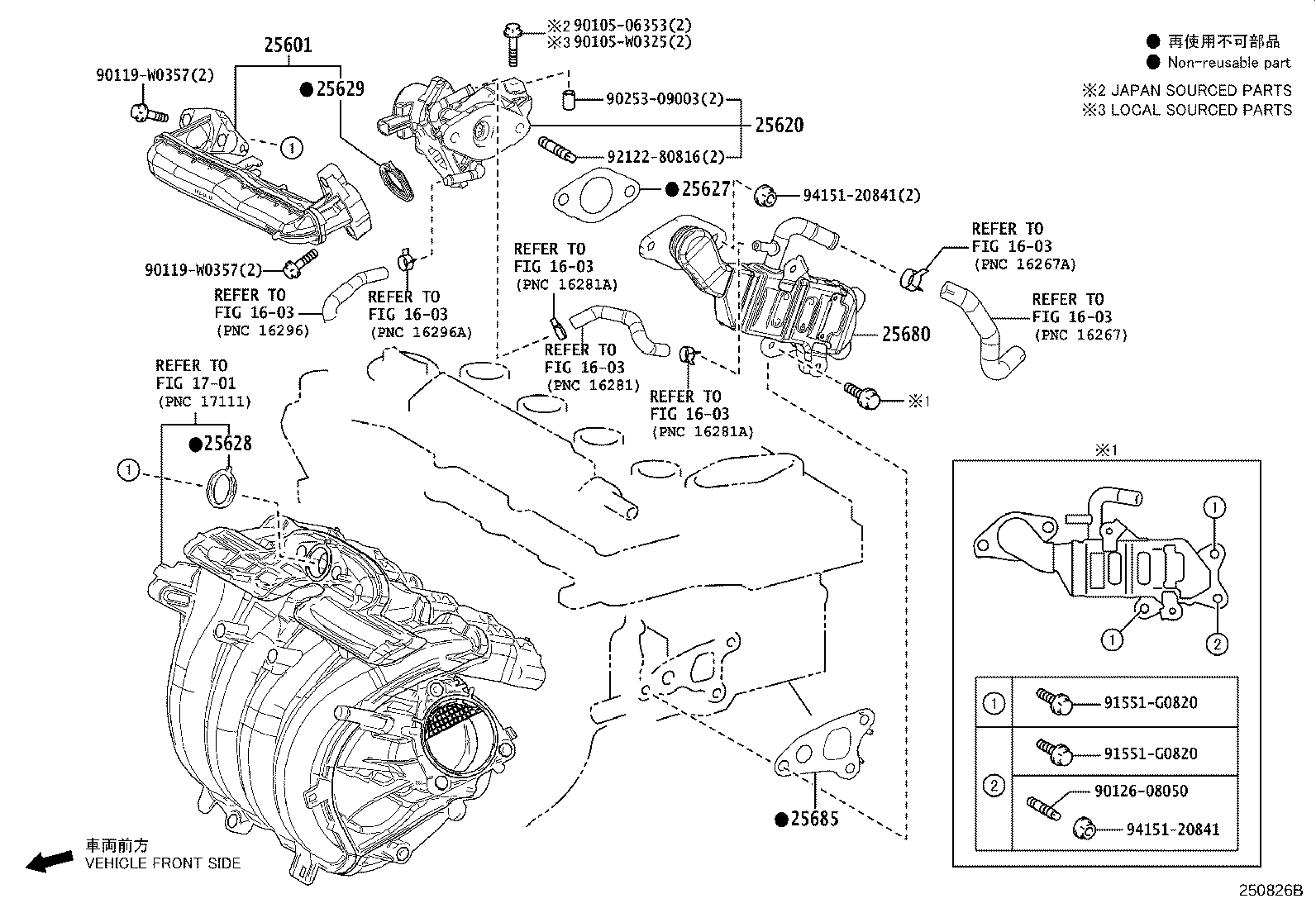

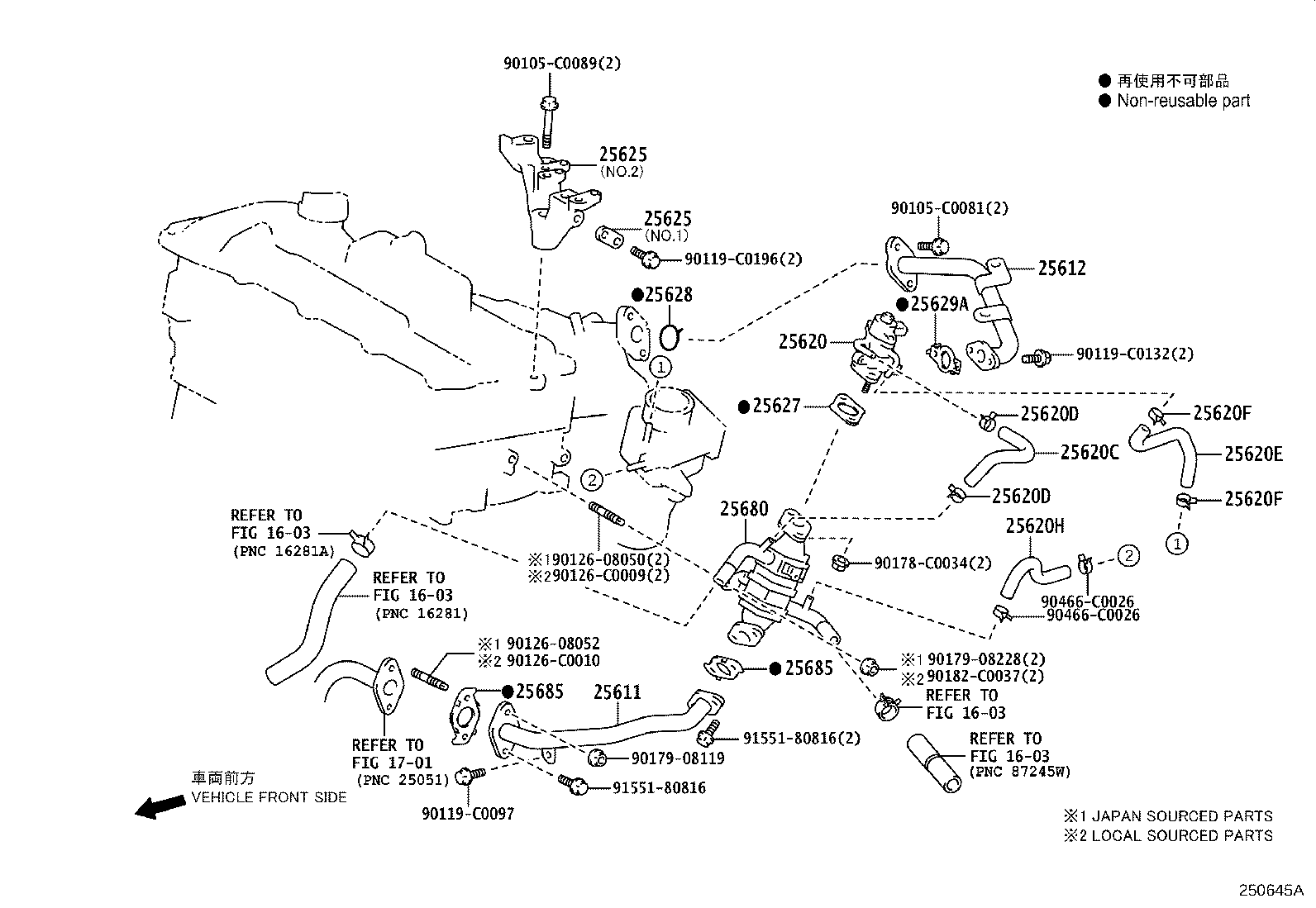

Figure 250608G 250608G 2017-09 → 2020-08 Figure 250605F 250605F 2017-09 → 2020-08 Figure 250795B 250795B 2020-08 → — Figure 250645A 250645A 2018-04 → — Figure 250826B 250826B 2021-04 → —

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25611 Connector, Egr Pipe
25612 Pipe, Egr, NO.2
25620 Valve Assy, Egr
25620C Hose, Water By-pass, NO.1
25620D Clip(FOR WATER BY-PASS HOSE, NO.1)
25620E Hose, Water By-pass NO.2
25620F Clip(FOR WATER BY-PASS HOSE, NO.2)
25620H Hose Assy, Water By-pass
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629 Gasket, Egr Valve Adapter
25629A Gasket, Egr Pipe, NO.2
25680 Cooler Assy, Egr
25685 Gasket, Egr Cooler, NO.1
25687 Bracket, Egr Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
