Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

11 part groups · 8 illustrations

Illustrations

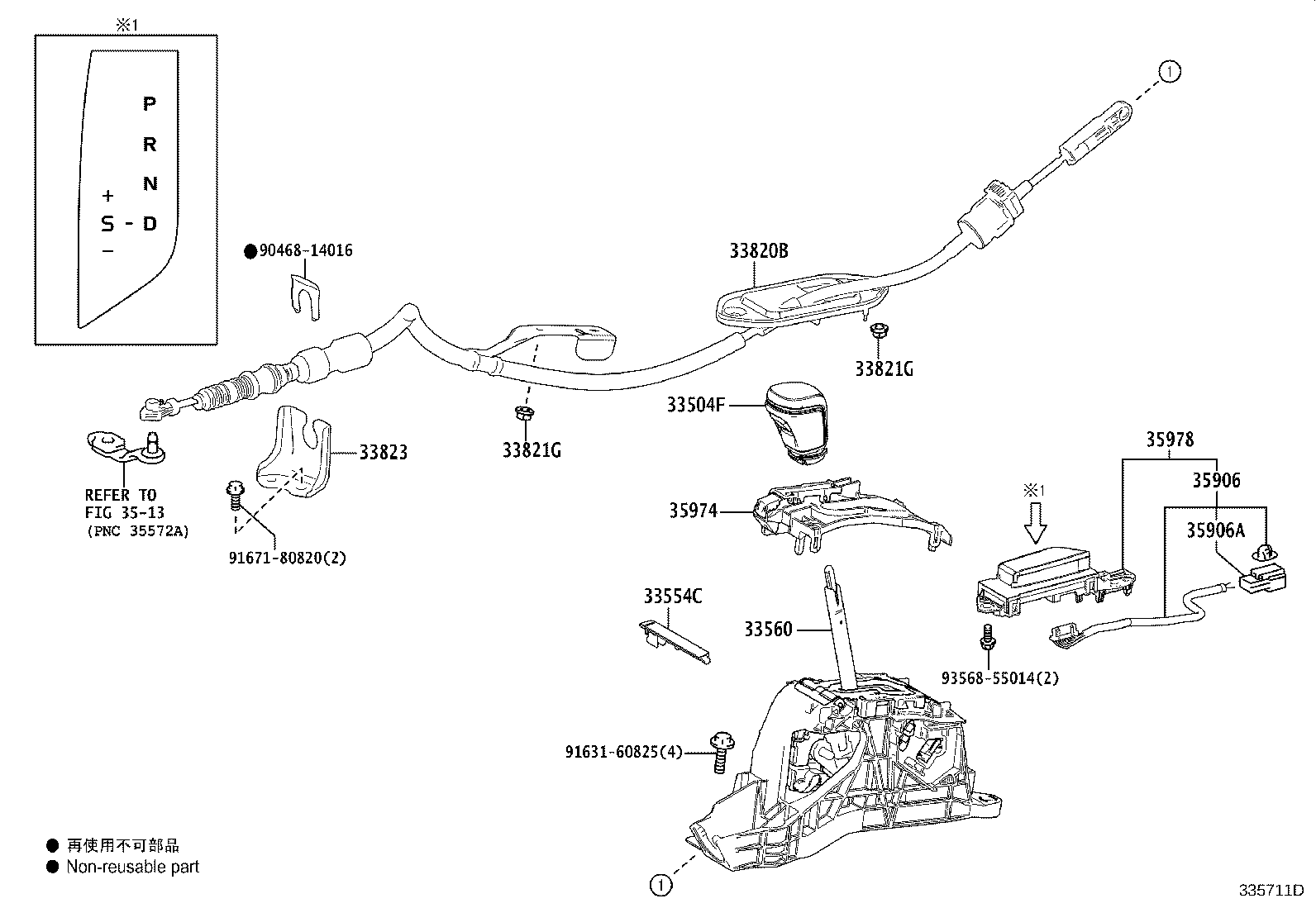

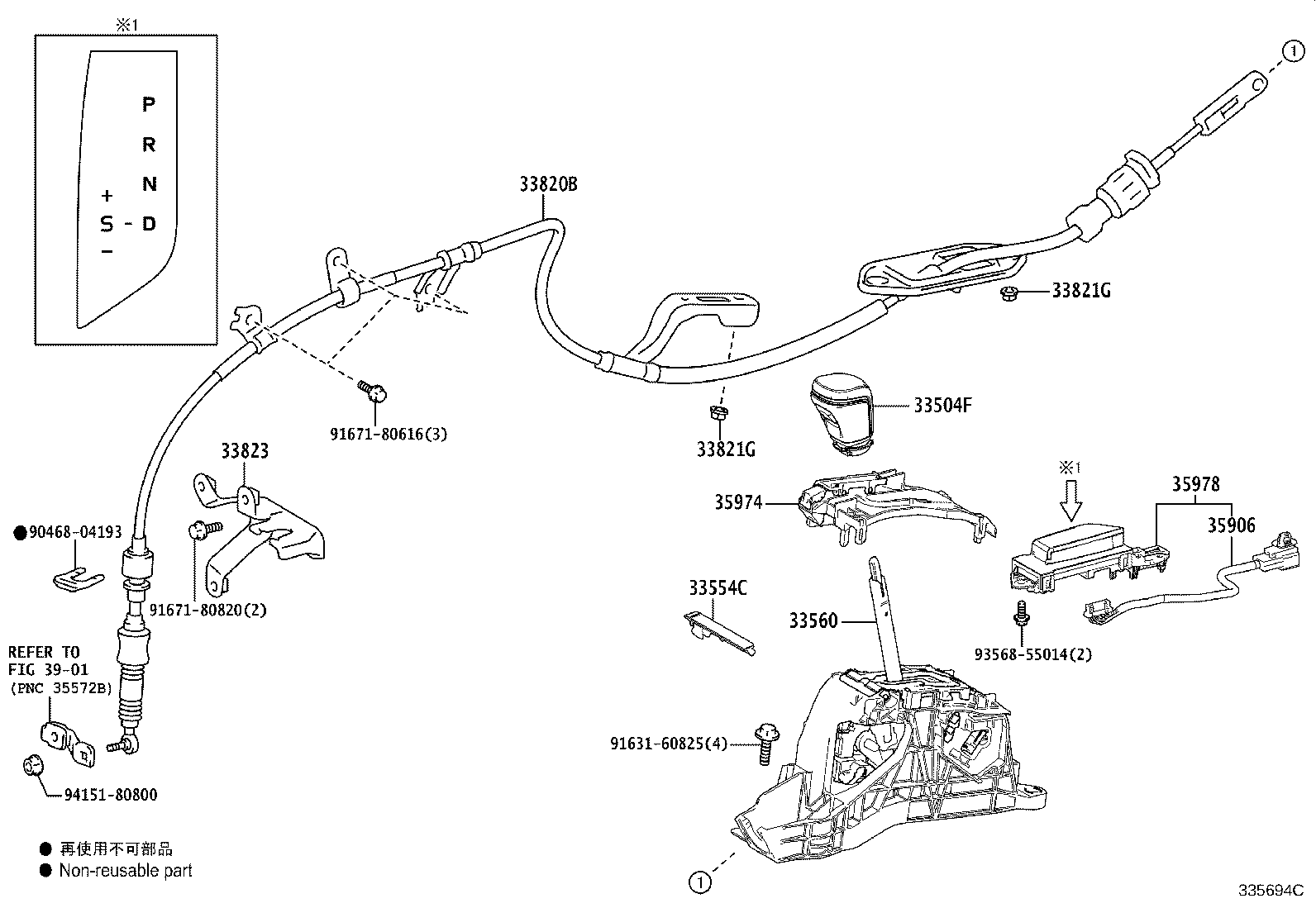

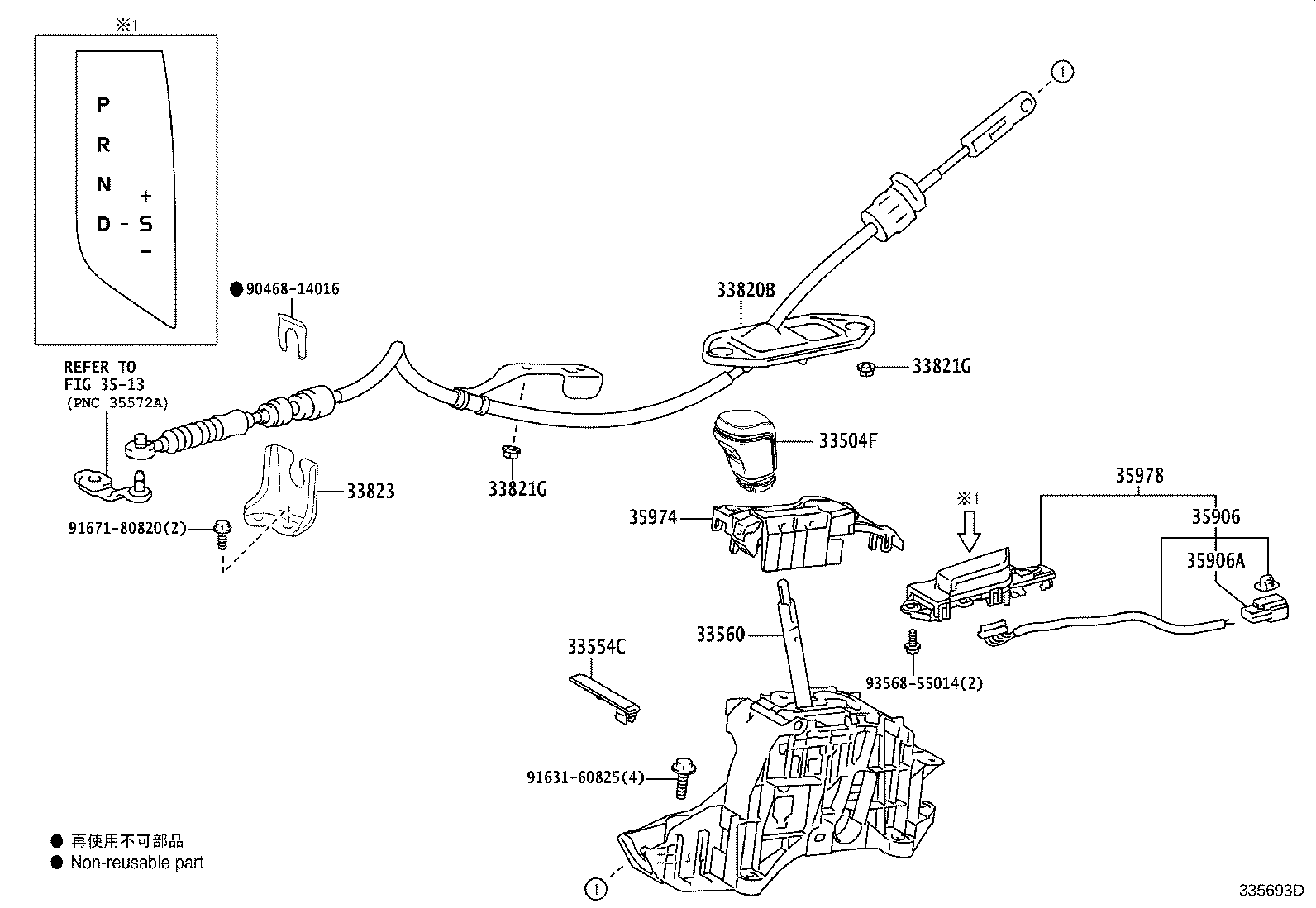

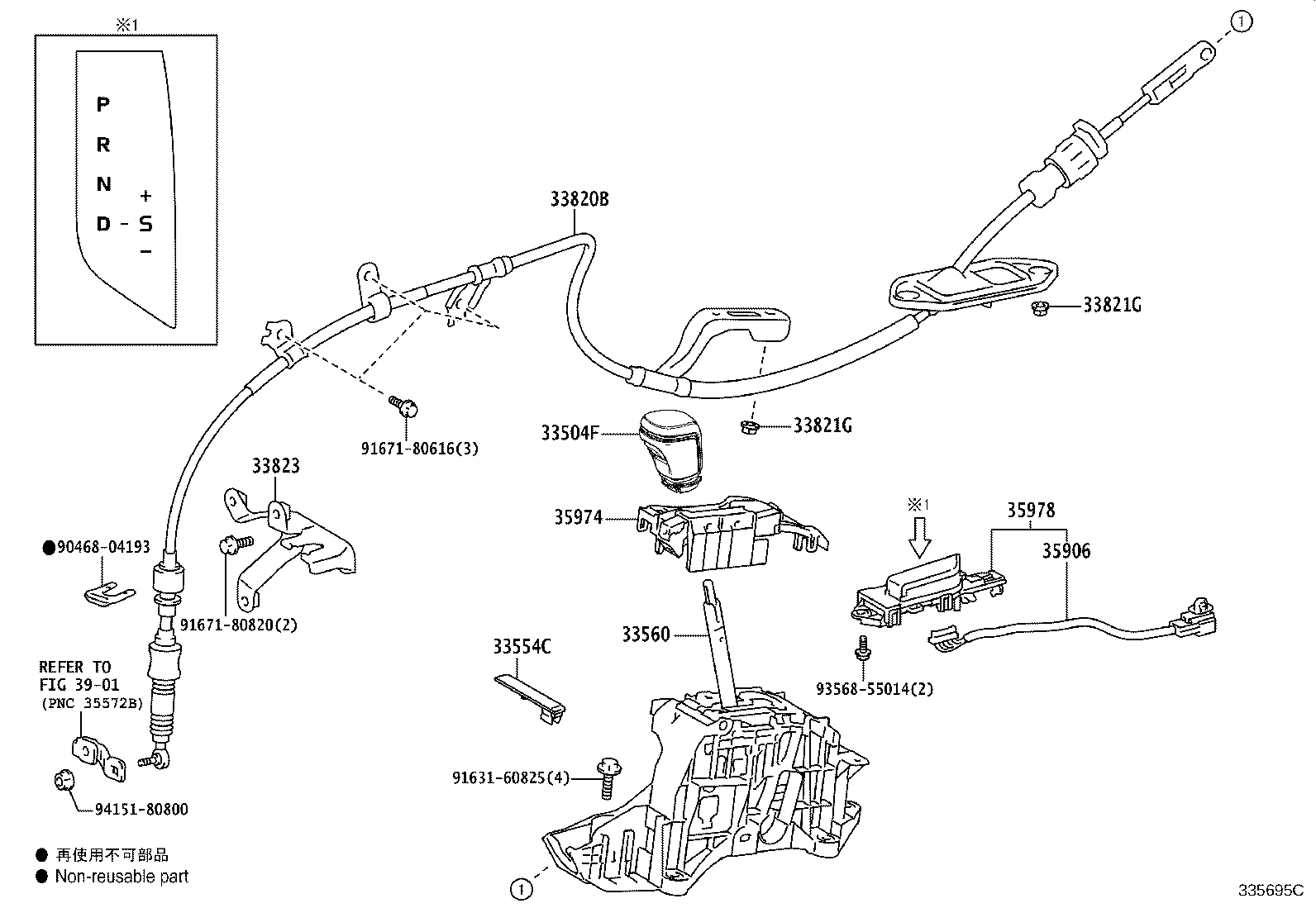

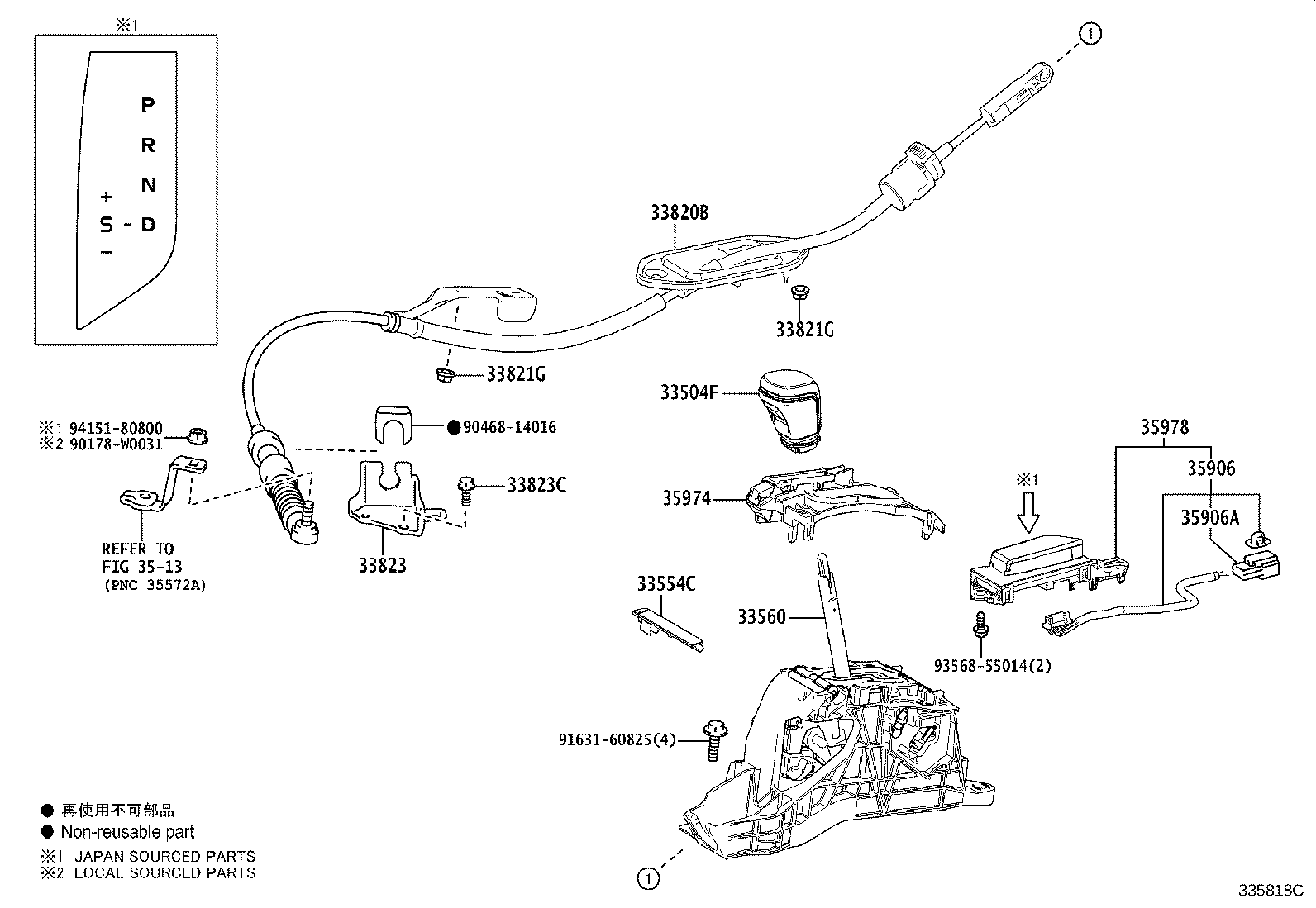

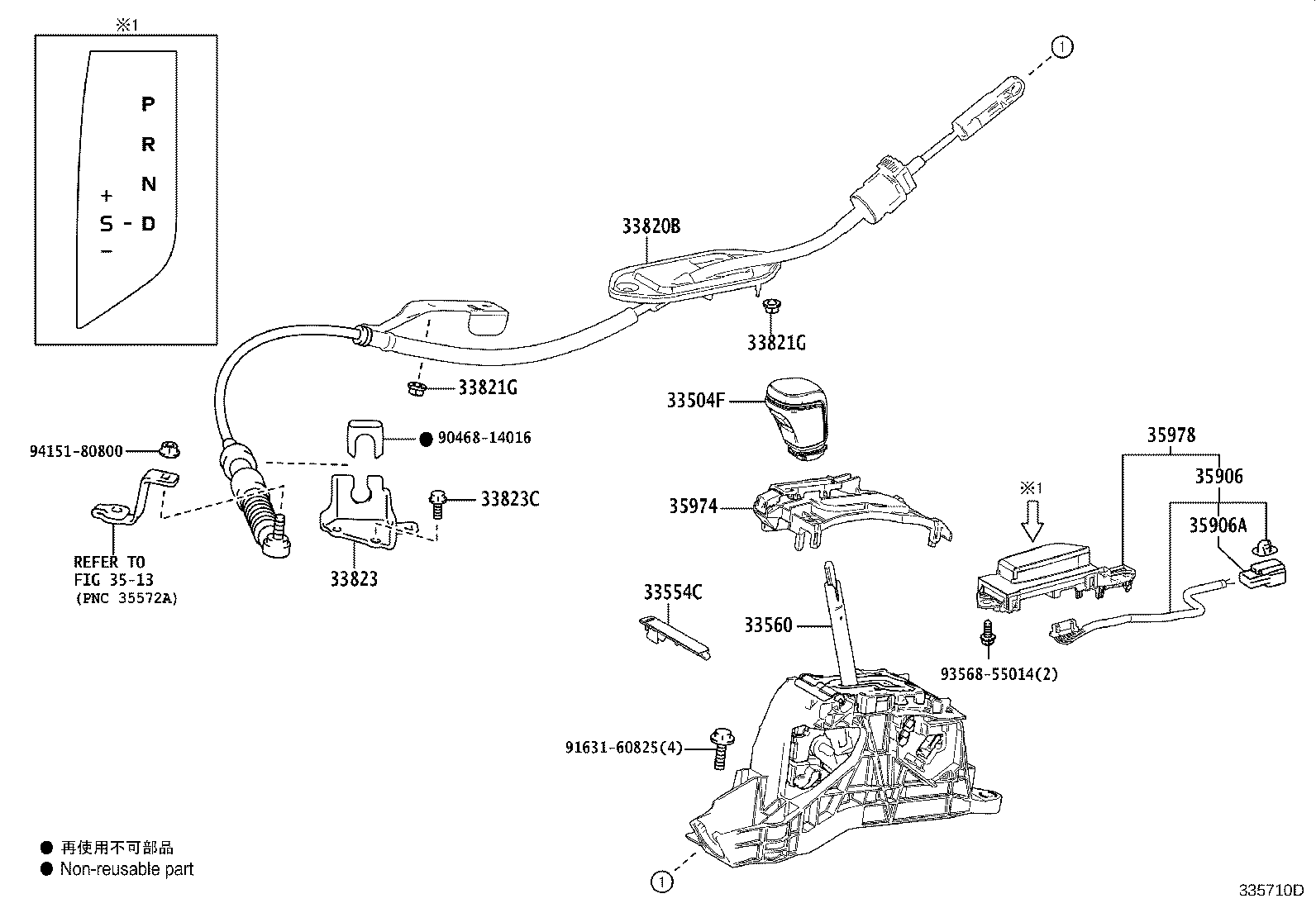

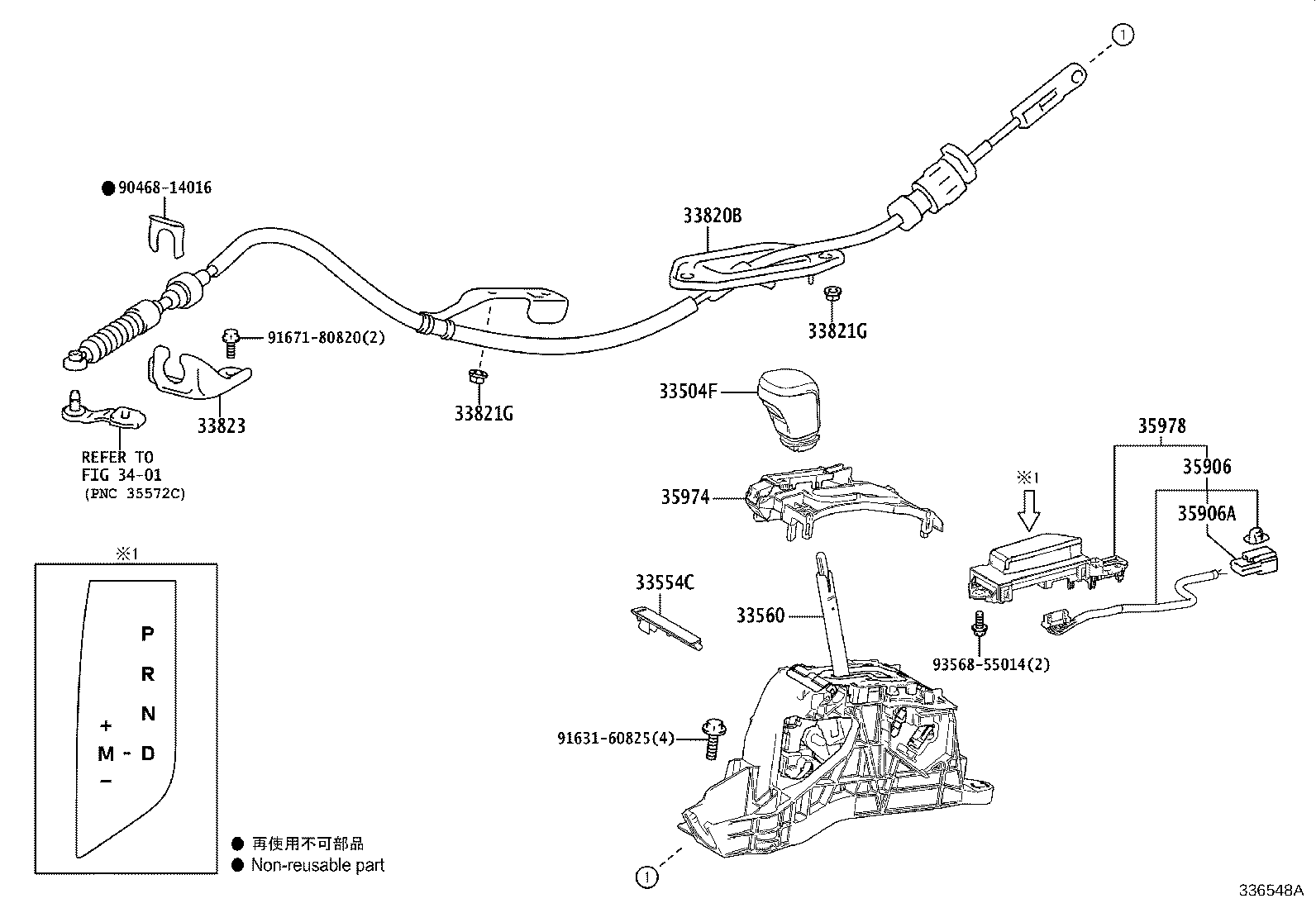

Figure 335709D 335709D 2017-09 → 2021-02 Figure 335710D 335710D 2017-09 → 2021-02 Figure 335711D 335711D 2017-09 → — Figure 335695C 335695C 2017-09 → — Figure 335694C 335694C 2017-09 → — Figure 335818C 335818C 2018-04 → 2021-04 Figure 335693D 335693D 2021-02 → — Figure 336548A 336548A 2021-04 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35906 Wire Sub-assy, Indicator Lamp
35906A Housing, Connector Male (FOR INDICATOR LAMP WIRE)
35974 Housing, Position Indicator, Lower
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
