Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 6 illustrations

Illustrations

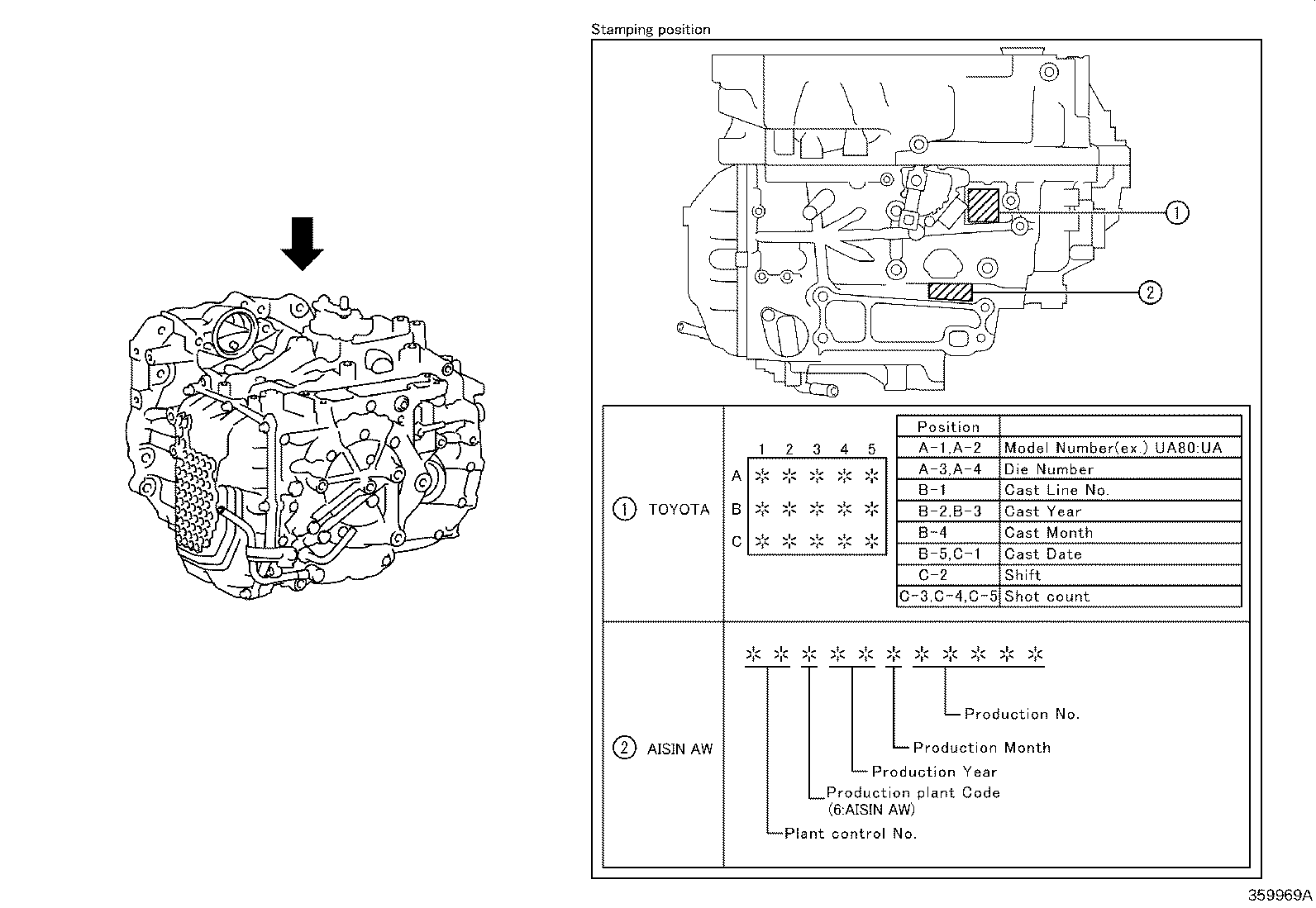

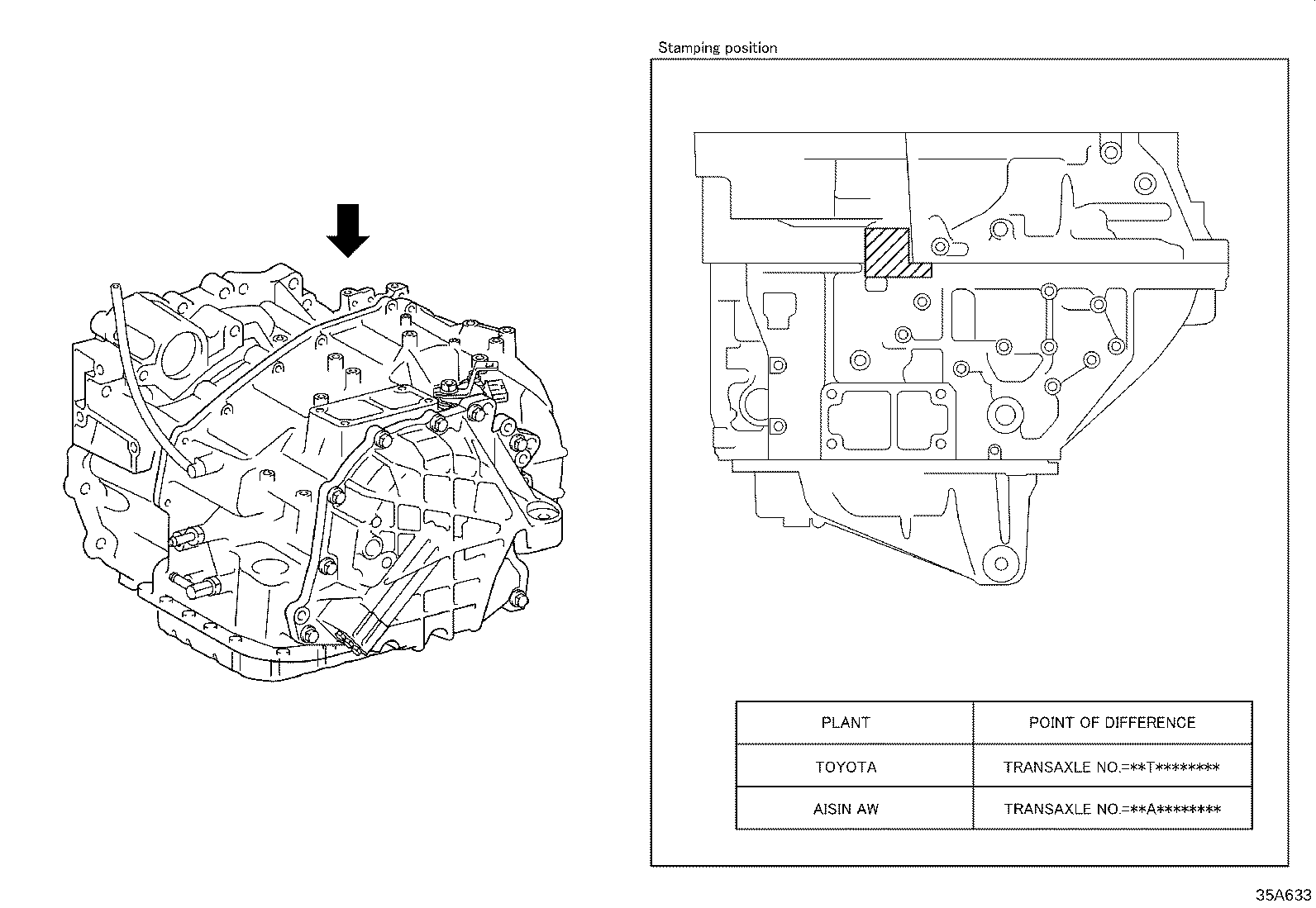

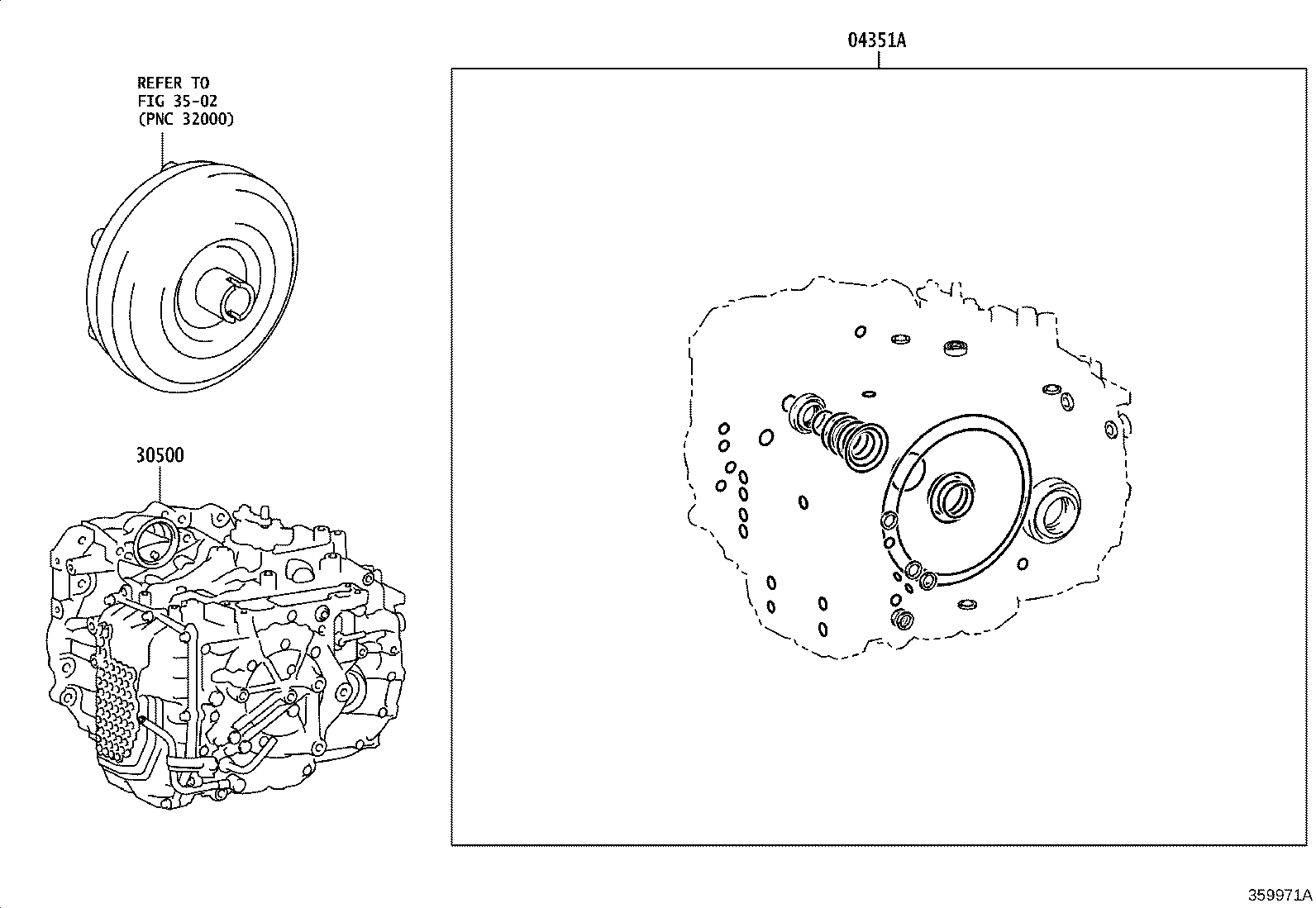

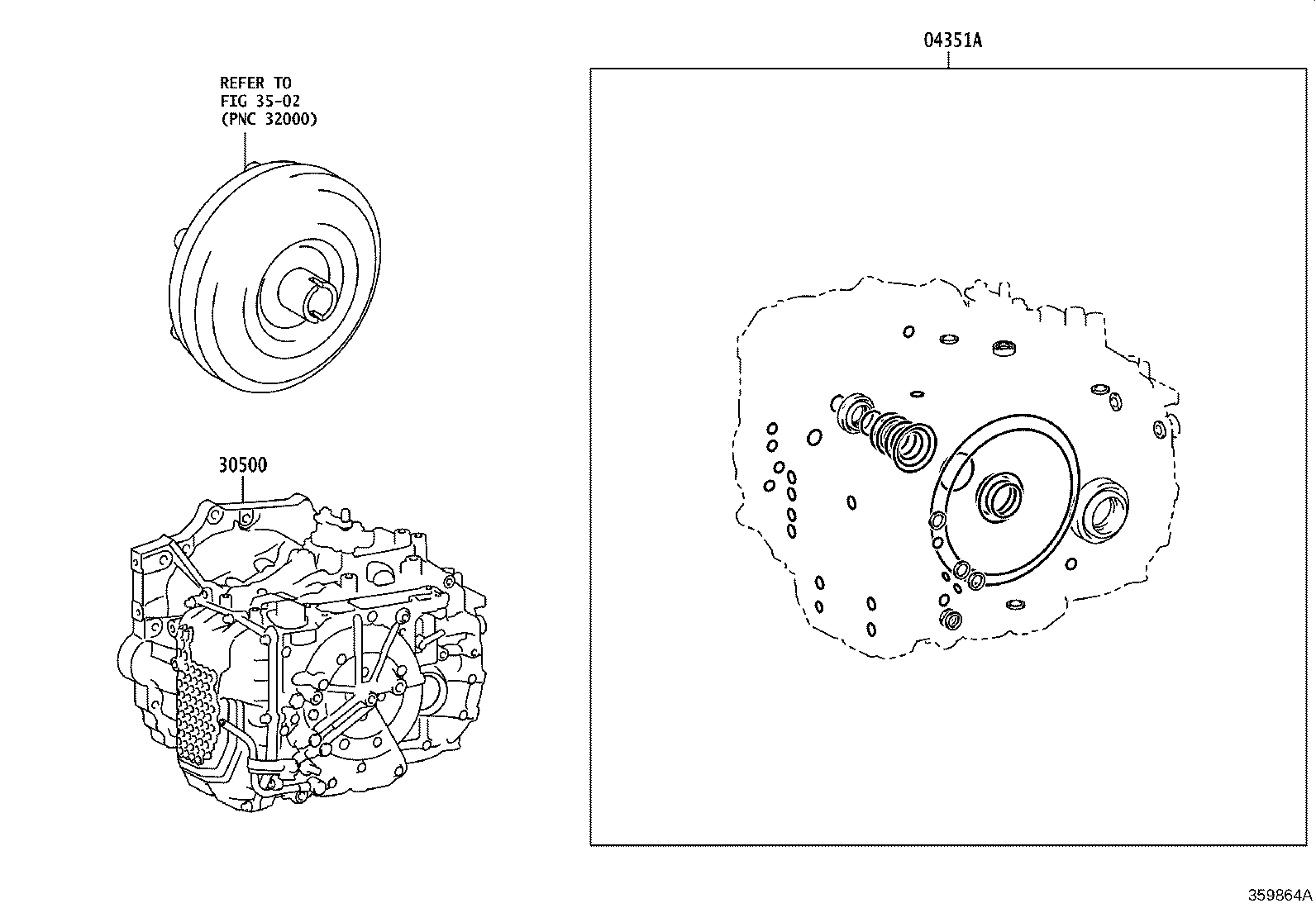

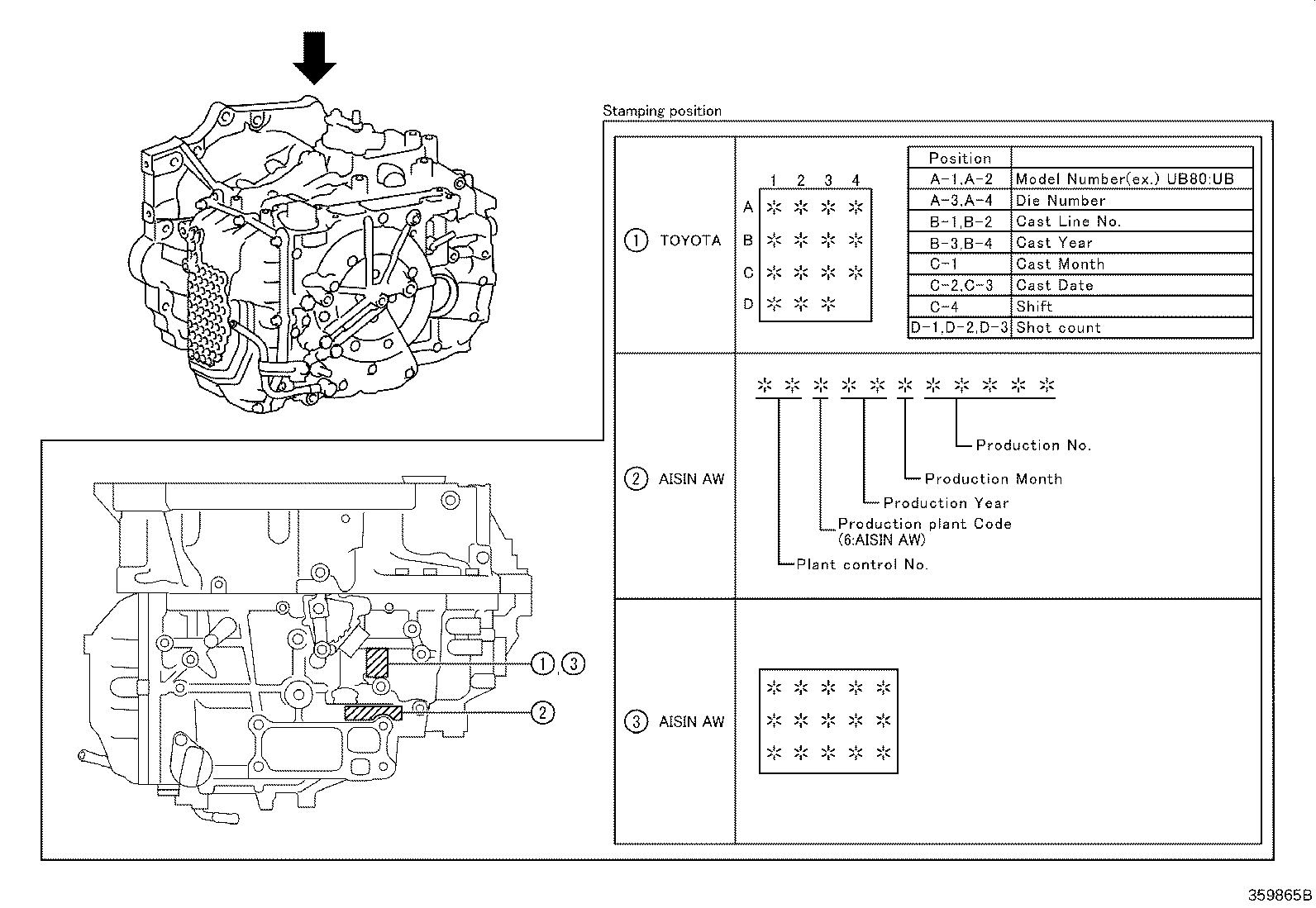

Figure 359968C 359968C 2017-09 → — Figure 359864A 359864A 2017-09 → — Figure 359971A 359971A 2017-12 → — Figure 35A633 35A633 2017-09 → — Figure 359865B 359865B 2017-09 → — Figure 359969A 359969A 2017-09 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
