Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

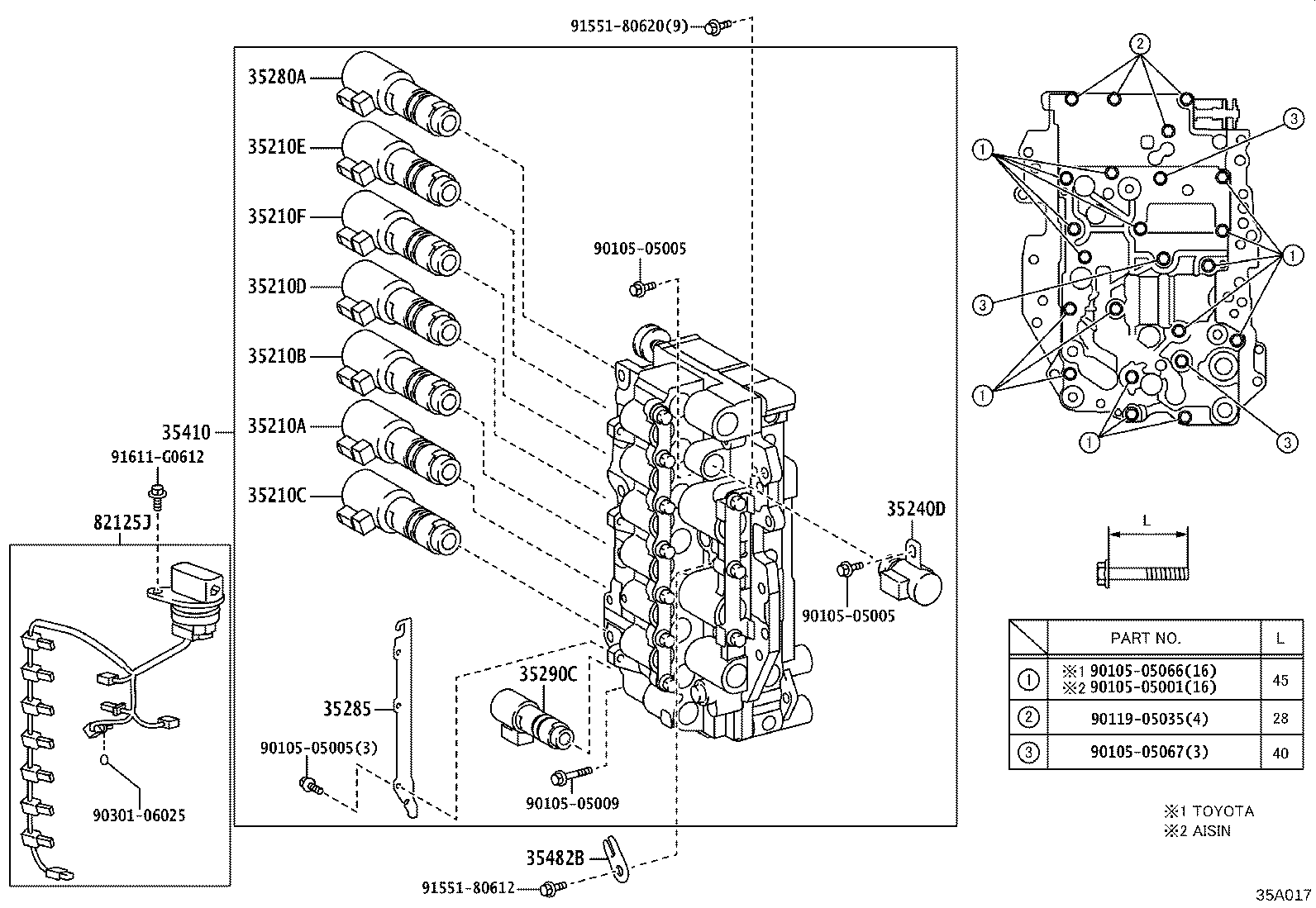

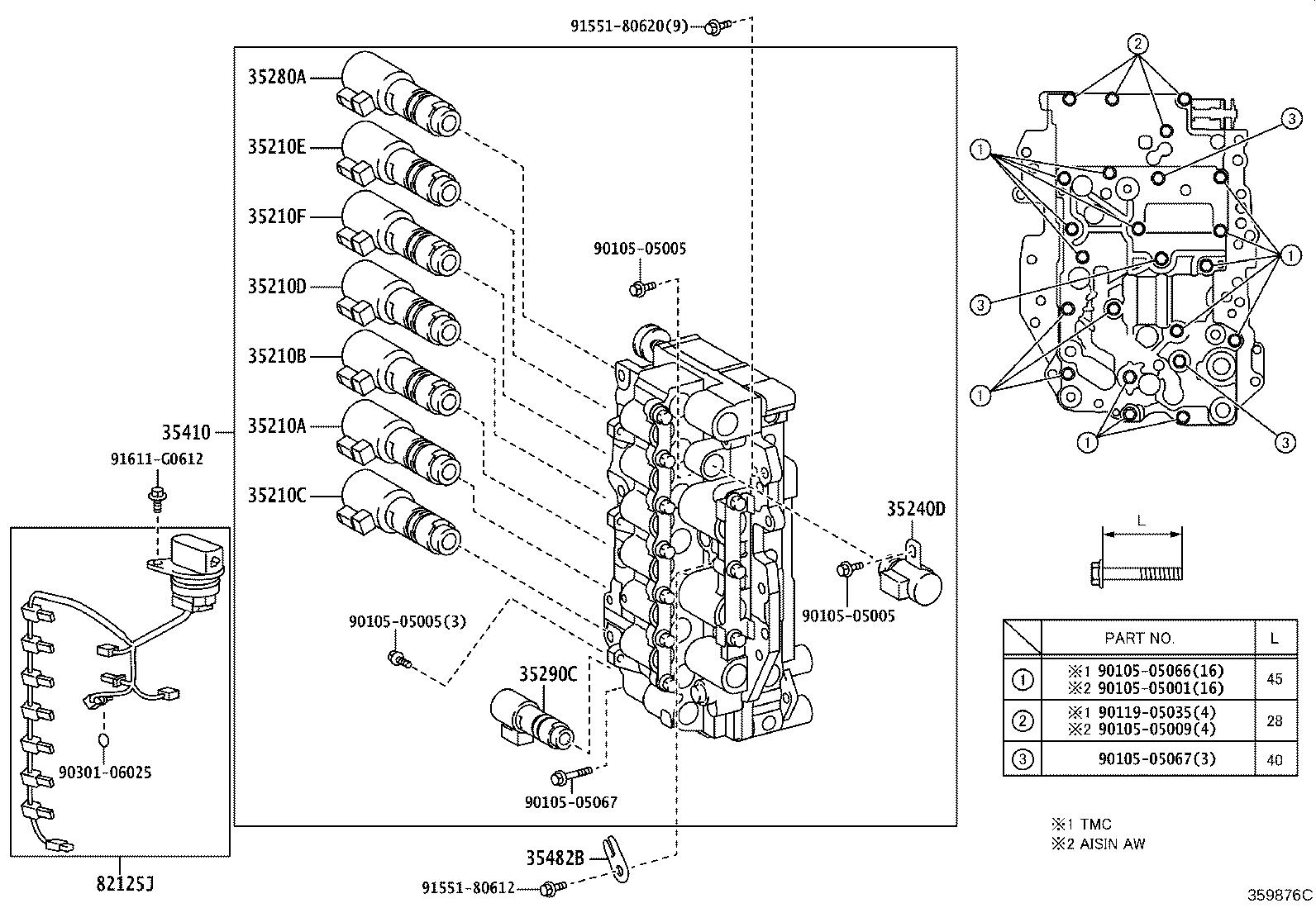

Valve Body & Oil Strainer (ATM)
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 35196 | Clamp, Transaxle Apply Tube, NO.2 |
| 35210A | Valve, Solenoid(SL1) |
| 35210B | Valve, Solenoid(SL3) |
| 35210C | Valve, Solenoid(SL2) |
| 35210D | Valve, Solenoid(SL4) |
| 35210E | Valve, Solenoid(SL5) |
| 35210F | Valve, Solenoid(SL6) |
| 35220A | Valve, Solenoid(SL2) |
| 35220B | Valve, Solenoid(SL4) |
| 35240D | Valve, Solenoid(SL) |
| 35280A | Valve, Solenoid(SLU) |
| 35285 | Plate, Solenoid Lock |
| 35290C | Valve, Solenoid(SLT) |
| 35295 | Plate, Solenoid Lock, NO.2 |
| 35296 | Plate, Solenoid Lock, NO.3 |
| 35297 | Plate, Solenoid Lock, NO.4 |
| 35330 | Strainer Assy, Valve Body Oil |
| 35330A | Ring, O (FOR OIL STRAINER) |
| 35409 | Spring Sub-assy, Manual Detent |
| 35410 | Body Assy, Transmission Valve |
| 35418 | Valve, Manual |
| 35482B | Clamp, Temperature Sensor |
| 35599 | Cover, Manual Detent Spring |
| 35882A | Tube, Differential Gear Lube Apply |
| 82125J | Wire, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
