Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

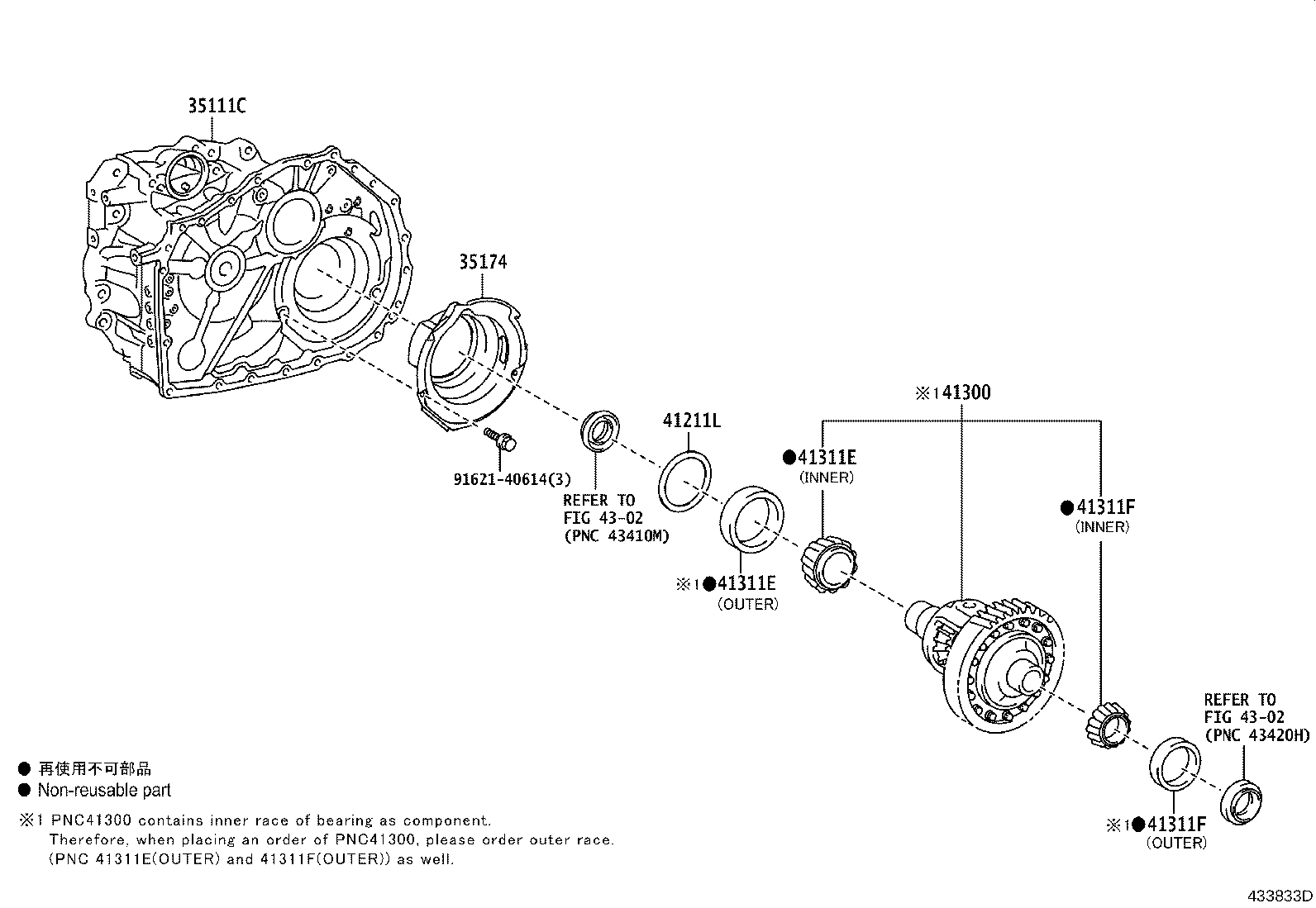

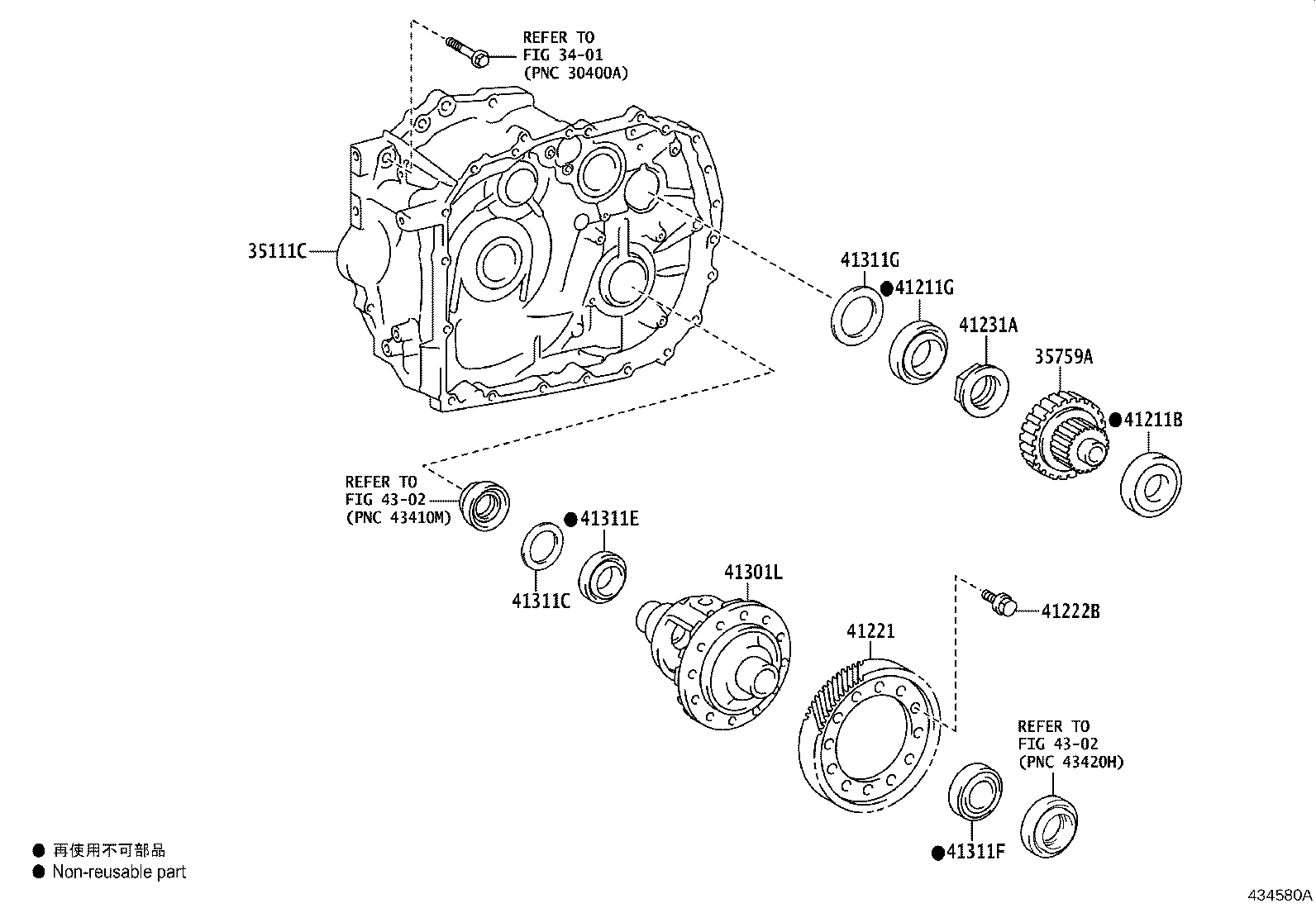

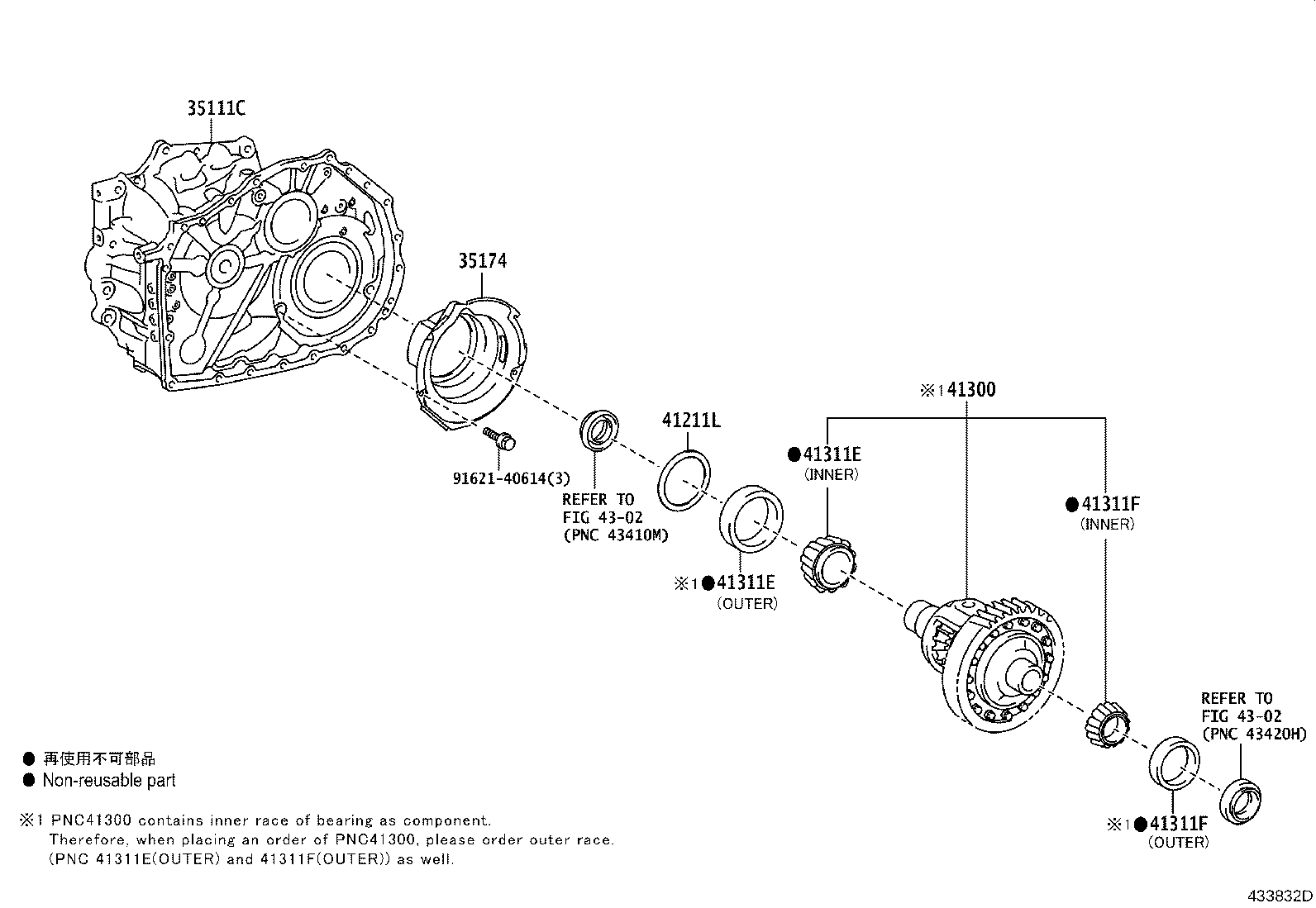

Front Axle Housing & Differential
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 35111C | Housing, Transaxle |
| 35174 | Separator, Transaxle Housing Oil |
| 35759A | Gear, Reduction Driven |
| 35783R | Gear, Counter Driven |
| 41039A | Gear Kit, Differential |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211G | Bearing, Thrust Needle Roller(FOR FRONT DRIVE PINION LH) |
| 41211J | Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION RH) |
| 41211K | Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION LH) |
| 41211L | Shim (FOR DIFFERENTIAL DRIVE PINION) |
| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41231A | Nut, Drive Pinion Lock |
| 41300 | Case Assy, Front Differential, W/Ring Gear |
| 41301L | Case Sub-assy, Front Differential, NO.1 |
| 41301P | Screw(FOR FRONT DIFFERENTIAL CASE) |
| 41311 | Case, Front Differential |
| 41311C | Shim (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311G | Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41361G | Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
