Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

12 part groups · 5 illustrations

Illustrations

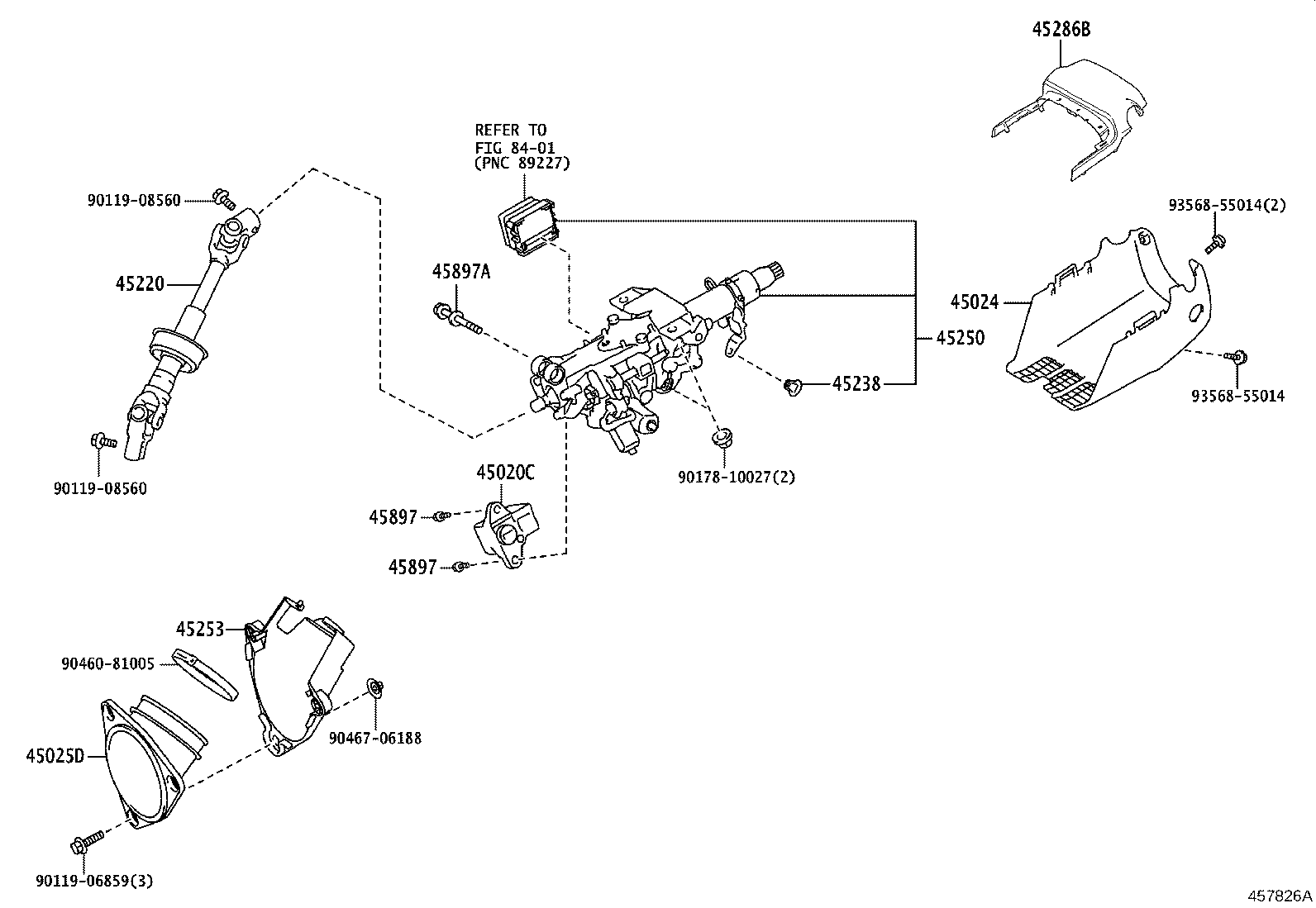

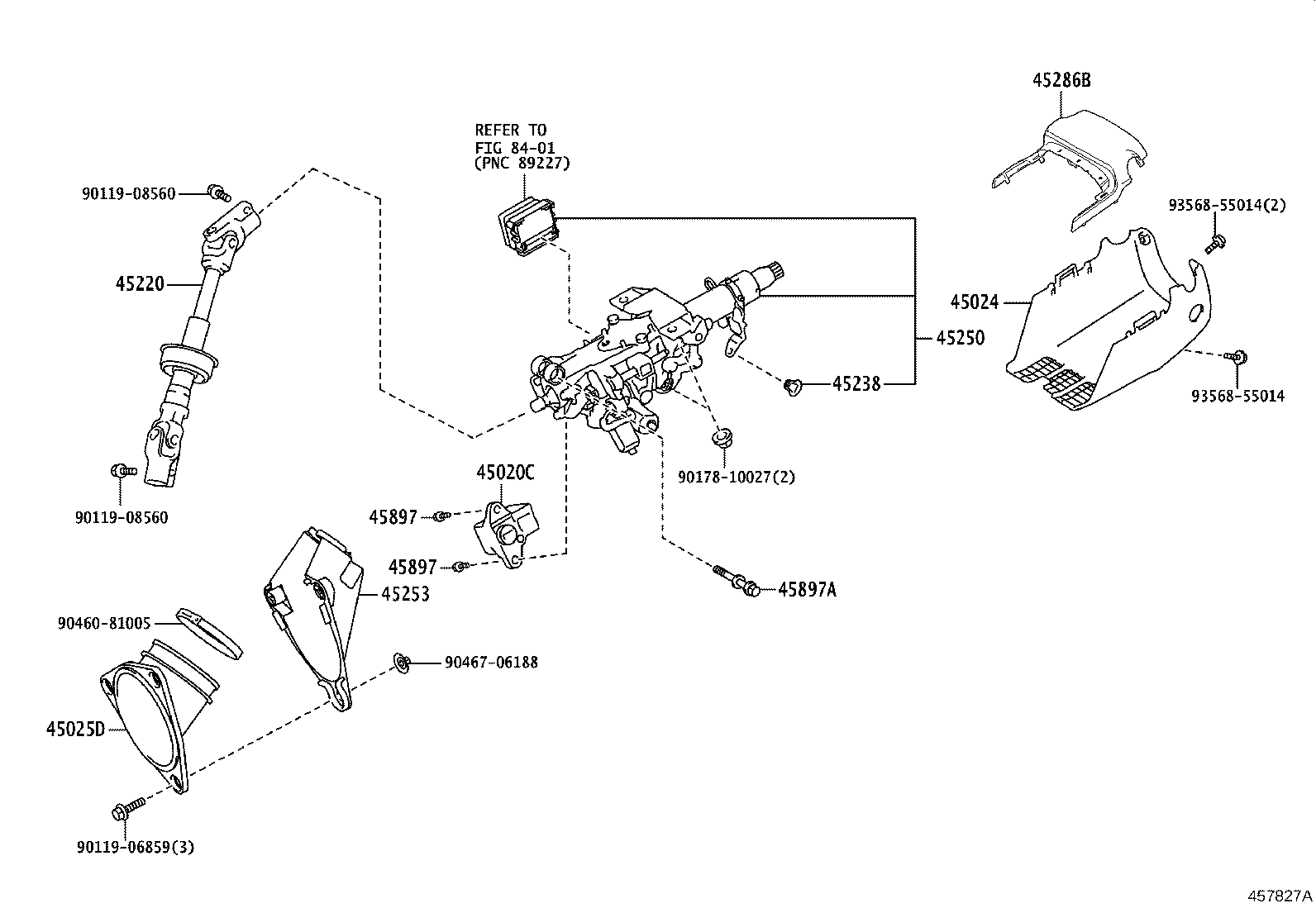

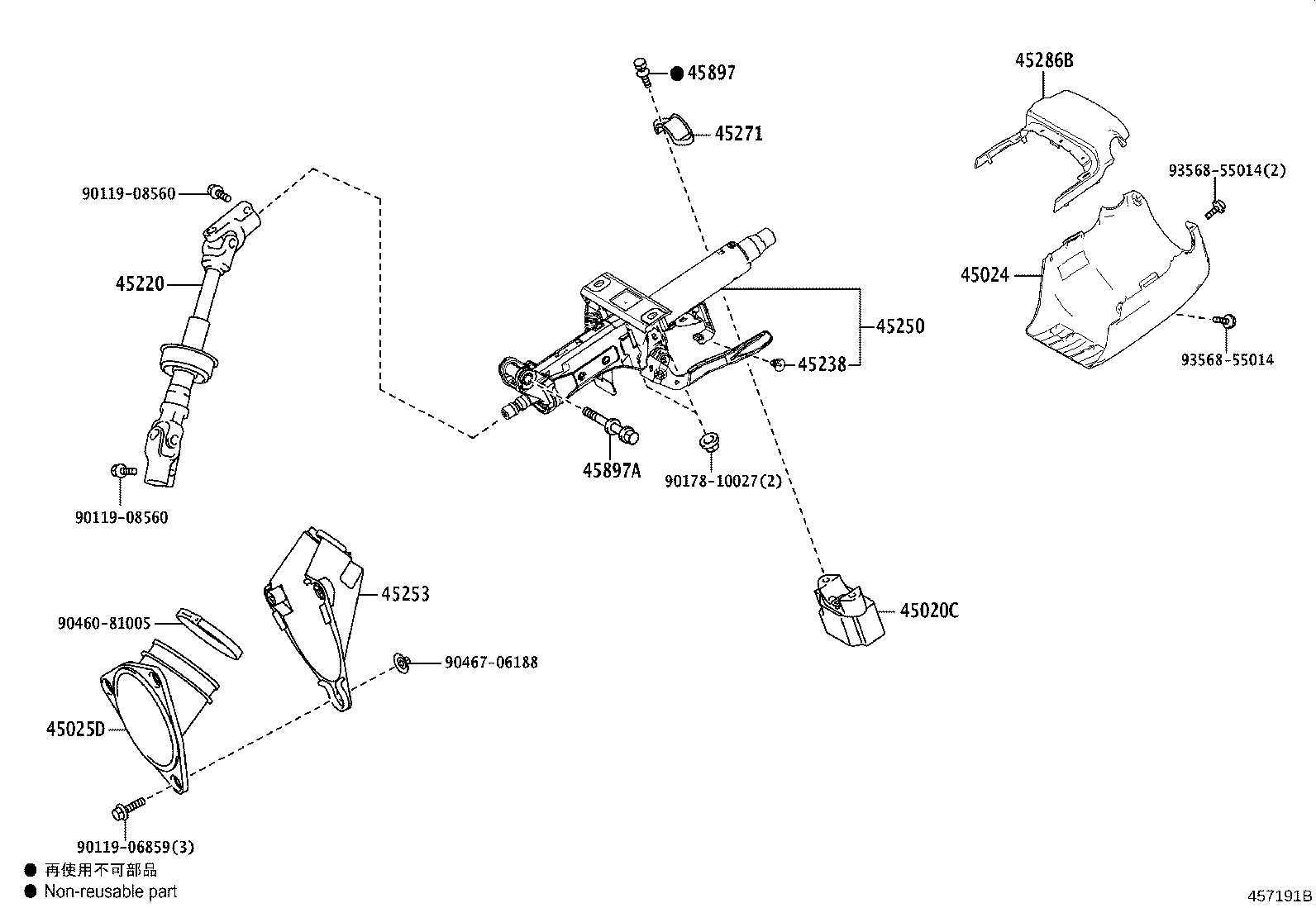

Figure 457192D 457192D 2017-09 → — Figure 457192D 457192D 2019-10 → — Figure 457826A 457826A 2017-09 → — Figure 457191B 457191B 2017-09 → — Figure 457827A 457827A 2017-09 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45020C Actuator Assy, Steering Lock(W/ECU)
45024 Cover Sub-assy, Steering Column, Lower
45025D Cover Sub-assy, Steering Column Hole, NO.1
45220 Shaft Assy, Steering Intermediate
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45250 Column Assy, Steering
45253 Cover, Steering Column Hole
45271 Clamp, Steering Column, Upper
45286B Cover, Steering Column, Upr
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
