Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

25 part groups · 9 illustrations

Illustrations

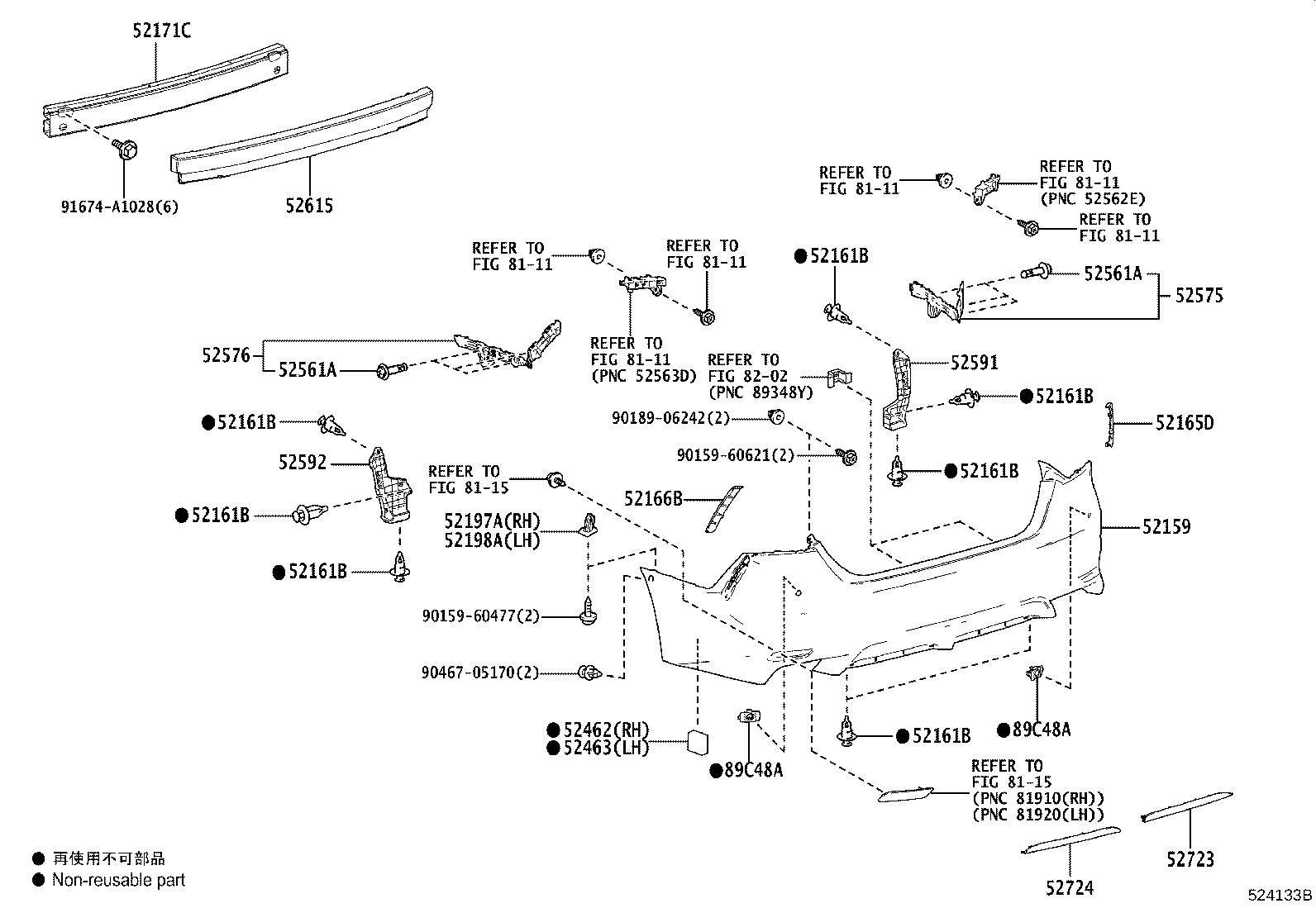

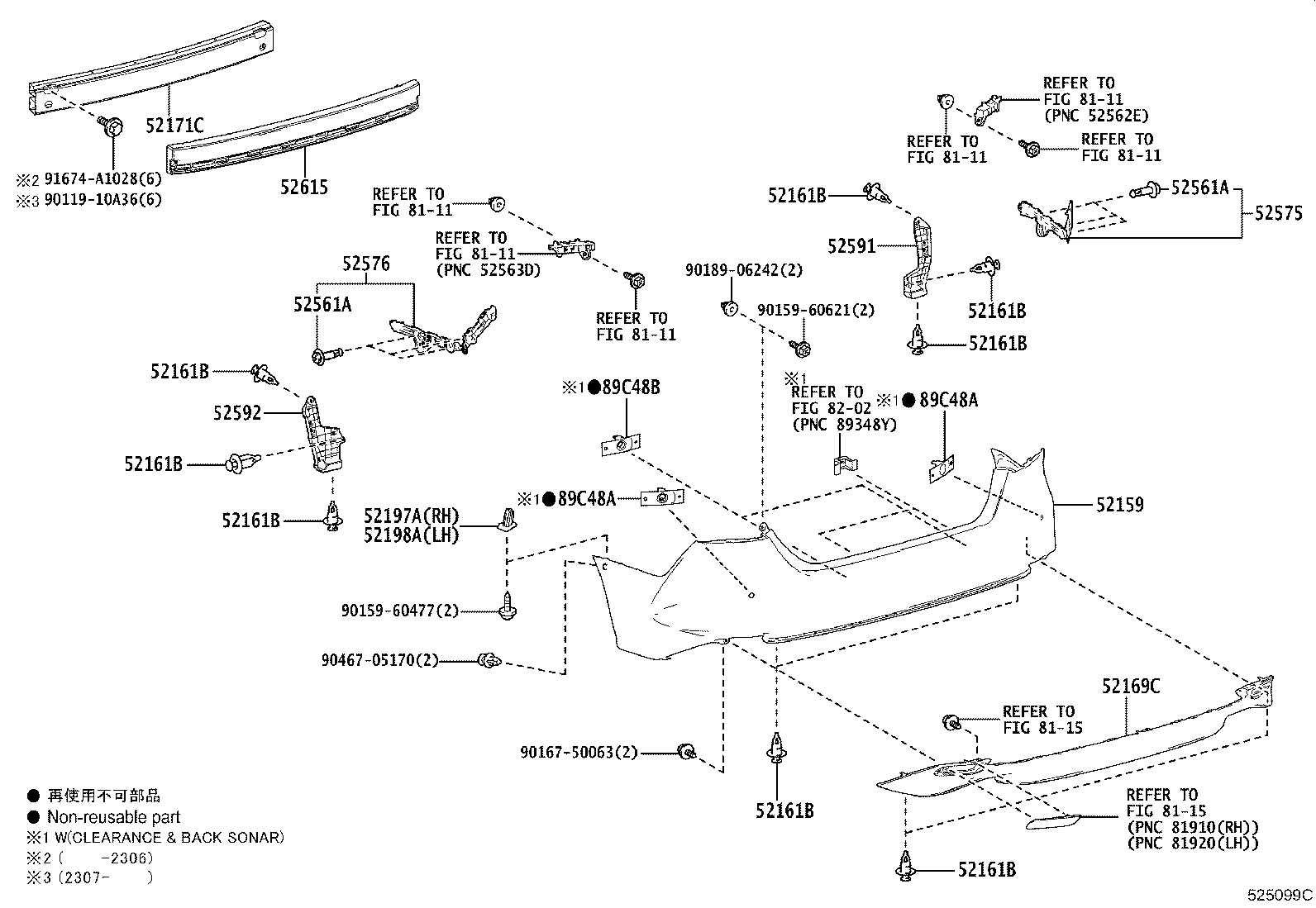

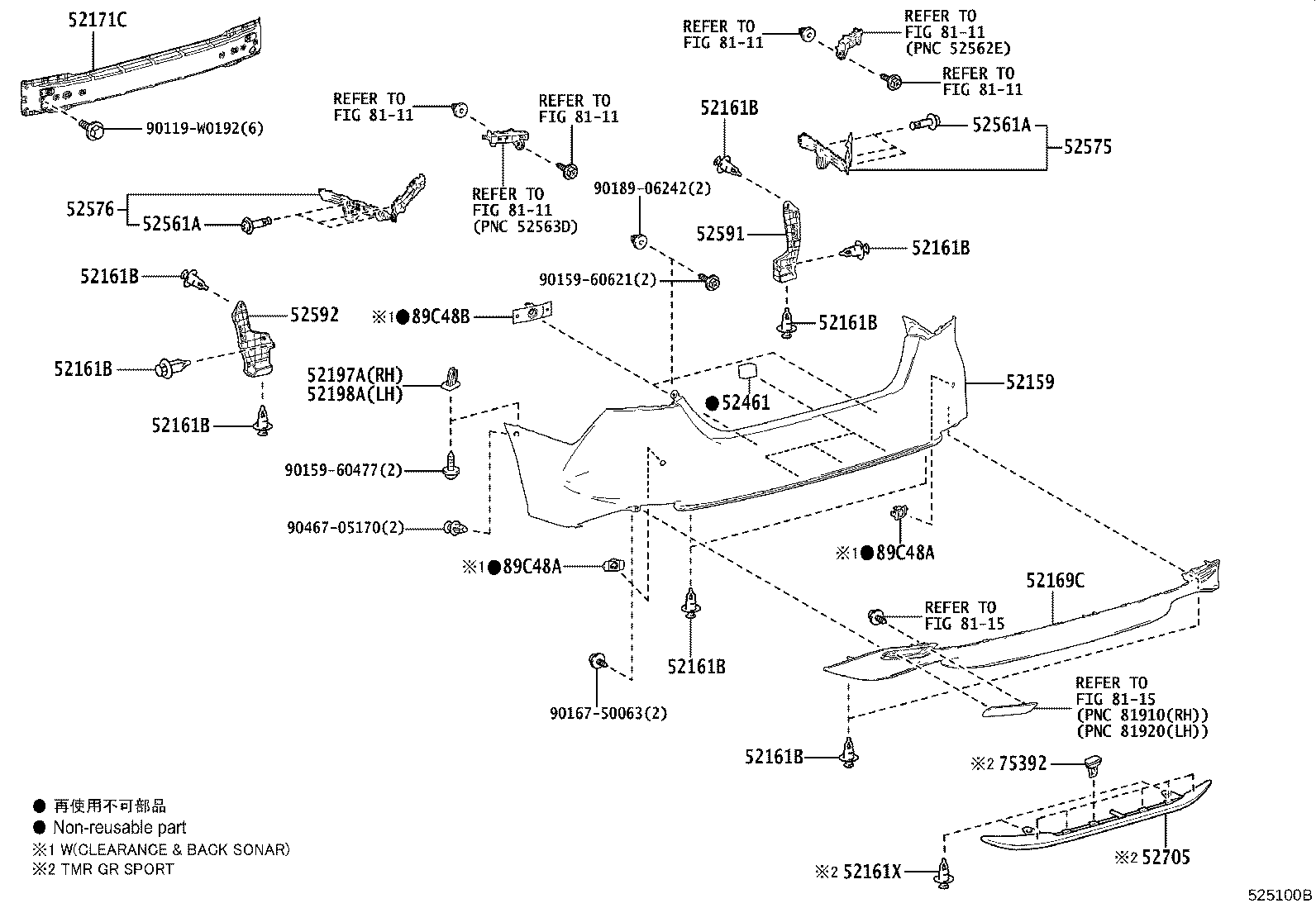

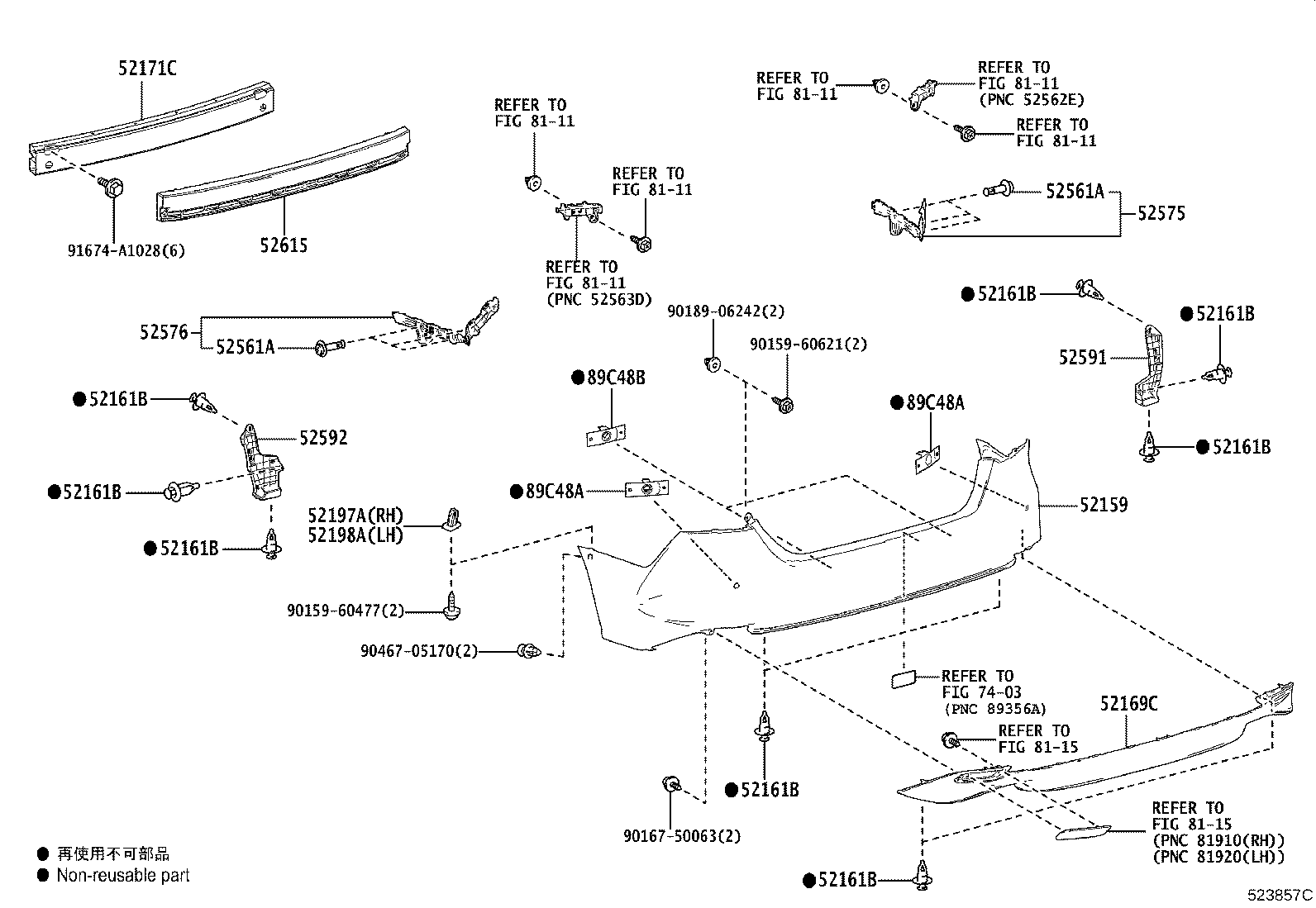

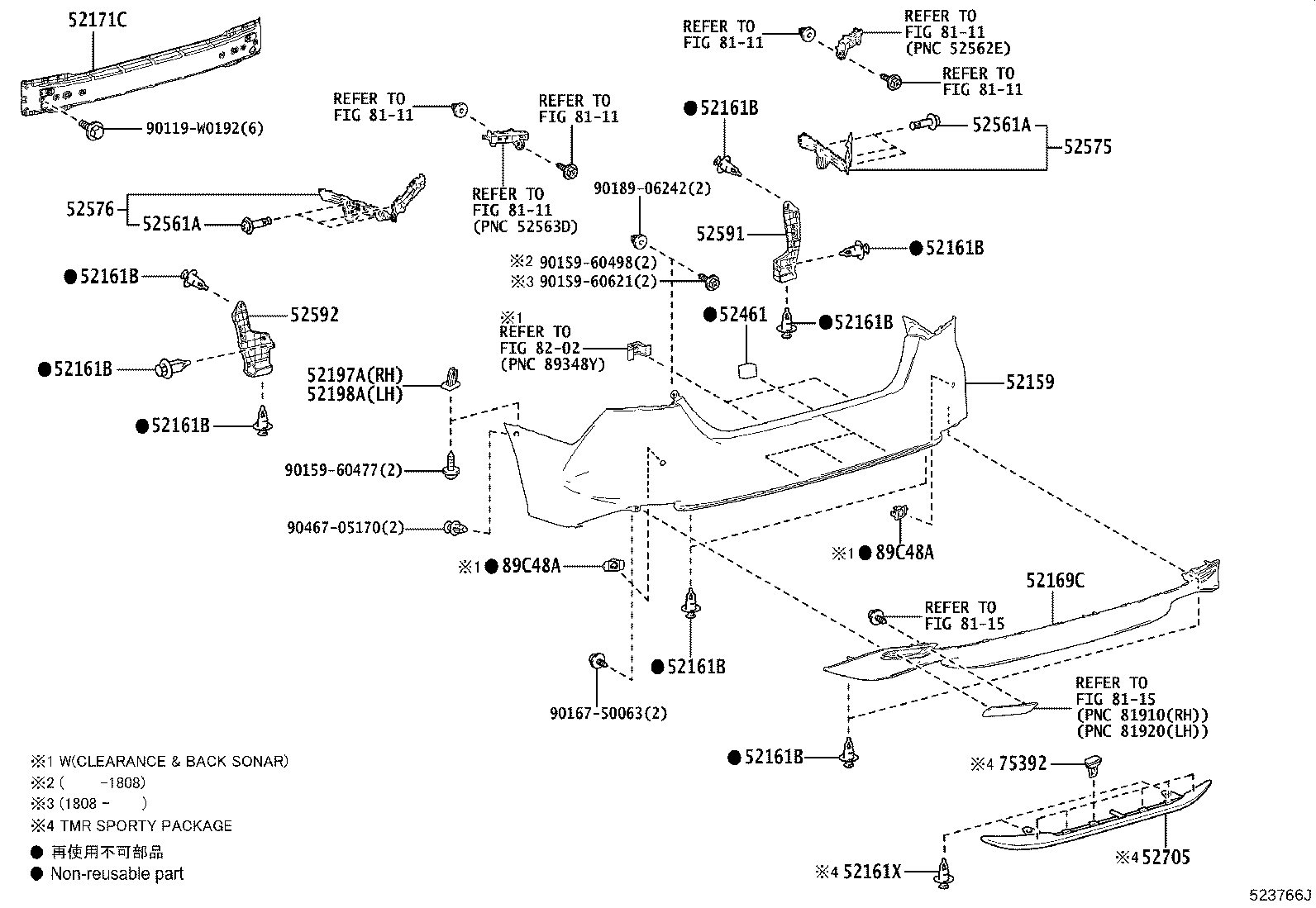

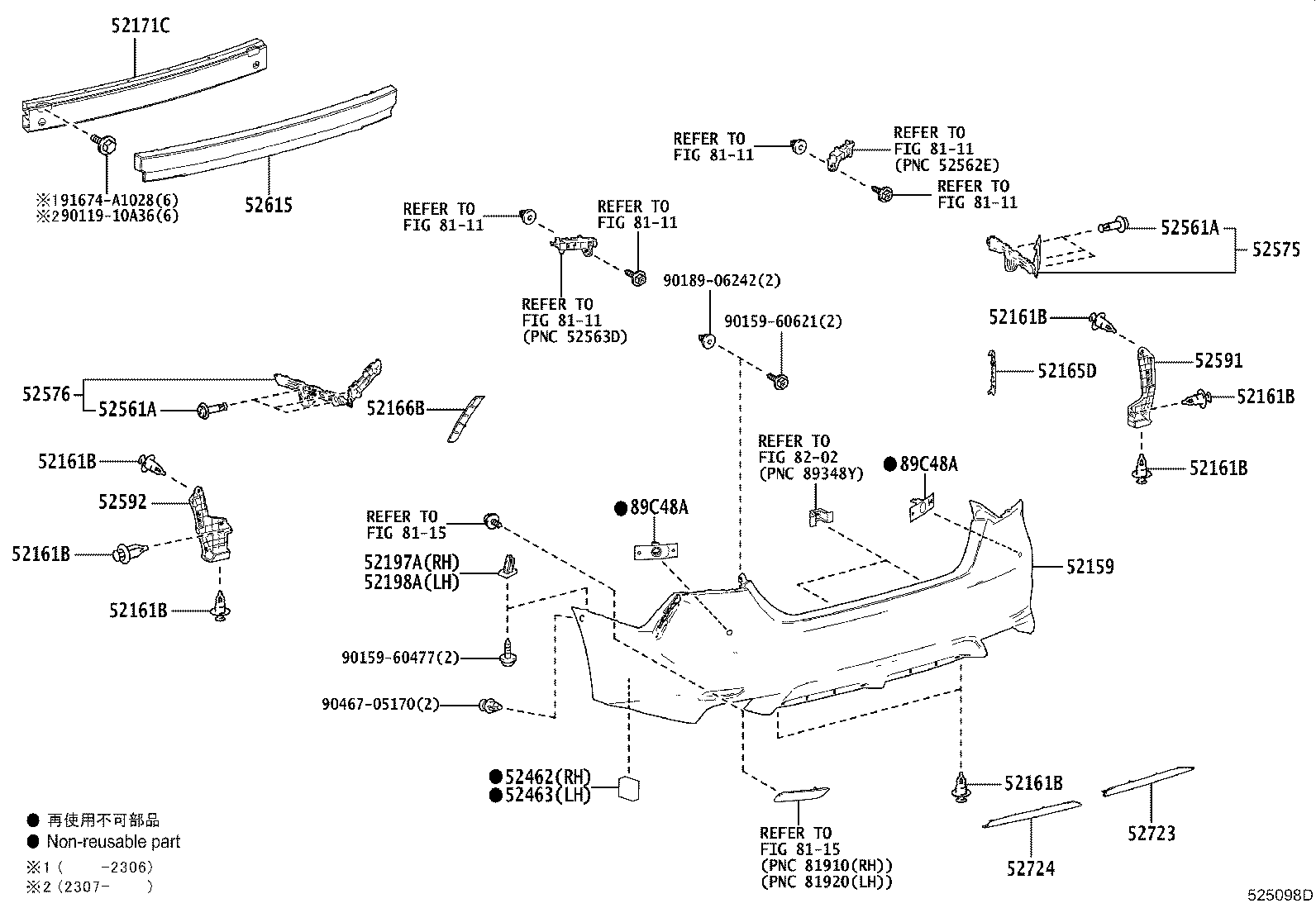

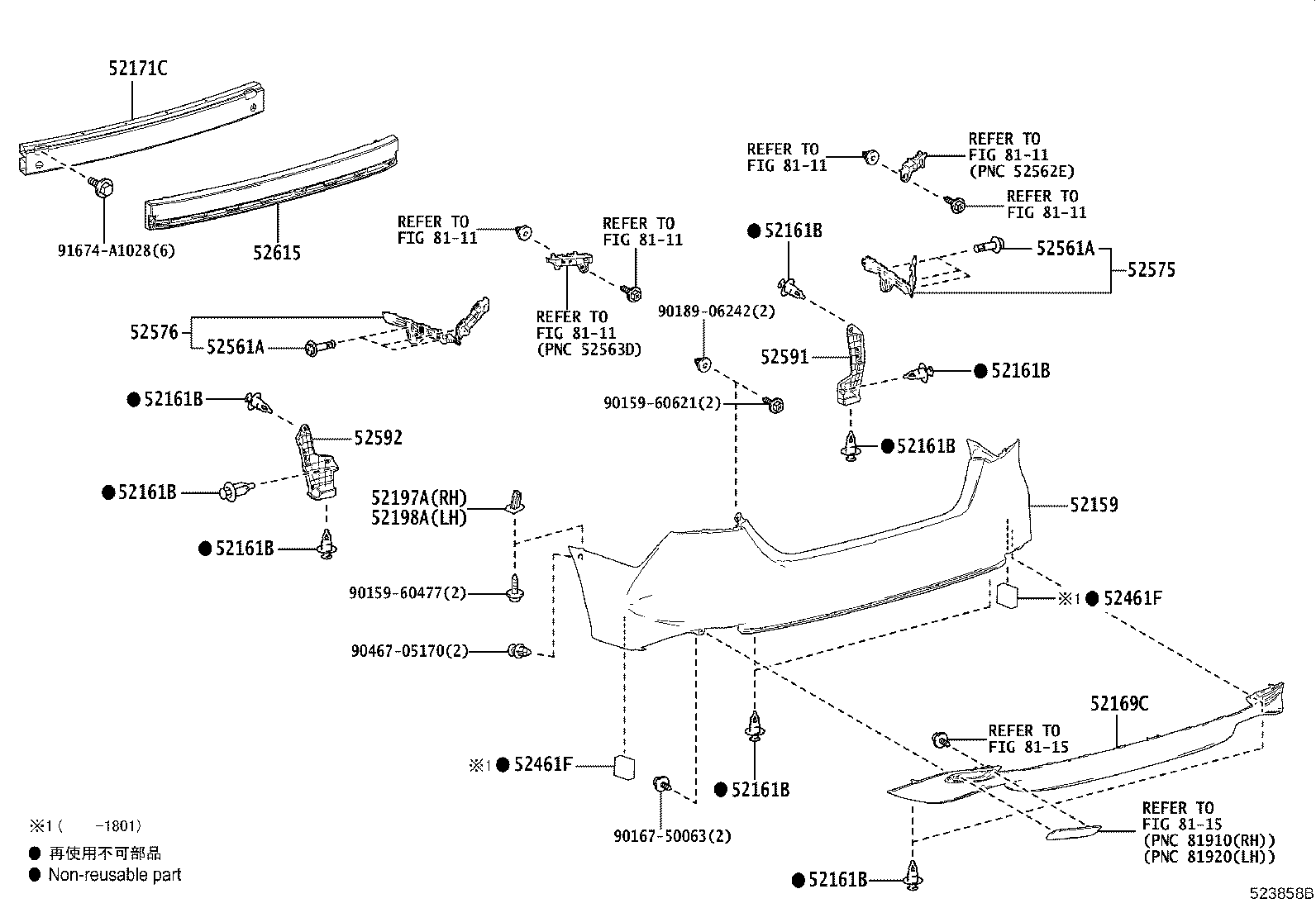

Figure 524926C 524926C 2017-09 → 2021-01 Figure 523858B 523858B 2017-09 → 2021-01 Figure 523766J 523766J 2018-04 → 2021-04 Figure 523857C 523857C 2019-02 → 2021-01 Figure 523857C 523857C 2021-02 → — Figure 524133B 524133B 2019-10 → 2021-01 Figure 525099C 525099C 2021-02 → — Figure 525098D 525098D 2021-02 → — Figure 525100B 525100B 2021-04 → —

Part groups

PNCDescription
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52161X Piece, Rear Bumper
52165D Extension, Rear Bumper Corner, RH
52166B Extension, Rear Bumper Corner, LH
52169C Cover, Rear Bumper, Lower
52171C Reinforcement, Rear Bumper
52197A Bracket, Rear Bumper Seal, RH
52198A Bracket, Rear Bumper Seal, LH
52461 Pad, Rear Bumper, Center
52461F Pad, Rear Bumper
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52561A Clip(FOR REAR BUMPER RETAINER)
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
52723 Moulding, Rear Bumper Extension, RH
52724 Moulding, Rear Bumper Extension, LH
75392 Retainer, Outside Moulding
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
