Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 6 illustrations

Illustrations

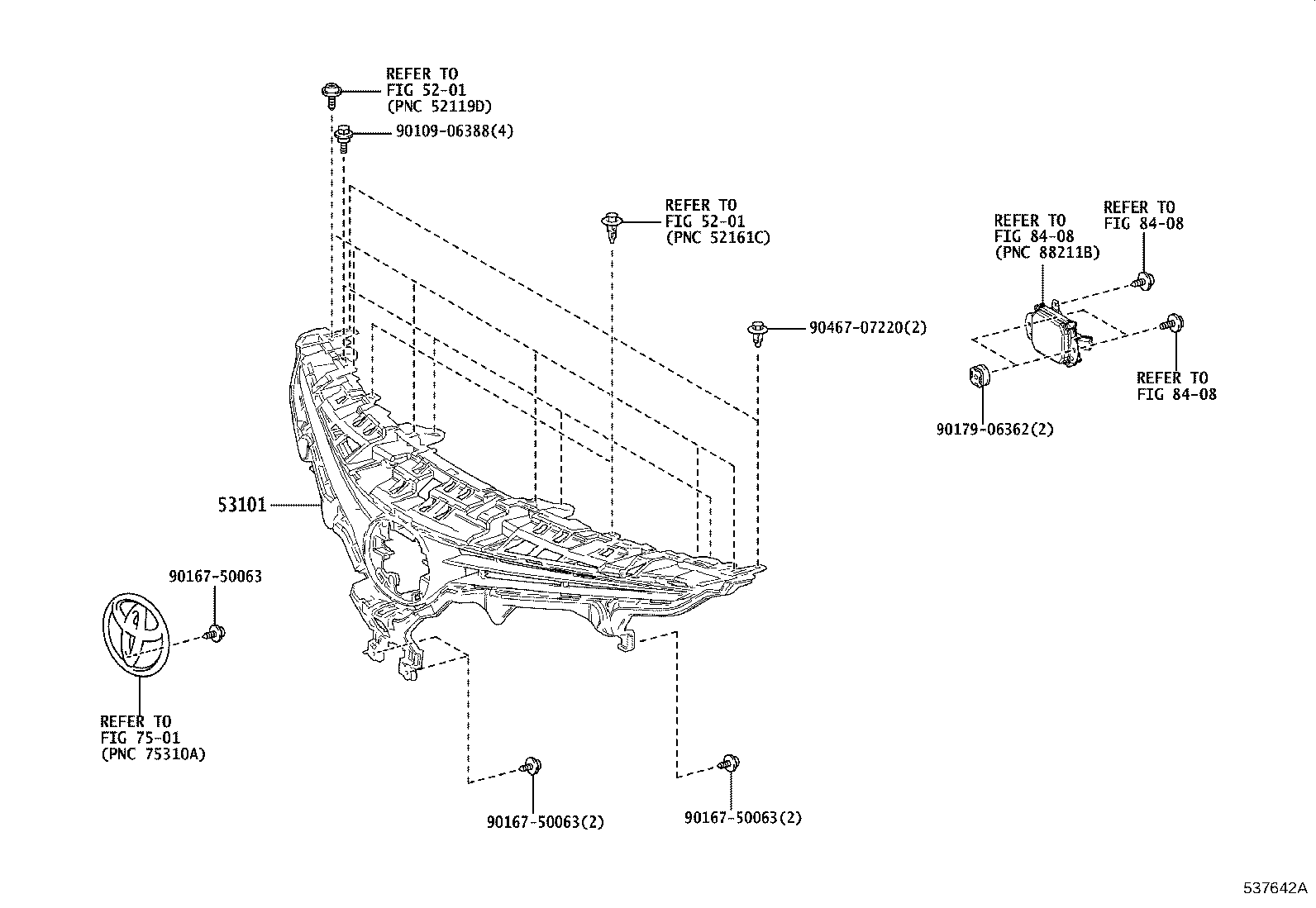

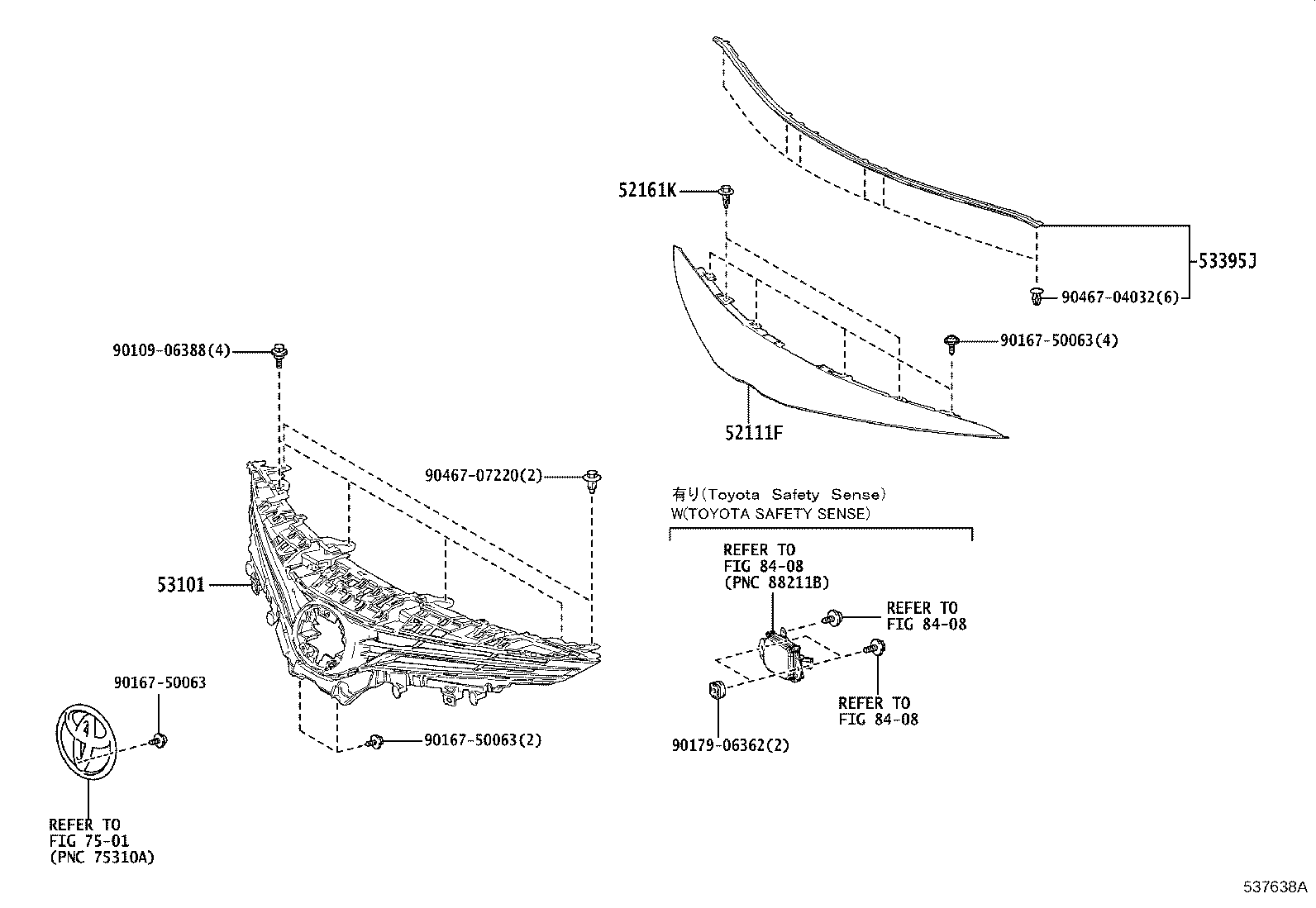

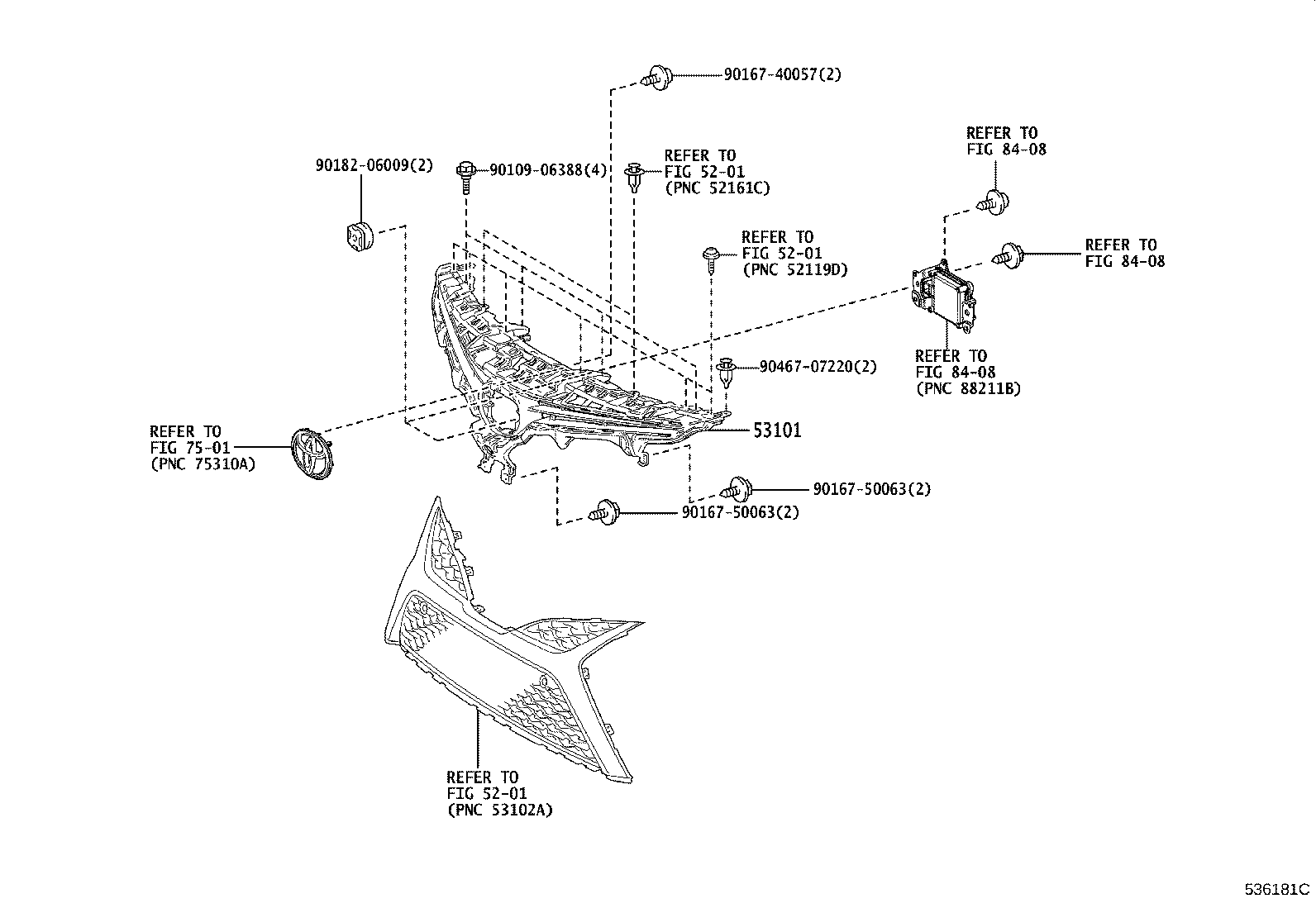

Figure 535565F 535565F 2017-09 → 2021-01 Figure 535565F 535565F 2017-09 → 2021-04 Figure 536181C 536181C 2019-10 → 2021-01 Figure 537638A 537638A 2021-02 → — Figure 537638A 537638A 2021-04 → — Figure 537642A 537642A 2021-02 → —

Part groups

PNCDescription
52111F Bar, Front Bumper, Center
52161K Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53395J Seal, Hood TO Front End Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
