Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

51 part groups · 36 illustrations

Illustrations

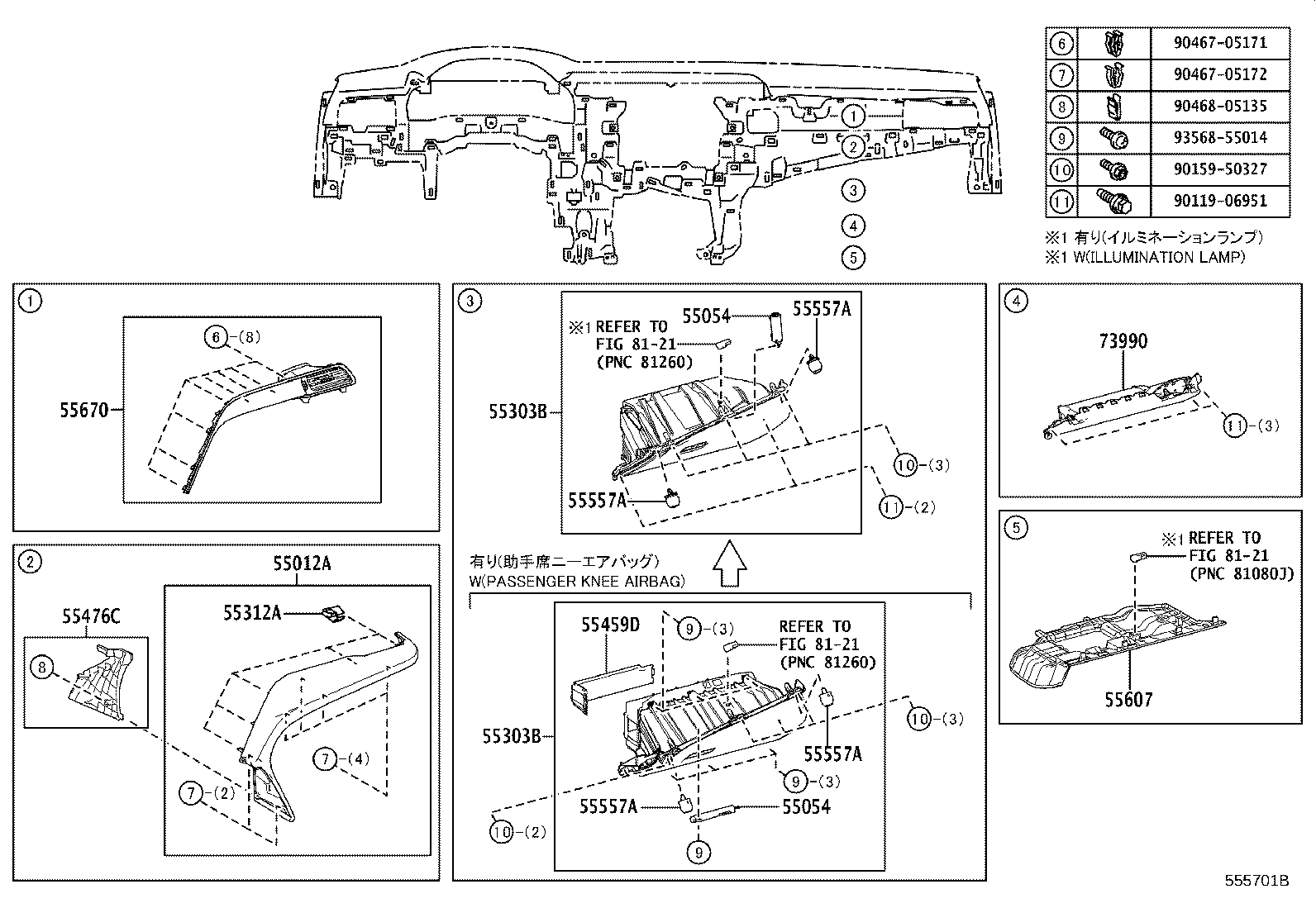

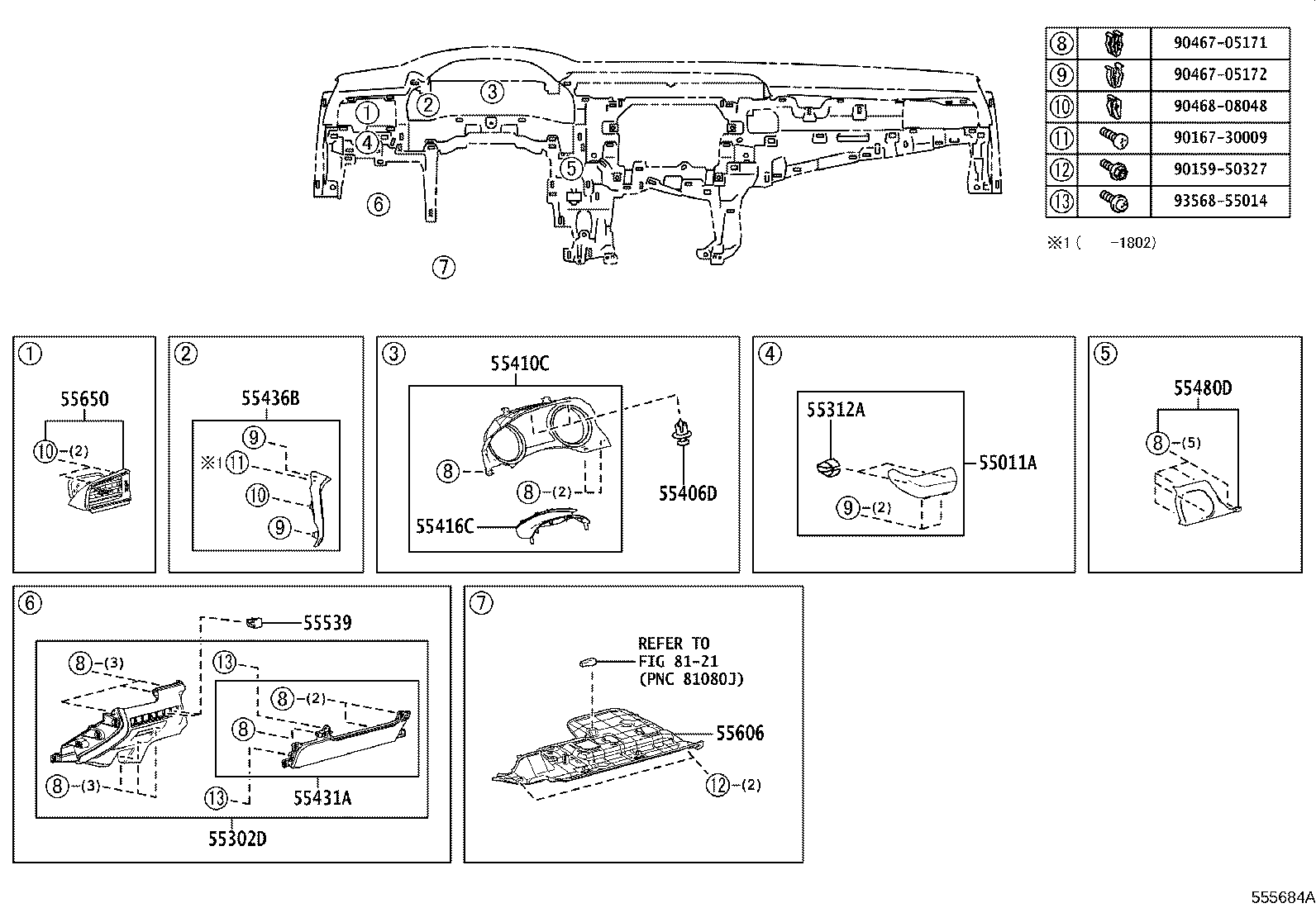

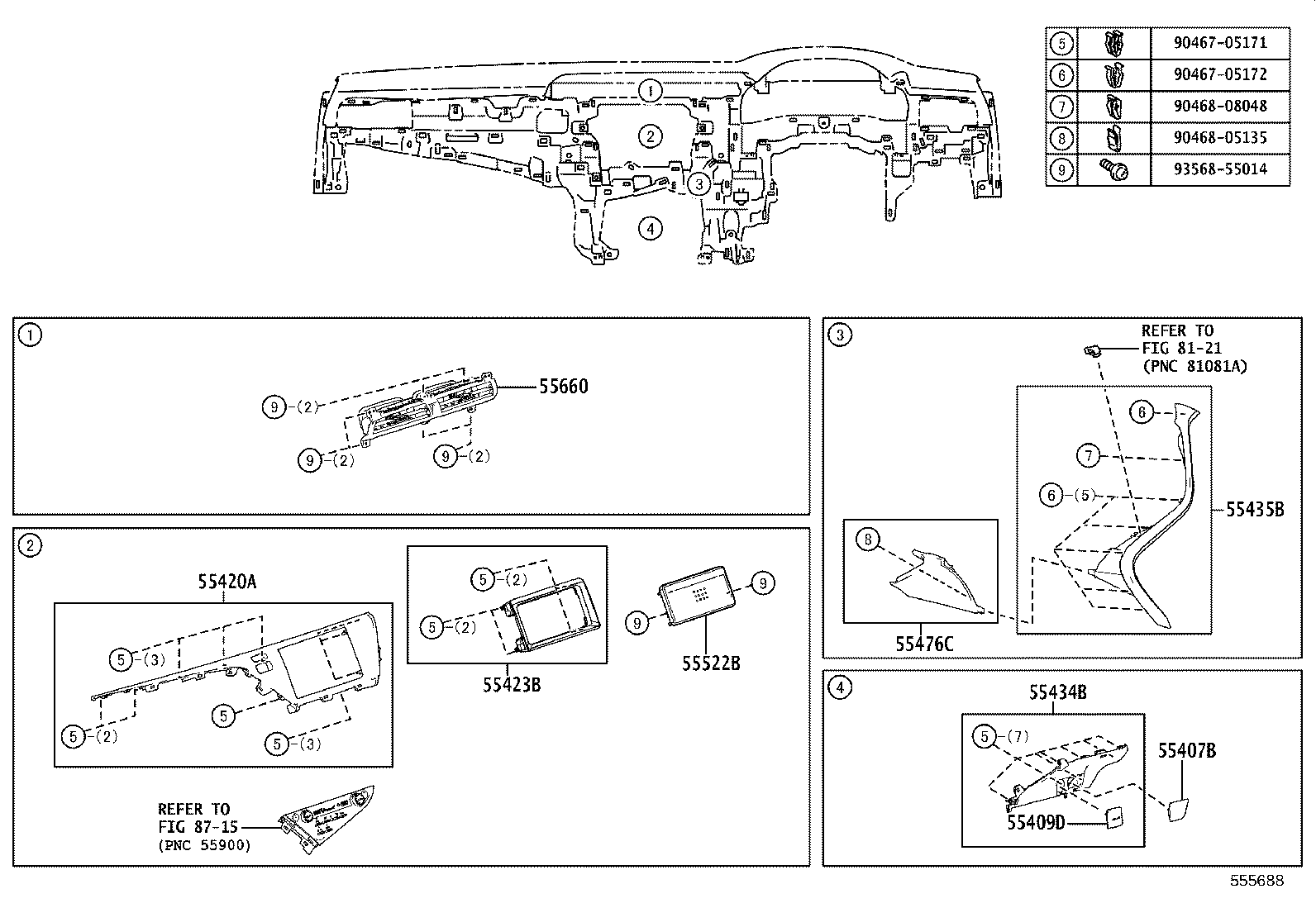

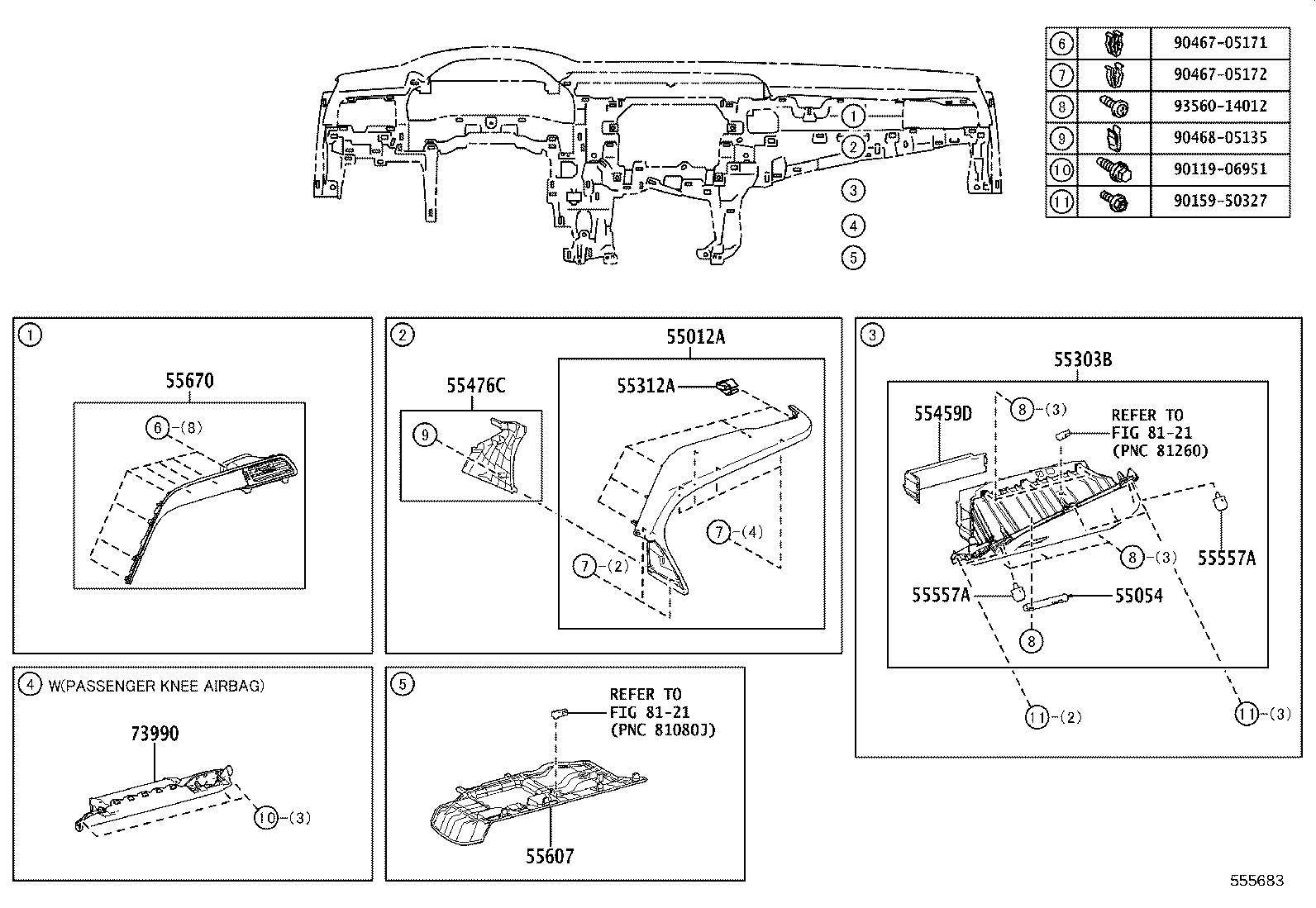

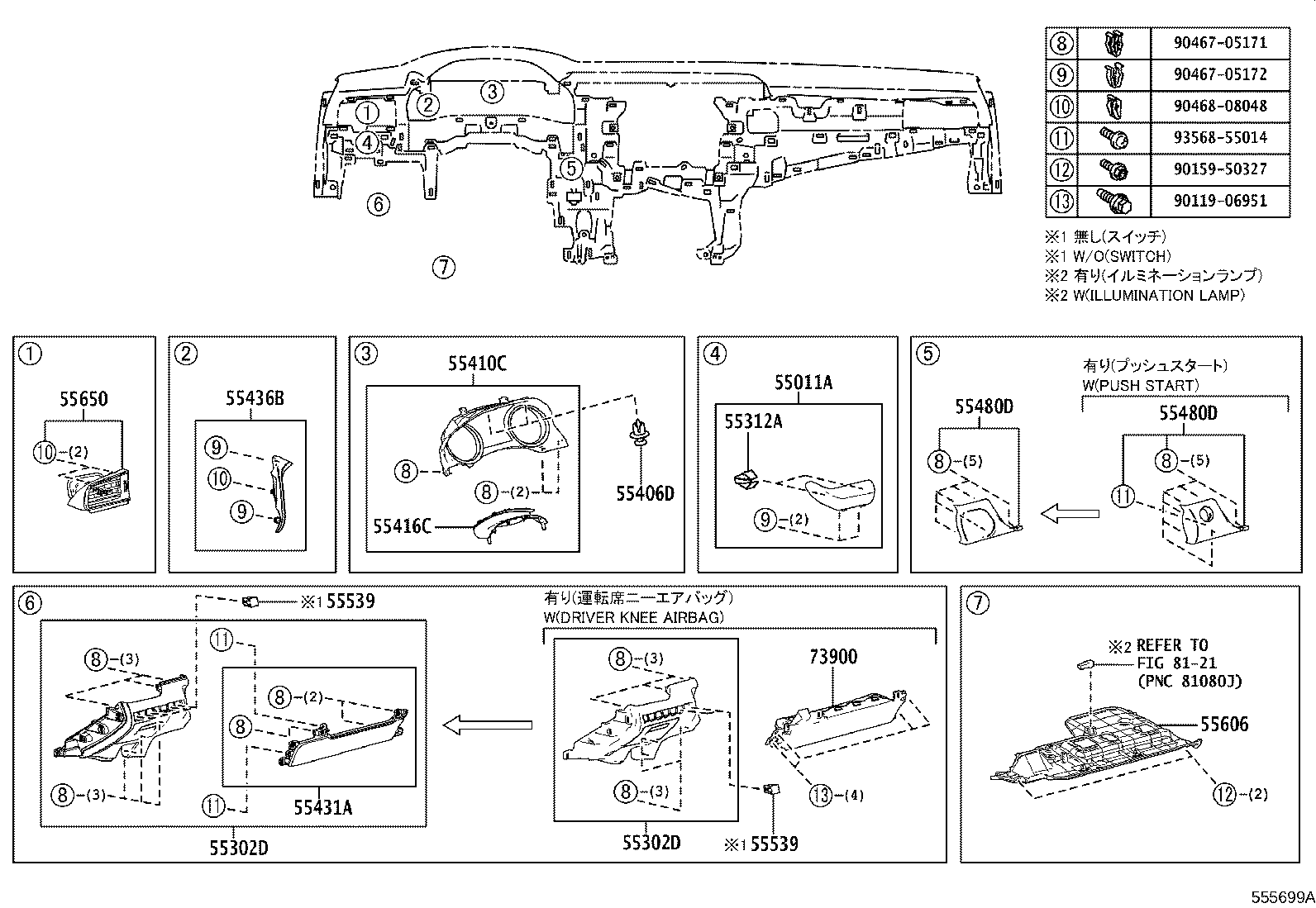

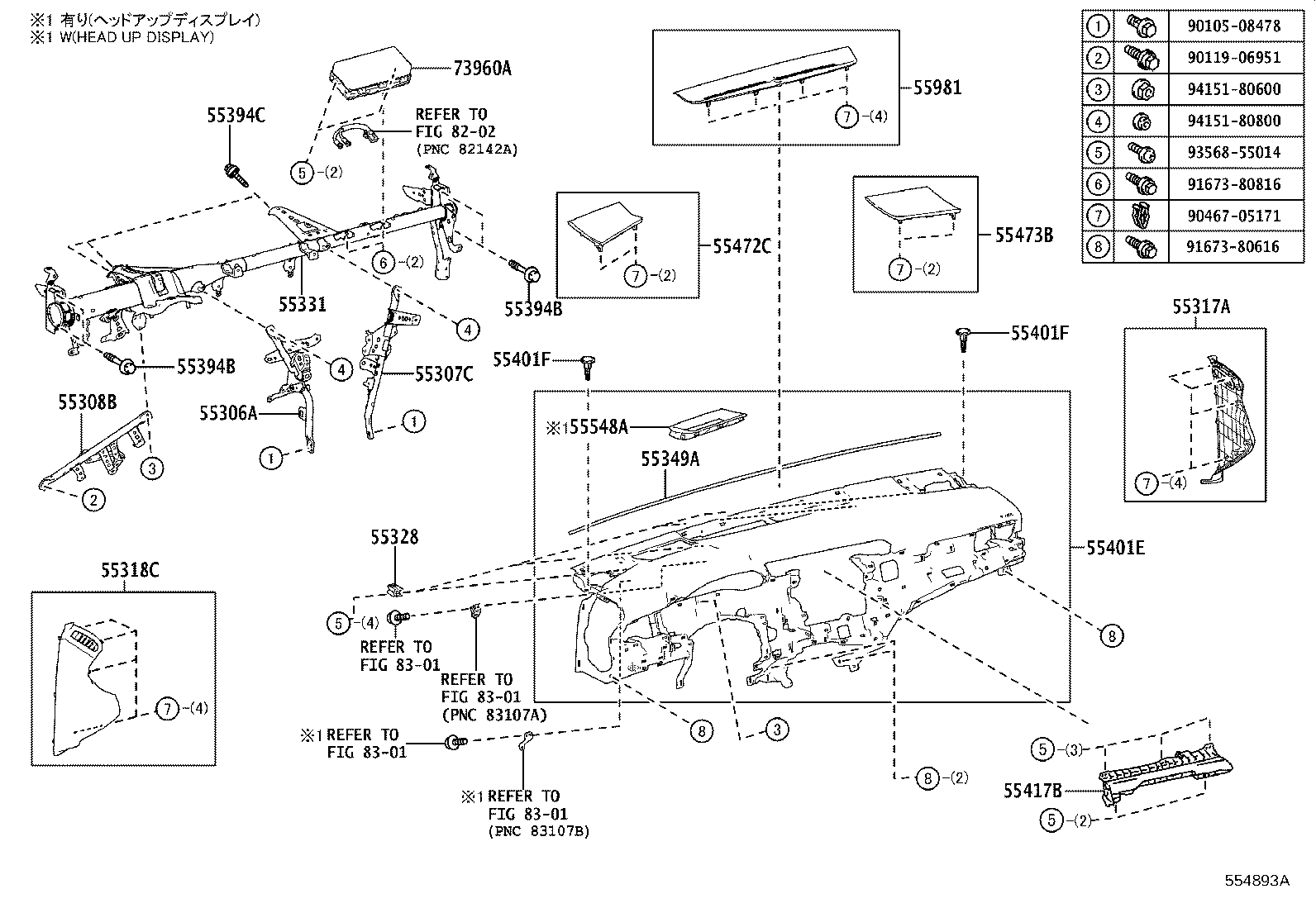

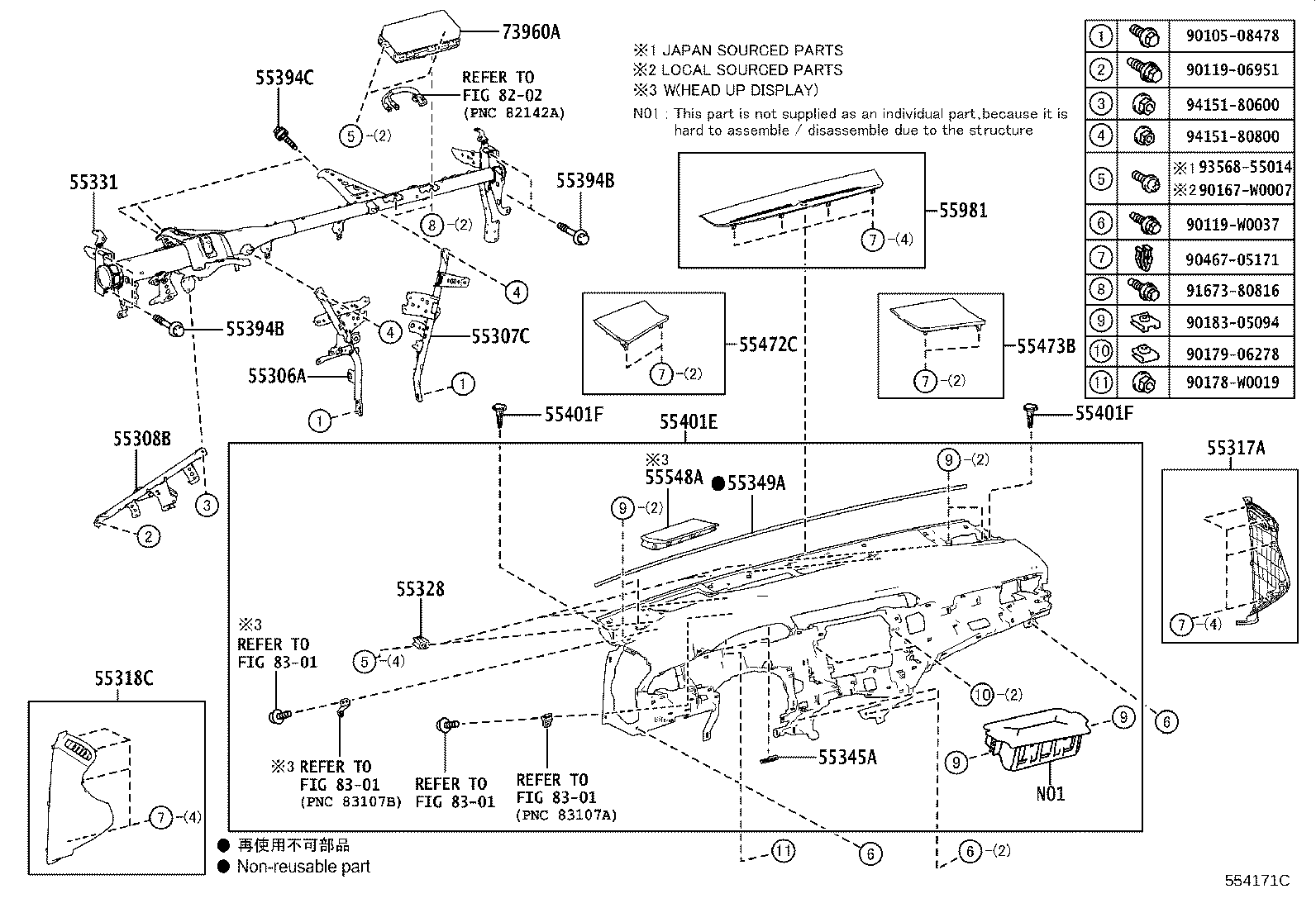

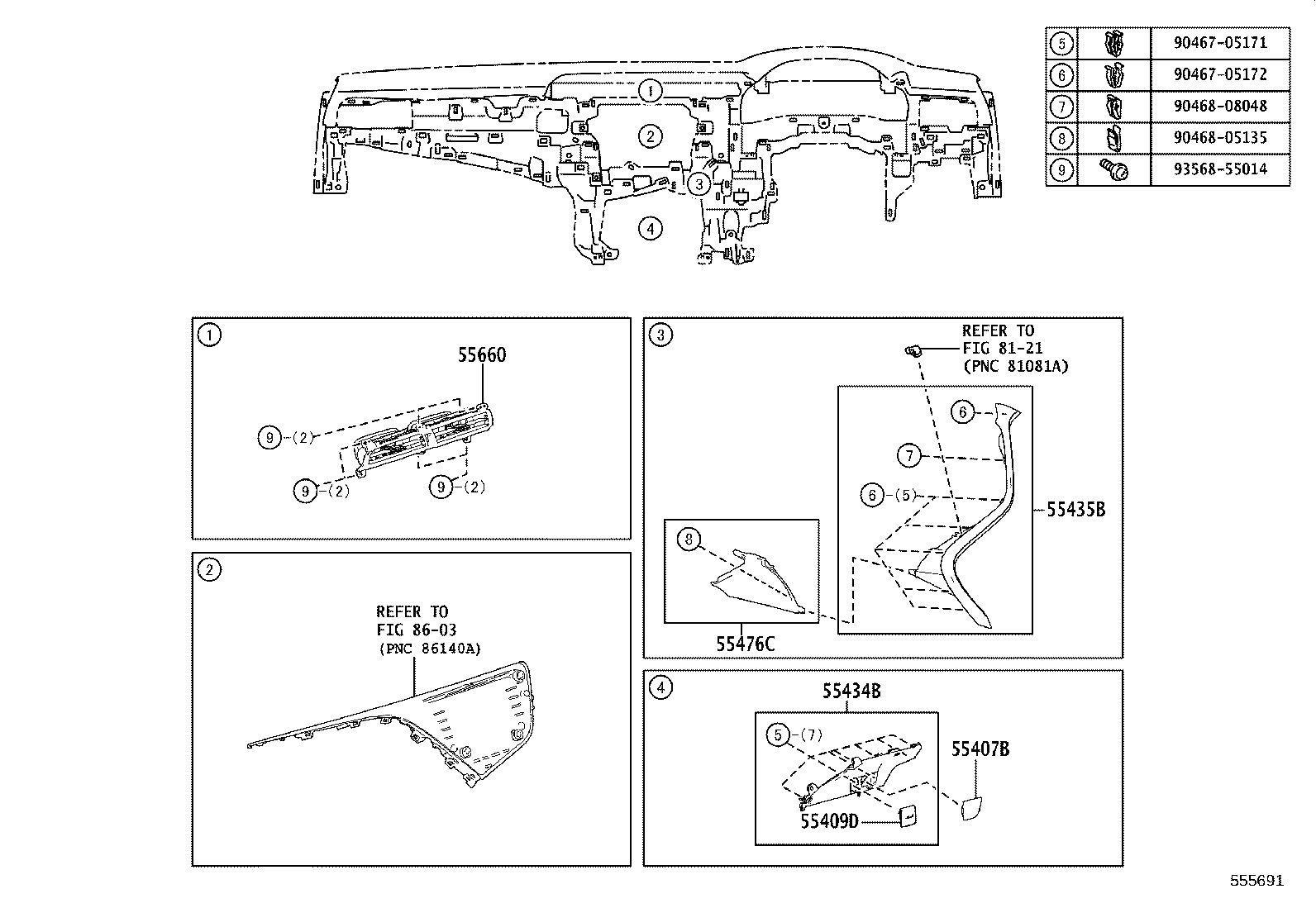

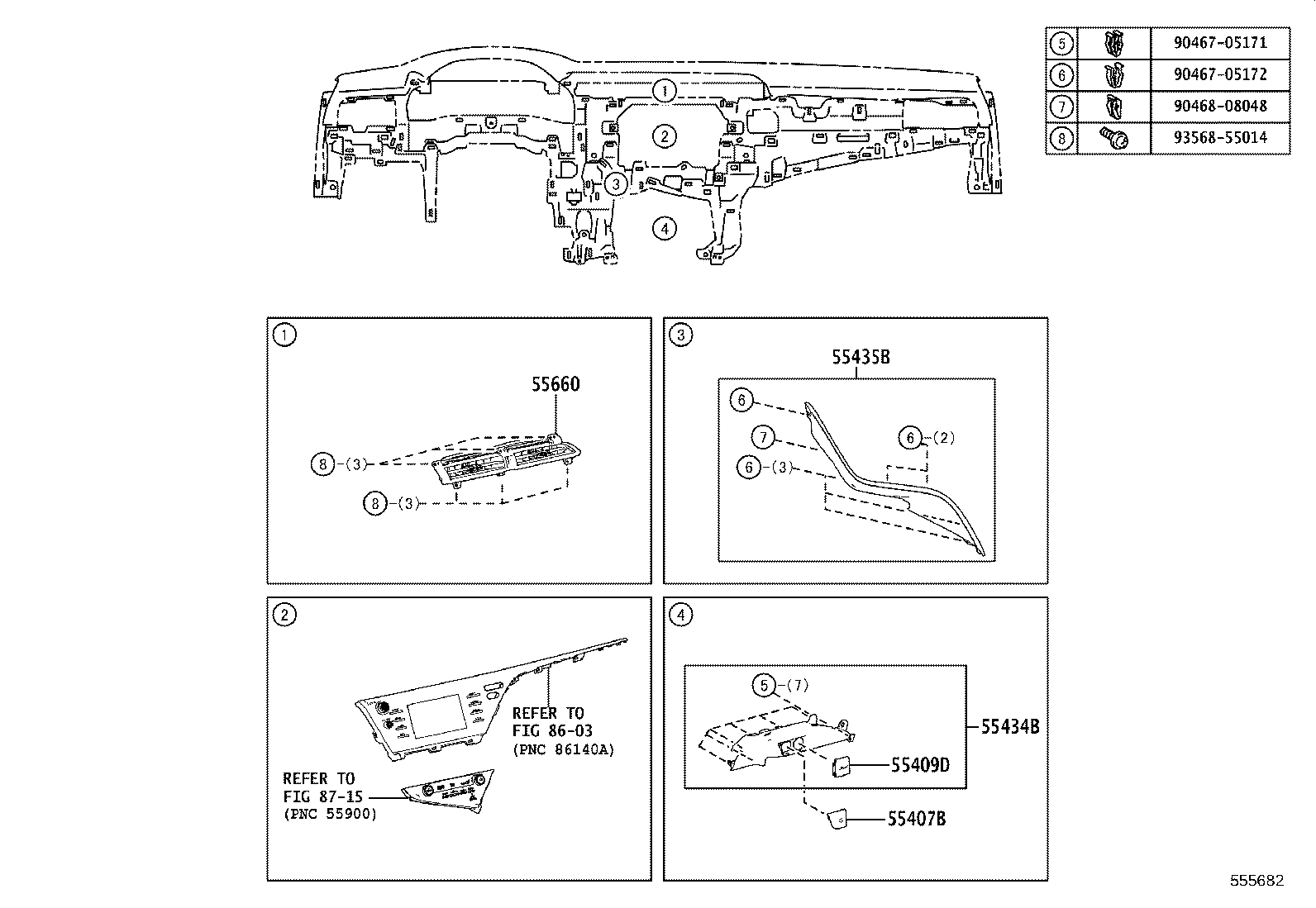

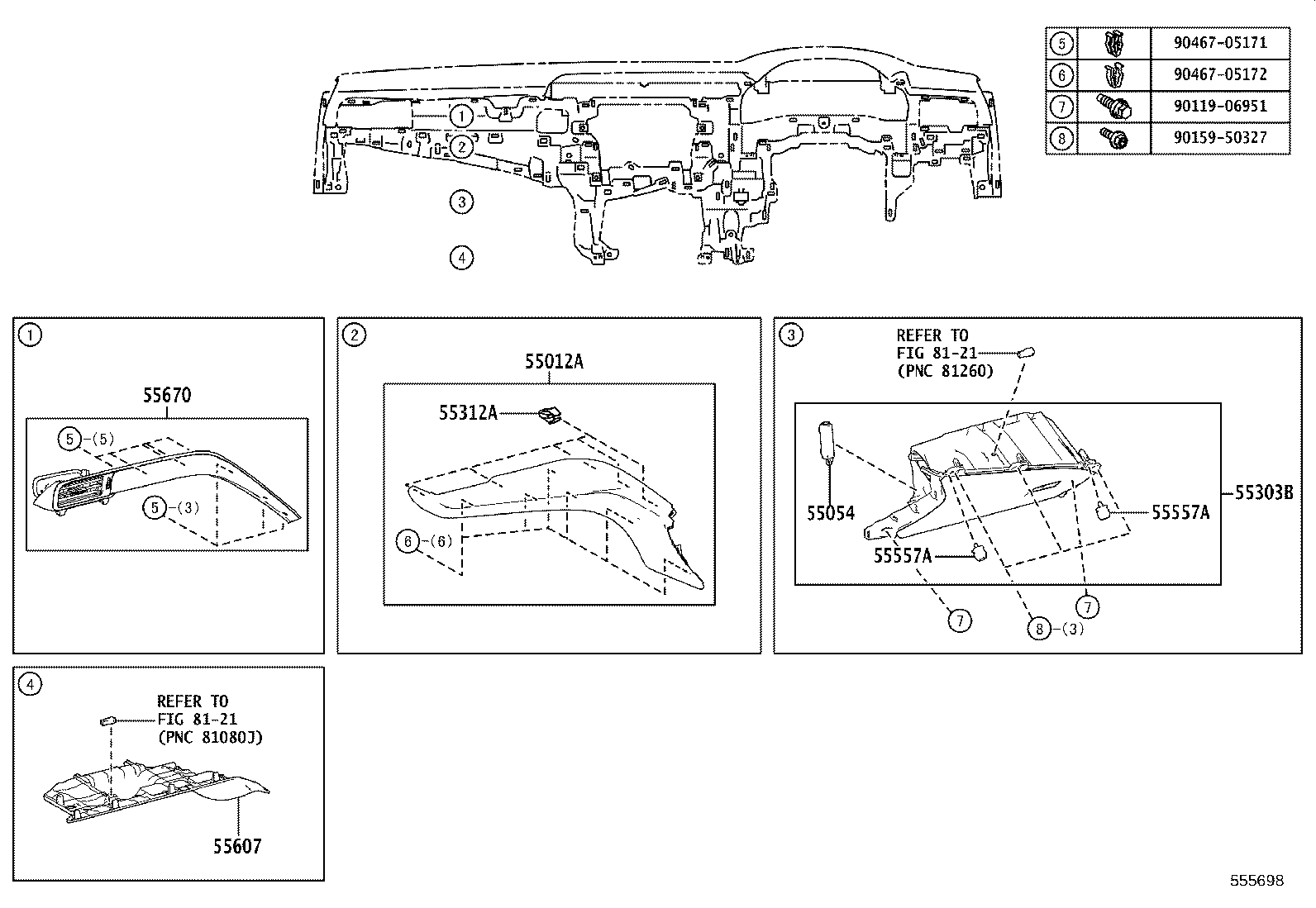

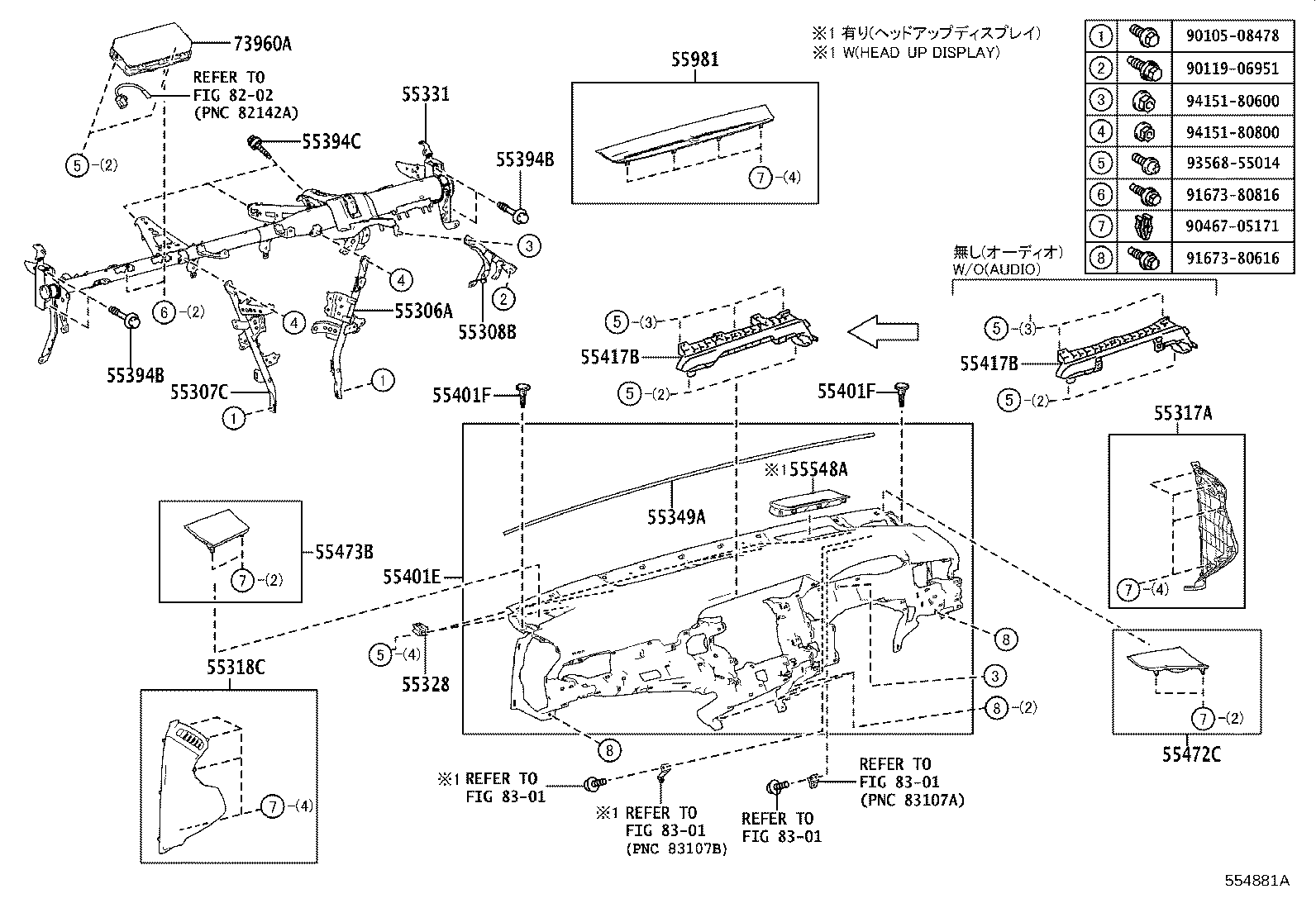

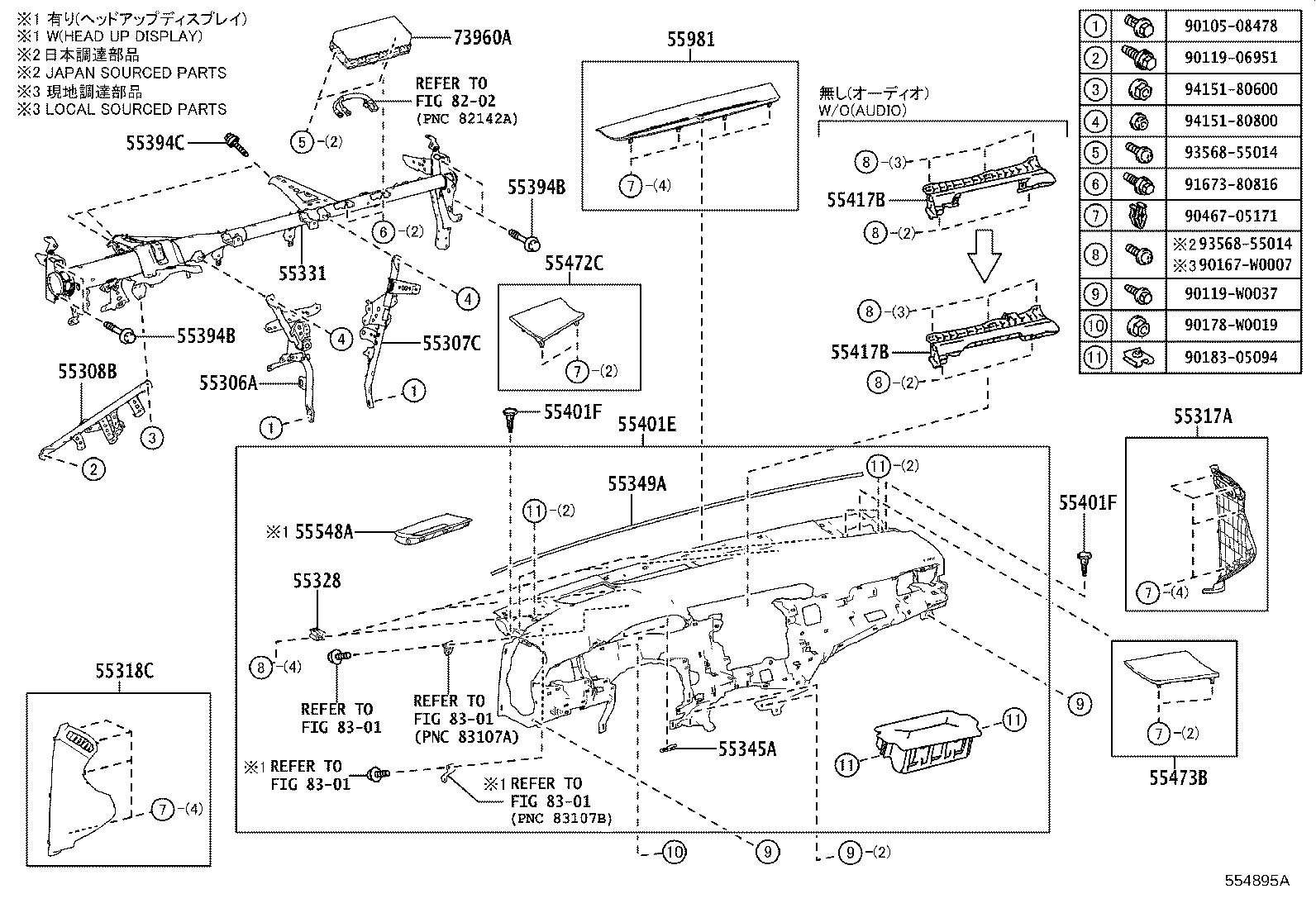

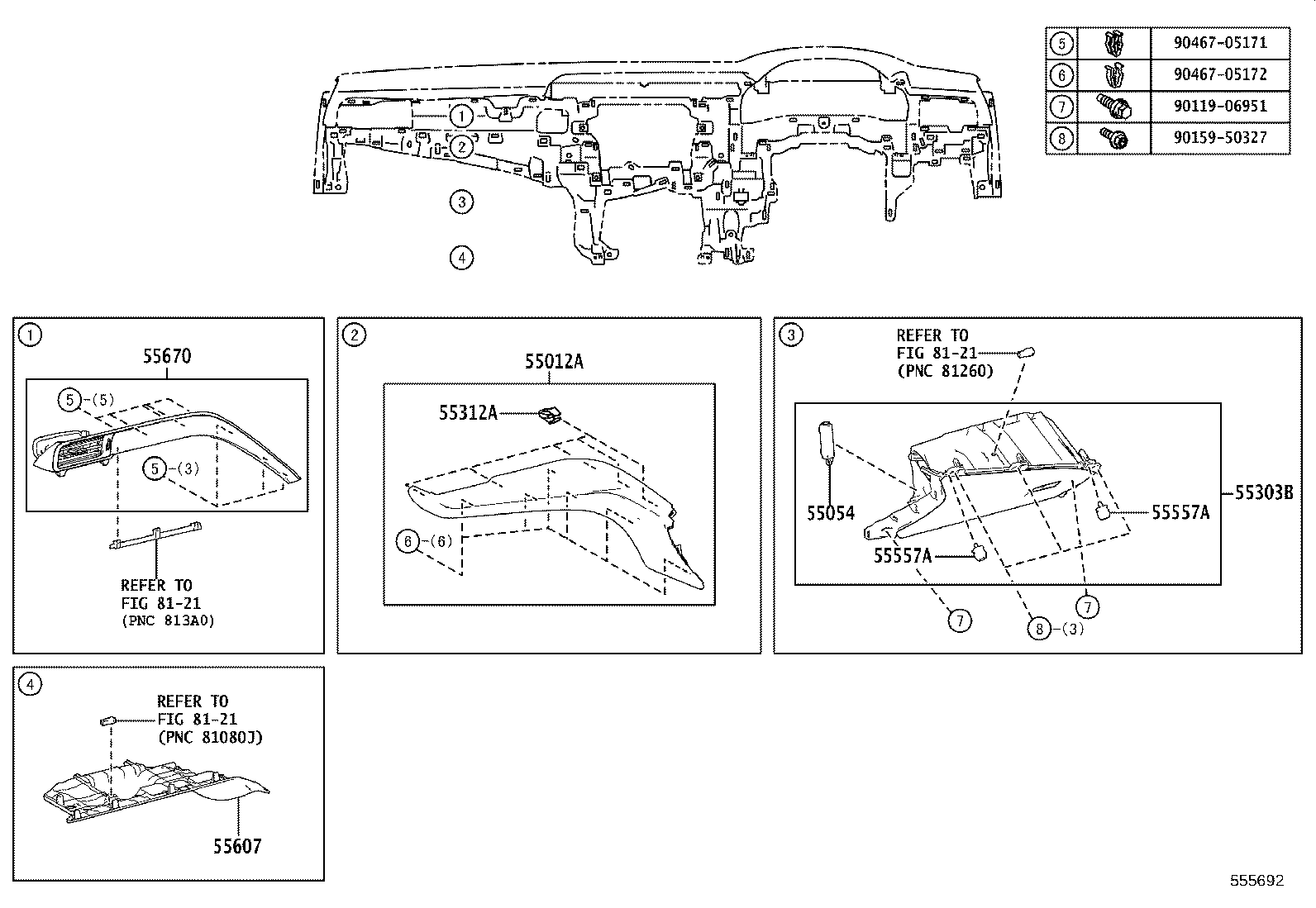

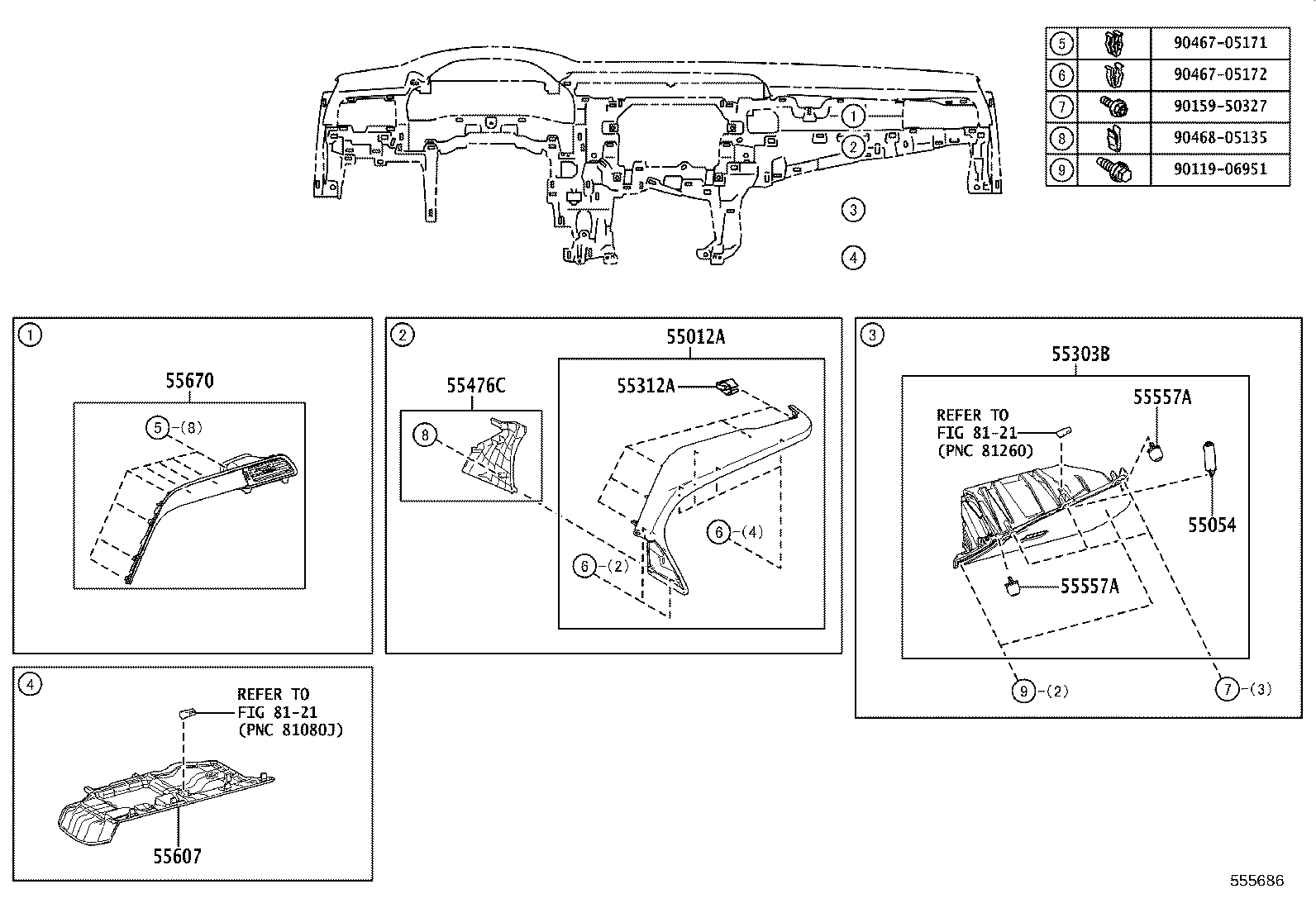

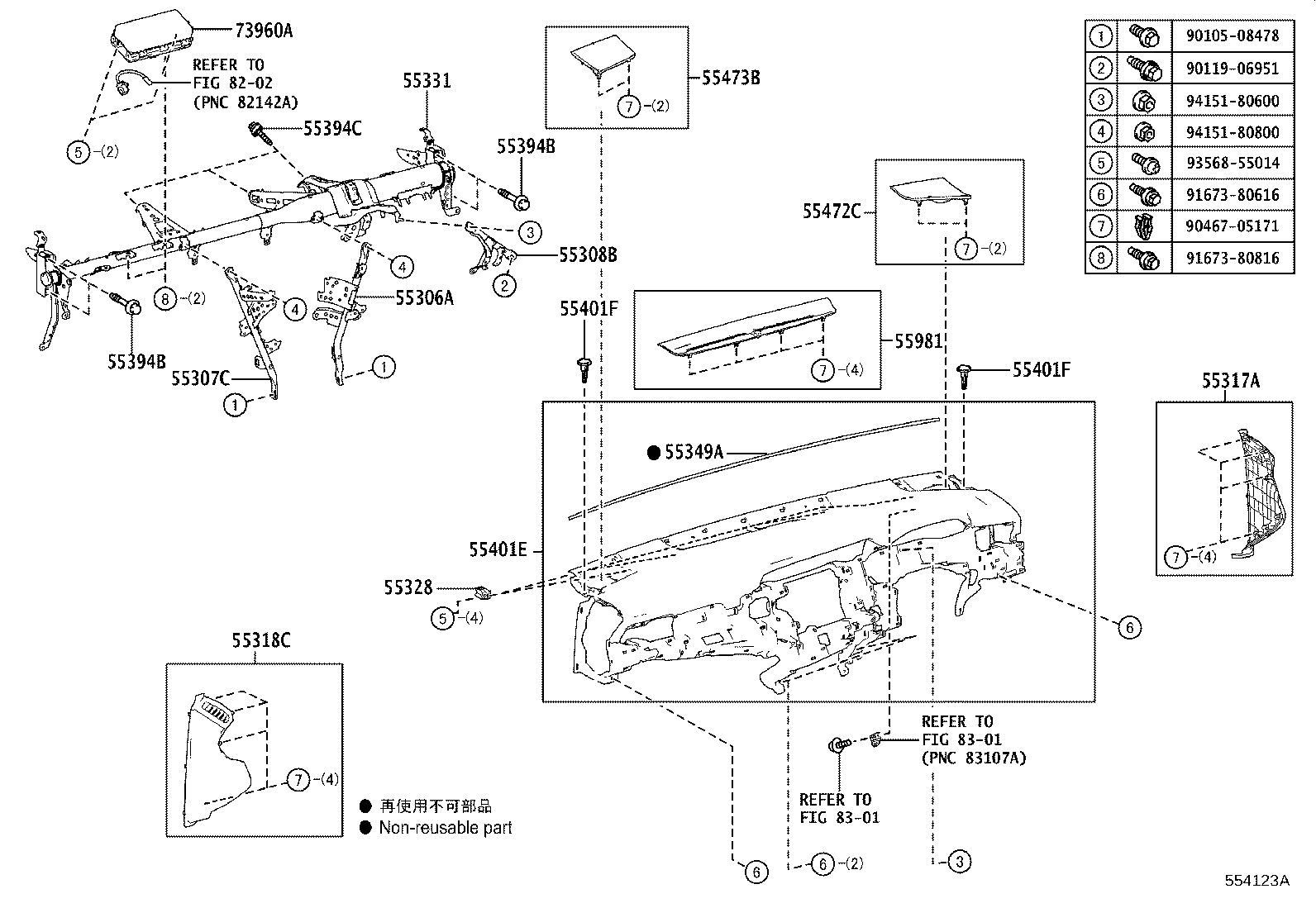

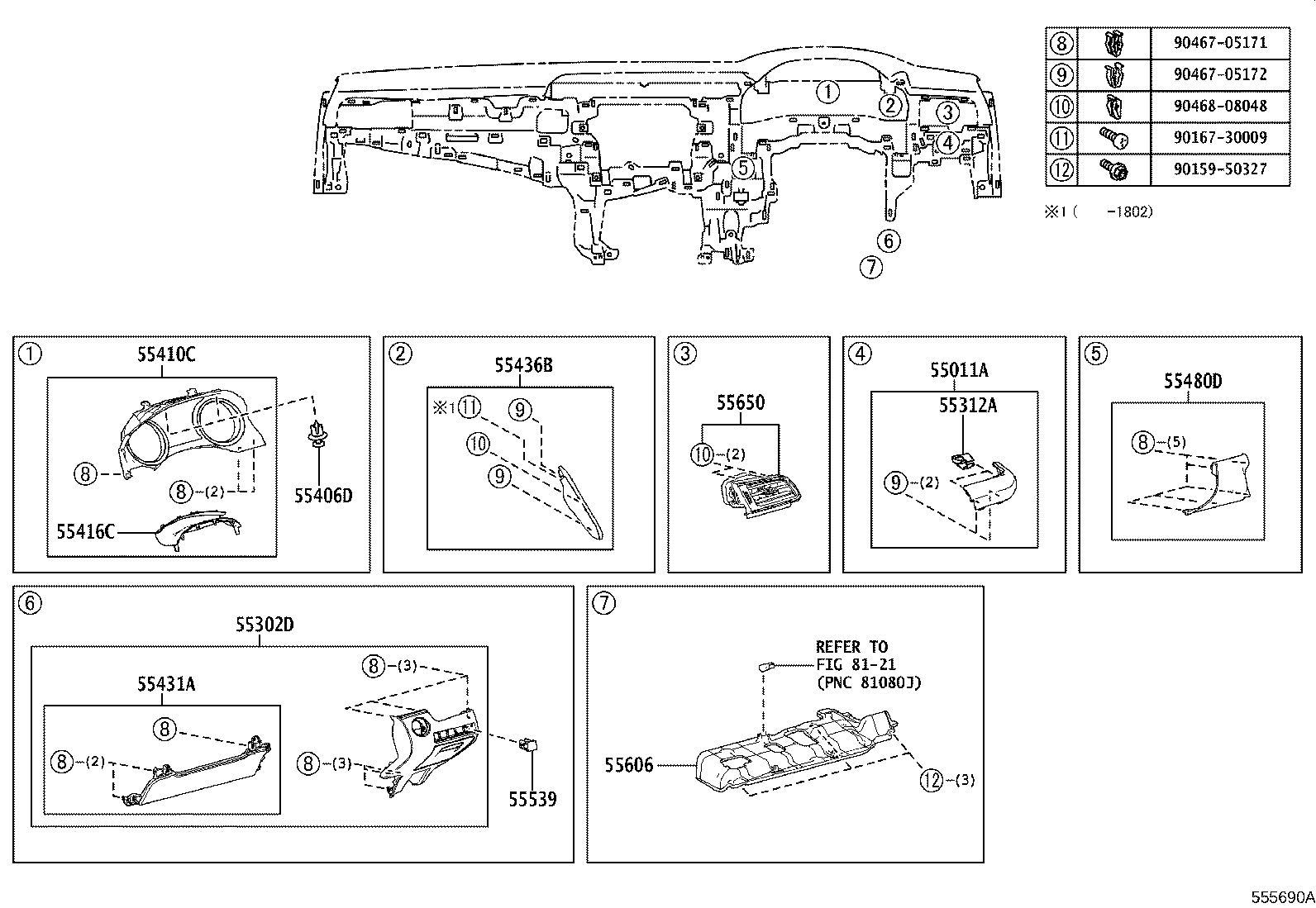

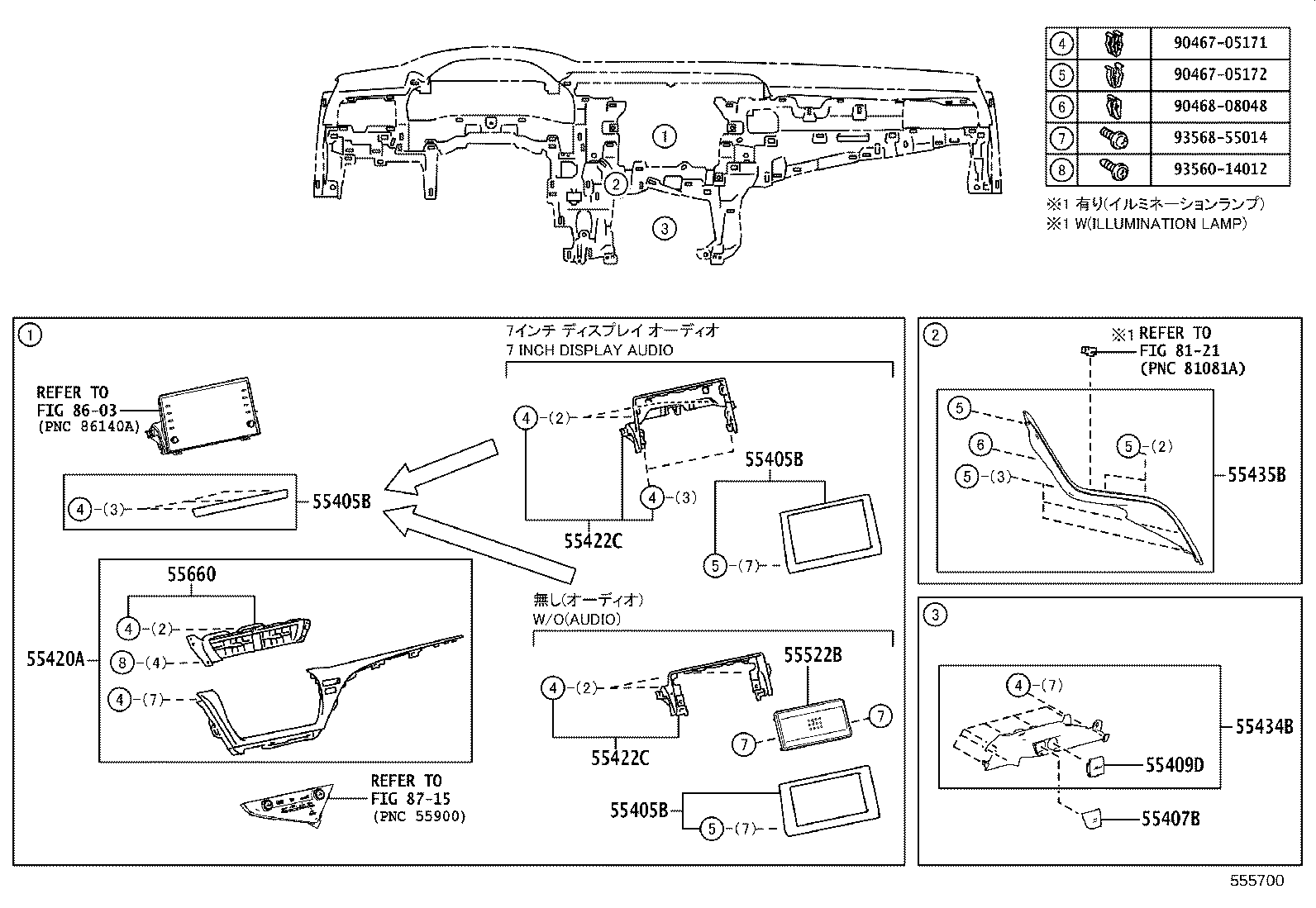

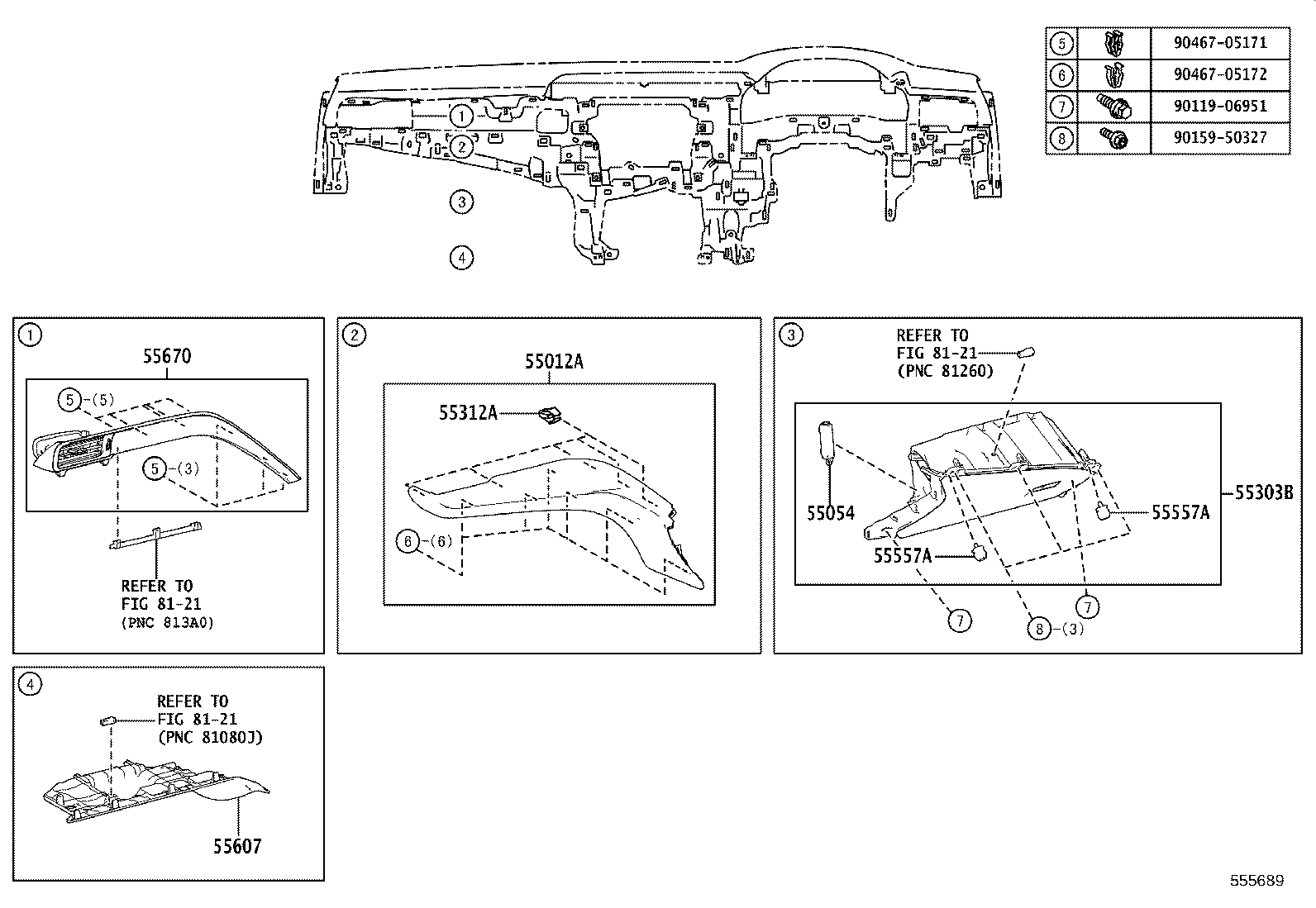

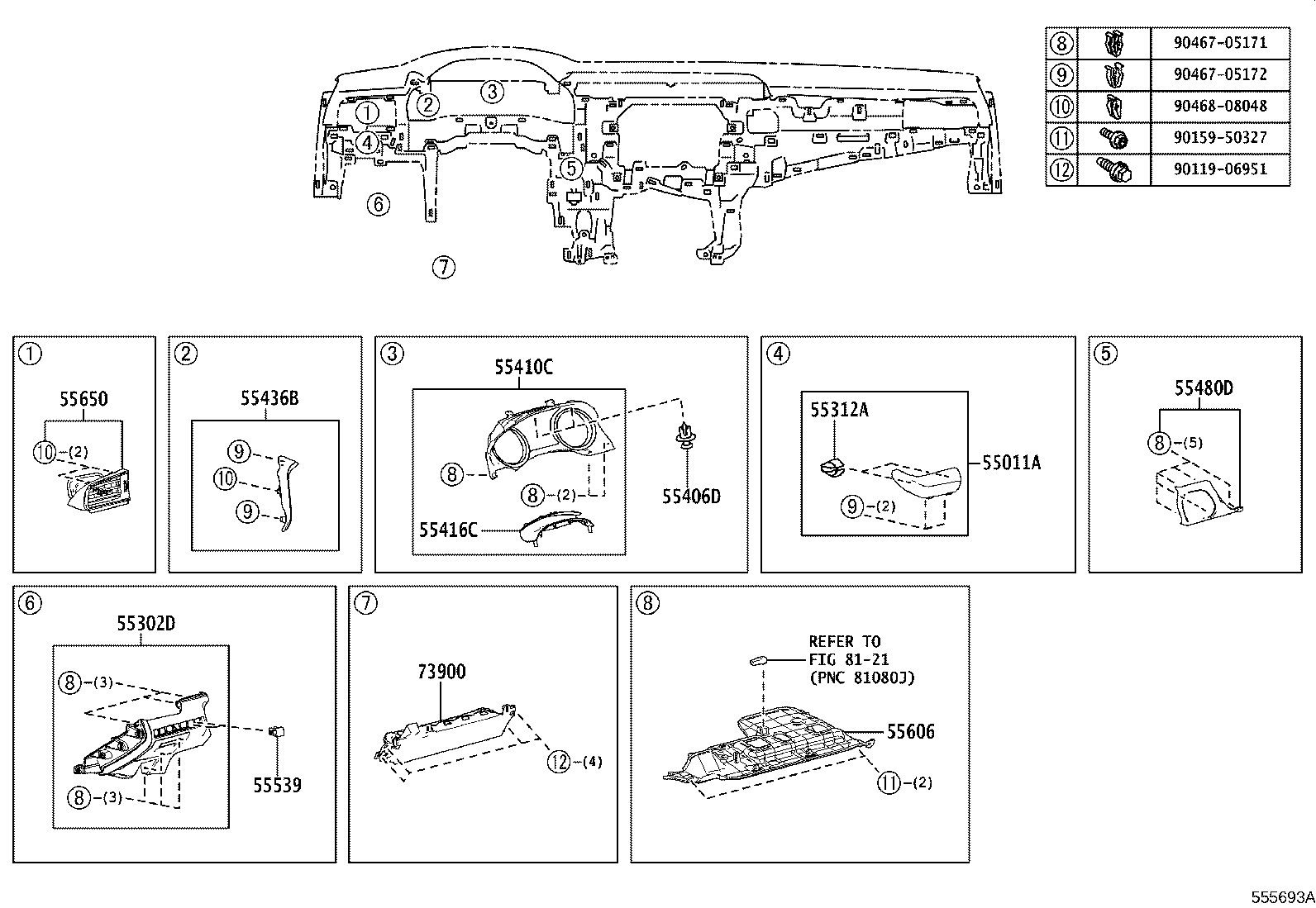

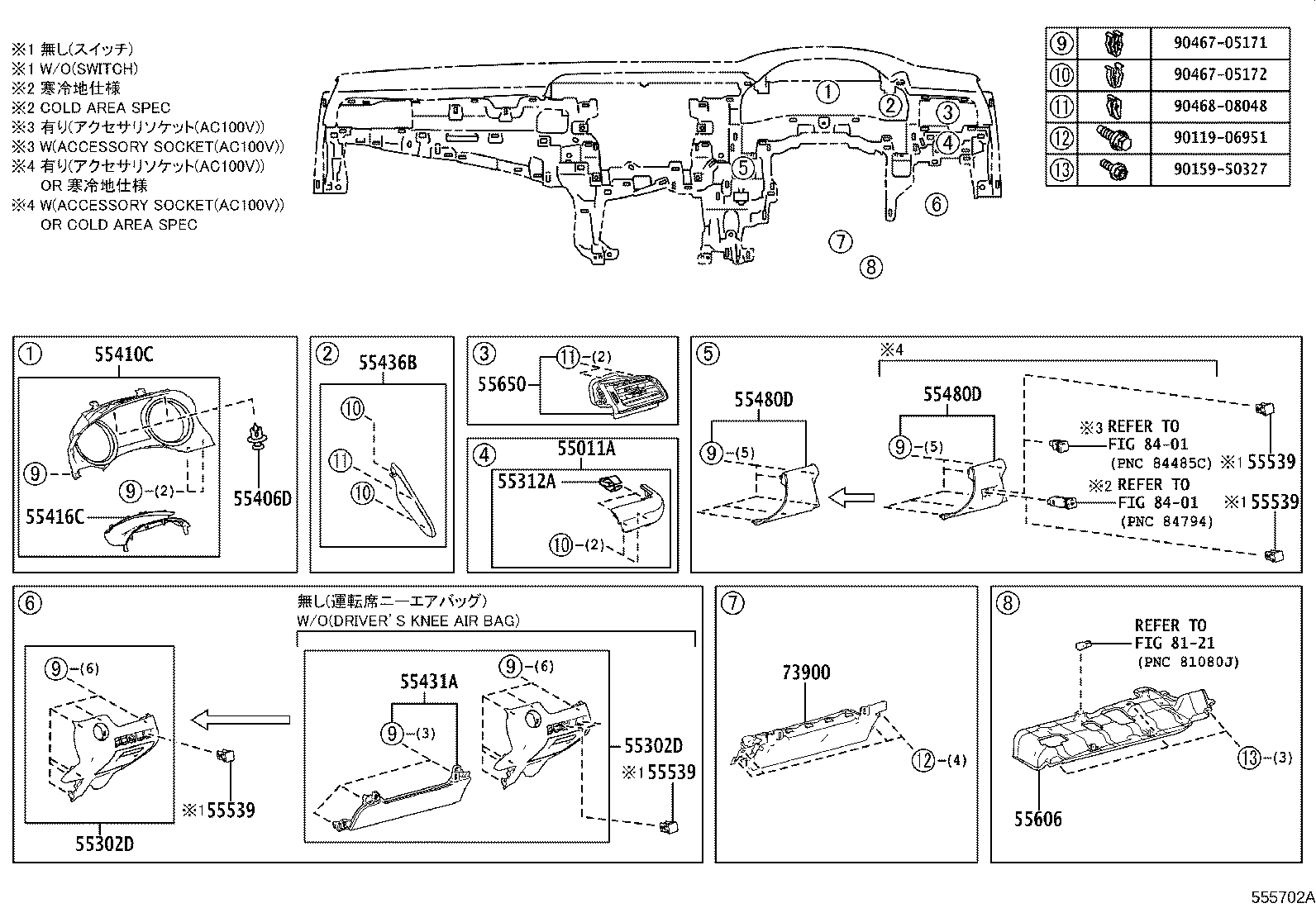

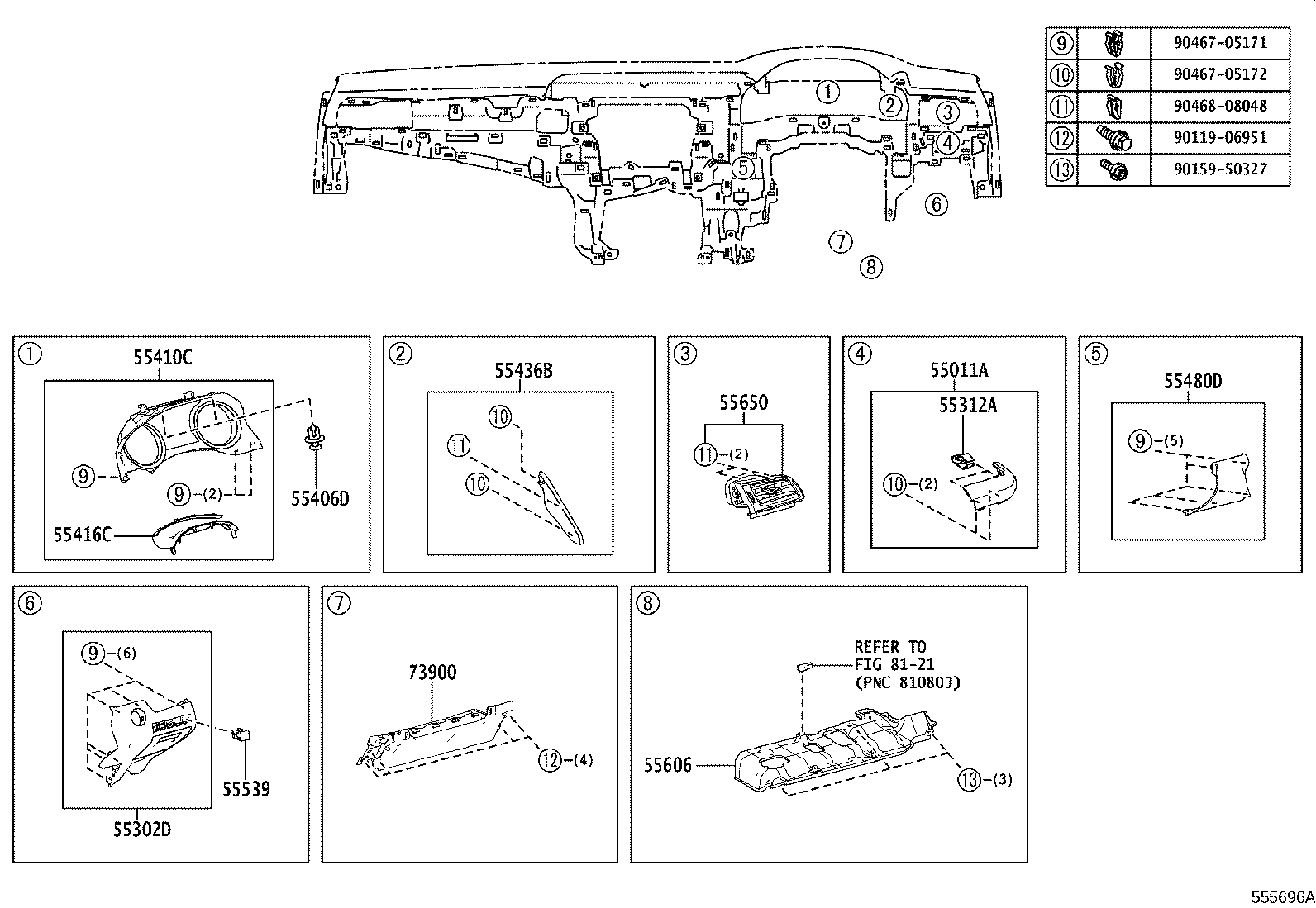

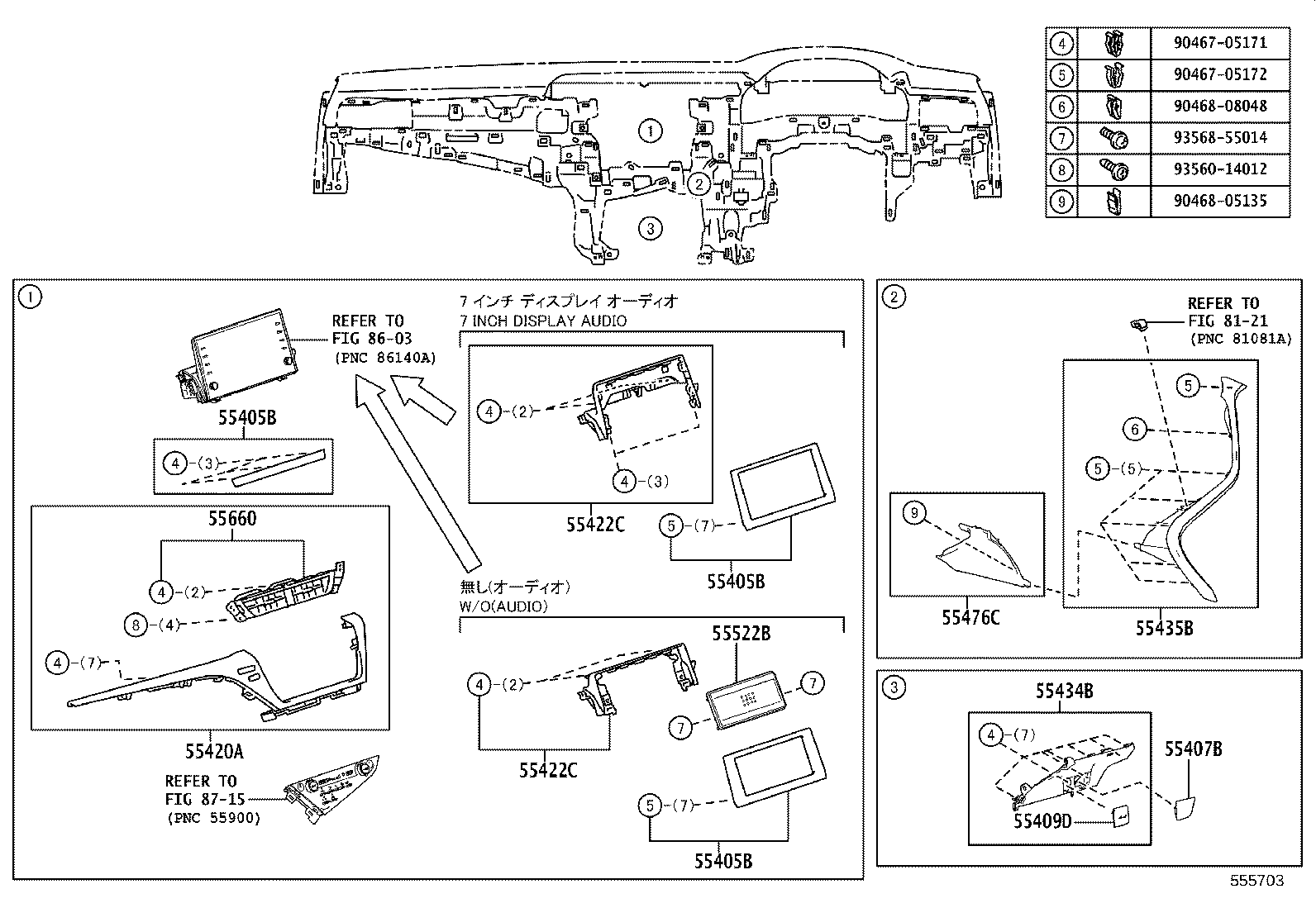

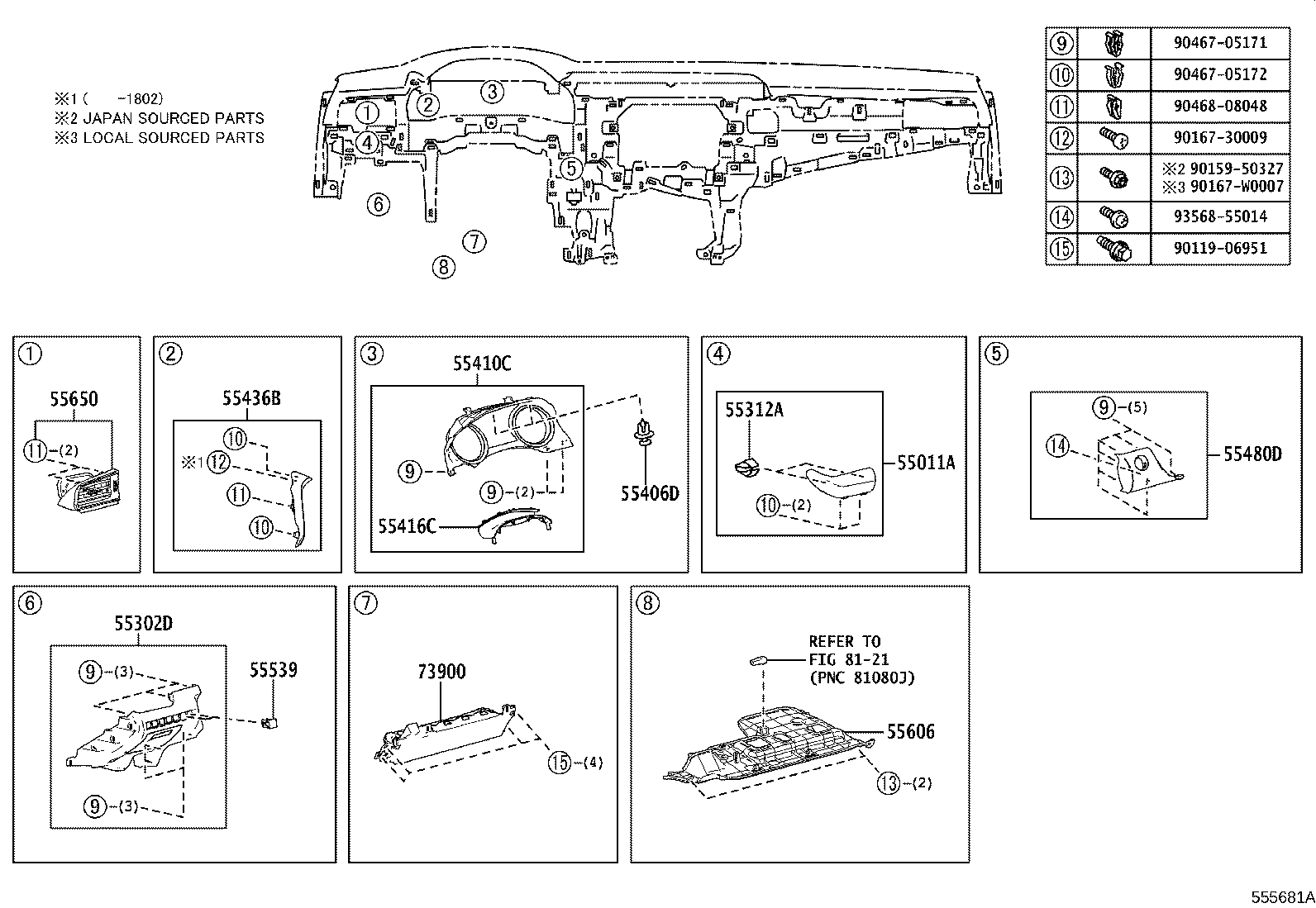

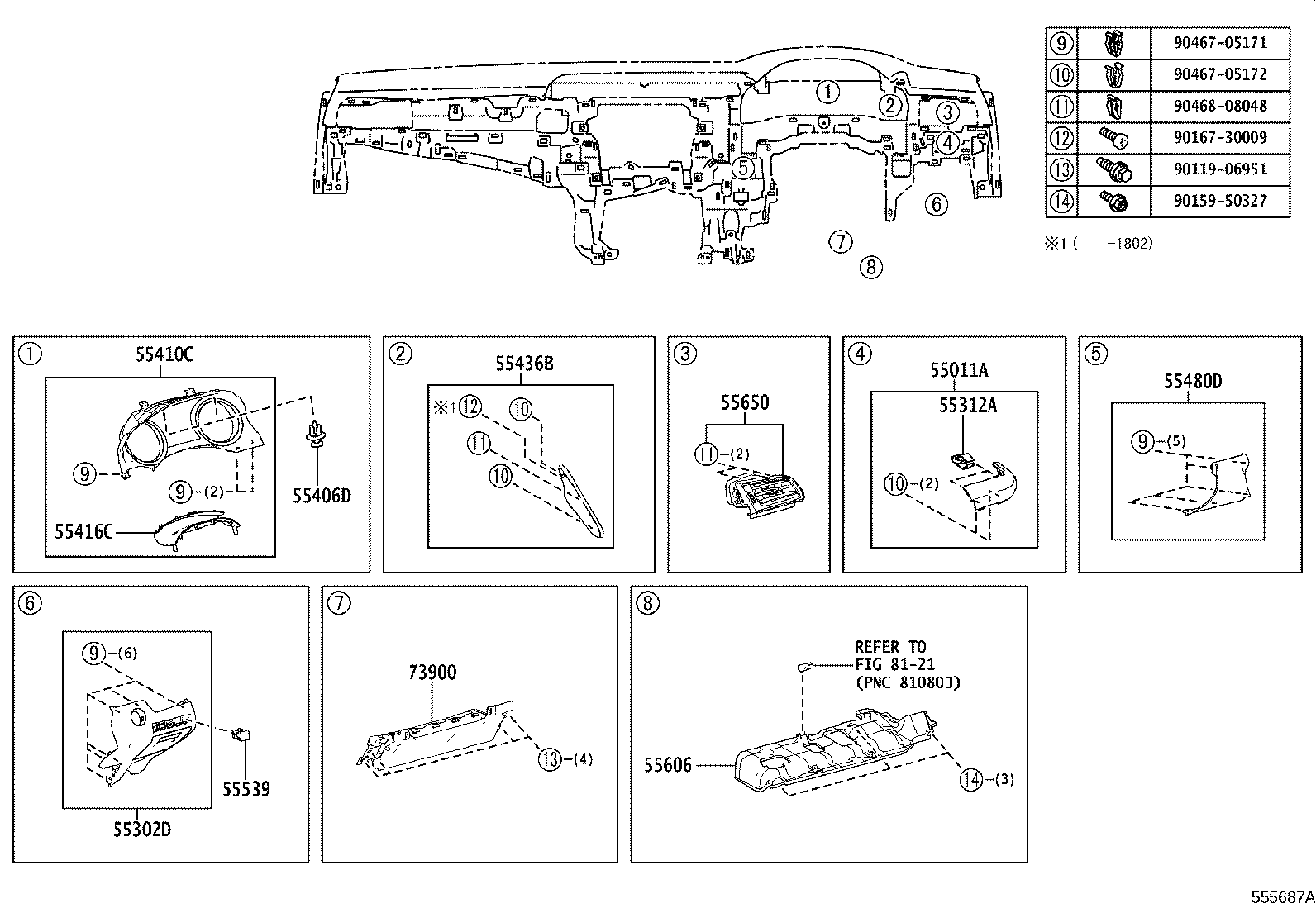

Figure 554124C 554124C 2017-09 → 2021-02 Figure 554123A 554123A 2017-09 → 2021-02 Figure 554171C 554171C 2018-04 → 2021-04 Figure 555681A 555681A 2017-09 → 2021-02 Figure 555681A 555681A 2017-09 → 2021-04 Figure 555682 555682 2017-09 → 2021-02 Figure 555682 555682 2017-09 → 2021-04 Figure 555683 555683 2017-09 → 2021-02 Figure 555683 555683 2017-09 → 2021-04 Figure 555684A 555684A 2017-09 → 2021-02 Figure 555684A 555684A 2017-09 → 2021-04 Figure 555685 555685 2017-09 → 2021-02 Figure 555685 555685 2017-09 → 2021-04 Figure 555686 555686 2017-09 → 2021-02 Figure 555686 555686 2017-09 → 2021-04 Figure 555687A 555687A 2017-09 → 2021-02 Figure 555688 555688 2017-09 → 2021-02 Figure 555689 555689 2017-09 → 2021-02 Figure 555690A 555690A 2017-09 → 2021-02 Figure 555691 555691 2017-09 → 2021-02 Figure 555692 555692 2017-09 → 2021-02 Figure 555693A 555693A 2019-02 → 2021-02 Figure 555694 555694 2019-02 → 2021-02 Figure 555695 555695 2019-02 → 2021-02 Figure 555696A 555696A 2019-02 → 2021-02 Figure 555697 555697 2019-02 → 2021-02 Figure 555698 555698 2019-02 → 2021-02 Figure 554893A 554893A 2021-02 → — Figure 554881A 554881A 2021-02 → — Figure 554895A 554895A 2021-04 → — Figure 555699A 555699A 2021-02 → — Figure 555700 555700 2021-02 → — Figure 555701B 555701B 2021-02 → — Figure 555702A 555702A 2021-02 → — Figure 555703 555703 2021-02 → — Figure 555704 555704 2021-02 → —

Part groups

PNCDescription
55011A Garnish Sub-assy, Instrument Panel, NO.1
55012A Garnish Sub-assy, Instrument Panel, NO.2
55054 Stopper Sub-assy, Glove Compartment Door
55302D Panel Sub-assy, Instrument, Lower, NO.1
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55312A Clip, Instrument Panel
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55328 Pin, Instrument Panel, NO.1
55331 Reinforcement, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55349A Cushion, Instrument Panel
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55407B Base Sub-assy, Switch Hole
55409D Base Sub-assy, Cigar Lighter
55410C Panel Assy, Instrument Cluster Finish
55416C Retainer, Instrument Cluster Finish Panel
55417B Retainer, Radio Tuner Finish
55420A Panel Assy, Instrument Cluster Finish, Center
55422C Panel, Instrument Cluster Finish, Center Upper
55423B Cover, Instrument Cluster Finish Panel
55431A Panel, Instrument Panel Finish
55434B Panel, Instrument Panel Finish, Lower Center
55435B Cluster, Meter Hood, NO.1
55436B Cluster, Meter Hood, NO.2
55459D Cover, Instrument, Lower LH
55472C Panel, Instrument Panel Speaker, NO.1
55473B Panel, Instrument Panel Speaker, NO.2
55476C Garnish, Instrument Panel Finish Plate
55480D Panel Assy, Instrument Panel Finish, Lwr
55522B Cover, Radio Tuner Opening
55539 Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55981 Garnish, Defroster Nozzle, NO.1
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
