Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

16 part groups · 3 illustrations

Illustrations

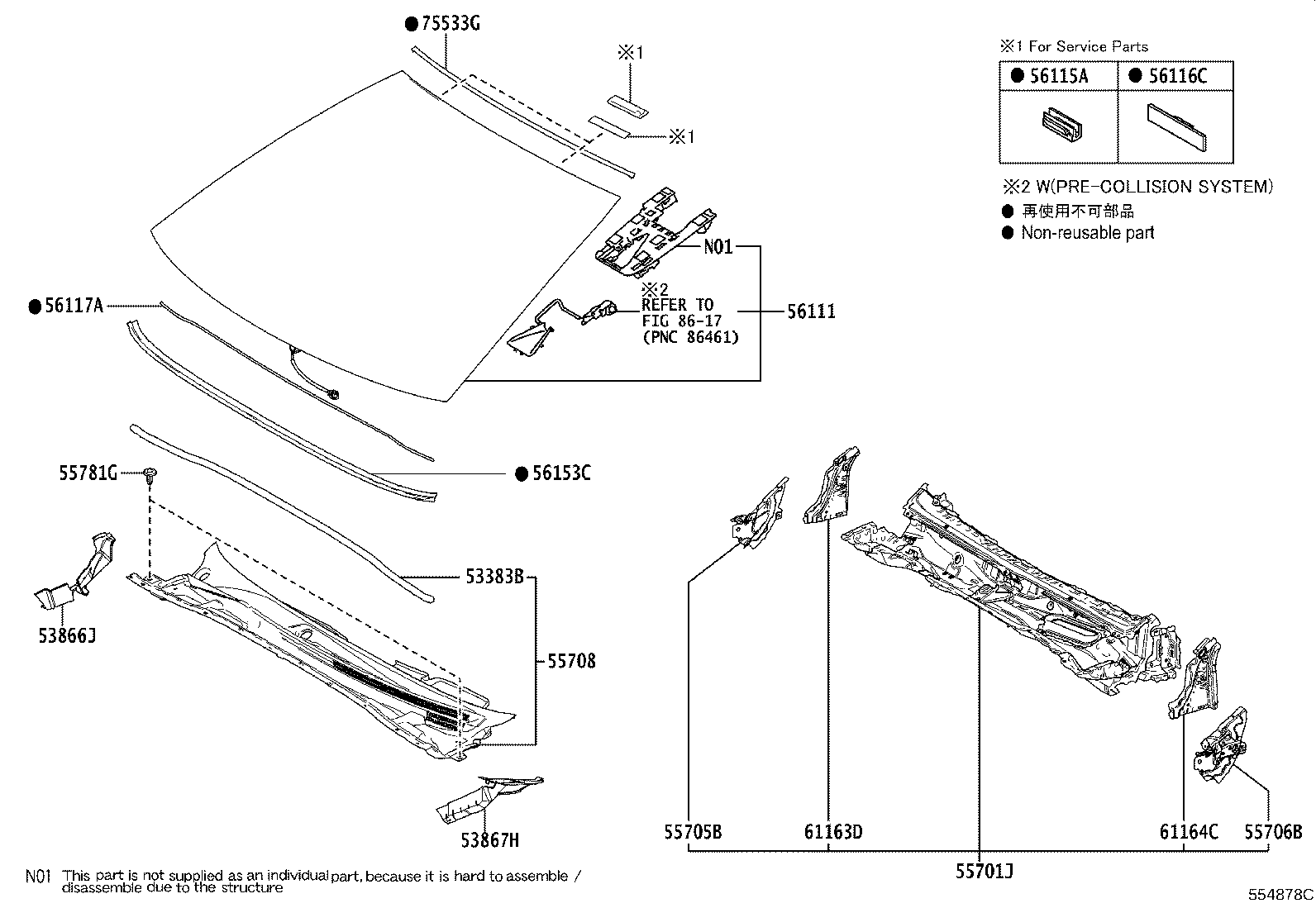

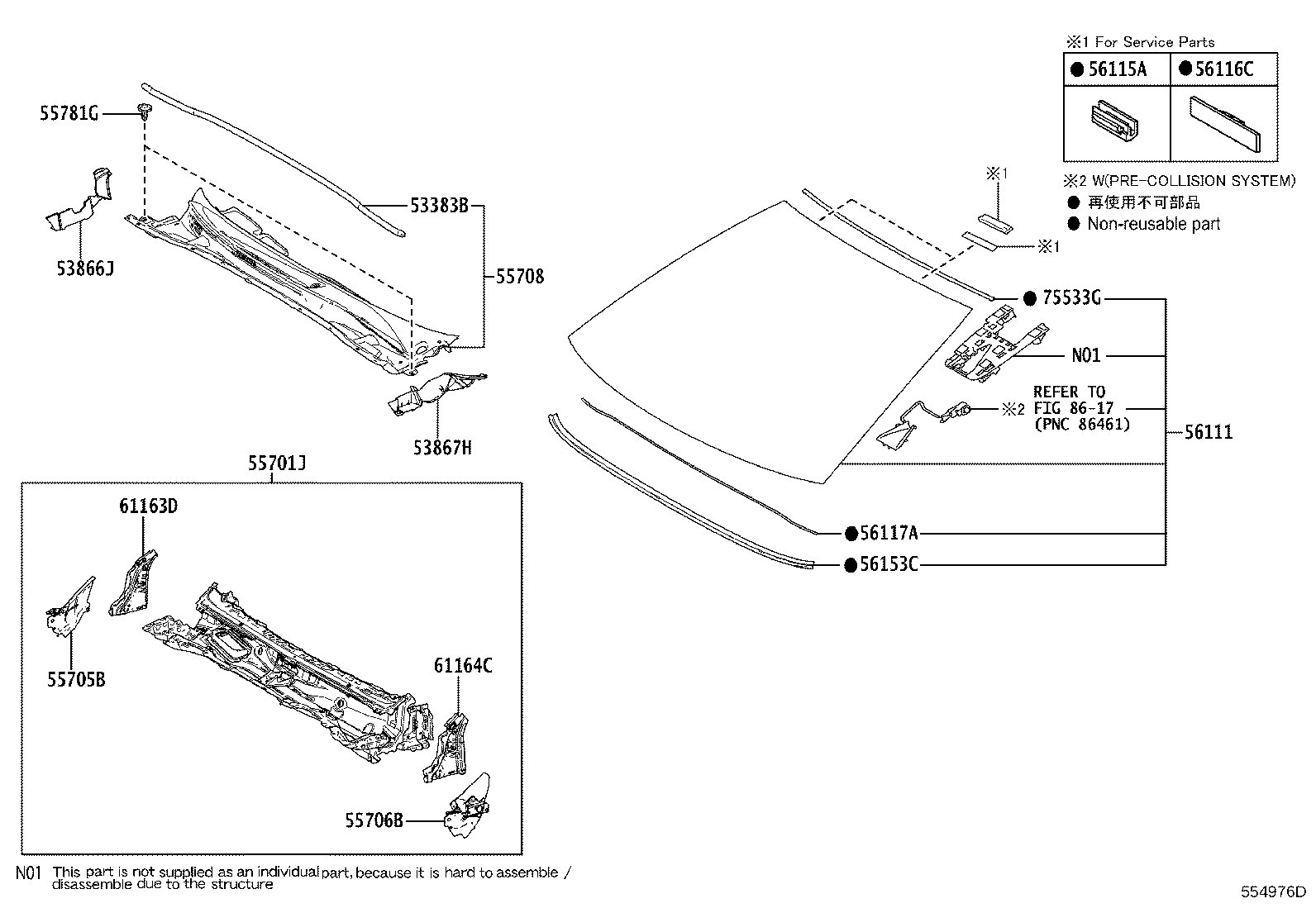

Figure 554029G 554029G 2017-09 → — Figure 554878C 554878C 2017-09 → — Figure 554976D 554976D 2018-04 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55701J Panel Sub-assy, Cowl Top, Outer
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55708 Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56153C Moulding, Front Window, Inner Center
61163D Pillar, Front Body, Lower Inner RH
61164C Pillar, Front Body, Lower Inner LH
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
