Floor Insulator

5 part groups · 4 illustrations

Illustrations

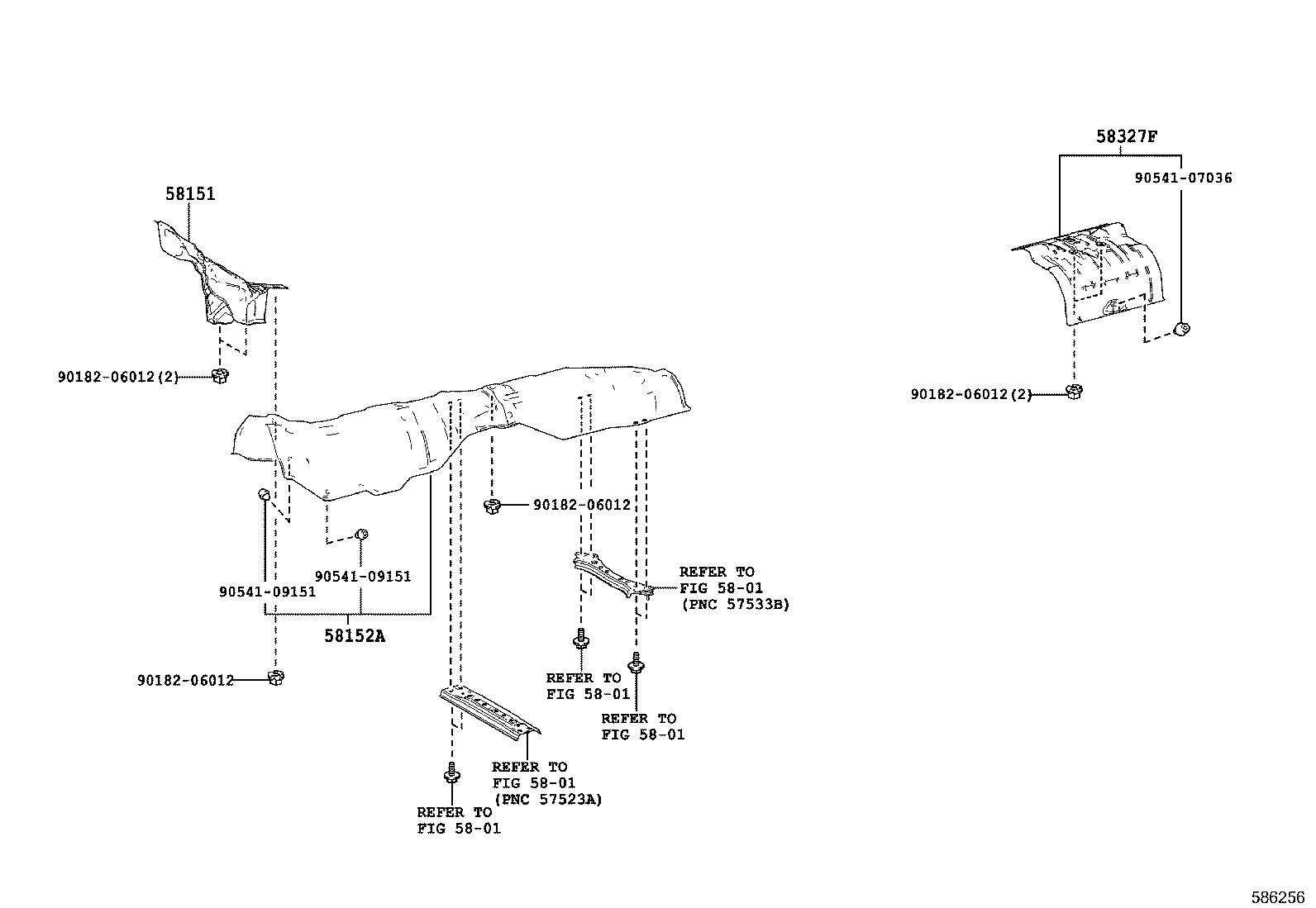

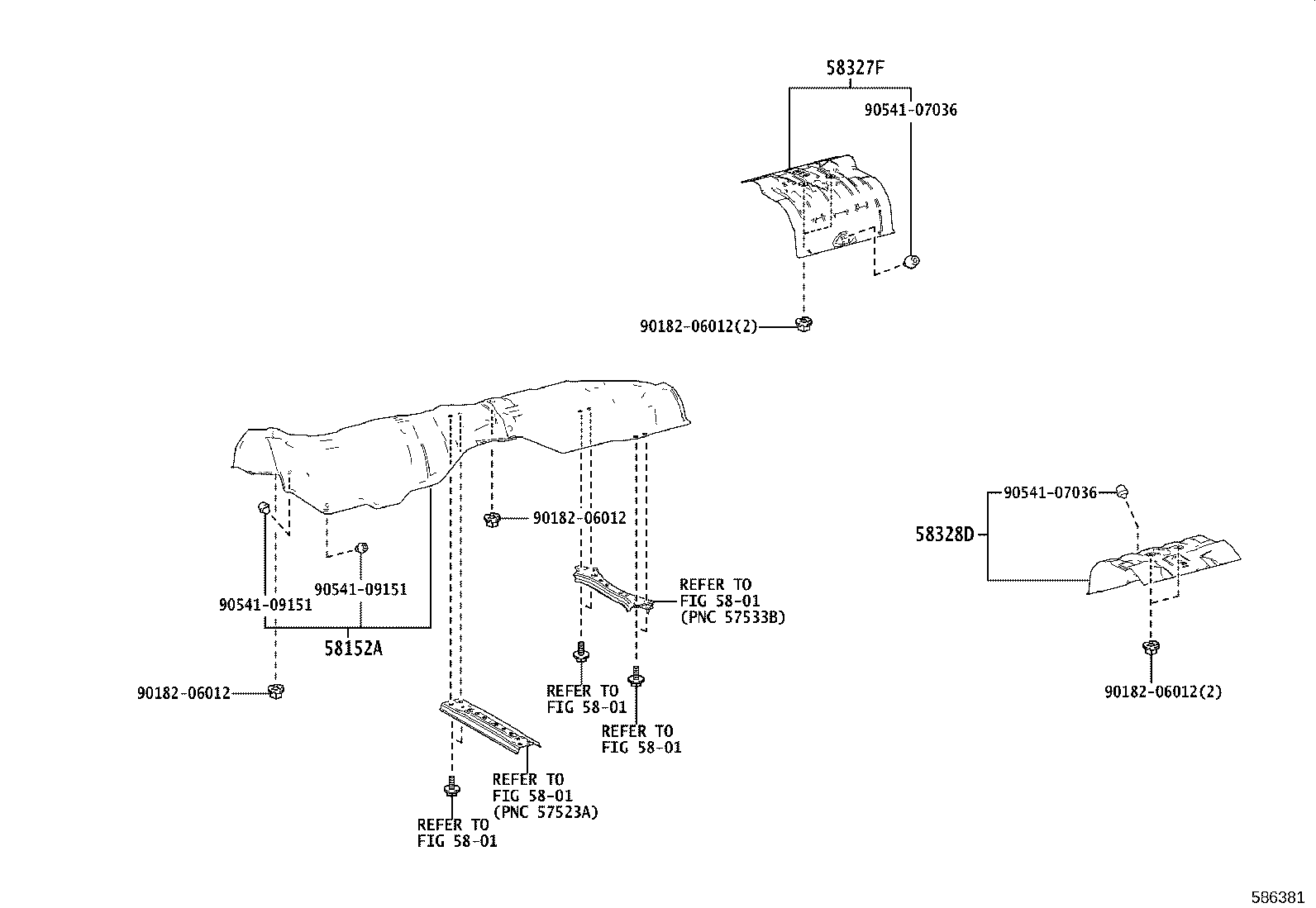

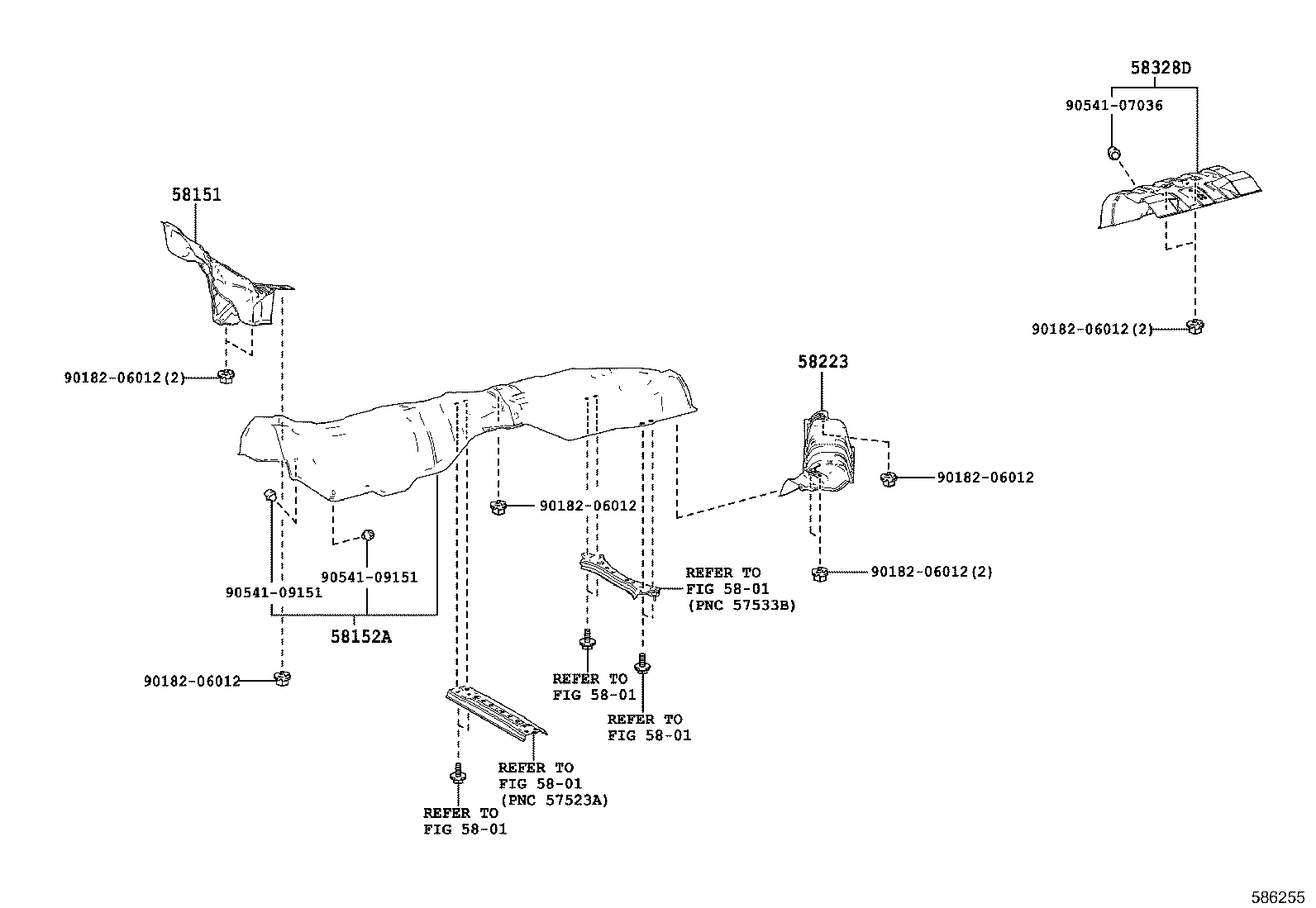

Figure 586380 586380 2017-09 → — Figure 586256 586256 2017-09 → — Figure 586255 586255 2017-09 → — Figure 586381 586381 2017-09 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58152A Insulator, Front Floor Heat, NO.1 Lower
58223 Insulator, Center Floor Heat, NO.2
58327F Insulator, Main Muffler Heat, RH
58328D Insulator, Main Muffler Heat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
