Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 6 illustrations

Illustrations

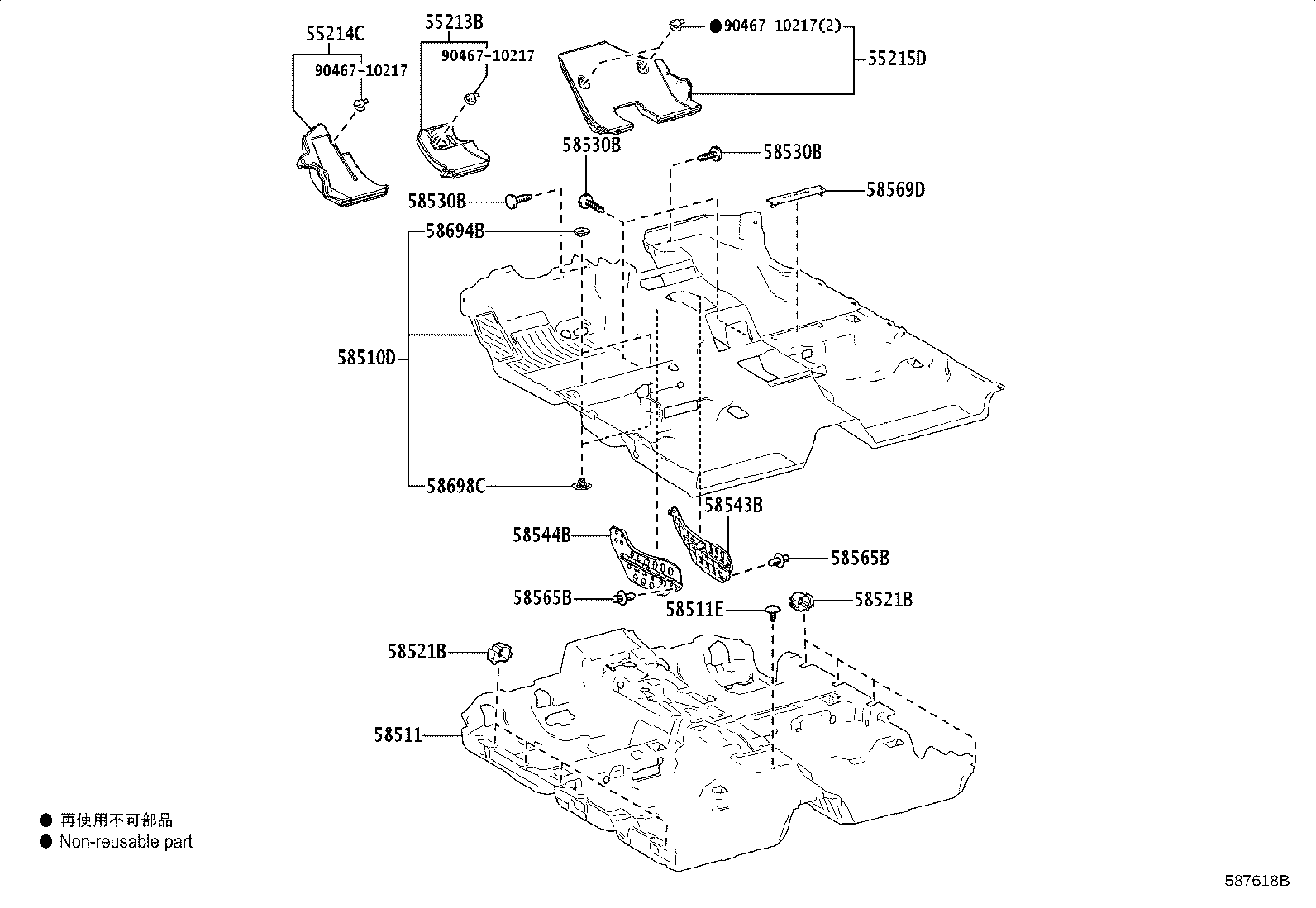

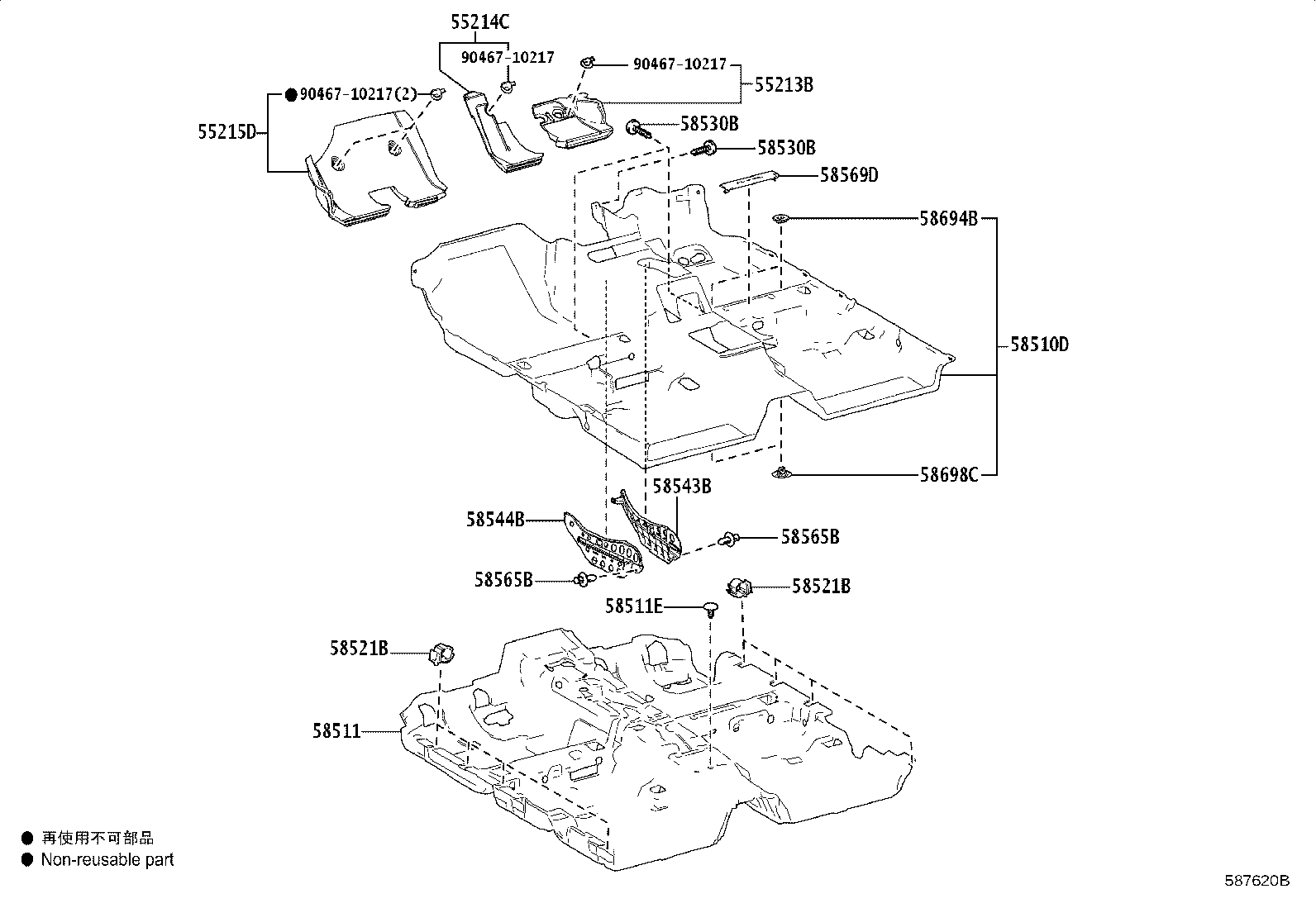

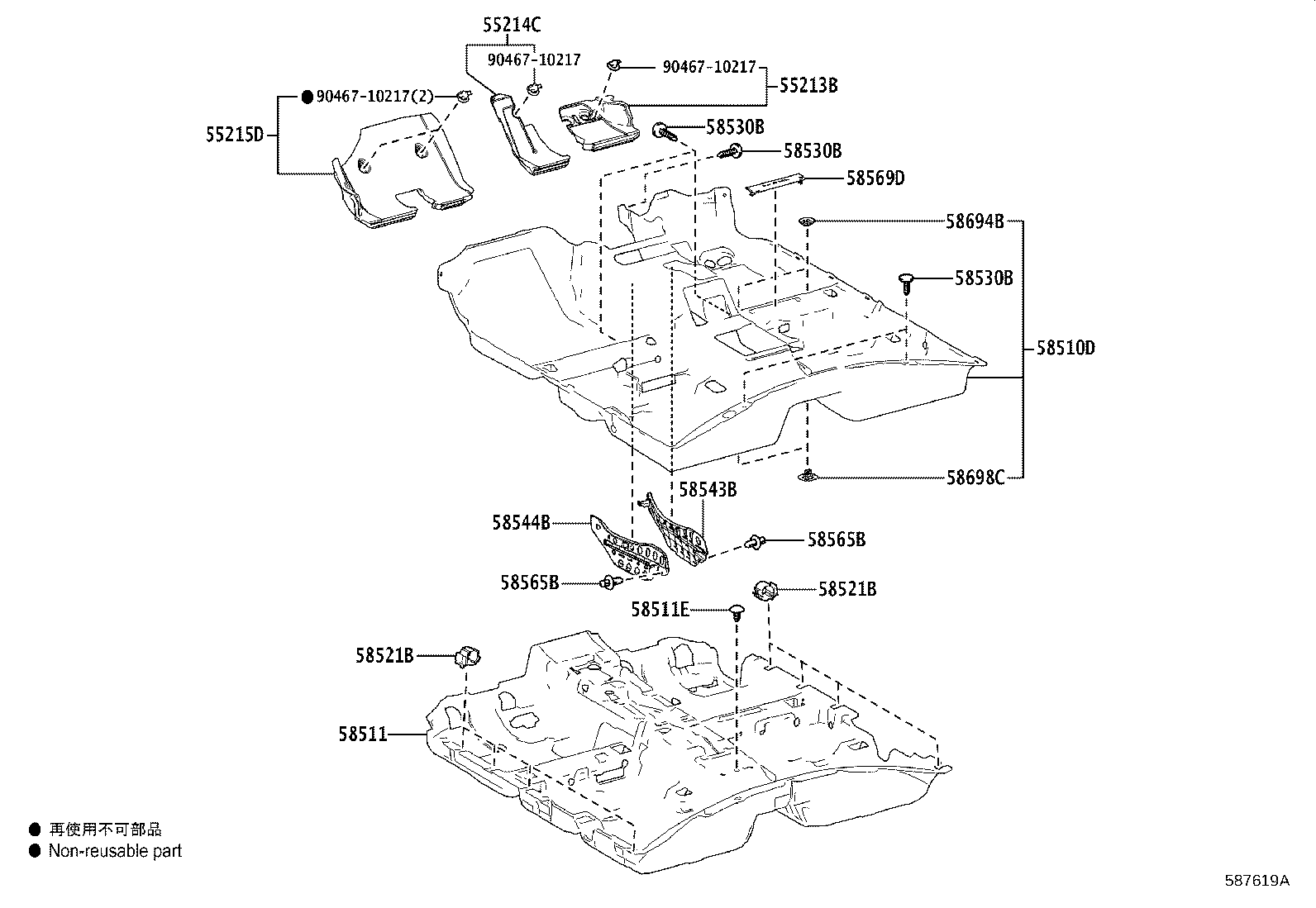

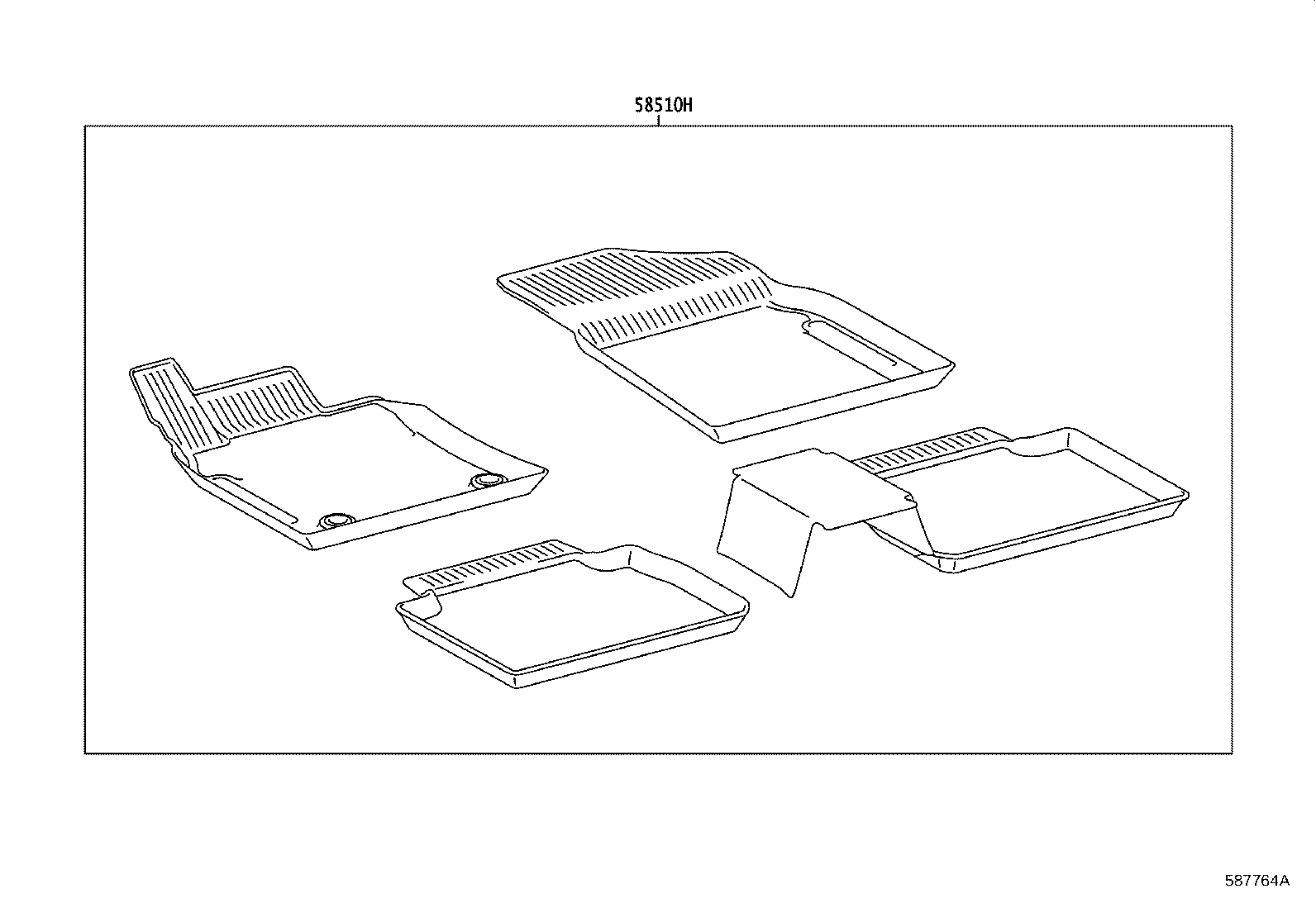

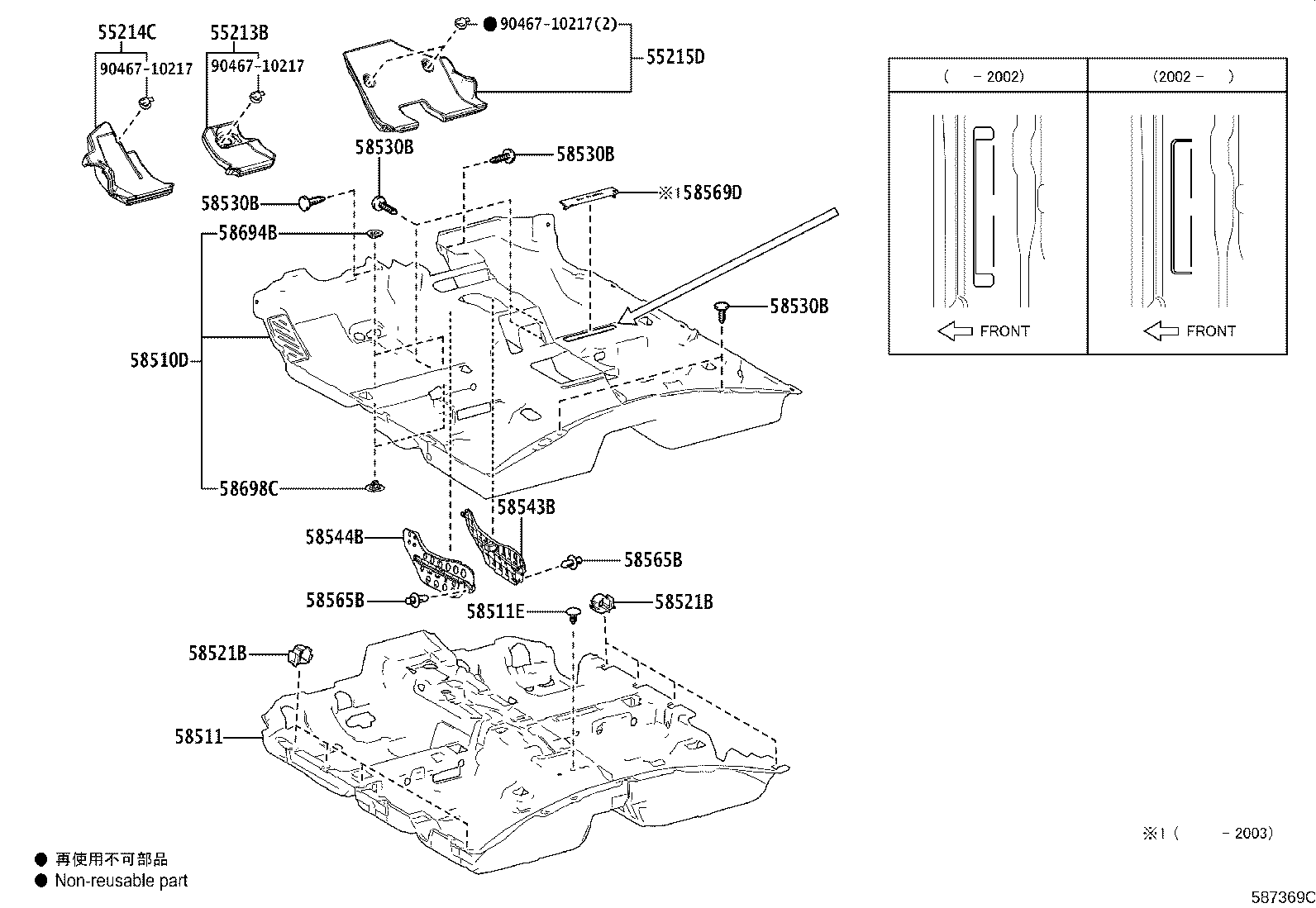

Figure 587617A 587617A 2017-09 → — Figure 587618B 587618B 2017-09 → — Figure 587619A 587619A 2017-09 → — Figure 587620B 587620B 2017-09 → — Figure 587369C 587369C 2018-04 → — Figure 587764A 587764A 2021-04 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58543B Bracket, Floor Carpet, RH
58544B Bracket, Floor Carpet, LH
58565B Clip
58569D Cover, Front Floor Caution Plate
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
