Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 9 illustrations

Illustrations

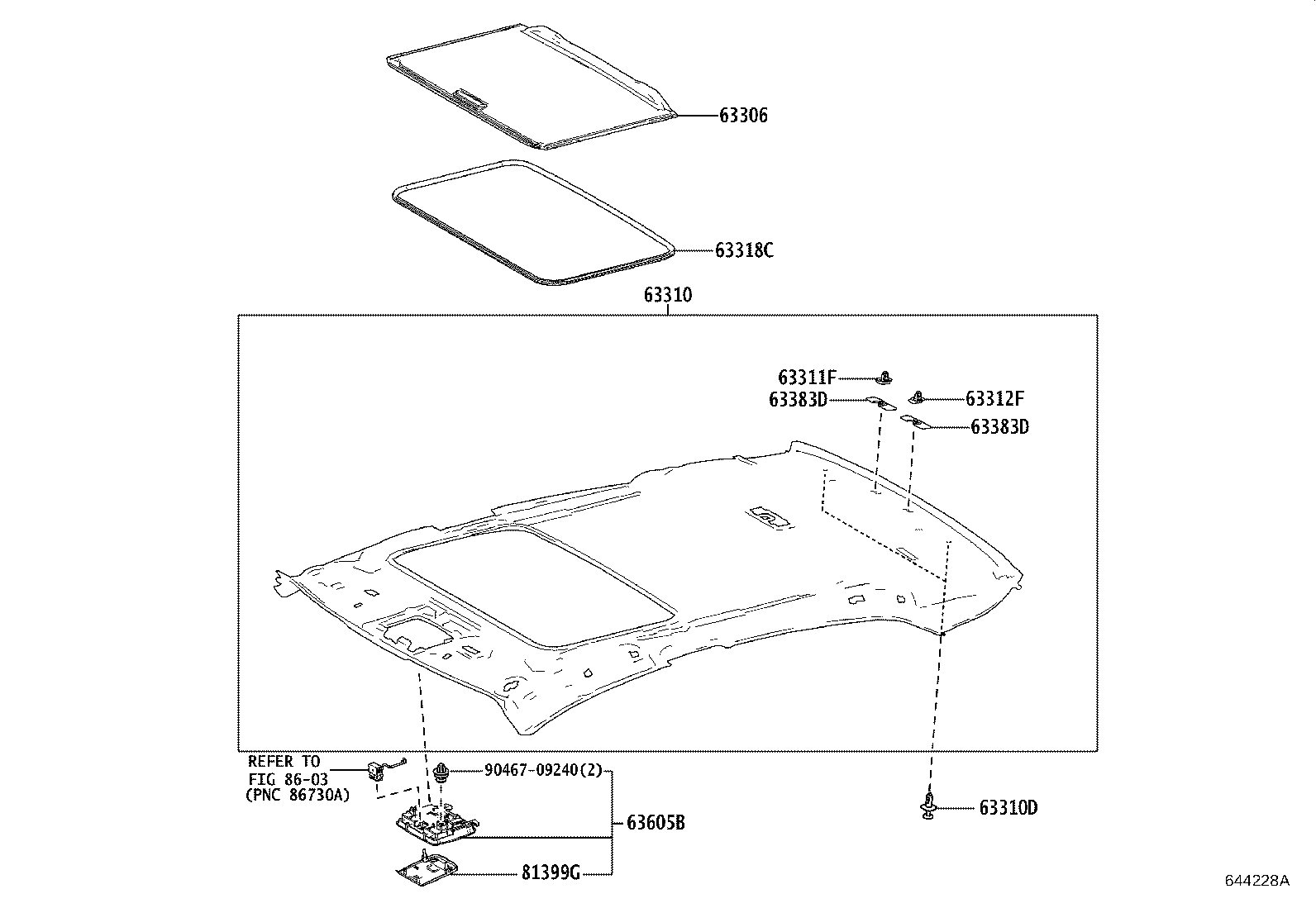

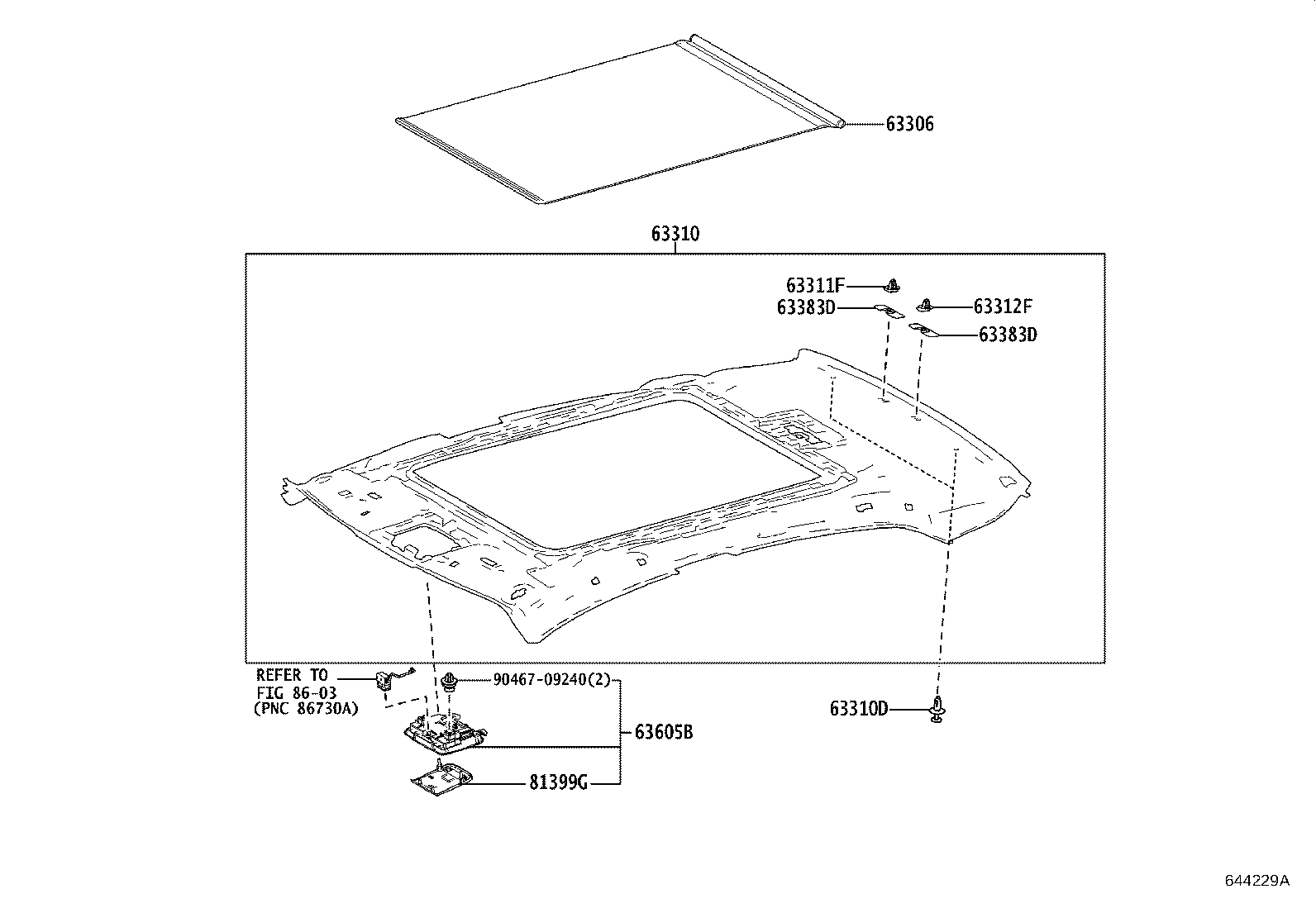

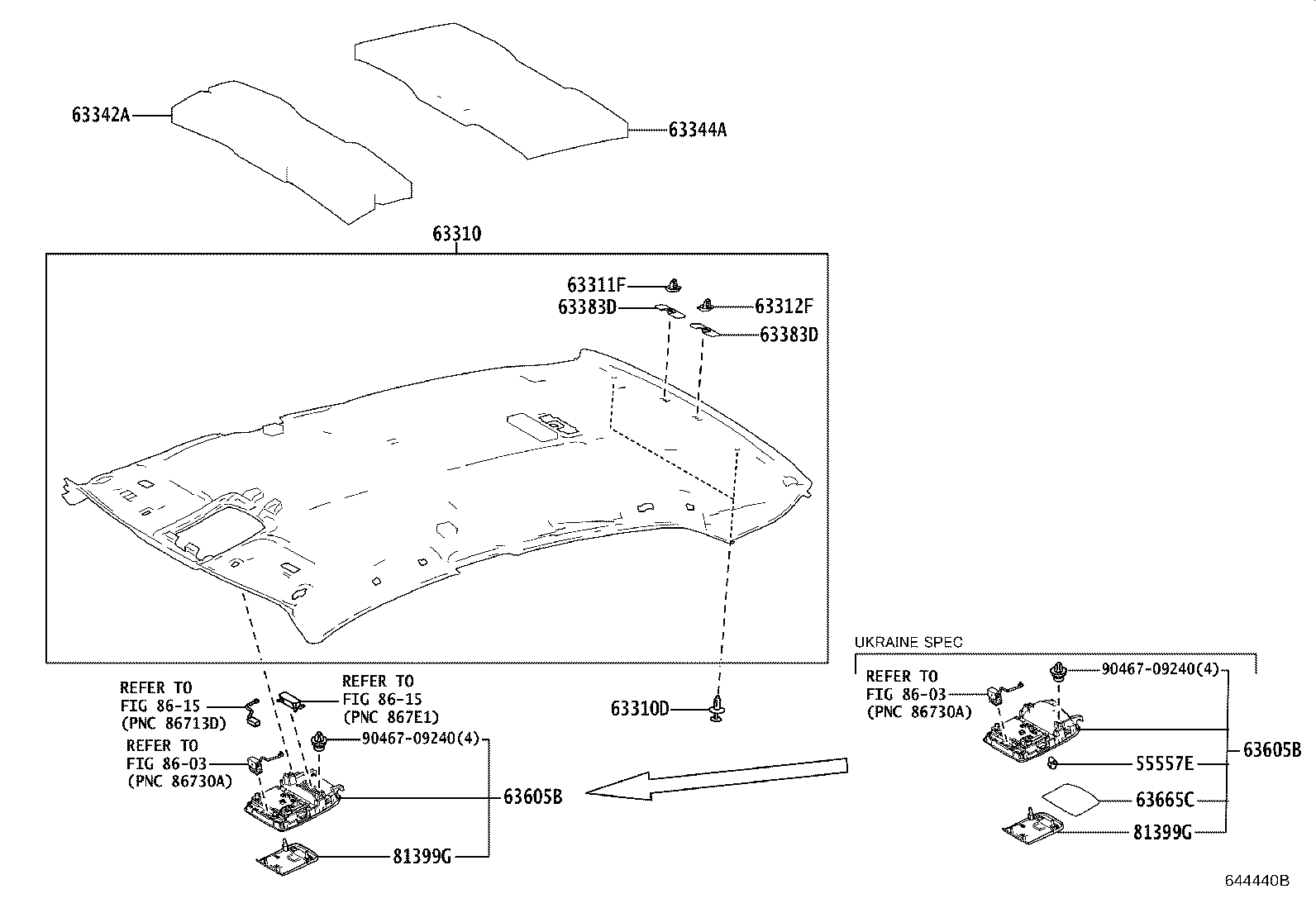

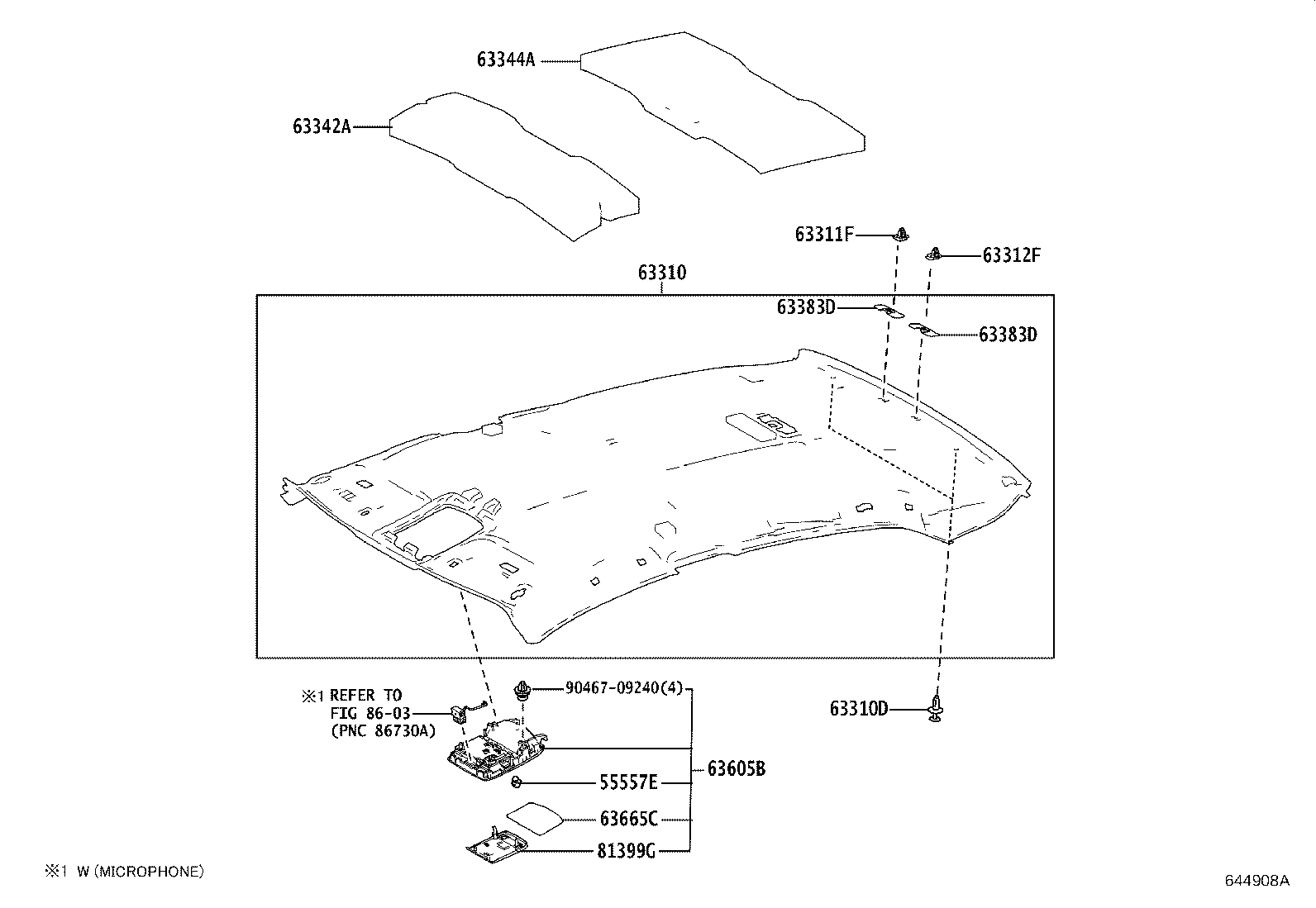

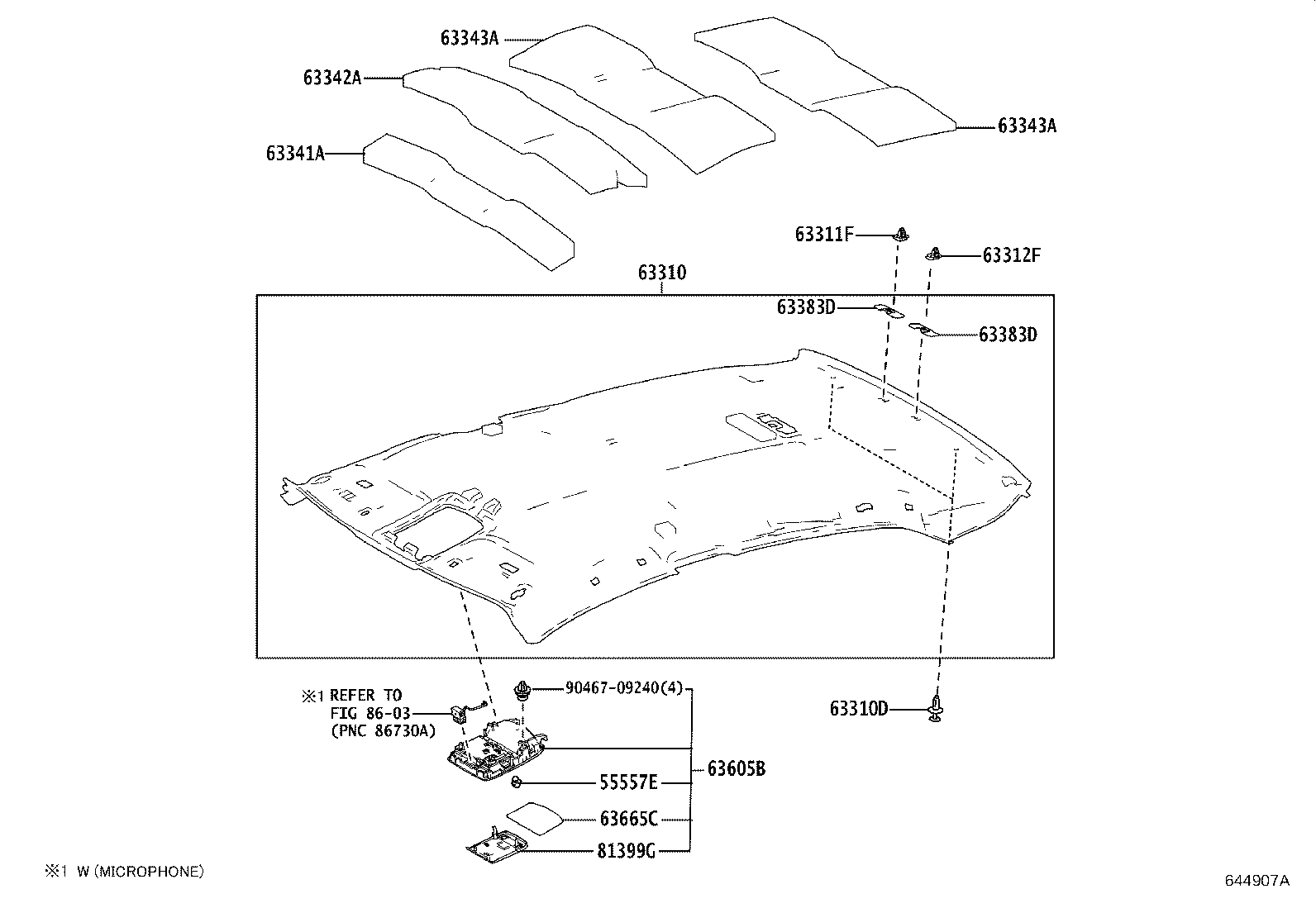

Figure 644242A 644242A 2017-09 → 2021-01 Figure 644242A 644242A 2021-02 → — Figure 644908A 644908A 2018-04 → 2020-05 Figure 644907A 644907A 2020-06 → — Figure 644228A 644228A 2017-09 → 2021-01 Figure 644228A 644228A 2021-02 → — Figure 644229A 644229A 2017-09 → 2021-01 Figure 644229A 644229A 2021-02 → — Figure 644440B 644440B 2019-02 → —

Part groups

PNCDescription
55557E Cushion, Roof Console Box
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63318C Moulding, Sun Roof Opening Trim
63341A Silencer, Roof, NO.1
63342A Silencer, Roof, NO.2
63343A Silencer, Roof, NO.3
63344A Silencer, Roof, NO.4
63383D Retainer, Roof Headlining, Rear
63605B Box Sub-assy, Roof Console
63665C Mat, Roof Console Box
81399G Cover, Lens
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
