Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

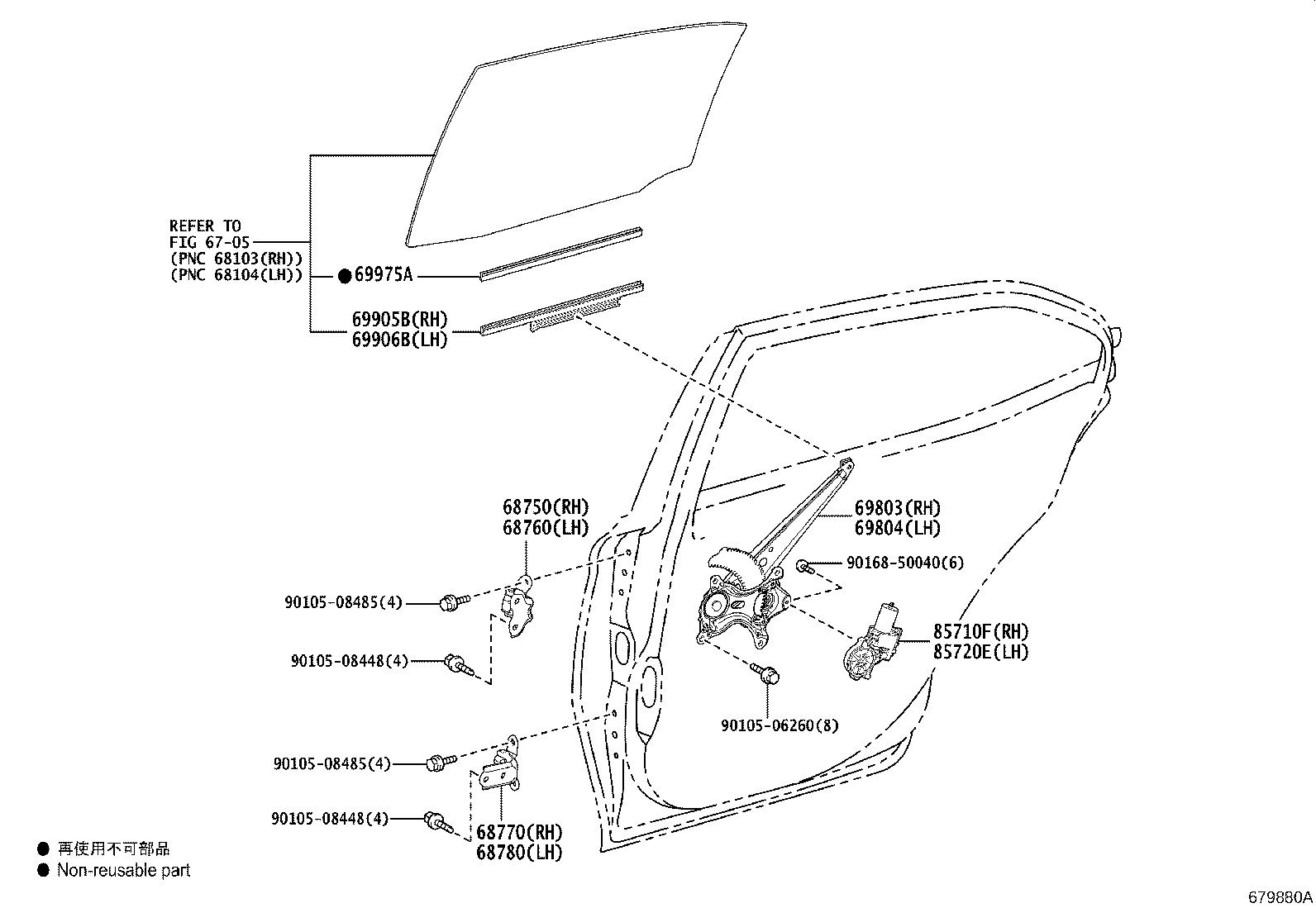

Rear Door Window Regulator & Hinge
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 68750 | Hinge Assy, Rear Door, Upper RH |
| 68760 | Hinge Assy, Rear Door, Upper LH |
| 68770 | Hinge Assy, Rear Door, Lower RH |
| 68780 | Hinge Assy, Rear Door, Lower LH |
| 69803 | Regulator Sub-assy, Rear Door Window, RH |
| 69804 | Regulator Sub-assy, Rear Door Window, LH |
| 69905B | Channel Sub-assy, Rear Door Glass, RH |
| 69906B | Channel Sub-assy, Rear Door Glass, LH |
| 69975A | Filler, Rear Door Glass Channel |
| 85710F | Motor Assy, Power Window Regulator, RH |
| 85720E | Motor Assy, Power Window Regulator, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
