Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

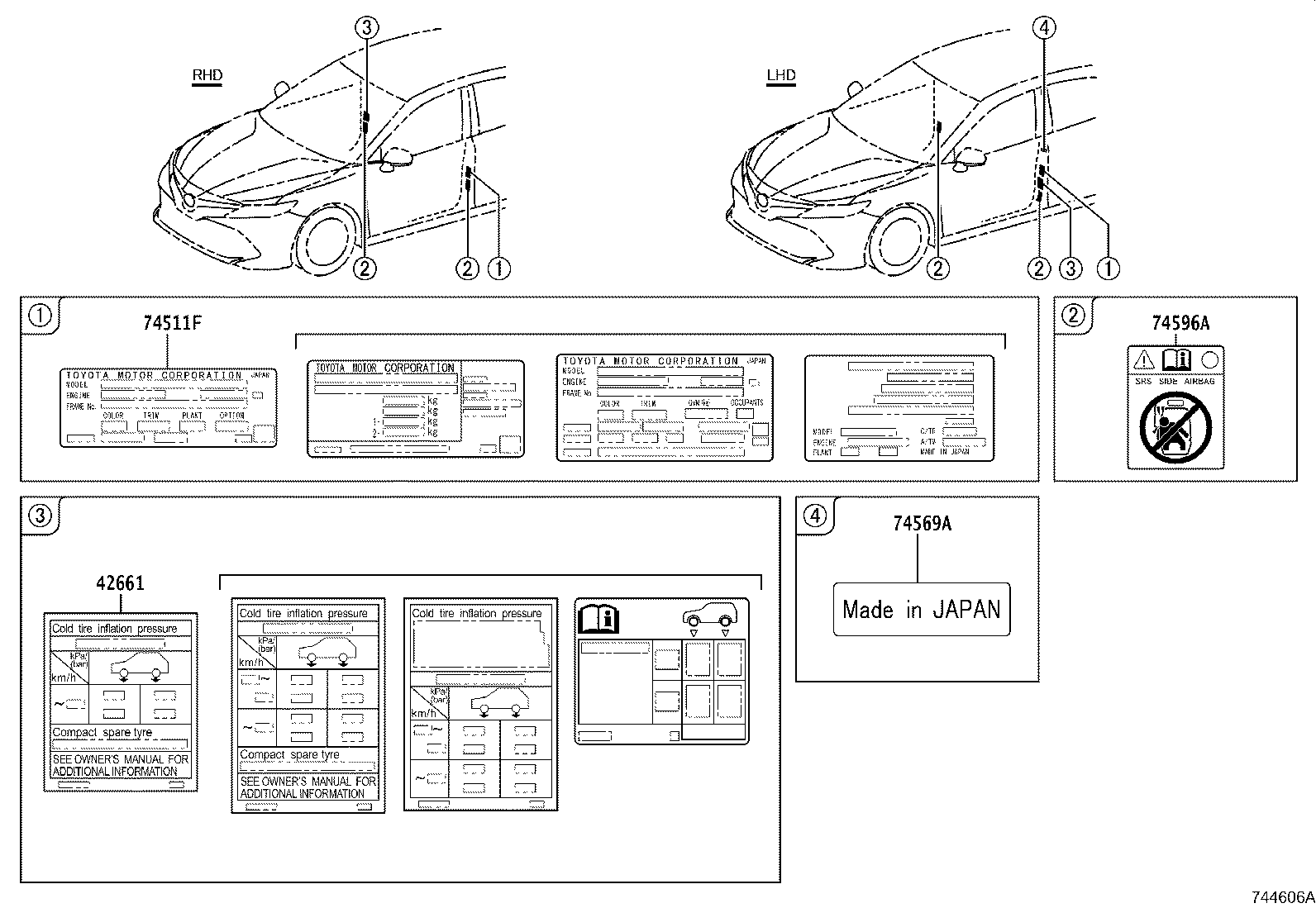

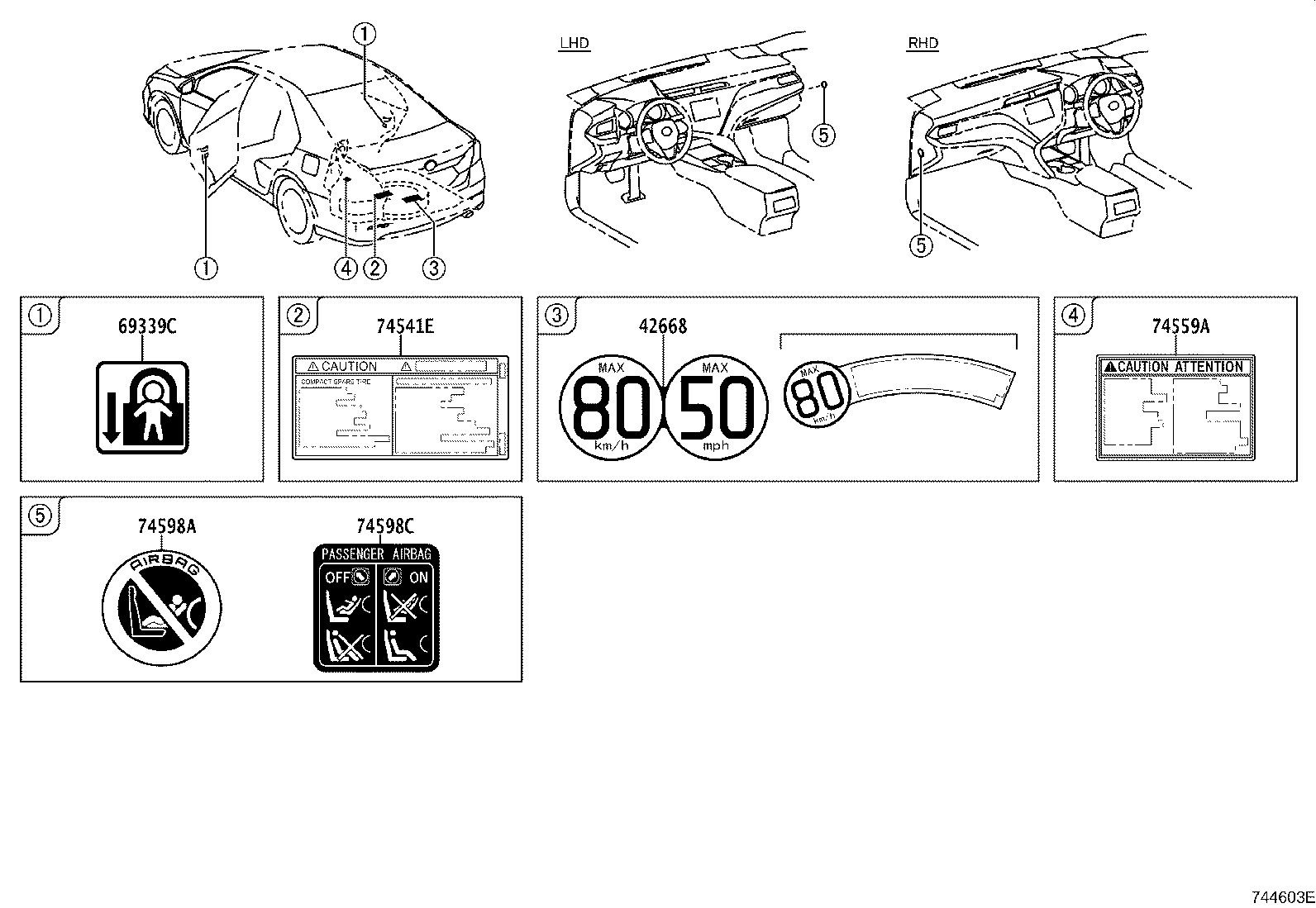

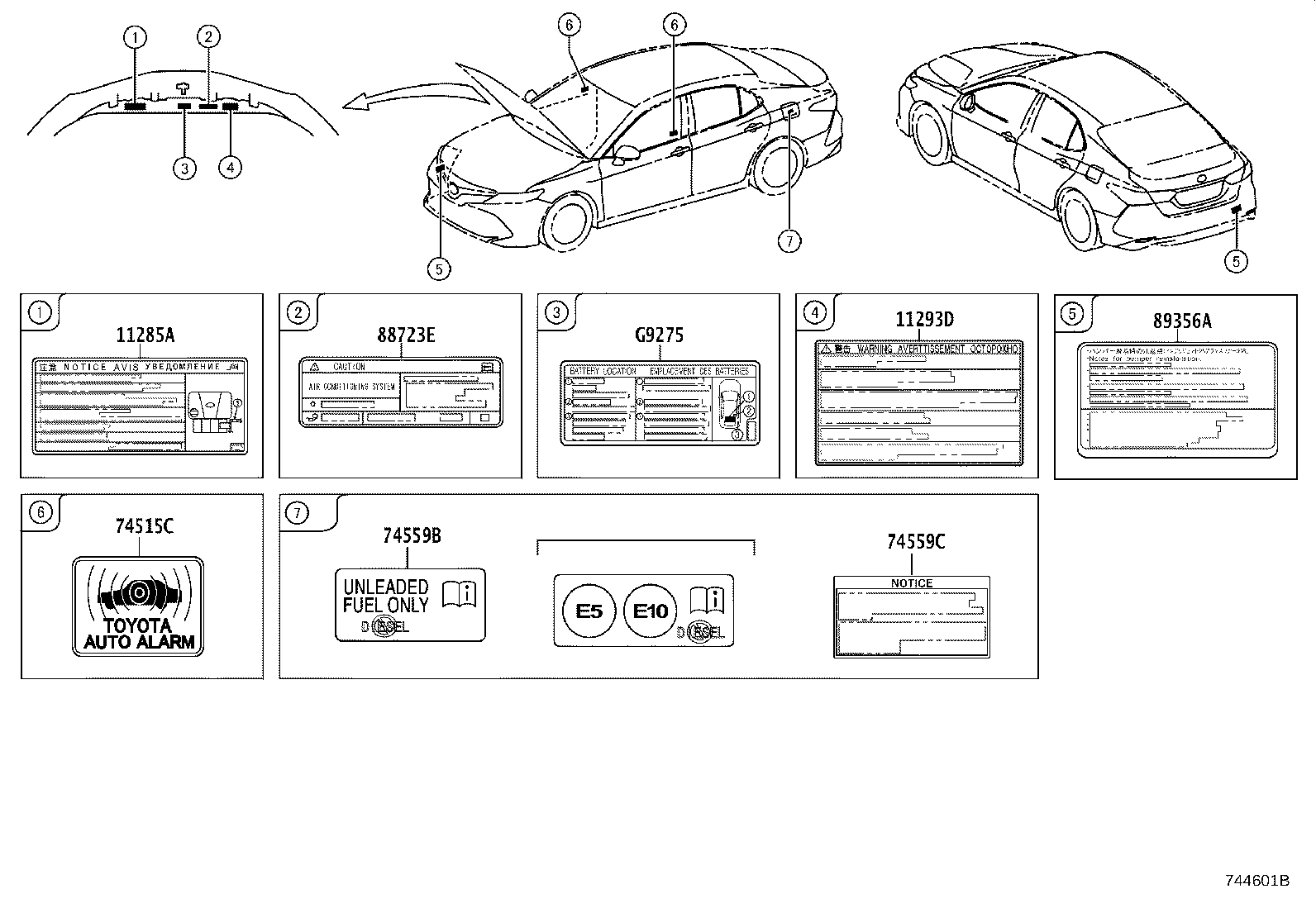

Caution Plate (EXTERIOR & INTERIOR)
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 16793E | Label, Cooling Fan Caution |
| 42661 | Label, Tire Pressure Information |
| 42668 | Label, Compact Spare Tire Caution |
| 47288 | Label, Brake Fluid Notice |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515C | Label, Theft Warning Information |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74559C | Label, Fuel Information, NO.2 |
| 74569A | Plate, Vehicle Information |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74598C | Label, Passenger Airbag Caution |
| 88723E | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
