Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

27 part groups · 3 illustrations

Illustrations

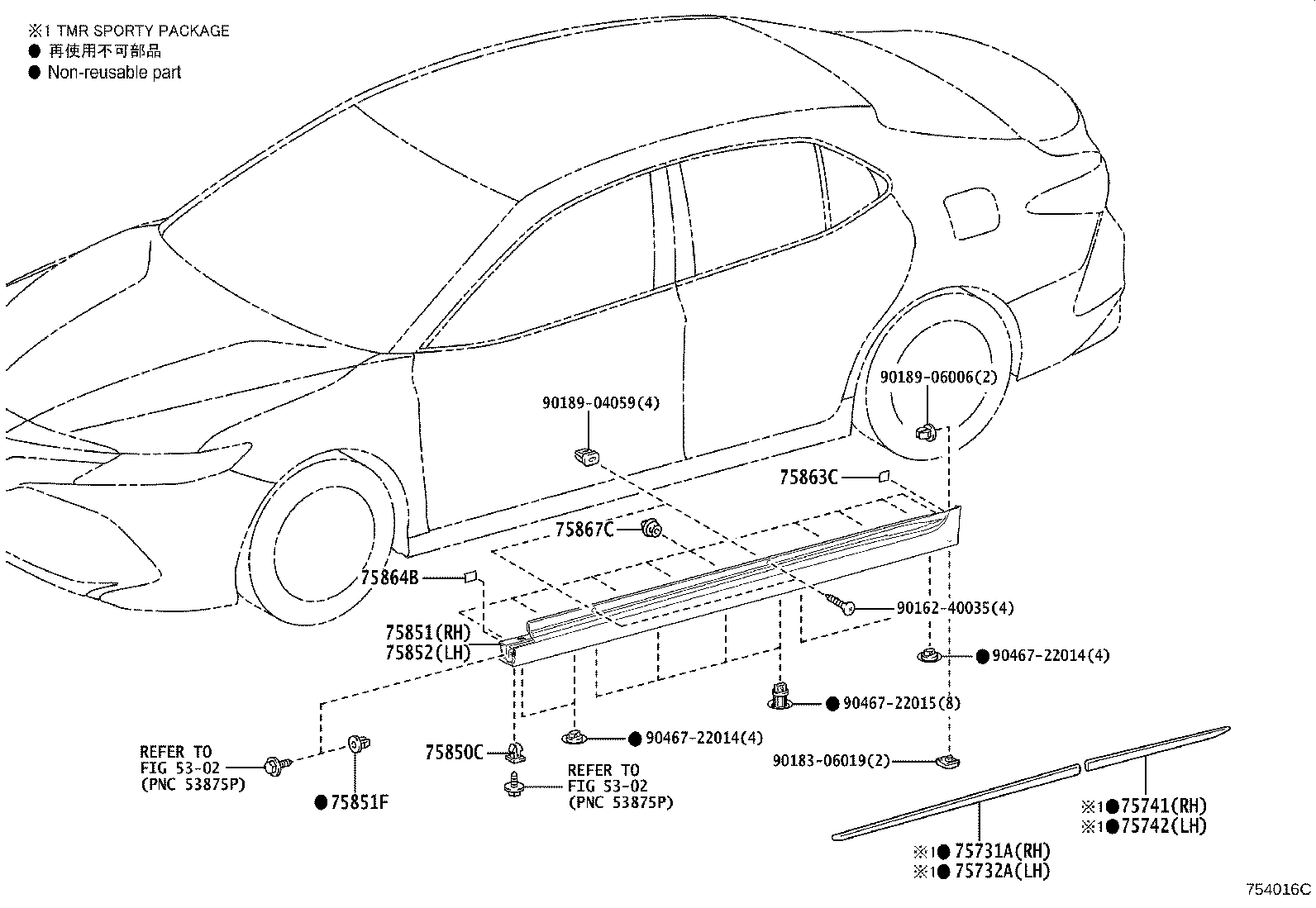

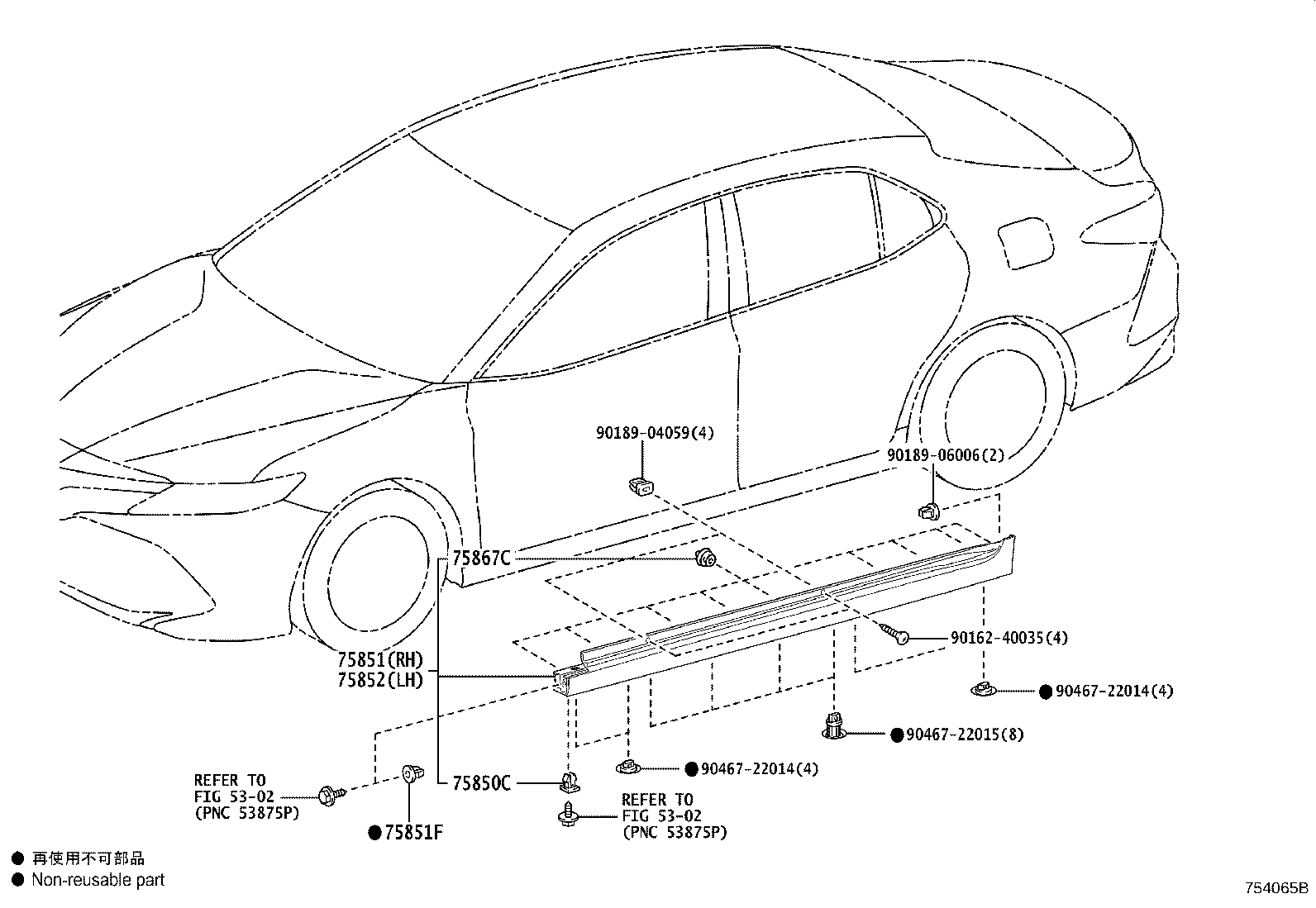

Figure 754062A 754062A 2017-09 → — Figure 754065B 754065B 2017-09 → — Figure 754016C 754016C 2018-04 → —

Part groups

PNCDescription
75551H Moulding, Roof Drip Side, RH
75552H Moulding, Roof Drip Side, LH
75561A Clip, Roof Drip Side Finish Moulding
75707 Moulding Sub-assy, Rear Door Window Frame, RH
75708 Moulding Sub-assy, Rear Door Window Frame, LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75753 Moulding, Front Door Window Frame, Upper RH
75754A Moulding, Front Door Window Frame, Upper LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75761A Moulding, Rear Door Window Frame, Front RH
75762A Moulding, Rear Door Window Frame, Front LH
75792 Clip, Door Window Frame Moulding
75850C Grommet, NO.1
75851 Moulding, Rocker Panel, RH
75851F Grommet(FOR BODY ROCKER PANEL MOULDING)
75852 Moulding, Rocker Panel, LH
75863C Protector, Rocker Panel Moulding, NO.3
75864B Protector, Rocker Panel Moulding, NO.4
75867C Clip, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
