Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

126 part groups · 33 illustrations

Illustrations

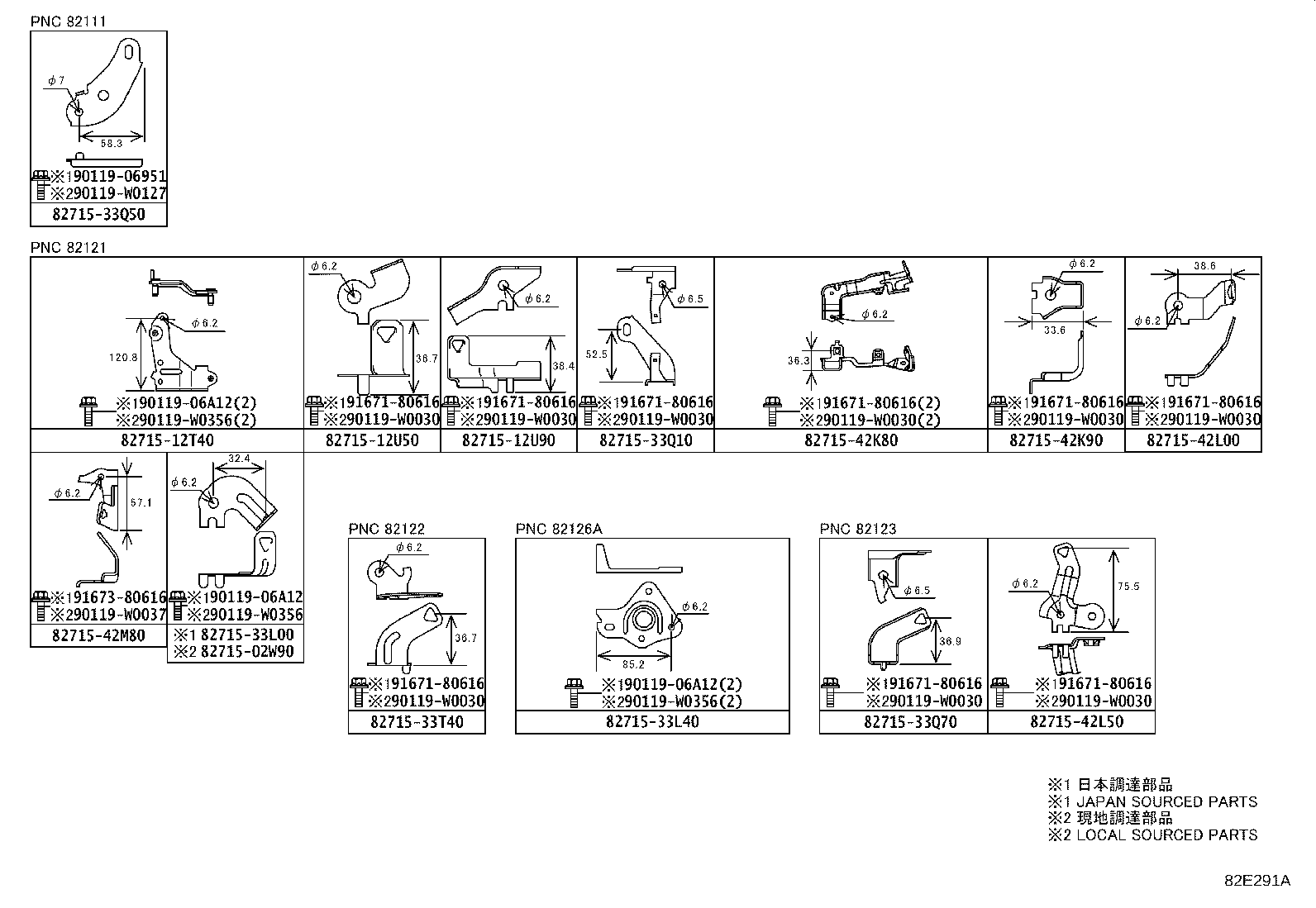

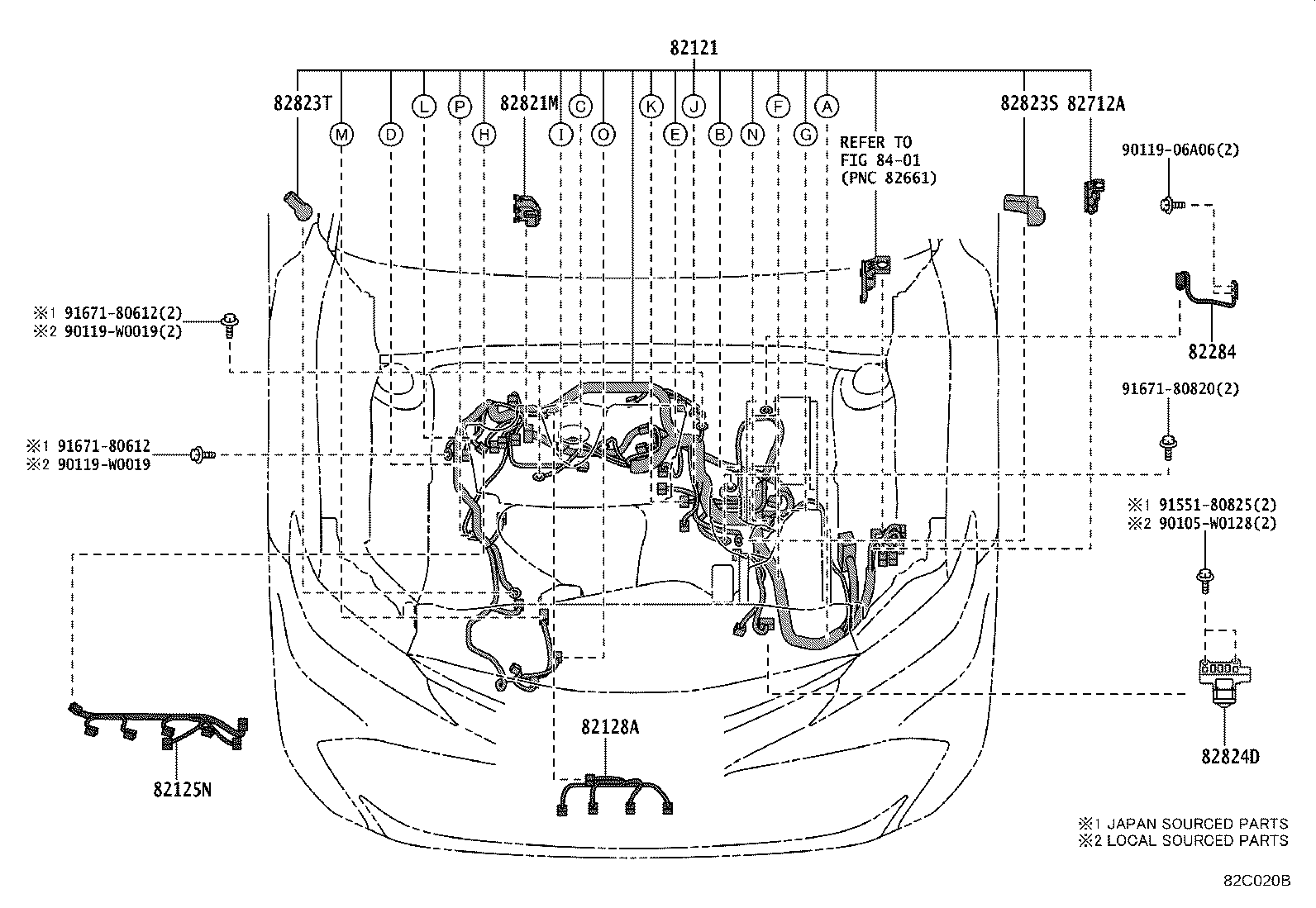

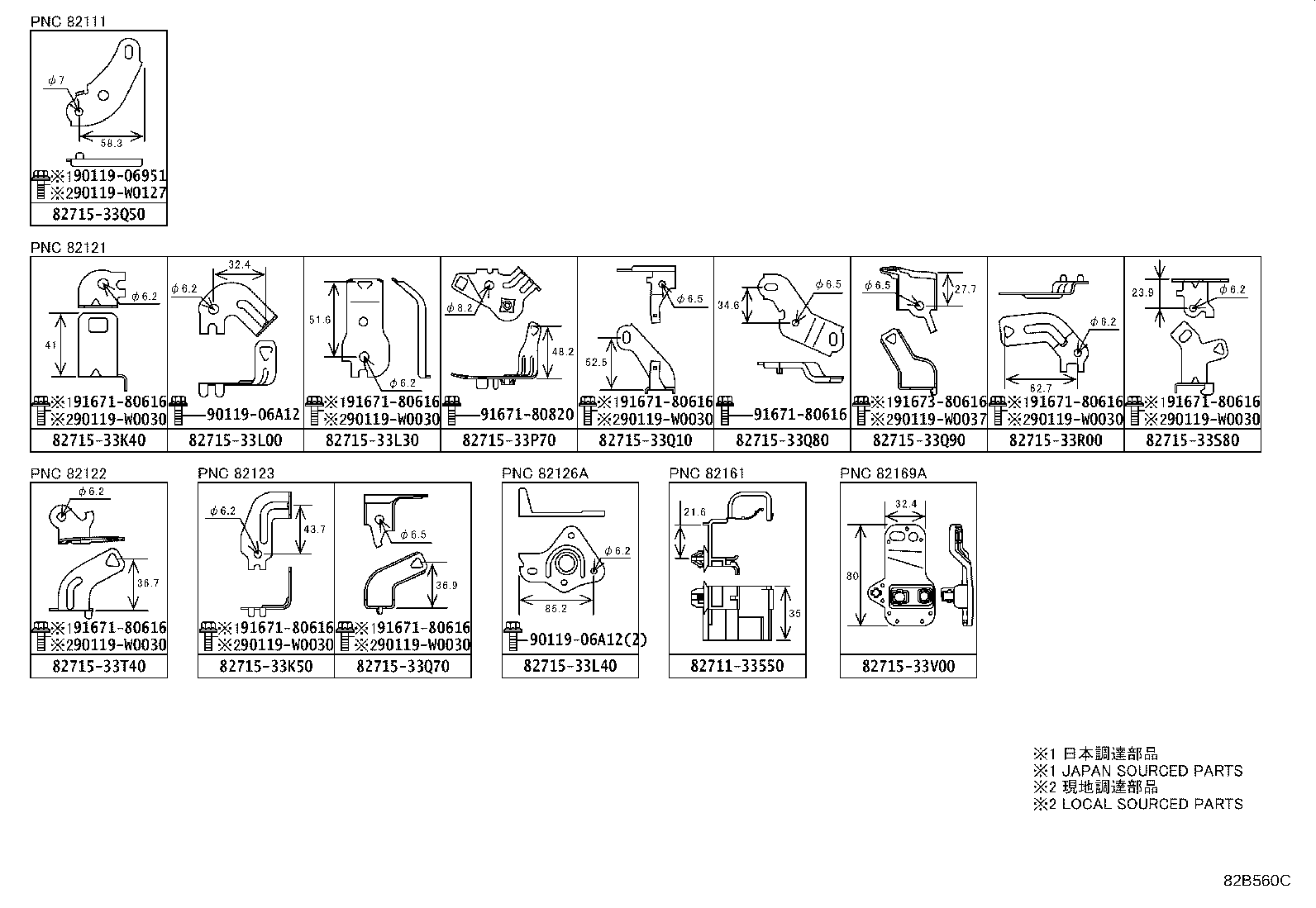

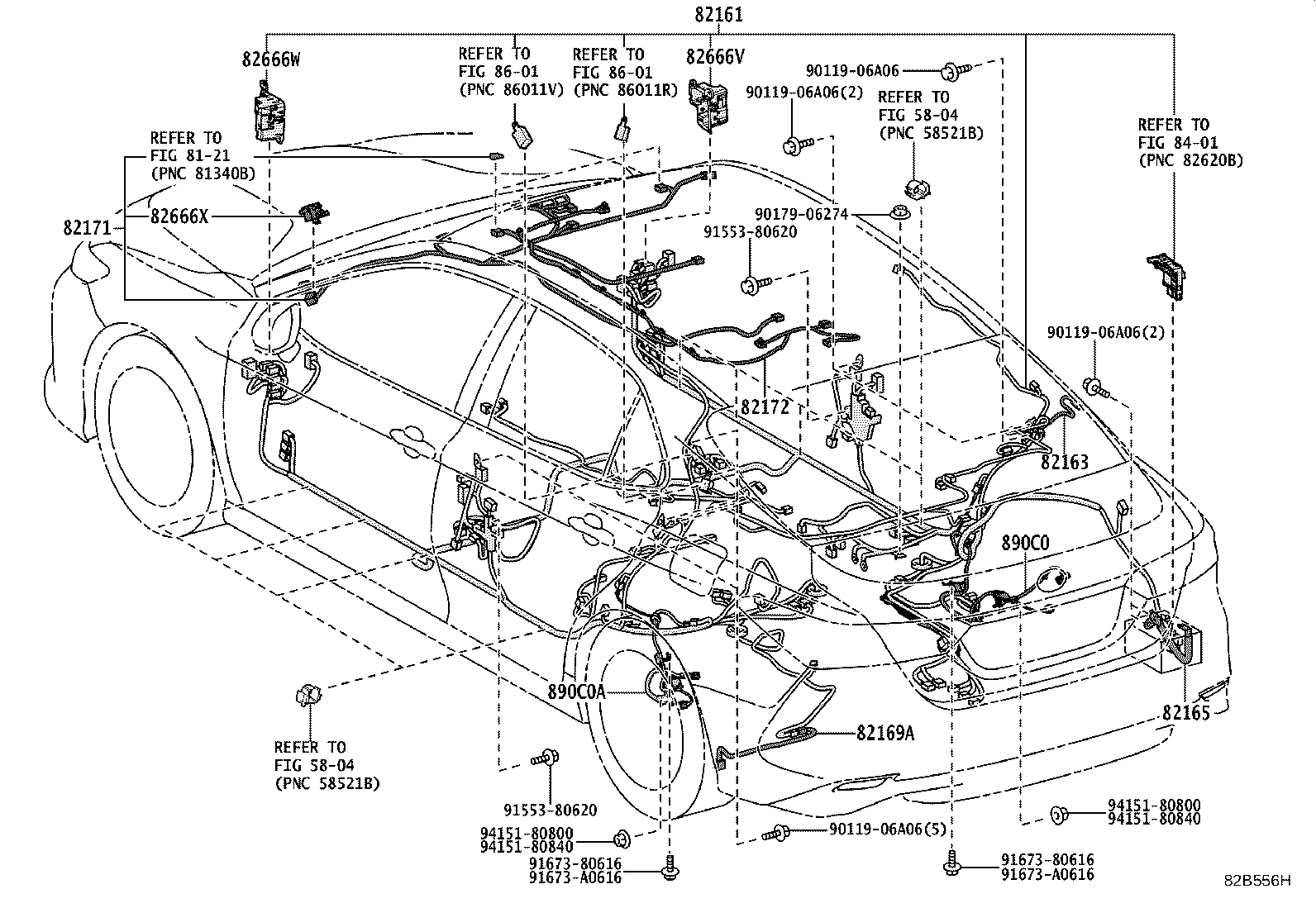

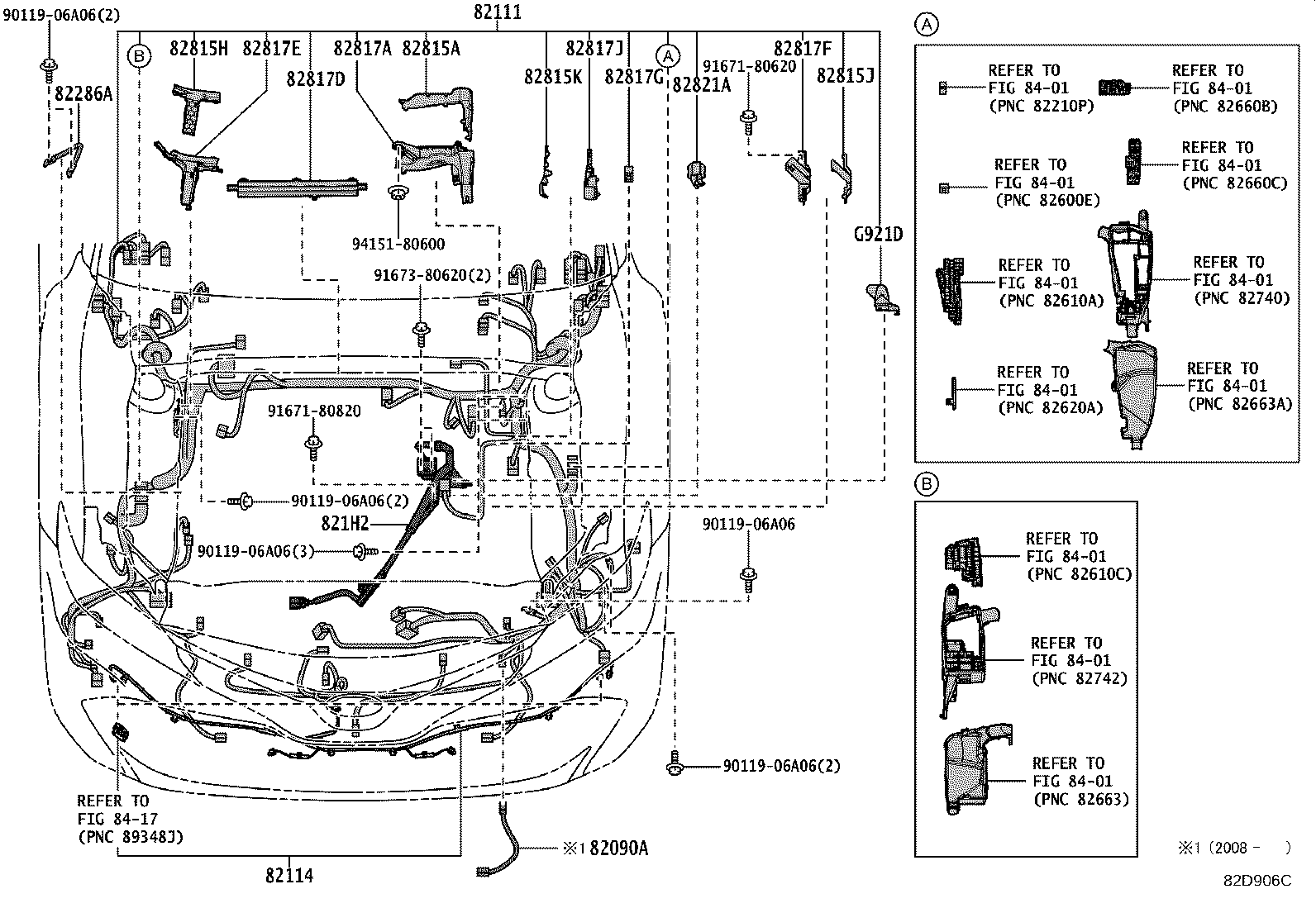

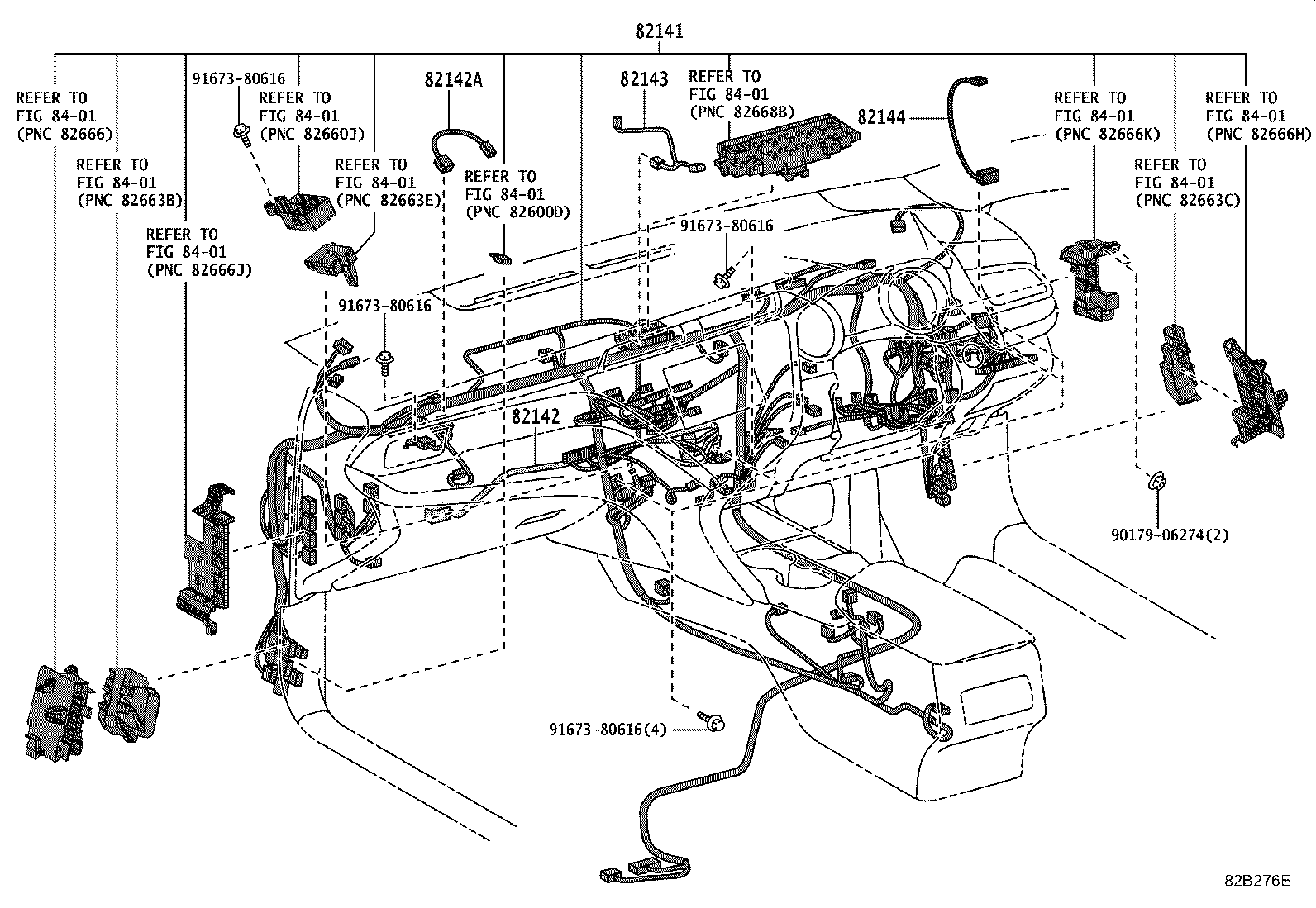

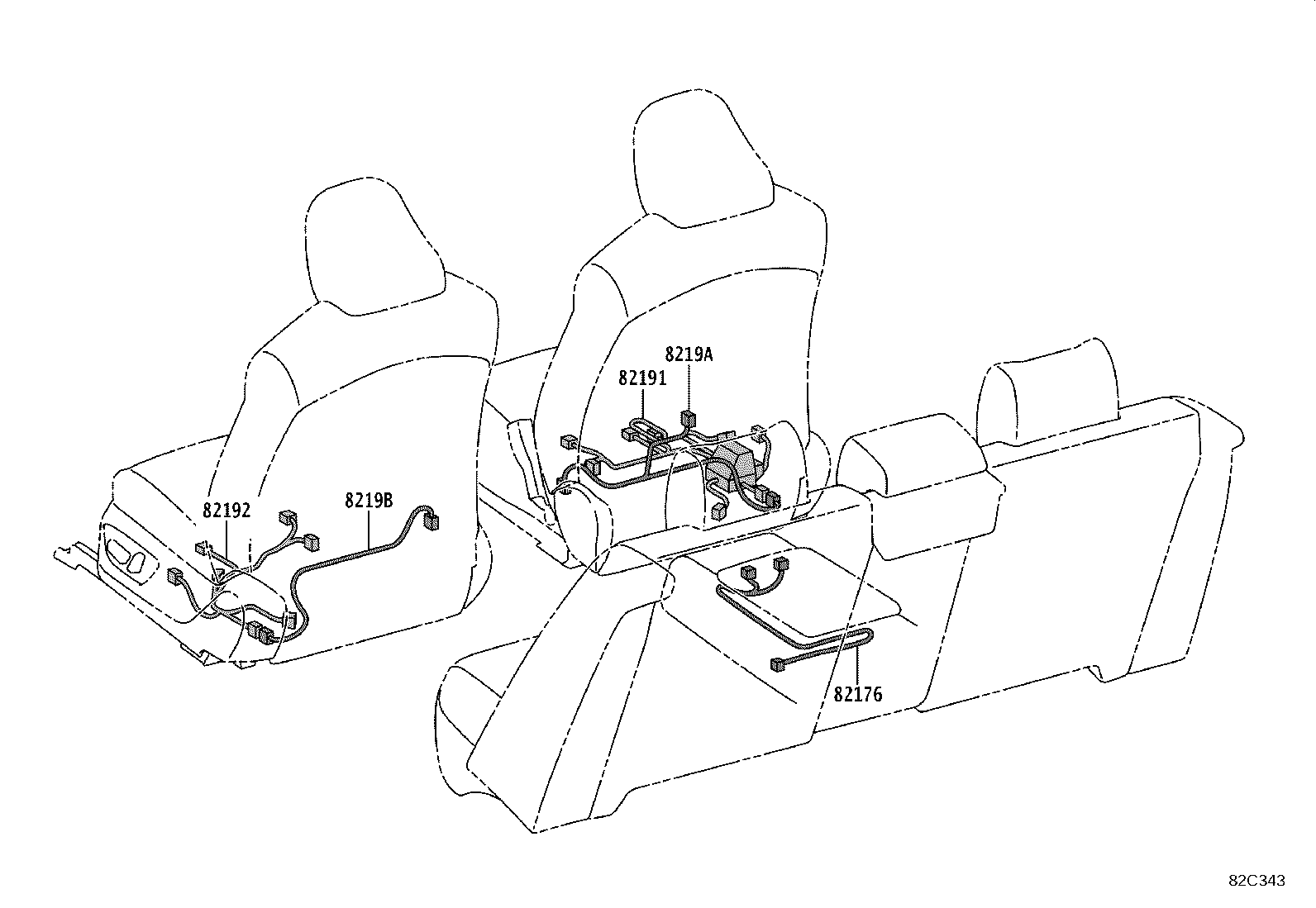

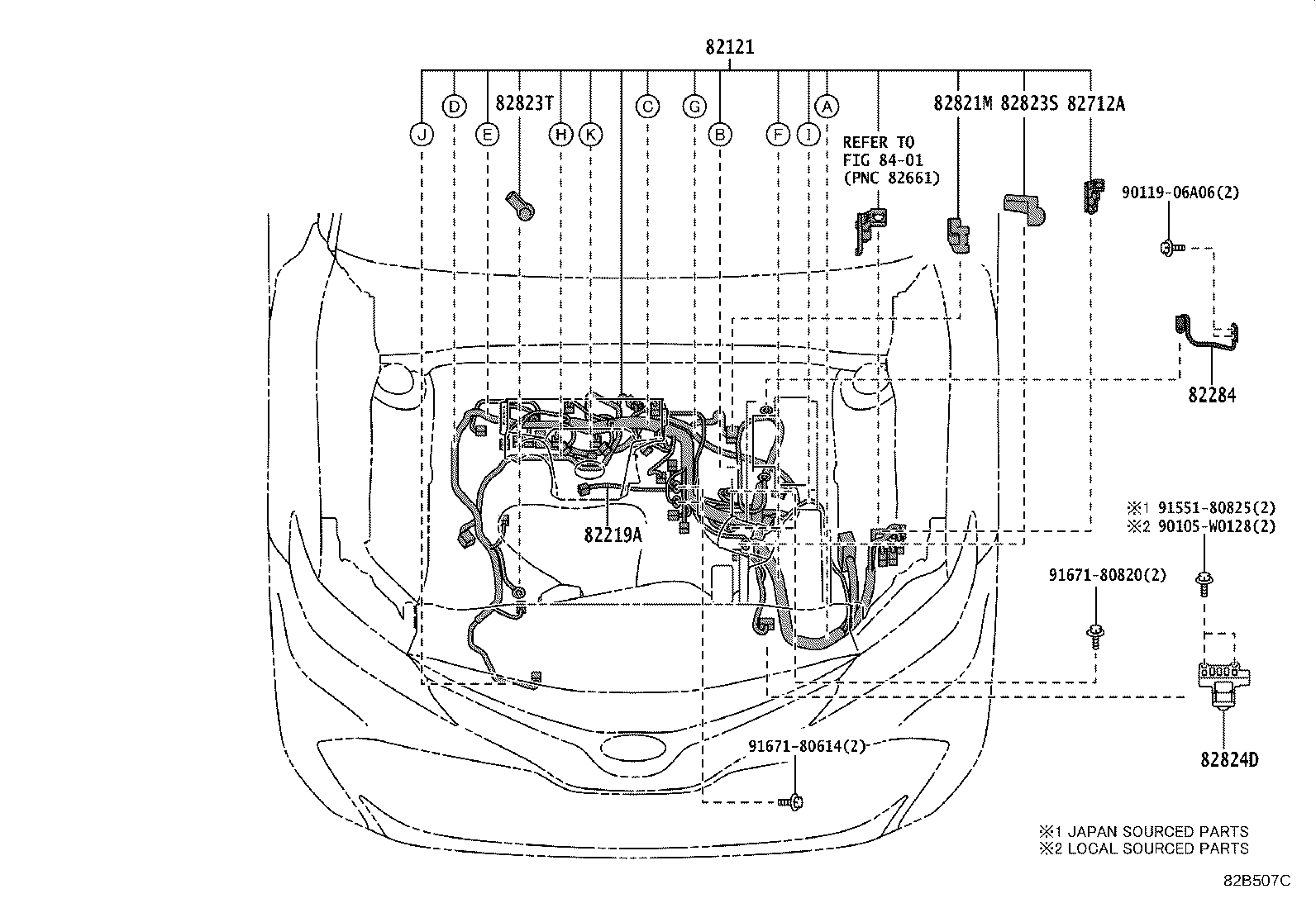

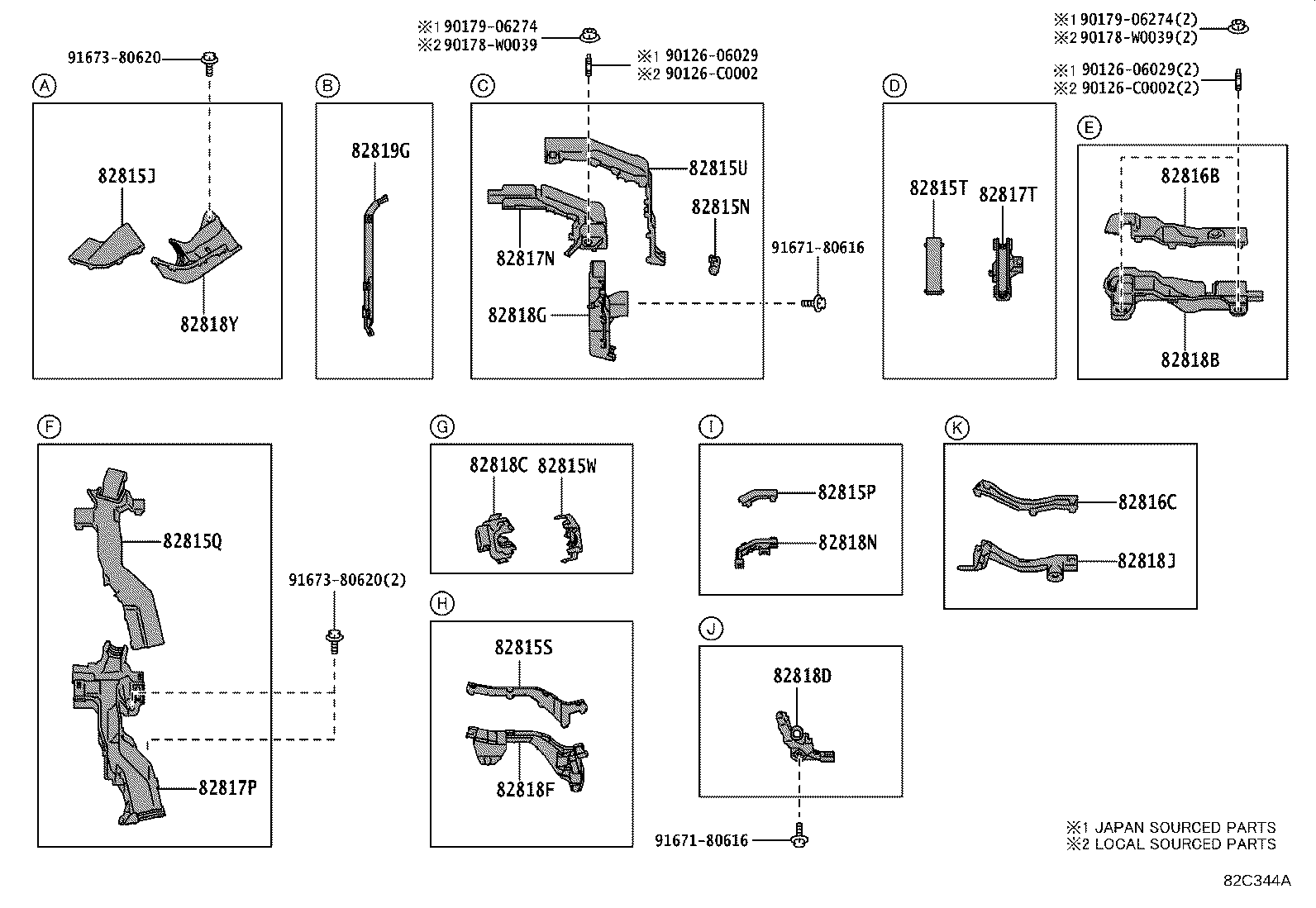

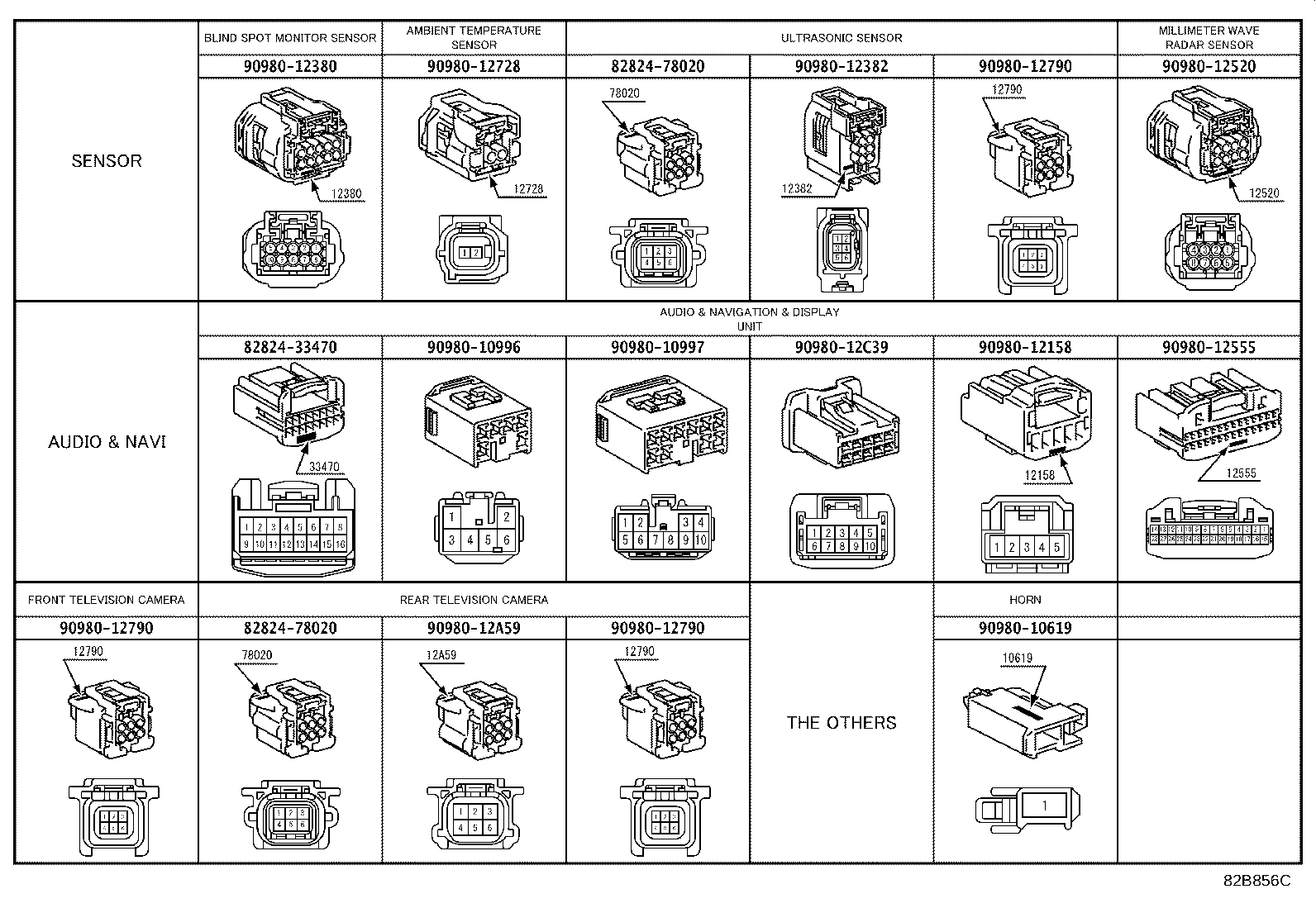

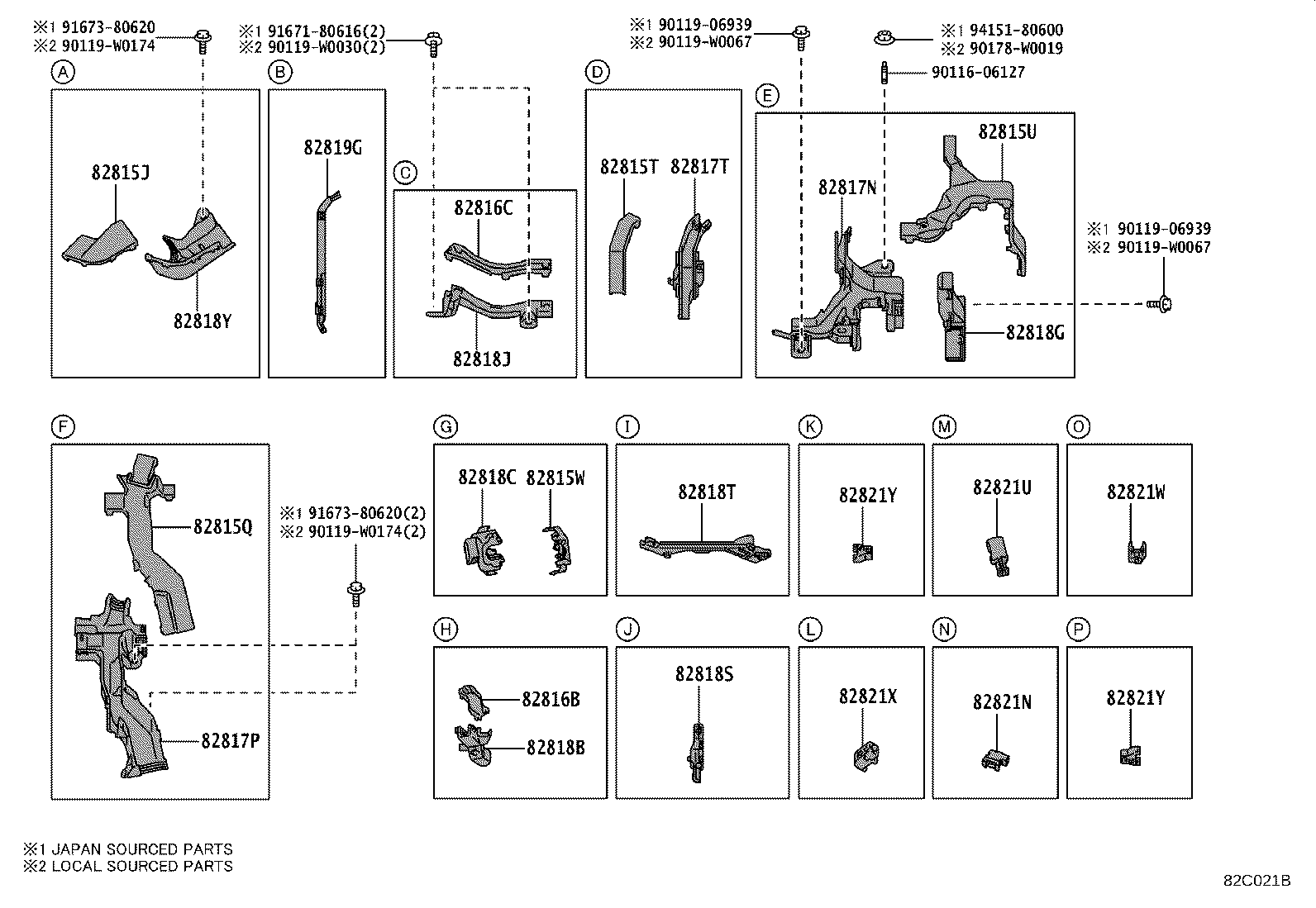

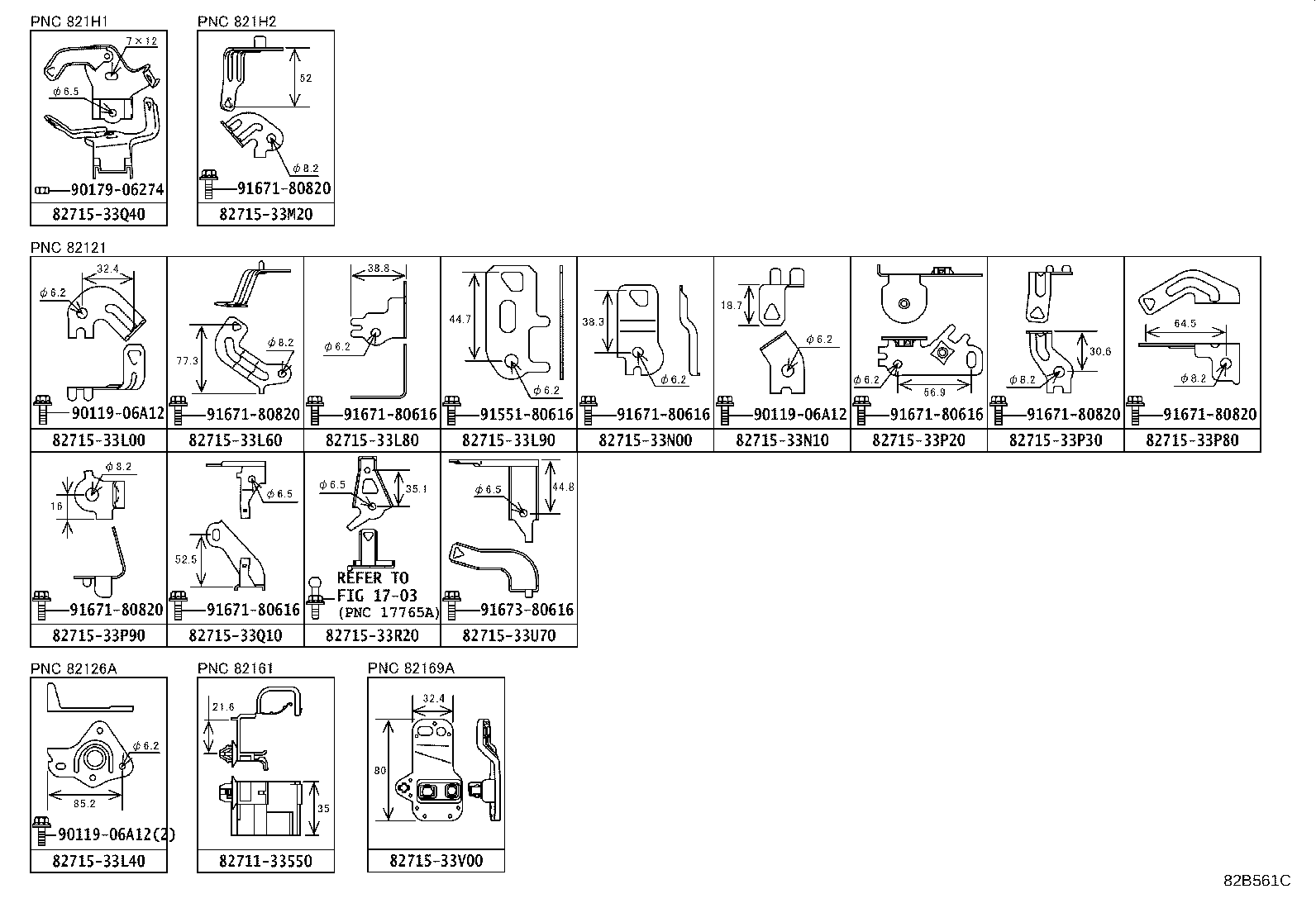

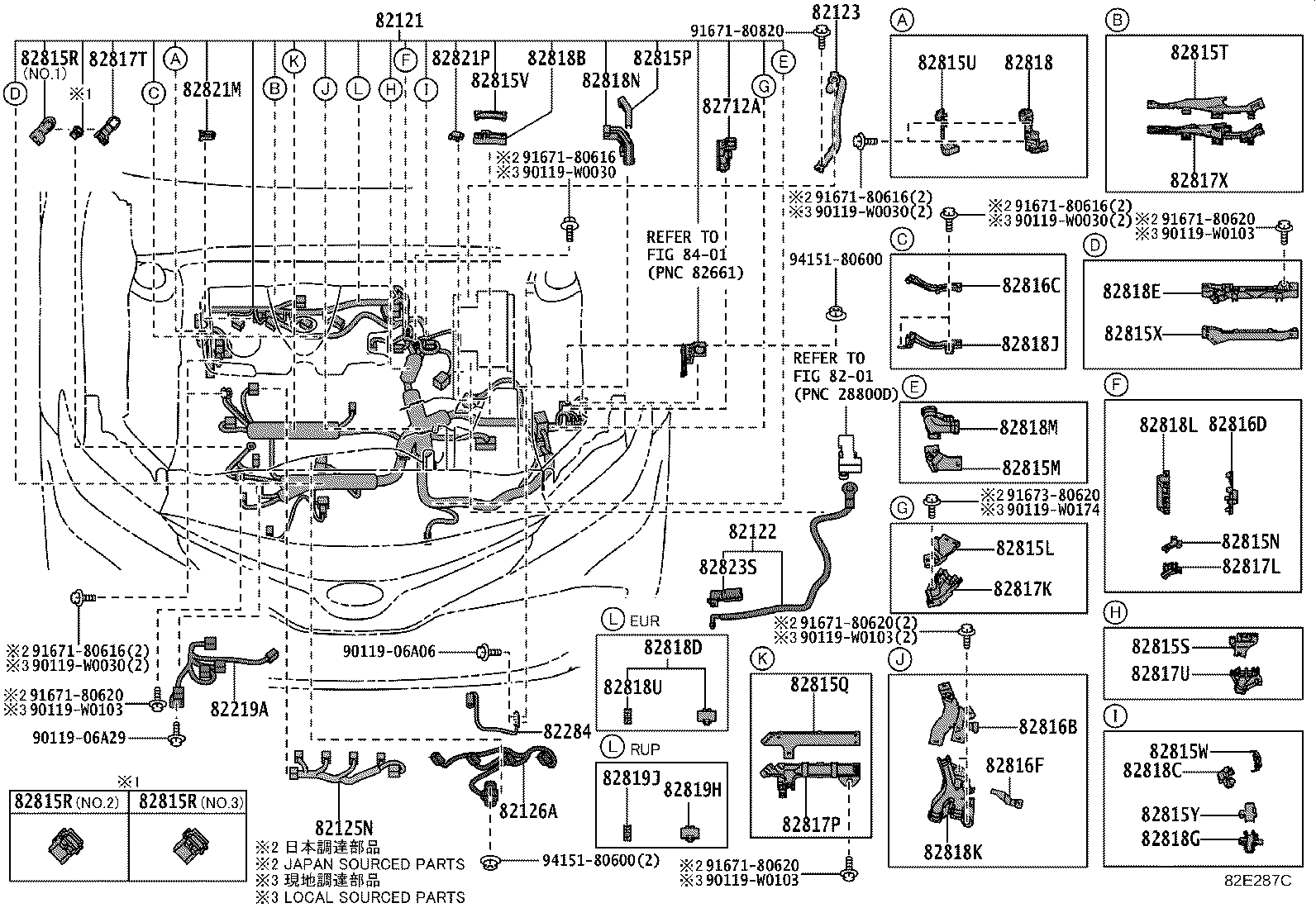

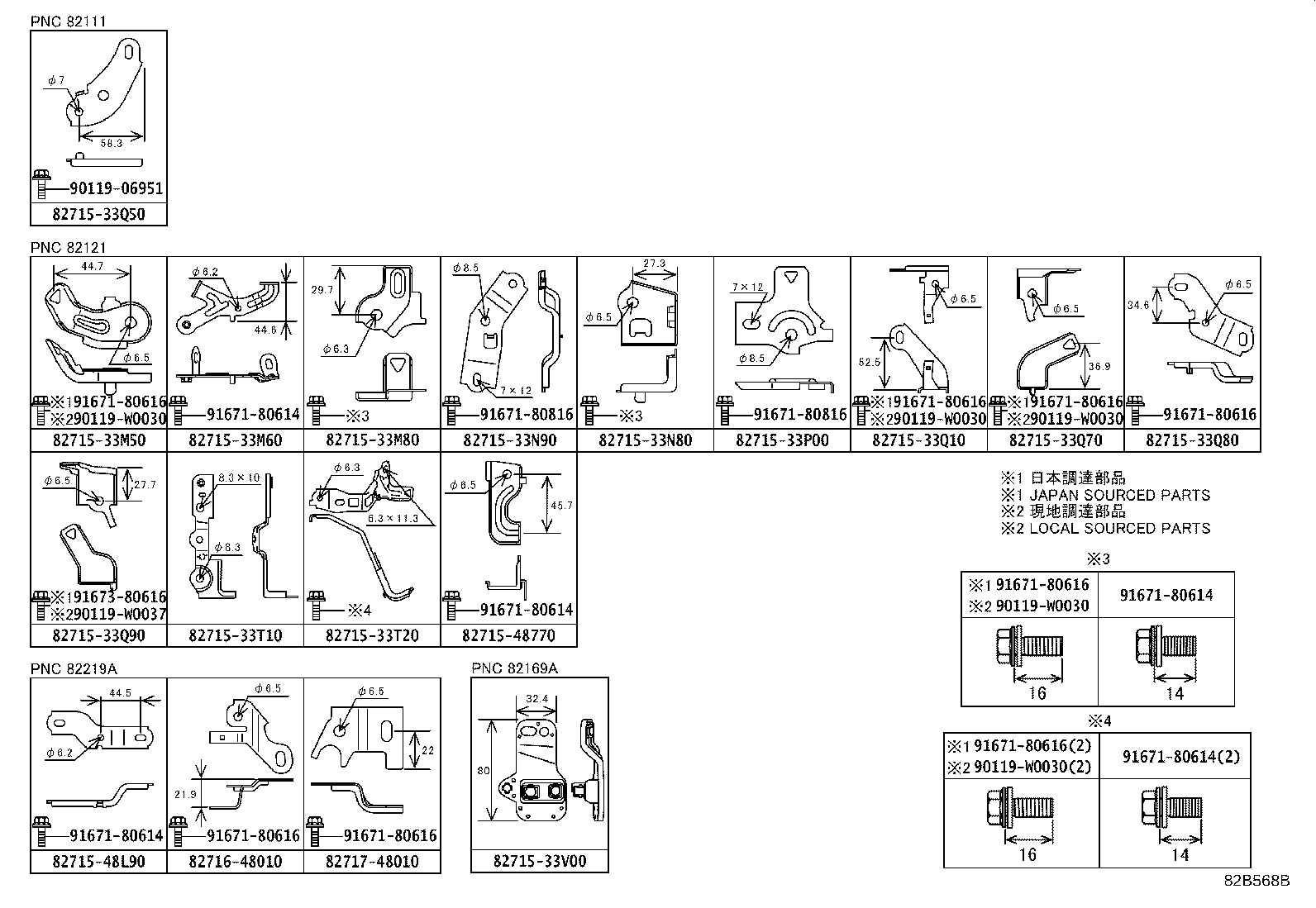

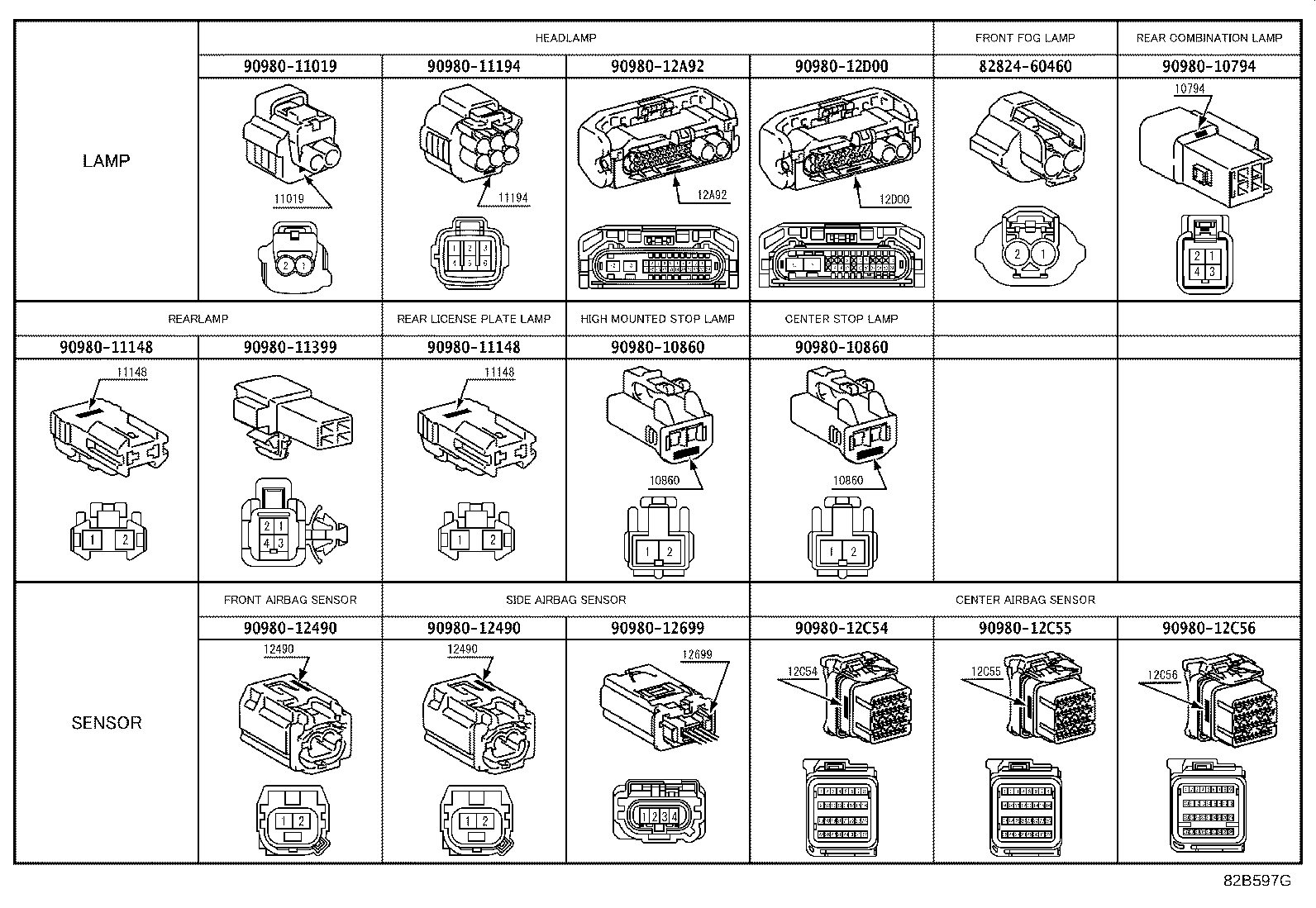

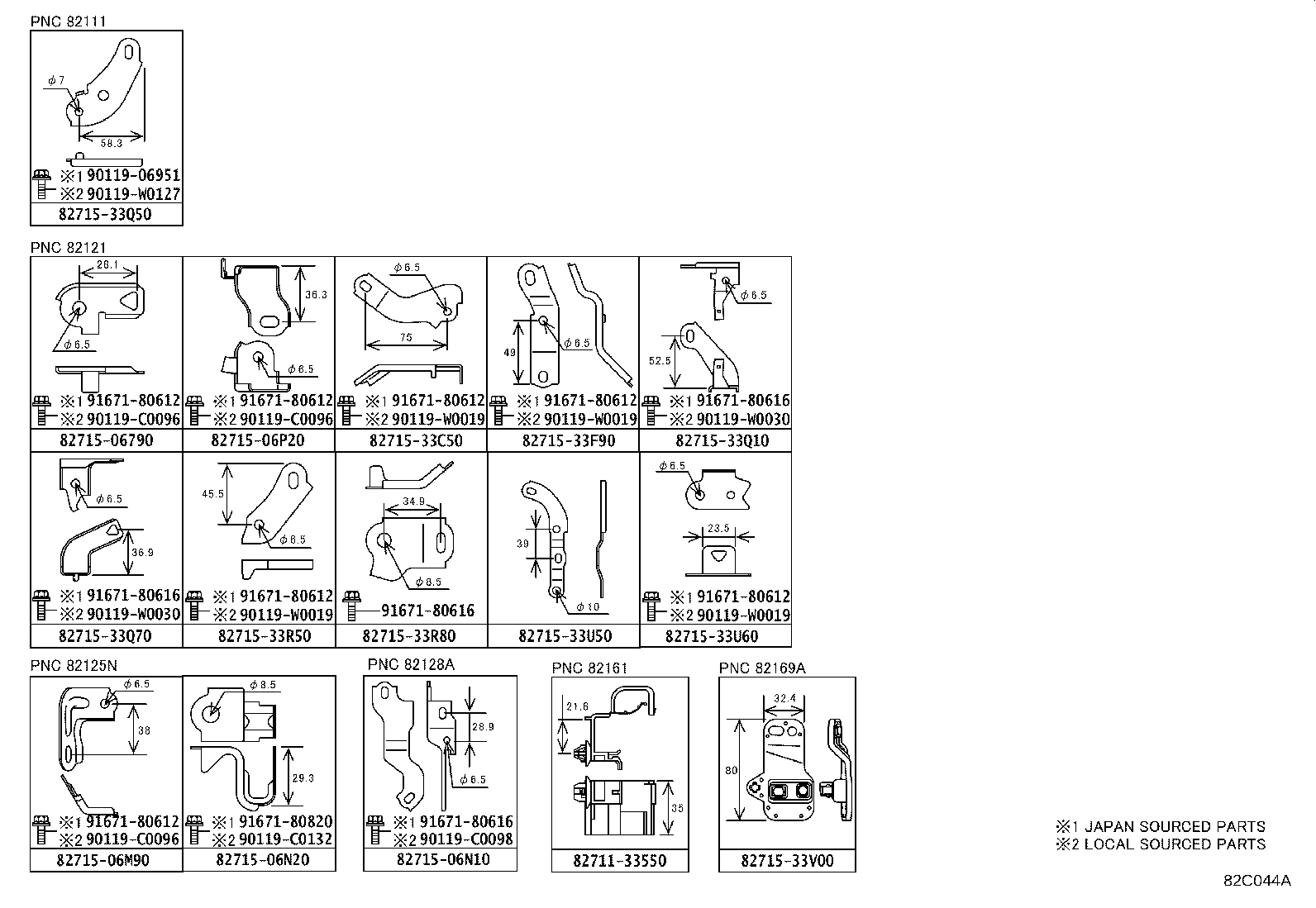

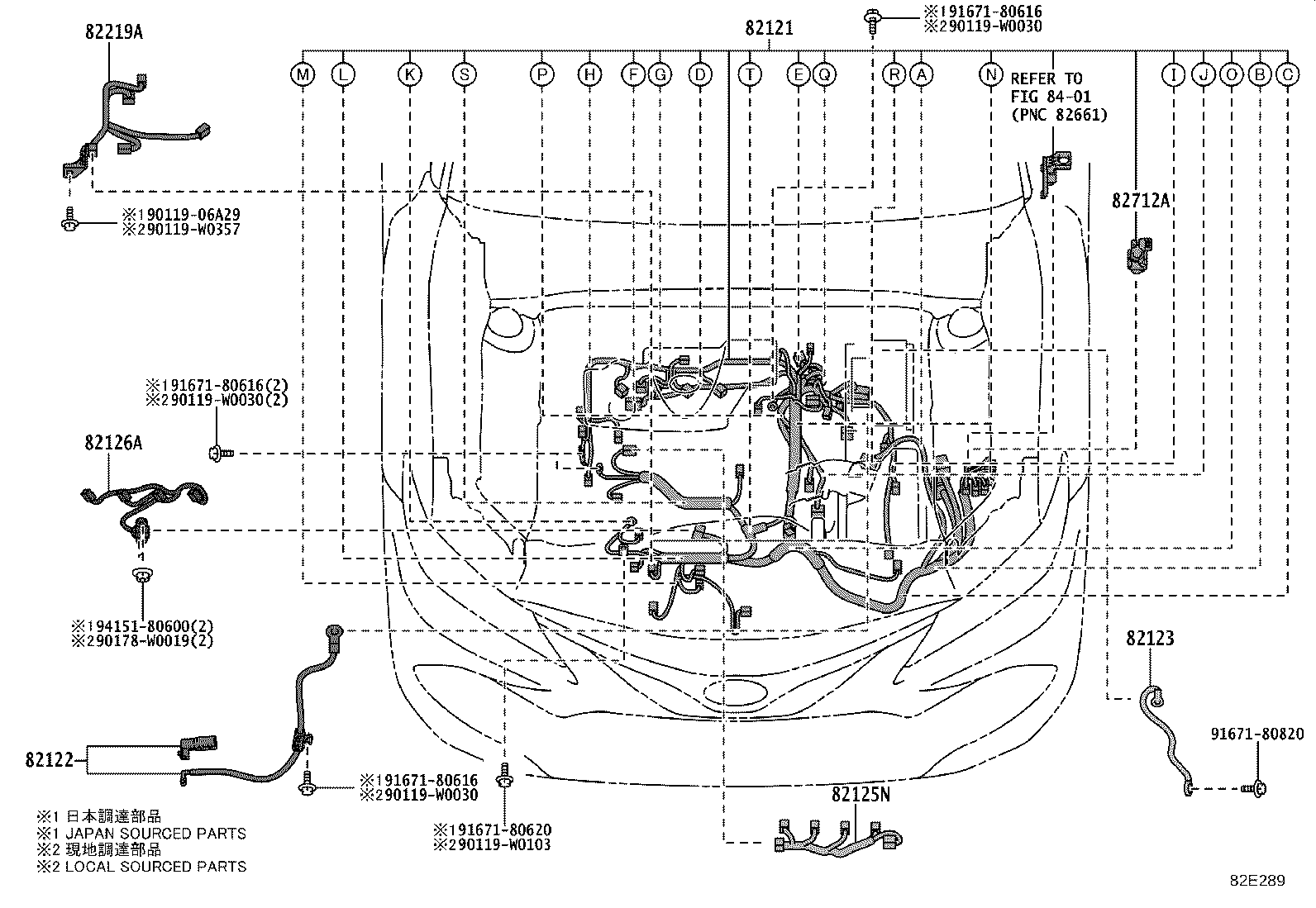

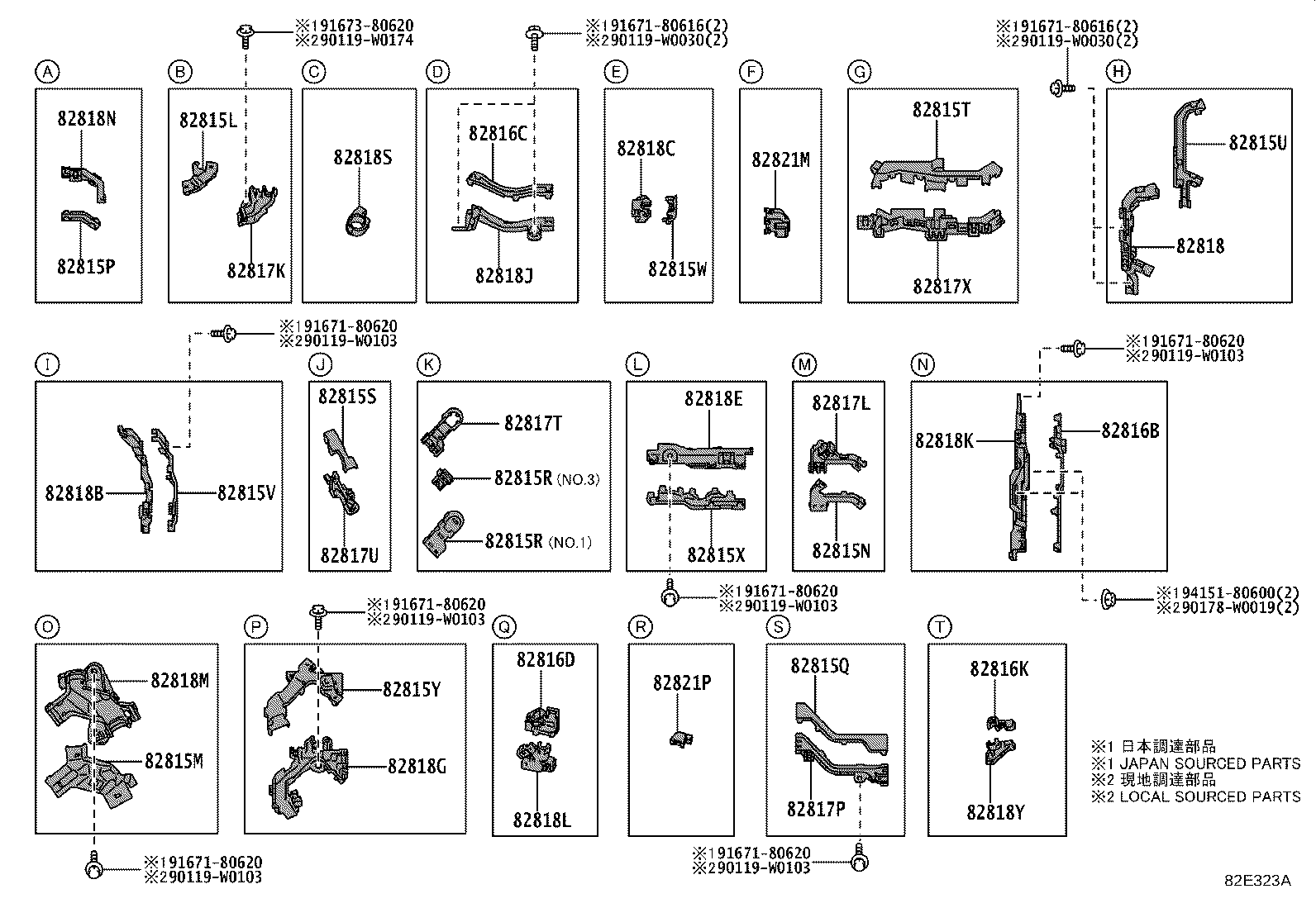

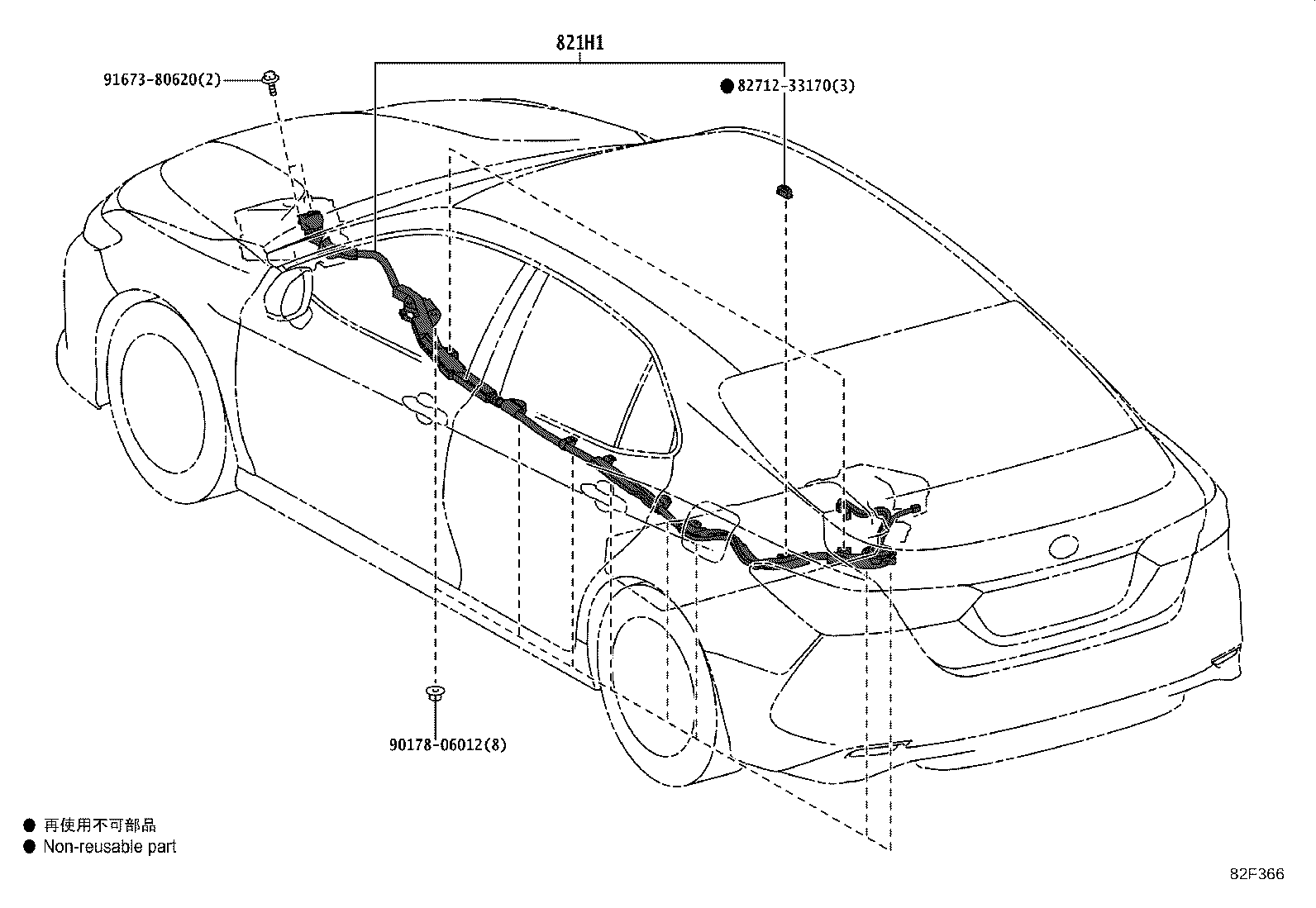

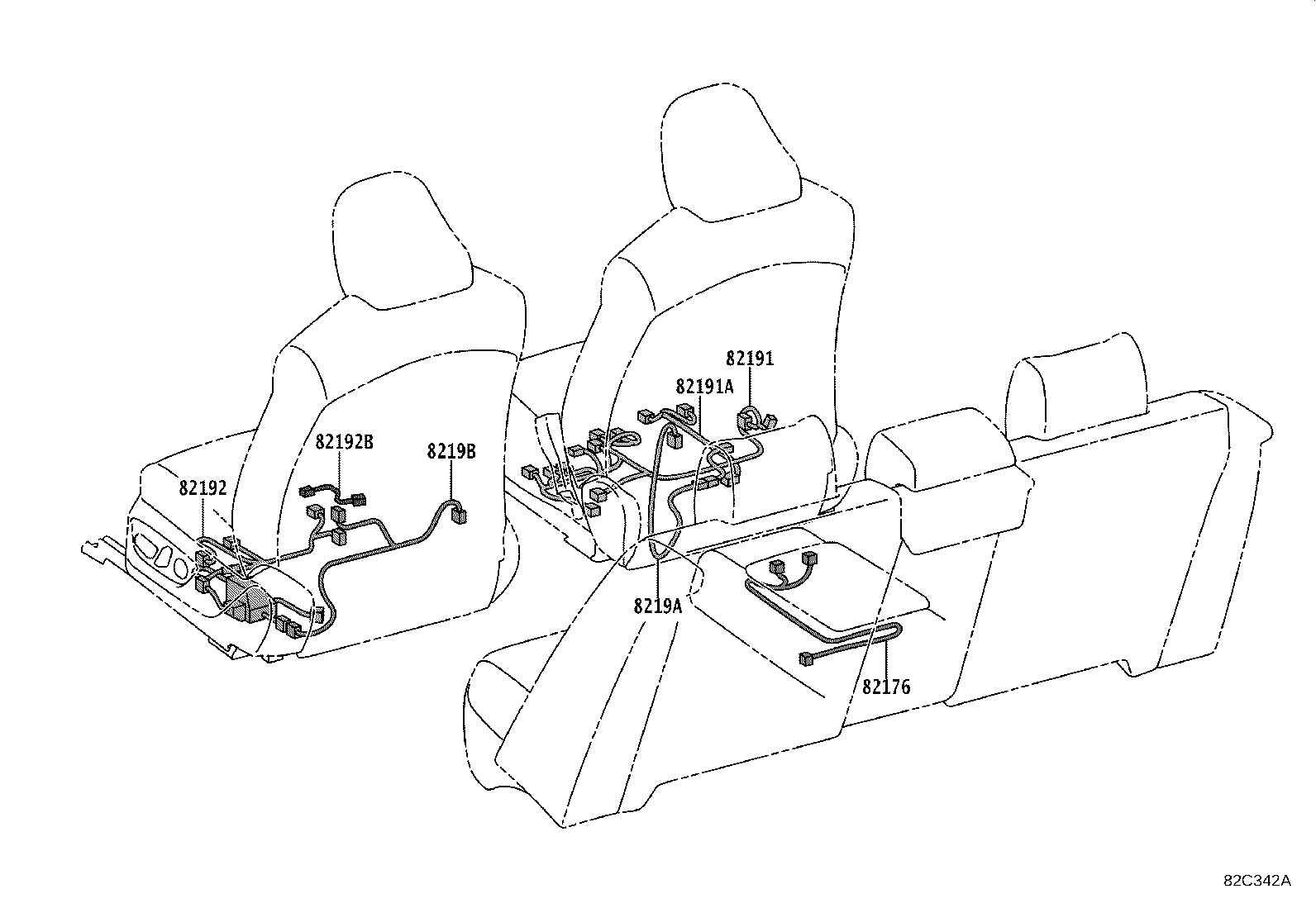

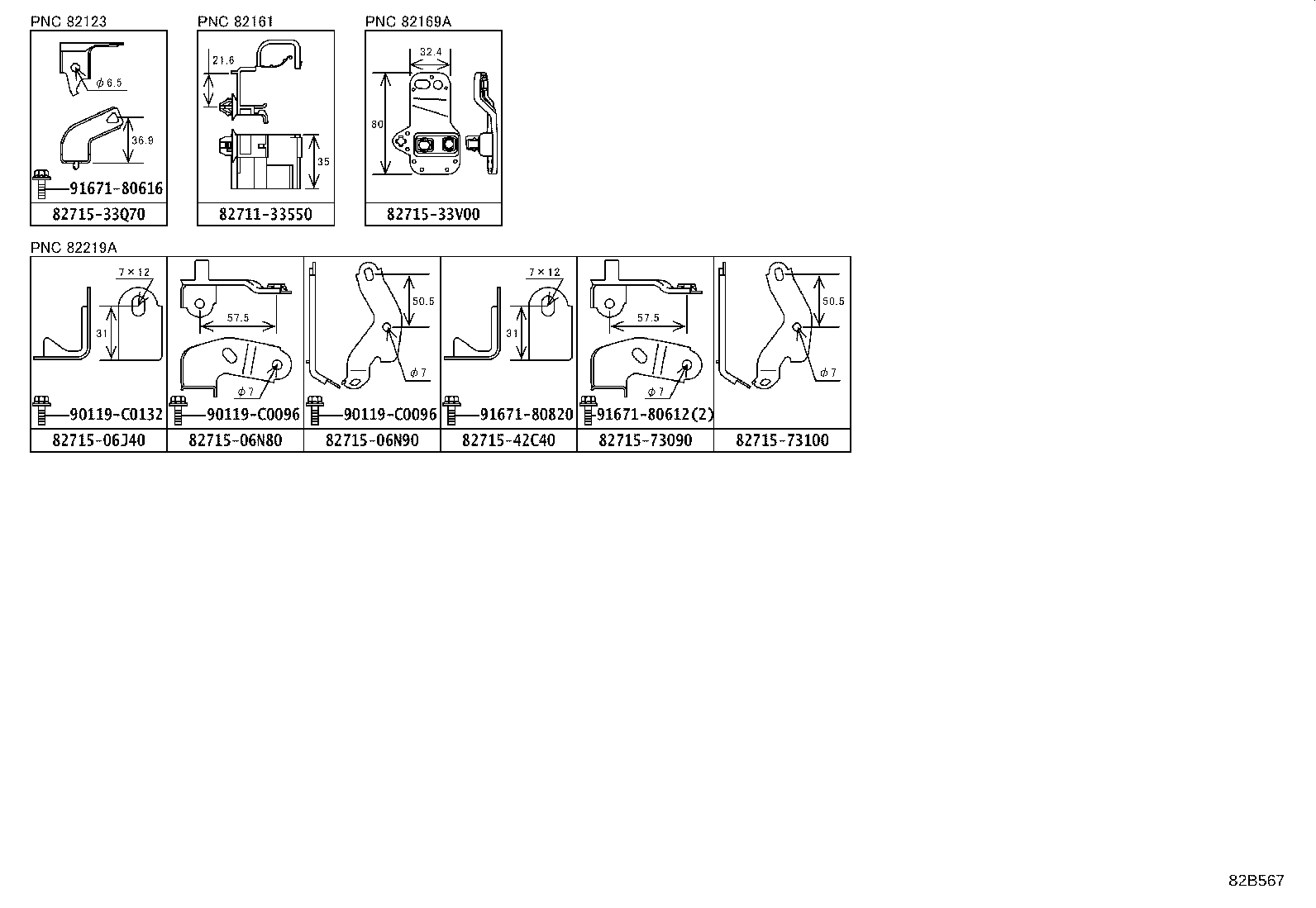

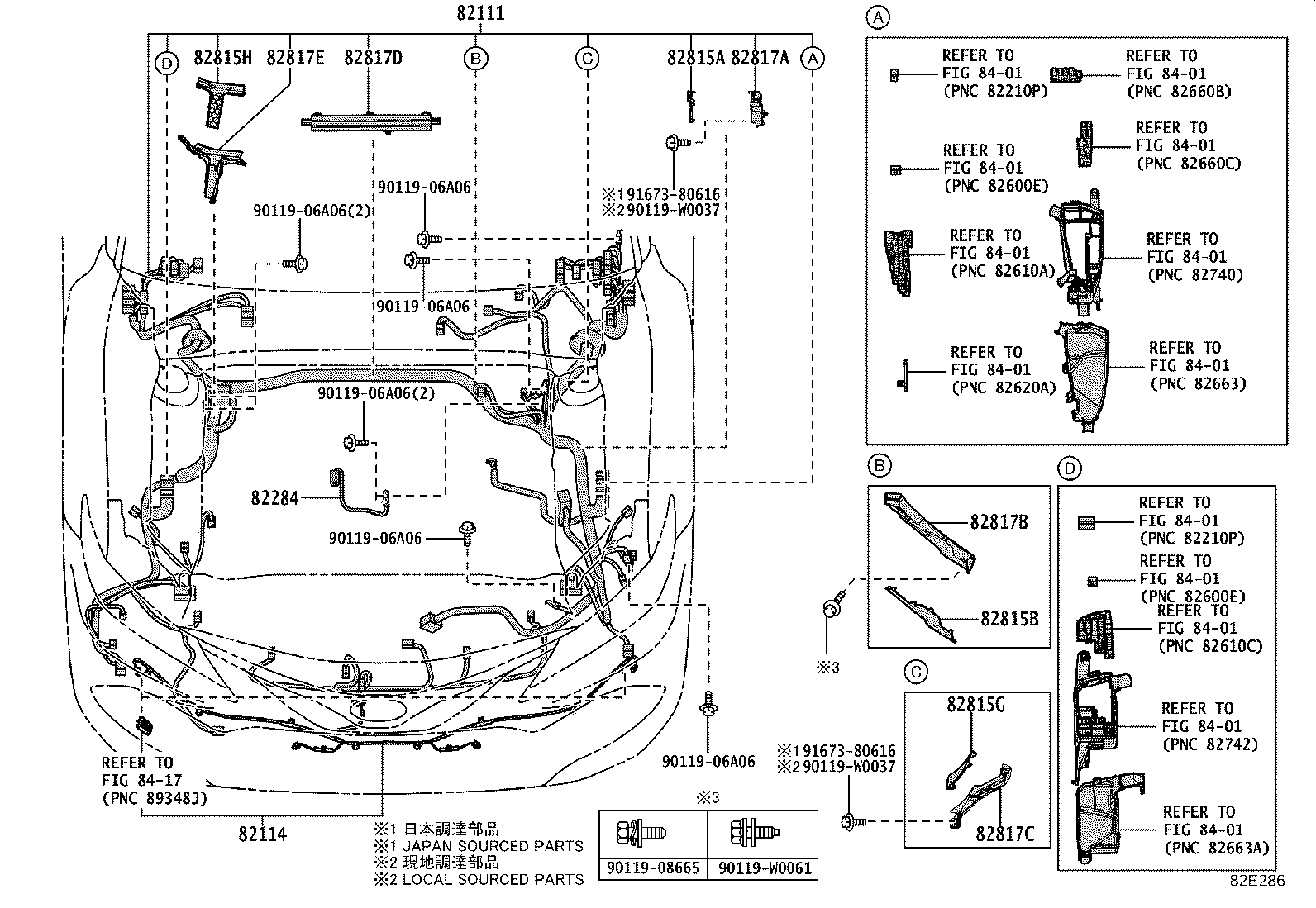

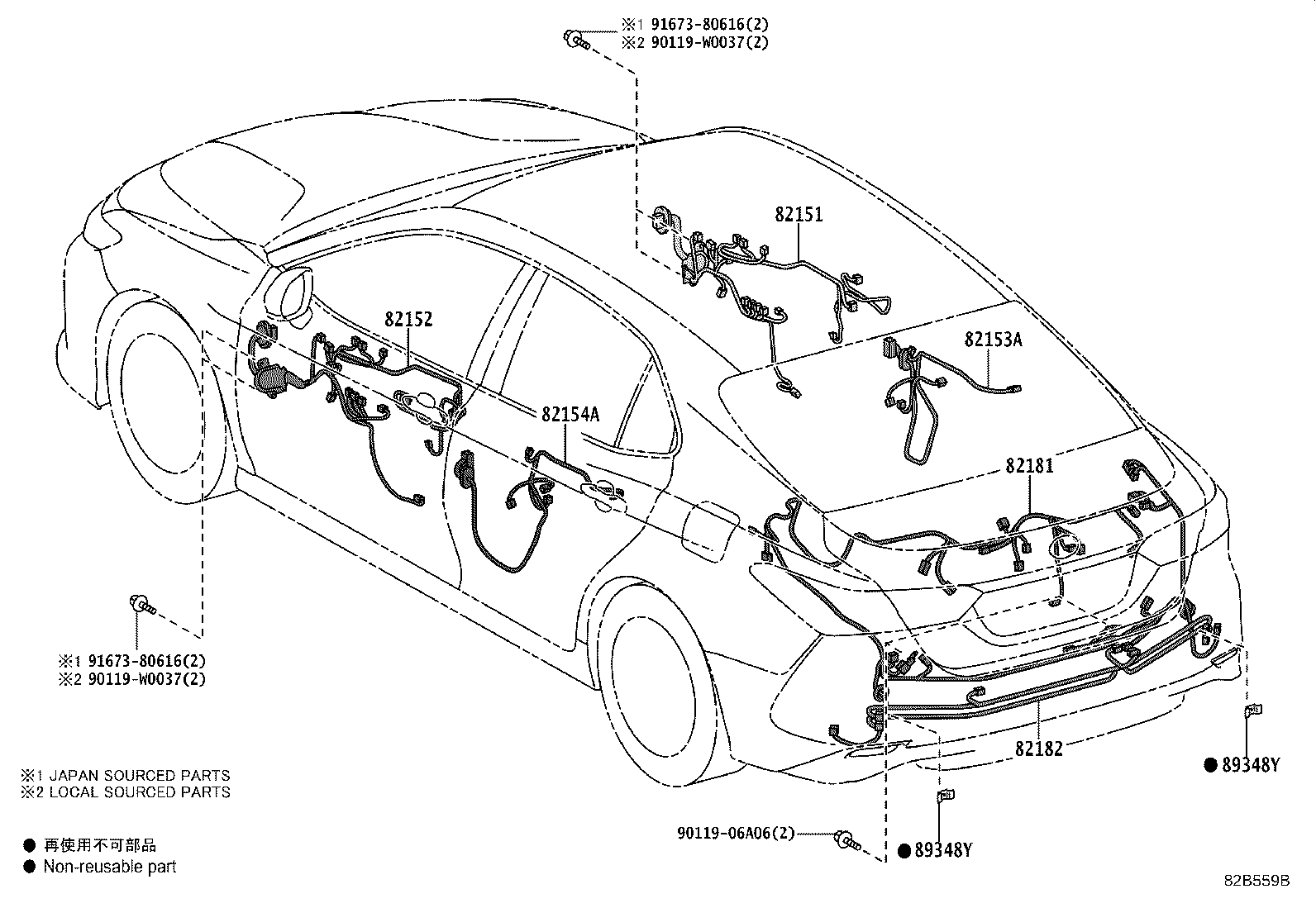

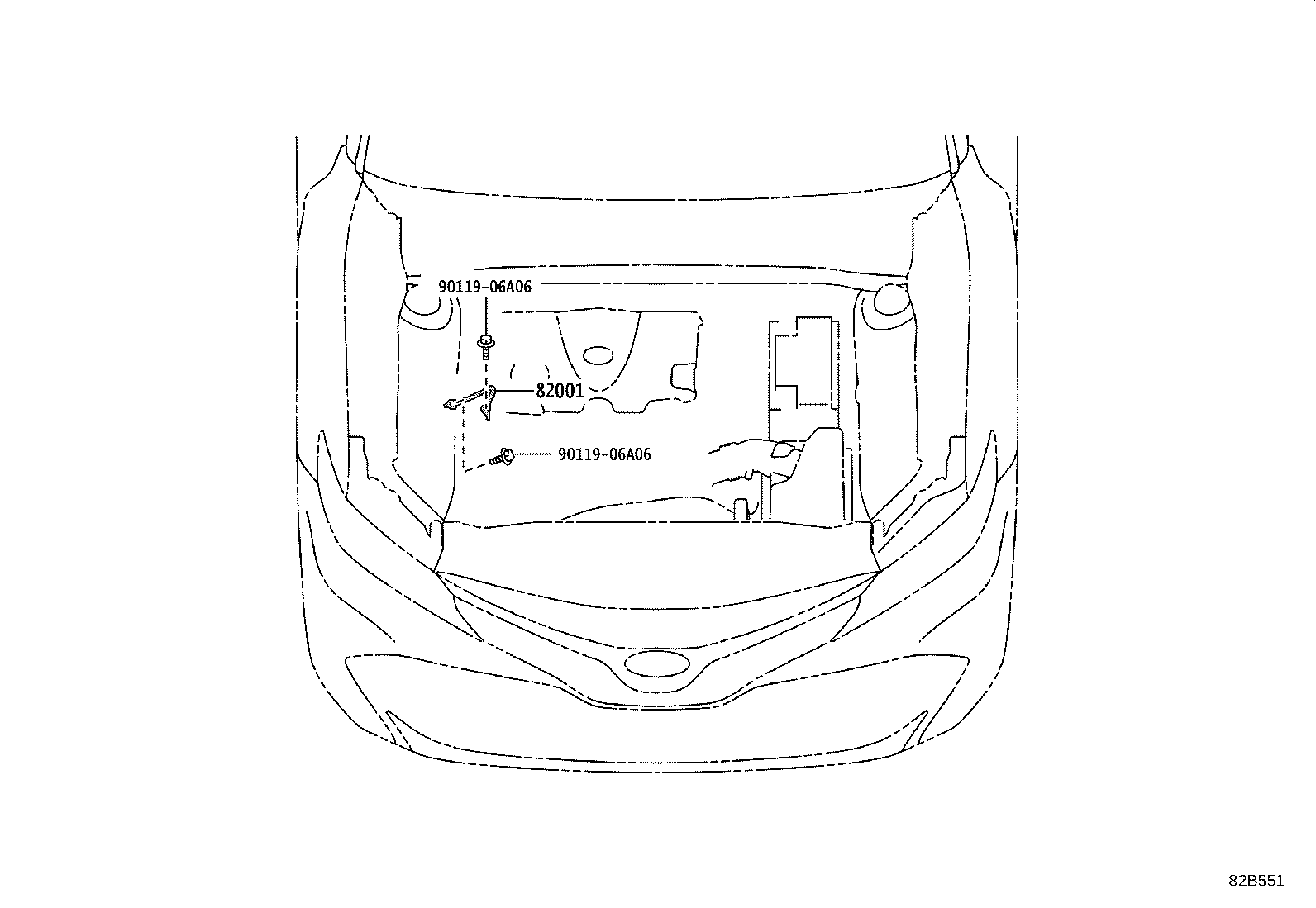

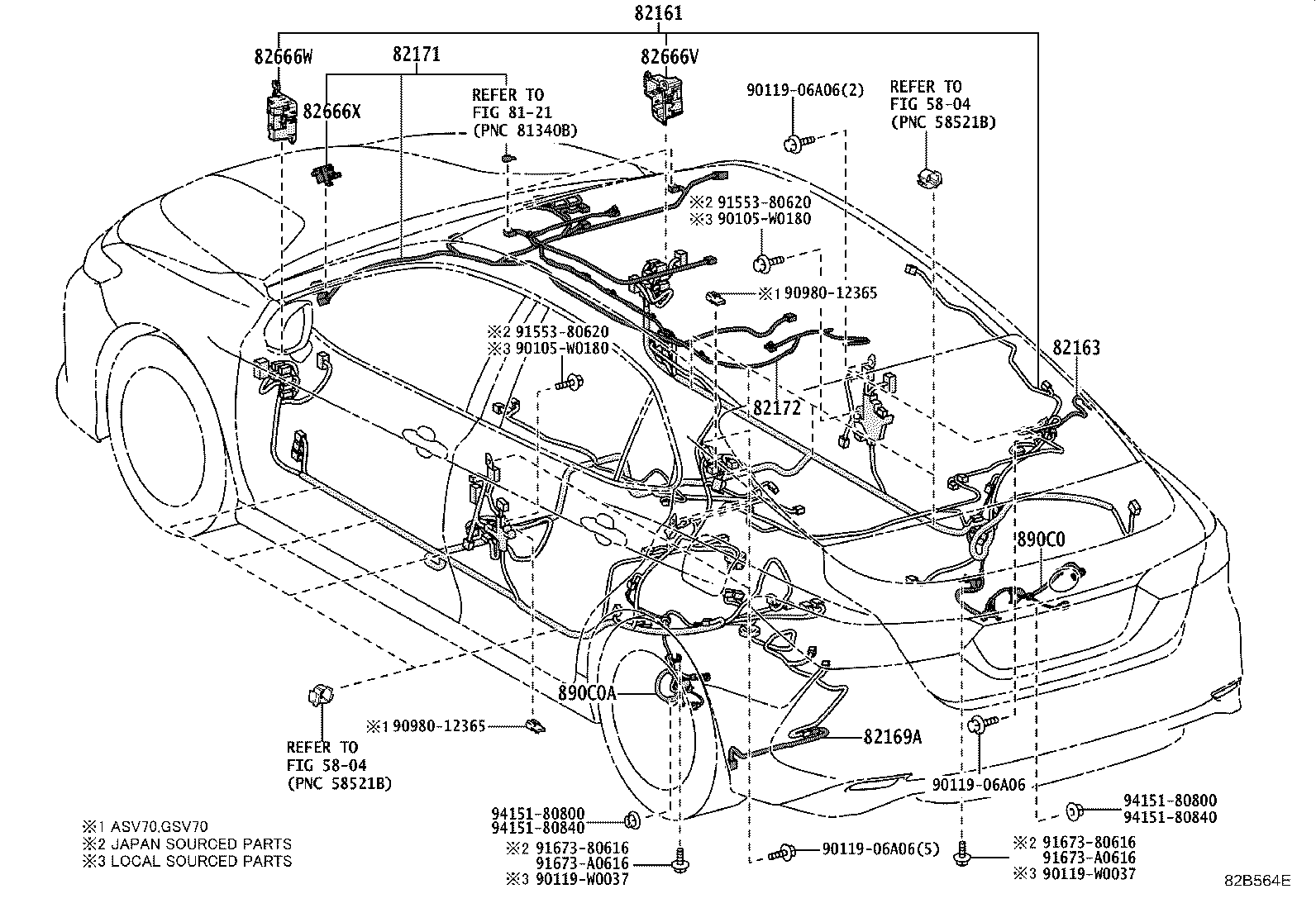

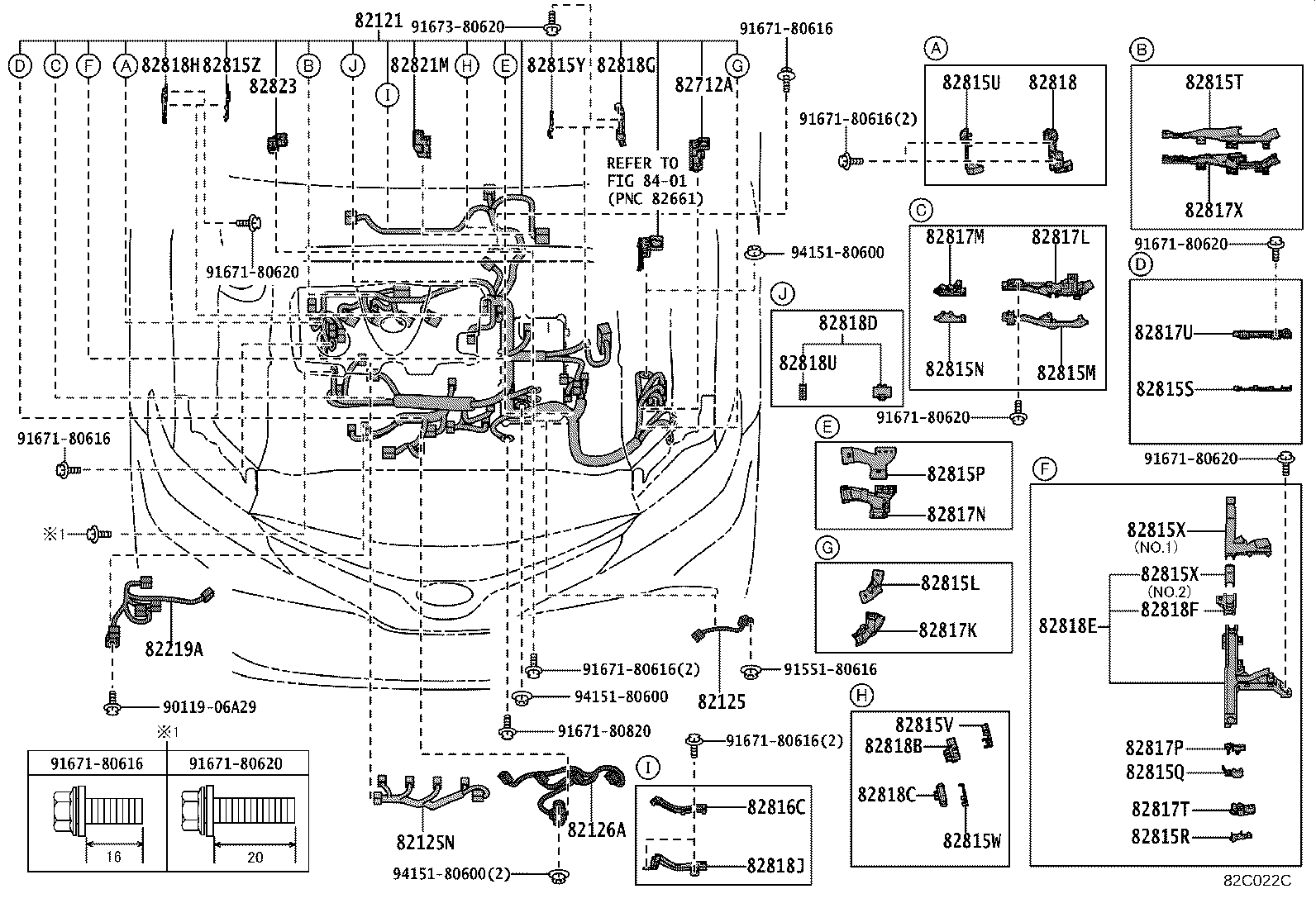

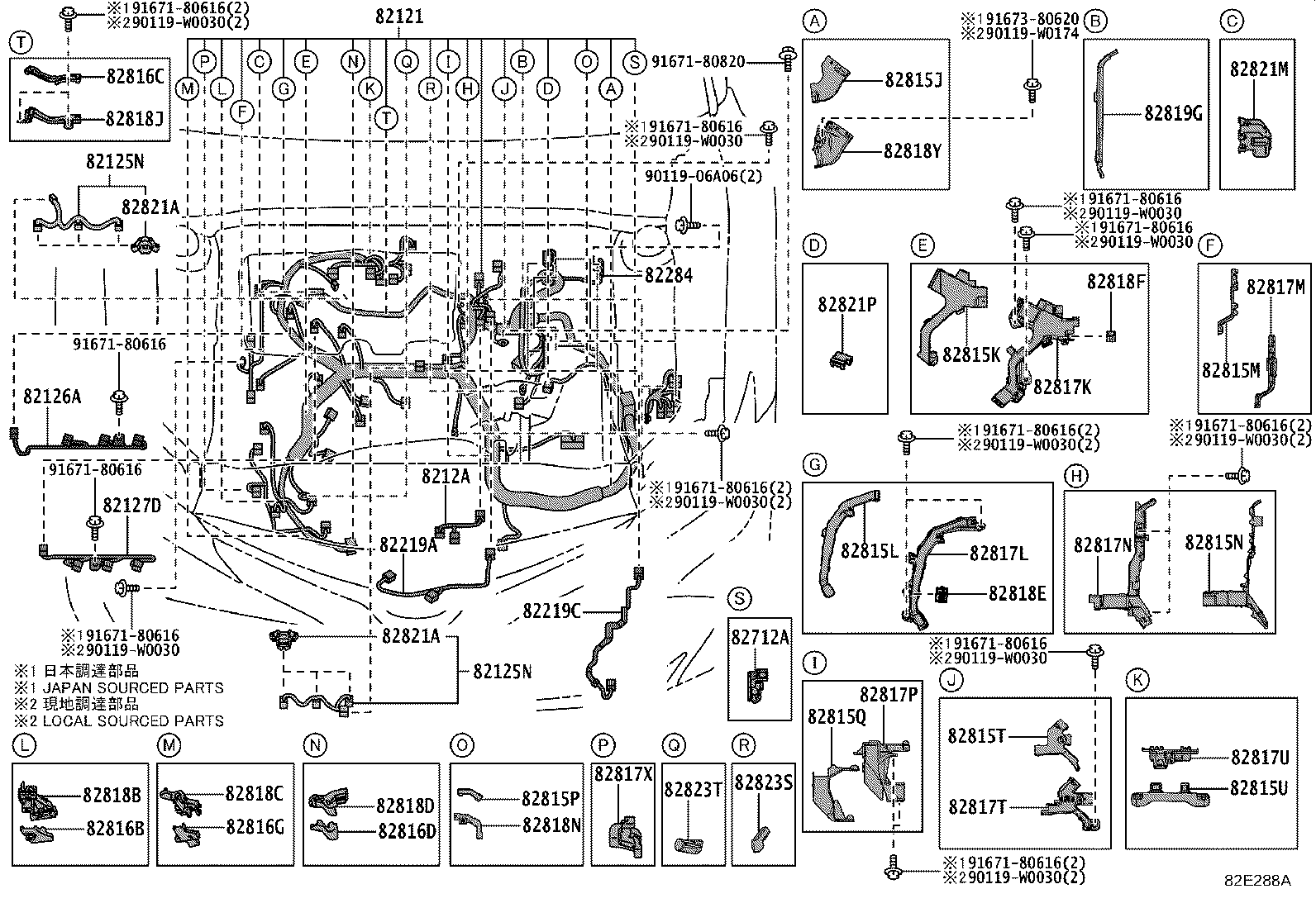

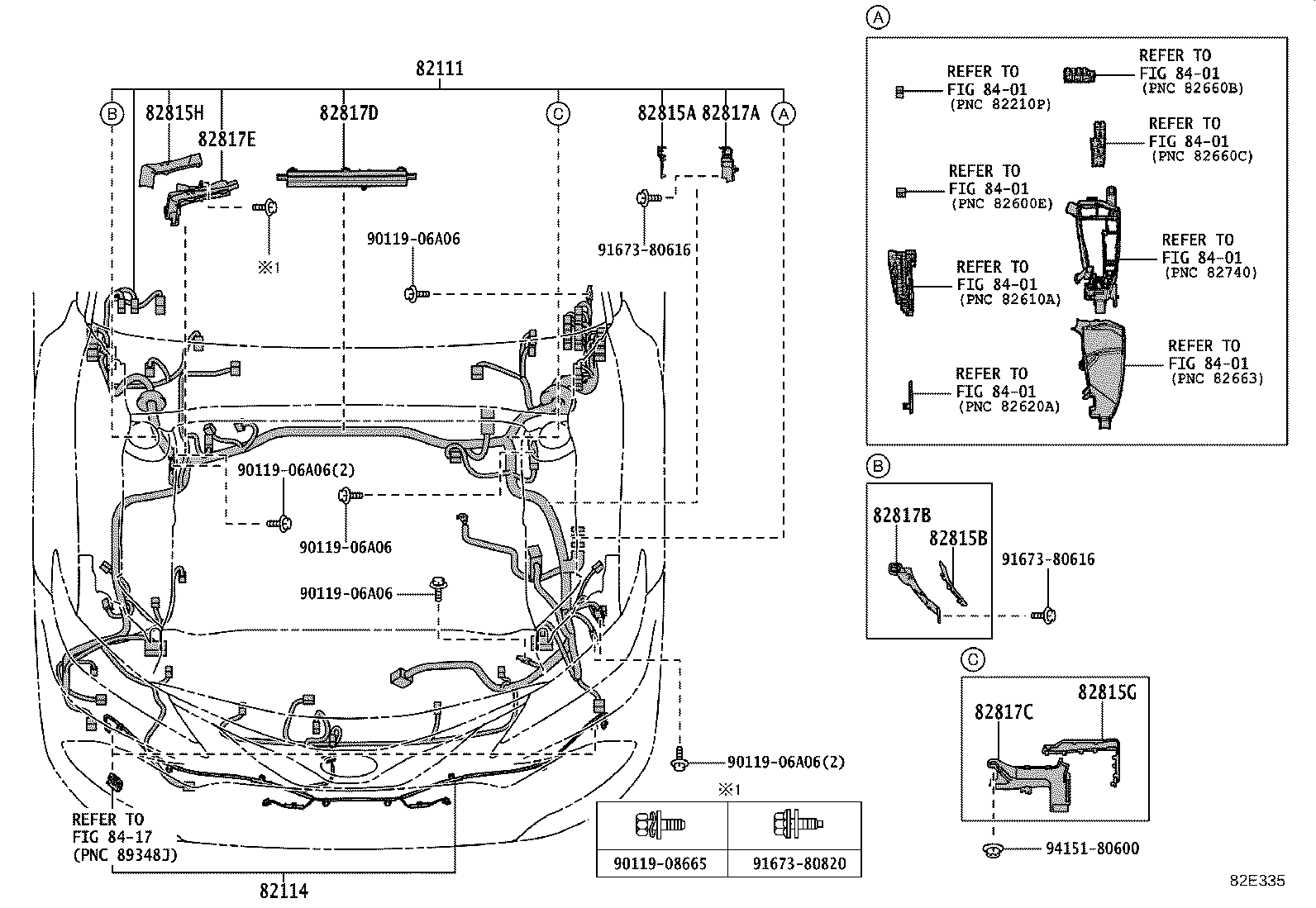

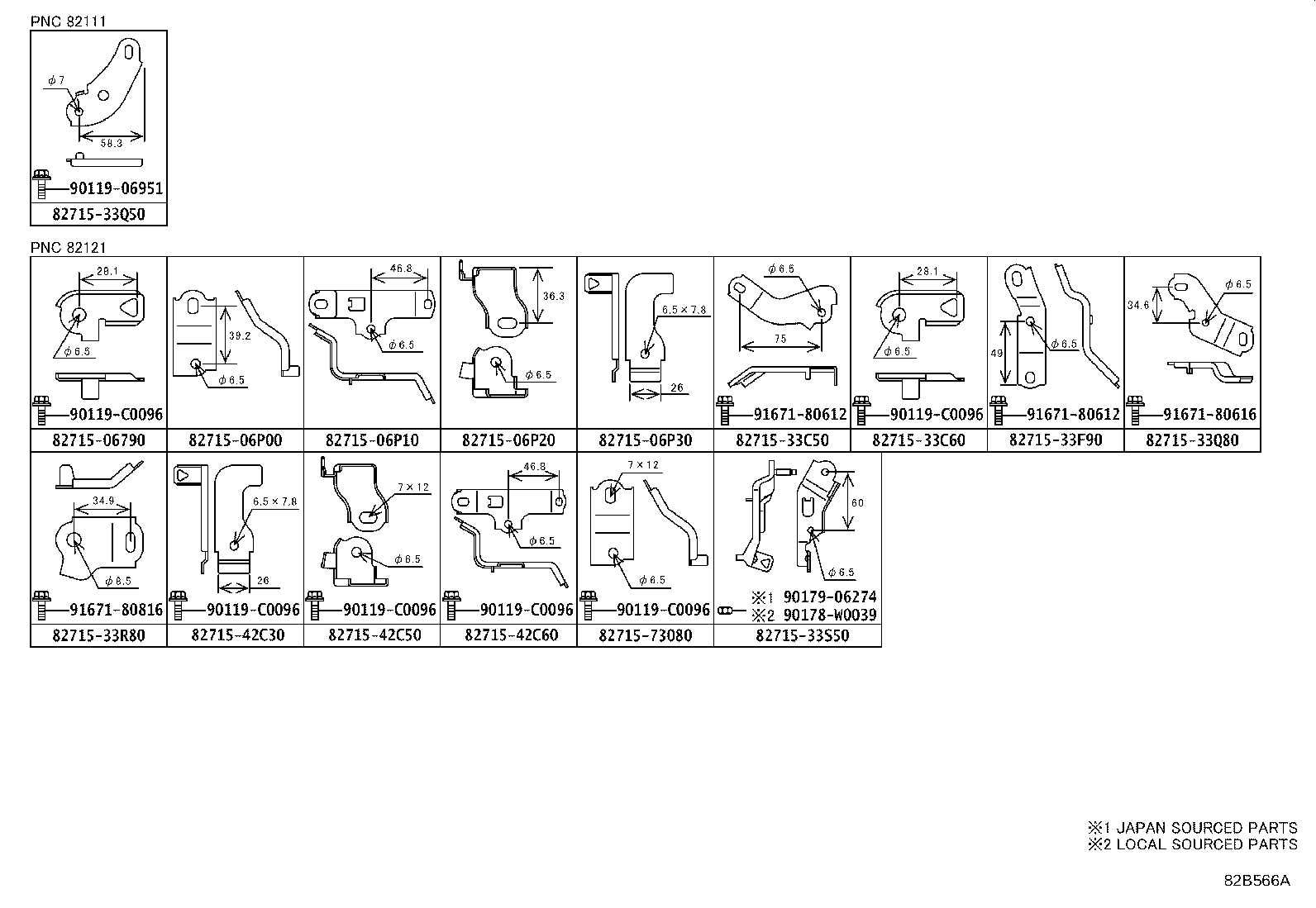

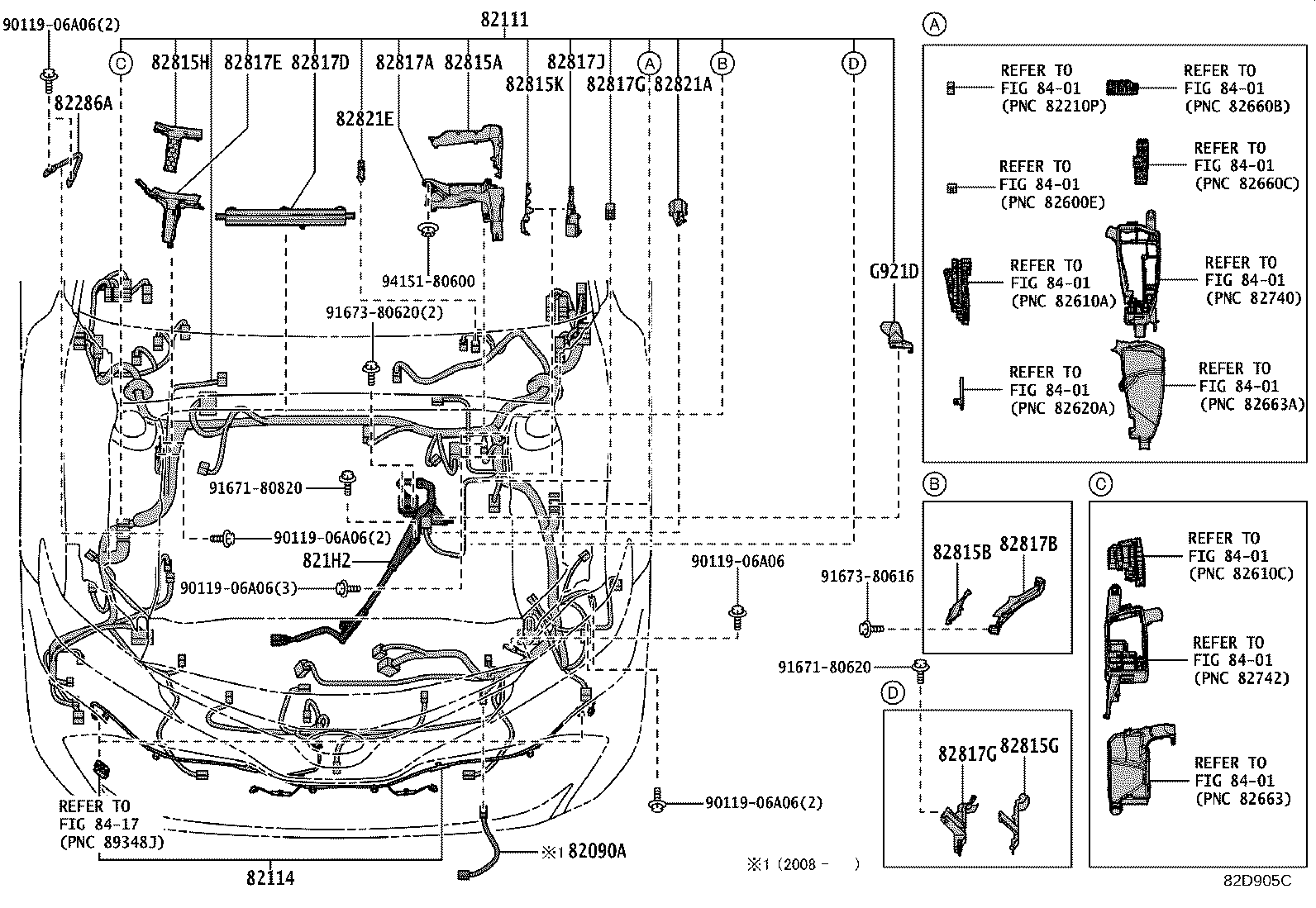

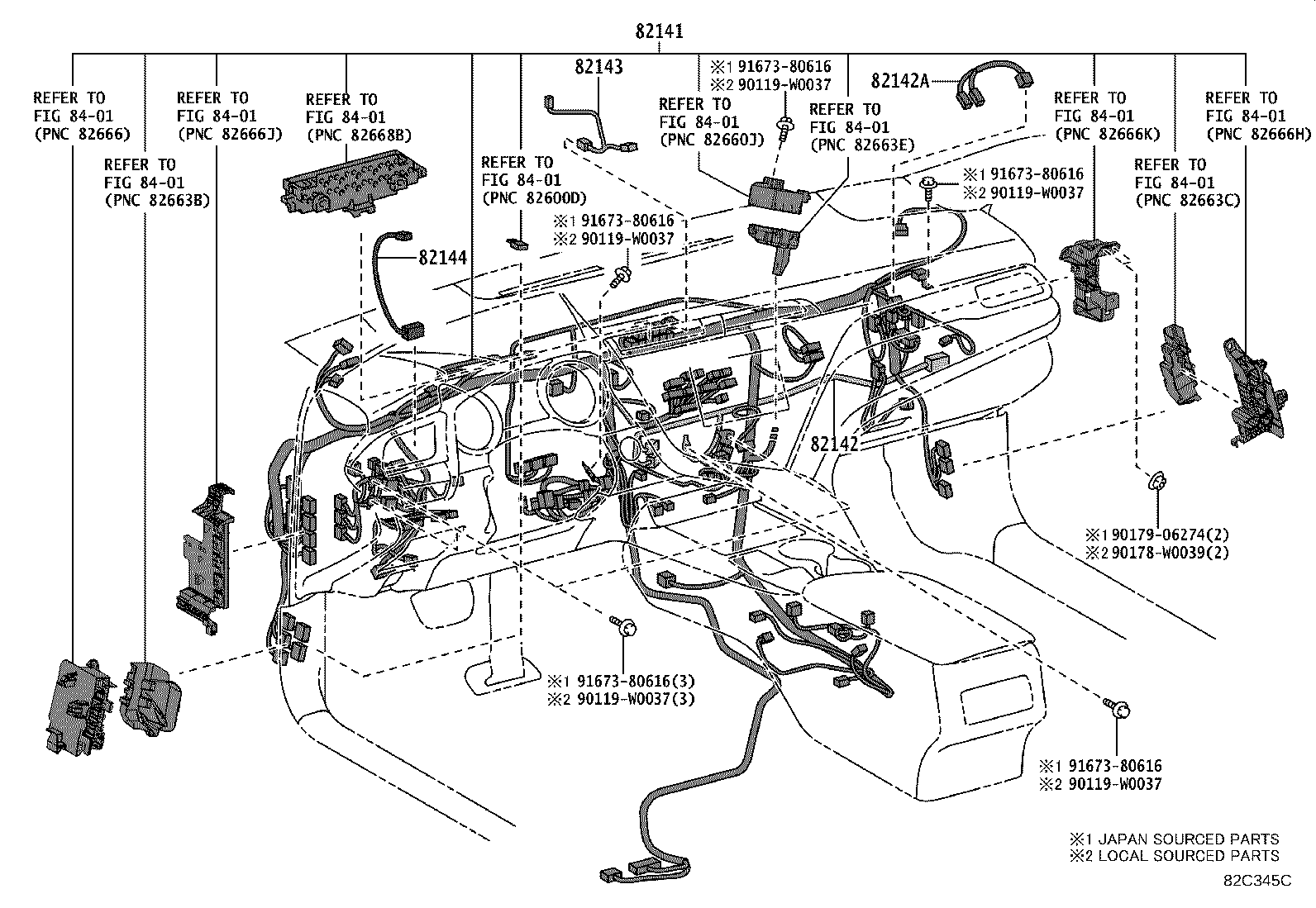

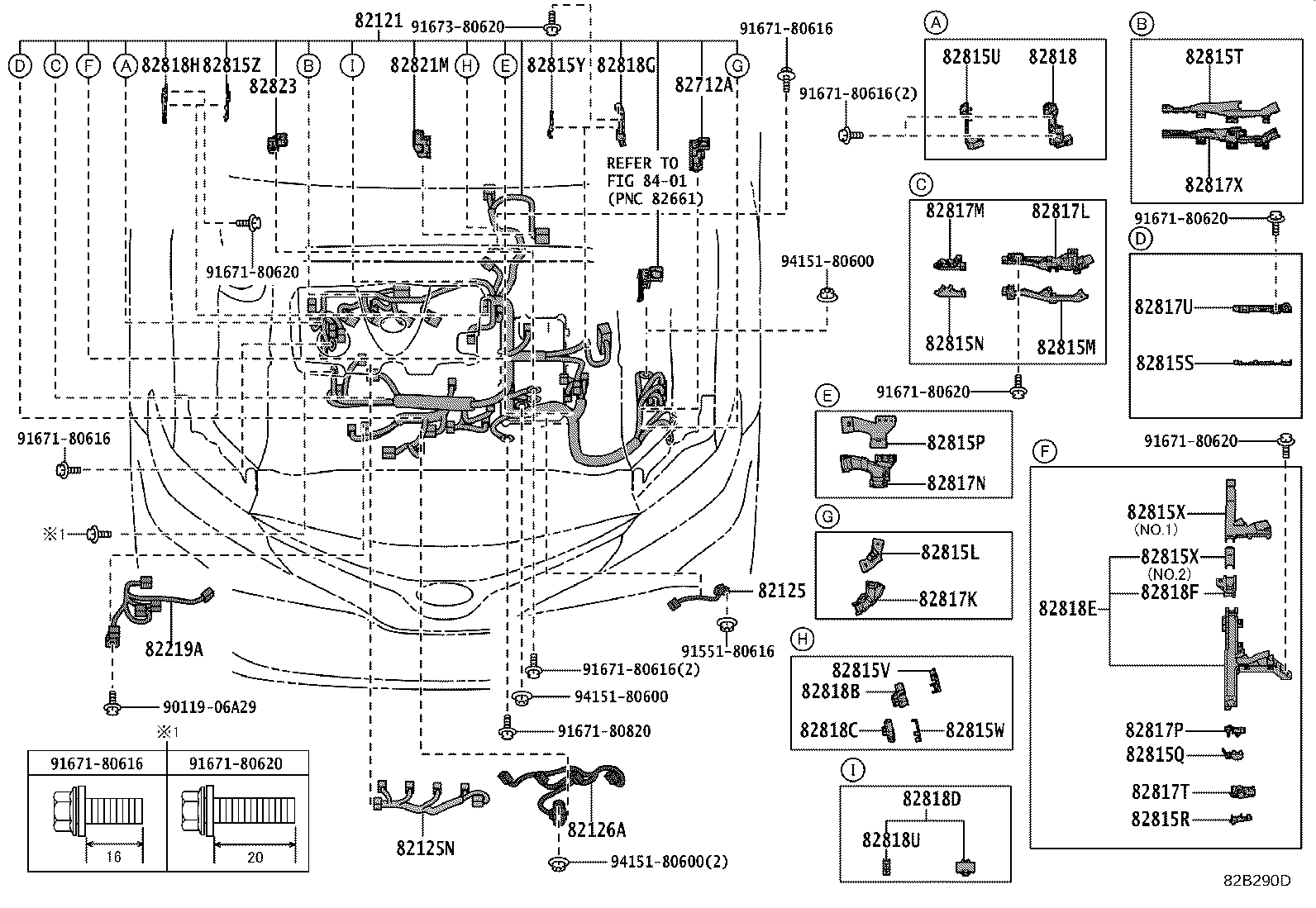

Figure 82B550D 82B550D 2017-09 → — Figure 82D906C 82D906C 2017-09 → — Figure 82D905C 82D905C 2017-09 → — Figure 82E335 82E335 2021-02 → — Figure 82E286 82E286 2021-04 → — Figure 82B507C 82B507C 2017-09 → — Figure 82C344A 82C344A 2017-09 → — Figure 82E287C 82E287C 2017-09 → — Figure 82B290D 82B290D 2017-09 → — Figure 82C022C 82C022C 2017-09 → — Figure 82E288A 82E288A 2017-09 → — Figure 82C020B 82C020B 2018-04 → — Figure 82C021B 82C021B 2018-04 → — Figure 82E289 82E289 2021-04 → — Figure 82E323A 82E323A 2021-04 → — Figure 82C345C 82C345C 2017-09 → — Figure 82B276E 82B276E 2017-09 → — Figure 82B559B 82B559B 2017-09 → — Figure 82B564E 82B564E 2017-09 → — Figure 82B556H 82B556H 2017-09 → — Figure 82F366 82F366 2017-09 → — Figure 82C342A 82C342A 2017-09 → — Figure 82C343 82C343 2017-09 → — Figure 82B566A 82B566A 2017-09 → — Figure 82B567 82B567 2017-09 → — Figure 82B560C 82B560C 2017-09 → — Figure 82B568B 82B568B 2017-09 → — Figure 82B561C 82B561C 2017-09 → — Figure 82C044A 82C044A 2018-04 → — Figure 82E291A 82E291A 2021-04 → — Figure 82B551 82B551 2017-09 → — Figure 82B597G 82B597G 2017-09 → — Figure 82B856C 82B856C 2017-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82090A Wire Assy, Extension
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
8212A Wire, Engine, NO.9
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82165 Wire, Frame, NO.2
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82176 Wire, Rear Console Box
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219A Wire, Sensor
82219C Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816K Cover, Wiring Harness Protector, NO.8
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818Y Protector, Wiring Harness, NO.21
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82821A Cover, Connector
82821E Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821U Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82821Y Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824D Connector, Wiring Harness
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348Y Clip, Ultrasonic Sensor, Rear
G921D Protector, Inverter Connector Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
