Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

146 part groups · 19 illustrations

Illustrations

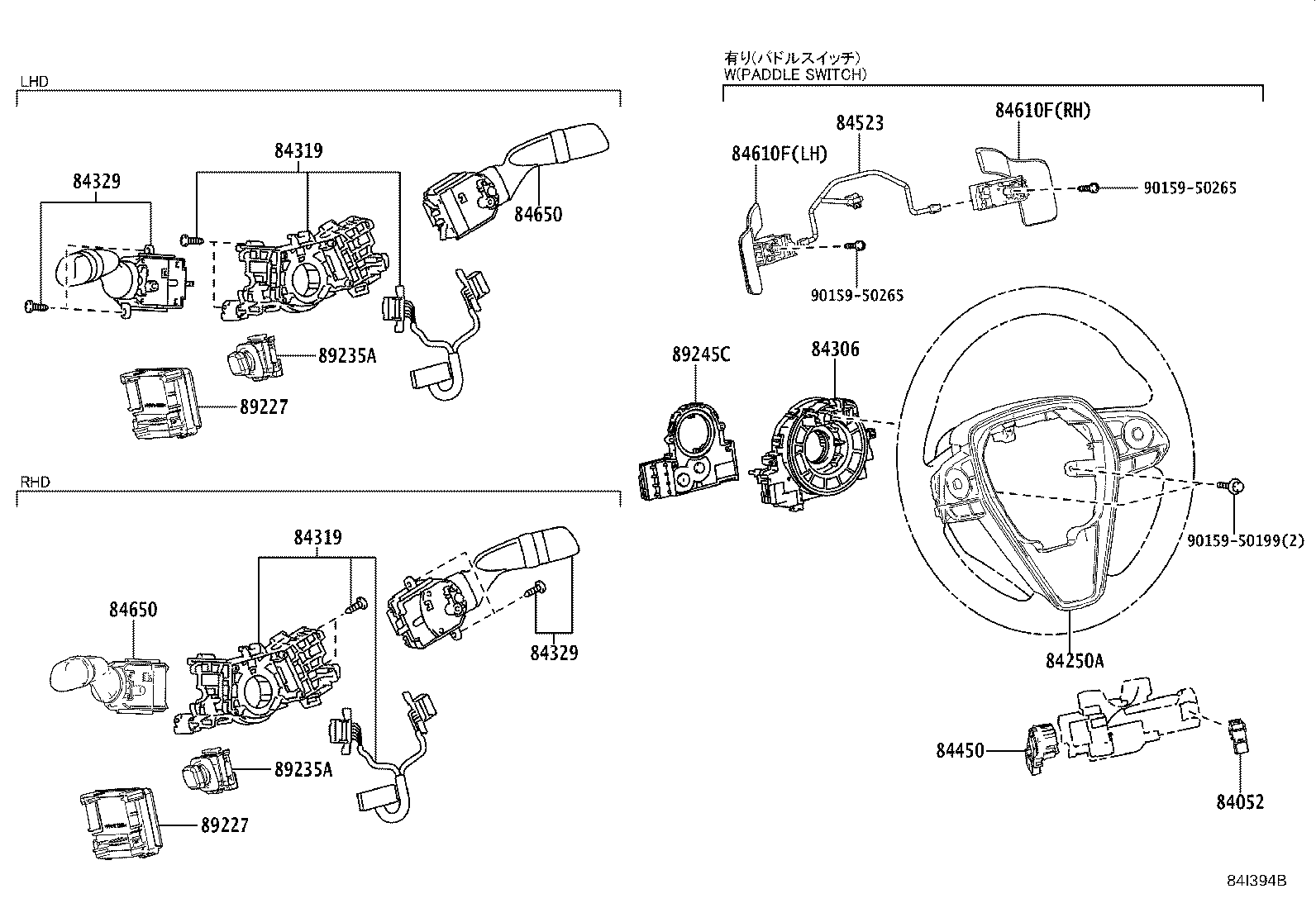

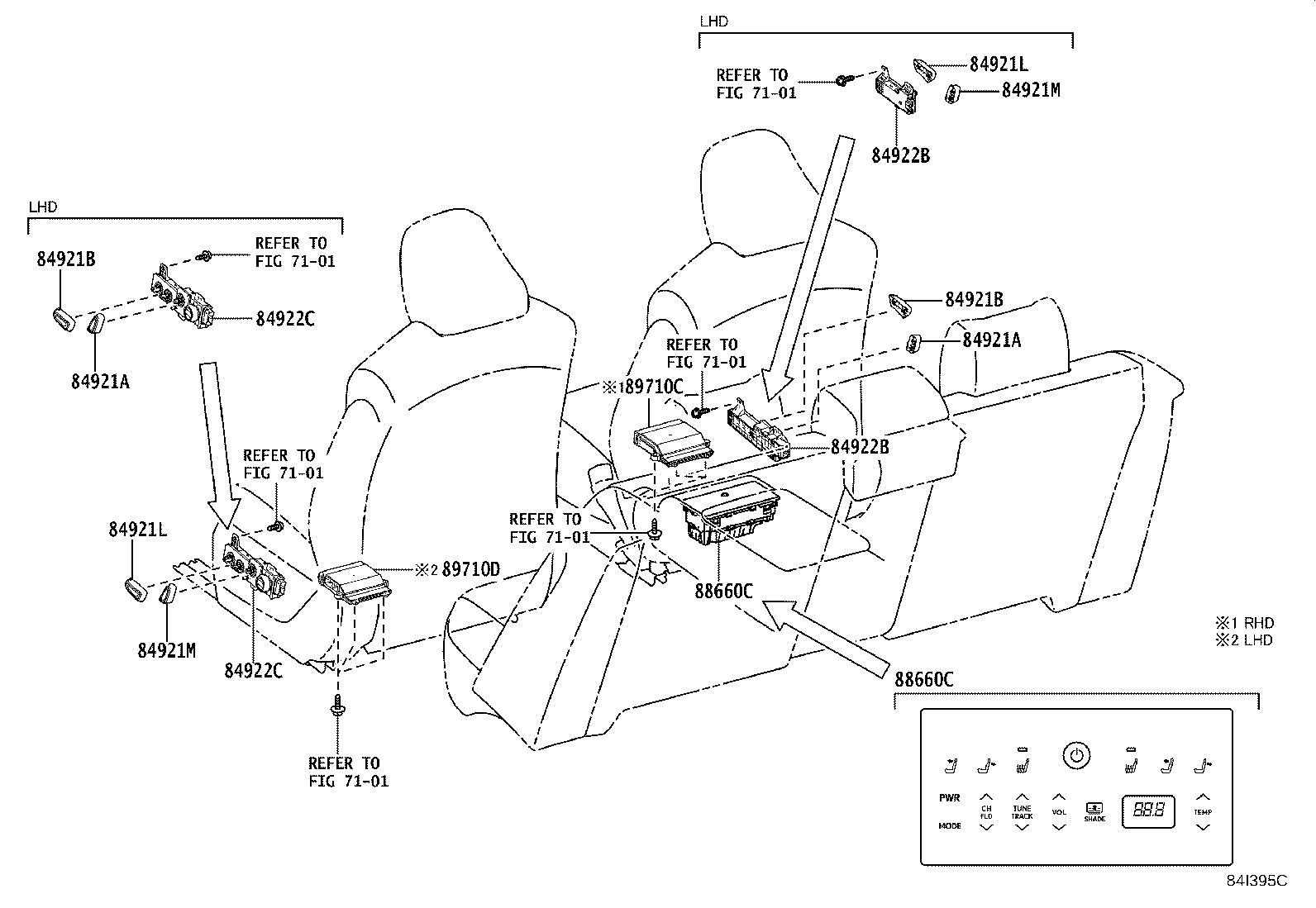

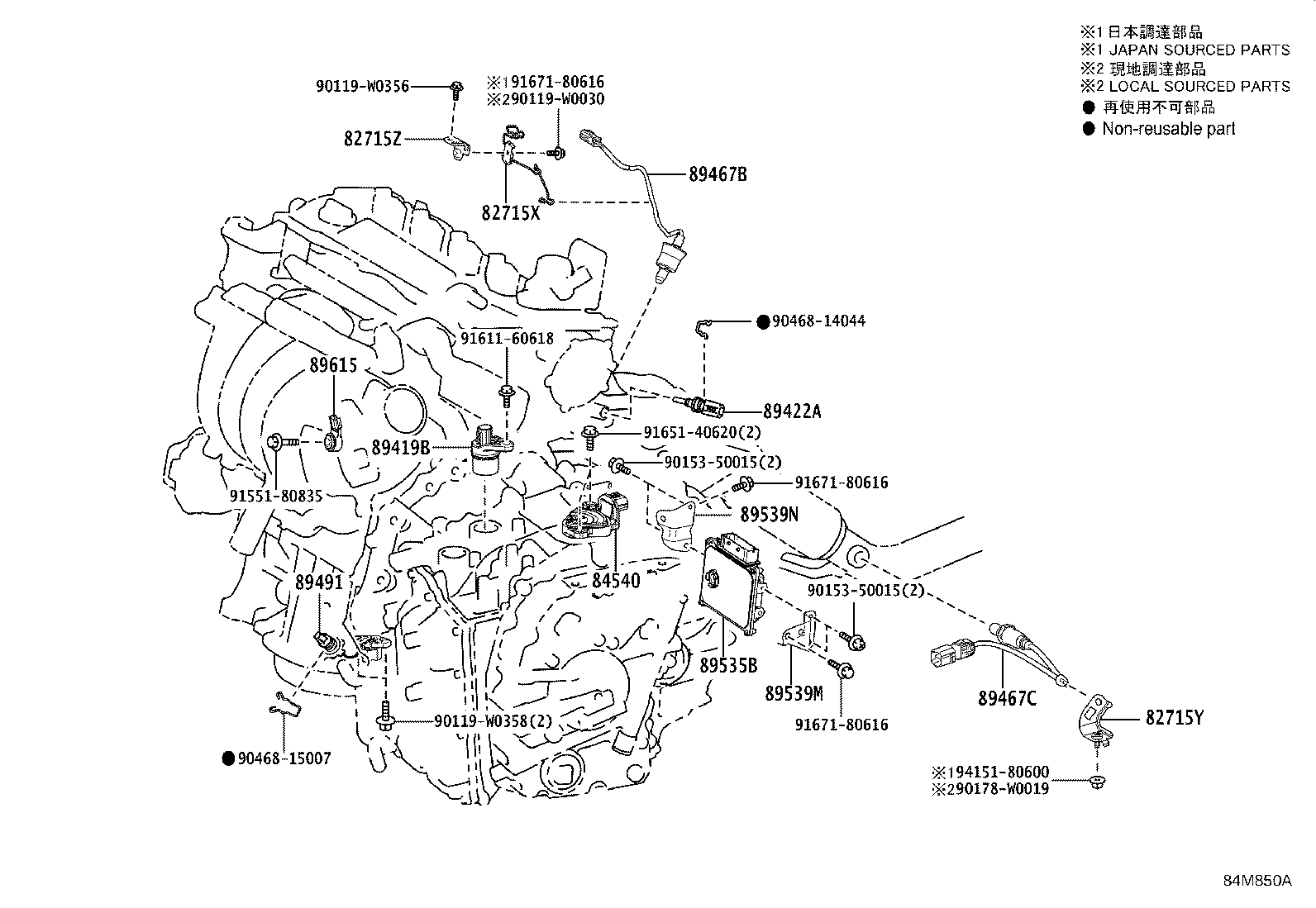

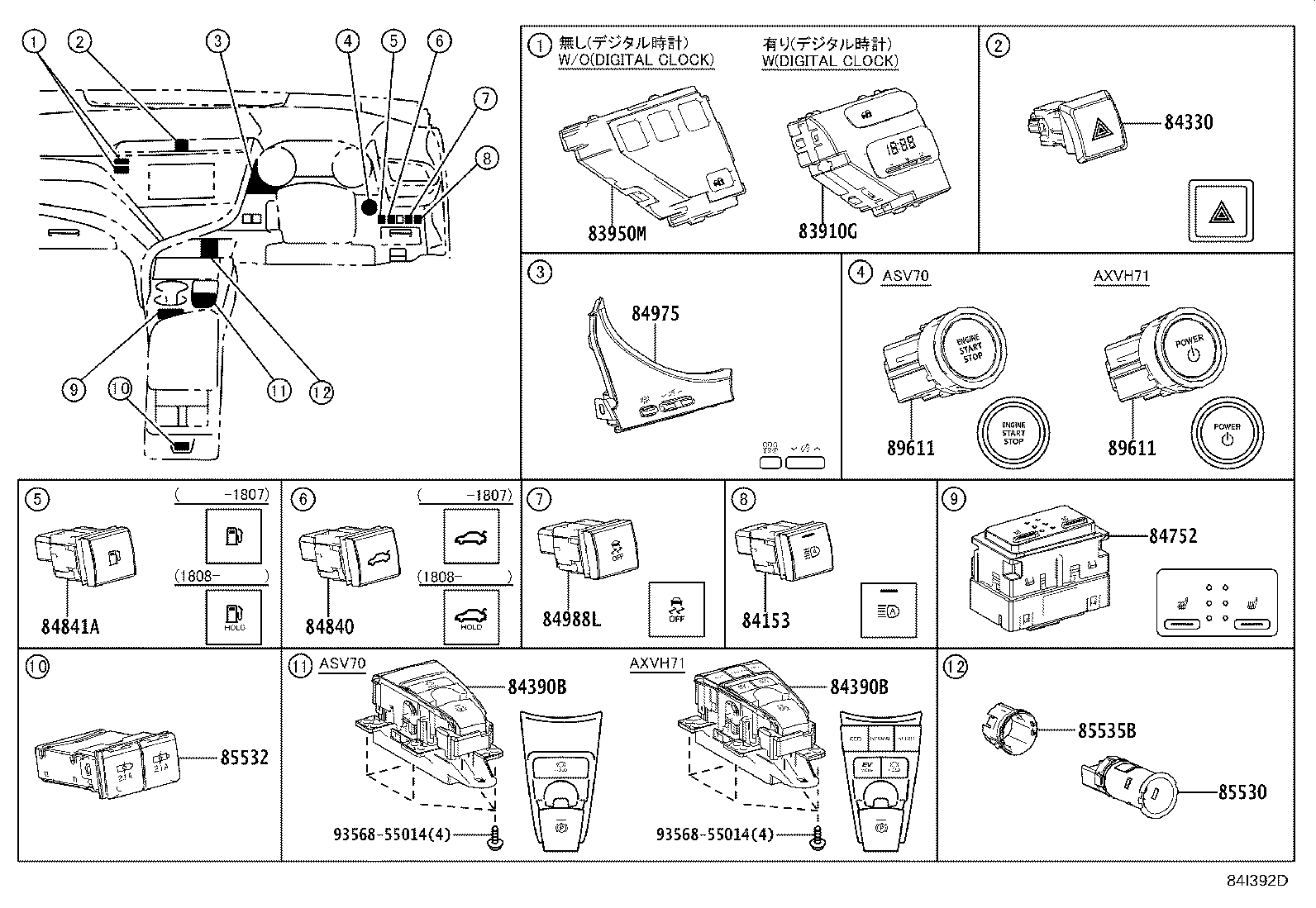

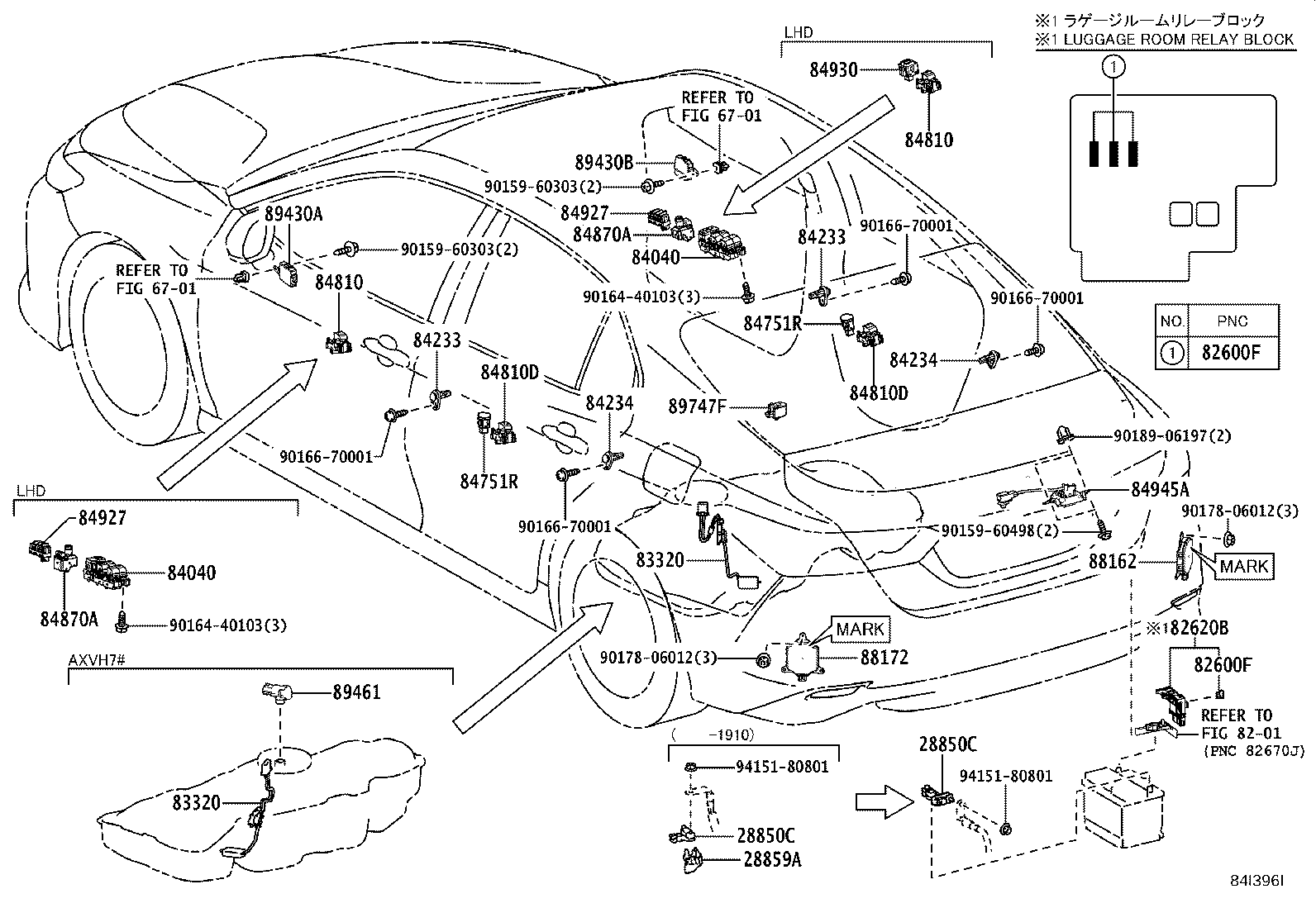

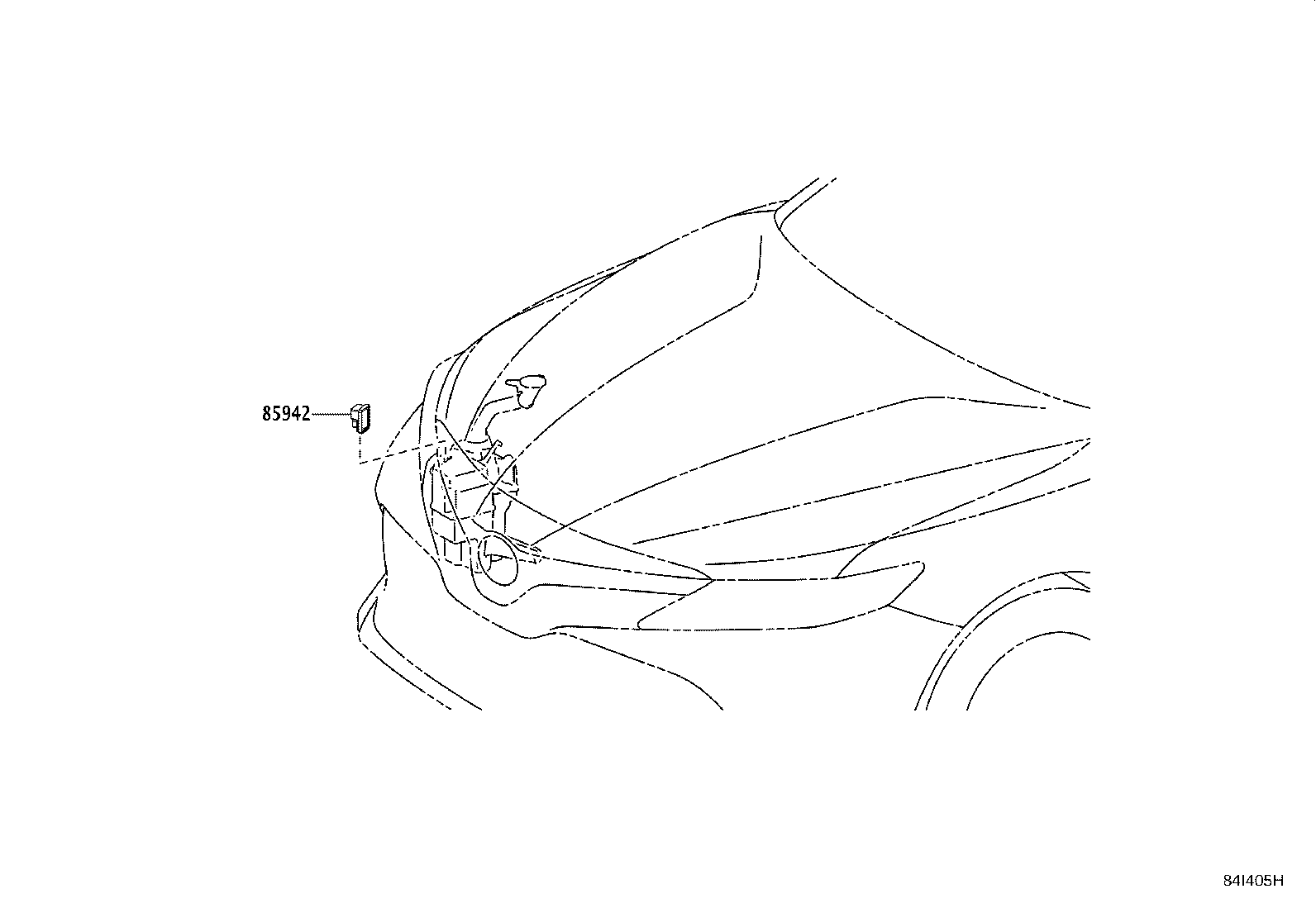

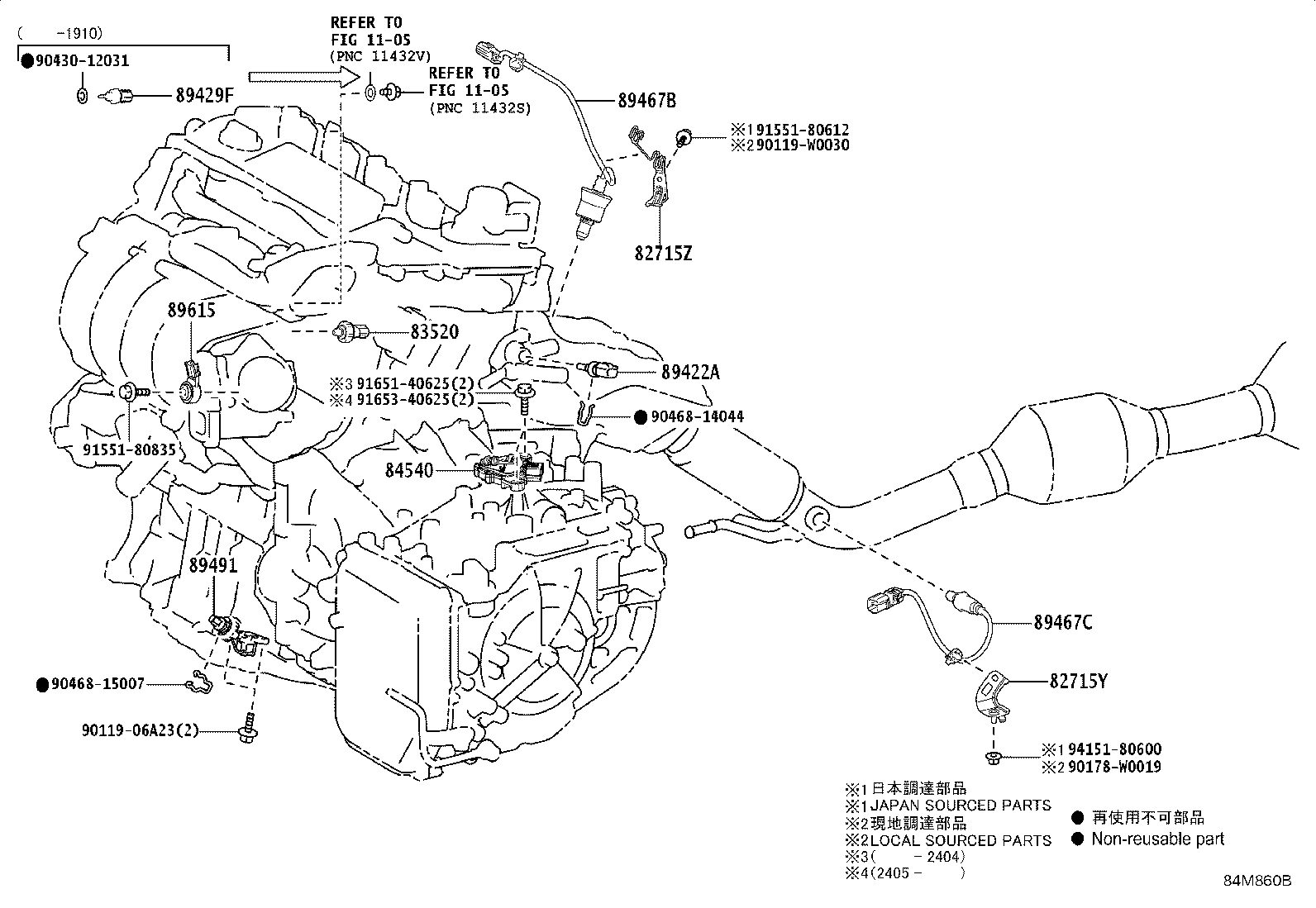

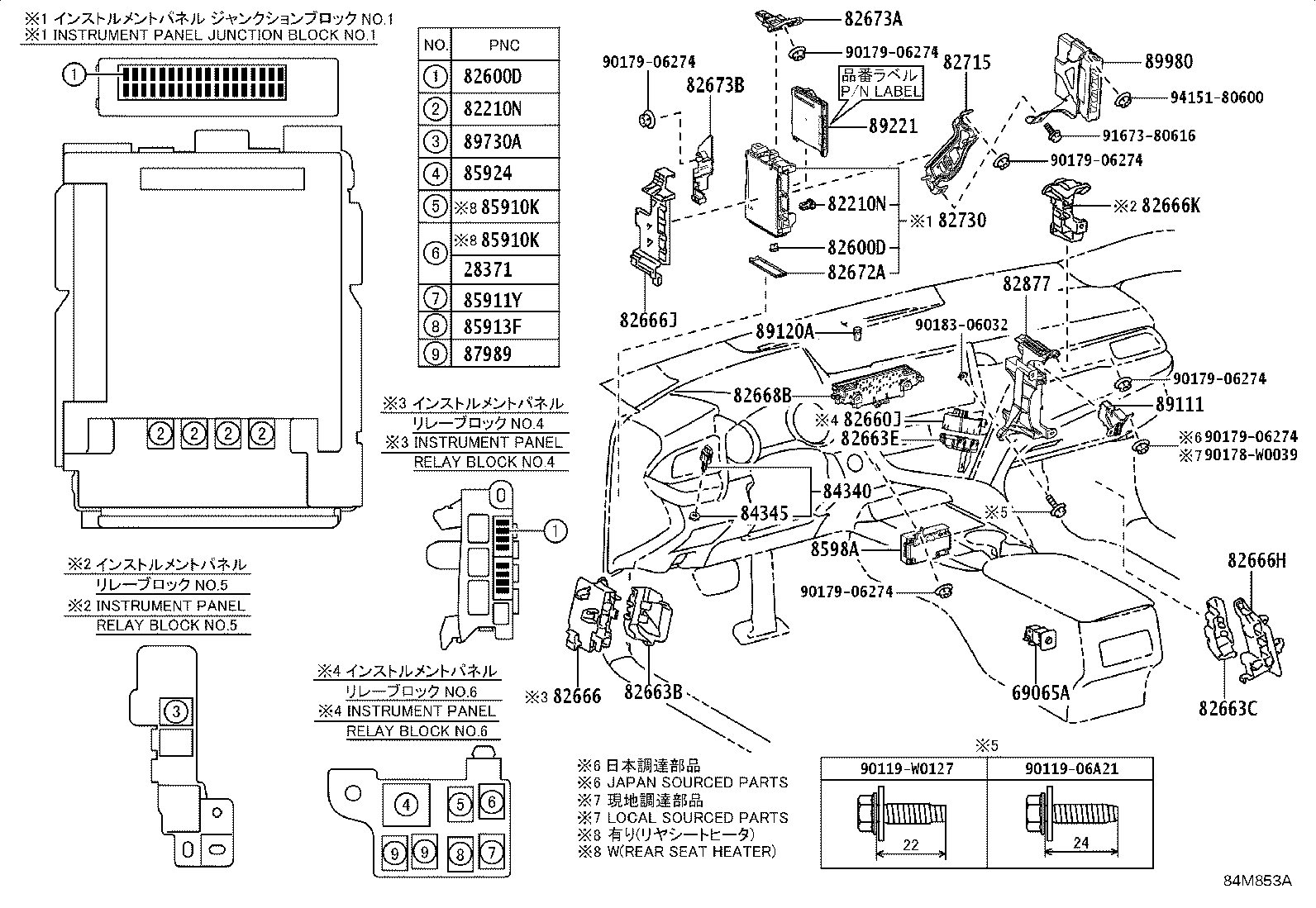

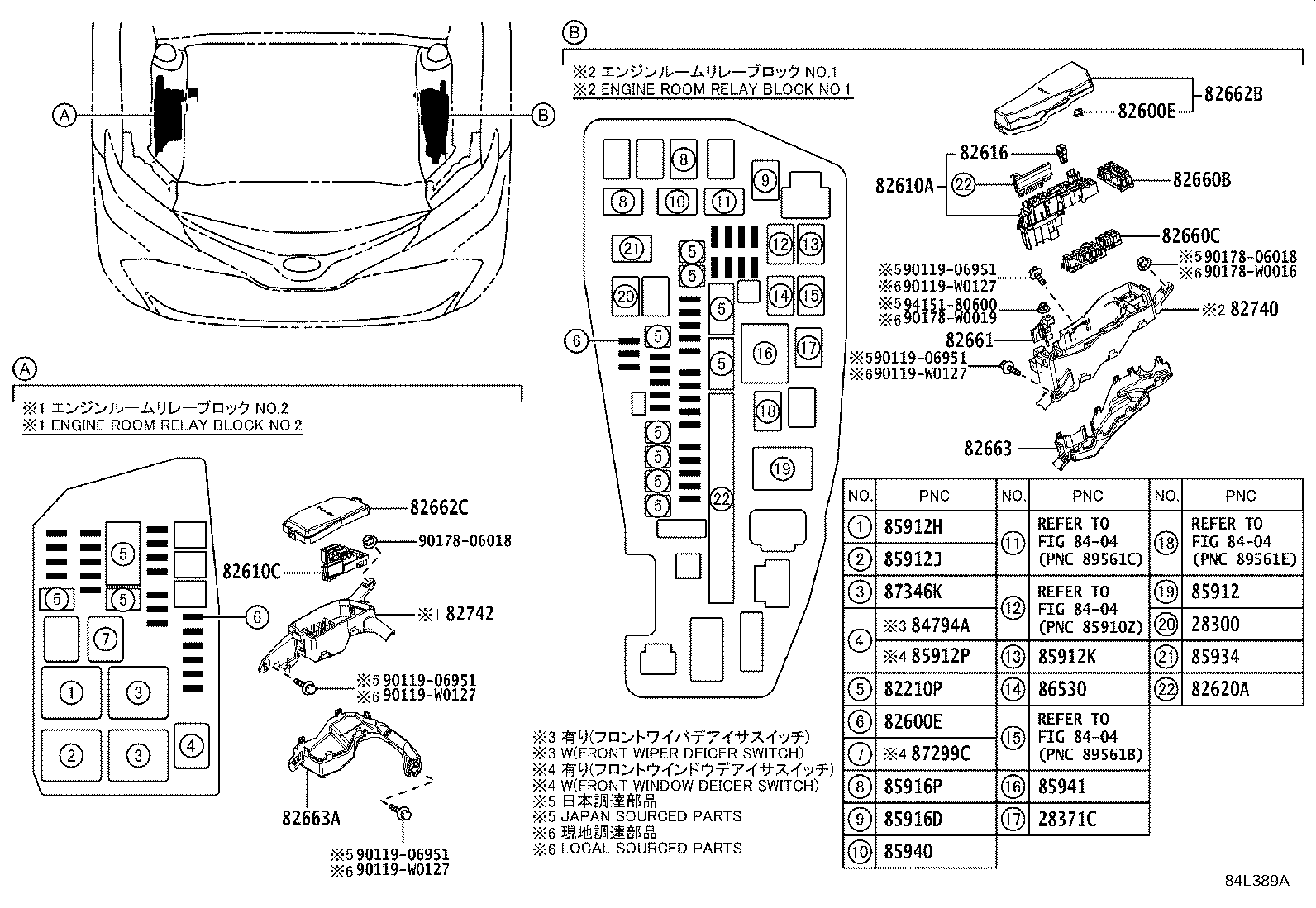

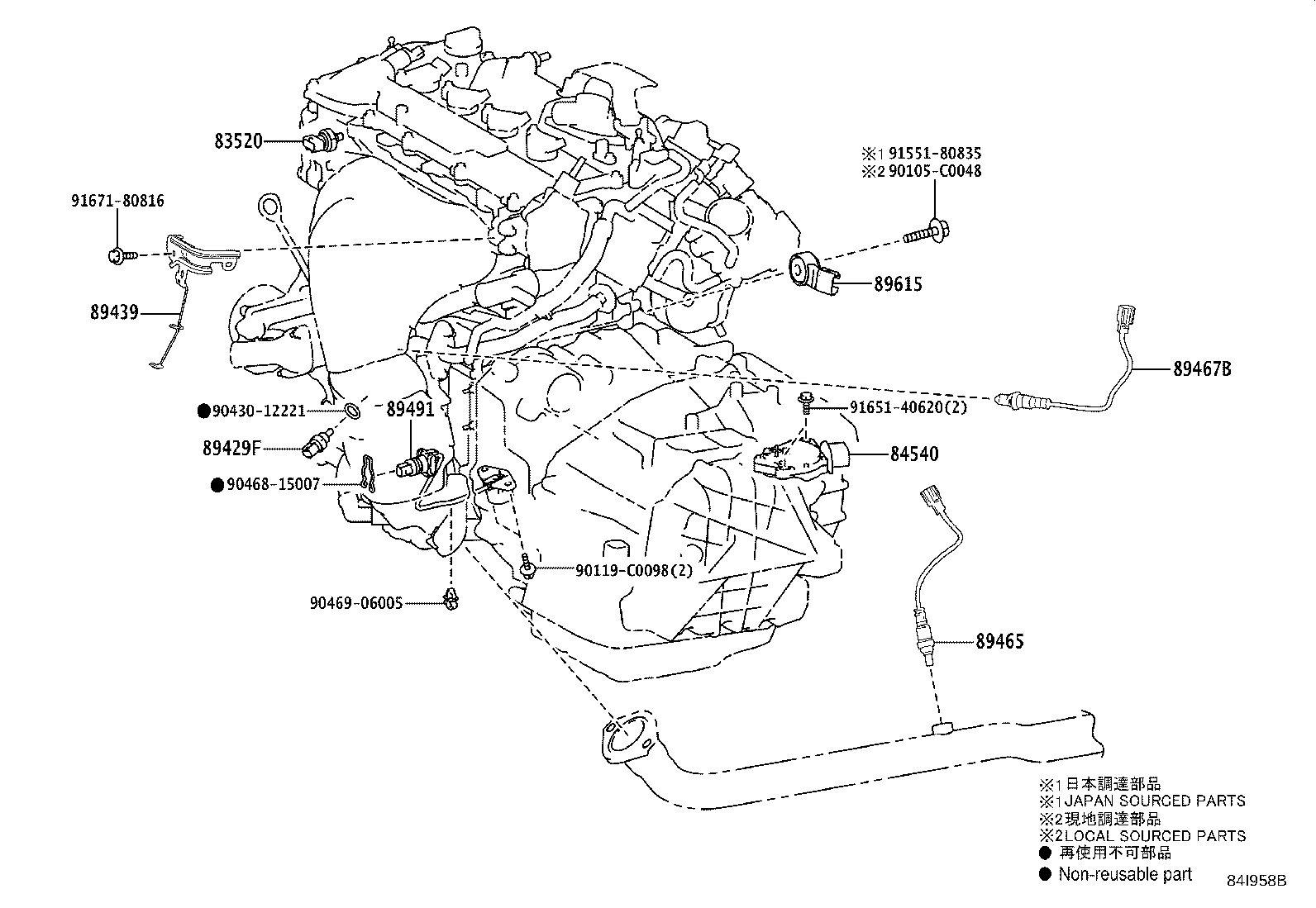

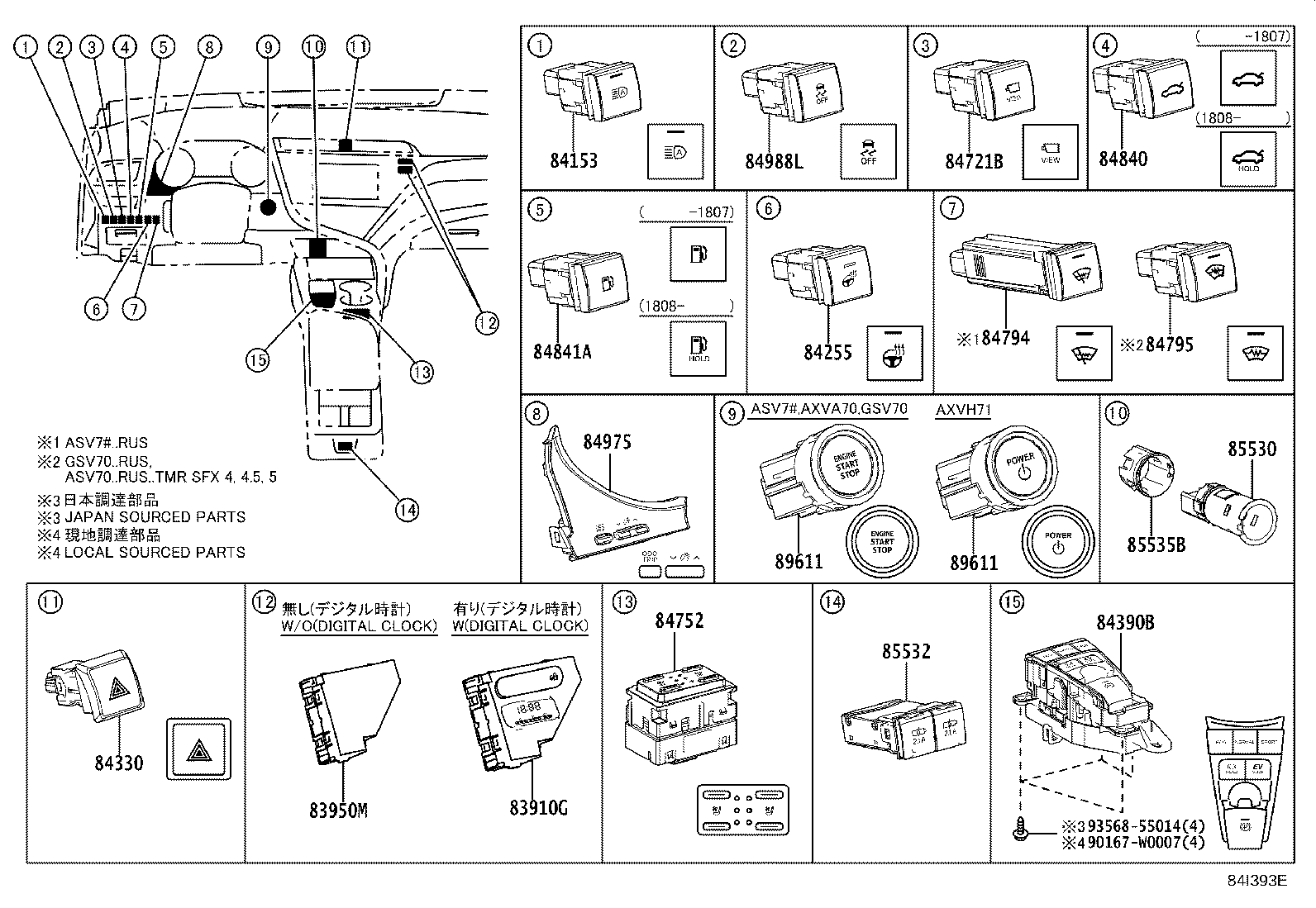

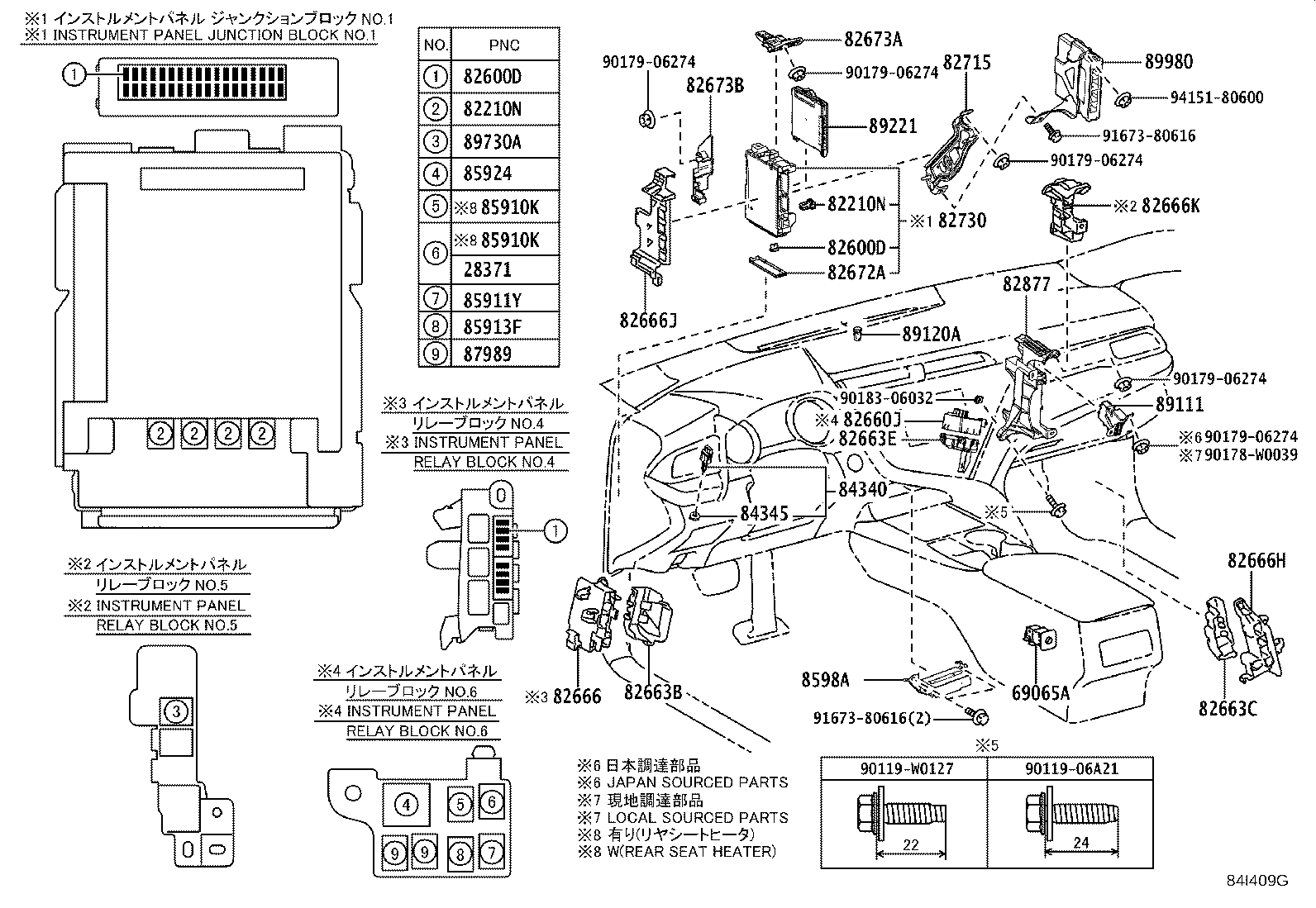

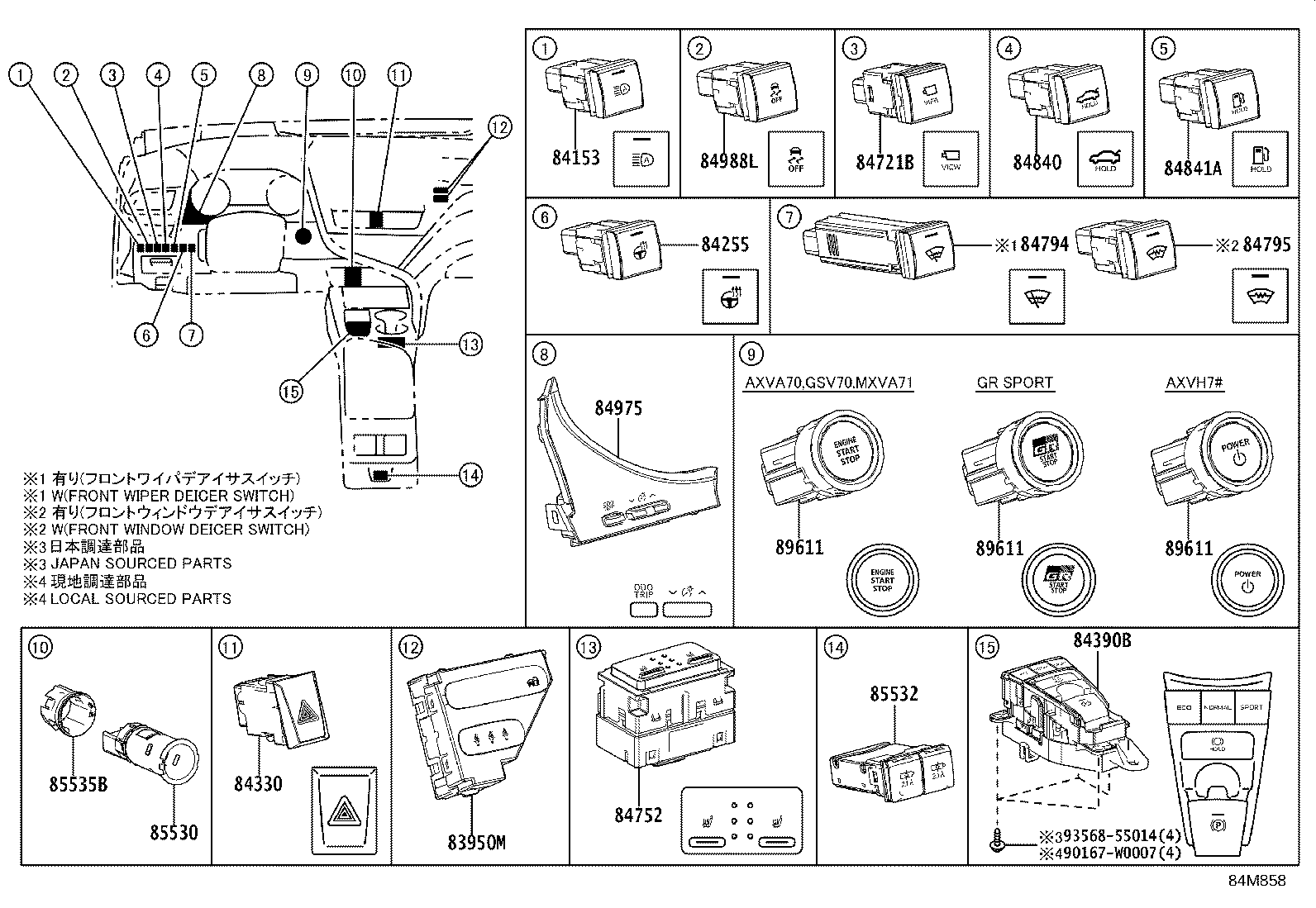

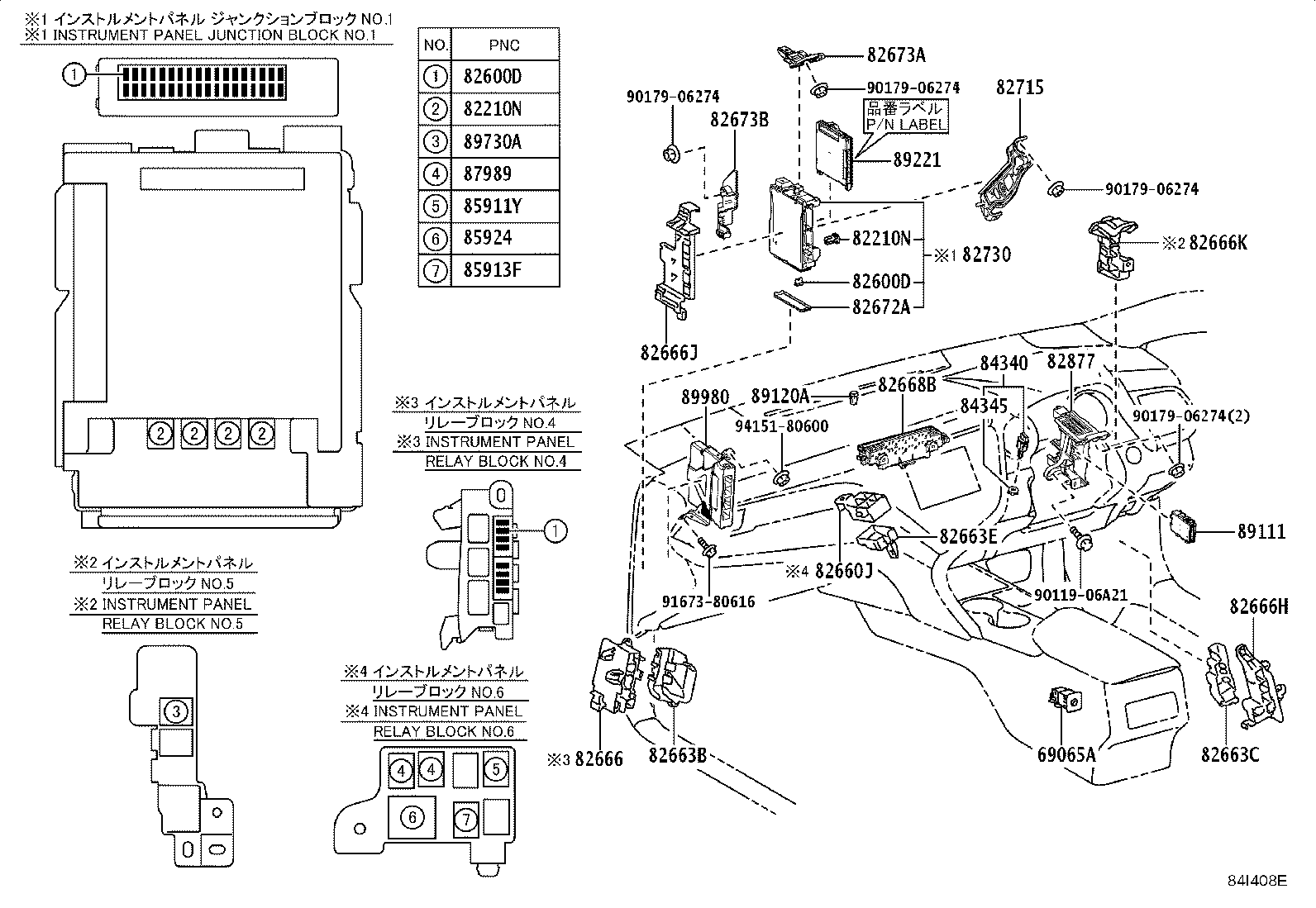

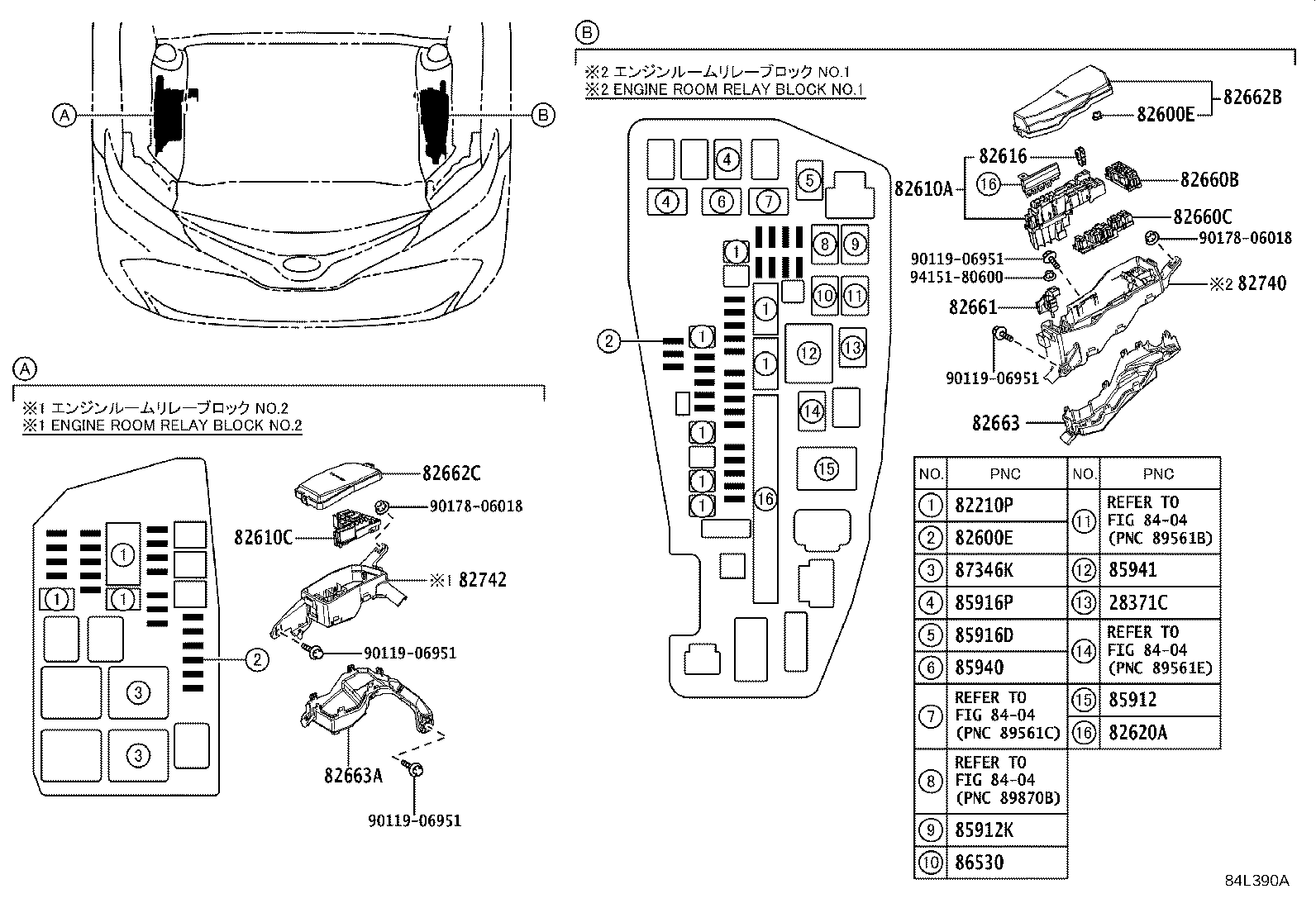

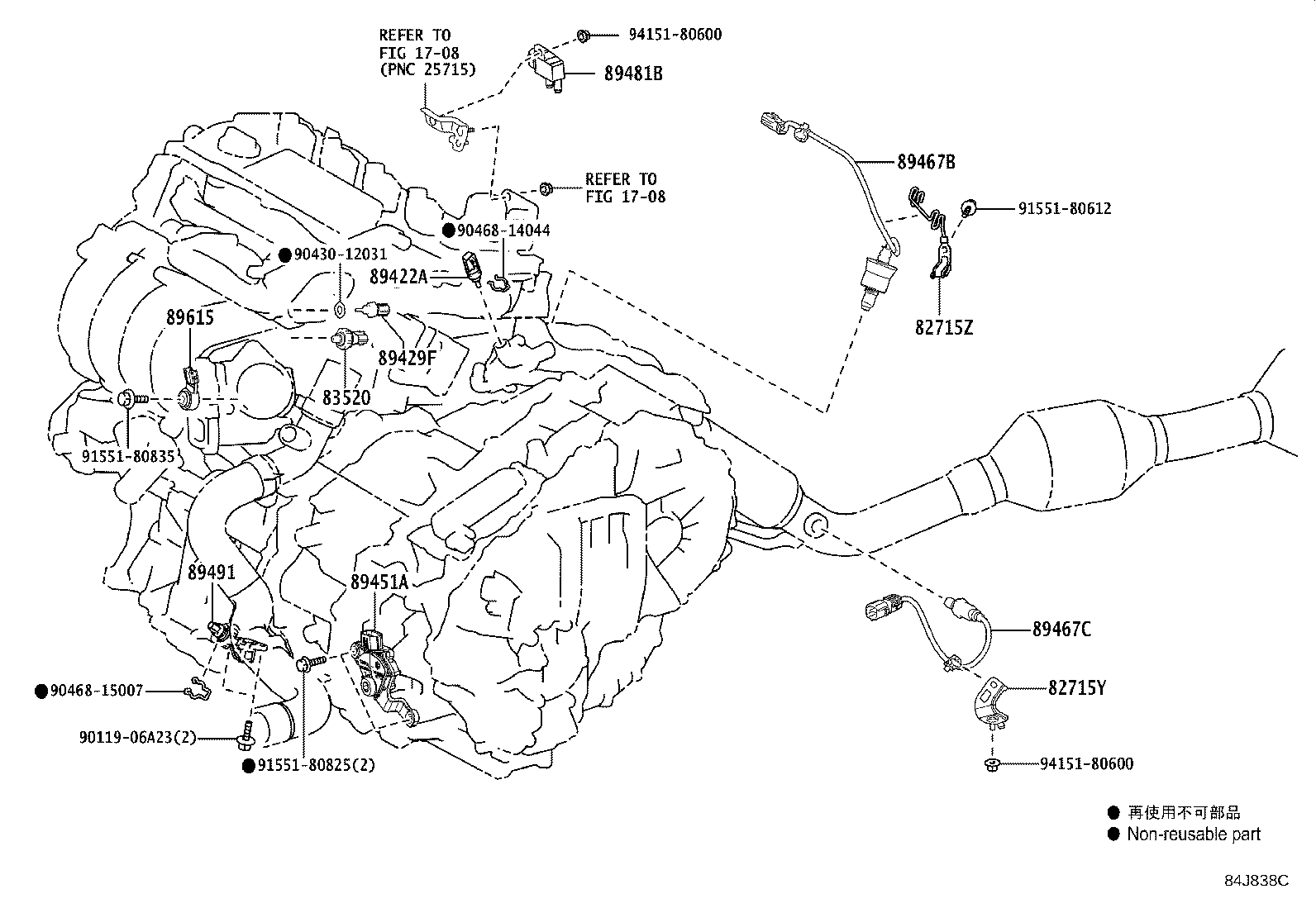

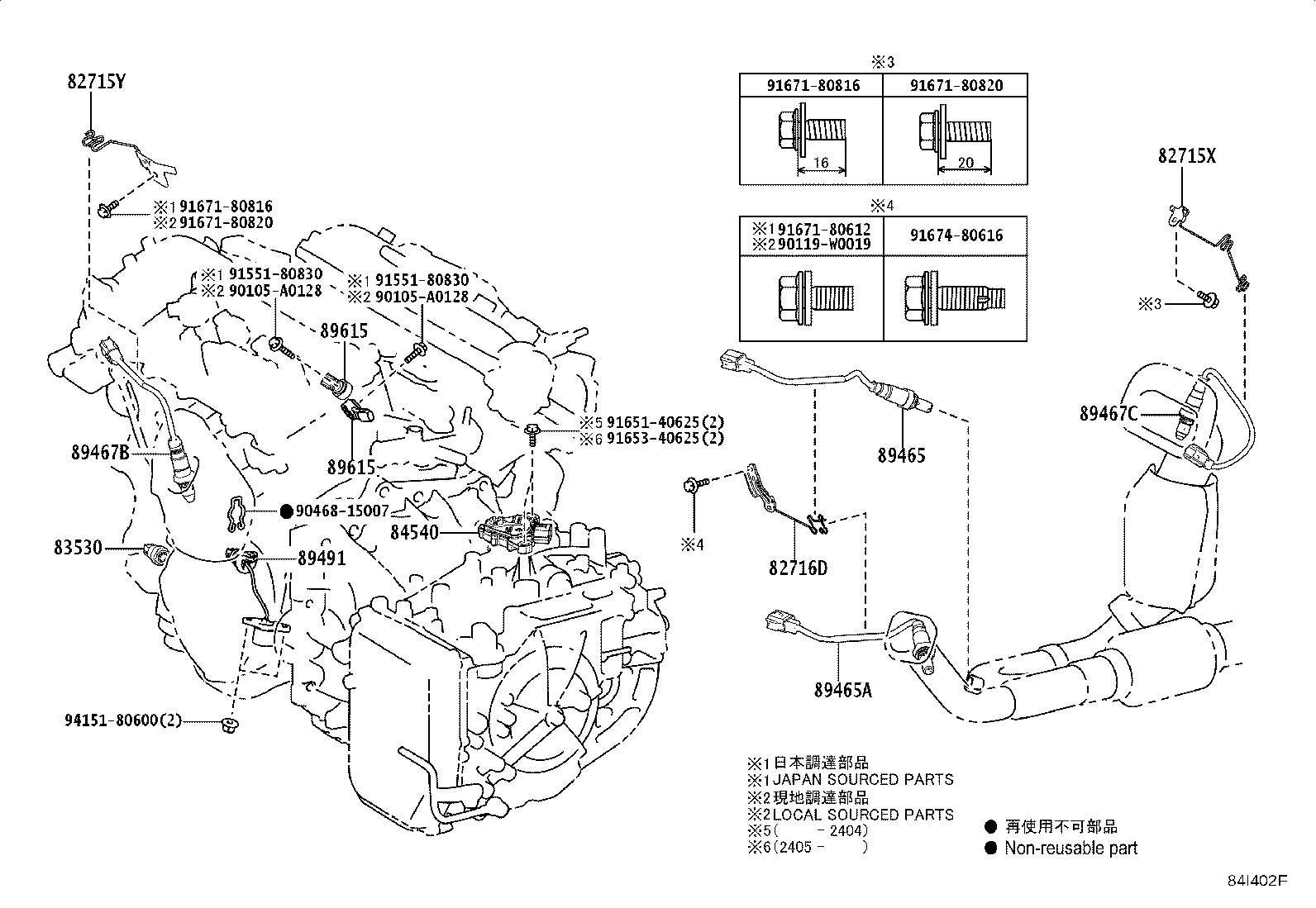

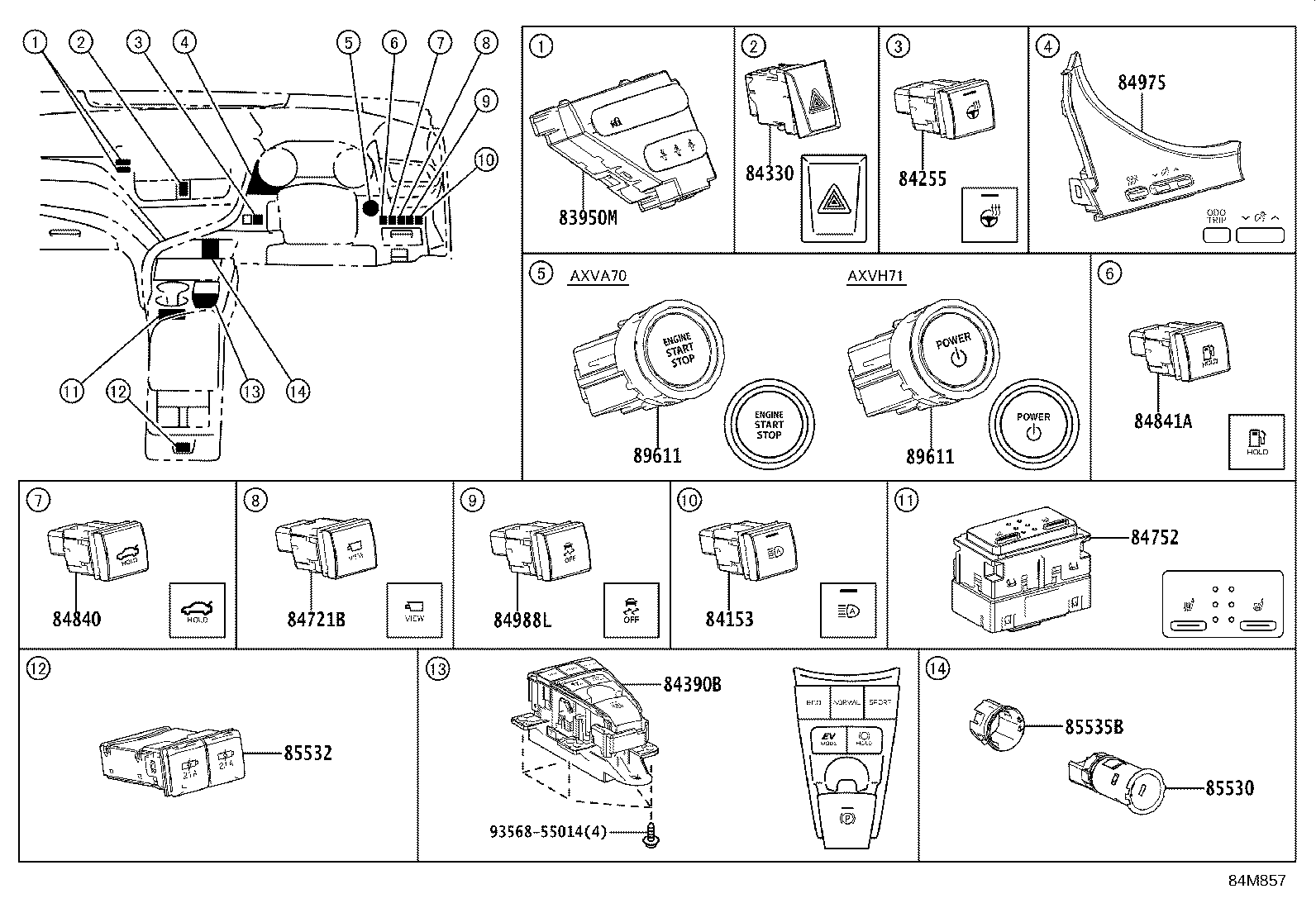

Figure 84I397A 84I397A 2017-09 → — Figure 84I958B 84I958B 2018-04 → — Figure 84M860B 84M860B 2017-09 → — Figure 84J838C 84J838C 2017-09 → — Figure 84I402F 84I402F 2017-09 → — Figure 84M850A 84M850A 2021-02 → — Figure 84I405H 84I405H 2017-09 → — Figure 84L389A 84L389A 2017-09 → — Figure 84L390A 84L390A 2017-09 → — Figure 84I408E 84I408E 2017-09 → — Figure 84I409G 84I409G 2017-09 → 2021-02 Figure 84M853A 84M853A 2021-02 → — Figure 84I392D 84I392D 2017-09 → 2021-02 Figure 84I393E 84I393E 2017-09 → 2021-02 Figure 84M857 84M857 2021-02 → — Figure 84M858 84M858 2021-02 → — Figure 84I394B 84I394B 2017-09 → — Figure 84I395C 84I395C 2017-09 → — Figure 84I396I 84I396I 2017-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82660B Block Assy, Relay
82660C Block Assy, Relay
82660J Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82663E Cover, Relay Block, Lower, NO.7
82666 Holder, Connector
82666H Holder, Connector, NO.2
82666J Holder, Connector, NO.3
82666K Holder, Connector, NO.4
82668B Holder, Connector, NO.5
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
82715X Bracket, Wiring Harness Clamp, NO.2
82715Y Bracket, Wiring Harness Clamp, NO.3
82715Z Bracket, Wiring Harness Clamp
82716D Bracket, Wiring Harness Clamp, NO.2
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
83950M Lamp Assy, Telltale
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84153 Switch, Auto High Beam
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84390B Switch Assy, Electric Parking Brake
84450 Switch Assy, Ignition OR Starter
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84721B Switch, Panoramic View Monitor
84751R Switch, Seat Heater(REAR)
84752 Switch, Refreshing Seat
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84795 Switch, Front Window Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840 Switch Assy, Luggage Compartment Door Opening
84841A Switch, Fuel Lid Opener
84870A Switch Assy, Outer Mirror
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84921L Knob, Power Seat Switch(FOR SLIDE & VERTICAL), NO.2
84921M Knob, Power Seat Switch(FOR RECLINING), NO.2
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84945A Switch, Luggage Electrical Key
84975 Switch, Trip
84988L Switch, Vsc Off
85530 Socket Assy, Power Outlet, NO.1
85532 Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85910K Relay, Rear Seat Heater
85911Y Relay, Front Seat Heater
85912 Relay, Defogger
85912H Relay, Hwd, NO.1
85912J Relay, Hwd, NO.2
85912K Relay, Vvt
85912P Relay, Hwd, NO.3
85913F Relay, Steering Heater
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85924 Relay, Ignition Control
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85941 Relay, Windshield Washer
85942 Relay, Headlamp Cleaner Control
8598A Battery, Door Control
86530 Relay Assy, Horn
87299C Relay, Washer Nozzle Heater
87346K Relay, Ptc Heater
87989 Relay, Mirror Control
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88660C Switch Assy, Cooler Control
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245C Sensor, Steering
89419B Sensor, Shift Stroke
89422A Sensor, Water Temperature
89429F Sensor, Temperature
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89439 Bracket, Sensor
89451A Sensor, Shift Lever Position
89461 Sensor, Vapor Pressure
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89535B Computer, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89710C Computer Assy, Position Control, RH
89710D Computer Assy, Position Control, LH
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
89980 Computer Assy, Hybrid Vehicle Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
