Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

17 part groups · 6 illustrations

Illustrations

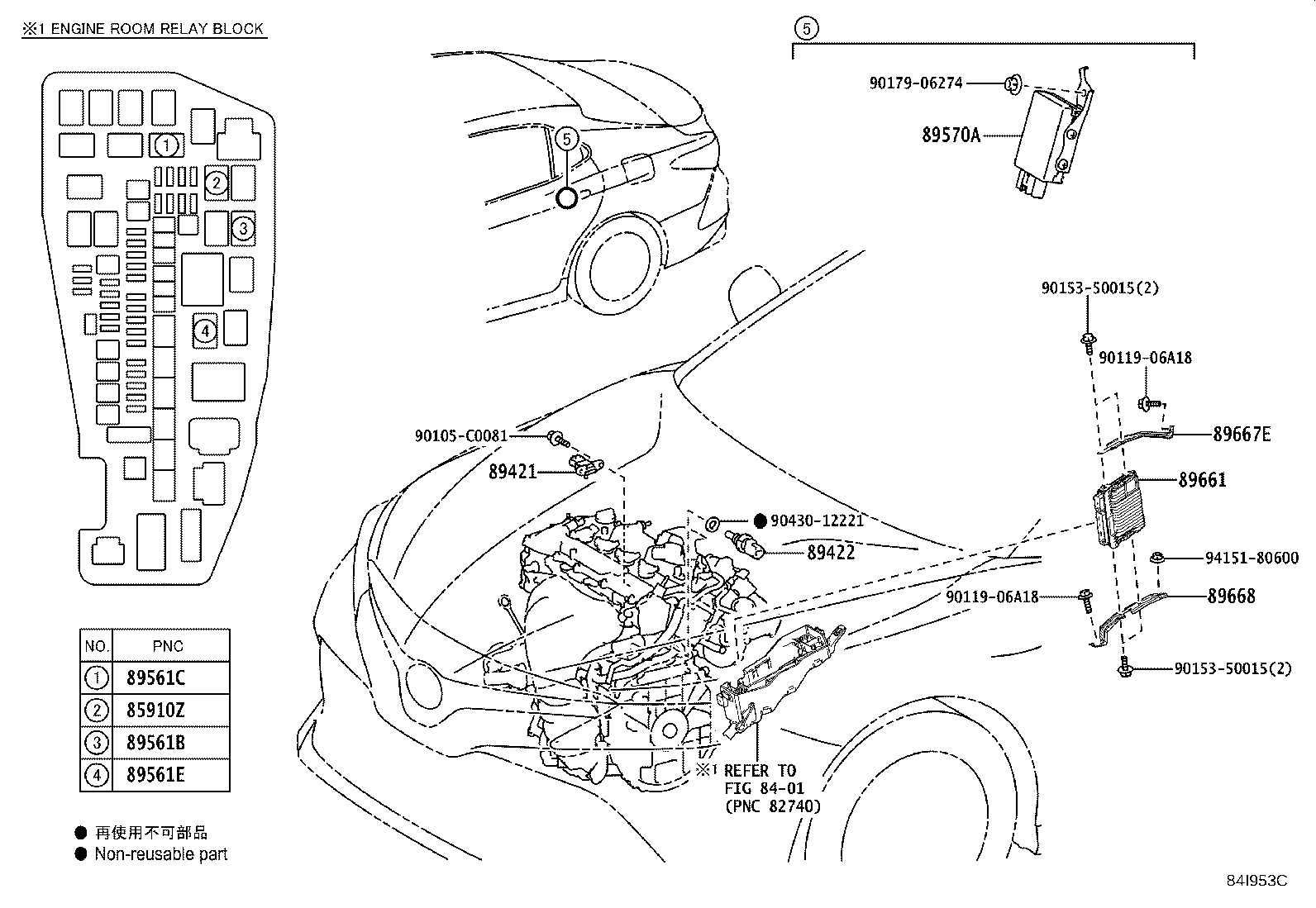

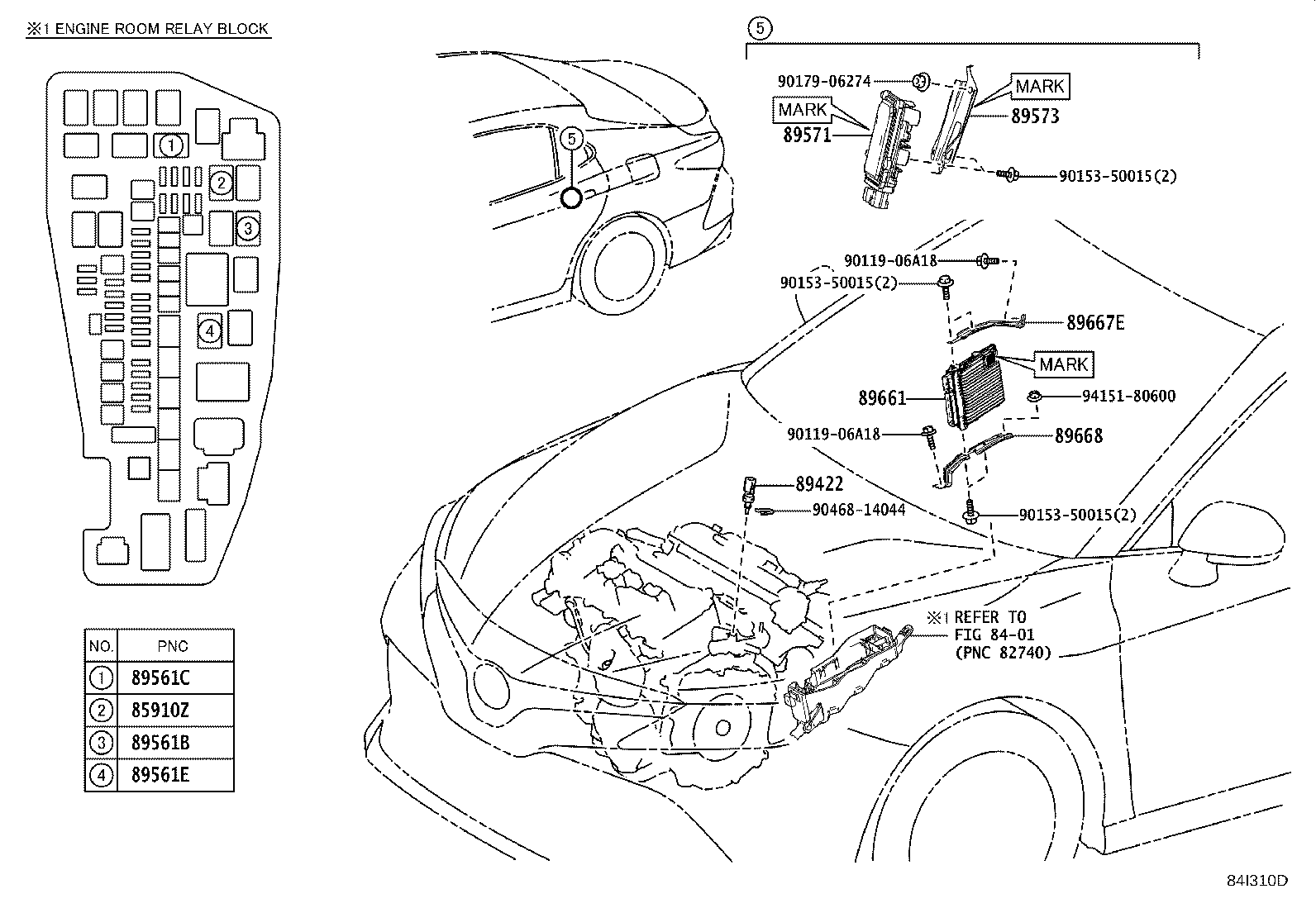

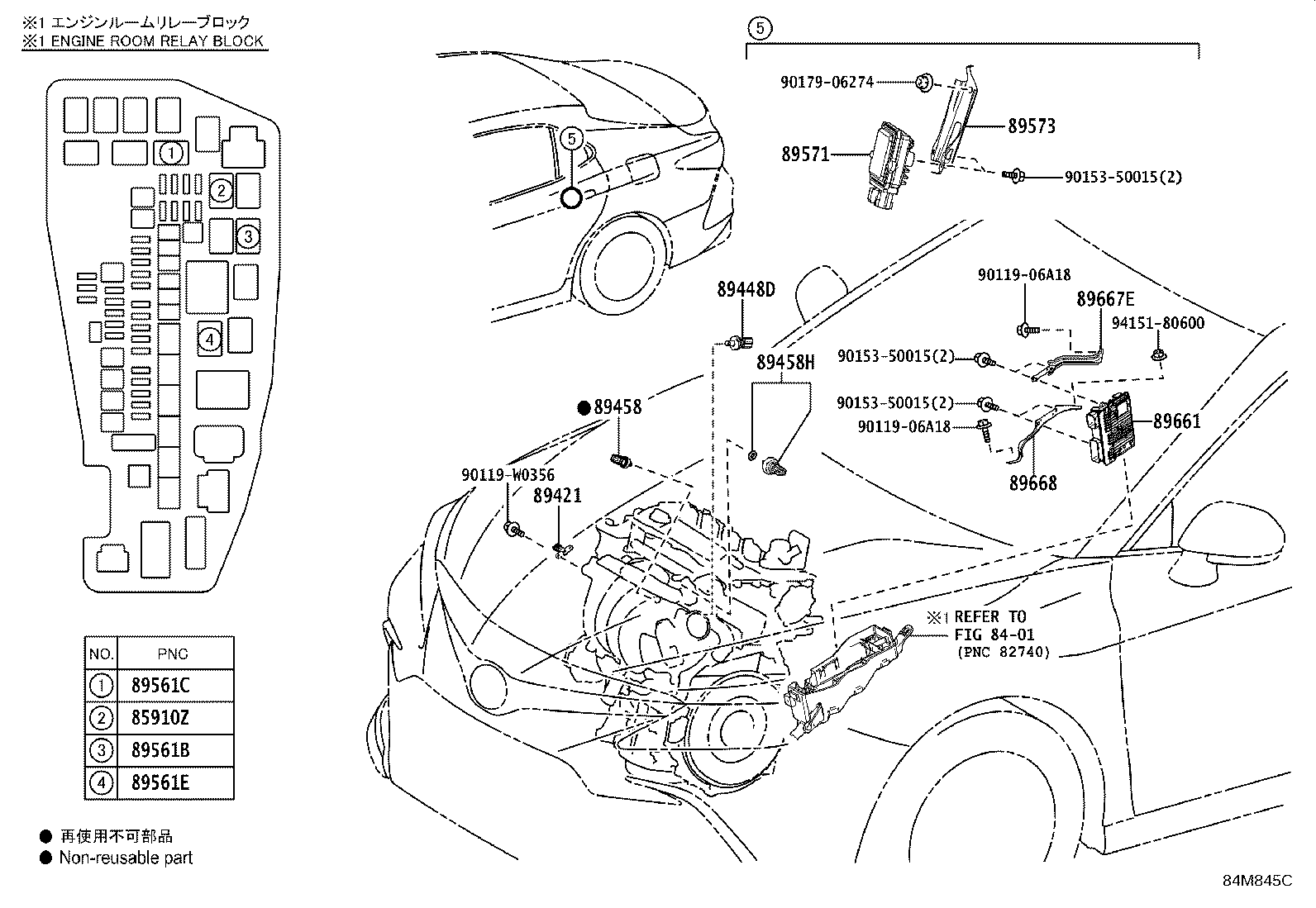

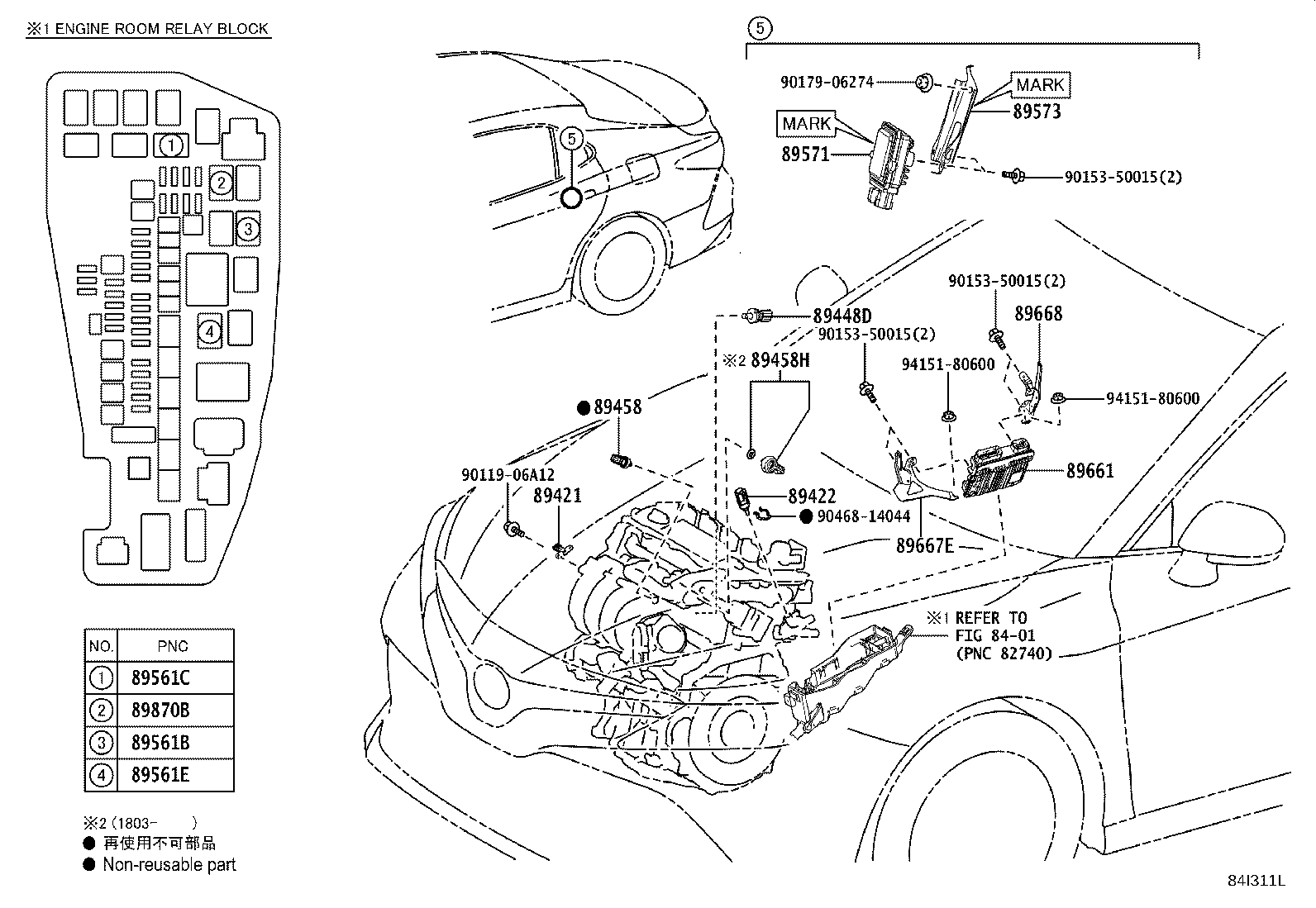

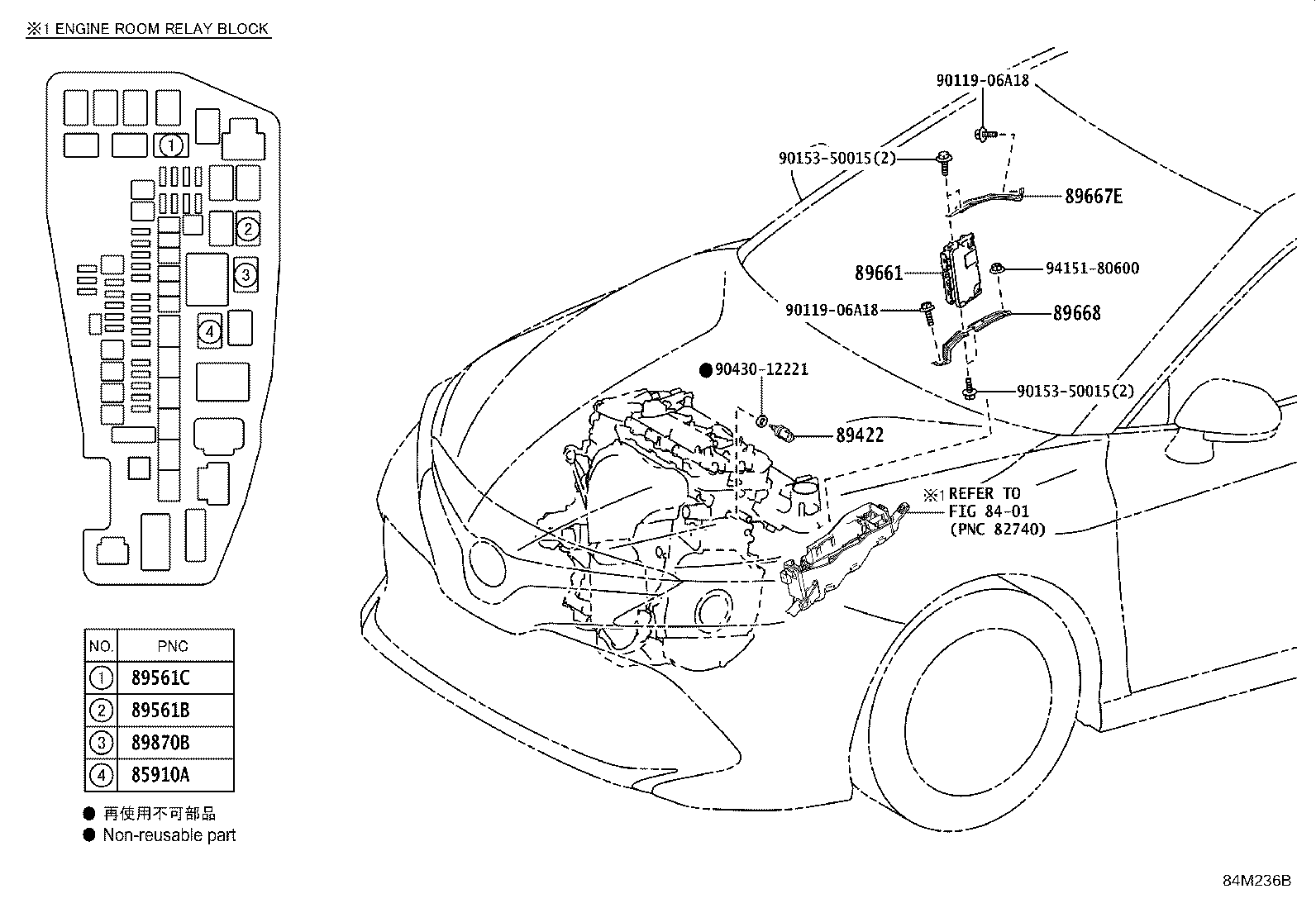

Figure 84M235F 84M235F 2017-09 → — Figure 84I311L 84I311L 2017-09 → — Figure 84M236B 84M236B 2017-09 → 2021-04 Figure 84I310D 84I310D 2017-09 → — Figure 84I953C 84I953C 2018-04 → 2021-04 Figure 84M845C 84M845C 2021-02 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85910Z Relay, Injection (FOR EFI)
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89448D Sensor, Oil Pressure & Temperature
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89561B Relay, Electronic Fuel Injection Main, NO.1
89561C Relay, Electronic Fuel Injection Main, NO.2
89561E Relay, Electronic Fuel Injection Main, NO.3
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89870B Relay, Electronic Driver Unit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
