Toyota Camry/Hybrid
2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe
Supported model
Data version 2022-12

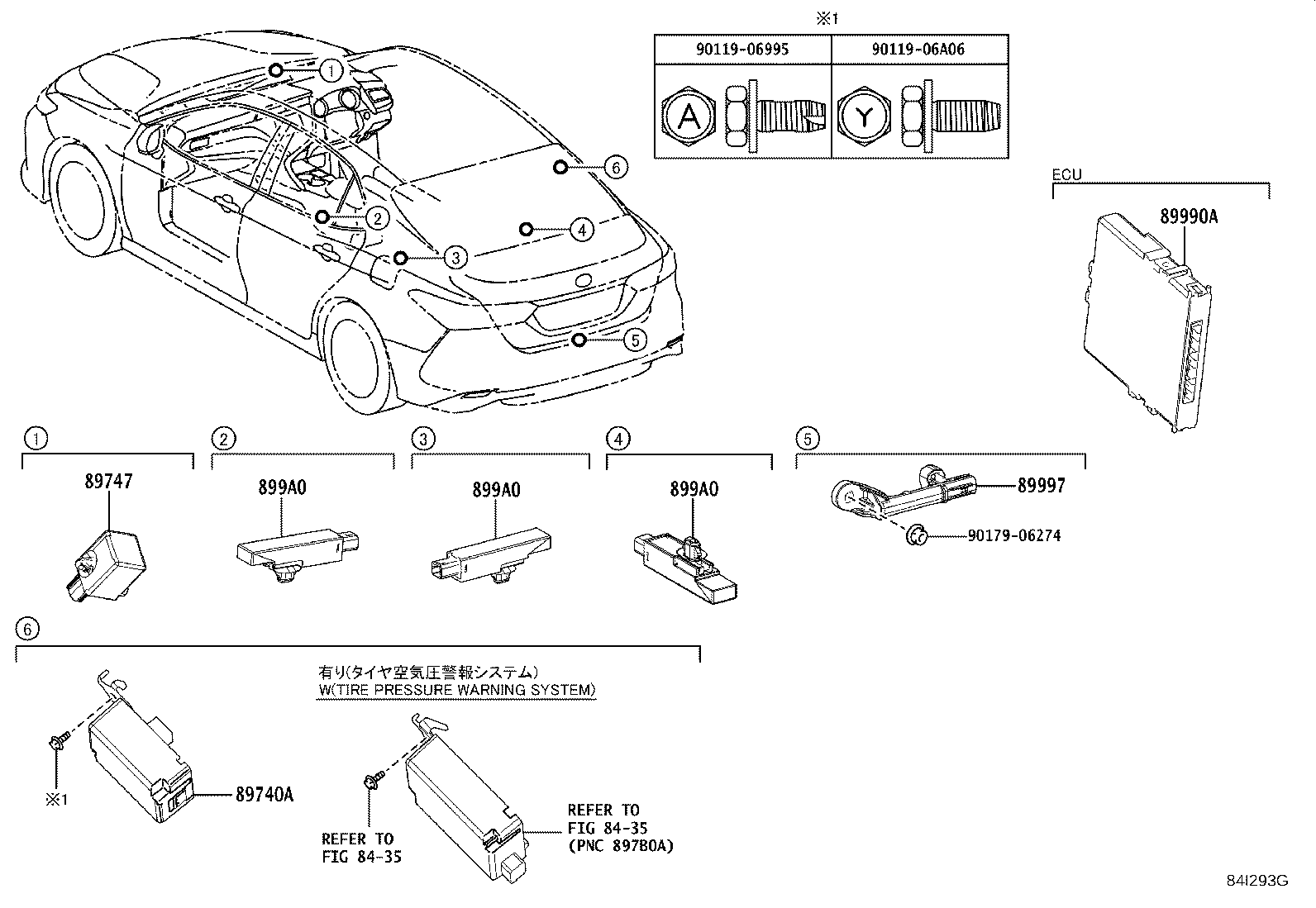

Wireless Door Lock
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89740A | Receiver Assy, Smart Door Control |
| 89741 | Receiver, Door Control |
| 89747 | Buzzer, Wireless Door Lock |
| 89990A | Computer Assy, Smart Key |
| 89997 | Antenna, Electrical Key |
| 899A0 | Antenna Assy, Indoor Electrical Key, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
