Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 6 illustrations

Illustrations

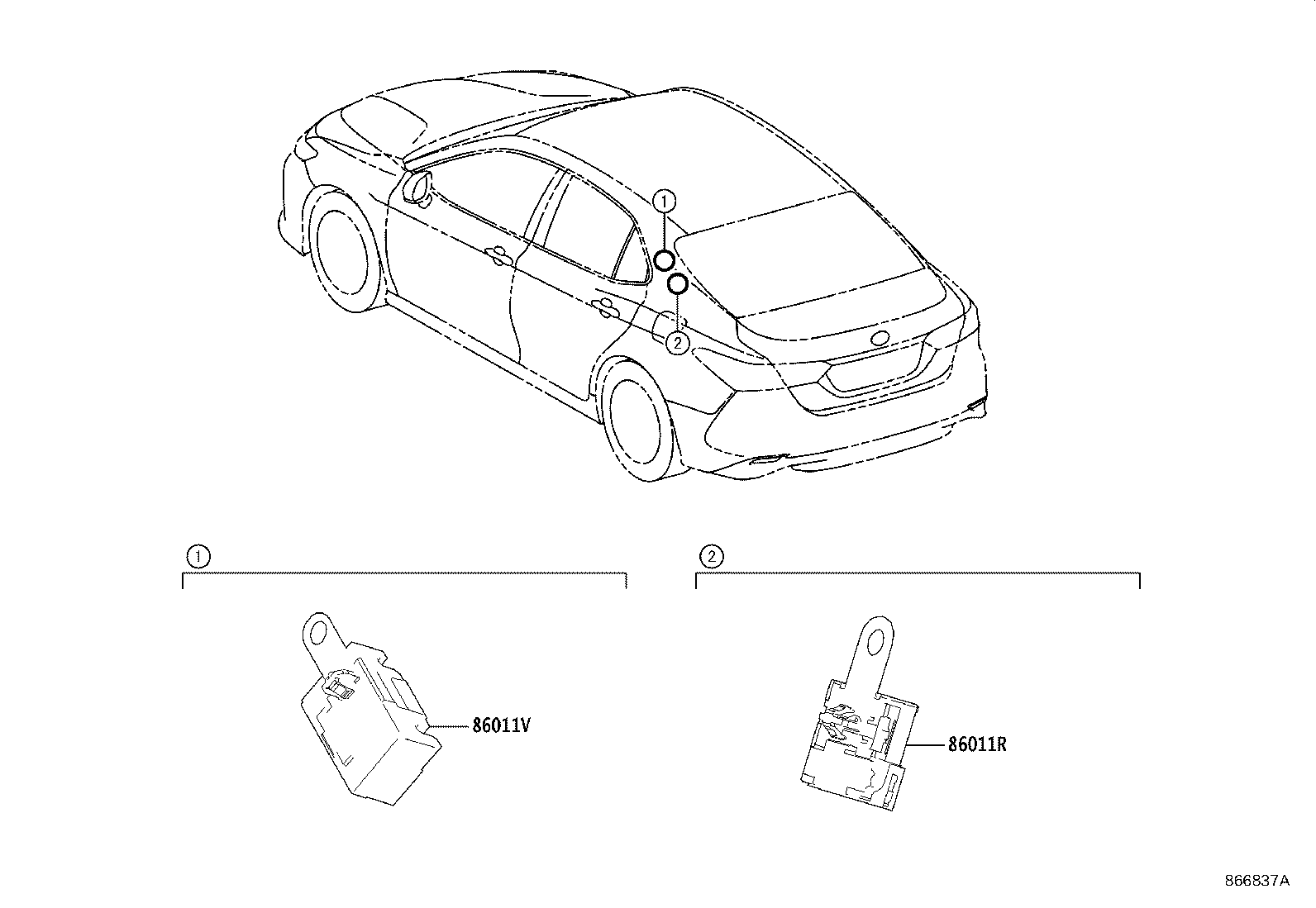

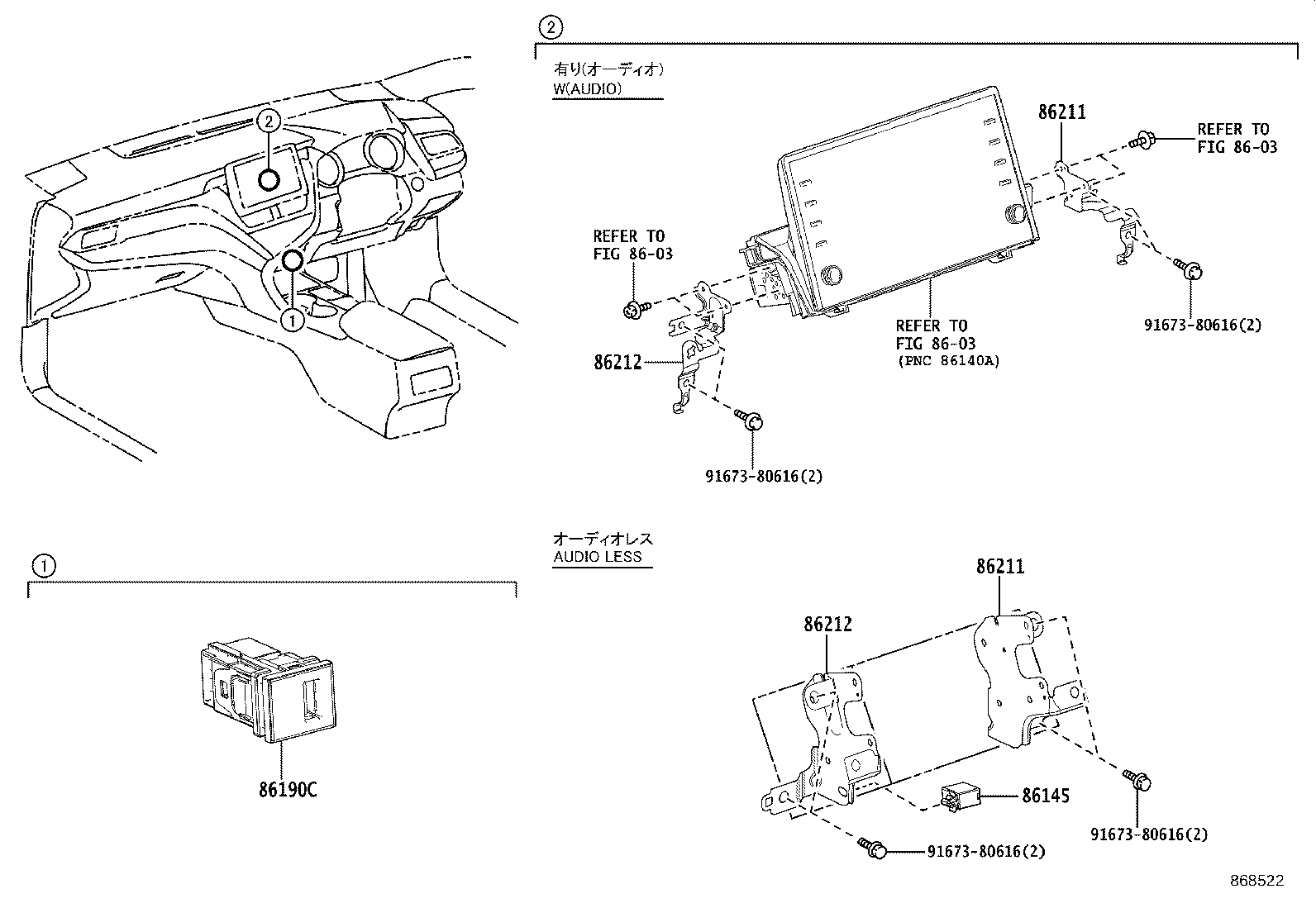

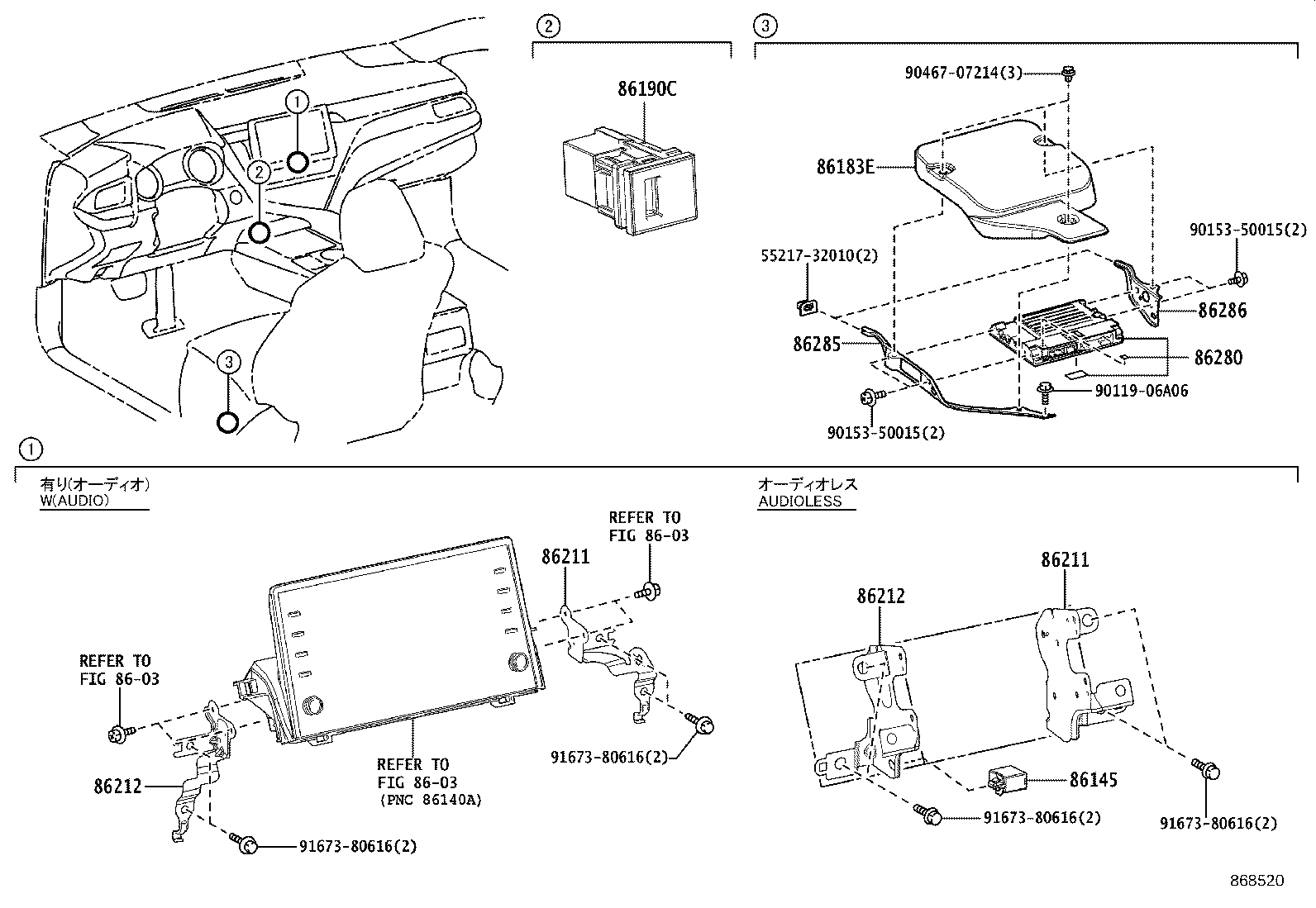

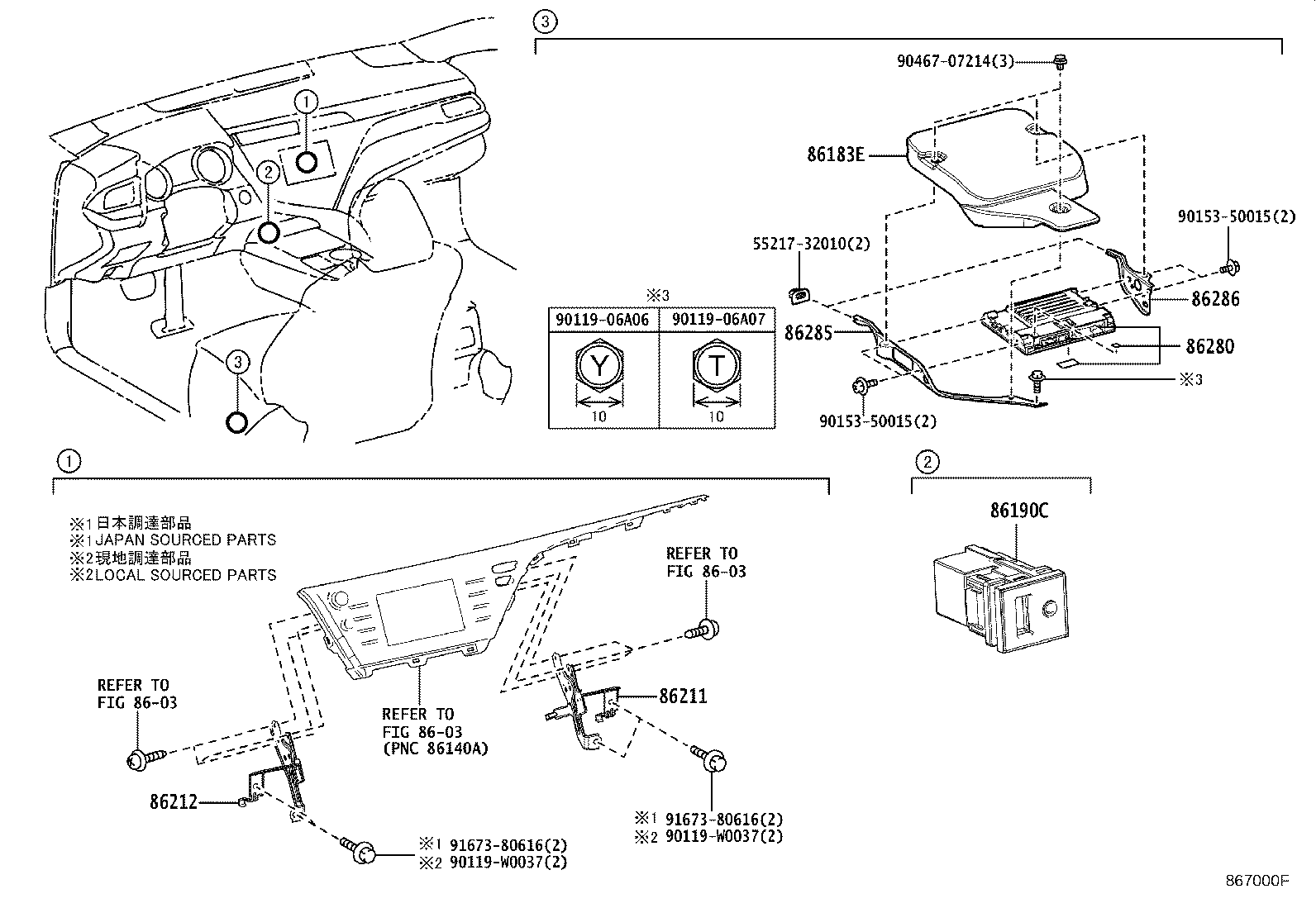

Figure 867001E 867001E 2017-09 → 2021-02 Figure 868522 868522 2021-02 → — Figure 867000F 867000F 2017-09 → 2021-02 Figure 867000F 867000F 2017-09 → 2021-04 Figure 868520 868520 2021-02 → — Figure 866837A 866837A 2017-09 → —

Part groups

PNCDescription
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86145 Connector, Antenna Male
86183E Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
