Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

7 part groups · 3 illustrations

Illustrations

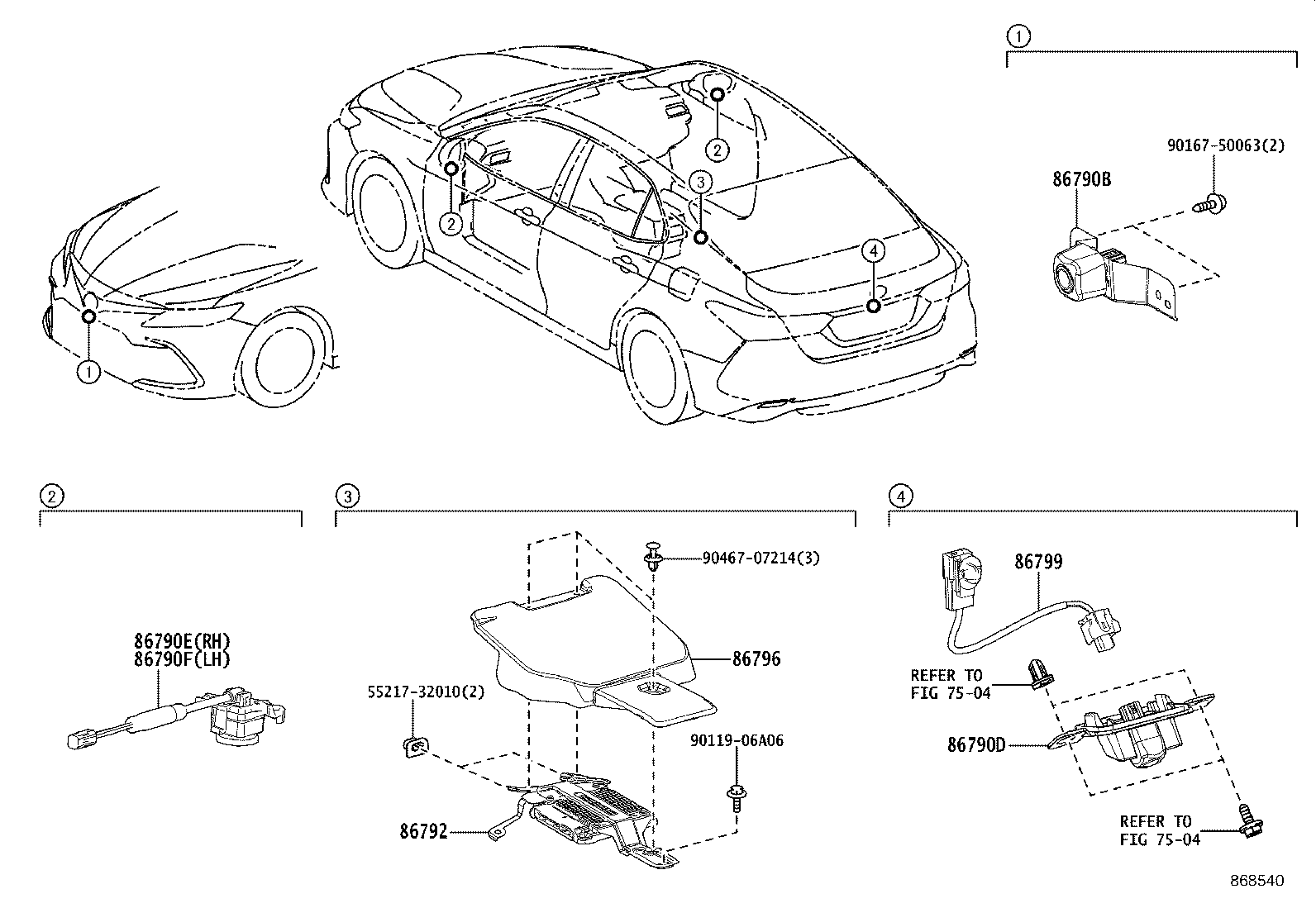

Figure 867197 867197 2017-09 → 2021-02 Figure 867197 867197 2017-09 → 2021-04 Figure 868540 868540 2021-02 → —

Part groups

PNCDescription
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792 Controller, Television Camera
86796 Cover, Computer Parking Assist
86799 Wire, Television Camera
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
