Toyota Camry/Hybrid

2017-09 → present · chassis ASV7#,AXVA70,AXVH7#,GSV70,MXVA71 · catalogue 2845A0 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

19 part groups · 8 illustrations

Illustrations

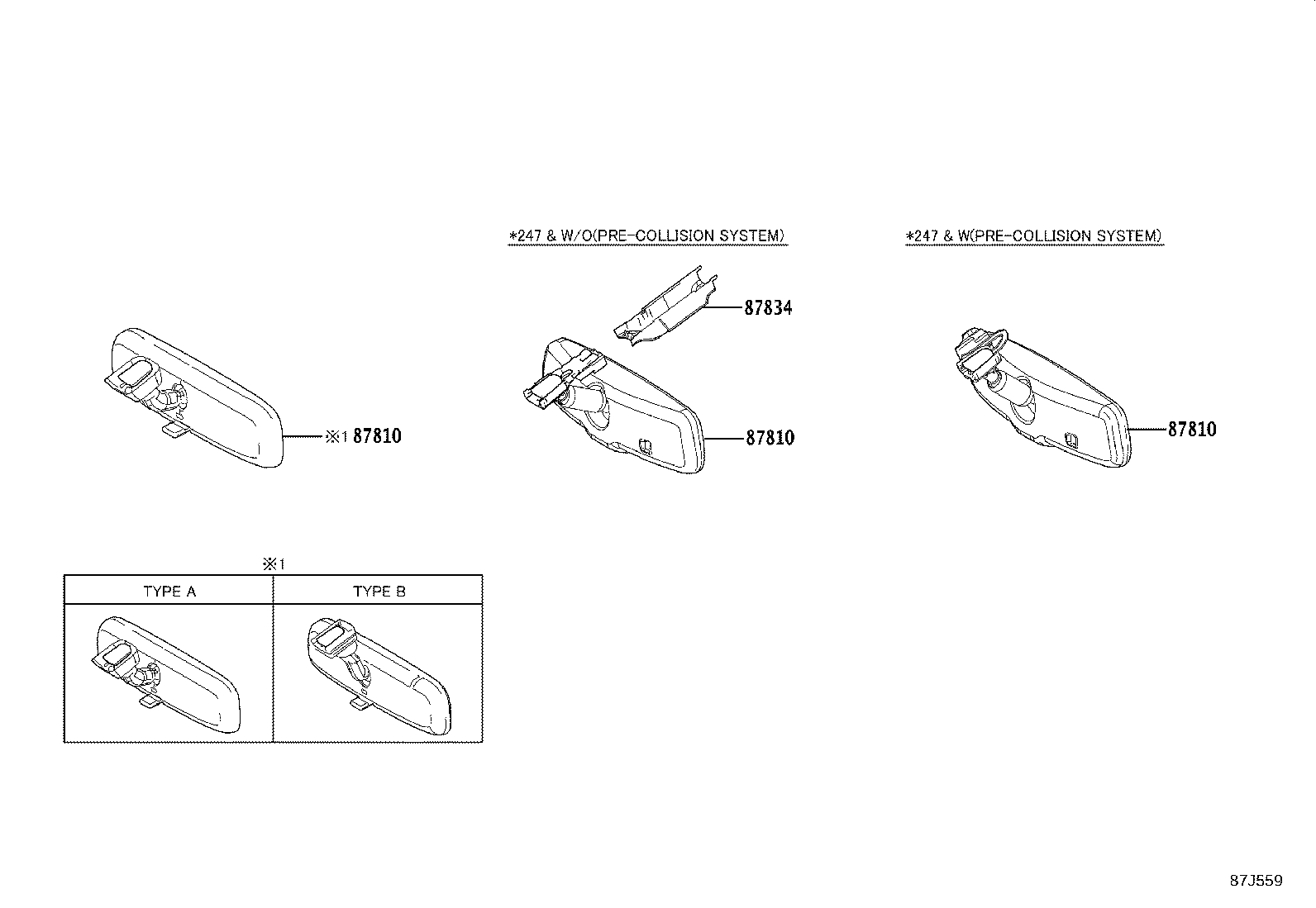

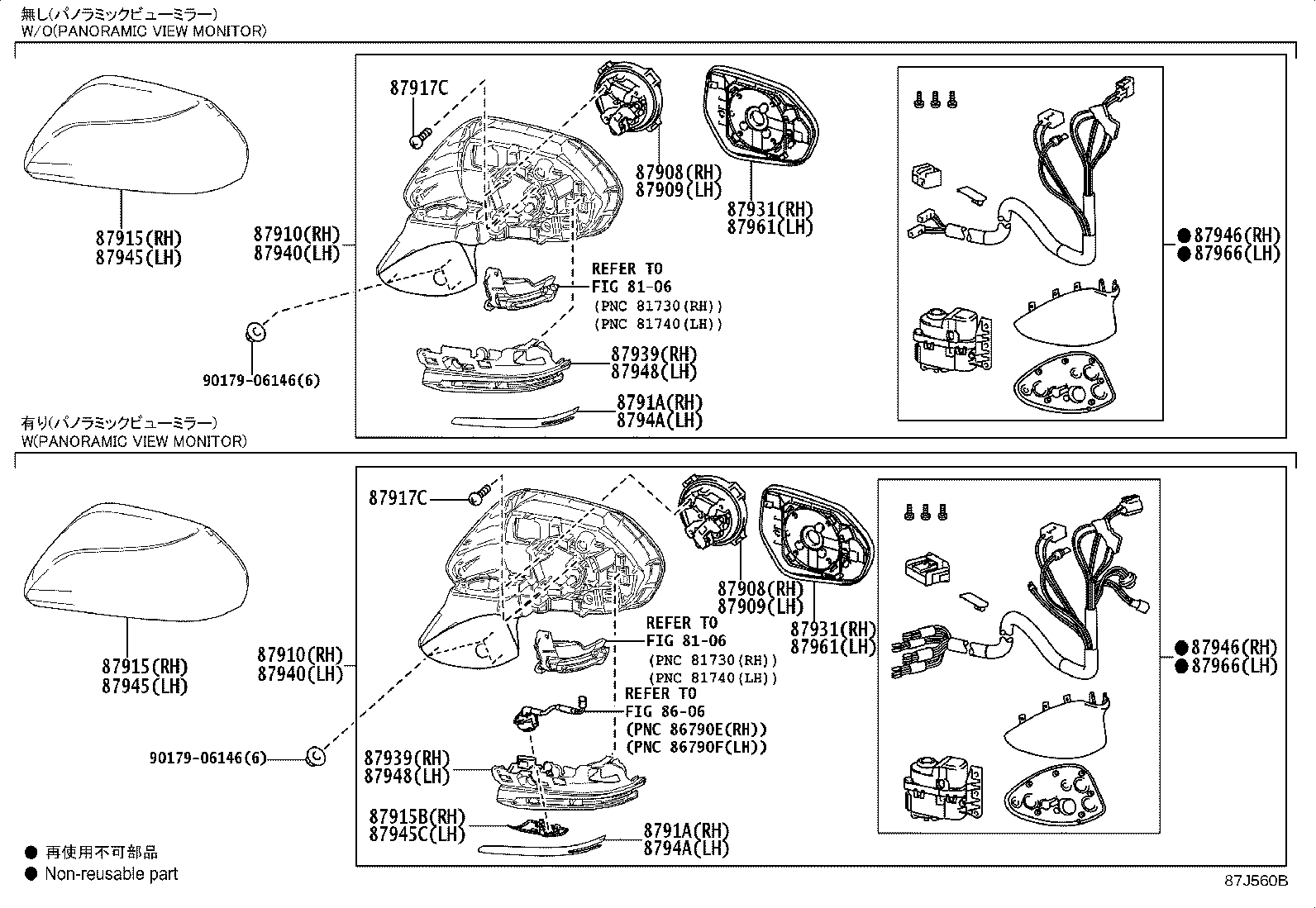

Figure 87G615F 87G615F 2017-09 → 2021-02 Figure 87G615F 87G615F 2021-02 → 2021-04 Figure 87J560B 87J560B 2021-02 → — Figure 87J560B 87J560B 2021-04 → — Figure 87H120 87H120 2017-09 → 2021-02 Figure 87H120 87H120 2021-02 → 2021-04 Figure 87J559 87J559 2021-02 → — Figure 87J559 87J559 2021-04 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87834 Cover, Inner Rear View Mirror Stay Holder
87908 Actuator Assy, Outer Mirror, RH
87909 Actuator Assy, Outer Mirror, LH
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87915B Cover, Outer Mirror, Lower RH
87917C Screw, Outer Mirror
8791A Cover, Outer Mirror, RH NO.2
87931 Outer Mirror, RH
87939 Cover, Outer Mirror Hole, RH
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
87945C Cover, Outer Mirror, Lower LH
87946 Retractor, Outer Mirror, RH
87948 Cover, Outer Mirror Hole, LH
8794A Cover, Outer Mirror, LH NO.2
87961 Mirror Outer, LH
87966 Retractor, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
